ISUZU TROOPER 1998 Service Repair Manual 6A±61 ENGINE MECHANICAL 5. Install lower valve spring seat, valve spring and upper valve spring seat then put split collars on the upper spring seat, using the 5±8840±2446±0 valve spring compresso

Page 1018 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A±62 ENGINE MECHANICAL Replacement of Shim Let the cam push down the edge of tappet by using 5±8840±2444±0 valve clearance adjusting tool and push out the shim with a flat blade screw driver as s

Page 1019 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A±63 ENGINE MECHANICAL Camshaft Camshaft and Associated Parts 014RW040 Legend (1) Camshaft Bracket Fixing Bolt (2) Camshaft Bracket (3) Camshaft Assembly Intake (4) Camshaft Assembly Exhaust (5) Pul

Page 1020 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A±64 ENGINE MECHANICAL 014RW060 2. Remove twenty fixing bolts from inlet and exhaust camshaft bracket on one side bank, then camshaft brackets (2). 014RW027 3. Remove camshaft assembly (3), (4). 4.

Page 1021 of 3573

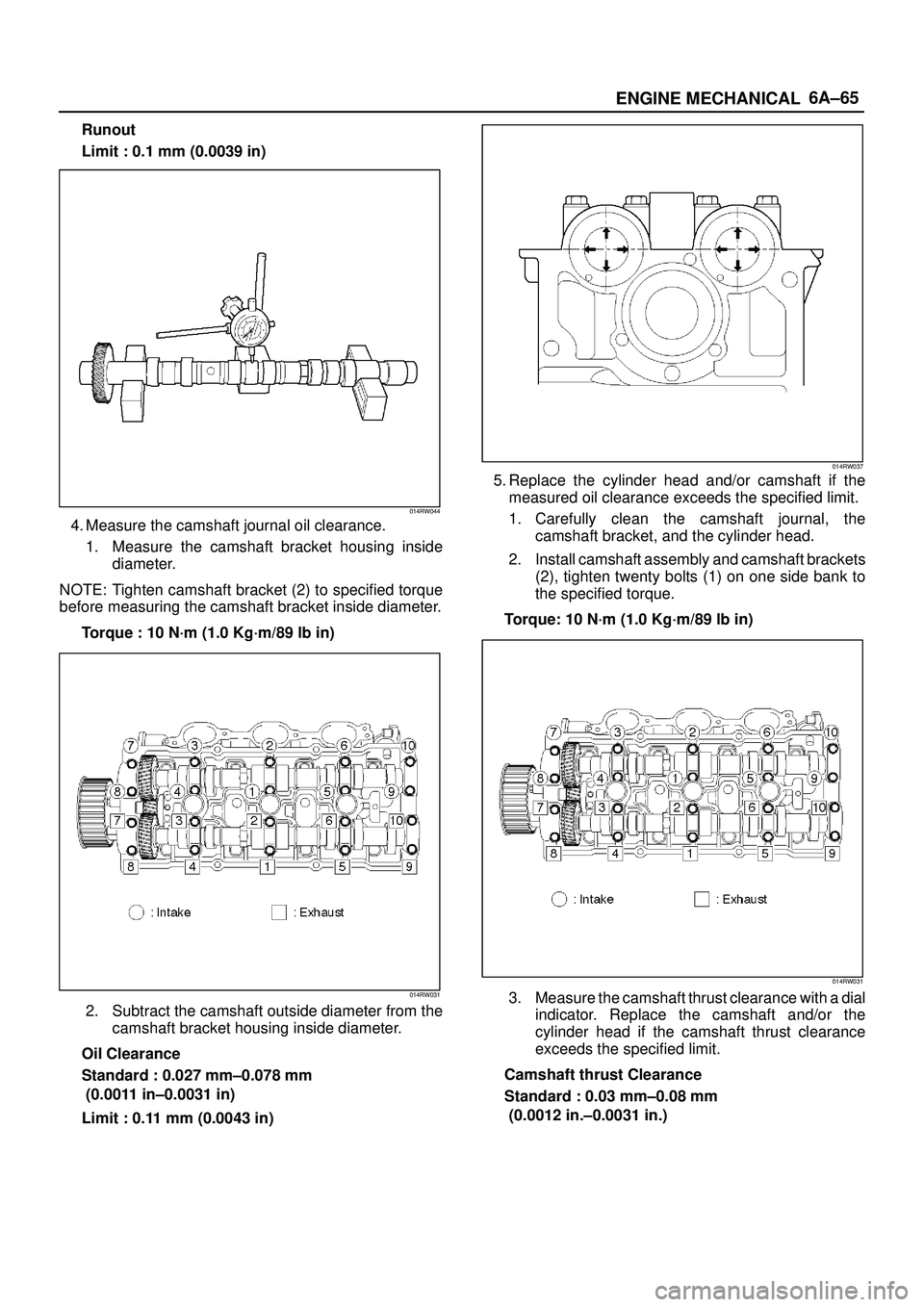

ISUZU TROOPER 1998 Service Repair Manual 6A±65 ENGINE MECHANICAL Runout Limit : 0.1 mm (0.0039 in) 014RW044 4. Measure the camshaft journal oil clearance. 1. Measure the camshaft bracket housing inside diameter. NOTE: Tighten camshaft brack

Page 1022 of 3573

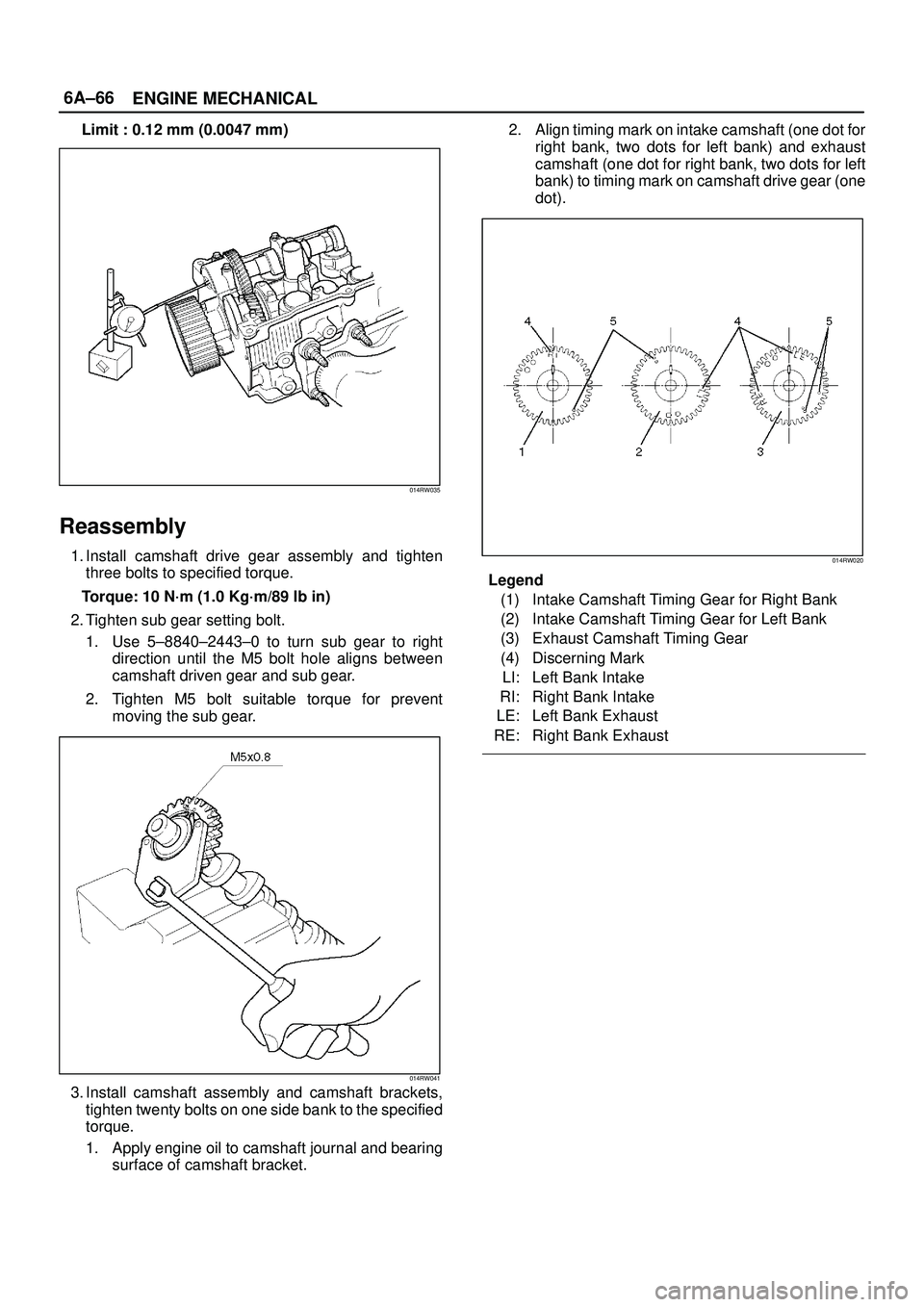

ISUZU TROOPER 1998 Service Repair Manual 6A±66 ENGINE MECHANICAL Limit : 0.12 mm (0.0047 mm) 014RW035 Reassembly 1. Install camshaft drive gear assembly and tighten three bolts to specified torque. Torque: 10 N´m (1.0 Kg´m/89 lb in) 2. Ti

Page 1023 of 3573

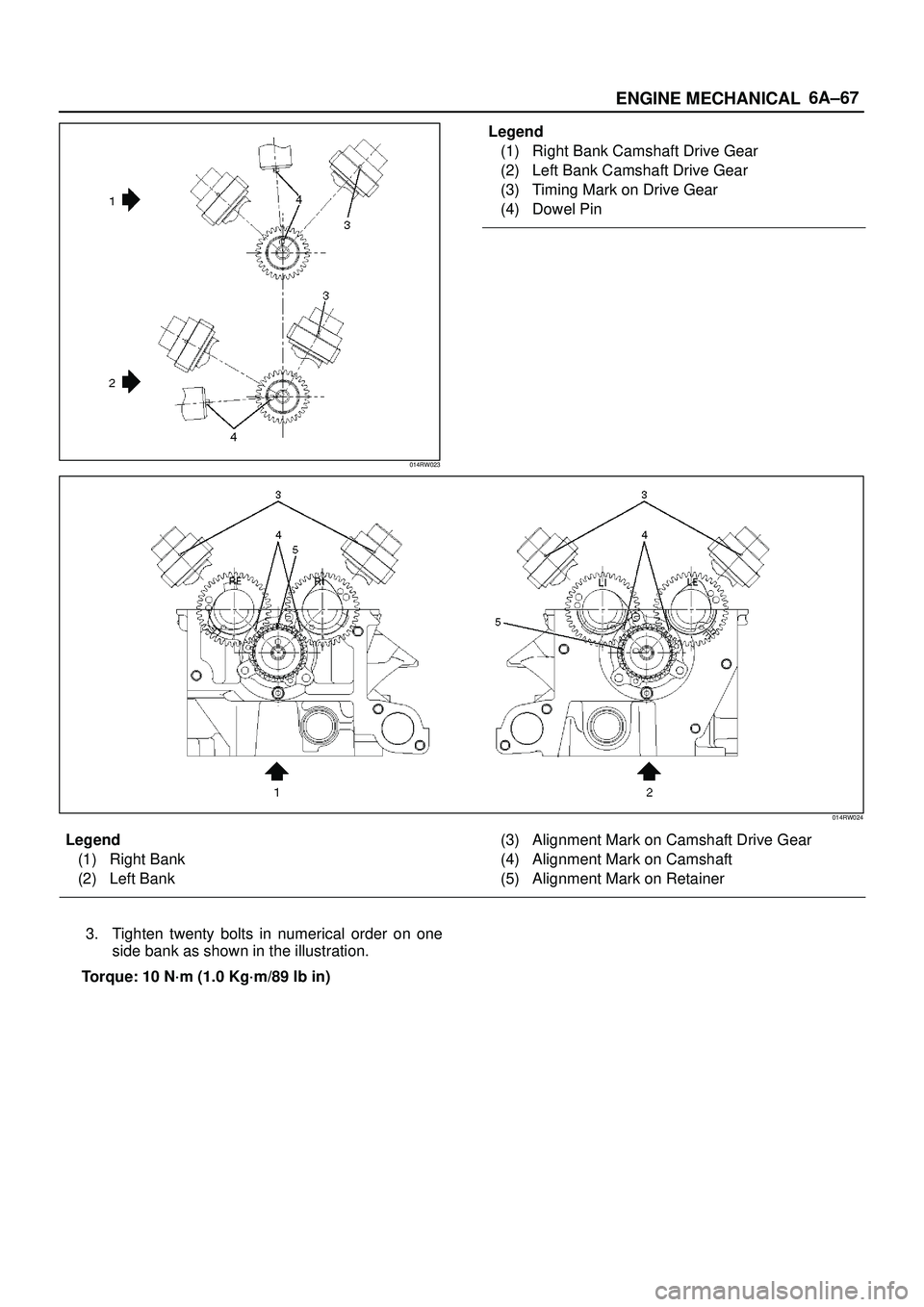

ISUZU TROOPER 1998 Service Repair Manual 6A±67 ENGINE MECHANICAL 014RW023 Legend (1) Right Bank Camshaft Drive Gear (2) Left Bank Camshaft Drive Gear (3) Timing Mark on Drive Gear (4) Dowel Pin 014RW024 Legend (1) Right Bank (2) Left Bank(3

Page 1024 of 3573

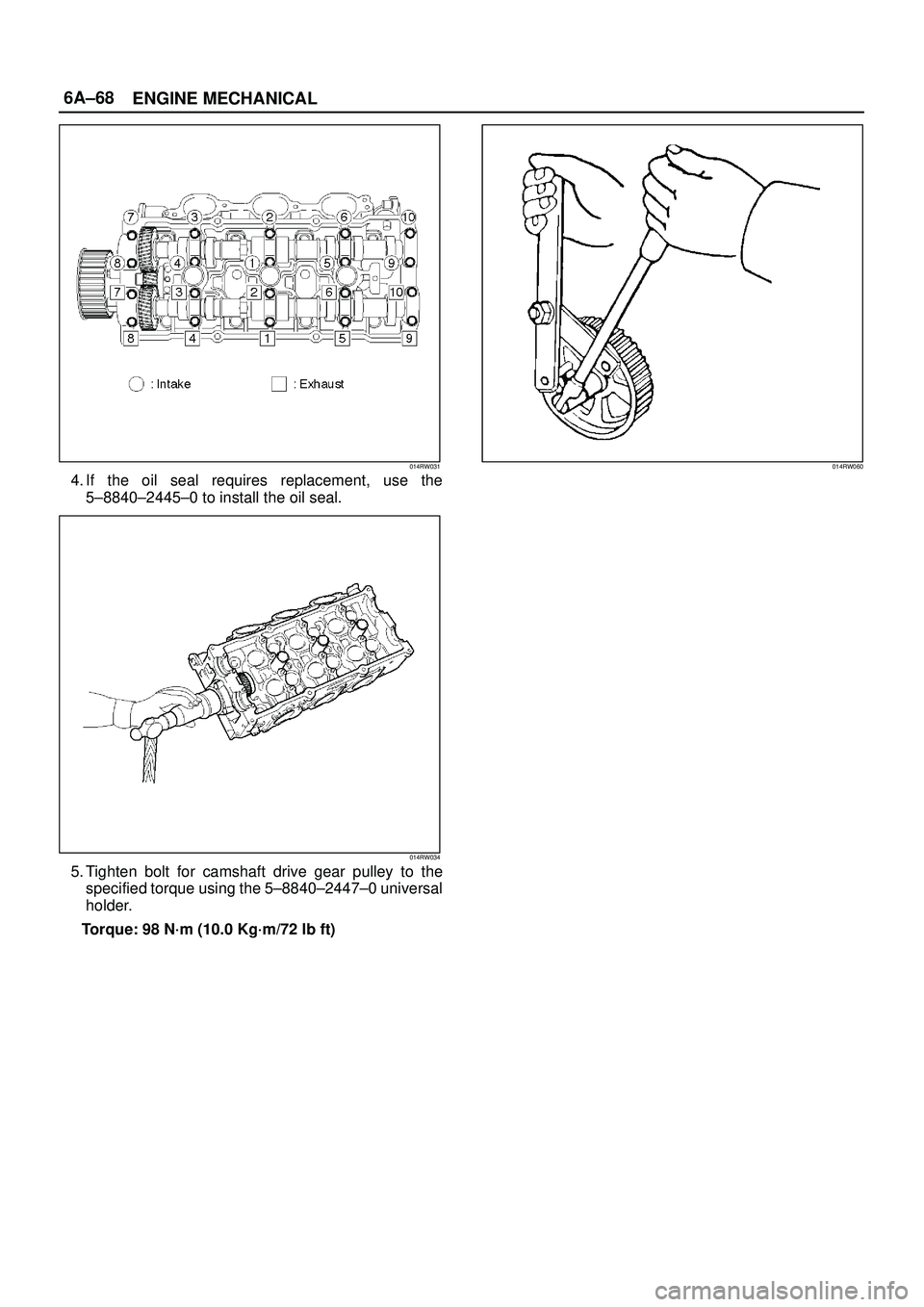

ISUZU TROOPER 1998 Service Repair Manual 6A±68 ENGINE MECHANICAL 014RW031 4. If the oil seal requires replacement, use the 5±8840±2445±0 to install the oil seal. 014RW034 5. Tighten bolt for camshaft drive gear pulley to the specified to
