Page 2569 of 3573
8A–30LIGHTING SYSTEM
Power drive1.4w1Meter
Winter drive1.4w1Meter
Air bag2w1Meter
Engine warming SW0.84w1
FRT fog light SW0.84w1
RR fog light SW0.84w1
Glove box1.2w1
Ashtray1.4w1
Illumination controller0.7w1
Heater bezel150mA2
Hazard warning light SW0.84w1
Meter3.4w4Meter ASM
IlluminationCigar lighter1.4w1Light
Rear wiper & washer SW0.84w1
Rear defogger SW0.84w1
Mirror control SW45mA1
Mirror defogger SW0.7w1
Mirror folding SW0.7w1
A/T select lever1.2w1
Power & Winter SW50mA2
Cruise control main SW0.84w1
Headlight wiper SW0.84w1
Torque Specifications
ApplicationN·mkg·mLb FtLb In
Steering Shaft Nut343.525—
Page 2570 of 3573

WIPER/WASHER SYSTEM8B–1
WIPER / WASHER SYSTEM
CONTENTS
Service Precaution 8B–2. . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper/Washer System 8B–2. . . . . . . . .
General Description 8B–2. . . . . . . . . . . . . . . . . . . . .
Windshield Wiper And Washer Switch 8B–2. . . . .
Removal and Installation 8B–2. . . . . . . . . . . . . . .
Windshield Wiper Motor 8B–2. . . . . . . . . . . . . . . . . .
Removal 8B–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Washer Motor 8B–3. . . . . . . . . . . . . . . .
Removal 8B–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Linkage 8B–4. . . . . . . . . . . . . . . .
Windshield Wiper Linkage and
Associated Parts 8B–4. . . . . . . . . . . . . . . . . . . . . .
Removal 8B–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Arm/Blade 8B–5. . . . . . . . . . . . . .
Removal 8B–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Blade Rubber 8B–6. . . . . . . . . . .
Removal 8B–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Wiper/Washer System 8B–7. . . . . . . . . . . . . .
General Description 8B–7. . . . . . . . . . . . . . . . . . . . .
Rear Wiper and Washer Switch 8B–7. . . . . . . . . . .
Removal 8B–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Wiper Motor 8B–8. . . . . . . . . . . . . . . . . . . . . . .
Removal 8B–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . Alarm & Relay Control Unit 8B–9. . . . . . . . . . . . . . .
Removal 8B–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Washer Motor 8B–9. . . . . . . . . . . . . . . . . . . . . .
Removal 8B–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Wiper Arm/Blade 8B–10. . . . . . . . . . . . . . . . . . .
Removal 8B–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Washer Nozzle 8B–10. . . . . . . . . . . . . . . . . . . . .
Removal 8B–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Washer Nozzle Angle Adjustment 8B–10. . .
Rear Wiper Blade Rubber 8B–11. . . . . . . . . . . . . . . .
Removal and Installation 8B–11. . . . . . . . . . . . . . .
Headlight Wiper/Washer 8B–11. . . . . . . . . . . . . . . . .
General Description 8B–11. . . . . . . . . . . . . . . . . . . . .
Headlight Wiper and Washer Switch 8B–12. . . . . . .
Removal 8B–12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight Wiper Arm & Blade 8B–13. . . . . . . . . . . . .
Removal 8B–13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight Wiper Motor 8B–13. . . . . . . . . . . . . . . . . . .
Removal 8B–13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight Washer Motor 8B–14. . . . . . . . . . . . . . . . .
Removal and Installation 8B–14. . . . . . . . . . . . . . .
Main Data and Specifications 8B–14. . . . . . . . . . . . .
Page 2571 of 3573

8B–2WIPER/WASHER SYSTEM
Service Precaution
WARNING: I F S O E Q U IPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
Windshield Wiper/Washer System
General Description
The circuit consists of the starter switch, windshield wiper
& washer switch, windshield wiper motor, windshield
washer motor and windshield intermittent relay.When the wiper & washer switch is turned on with the
starter switch on, the battery voltage is applied to the
wiper motor to activate the wiper.
The washer motor squirts glass cleaning fluid while the
washer switch is being pushed. The intermittent relay is
used to control motion of the wiper.
Windshield Wiper And Washer Switch
Removal and Installation
Refer to the Lighting Switch (Combination Switch) in
Lighting System section.
Windshield Wiper Motor
Removal
1. Disconnect the battery ground cable.
2. Disconnect the connector.
3. Remove 4 mounting bolts.
4. Remove the windshield wiper motor(1).
880RW007
Installation
To install, follow the removal steps in the reverse order.
Page 2572 of 3573
WIPER/WASHER SYSTEM8B–3
Windshield Washer Motor
Removal
1. Disconnect the battery ground cable.
2. Remove the fender inner liner (right side) (1).
3. Remove the screws and then remove the front
combination light(2).
4. Remove 2 screws, the filler neck and the hose.
5. Disconnect the windshield washer motor connector
and remove the washer tank (4).
6. Pull the windshield washer motor(3) from the washer
tank(4).
880RS006
Installation
To install, follow the removal steps in the reverse order.
Page 2573 of 3573
8B–4WIPER/WASHER SYSTEM
Windshield Wiper Linkage
Windshield Wiper Linkage and Associated Parts
880RW008
Legend
(1) Windshield Wiper Arm/Blade
(2) Vent Cowl Cover(3) Windshield Wiper Linkage Assembly
(4) Windshield Wiper Motor
Removal
1. Disconnect the battery ground cable.
2. Remove the windshield wiper arm/blade.
3. Remove the windshield wiper motor.
4. Remove the pivot assembly mounting nuts, fixing
screws and then remove the vent cowl cover.
5. Take out the windshield wiper linkage assembly from
the opening of the cowl.
Installation
To install, follow the removal steps in the reverse order.
Page 2574 of 3573
WIPER/WASHER SYSTEM8B–5
Windshield Wiper Arm/Blade
Removal
1. Pry the cap(2) off with the tip of a screwdriver.
2. Remove the nut(3).
3. Remove the wiper/blade(1).
880RS005
Installation
To install, follow the removal steps in the reverse order,
noting the following points.
880RS004
1. Wiper arm/blade
Before installing the wiper arm/blade to the shaft,
confirm that the motor stops at the auto-stop
position.
Set the wiper arm/blade so that the tips of both
blades are positioned about 35 mm (1.37 in) from
the upper edge of the cowl cover as shown in the
figure.
Tighten the nuts to the specified torque.
Torque: 31 N·m (3.2 kg·m/23 lb ft)
Page 2575 of 3573
8B–6WIPER/WASHER SYSTEM
Windshield Wiper Blade Rubber
Removal
1. Push the wiper blade lock(1) while pulling the wiper
blade in the arrow direction as shown in the figure.
CAUTION: W h e n t h e w i p e r b l a d e h a s b e e n
removed, wrap the tip of the wiper arm with cloth, to
avoid damaging the glass.
880RS011
2. Pull the end of rubber and remove the projection(3)
from the click of the blade stay (2).
880RS010
3. Pull the rubber out in the same direction.
Installation
To install, follow the removal steps in the reverse order,
noting the following points.
1. Install the click of the blade stay in the groove of the
new rubber and slide it in. Complete wiper blade
installation by pushing the click.
885RS002
2. Finally, check that the click of the stay has caught in
the hole of the rubber.
885RS001
Page 2576 of 3573

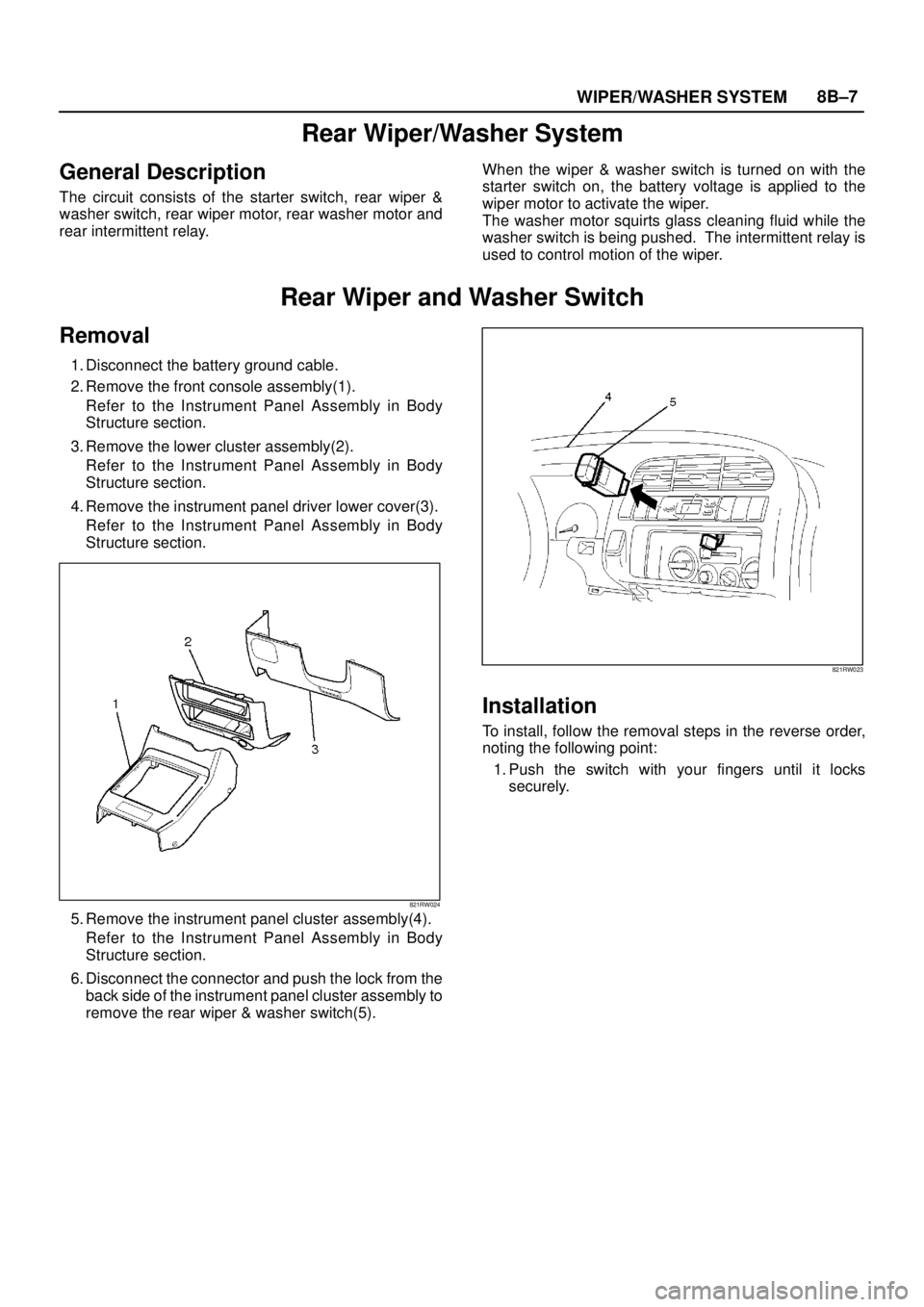

WIPER/WASHER SYSTEM8B–7
Rear Wiper/Washer System
General Description
The circuit consists of the starter switch, rear wiper &
washer switch, rear wiper motor, rear washer motor and
rear intermittent relay.When the wiper & washer switch is turned on with the
starter switch on, the battery voltage is applied to the
wiper motor to activate the wiper.
The washer motor squirts glass cleaning fluid while the
washer switch is being pushed. The intermittent relay is
used to control motion of the wiper.
Rear Wiper and Washer Switch
Removal
1. Disconnect the battery ground cable.
2. Remove the front console assembly(1).
Refer to the Instrument Panel Assembly in Body
Structure section.
3. Remove the lower cluster assembly(2).
Refer to the Instrument Panel Assembly in Body
Structure section.
4. Remove the instrument panel driver lower cover(3).
Refer to the Instrument Panel Assembly in Body
Structure section.
821RW024
5. Remove the instrument panel cluster assembly(4).
Refer to the Instrument Panel Assembly in Body
Structure section.
6. Disconnect the connector and push the lock from the
back side of the instrument panel cluster assembly to
remove the rear wiper & washer switch(5).
821RW023
Installation
To install, follow the removal steps in the reverse order,
noting the following point:
1. Push the switch with your fingers until it locks
securely.
