ISUZU TROOPER 1998  Service Repair Manual MANUAL TRANSMISSION7B±19

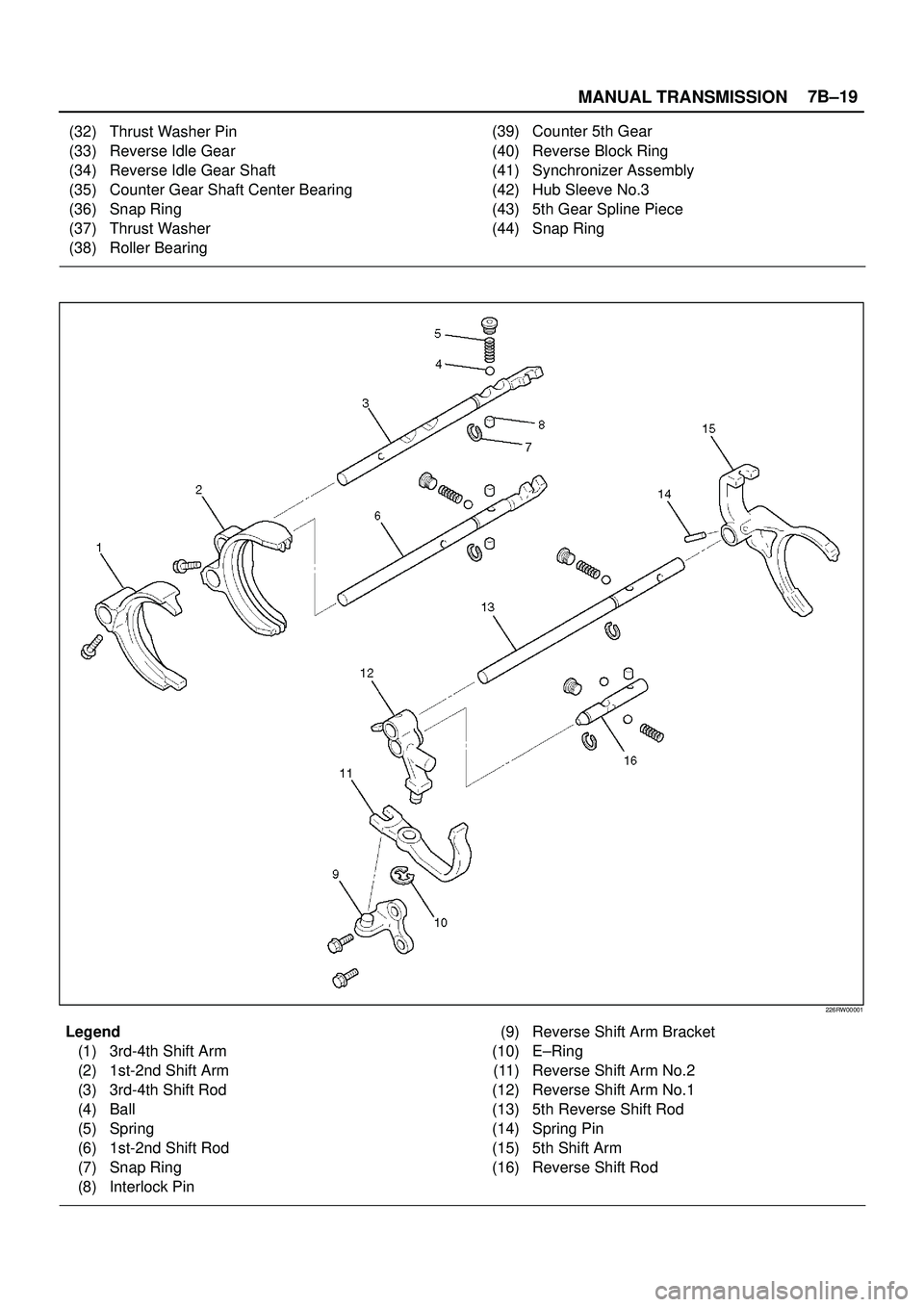

(32) Thrust Washer Pin
(33) Reverse Idle Gear
(34) Reverse Idle Gear Shaft
(35) Counter Gear Shaft Center Bearing
(36) Snap Ring
(37) Thrust Washer
(38) Roller Bearing(39) Co

Page 2338 of 3573

ISUZU TROOPER 1998  Service Repair Manual 7B±20MANUAL TRANSMISSION
220RW095

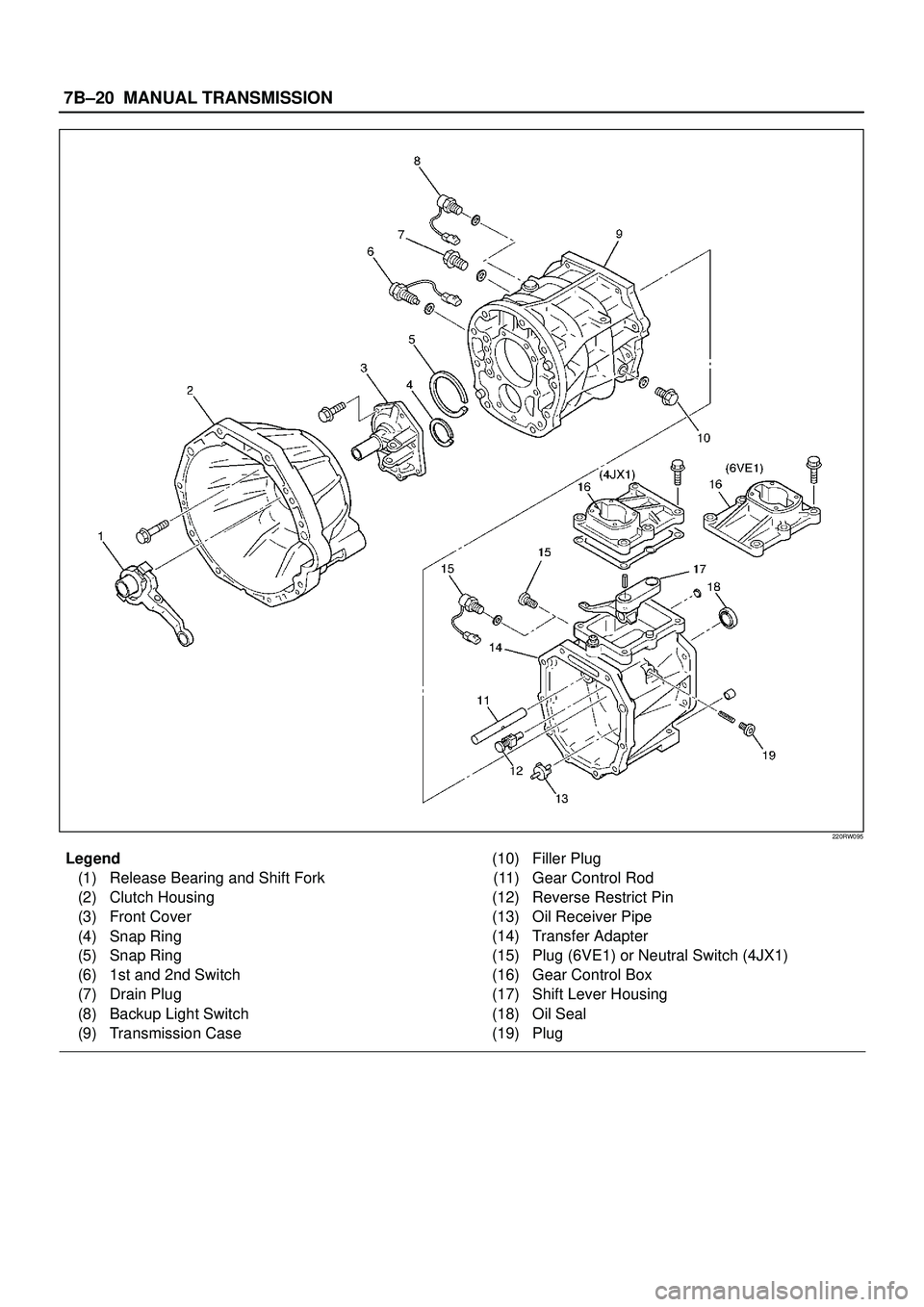

Legend
(1) Release Bearing and Shift Fork
(2) Clutch Housing
(3) Front Cover
(4) Snap Ring
(5) Snap Ring
(6) 1st and 2nd Switch
(7) Drain Plug
(8) Backup Light Switc

Page 2339 of 3573

ISUZU TROOPER 1998  Service Repair Manual MANUAL TRANSMISSION7B±21

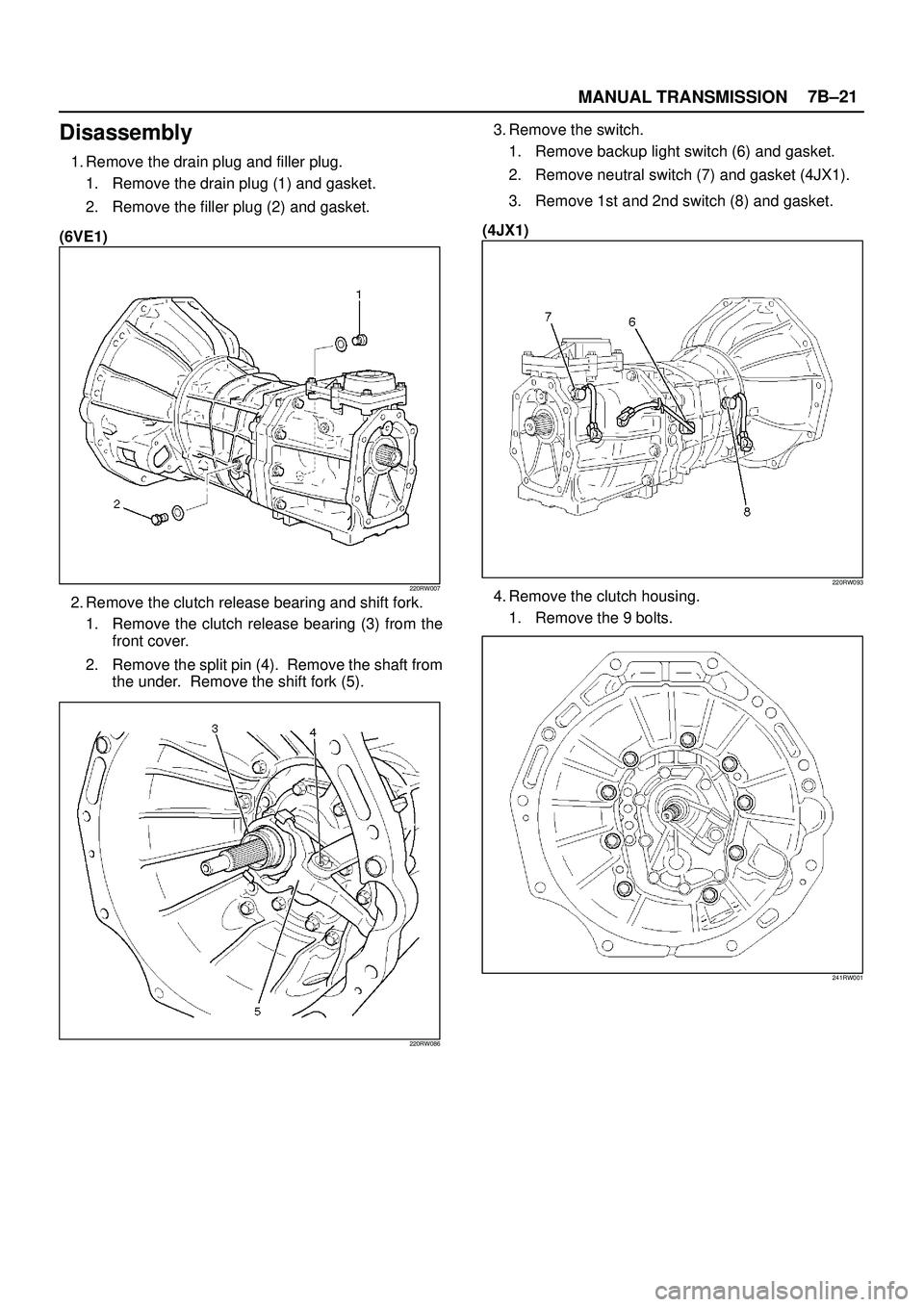

Disassembly
1. Remove the drain plug and filler plug.
1. Remove the drain plug (1) and gasket.
2. Remove the filler plug (2) and gasket.
(6VE1)
220RW007
2. Remove the clutch

Page 2340 of 3573

ISUZU TROOPER 1998  Service Repair Manual 7B±22MANUAL TRANSMISSION

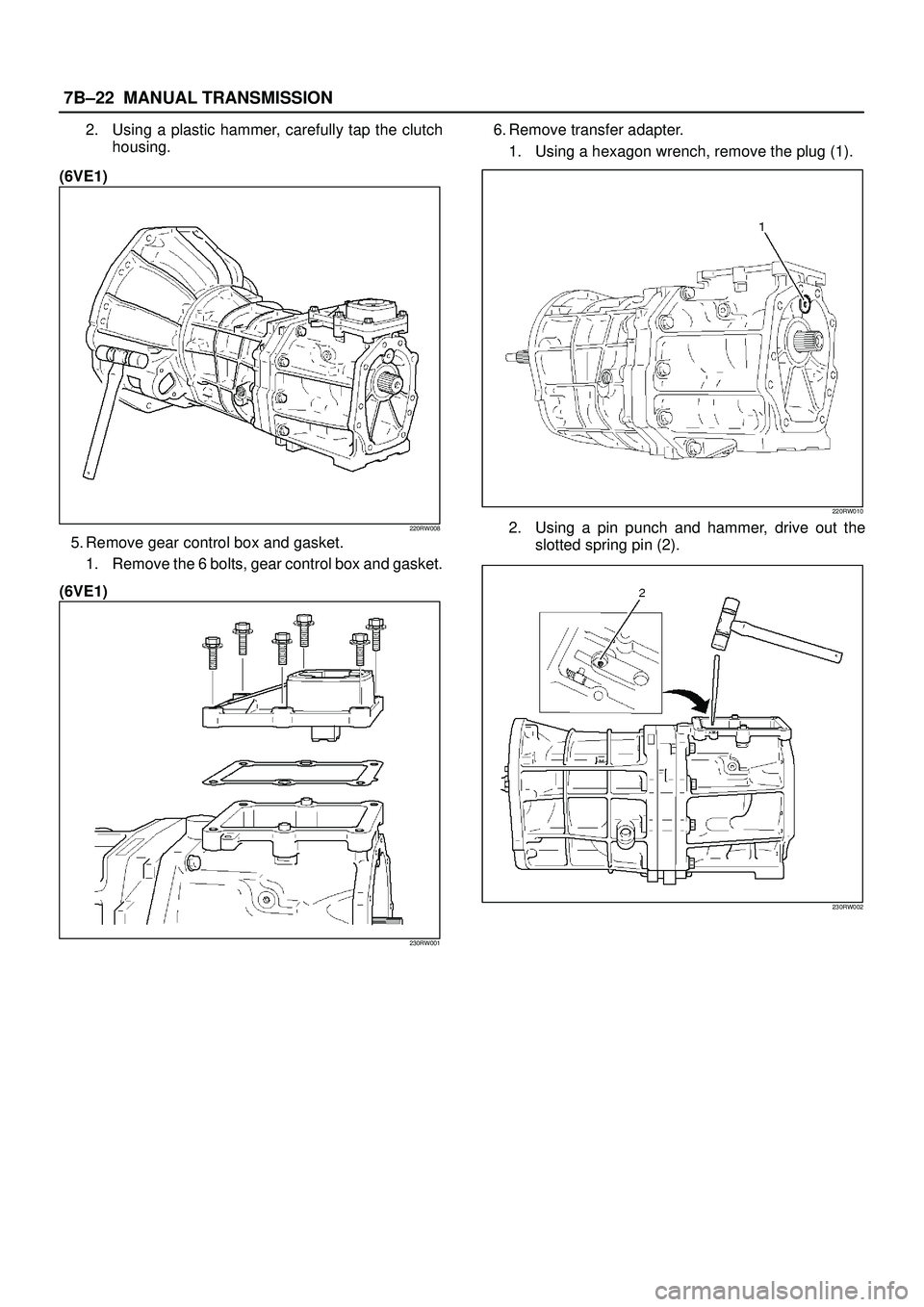

2. Using a plastic hammer, carefully tap the clutch
housing.
(6VE1)
220RW008
5. Remove gear control box and gasket.
1. Remove the 6 bolts, gear control box and gasket.
(6VE1)

Page 2341 of 3573

ISUZU TROOPER 1998  Service Repair Manual MANUAL TRANSMISSION7B±23

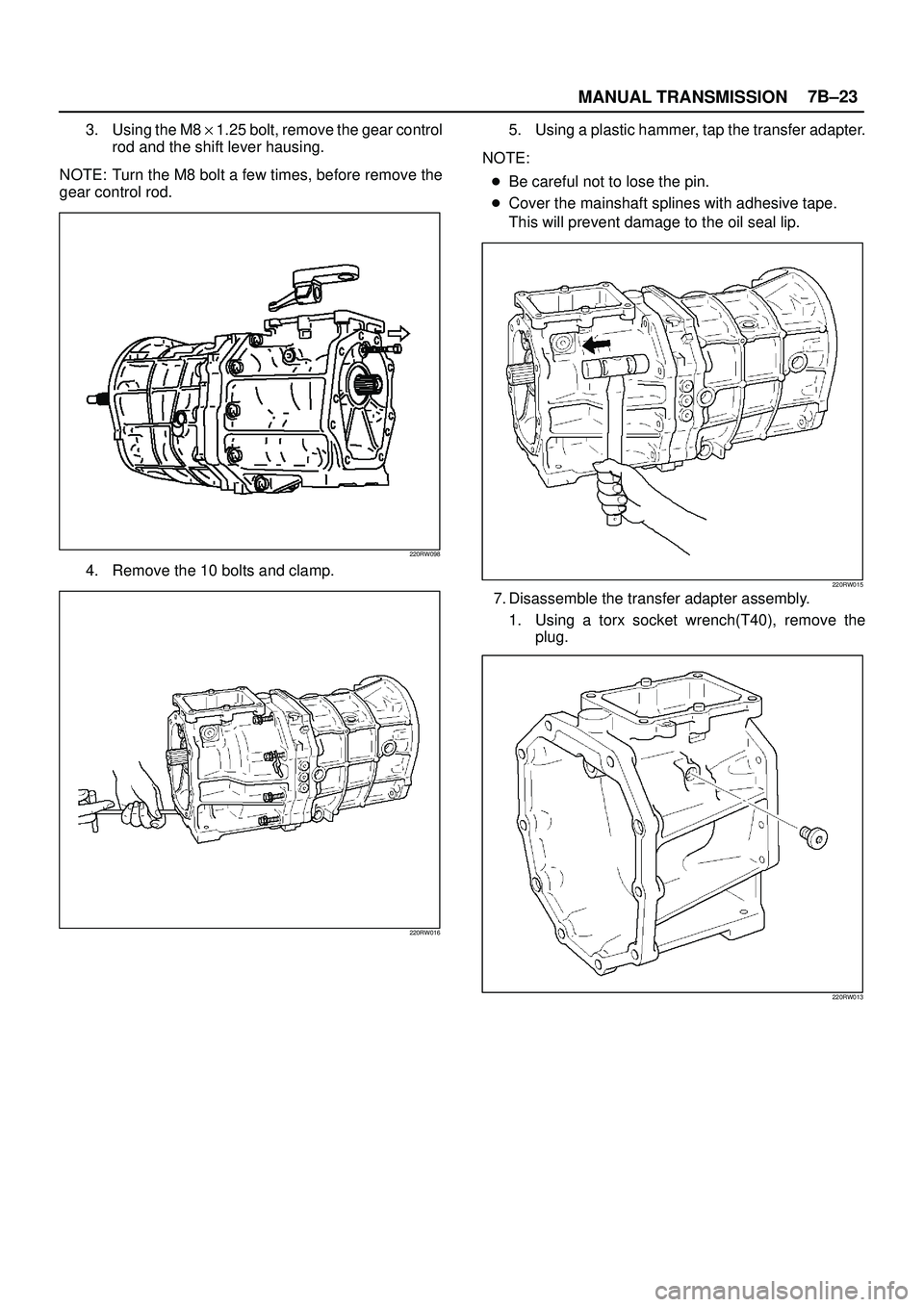

3. Using the M8 y 1.25 bolt, remove the gear control
rod and the shift lever hausing.
NOTE: Turn the M8 bolt a few times, before remove the
gear control rod.
220RW098
4. Remo

Page 2342 of 3573

ISUZU TROOPER 1998  Service Repair Manual 7B±24MANUAL TRANSMISSION

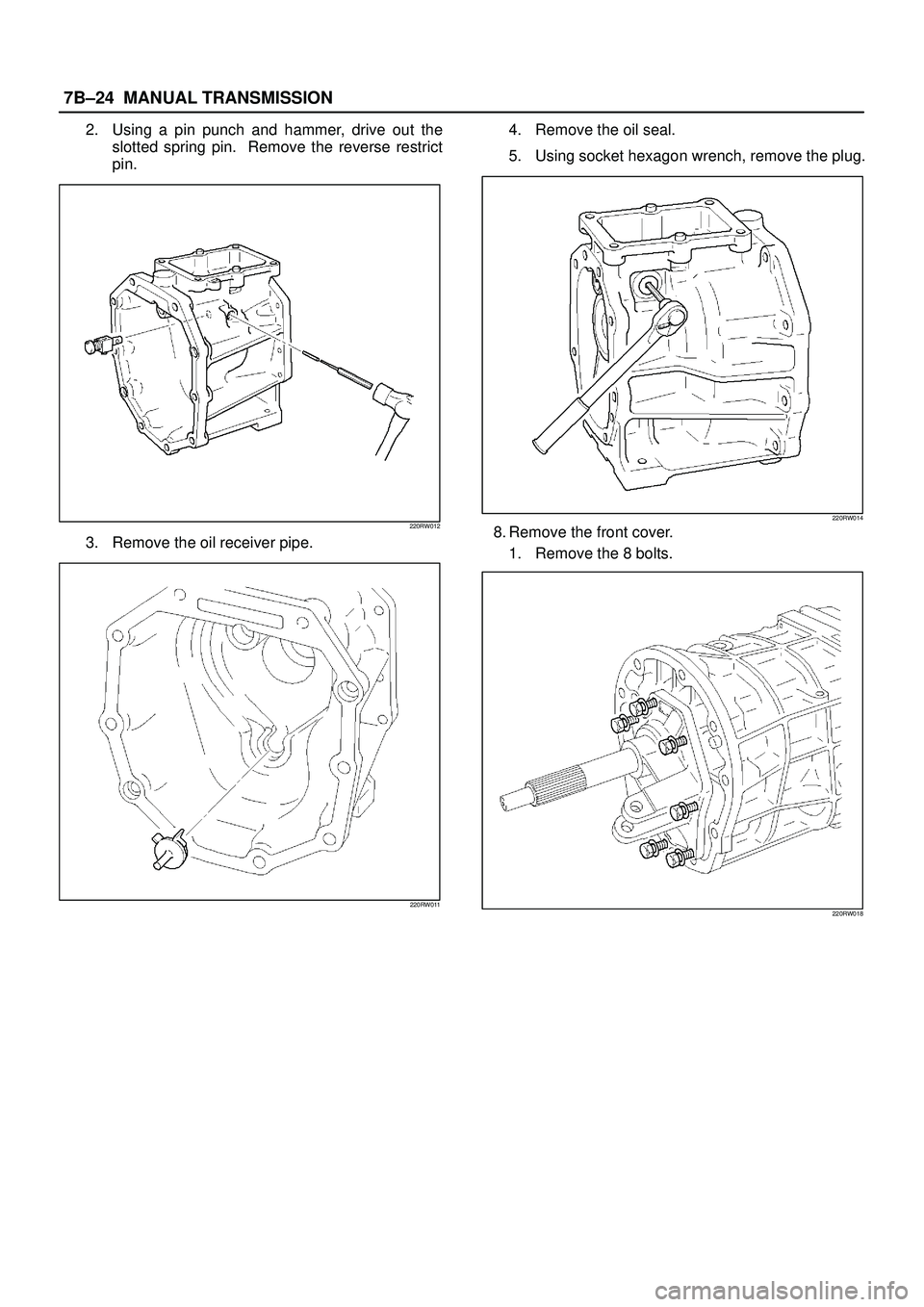

2. Using a pin punch and hammer, drive out the
slotted spring pin.  Remove the reverse restrict
pin.
220RW012
3. Remove the oil receiver pipe.
220RW011
4. Remove the oil seal

Page 2343 of 3573

ISUZU TROOPER 1998  Service Repair Manual MANUAL TRANSMISSION7B±25

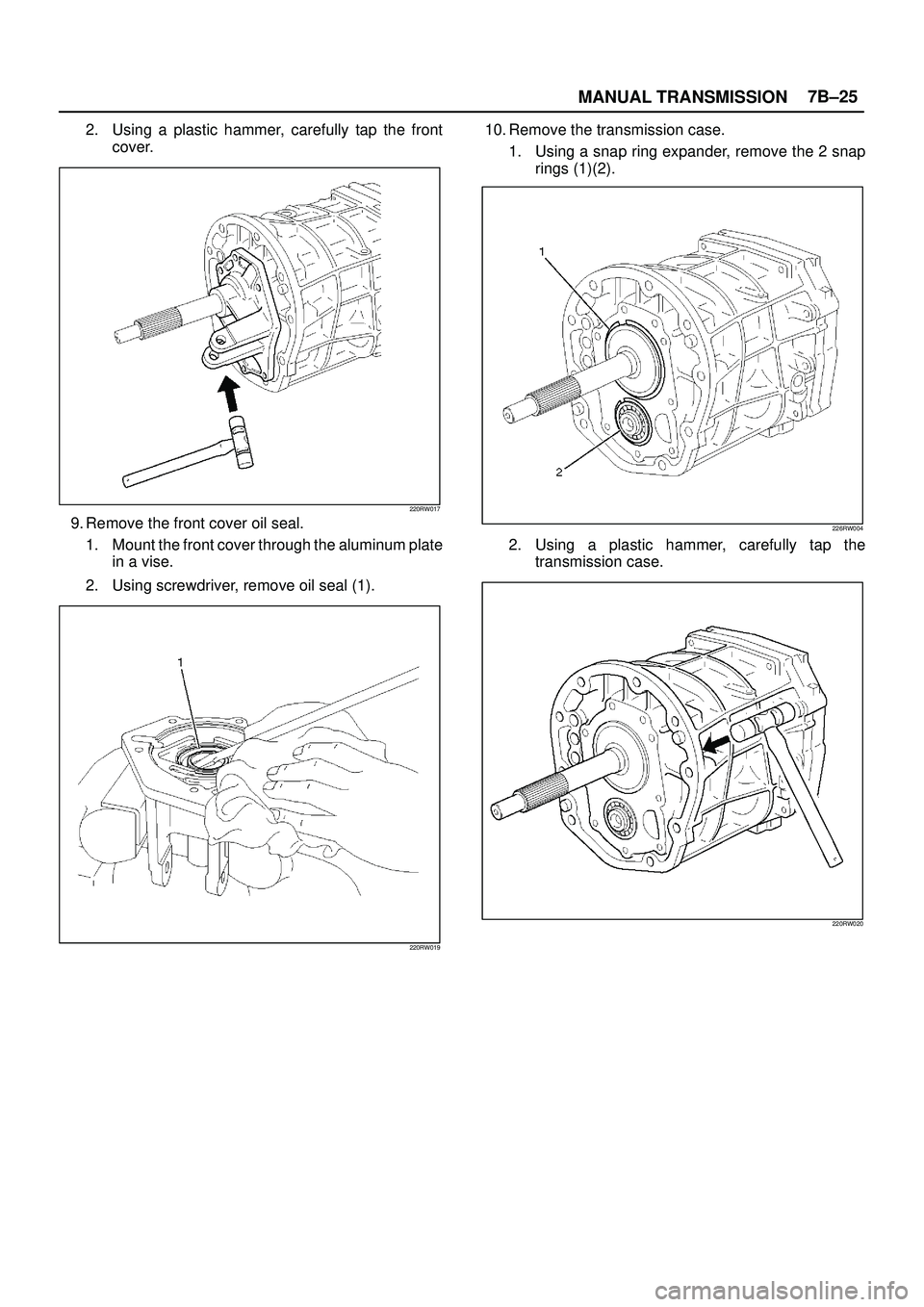

2. Using a plastic hammer, carefully tap the front
cover.
220RW017
9. Remove the front cover oil seal.
1. Mount the front cover through the aluminum plate
in a vise.
2. Using

Page 2344 of 3573

ISUZU TROOPER 1998  Service Repair Manual 7B±26MANUAL TRANSMISSION

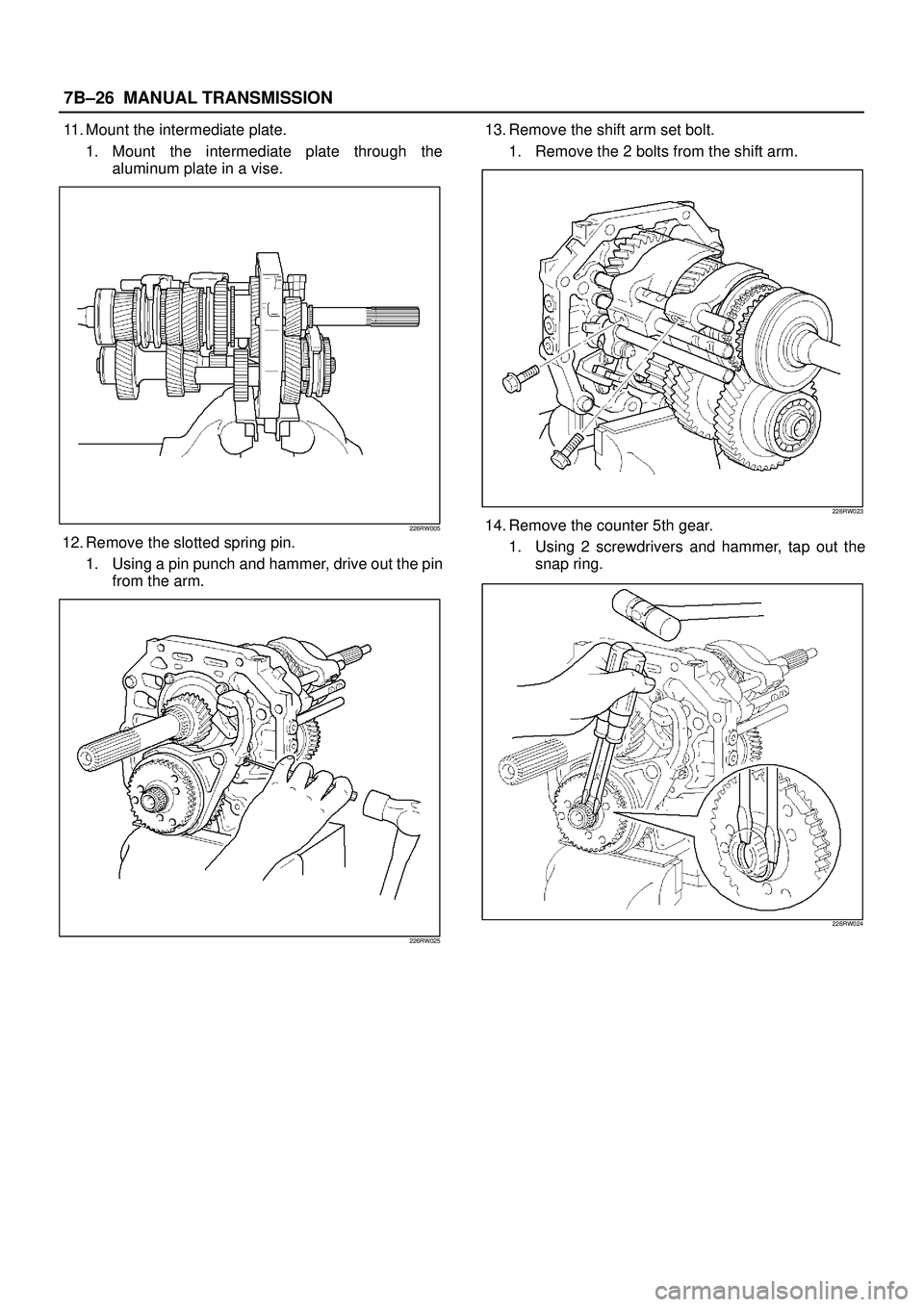

11. Mount the intermediate plate.
1. Mount the intermediate plate through the
aluminum plate in a vise.
226RW005
12. Remove the slotted spring pin.
1. Using a pin punch and h
