Page 3257 of 3573

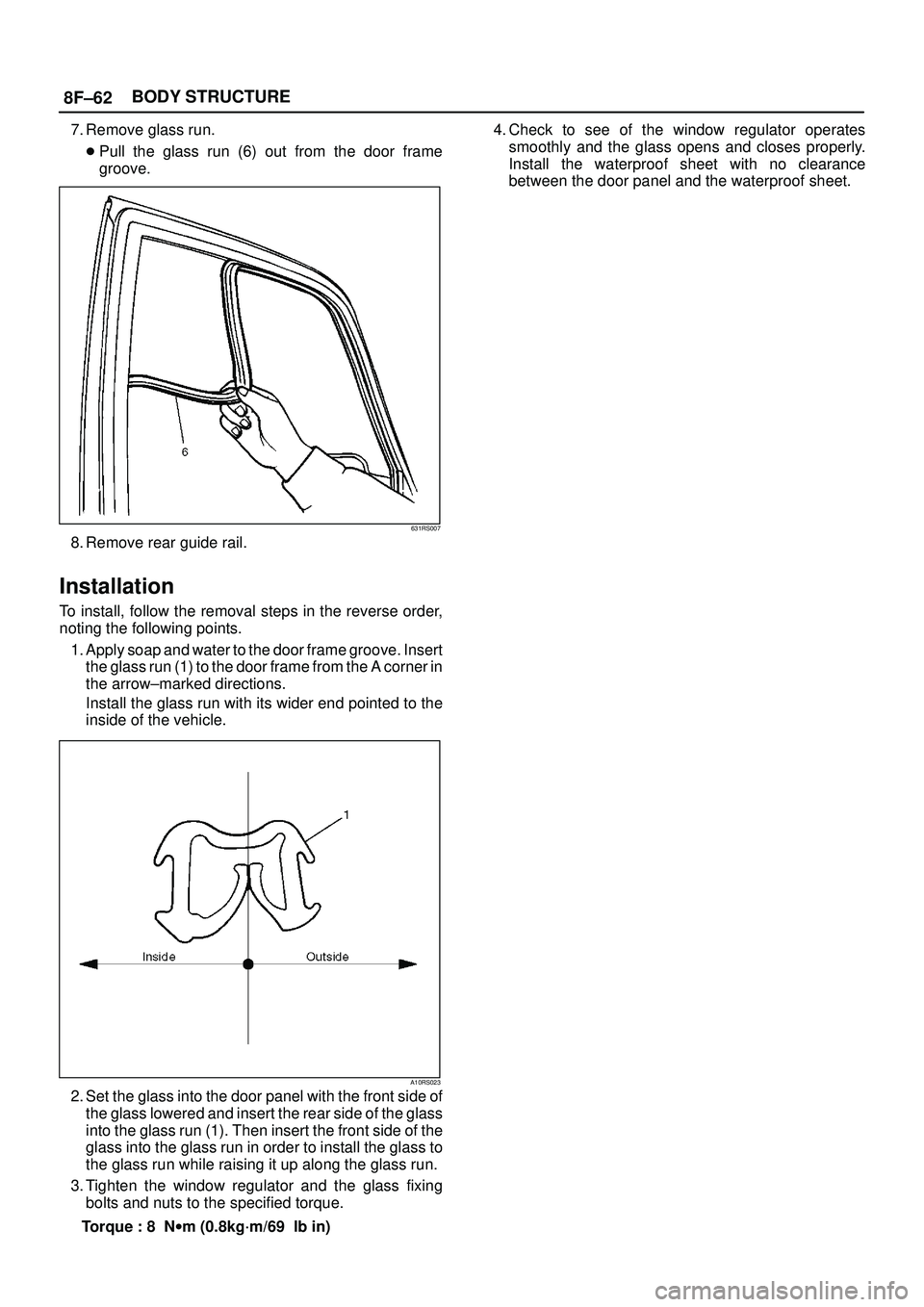

ISUZU TROOPER 1998 Service Repair Manual 8F±62BODY STRUCTURE 7. Remove glass run. Pull the glass run (6) out from the door frame groove. 631RS007 8. Remove rear guide rail. Installation To install, follow the removal steps in the reverse o

Page 3258 of 3573

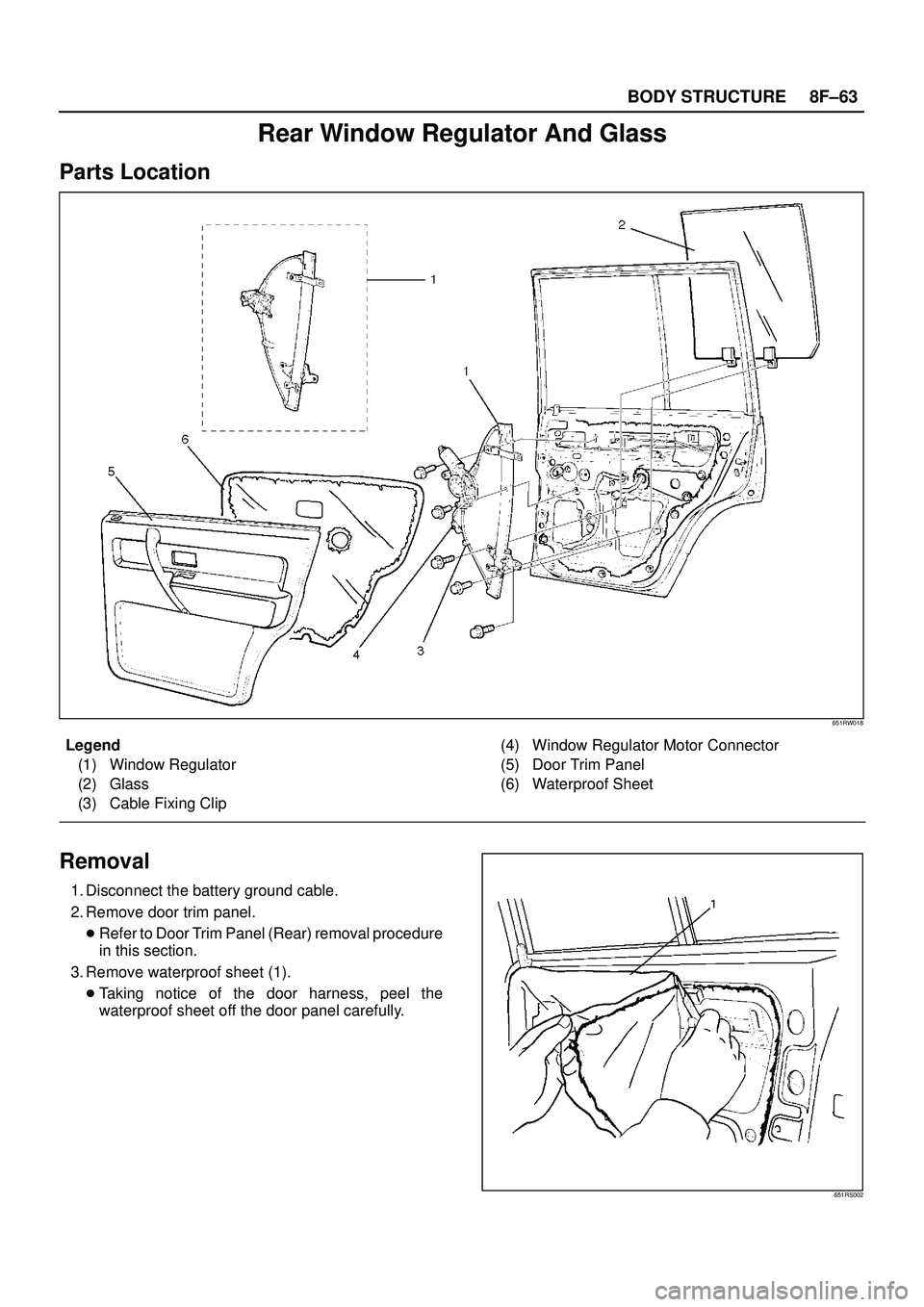

ISUZU TROOPER 1998 Service Repair Manual 8F±63 BODY STRUCTURE Rear Window Regulator And Glass Parts Location 651RW018 Legend (1) Window Regulator (2) Glass (3) Cable Fixing Clip(4) Window Regulator Motor Connector (5) Door Trim Panel (6) Wa

Page 3259 of 3573

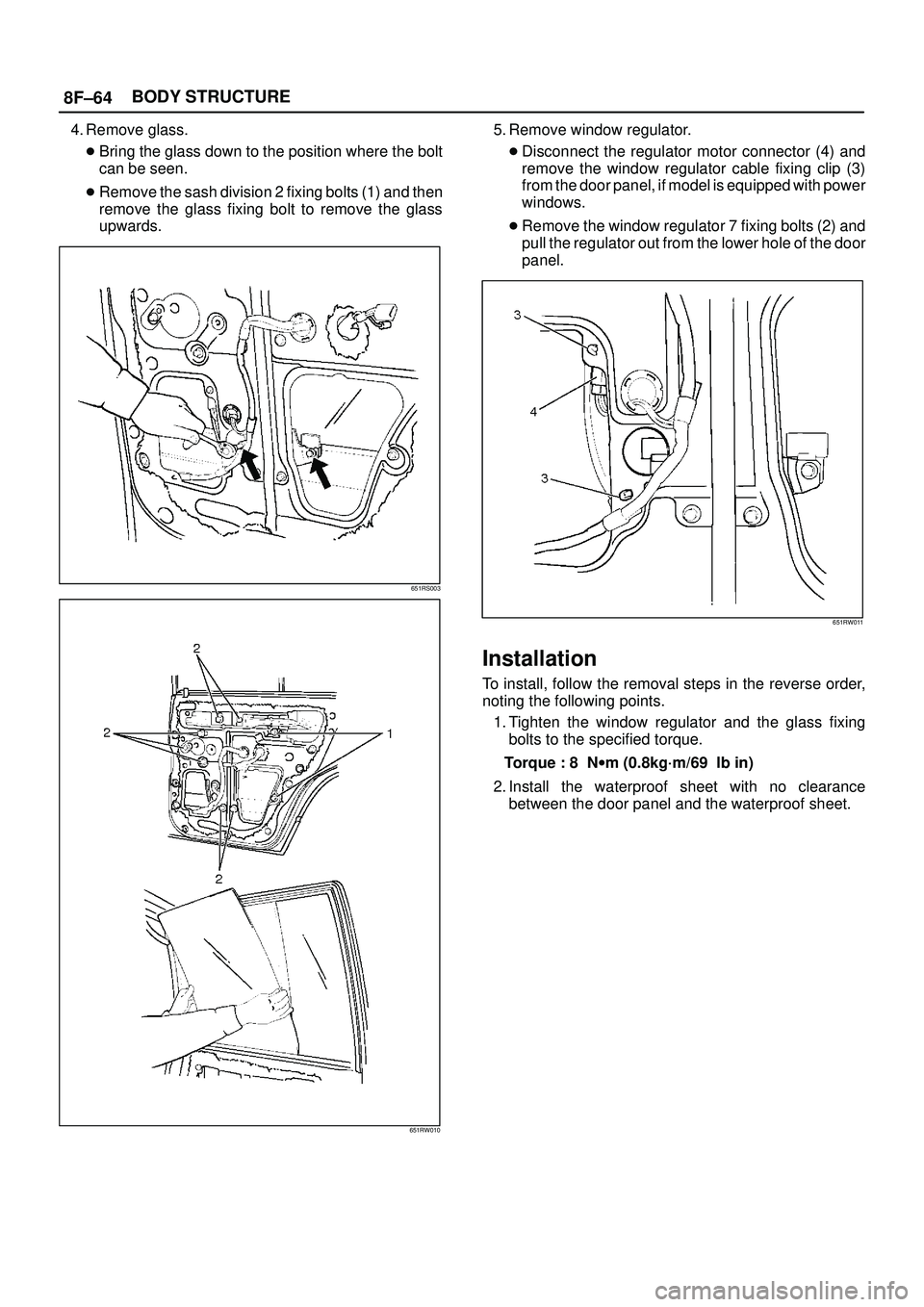

ISUZU TROOPER 1998 Service Repair Manual 8F±64BODY STRUCTURE 4. Remove glass. Bring the glass down to the position where the bolt can be seen. Remove the sash division 2 fixing bolts (1) and then remove the glass fixing bolt to remove th

Page 3260 of 3573

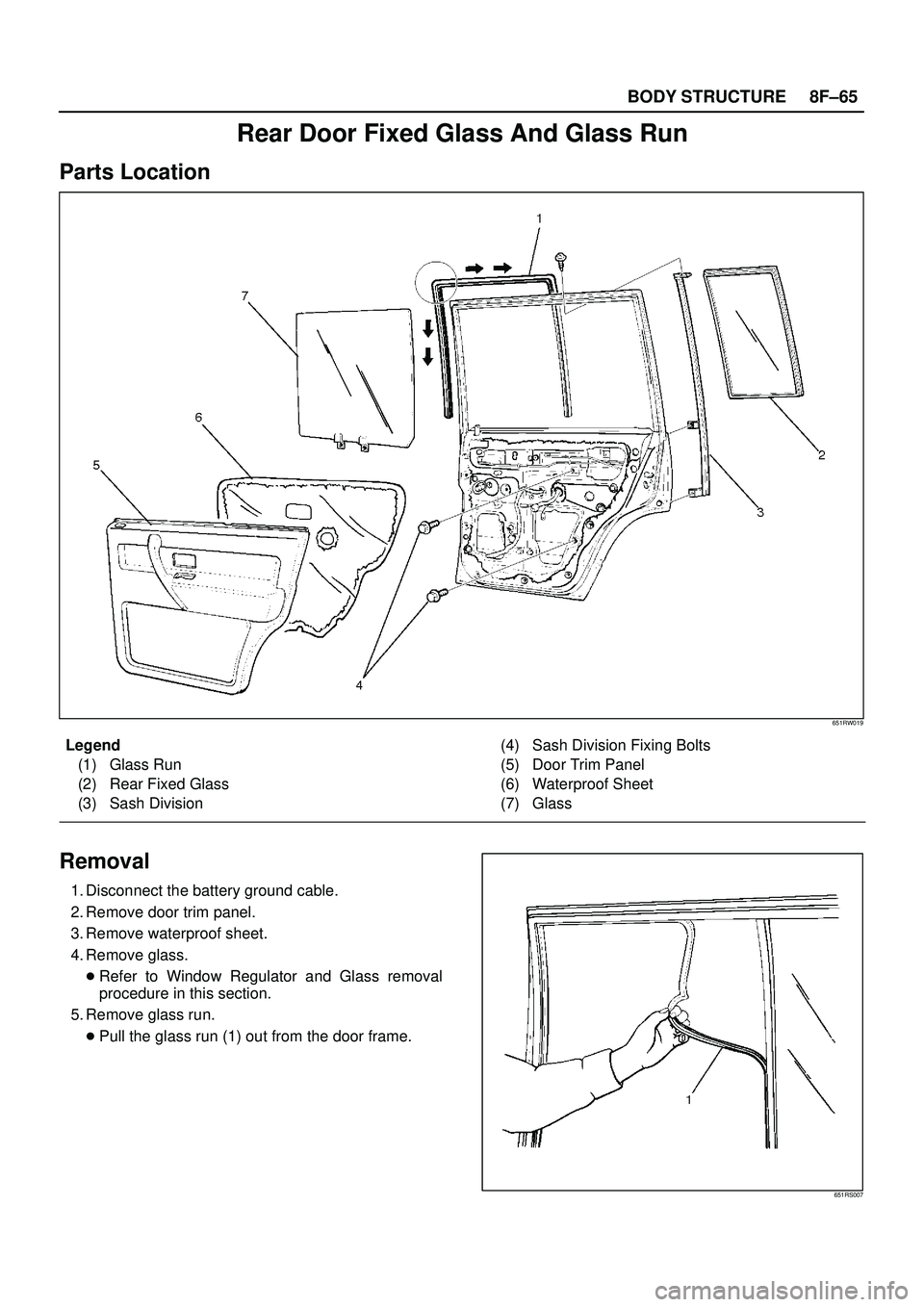

ISUZU TROOPER 1998 Service Repair Manual 8F±65 BODY STRUCTURE Rear Door Fixed Glass And Glass Run Parts Location 651RW019 Legend (1) Glass Run (2) Rear Fixed Glass (3) Sash Division(4) Sash Division Fixing Bolts (5) Door Trim Panel (6) Wate

Page 3261 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8F±66BODY STRUCTURE 6. Remove sash division (2). 651RS008 7. Remove door fixed glass. Installation To install, follow the removal steps in the reverse order, noting the following points. 1. Apply soa

Page 3262 of 3573

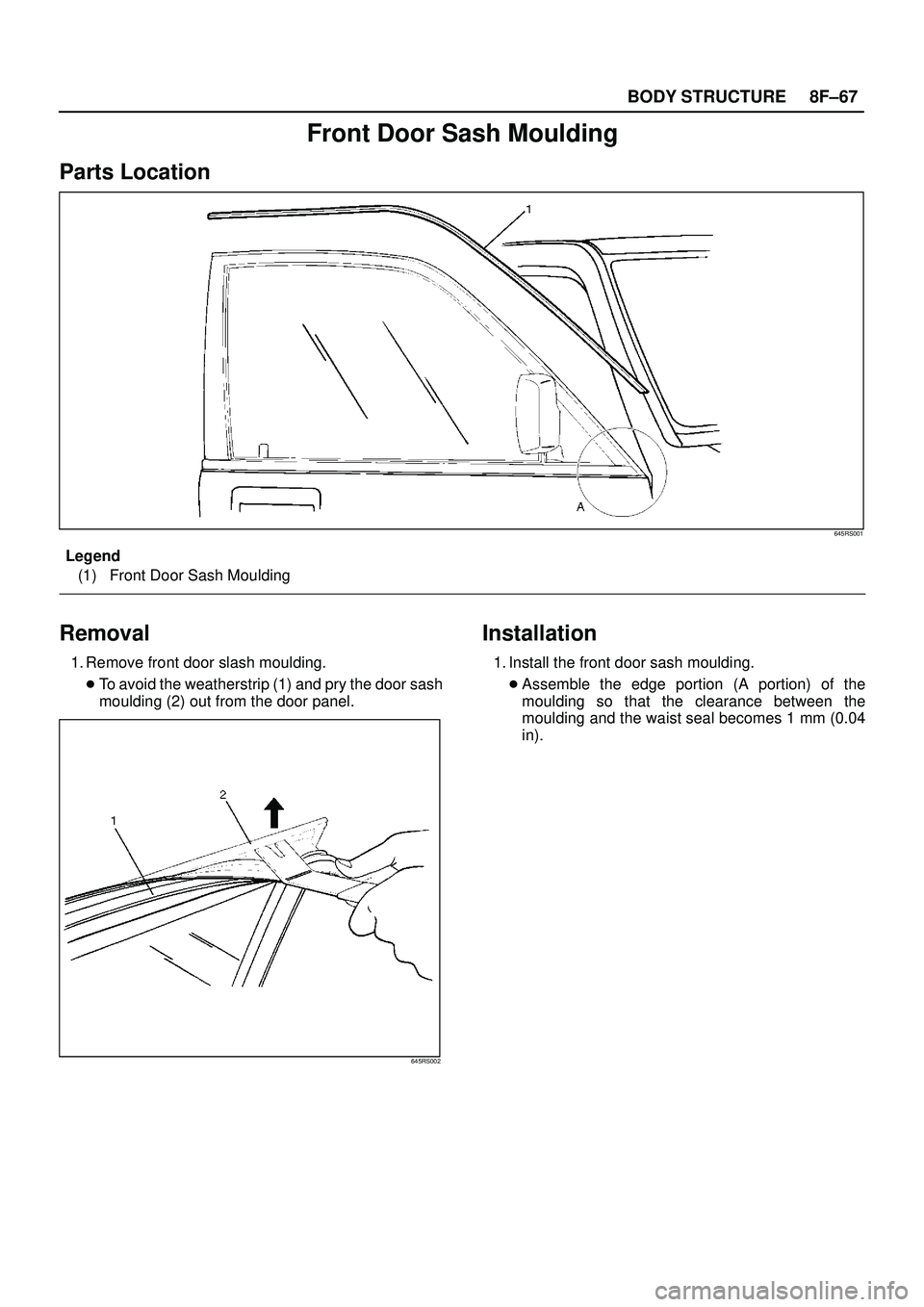

ISUZU TROOPER 1998 Service Repair Manual 8F±67 BODY STRUCTURE Front Door Sash Moulding Parts Location 645RS001 Legend (1) Front Door Sash Moulding Removal 1. Remove front door slash moulding. To avoid the weatherstrip (1) and pry the door

Page 3263 of 3573

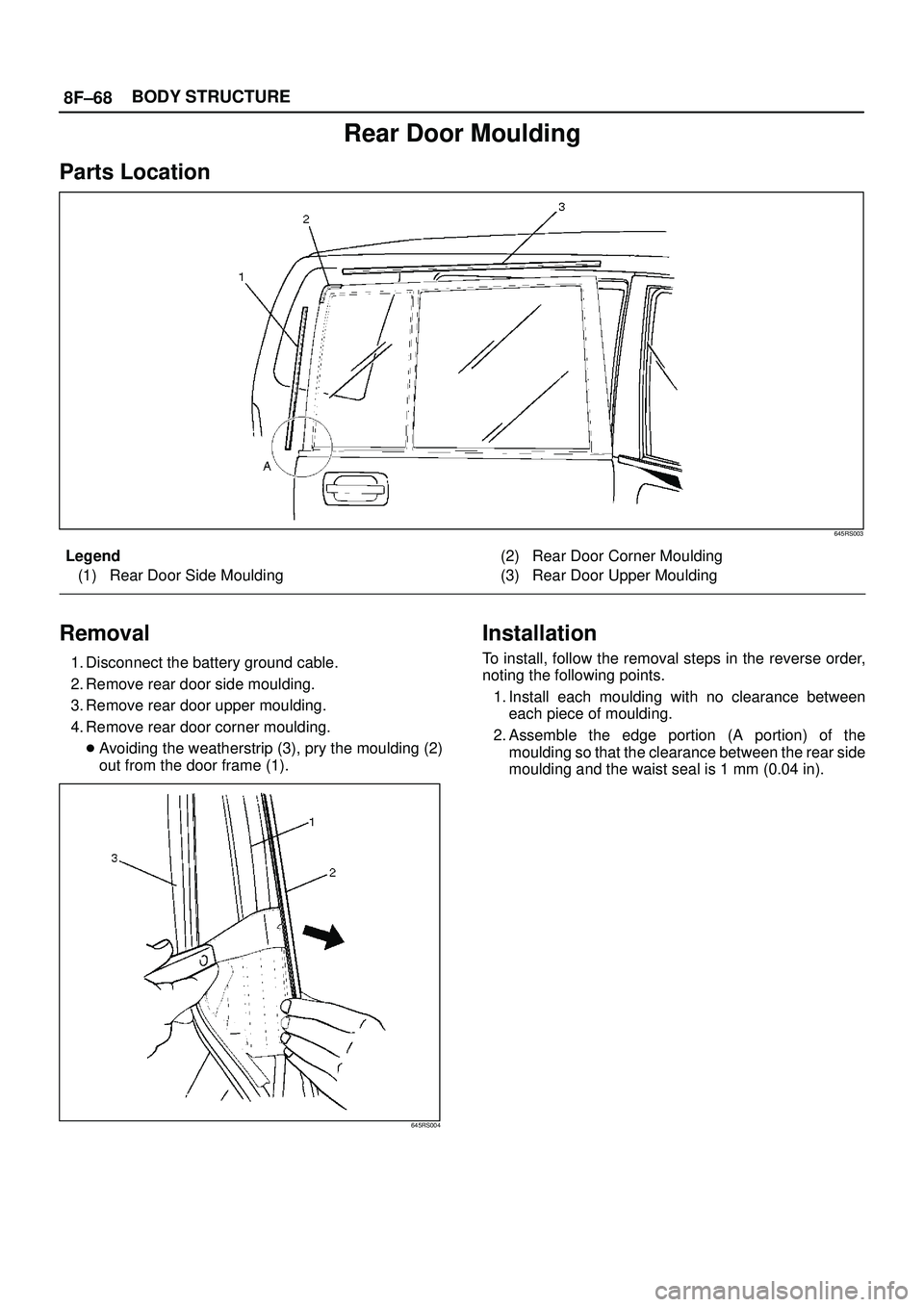

ISUZU TROOPER 1998 Service Repair Manual 8F±68BODY STRUCTURE Rear Door Moulding Parts Location 645RS003 Legend (1) Rear Door Side Moulding(2) Rear Door Corner Moulding (3) Rear Door Upper Moulding Removal 1. Disconnect the battery ground ca

Page 3264 of 3573

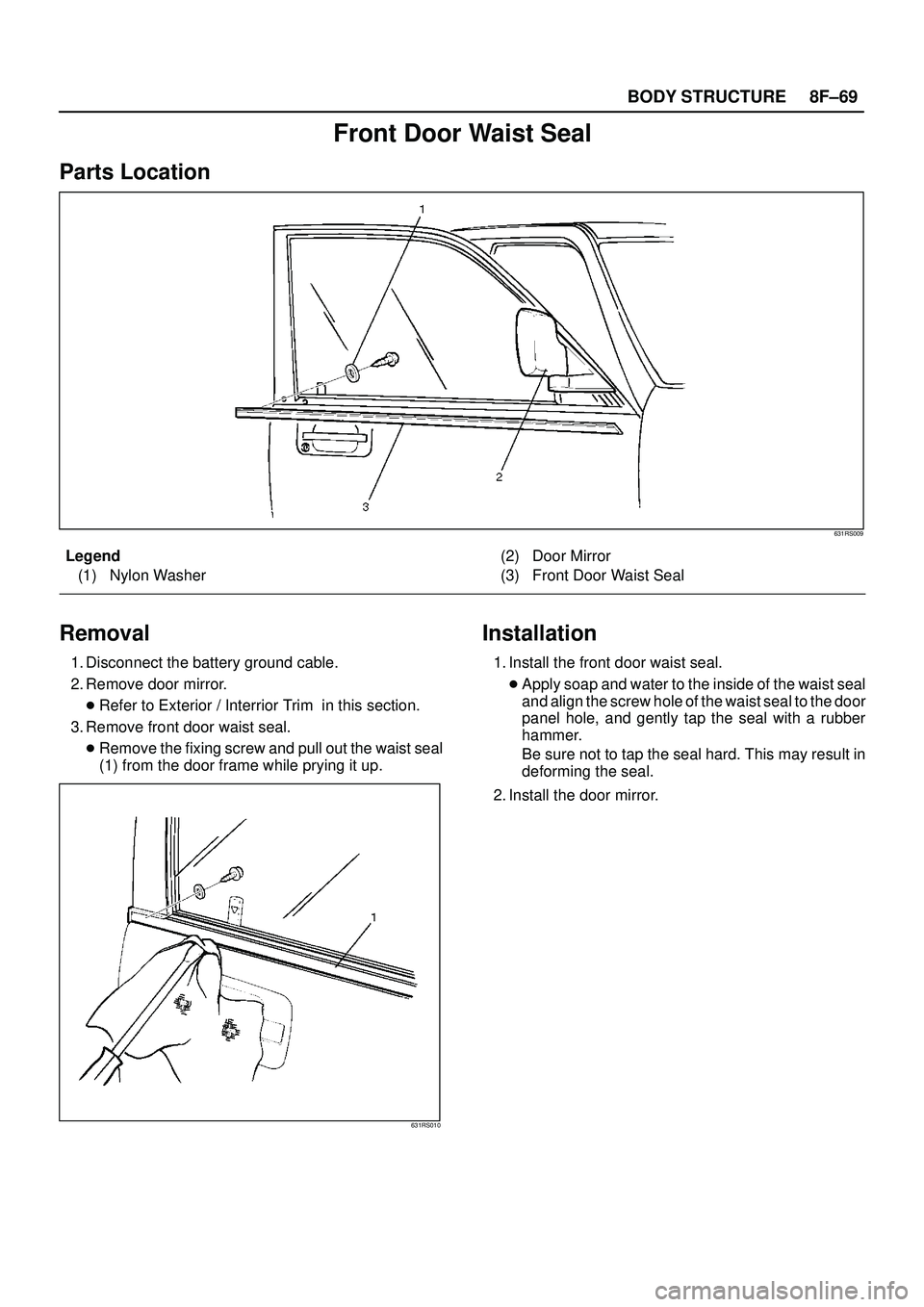

ISUZU TROOPER 1998 Service Repair Manual 8F±69 BODY STRUCTURE Front Door Waist Seal Parts Location 631RS009 Legend (1) Nylon Washer(2) Door Mirror (3) Front Door Waist Seal Removal 1. Disconnect the battery ground cable. 2. Remove door mirr
