ISUZU TROOPER 1998 Service Repair Manual 00 Ð 34 SERVICE INFORMATION 4JX1 ENGINE 123 45 6 RELAY; A/C B-36C-20 10A A/C FL-1 80A MAIN 1 2 B-2 C-25 2 4 X-5 1 3 4 13 24 1 A/C SW. FAN SW. I-23 PRESSURE SW. RELAY; THERMO B-2 C-25I-23 BATTERY 1 E-

Page 74 of 3573

ISUZU TROOPER 1998 Service Repair Manual SERVICE INFORMATION 00 Ð 35 MAGNETIC CLUTCH DOES NOT RUN ·TURN THE STARTER SWITCH ON AND START THE ENGINE. ·TURN THE FAN SWITCH ON. ·DOES THE BLOWER MOTOR RUN? YESNO REFER TO THE DIAGNOSIS PROCED

Page 75 of 3573

ISUZU TROOPER 1998 Service Repair Manual 00 Ð 36 SERVICE INFORMATION ·IS THE BATTERY VOLTAGE APPLIED AT HARNESS SIDE CONNECTOR X5-2?REPAIR AN OPEN CIRCUIT. YESNO ·IS THE A/C THERMO RELAY NORMAL?REPAIR AN OPEN CIRCUIT BETWEEN THE FUSE C-20

Page 76 of 3573

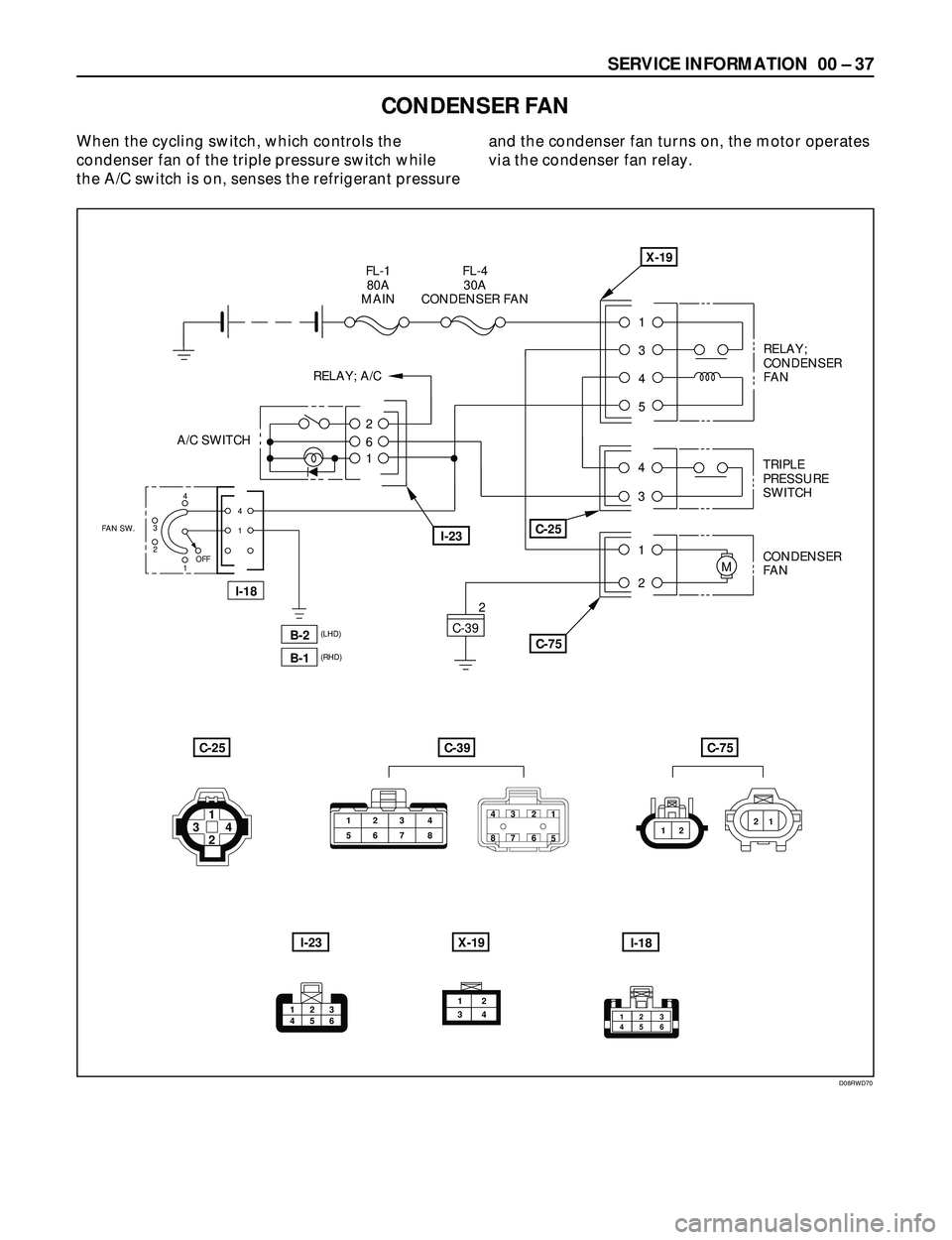

ISUZU TROOPER 1998 Service Repair Manual SERVICE INFORMATION 00 Ð 37 CONDENSER FAN When the cycling switch, which controls the condenser fan of the triple pressure switch while the A/C switch is on, senses the refrigerant pressureand the c

Page 77 of 3573

ISUZU TROOPER 1998 Service Repair Manual 00 Ð 38 SERVICE INFORMATION CONDENSER FAN DOES NOT RUN YESNO ·DOES A/C SYSTEM OPERATE CORRECTLY? ·IS FL-4 (30A) FUSE OK?CHECK A/C SYSTEM AND REPAIR AS NECESSARY YESNO ·IS CONDENSER FAN RELAY (X-19

Page 78 of 3573

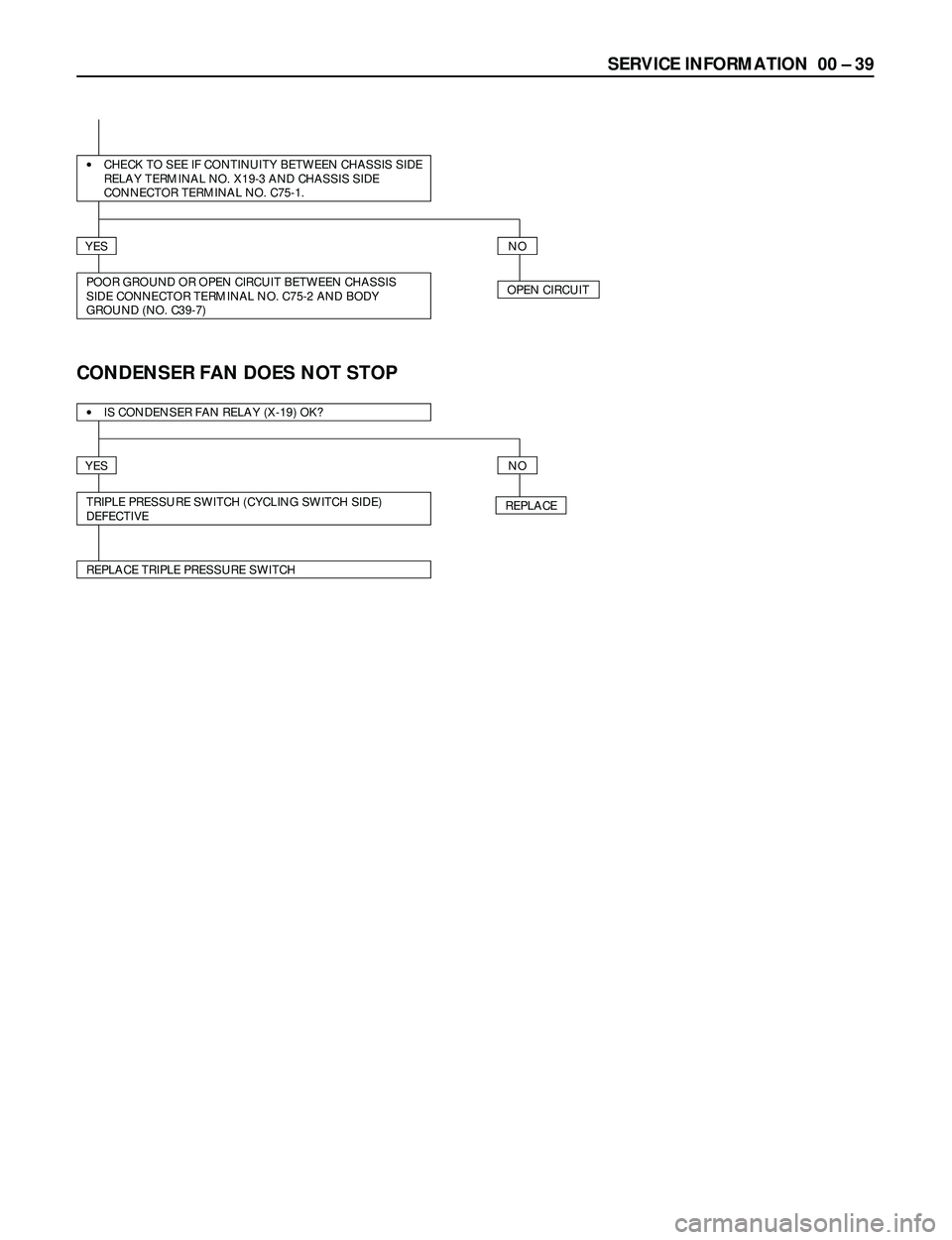

ISUZU TROOPER 1998 Service Repair Manual SERVICE INFORMATION 00 Ð 39 ·CHECK TO SEE IF CONTINUITY BETWEEN CHASSIS SIDE RELAY TERMINAL NO. X19-3 AND CHASSIS SIDE CONNECTOR TERMINAL NO. C75-1. YESNO OPEN CIRCUITPOOR GROUND OR OPEN CIRCUIT BE

Page 79 of 3573

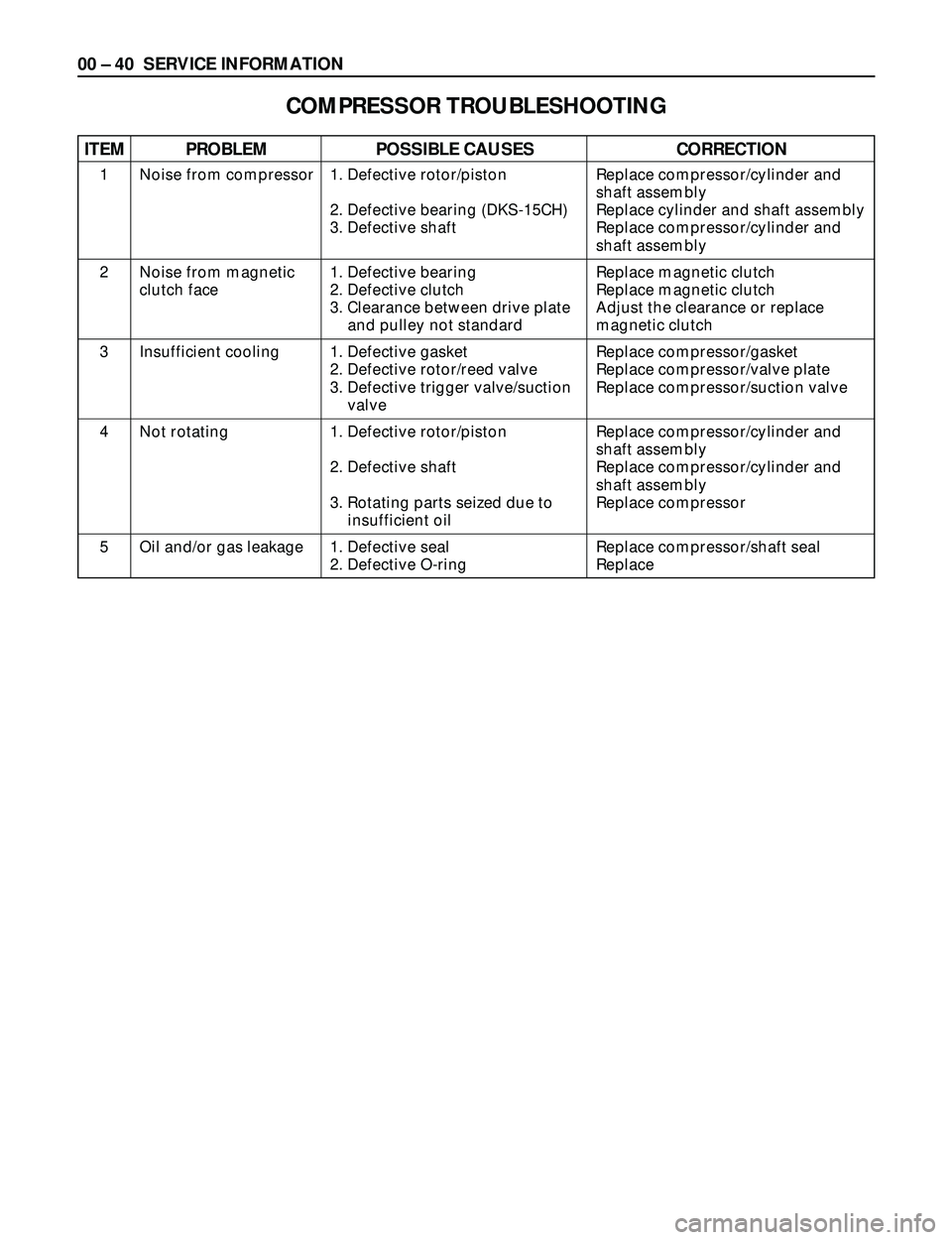

ISUZU TROOPER 1998 Service Repair Manual 00 Ð 40 SERVICE INFORMATION 1. Defective rotor/piston 2. Defective bearing (DKS-15CH) 3. Defective shaft 1. Defective bearing 2. Defective clutch 3. Clearance between drive plate and pulley not s

Page 80 of 3573

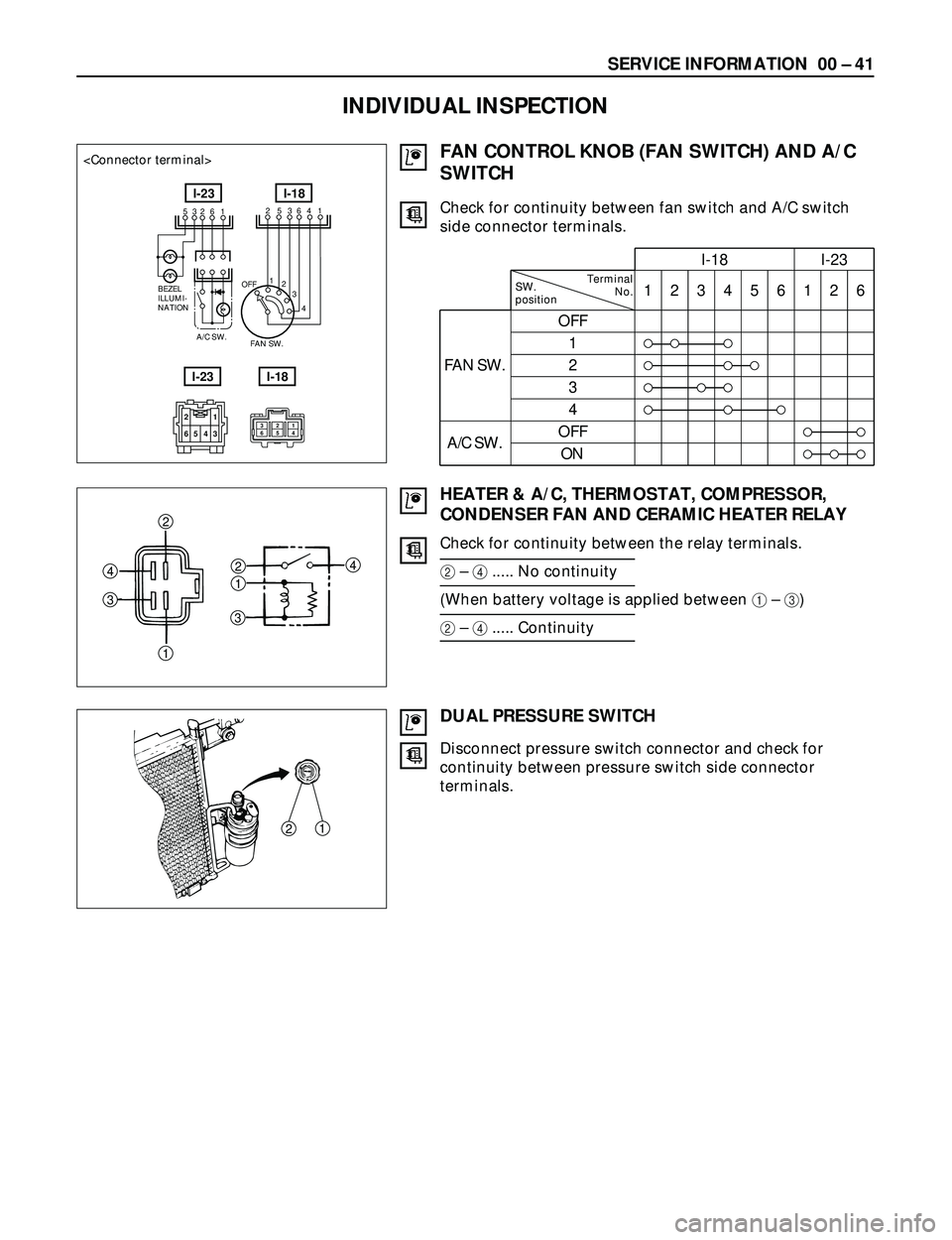

ISUZU TROOPER 1998 Service Repair Manual SERVICE INFORMATION 00 Ð 41 I-18 I-23 123456126 OFF 1 FAN SW. 2 3 4 OFF A/C SW. ON FAN CONTROL KNOB (FAN SWITCH) AND A/C SWITCH INDIVIDUAL INSPECTION Check for continuity between fan switch and A/C
