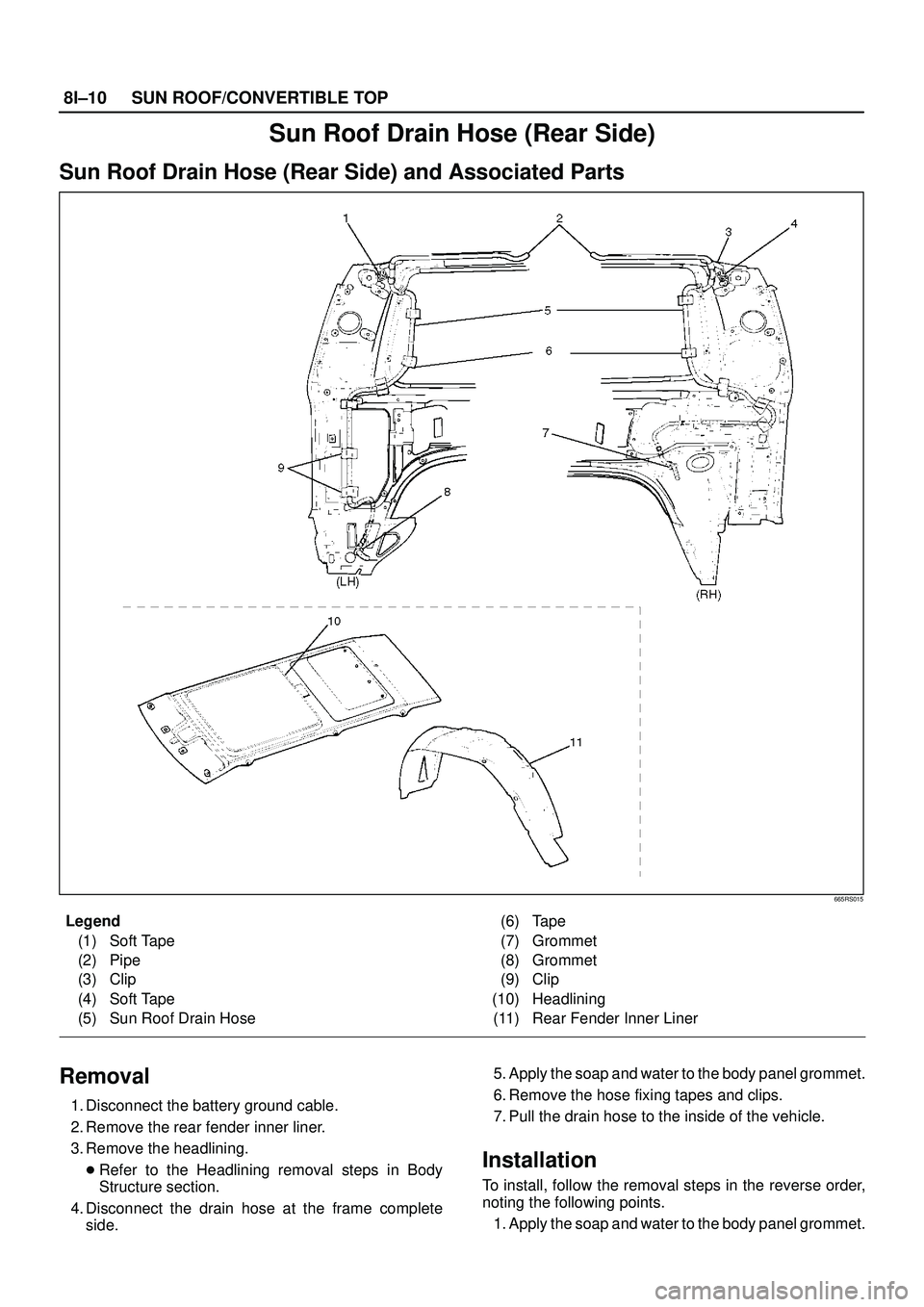

Page 3377 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8I±10SUN ROOF/CONVERTIBLE TOP
Sun Roof Drain Hose (Rear Side)
Sun Roof Drain Hose (Rear Side) and Associated Parts
665RS015
Legend
(1) Soft Tape
(2) Pipe
(3) Clip
(4) Soft Tape
(5) Sun Roof Drain Hos

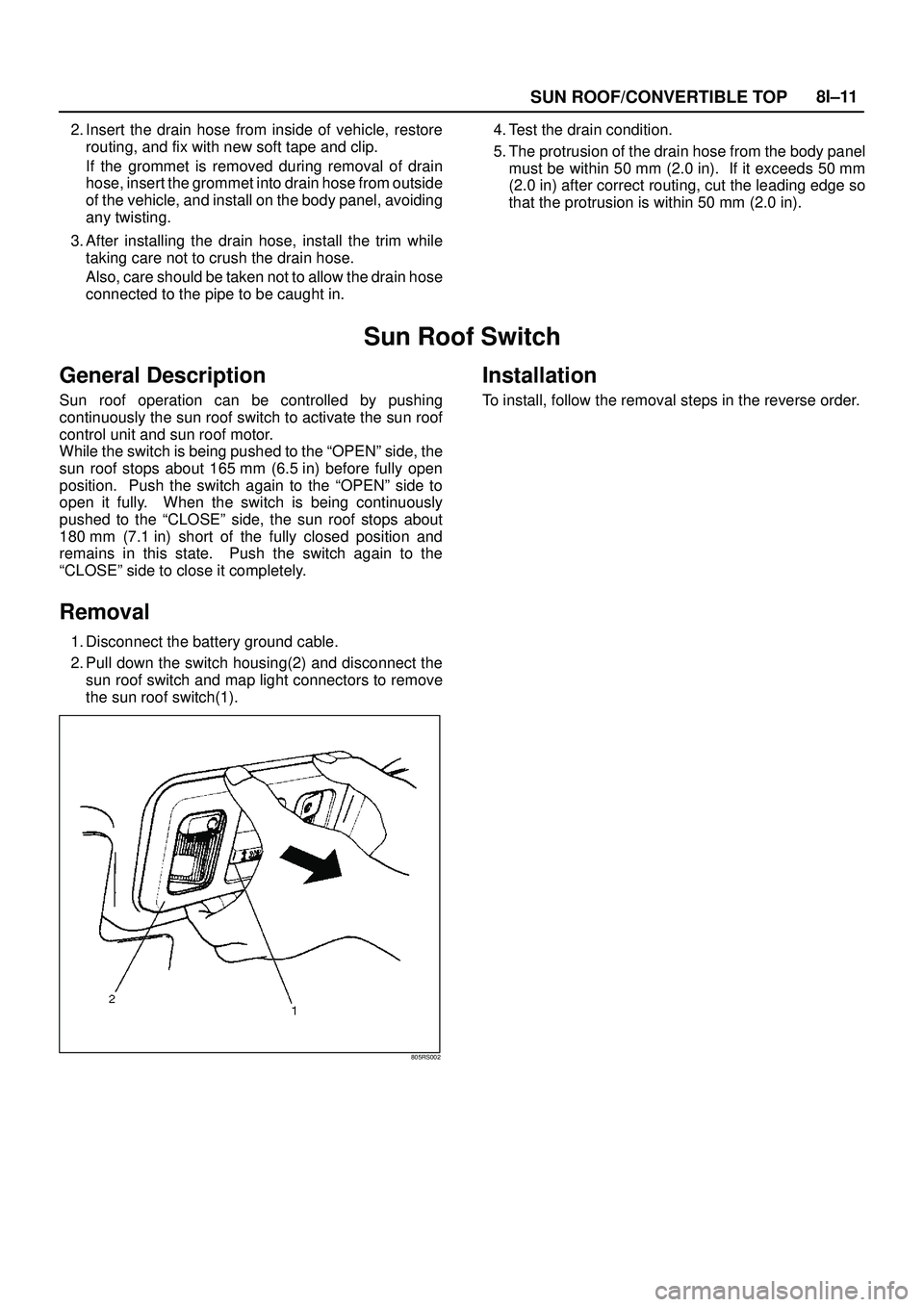

Page 3378 of 3573

ISUZU TROOPER 1998 Service Repair Manual SUN ROOF/CONVERTIBLE TOP8I±11
2. Insert the drain hose from inside of vehicle, restore
routing, and fix with new soft tape and clip.
If the grommet is removed during removal of drain
hose, insert the

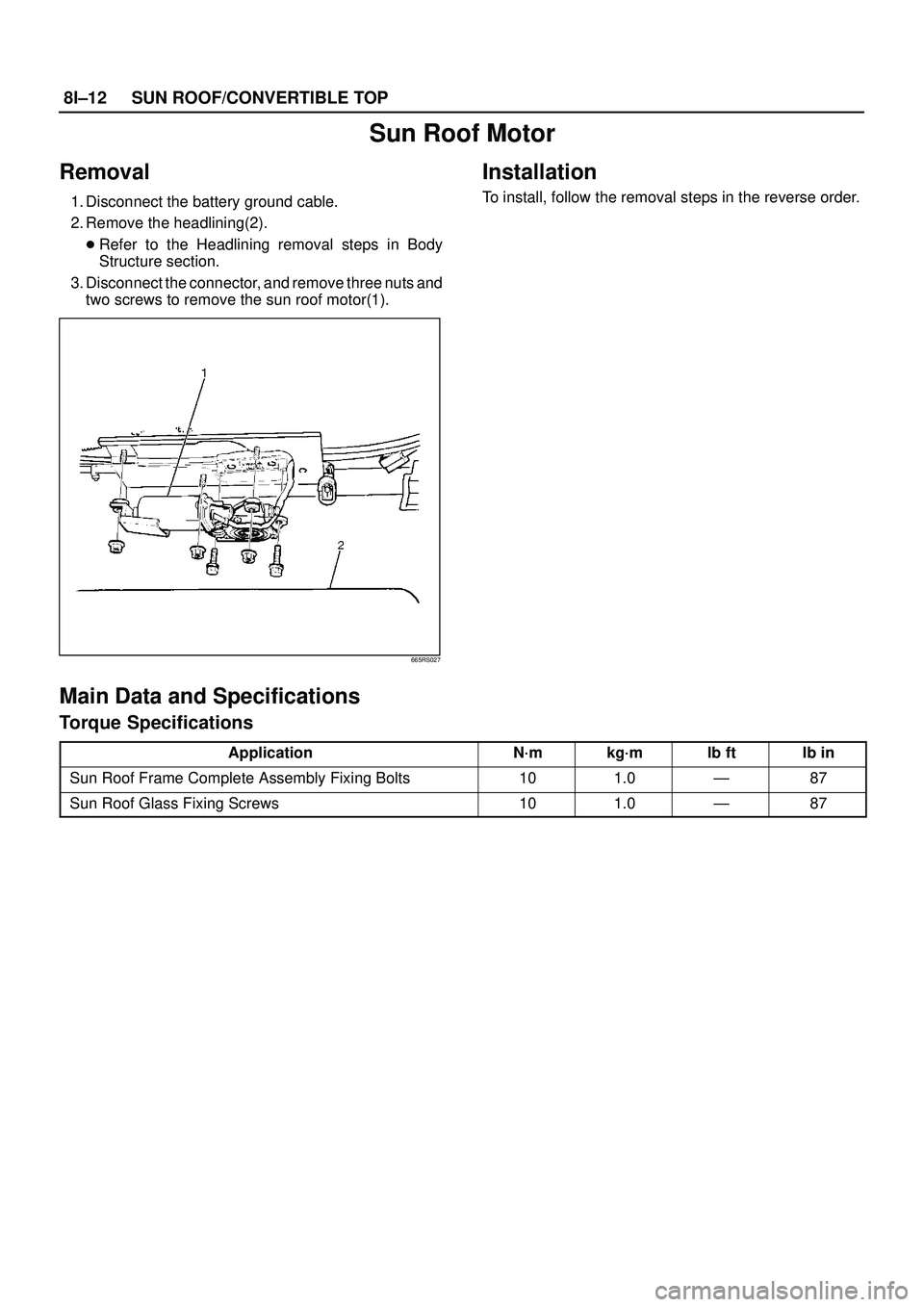

Page 3379 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8I±12SUN ROOF/CONVERTIBLE TOP
Sun Roof Motor
Removal
1. Disconnect the battery ground cable.
2. Remove the headlining(2).
Refer to the Headlining removal steps in Body
Structure section.
3. Disconne

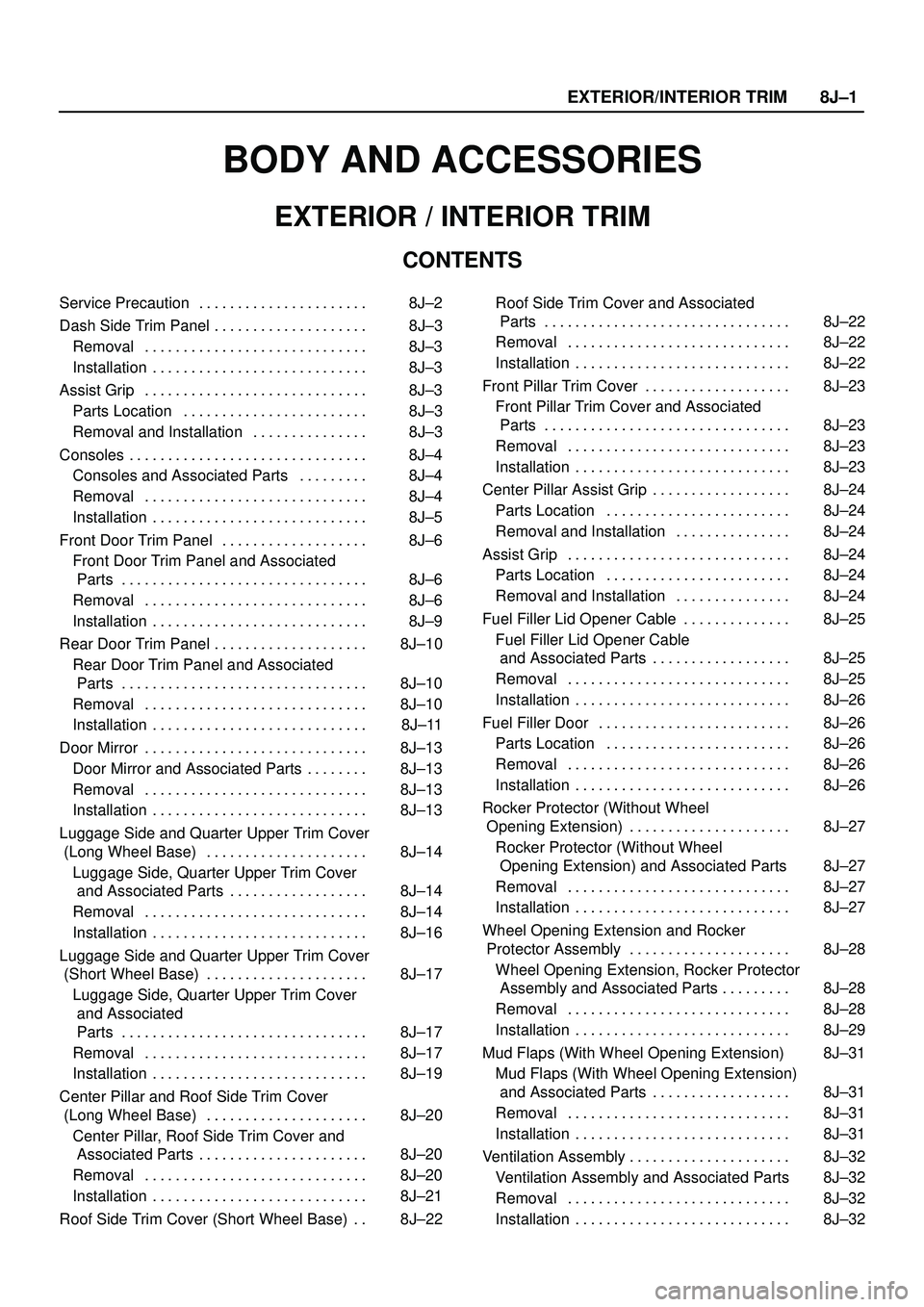

Page 3380 of 3573

ISUZU TROOPER 1998 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±1
BODY AND ACCESSORIES
EXTERIOR / INTERIOR TRIM
CONTENTS
Service Precaution 8J±2. . . . . . . . . . . . . . . . . . . . . .
Dash Side Trim Panel 8J±3. . . . . . . . . . .

EXTERIOR/INTERIOR TRIM8J±1
BODY AND ACCESSORIES
EXTERIOR / INTERIOR TRIM
CONTENTS
Service Precaution 8J±2. . . . . . . . . . . . . . . . . . . . . .
Dash Side Trim Panel 8J±3. . . . . . . . . . . . . . . . . . . .
Removal 8J±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Assist Grip 8J±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8J±3. . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation 8J±3. . . . . . . . . . . . . . .
Consoles 8J±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Consoles and Associated Parts 8J±4. . . . . . . . .
Removal 8J±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Door Trim Panel 8J±6. . . . . . . . . . . . . . . . . . .
Front Door Trim Panel and Associated
Parts 8J±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Trim Panel 8J±10. . . . . . . . . . . . . . . . . . . .
Rear Door Trim Panel and Associated
Parts 8J±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door Mirror 8J±13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door Mirror and Associated Parts 8J±13. . . . . . . .
Removal 8J±13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage Side and Quarter Upper Trim Cover
(Long Wheel Base) 8J±14. . . . . . . . . . . . . . . . . . . . .
Luggage Side, Quarter Upper Trim Cover
and Associated Parts 8J±14. . . . . . . . . . . . . . . . . .
Removal 8J±14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±16. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage Side and Quarter Upper Trim Cover
(Short Wheel Base) 8J±17. . . . . . . . . . . . . . . . . . . . .
Luggage Side, Quarter Upper Trim Cover
and Associated
Parts 8J±17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±17. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±19. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Center Pillar and Roof Side Trim Cover
(Long Wheel Base) 8J±20. . . . . . . . . . . . . . . . . . . . .
Center Pillar, Roof Side Trim Cover and
Associated Parts 8J±20. . . . . . . . . . . . . . . . . . . . . .
Removal 8J±20. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±21. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof Side Trim Cover (Short Wheel Base) 8J±22. . Roof Side Trim Cover and Associated
Parts 8J±22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±22. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±22. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Pillar Trim Cover 8J±23. . . . . . . . . . . . . . . . . . .
Front Pillar Trim Cover and Associated
Parts 8J±23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±23. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±23. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Center Pillar Assist Grip 8J±24. . . . . . . . . . . . . . . . . .
Parts Location 8J±24. . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation 8J±24. . . . . . . . . . . . . . .
Assist Grip 8J±24. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8J±24. . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation 8J±24. . . . . . . . . . . . . . .
Fuel Filler Lid Opener Cable 8J±25. . . . . . . . . . . . . .
Fuel Filler Lid Opener Cable
and Associated Parts 8J±25. . . . . . . . . . . . . . . . . .
Removal 8J±25. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±26. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Filler Door 8J±26. . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8J±26. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±26. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±26. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rocker Protector (Without Wheel
Opening Extension) 8J±27. . . . . . . . . . . . . . . . . . . . .
Rocker Protector (Without Wheel
Opening Extension) and Associated Parts 8J±27
Removal 8J±27. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±27. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel Opening Extension and Rocker
Protector Assembly 8J±28. . . . . . . . . . . . . . . . . . . . .
Wheel Opening Extension, Rocker Protector
Assembly and Associated Parts 8J±28. . . . . . . . .
Removal 8J±28. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±29. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mud Flaps (With Wheel Opening Extension) 8J±31
Mud Flaps (With Wheel Opening Extension)
and Associated Parts 8J±31. . . . . . . . . . . . . . . . . .
Removal 8J±31. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±31. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ventilation Assembly 8J±32. . . . . . . . . . . . . . . . . . . . .
Ventilation Assembly and Associated Parts 8J±32
Removal 8J±32. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±32. . . . . . . . . . . . . . . . . . . . . . . . . . . .

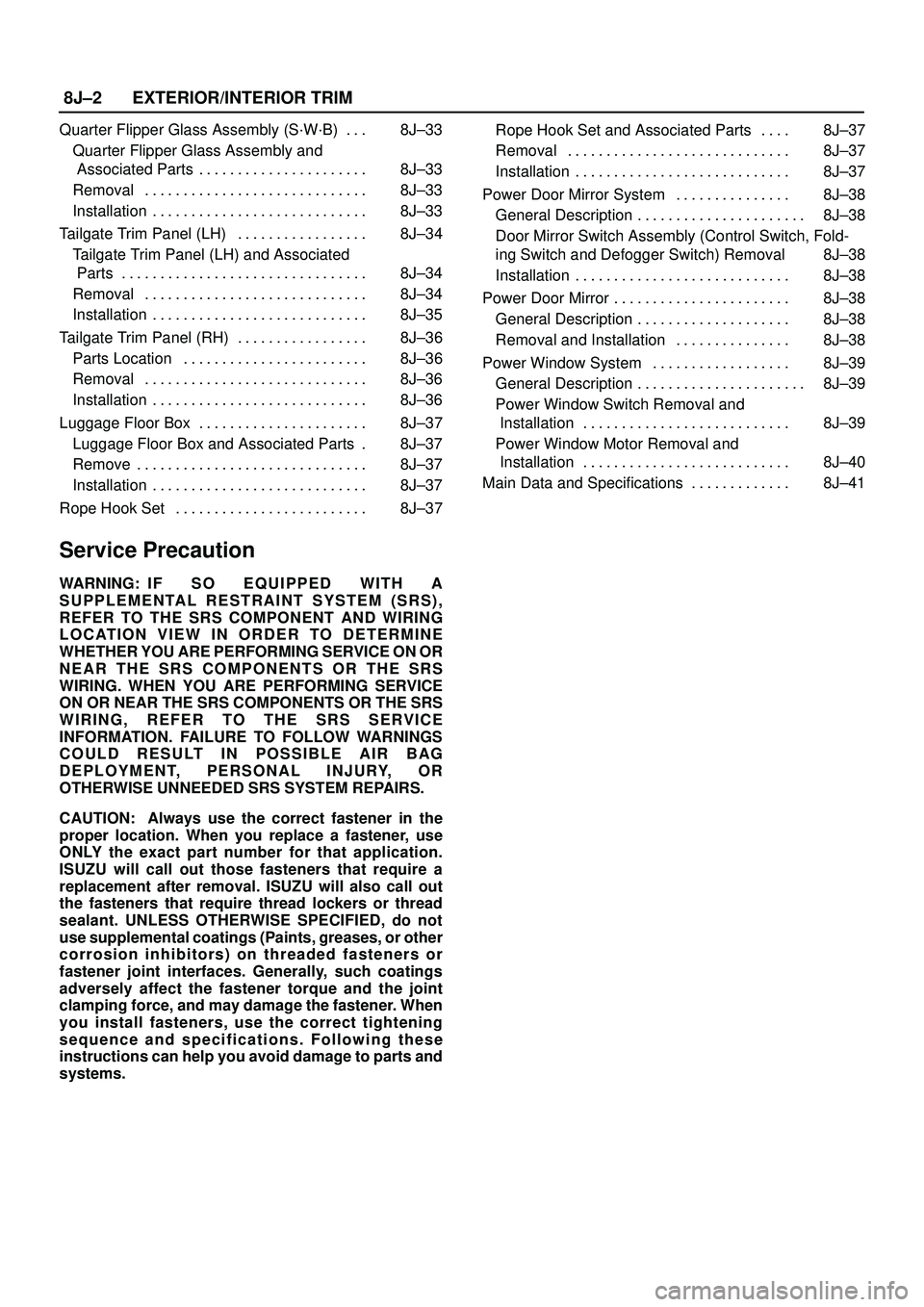

Page 3381 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8J±2EXTERIOR/INTERIOR TRIM
Quarter Flipper Glass Assembly (S´W´B) 8J±33. . .
Quarter Flipper Glass Assembly and
Associated Parts 8J±33. . . . . . . . . . . . . . . . . . . . . .
Removal 8J±33

8J±2EXTERIOR/INTERIOR TRIM
Quarter Flipper Glass Assembly (S´W´B) 8J±33. . .
Quarter Flipper Glass Assembly and
Associated Parts 8J±33. . . . . . . . . . . . . . . . . . . . . .
Removal 8J±33. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±33. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tailgate Trim Panel (LH) 8J±34. . . . . . . . . . . . . . . . .
Tailgate Trim Panel (LH) and Associated
Parts 8J±34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±34. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±35. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tailgate Trim Panel (RH) 8J±36. . . . . . . . . . . . . . . . .
Parts Location 8J±36. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±36. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±36. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage Floor Box 8J±37. . . . . . . . . . . . . . . . . . . . . .
Luggage Floor Box and Associated Parts 8J±37.
Remove 8J±37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±37. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rope Hook Set 8J±37. . . . . . . . . . . . . . . . . . . . . . . . . Rope Hook Set and Associated Parts 8J±37. . . .
Removal 8J±37. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±37. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Door Mirror System 8J±38. . . . . . . . . . . . . . .
General Description 8J±38. . . . . . . . . . . . . . . . . . . . . .
Door Mirror Switch Assembly (Control Switch, Fold-
ing Switch and Defogger Switch) Removal 8J±38
Installation 8J±38. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Door Mirror 8J±38. . . . . . . . . . . . . . . . . . . . . . .
General Description 8J±38. . . . . . . . . . . . . . . . . . . .
Removal and Installation 8J±38. . . . . . . . . . . . . . .
Power Window System 8J±39. . . . . . . . . . . . . . . . . .
General Description 8J±39. . . . . . . . . . . . . . . . . . . . . .
Power Window Switch Removal and
Installation 8J±39. . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Window Motor Removal and
Installation 8J±40. . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8J±41. . . . . . . . . . . . .
Service Precaution
WARNING: I F S O E Q U IPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

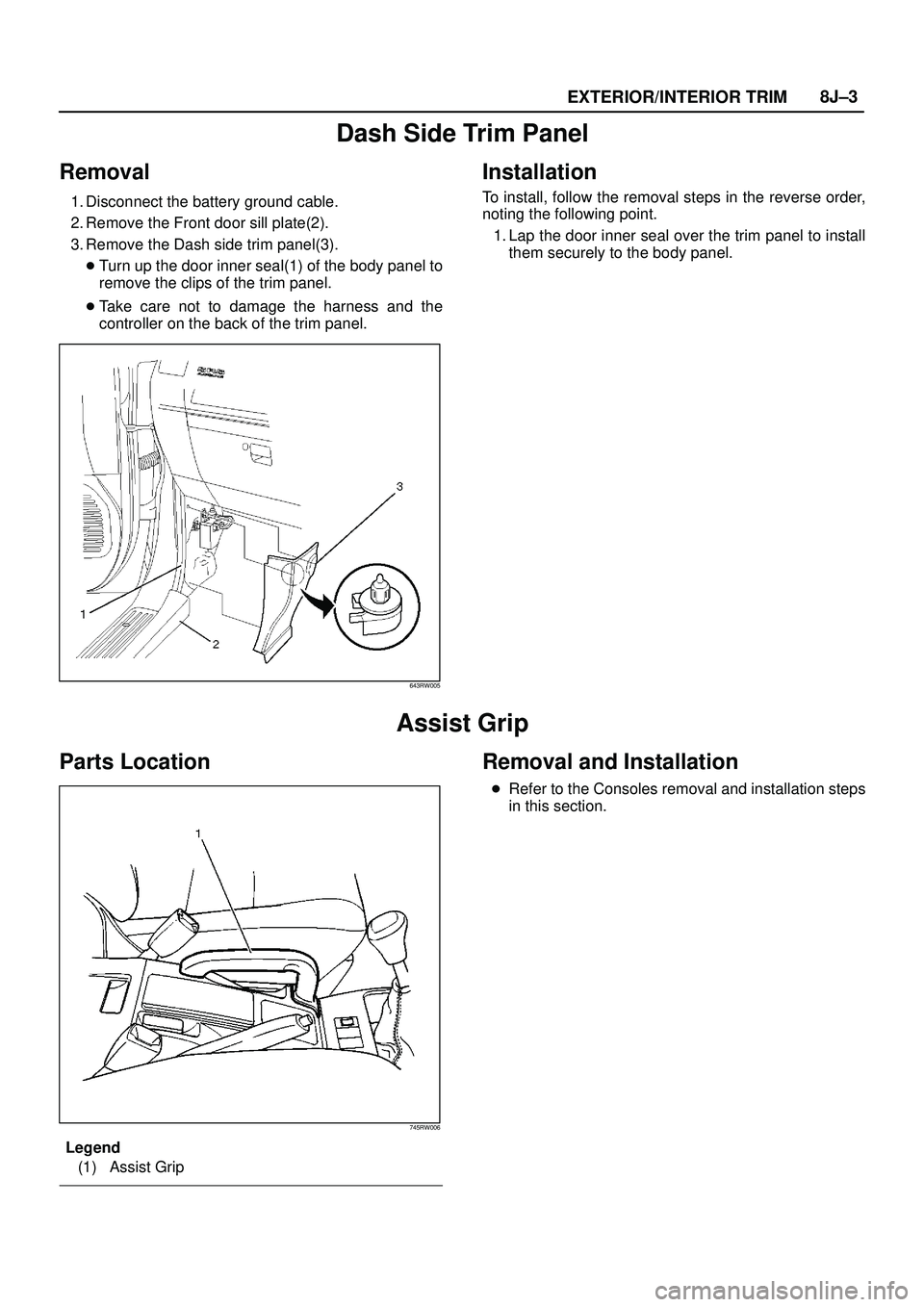

Page 3382 of 3573

ISUZU TROOPER 1998 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±3
Dash Side Trim Panel
Removal
1. Disconnect the battery ground cable.
2. Remove the Front door sill plate(2).
3. Remove the Dash side trim panel(3).
Turn up the door inner

Page 3383 of 3573

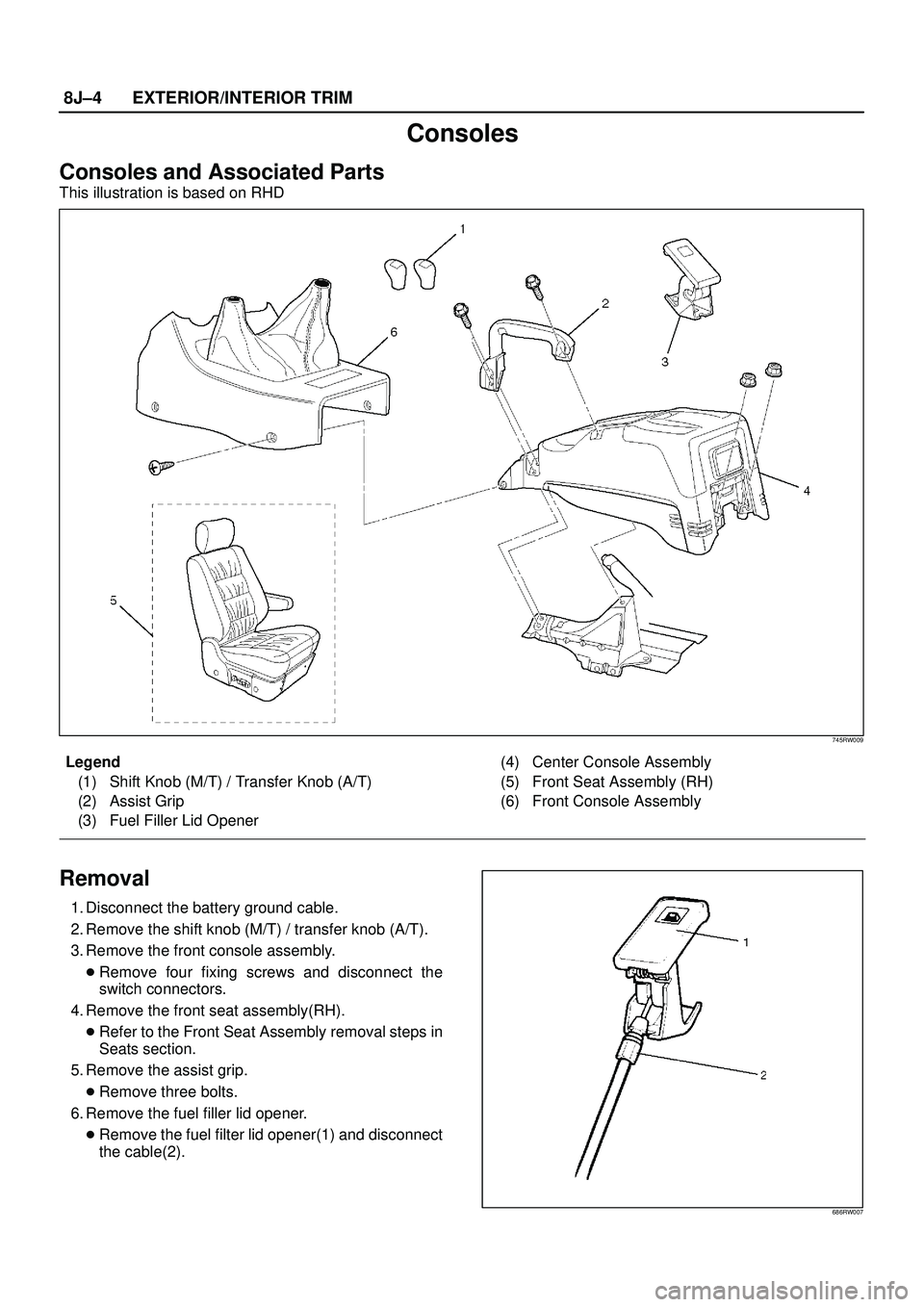

ISUZU TROOPER 1998 Service Repair Manual 8J±4EXTERIOR/INTERIOR TRIM
Consoles
Consoles and Associated Parts
This illustration is based on RHD
745RW009
Legend
(1) Shift Knob (M/T) / Transfer Knob (A/T)
(2) Assist Grip
(3) Fuel Filler Lid Ope

Page 3384 of 3573

ISUZU TROOPER 1998 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±5
7. Remove the center console assembly(2).
Remove two fixing screws on the front side.
Open the rear cover, remove two nuts, then the
center console assembly.
Remove the r

Load next 8 pages

Page: < prev 1-10 ... 3345-3352 3353-3360 3361-3368 3369-3376 3377-3384 3385-3392 3393-3400 3401-3408 3409-3416 ... 3576 next >

cruise control towing climate control fuse chart wheel bolts oil filter
