Page 3393 of 3573

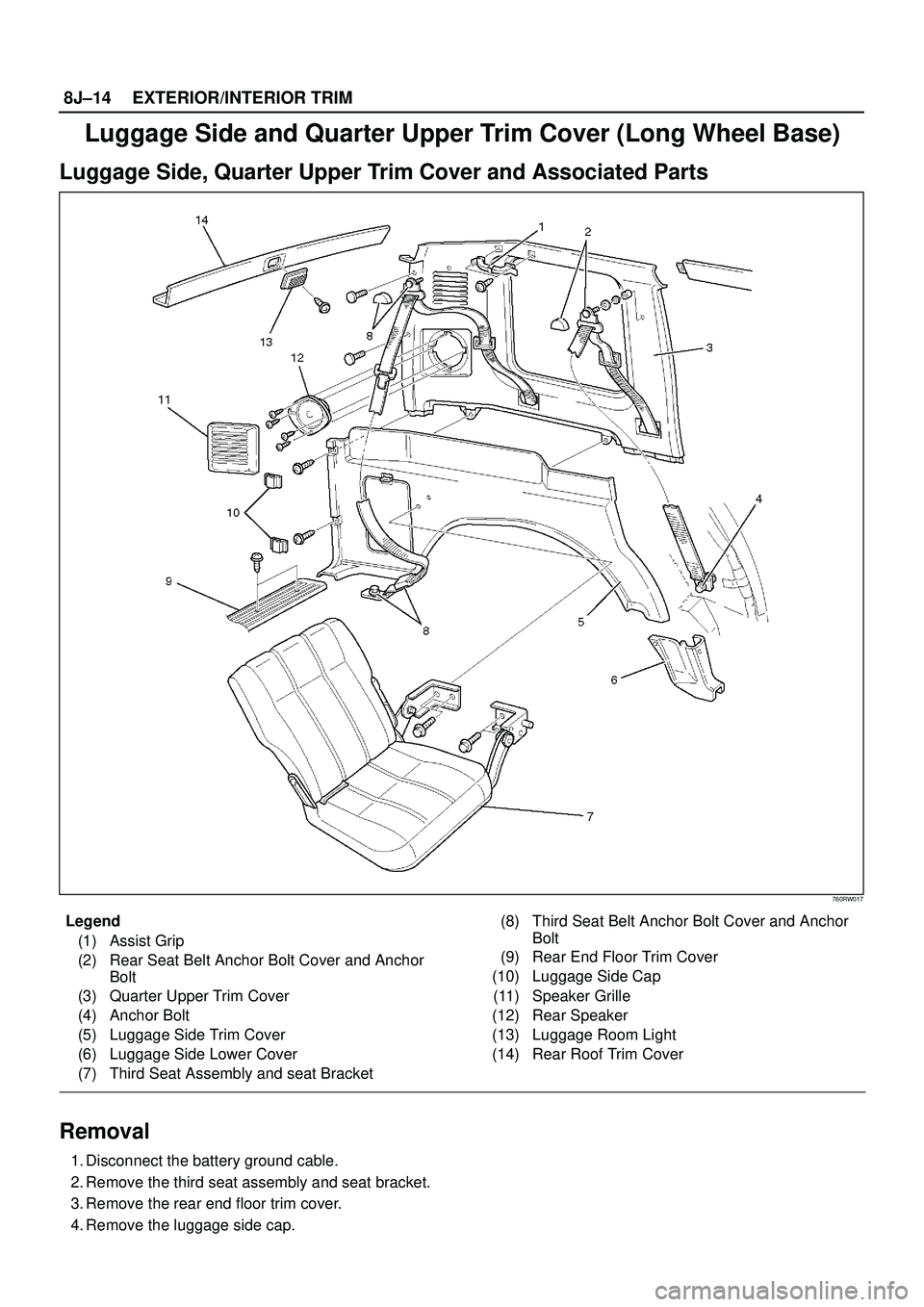

ISUZU TROOPER 1998 Service Repair Manual 8J±14EXTERIOR/INTERIOR TRIM Luggage Side and Quarter Upper Trim Cover (Long Wheel Base) Luggage Side, Quarter Upper Trim Cover and Associated Parts 760RW017 Legend (1) Assist Grip (2) Rear Seat Belt

Page 3394 of 3573

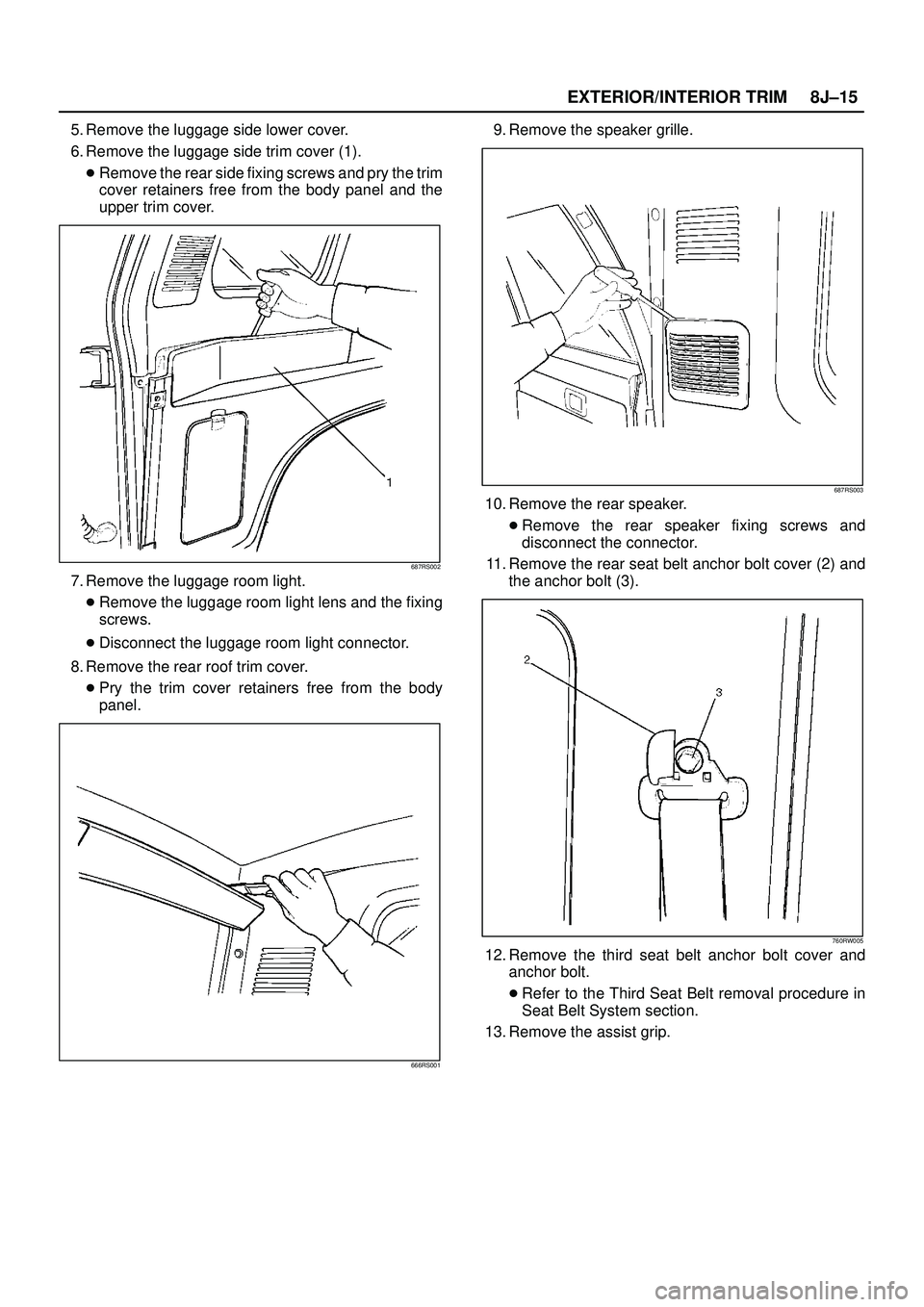

ISUZU TROOPER 1998 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±15 5. Remove the luggage side lower cover. 6. Remove the luggage side trim cover (1). Remove the rear side fixing screws and pry the trim cover retainers free from the body

Page 3395 of 3573

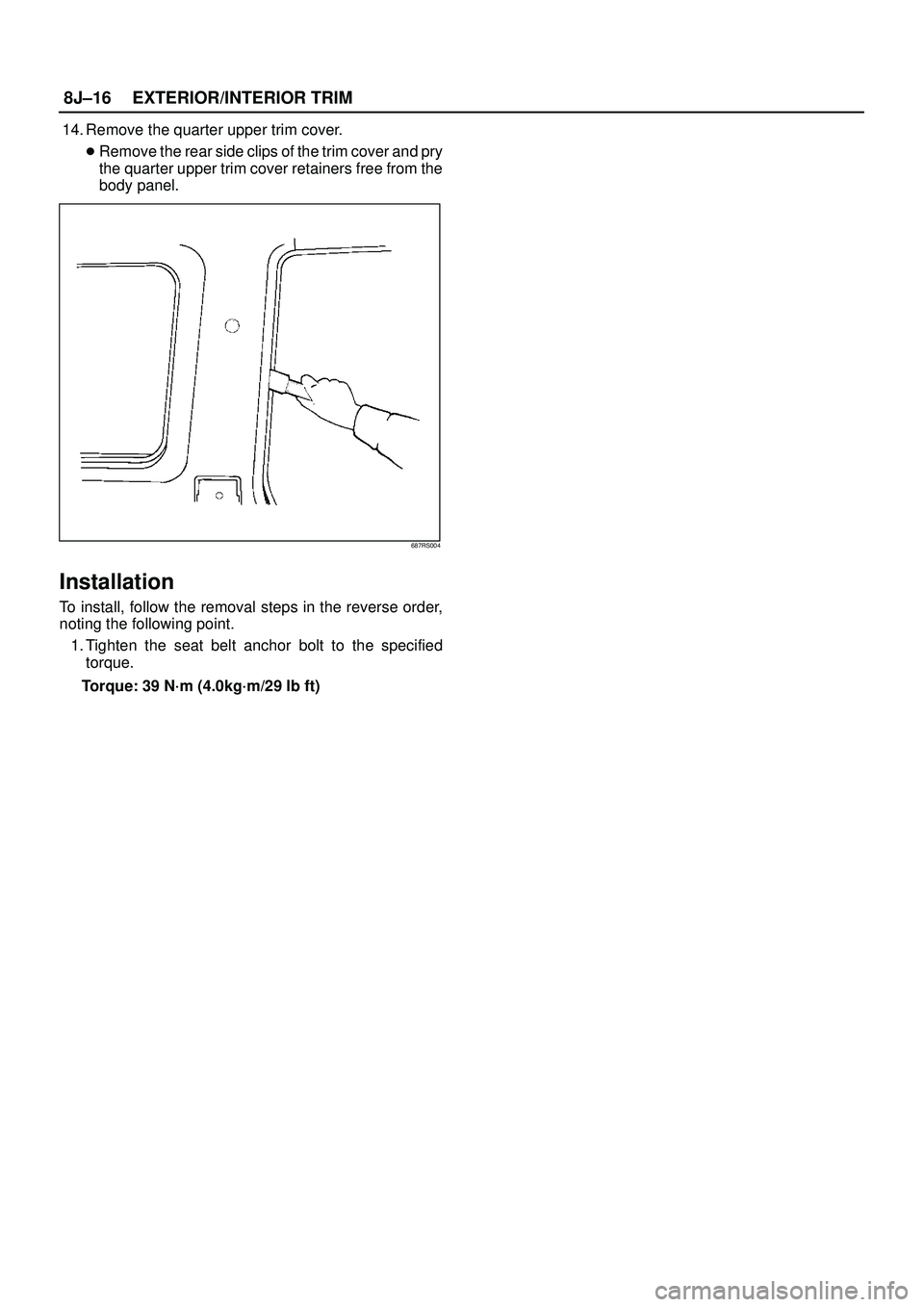

ISUZU TROOPER 1998 Service Repair Manual 8J±16EXTERIOR/INTERIOR TRIM 14. Remove the quarter upper trim cover. Remove the rear side clips of the trim cover and pry the quarter upper trim cover retainers free from the body panel. 687RS004 In

Page 3396 of 3573

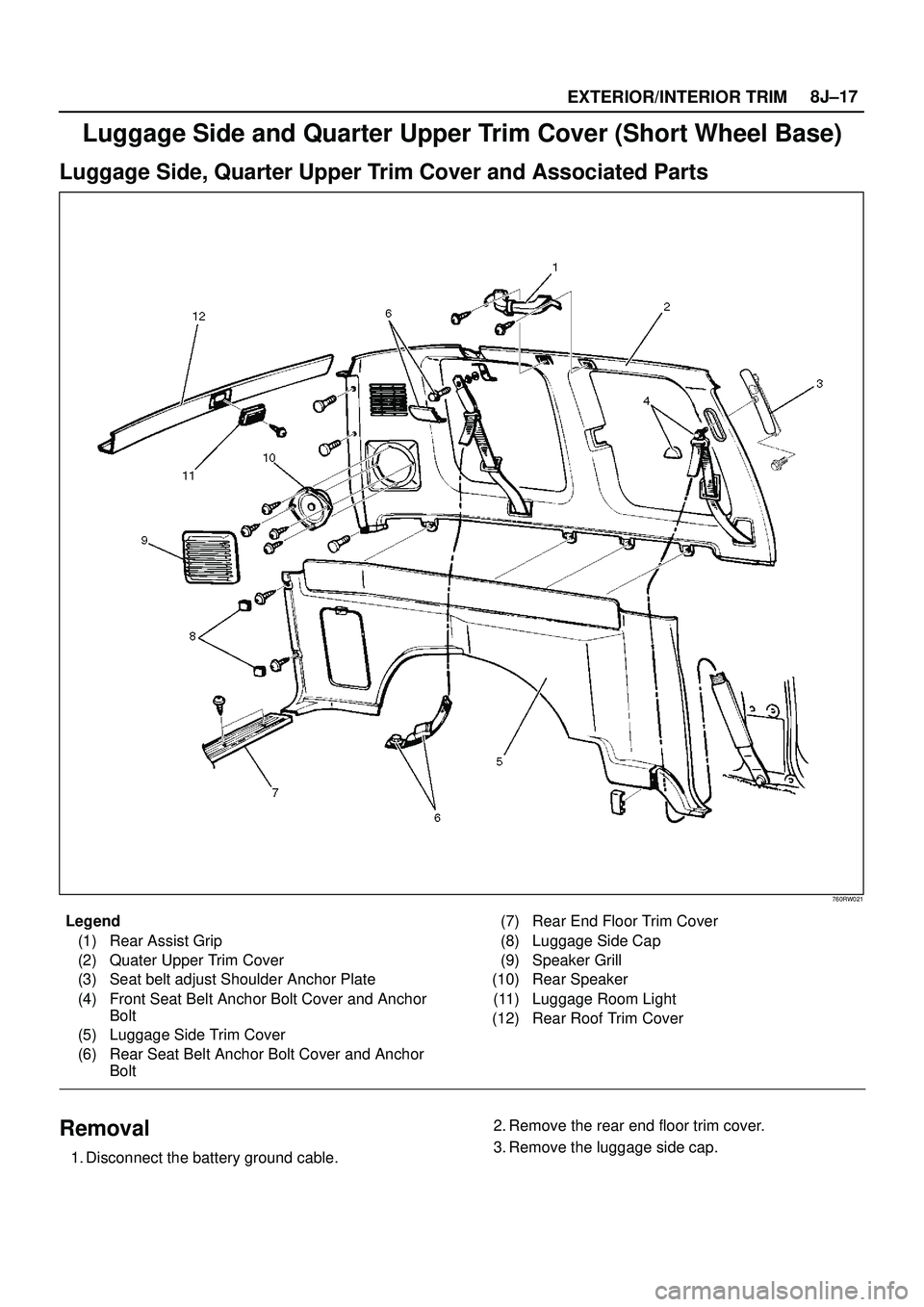

ISUZU TROOPER 1998 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±17 Luggage Side and Quarter Upper Trim Cover (Short Wheel Base) Luggage Side, Quarter Upper Trim Cover and Associated Parts 760RW021 Legend (1) Rear Assist Grip (2) Quater Up

Page 3397 of 3573

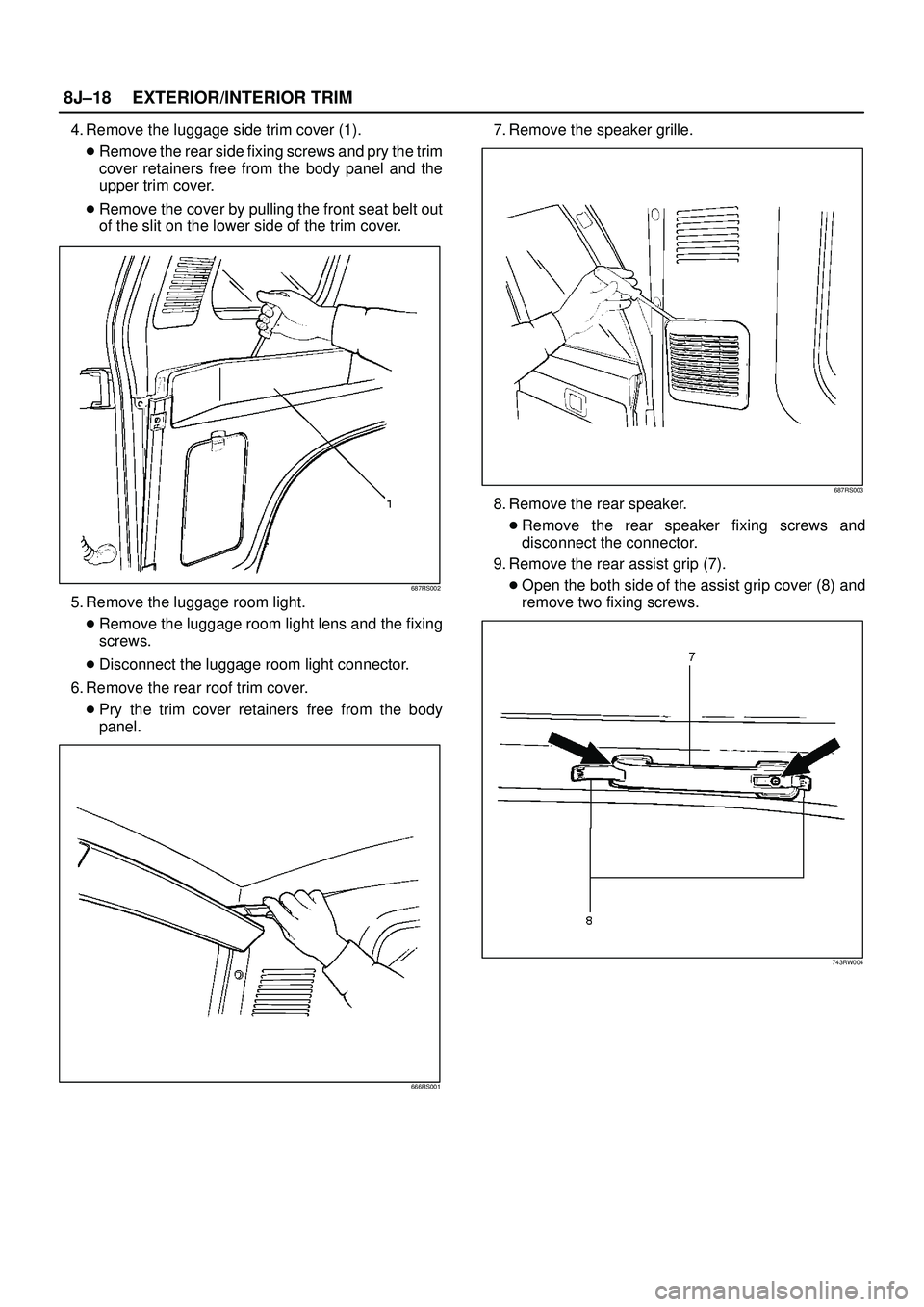

ISUZU TROOPER 1998 Service Repair Manual 8J±18EXTERIOR/INTERIOR TRIM 4. Remove the luggage side trim cover (1). Remove the rear side fixing screws and pry the trim cover retainers free from the body panel and the upper trim cover. Remove

Page 3398 of 3573

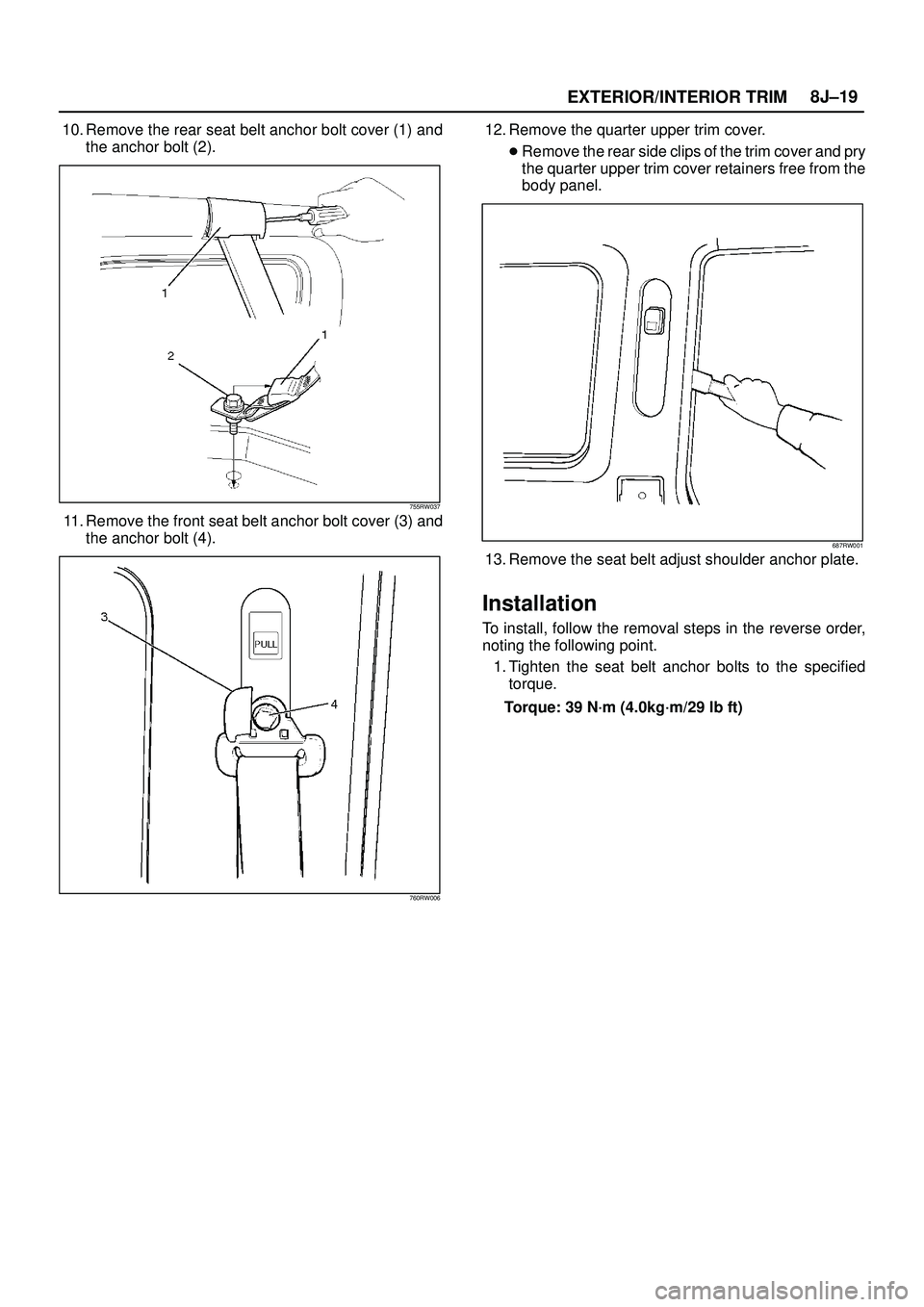

ISUZU TROOPER 1998 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±19 10. Remove the rear seat belt anchor bolt cover (1) and the anchor bolt (2). 755RW037 11. Remove the front seat belt anchor bolt cover (3) and the anchor bolt (4). 760RW00

Page 3399 of 3573

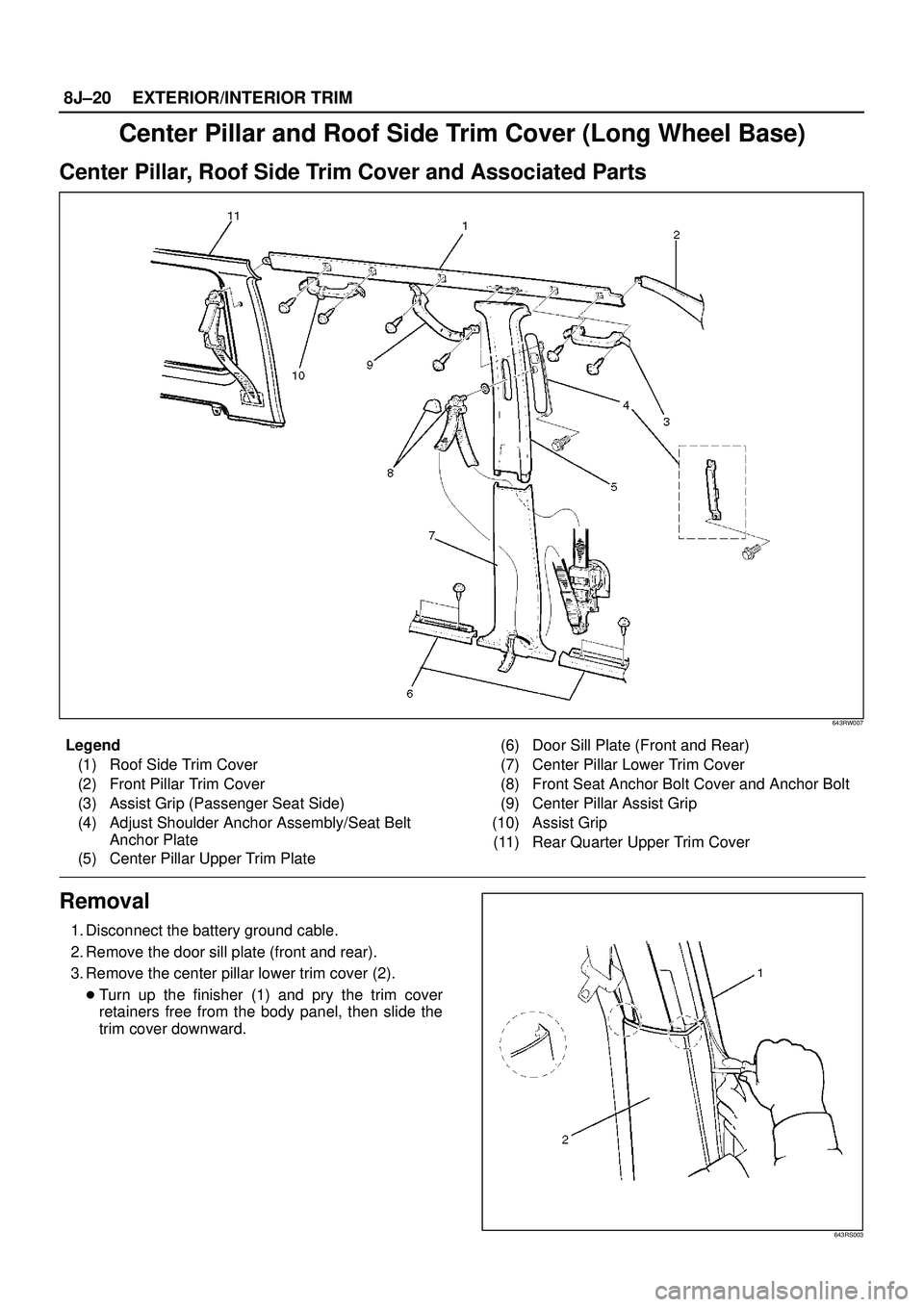

ISUZU TROOPER 1998 Service Repair Manual 8J±20EXTERIOR/INTERIOR TRIM Center Pillar and Roof Side Trim Cover (Long Wheel Base) Center Pillar, Roof Side Trim Cover and Associated Parts 643RW007 Legend (1) Roof Side Trim Cover (2) Front Pillar

Page 3400 of 3573

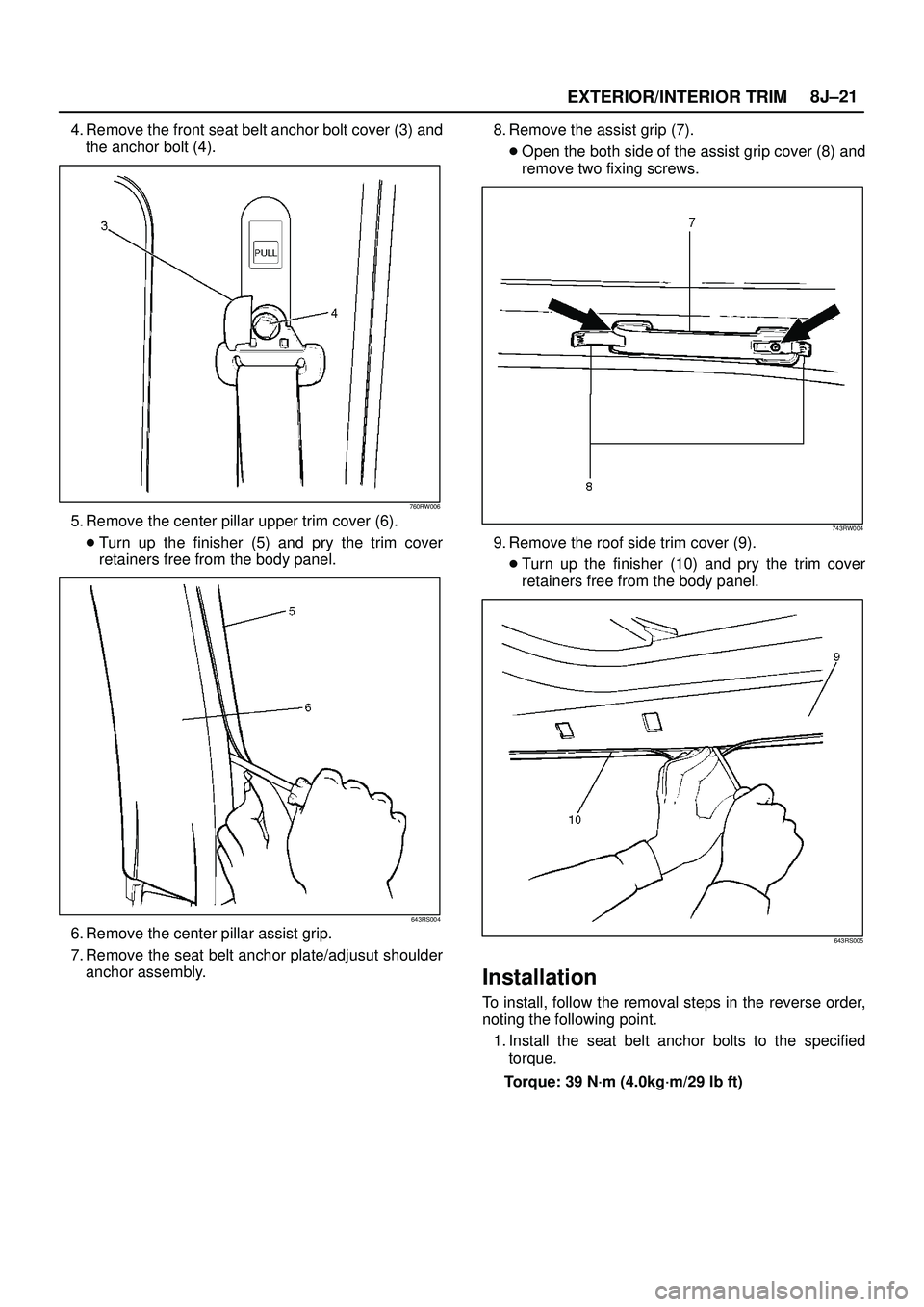

ISUZU TROOPER 1998 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±21 4. Remove the front seat belt anchor bolt cover (3) and the anchor bolt (4). 760RW006 5. Remove the center pillar upper trim cover (6). Turn up the finisher (5) and pry t
