6A – 36 ENGINE MECHANICAL
EXHAUST MANIFOLD
9
598 For Europe875 63
21
4
7
4
2
1
36
025R200004

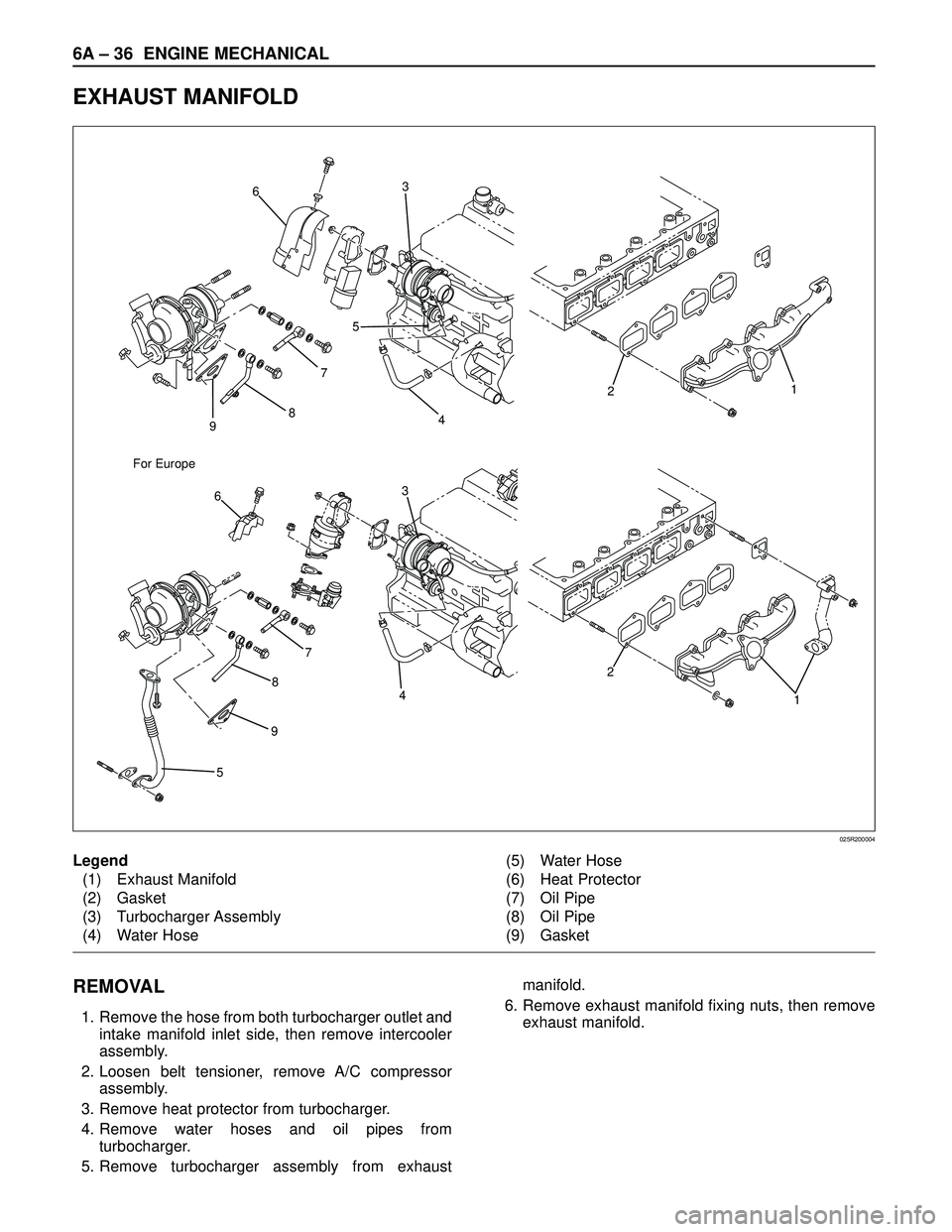

Legend
(1) Exhaust Manifold
(2) Gasket
(3) Turbocharger Assembly
(4) Water Hose(5) Water Hose
(6) Heat Protector
(7) Oil Pipe
(8) Oil Pipe
(9) Gasket
REMOVAL
1. Remove the hose from both turbocharger outlet and
intake manifold inlet side, then remove intercooler
assembly.
2. Loosen belt tensioner, remove A/C compressor
assembly.
3. Remove heat protector from turbocharger.
4. Remove water hoses and oil pipes from
turbocharger.
5. Remove turbocharger assembly from exhaustmanifold.
6. Remove exhaust manifold fixing nuts, then remove
exhaust manifold.
Page 1770 of 3573
ENGINE MECHANICAL 6A – 37

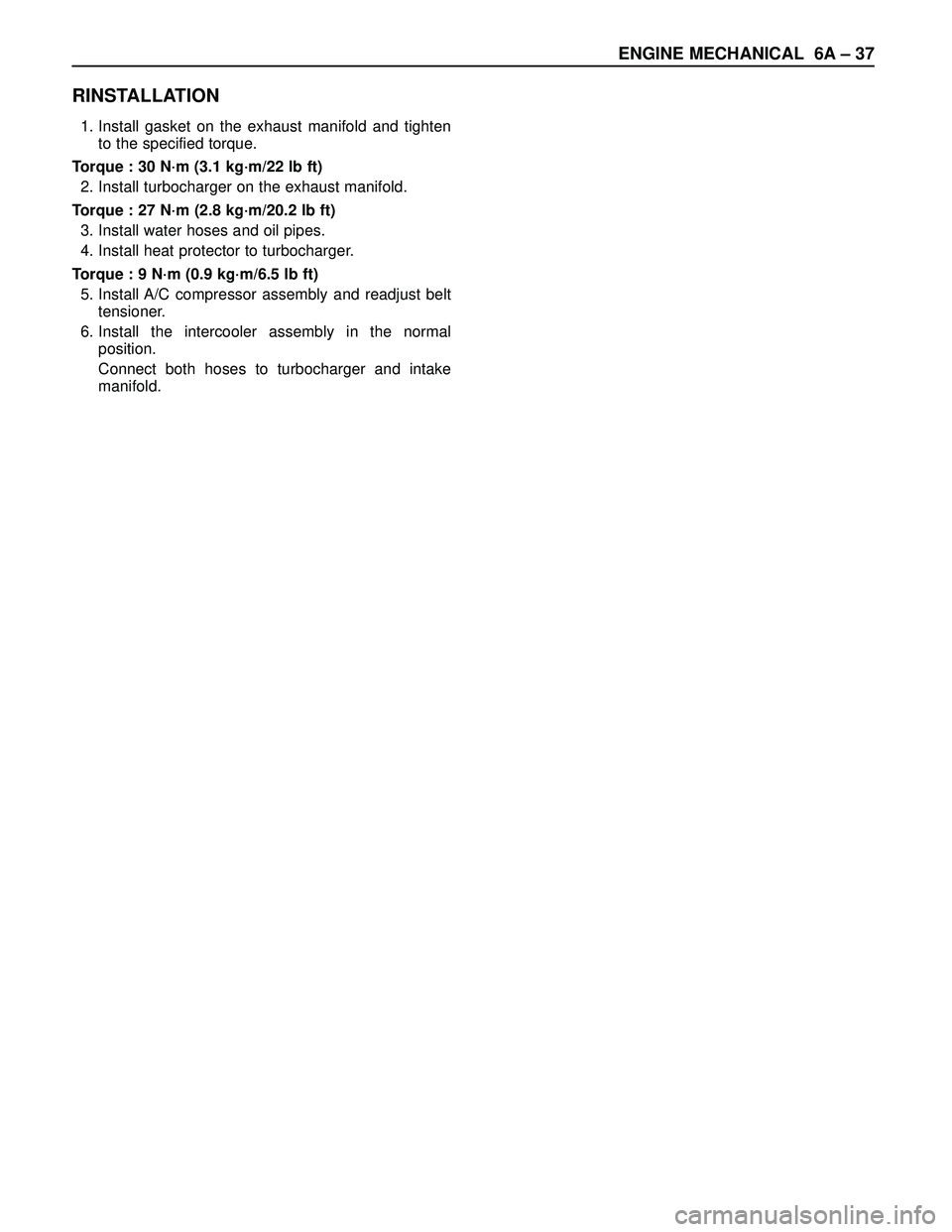

RINSTALLATION
1. Install gasket on the exhaust manifold and tighten
to the specified torque.
Torque : 30 N·m (3.1 kg·m/22 lb ft)
2. Install turbocharger on the exhaust manifold.
Torque : 27 N·m (2.8 kg·m/20.2 lb ft)
3. Install water hoses and oil pipes.
4. Install heat protector to turbocharger.
Torque : 9 N·m (0.9 kg·m/6.5 lb ft)
5. Install A/C compressor assembly and readjust belt
tensioner.
6. Install the intercooler assembly in the normal
position.
Connect both hoses to turbocharger and intake
manifold.
Page 1771 of 3573
6A – 38 ENGINE MECHANICAL
TURBOCHARGER
9
598 For Europe875 63
21
4
7
4
2
1
36
025R200004

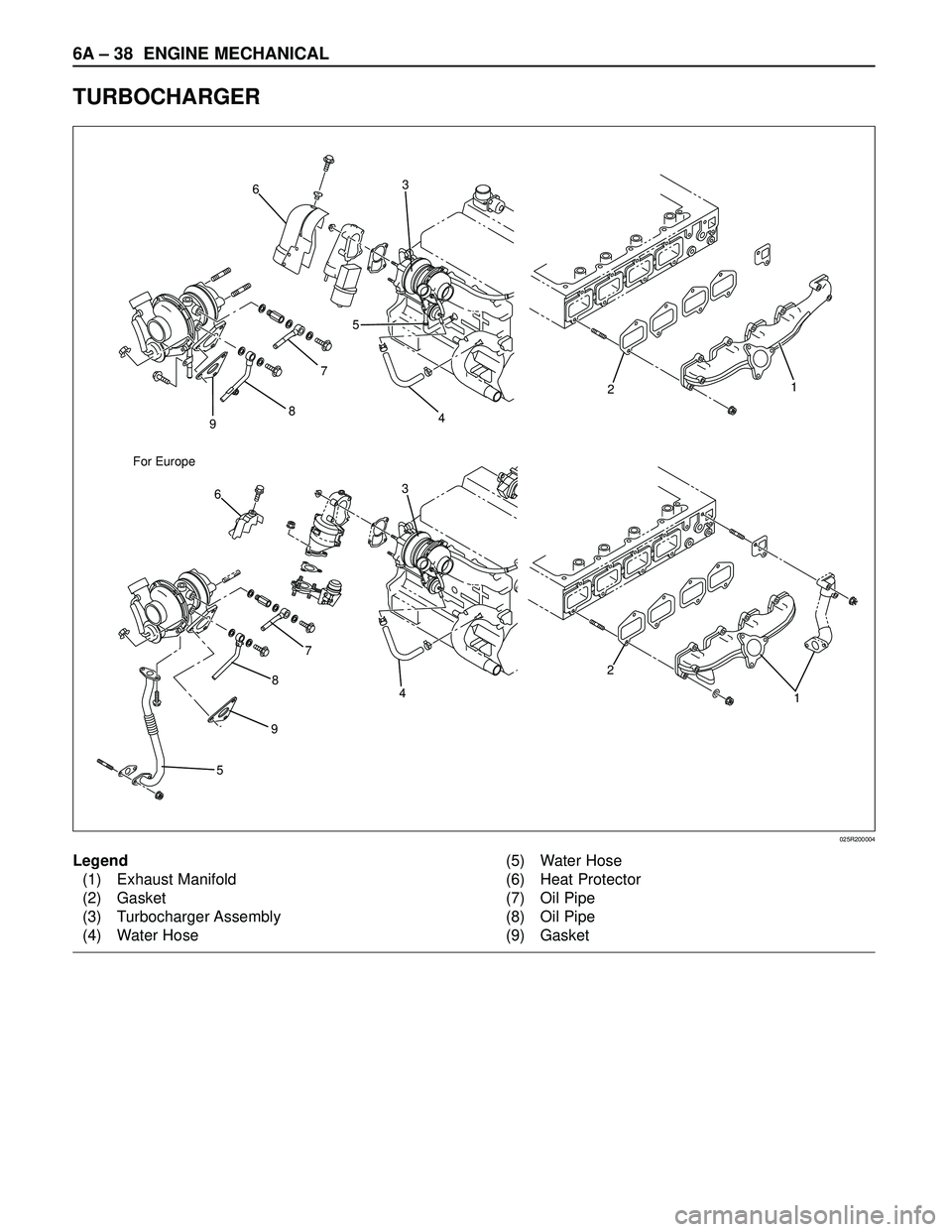

Legend
(1) Exhaust Manifold
(2) Gasket
(3) Turbocharger Assembly
(4) Water Hose(5) Water Hose
(6) Heat Protector
(7) Oil Pipe
(8) Oil Pipe
(9) Gasket
Page 1772 of 3573
ENGINE MECHANICAL 6A – 39

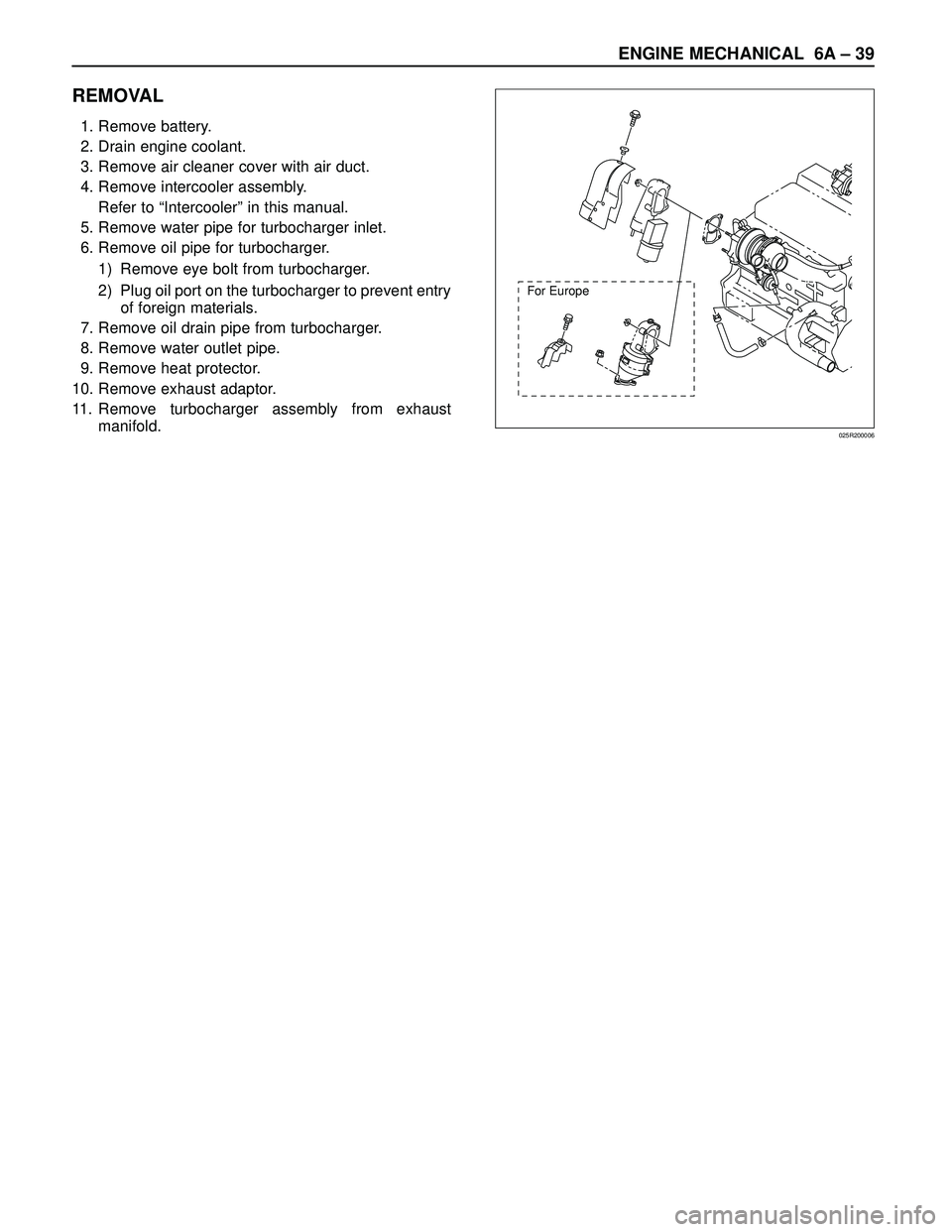

REMOVAL
1. Remove battery.
2. Drain engine coolant.
3. Remove air cleaner cover with air duct.
4. Remove intercooler assembly.
Refer to “Intercooler” in this manual.
5. Remove water pipe for turbocharger inlet.
6. Remove oil pipe for turbocharger.
1) Remove eye bolt from turbocharger.
2) Plug oil port on the turbocharger to prevent entry
of foreign materials.
7. Remove oil drain pipe from turbocharger.
8. Remove water outlet pipe.
9. Remove heat protector.
10. Remove exhaust adaptor.
11. Remove turbocharger assembly from exhaust
manifold.
For Europe
025R200006
Page 1773 of 3573

6A – 40 ENGINE MECHANICAL
INSTALLATION

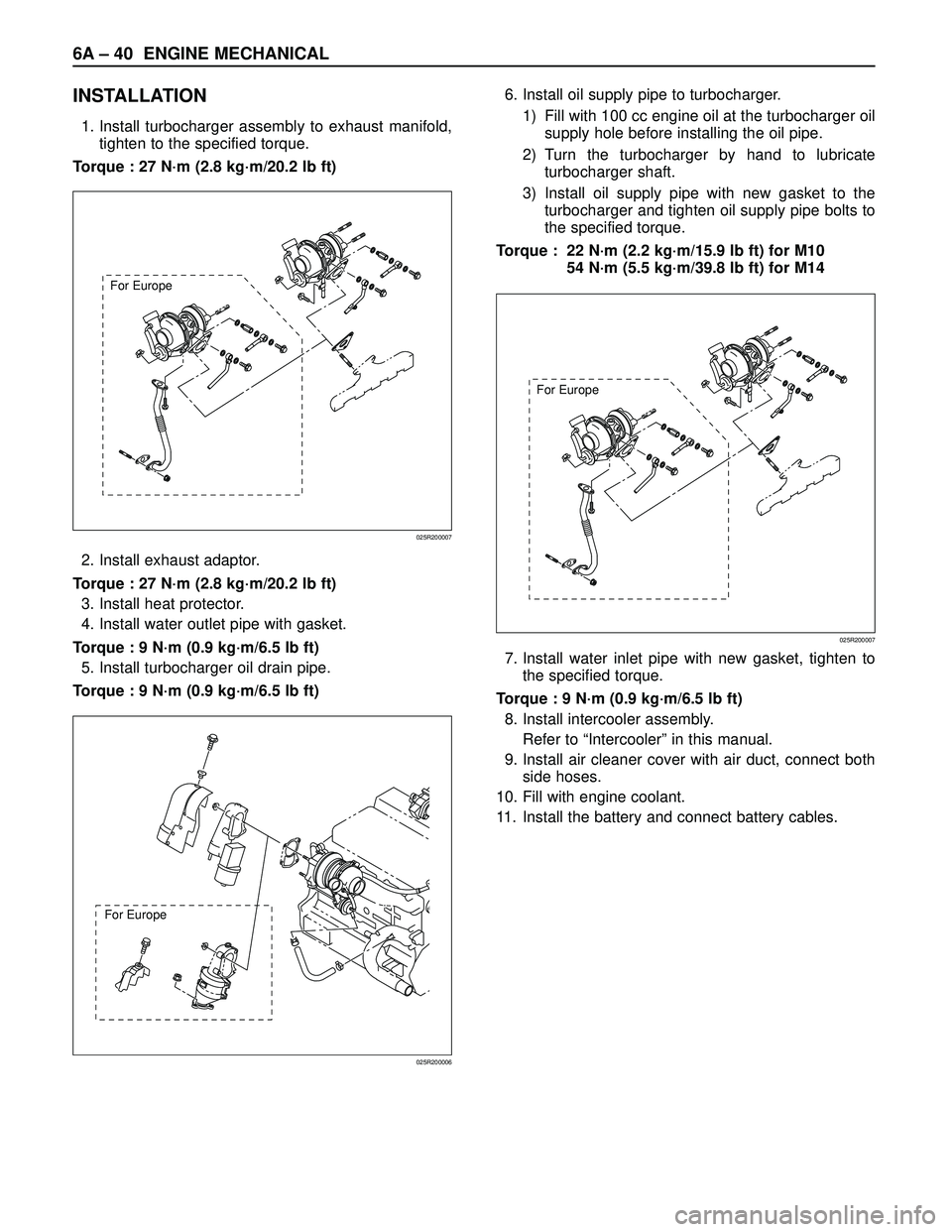

1. Install turbocharger assembly to exhaust manifold,
tighten to the specified torque.
Torque : 27 N·m (2.8 kg·m/20.2 lb ft)
2. Install exhaust adaptor.
Torque : 27 N·m (2.8 kg·m/20.2 lb ft)
3. Install heat protector.
4. Install water outlet pipe with gasket.
Torque : 9 N·m (0.9 kg·m/6.5 lb ft)
5. Install turbocharger oil drain pipe.
Torque : 9 N·m (0.9 kg·m/6.5 lb ft)6. Install oil supply pipe to turbocharger.
1) Fill with 100 cc engine oil at the turbocharger oil
supply hole before installing the oil pipe.
2) Turn the turbocharger by hand to lubricate
turbocharger shaft.
3) Install oil supply pipe with new gasket to the
turbocharger and tighten oil supply pipe bolts to
the specified torque.
Torque : 22 N·m (2.2 kg·m/15.9 lb ft) for M10
54 N·m (5.5 kg·m/39.8 lb ft) for M14
7. Install water inlet pipe with new gasket, tighten to
the specified torque.
Torque : 9 N·m (0.9 kg·m/6.5 lb ft)
8. Install intercooler assembly.
Refer to “Intercooler” in this manual.
9. Install air cleaner cover with air duct, connect both
side hoses.
10. Fill with engine coolant.
11. Install the battery and connect battery cables.
For Europe
025R200007
For Europe
025R200007
For Europe
025R200006
Page 1774 of 3573

ENGINE MECHANICAL 6A – 41
CYLINDER HEAD
3
4
1
2
012RW096

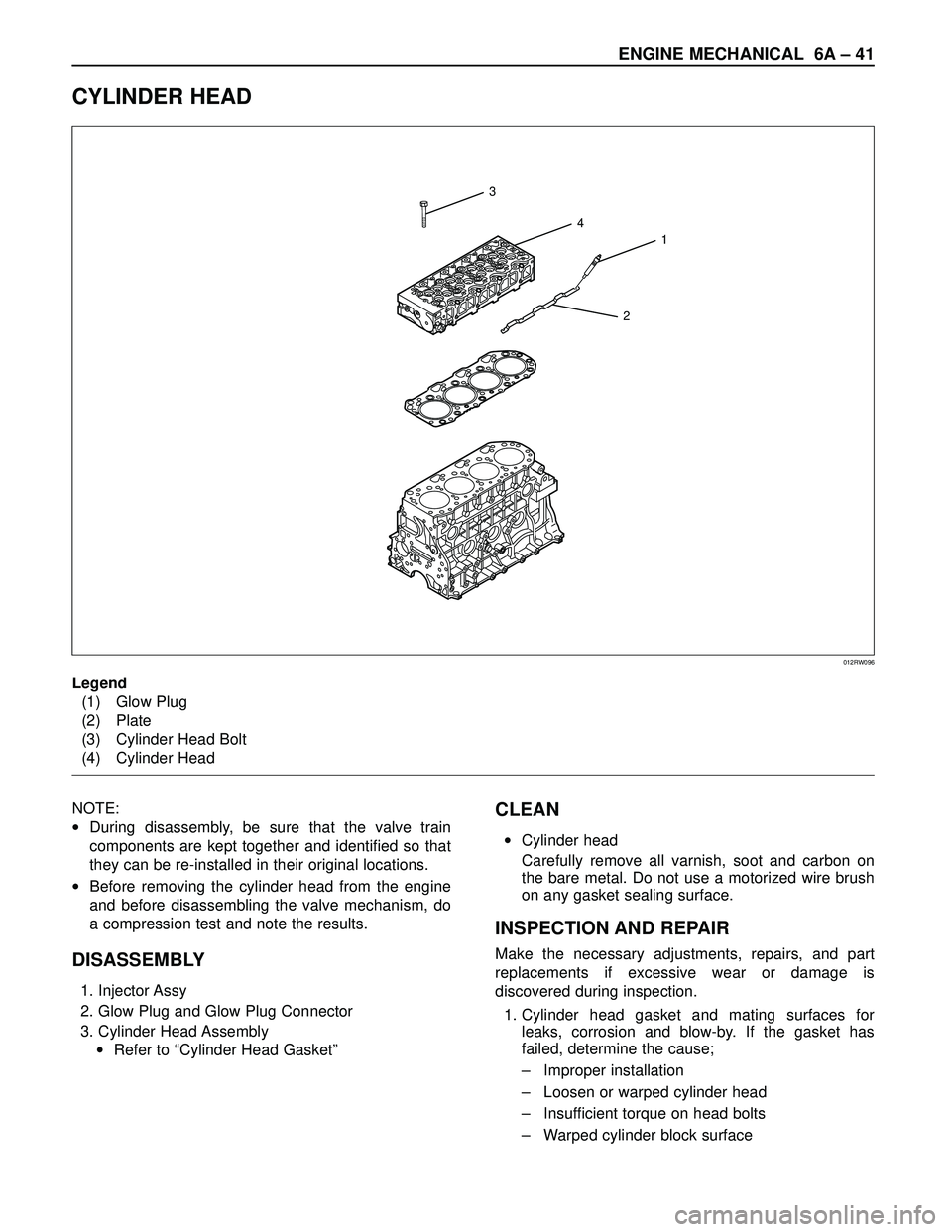

Legend
(1) Glow Plug
(2) Plate
(3) Cylinder Head Bolt
(4) Cylinder Head
NOTE:
•During disassembly, be sure that the valve train
components are kept together and identified so that
they can be re-installed in their original locations.
•Before removing the cylinder head from the engine
and before disassembling the valve mechanism, do
a compression test and note the results.
DISASSEMBLY
1. Injector Assy
2. Glow Plug and Glow Plug Connector
3. Cylinder Head Assembly
•Refer to “Cylinder Head Gasket”
CLEAN
•Cylinder head
Carefully remove all varnish, soot and carbon on
the bare metal. Do not use a motorized wire brush
on any gasket sealing surface.
INSPECTION AND REPAIR
Make the necessary adjustments, repairs, and part
replacements if excessive wear or damage is
discovered during inspection.
1. Cylinder head gasket and mating surfaces for
leaks, corrosion and blow-by. If the gasket has
failed, determine the cause;
–Improper installation
–Loosen or warped cylinder head
–Insufficient torque on head bolts
–Warped cylinder block surface
Page 1775 of 3573

6A – 42 ENGINE MECHANICAL
2. Cylinder head for cracks, especially between valve
seats and in the exhaust ports.
3. Cylinder head deck for corrosion, sand particles in
head and porosity.
CAUTION: Do not attempt to weld the cylinder
head. Replace it.

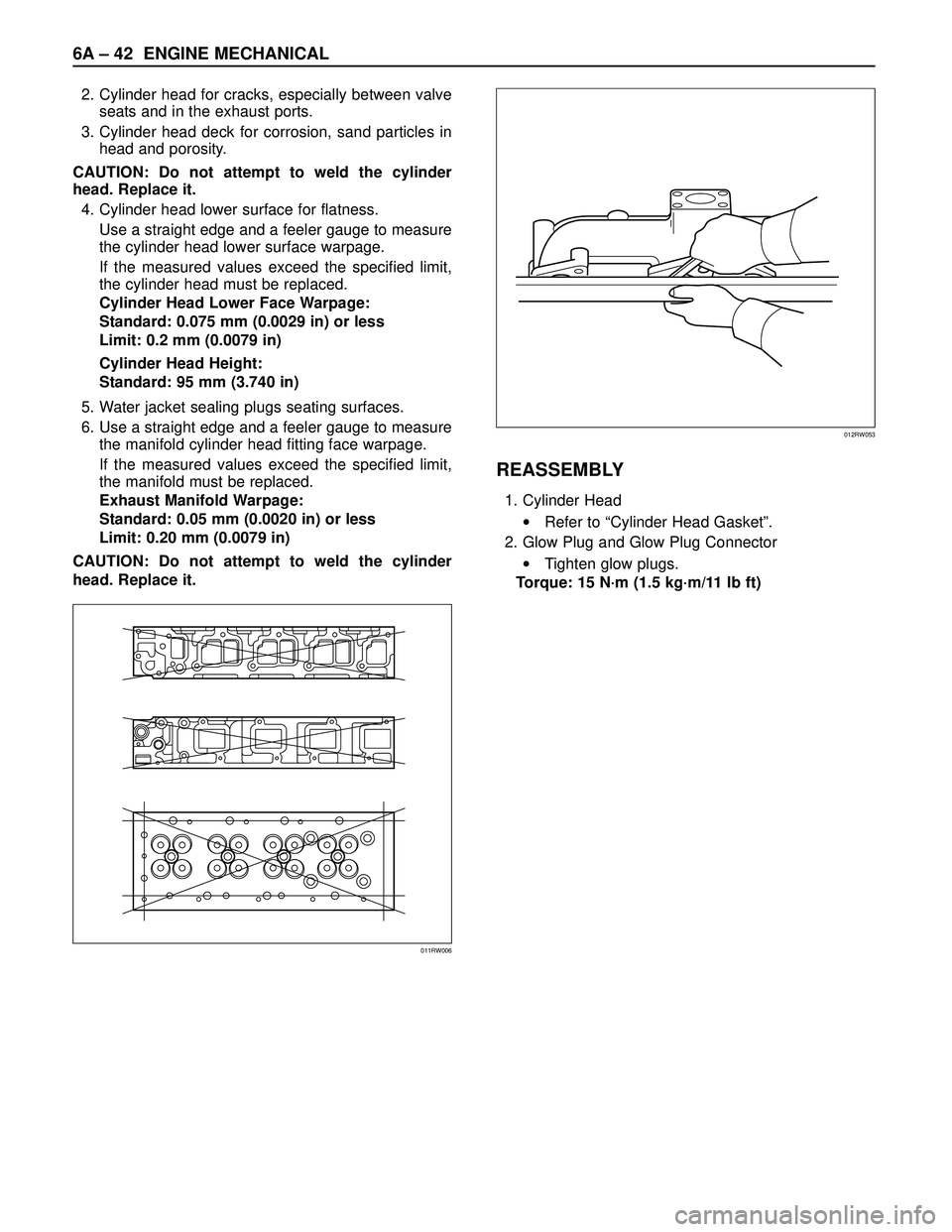

4. Cylinder head lower surface for flatness.
Use a straight edge and a feeler gauge to measure
the cylinder head lower surface warpage.
If the measured values exceed the specified limit,
the cylinder head must be replaced.
Cylinder Head Lower Face Warpage:
Standard: 0.075 mm (0.0029 in) or less
Limit: 0.2 mm (0.0079 in)
Cylinder Head Height:
Standard: 95 mm (3.740 in)
5. Water jacket sealing plugs seating surfaces.
6. Use a straight edge and a feeler gauge to measure
the manifold cylinder head fitting face warpage.
If the measured values exceed the specified limit,
the manifold must be replaced.
Exhaust Manifold Warpage:
Standard: 0.05 mm (0.0020 in) or less
Limit: 0.20 mm (0.0079 in)
CAUTION: Do not attempt to weld the cylinder
head. Replace it.
REASSEMBLY
1. Cylinder Head
•Refer to “Cylinder Head Gasket”.
2. Glow Plug and Glow Plug Connector
•Tighten glow plugs.
Torque: 15 N·m (1.5 kg·m/11 lb ft)
011RW006
012RW053
Page 1776 of 3573
ENGINE MECHANICAL 6A – 43
CYLINDER HEAD GASKET
12
13
14
15
8
3
4
5 6
10
11 9
With
spacer type
Without
spacer type
1 7
2
011R200002

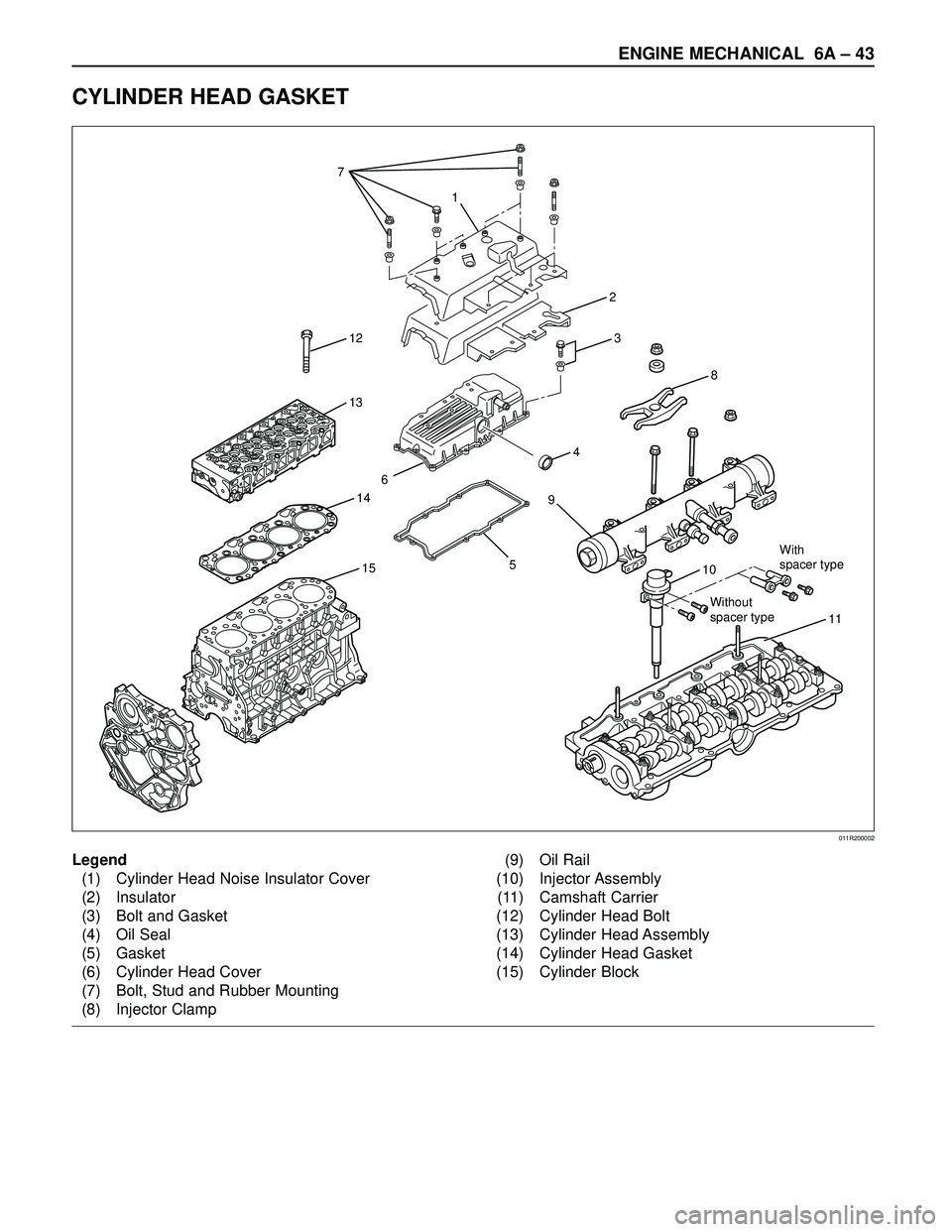

Legend
(1) Cylinder Head Noise Insulator Cover
(2) Insulator
(3) Bolt and Gasket
(4) Oil Seal
(5) Gasket
(6) Cylinder Head Cover
(7) Bolt, Stud and Rubber Mounting
(8) Injector Clamp(9) Oil Rail
(10) Injector Assembly
(11) Camshaft Carrier
(12) Cylinder Head Bolt
(13) Cylinder Head Assembly
(14) Cylinder Head Gasket
(15) Cylinder Block
