Page 1649 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4JG2-NA/4JG2-TURBO ENGINE 6A2 Ð 47 2. Flywheel ·Tighten bolts to the specified torque. 118 (12.0/87)N·m(Kg·m/lb·ft) 1. Transmission Assembly ·Refer to ÒTransmissionÓ installation in section 7.

Page 1650 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A2 Ð 48 4JG2-NA/4JG2-TURBO ENGINE ENGINE ASSEMBLY REMOVAL Preparation ·Space stands and removal front tires. ·Removal battery. (two batteries for cold area) ·Drain coolant. ·Disconnect window wa

Page 1651 of 3573

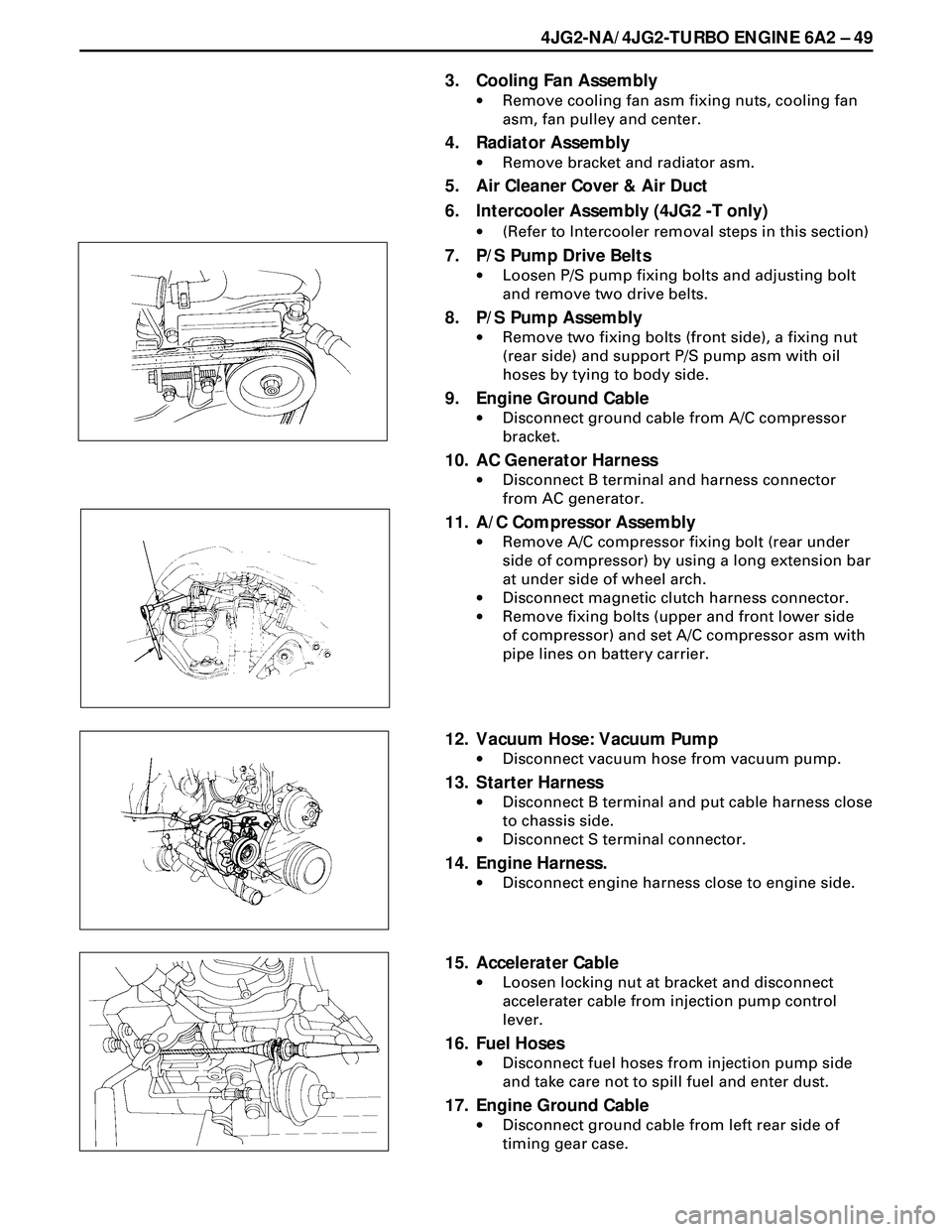

ISUZU TROOPER 1998 Service Repair Manual 4JG2-NA/4JG2-TURBO ENGINE 6A2 Ð 49 3. Cooling Fan Assembly ·Remove cooling fan asm fixing nuts, cooling fan asm, fan pulley and center. 4. Radiator Assembly ·Remove bracket and radiator asm. 5. Air

Page 1652 of 3573

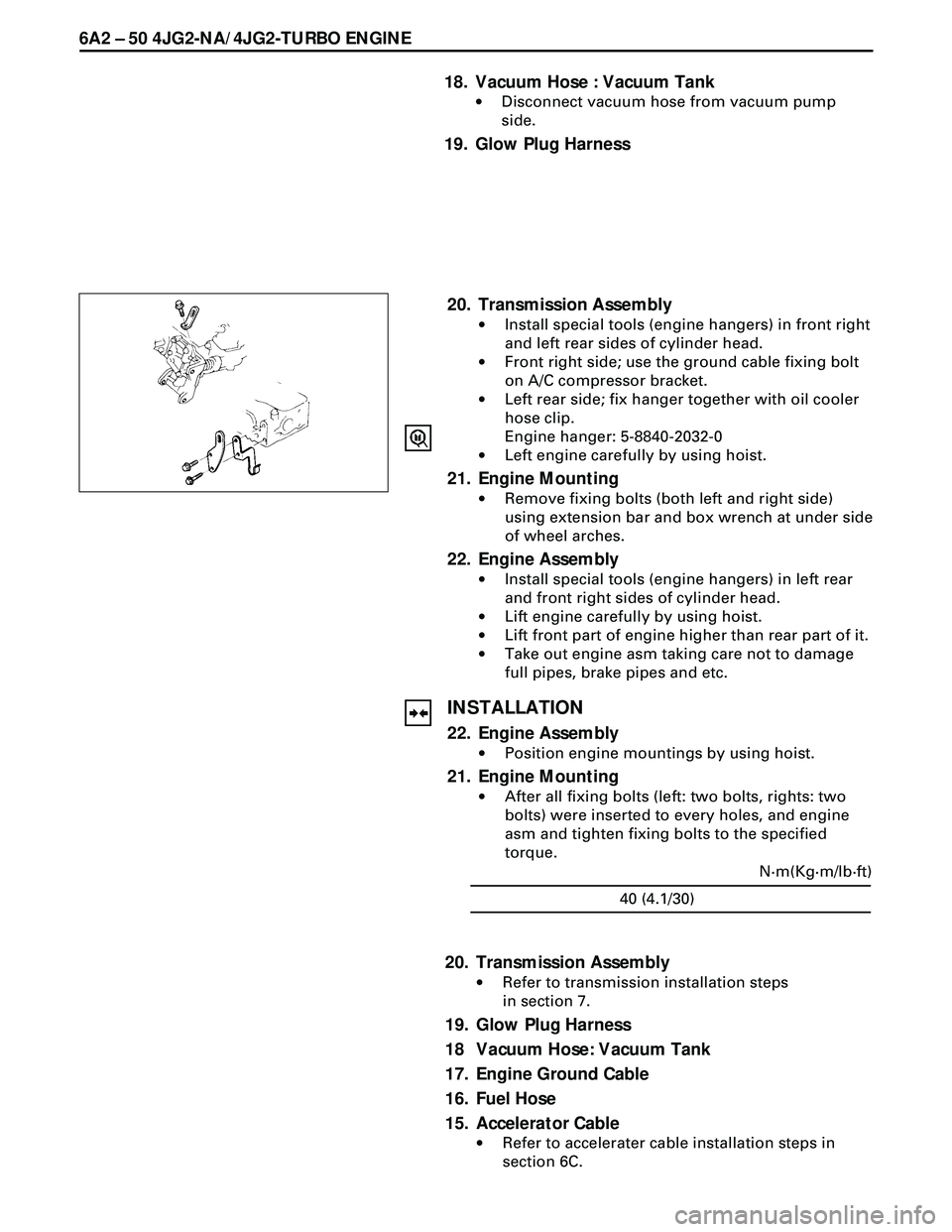

ISUZU TROOPER 1998 Service Repair Manual 6A2 Ð 50 4JG2-NA/4JG2-TURBO ENGINE 18. Vacuum Hose : Vacuum Tank ·Disconnect vacuum hose from vacuum pump side. 19. Glow Plug Harness 20. Transmission Assembly ·Install special tools (engine hanger

Page 1653 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4JG2-NA/4JG2-TURBO ENGINE 6A2 Ð 51 14. Engine Harness. 13. Starter Harness 12. Vacuum Hose: Vacuum Pump 11. A/C Compressor Assembly ·Tighten temporarily fixing bolts (upper and front lower sides of

Page 1654 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A2 Ð 52 4JG2-NA/4JG2-TURBO ENGINE 6. Intercooler Assembly (4JG2-T Only) ·Refer to intercooler installation steps in this section. 5. Air Cleaner Cover & Duct 4. Radiator Assembly ·Install cushion

Page 1655 of 3573

ISUZU TROOPER 1998 Service Repair Manual ENGINE COOLING 6B Ð 1 SECTION 6B ENGINE COOLING CONTENTS PAGE General Description .....................................................................................................................

Page 1656 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6B Ð 2 ENGINE COOLING
