ISUZU TROOPER 1998 Service Repair Manual 8D – 368 WIRING SYSTEM Parts Location (RHD) Legend (1) B-56 (Center Console) (2) B-57 (Center Console) (3) B-55 (Center Console) (4) D-12 (5) H-18 (6) B-1, B-2(7) B-26 (8) H-22 (9) B-18 (10) Relay &

Page 2962 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 369 Circuit Diagram (LHD)-1 D08RW945 4 B-553.0 L/B 0.5 O/G0.5 O/G C-11 10A AUDIO(ACC), MIRRORSTARTER SW (ACC) A 0.85 G/R TAIL RELAY (4) 2 B-55 0.5 B/L0.5 B/L H-22B8B-55 10 0.5 W/G

Page 2963 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8D – 370 WIRING SYSTEM Circuit Diagram (LHD)-2 D08RW088 0.5 B/L B 0.5 W/G 0.5 B/W 4 6 D-3C F M M MIRROR -LH RIGHT LEFT DOWN UP D-3 0.5 B/G D 0.5 W/B 0.5 B/W 4 6 D-12E G M M MIRROR -RH RIGHT LEFT DOW

Page 2964 of 3573

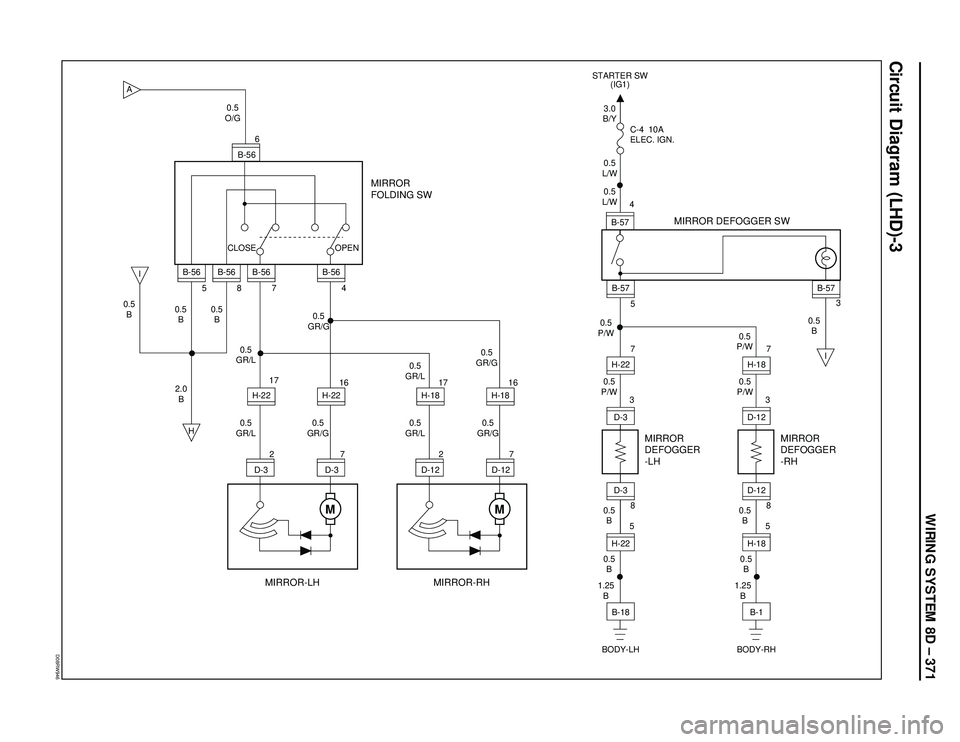

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 371 Circuit Diagram (LHD)-3 D08RW946 A B-56 6 B-56 5 B-56 8 B-56 7 B-56 4 H-2217 H-2216 CLOSE OPEN 0.5 O/G 0.5 B H 0.5 B 2.0 B0.5 GR/L 0.5 GR/L0.5 GR/G0.5 GR/G 0.5 B D-32 D-37M MI

Page 2965 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8D – 372 WIRING SYSTEM Parts Location (LHD) Legend (1) B-55 (2) D-3 (3) H-22 (4) Fuse Box (5) B-18 (6) B-26(7) B-57 (8) Relay and Fuse Box (9) H-18 (10) B-1, B-2 (11) D-12 (12) B-56 D08RW380 2 1 10

Page 2966 of 3573

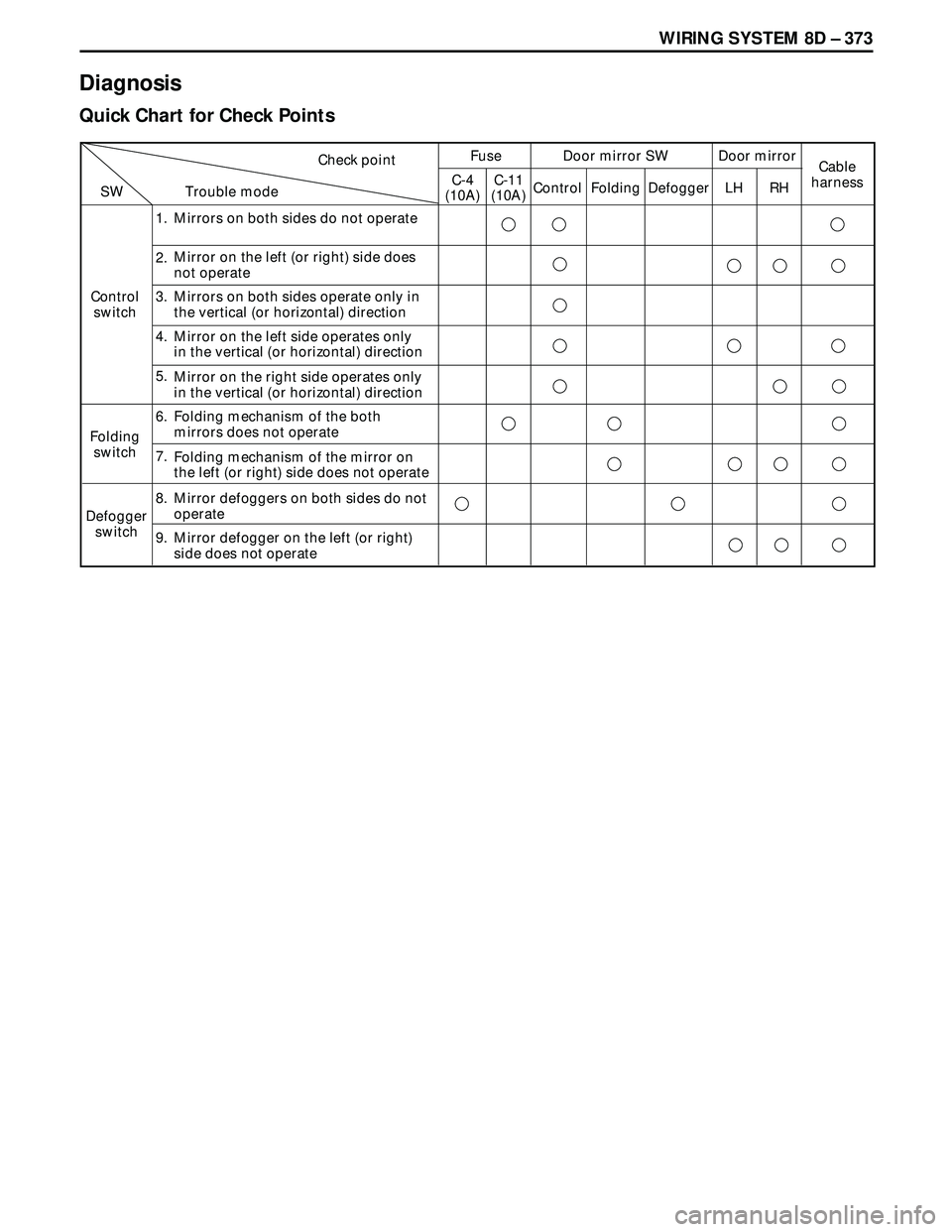

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 373 Diagnosis Quick Chart for Check Points 2.Mirrors on both sides do not operate 3.Mirror on the left (or right) side does not operate 4.Mirrors on both sides operate only in the

Page 2967 of 3573

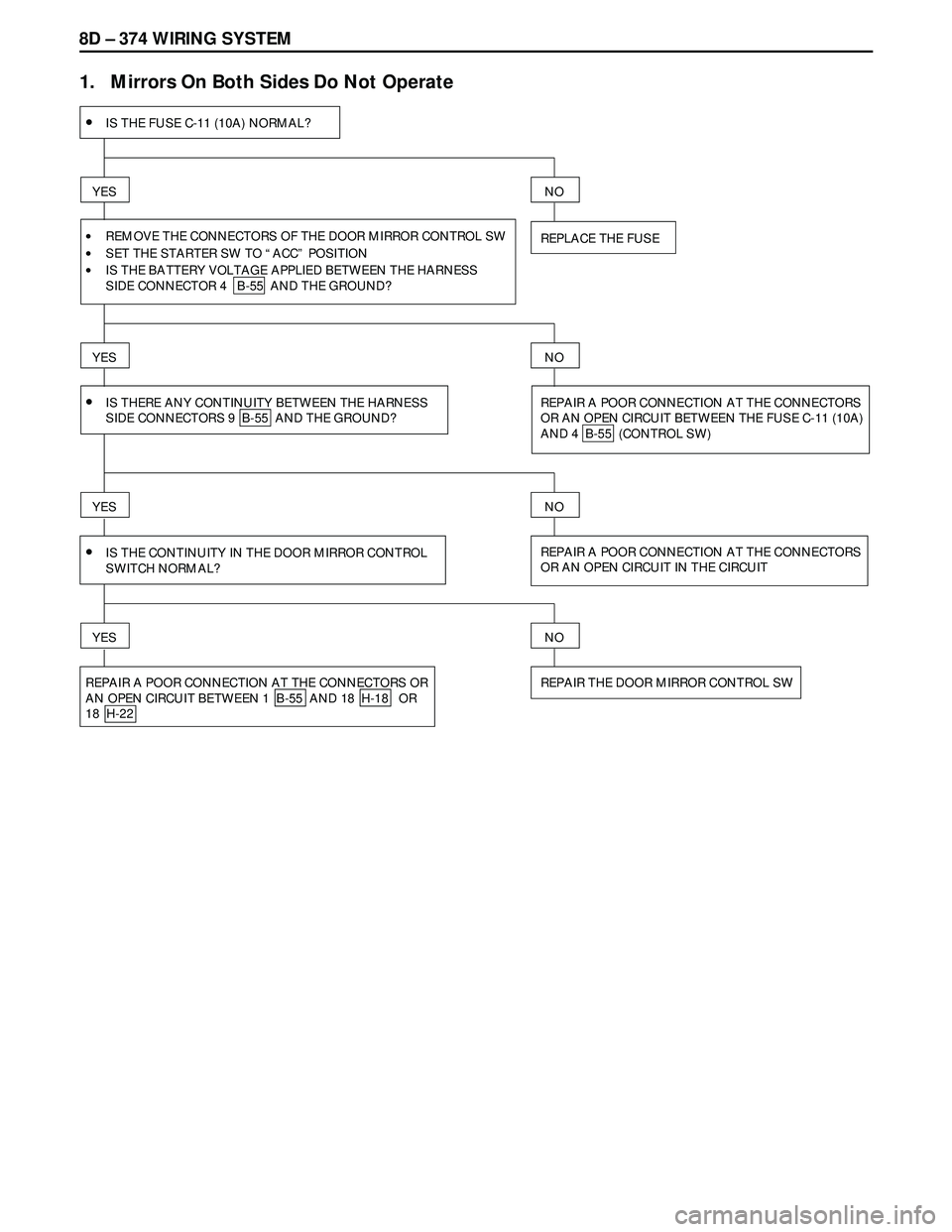

ISUZU TROOPER 1998 Service Repair Manual 8D – 374 WIRING SYSTEM 1. Mirrors On Both Sides Do Not Operate •IS THE FUSE C-11 (10A) NORMAL? YES •REMOVE THE CONNECTORS OF THE DOOR MIRROR CONTROL SWREPLACE THE FUSE NO IS THERE ANY CONTINUI

Page 2968 of 3573

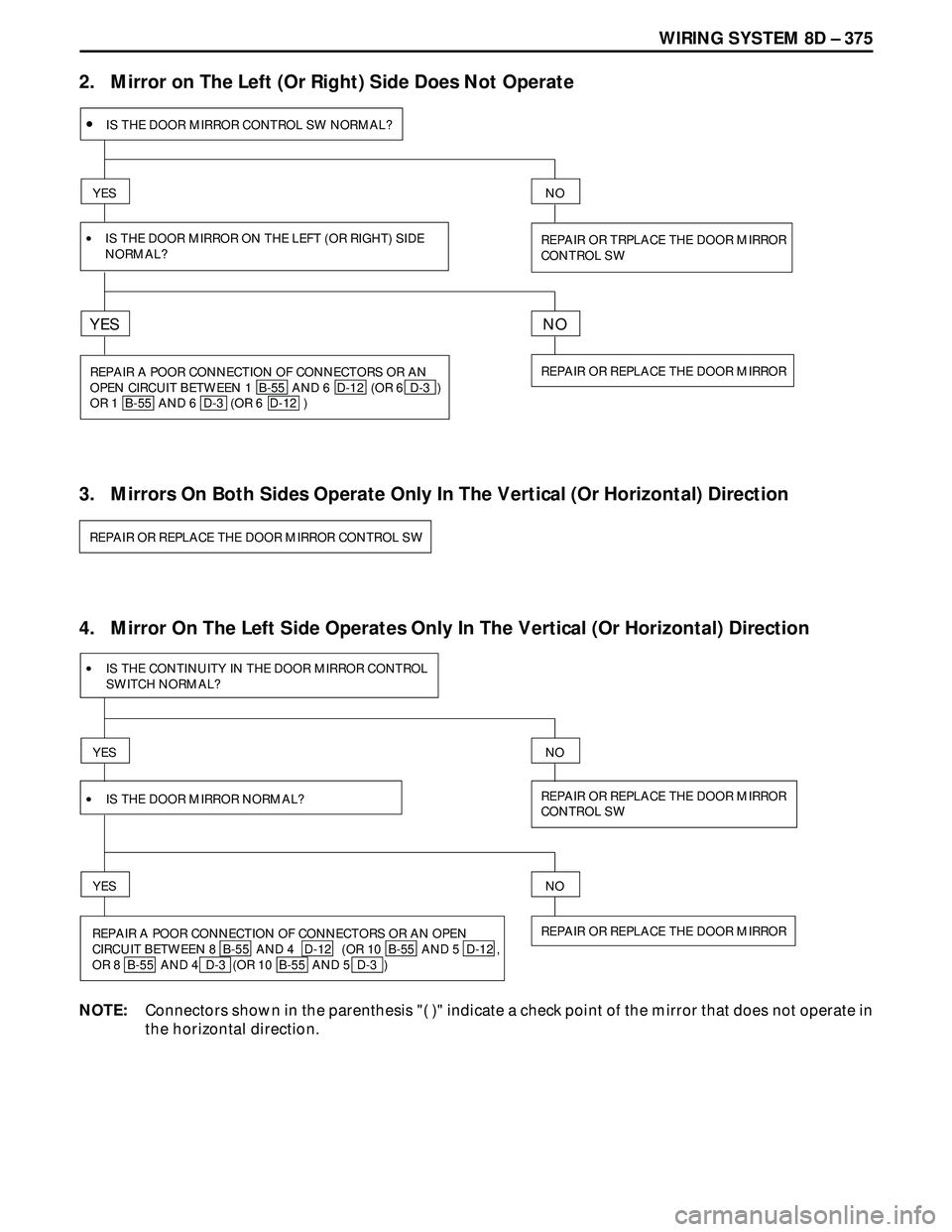

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 375 2. Mirror on The Left (Or Right) Side Does Not Operate 4. Mirror On The Left Side Operates Only In The Vertical (Or Horizontal) Direction •IS THE DOOR MIRROR CONTROL SW
