Page 3369 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8I±2SUN ROOF/CONVERTIBLE TOP Sun Roof Glass Sun Roof Glass and Associated Parts 665RS002 Legend (1) Sun Roof Weatherstrip (2) Sun Roof Glass(3) Decoration Cover (4) Sun Roof Shim Removal 1. Open the

Page 3370 of 3573

ISUZU TROOPER 1998 Service Repair Manual SUN ROOF/CONVERTIBLE TOP8I±3 4. Remove eight sun roof glass fixing screws to remove the sun roof glass(3). NOTE: If shims are used between the sun roof set plate and the glass, note the number of shi

Page 3371 of 3573

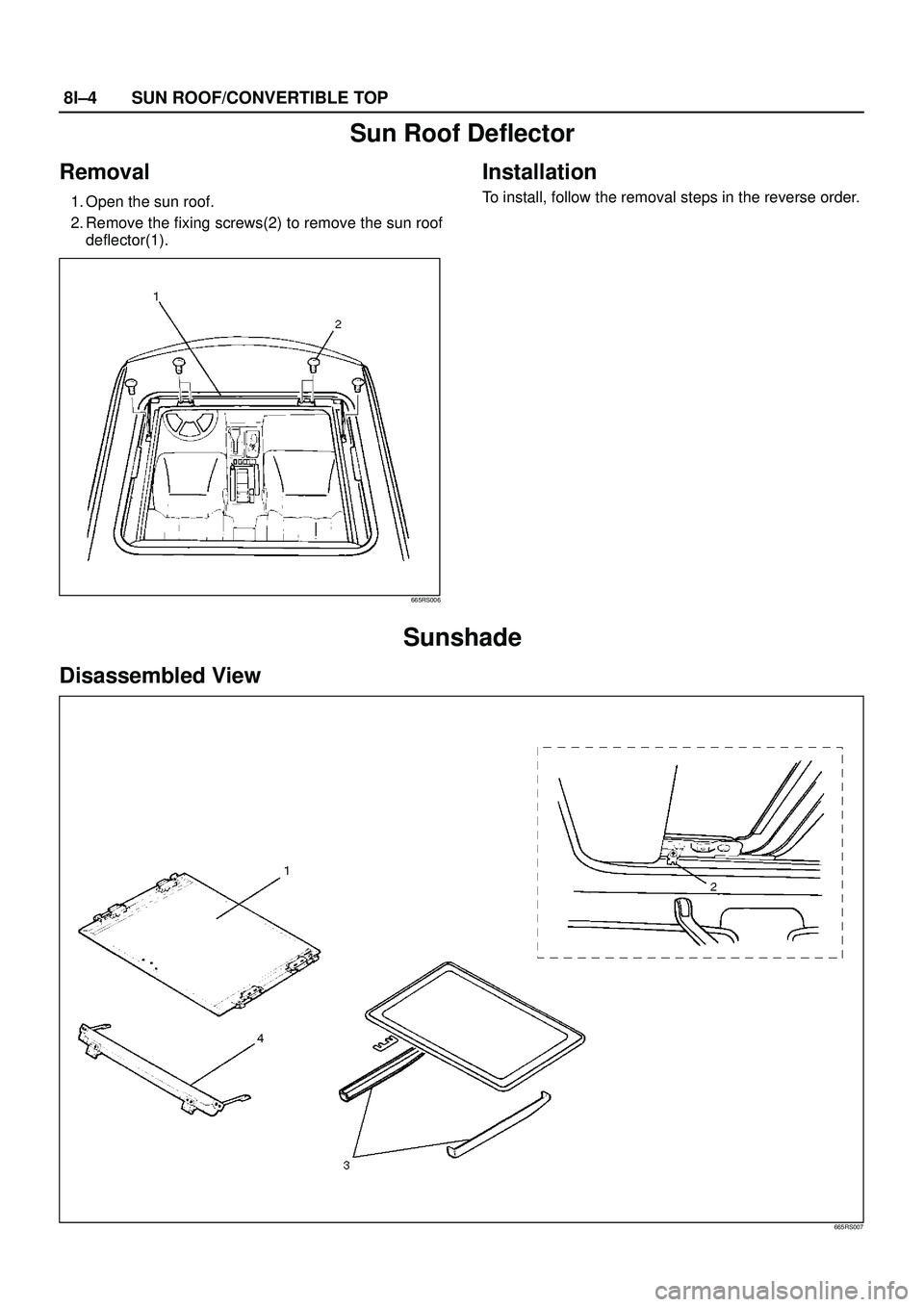

ISUZU TROOPER 1998 Service Repair Manual 8I±4SUN ROOF/CONVERTIBLE TOP Sun Roof Deflector Removal 1. Open the sun roof. 2. Remove the fixing screws(2) to remove the sun roof deflector(1). 665RS006 Installation To install, follow the removal

Page 3372 of 3573

ISUZU TROOPER 1998 Service Repair Manual SUN ROOF/CONVERTIBLE TOP8I±5 Legend (1) Sunshade (2) Sunshade Stopper(3) Decoration Cover (4) Sun Roof Deflector Removal 1. Remove the decoration cover. 2. Open the sun roof half position, remove the

Page 3373 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8I±6SUN ROOF/CONVERTIBLE TOP Sun Roof Frame Complete Assembly Sun Roof Frame Complete Assembly and Associated Parts 665RS009 Legend (1) Sun Roof Drain Hose (2) Sun Roof Frame Complete Assembly(3) Hea

Page 3374 of 3573

ISUZU TROOPER 1998 Service Repair Manual SUN ROOF/CONVERTIBLE TOP8I±7 5. Remove two sun roof frame complete assembly fixing nuts (front side) and four fixing bolts (each side) from the frame complete, and then remove the sun roof frame comp

Page 3375 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8I±8SUN ROOF/CONVERTIBLE TOP 7. Remove the cable outer tube(2) fixing screws. 8. Remove the cable outer tube fixing clamps(1) and guide rail fixing nuts(5). 9. Prying the guide rail a little with a s

Page 3376 of 3573

ISUZU TROOPER 1998 Service Repair Manual SUN ROOF/CONVERTIBLE TOP8I±9 Sun Roof Drain Hose (Front Side) Sun Roof Drain Hose (Front Side) and Associated Parts 665RW017 Legend (1) Clip (2) Sun Roof Drain Hose (3) Grommet(4) Instrument Panel As
