ISUZU TROOPER 1998 Service Repair Manual 8A–22LIGHTING SYSTEM Hazard Warning Switch Removal 1. Disconnect the battery ground cable. 2. Remove the front console assembly(1). Refer to the Instrument Panel Assembly in Body Structure section.

Page 2562 of 3573

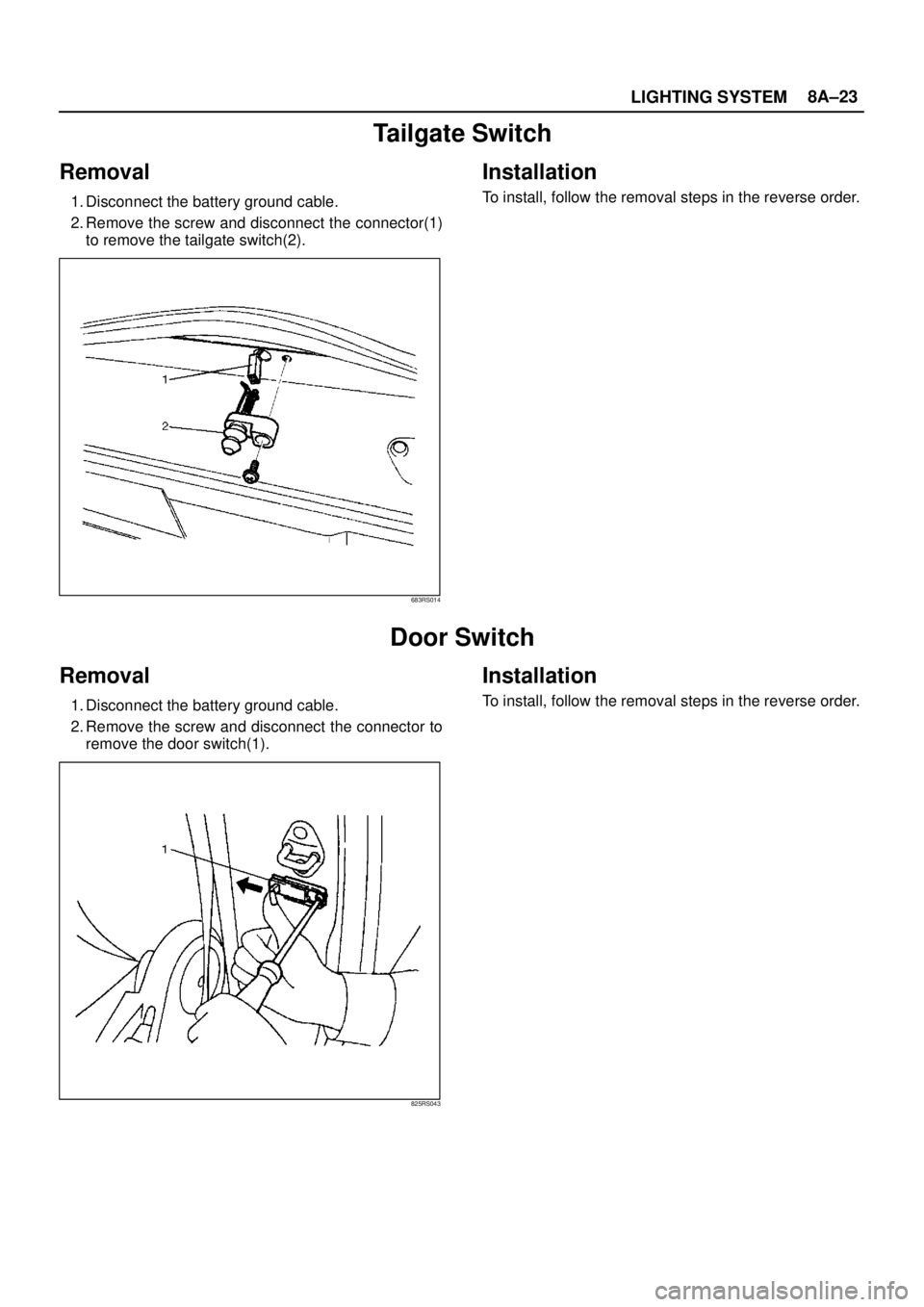

ISUZU TROOPER 1998 Service Repair Manual LIGHTING SYSTEM8A–23 Tailgate Switch Removal 1. Disconnect the battery ground cable. 2. Remove the screw and disconnect the connector(1) to remove the tailgate switch(2). 683RS014 Installation To in

Page 2563 of 3573

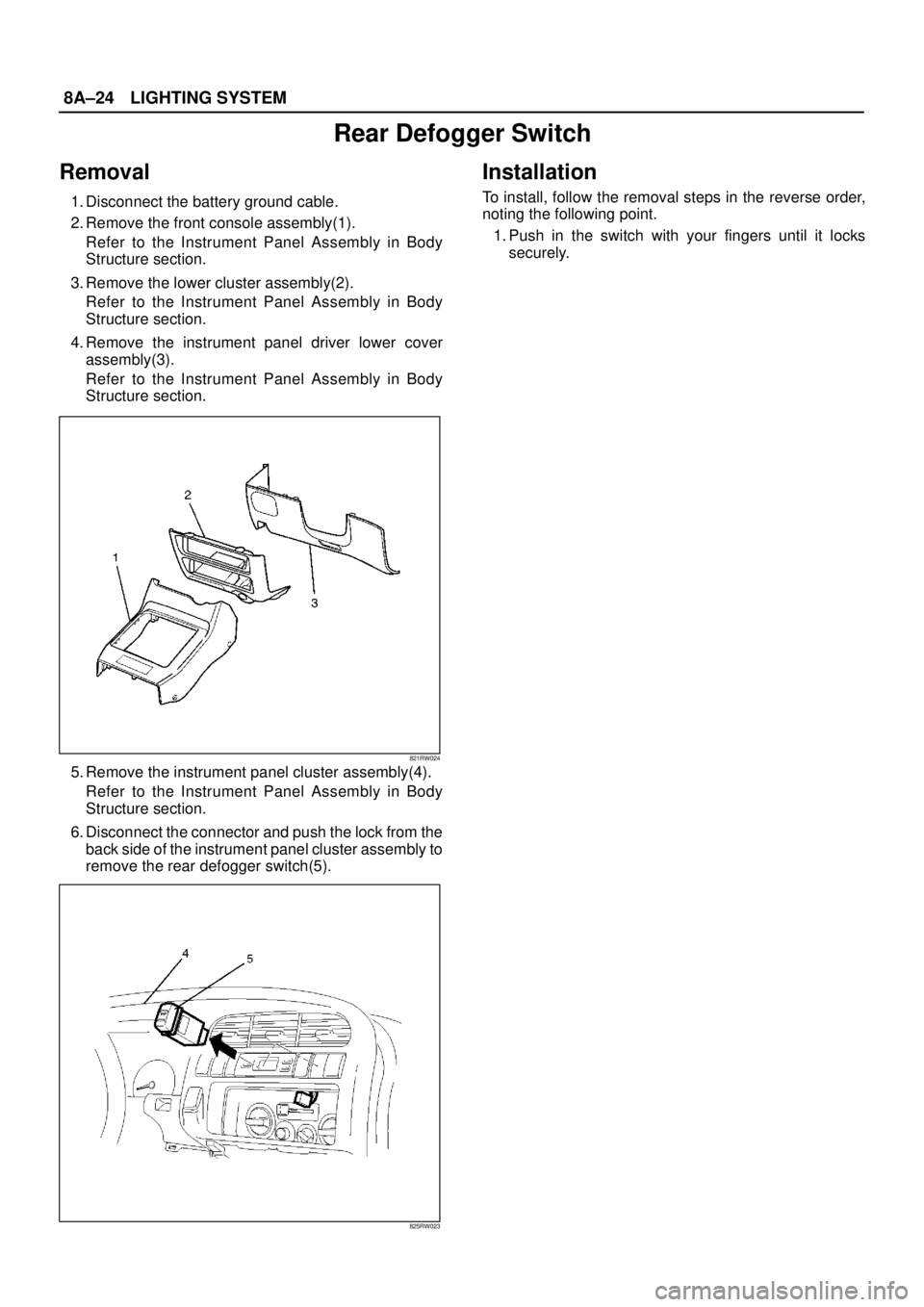

ISUZU TROOPER 1998 Service Repair Manual 8A–24LIGHTING SYSTEM Rear Defogger Switch Removal 1. Disconnect the battery ground cable. 2. Remove the front console assembly(1). Refer to the Instrument Panel Assembly in Body Structure section.

Page 2564 of 3573

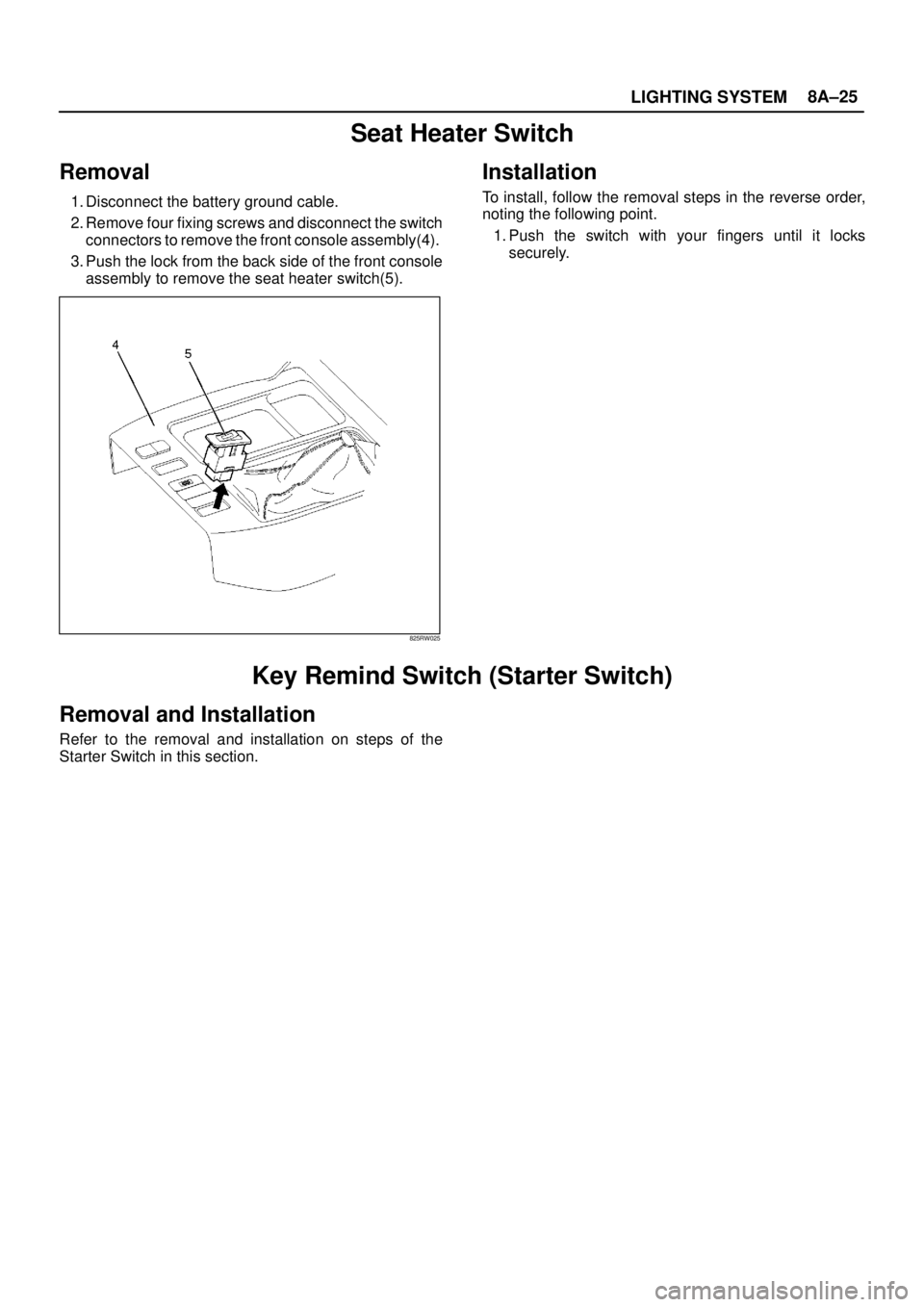

ISUZU TROOPER 1998 Service Repair Manual LIGHTING SYSTEM8A–25 Seat Heater Switch Removal 1. Disconnect the battery ground cable. 2. Remove four fixing screws and disconnect the switch connectors to remove the front console assembly(4).

Page 2565 of 3573

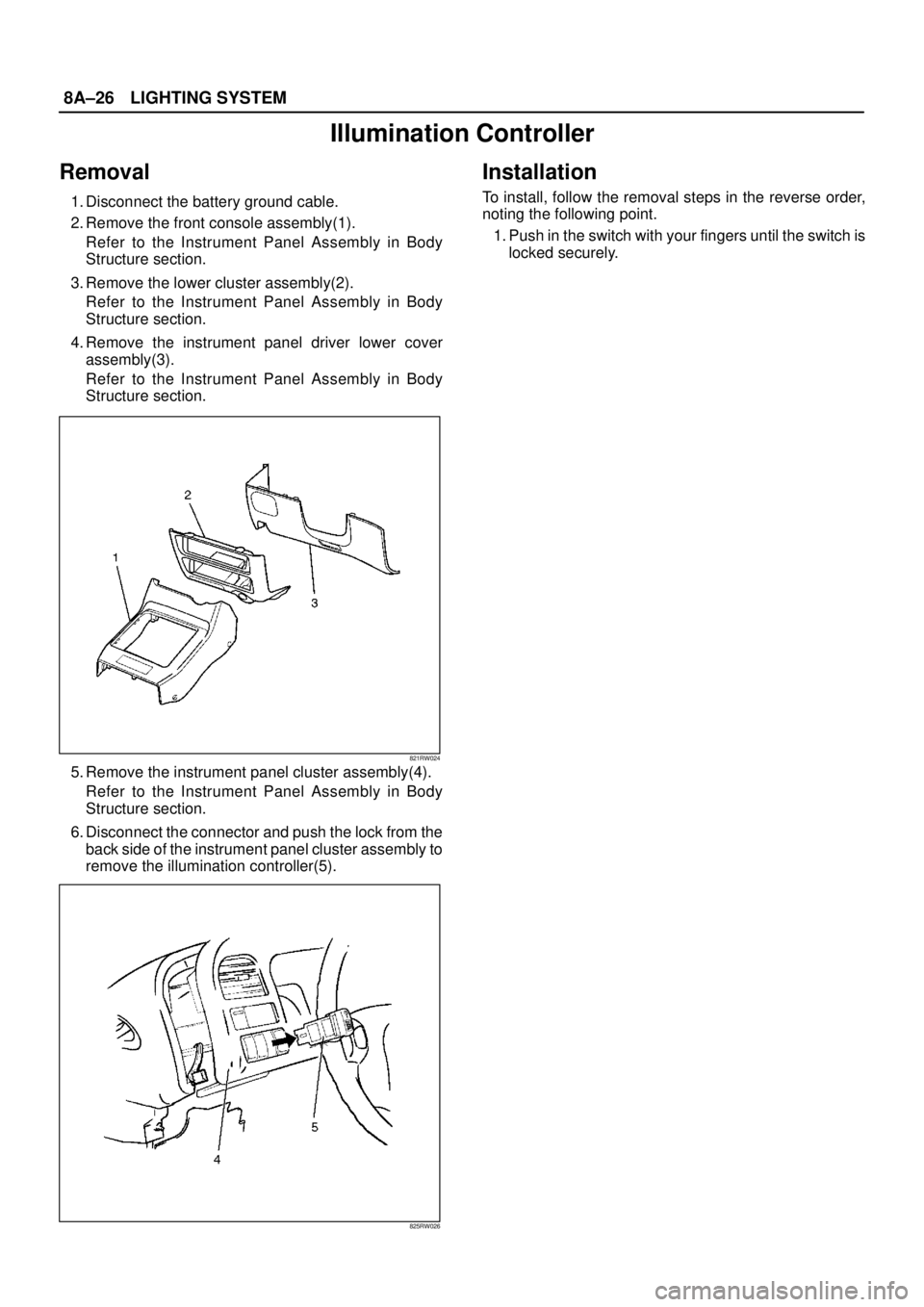

ISUZU TROOPER 1998 Service Repair Manual 8A–26LIGHTING SYSTEM Illumination Controller Removal 1. Disconnect the battery ground cable. 2. Remove the front console assembly(1). Refer to the Instrument Panel Assembly in Body Structure secti

Page 2566 of 3573

ISUZU TROOPER 1998 Service Repair Manual LIGHTING SYSTEM8A–27 Power/Winter Switch Removal 1. Disconnect the battery ground cable. 2. Remove four fixing screws and disconnect the switch connectors to remove the front console assembly(4). 3

Page 2567 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8A–28LIGHTING SYSTEM Main Data and Specifications Light and Bulb Specifications D08RW539 Legend (1) Dome Light (2) Luggage Room Light (3) Courtesy Light (4) Side Turn Signal Light (5) Front Turn Sig

Page 2568 of 3573

ISUZU TROOPER 1998 Service Repair Manual LIGHTING SYSTEM8A–29 Light NameRated PowerNumber of BulbsLens ColorRemarks Headlight60w/55w2WhiteHalogen FrontTurn signal light21w2Whitecombination lightClearance light5w2Amber FRT fog light55w2Whit
