ISUZU TROOPER 1998 Service Repair Manual 8DÐ16 WIRING SYSTEM Circuit Breaker The circuit breaker is a protective device designed to open the circuit when a current load is in excess of rated breaker capacity. If there is a short or other ty

Page 2610 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ17 Name/ ColorRated voltage/Coil resistanceInternal circuitName/ ColorRated voltage/Coil resistanceInternal circuit 1M (MR5L)/ Black 12V/ Approx. 80W Minimum operating voltage: 7V at

Page 2611 of 3573

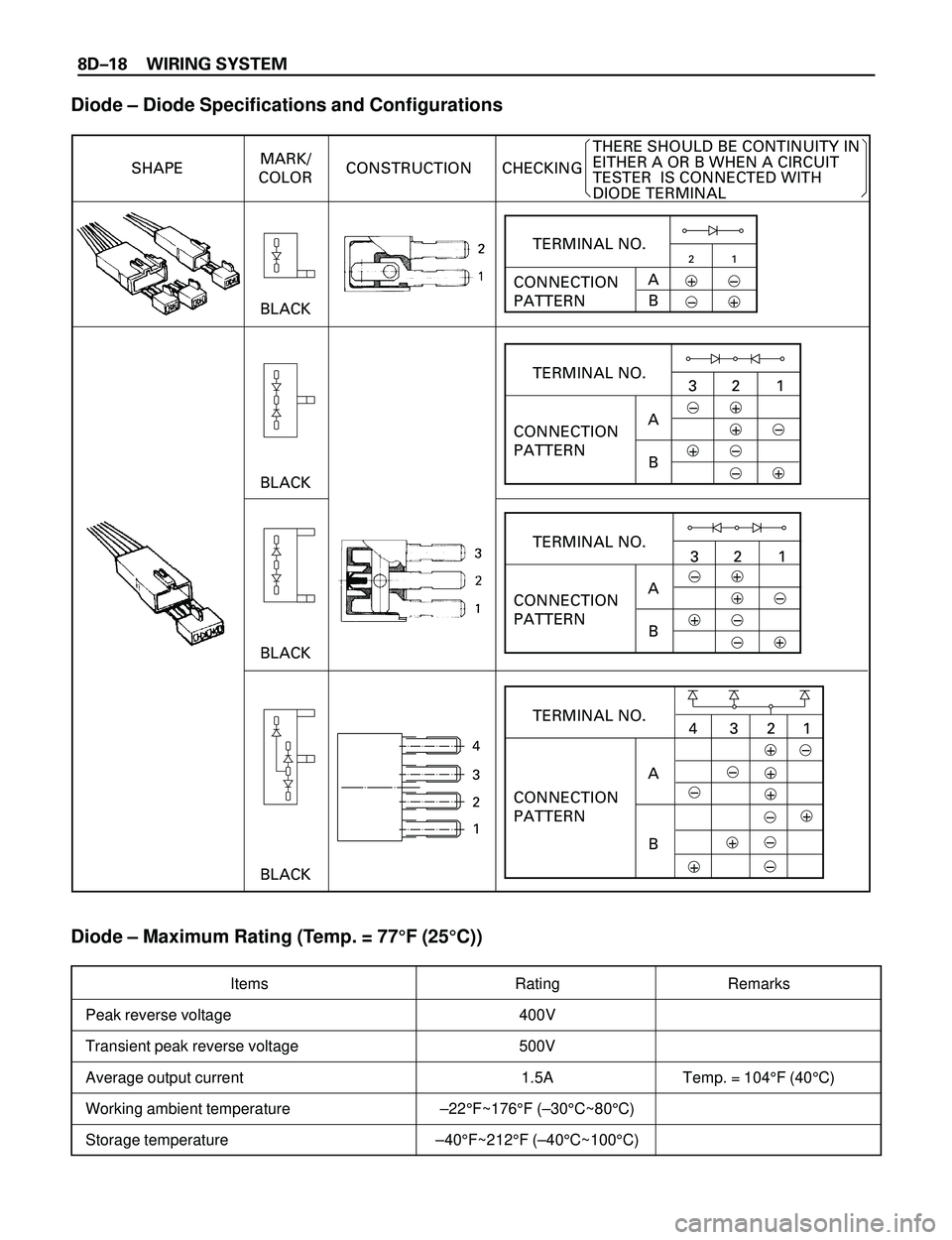

ISUZU TROOPER 1998 Service Repair Manual 8DÐ18 WIRING SYSTEM SHAPEMARK/ COLORCONSTRUCTION CHECKING BLACK BLACK CONNECTION PATTERN 21 A B+ – BLACK 321 321 + – + – + – + – + – + – + – + – + – 432 + – + 1 – + – –+ +

Page 2612 of 3573

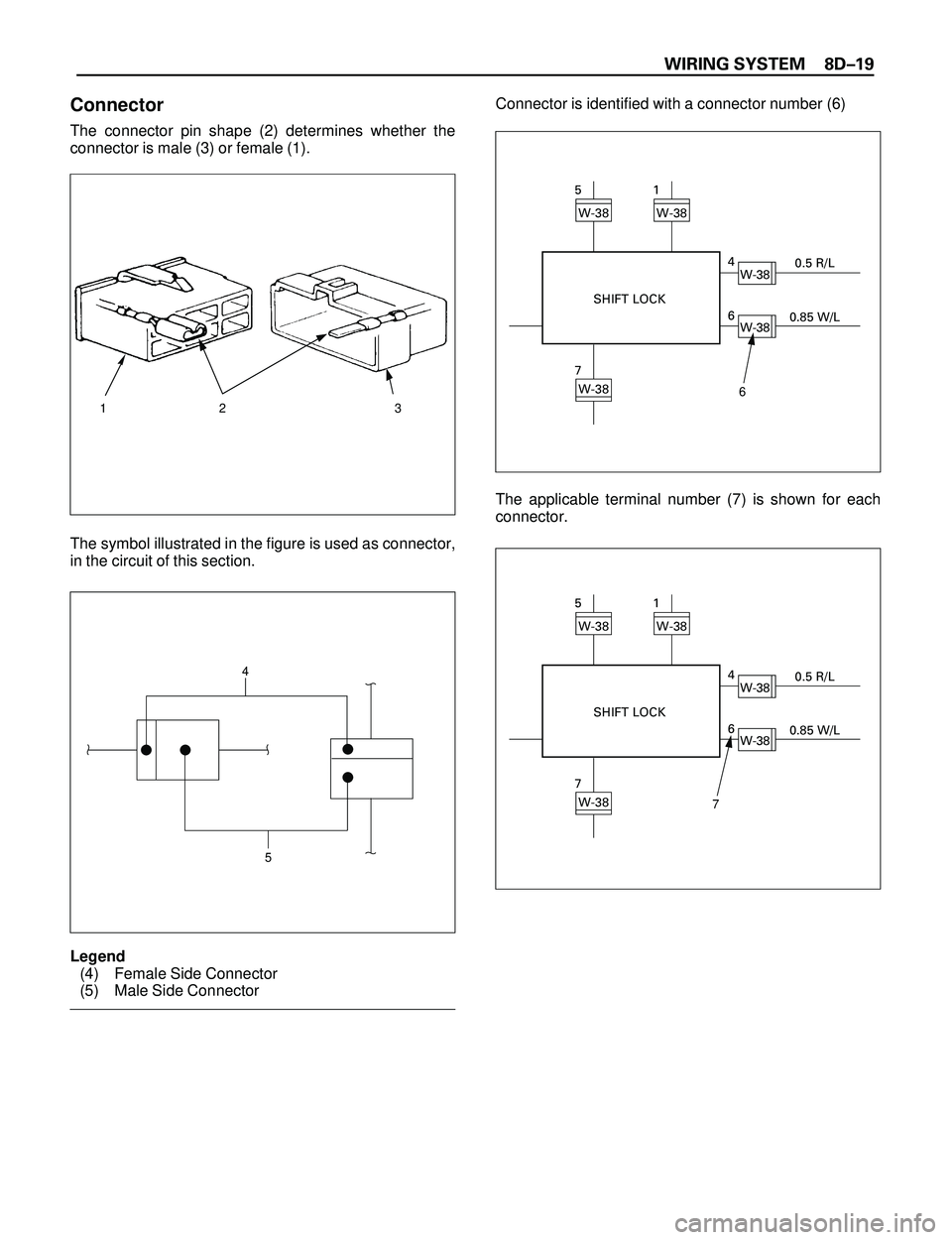

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ19 Connector The connector pin shape (2) determines whether the connector is male (3) or female (1). The symbol illustrated in the figure is used as connector, in the circuit of this

Page 2613 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ20 WIRING SYSTEM Connector terminal numbers (10) are clearly shown. Male side connector (9) terminal numbers are in sequence from upper right to lower left. Female side connector (8) terminal numb

Page 2614 of 3573

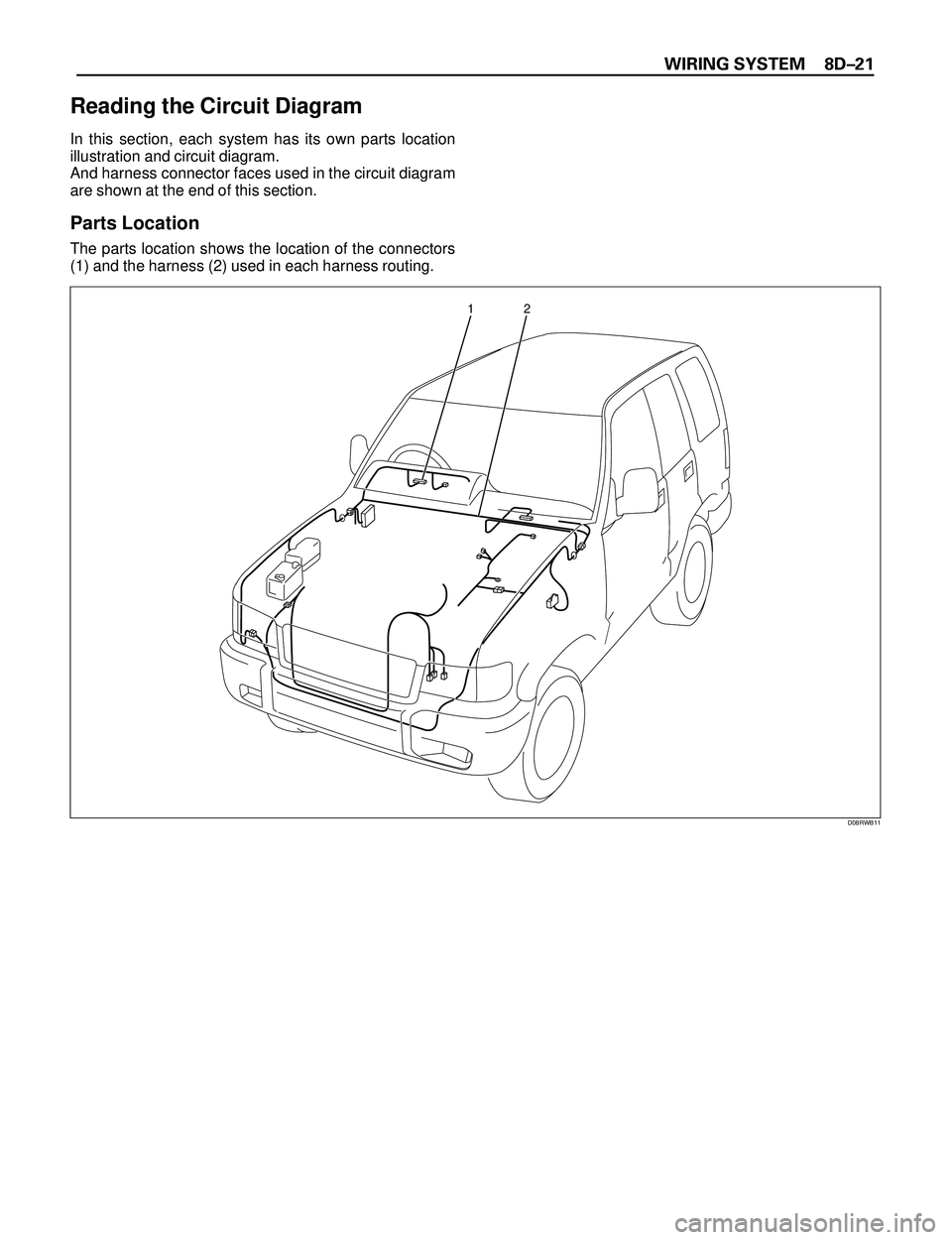

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ21 Reading the Circuit Diagram In this section, each system has its own parts location illustration and circuit diagram. And harness connector faces used in the circuit diagram are

Page 2615 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8DÐ22 WIRING SYSTEM Circuit Diagram The circuit diagram shows the power supply (1), the load or loads (2) and the grounding point(s) (3). 5.0 W BATT.(+) C-17 15A RR DEF RR DEFOGGER RELAY 3.0 L/O 3.0

Page 2616 of 3573

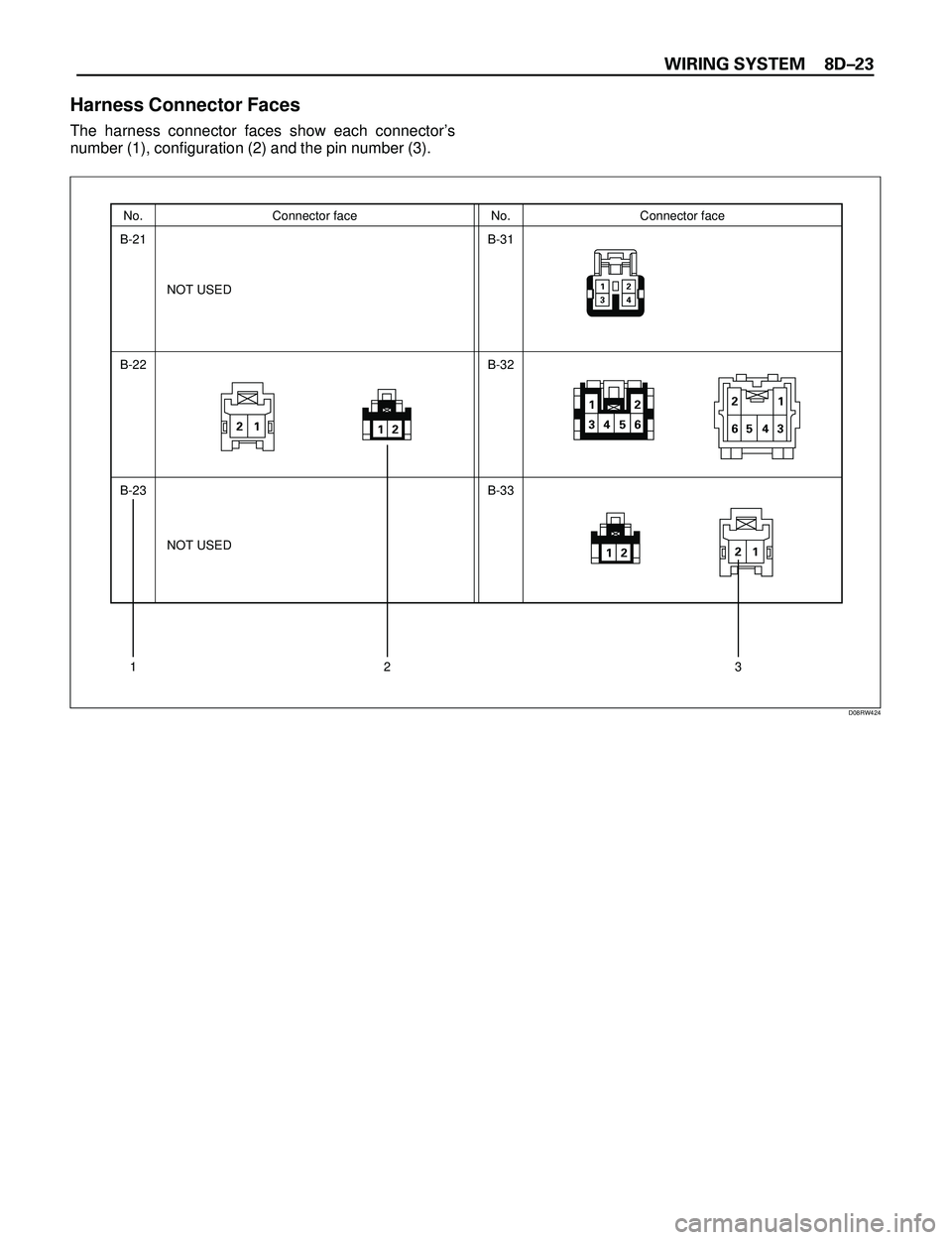

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ23 Harness Connector Faces The harness connector faces show each connectorÕs number (1), configuration (2) and the pin number (3). No. B-21Connector face No. Connector face B-22 B-2
