ISUZU TROOPER 1998 Service Repair Manual 6E±204
ENGINE DRIVEABILITY AND EMISSIONS
DTC P0342 ± CMP Sensor Circuit Low
StepNo Ye s Value(s) Action
71. Ignition ªON,º engine ªOFF.º
2. Measure the voltage between the CMP sensor
s

6E±204
ENGINE DRIVEABILITY AND EMISSIONS
DTC P0342 ± CMP Sensor Circuit Low
StepNo Ye s Value(s) Action
71. Ignition ªON,º engine ªOFF.º
2. Measure the voltage between the CMP sensor
signal circuit and the sensor ground circuit at the
CMP sensor harness connector.
Does the voltage measure near the specified value?
4-6 VGo to Step 8Go to Step 9
81. Turn the ignition ªOFF.º
2. Disconnect the PCM and connect a DVM to monitor
voltage on the camshaft position signal circuit at the
PCM connector.
3. Ignition ªON.º
4. Monitor the voltage display on the DVM while
repeatedly touching the CMP sensor signal circuit
at the CMP sensor connector with a test light to
ground.
Does the DVM voltage display switch between 0 and
approximately 5 volts when the test light is touched to
the CMP sensor signal circuit?
ÐGo to Step 12Go to Step 9
91. Ignition ªOFF.º
2. Leave the PCM disconnected.
3. Ignition ªON.º
4. Probe the camshaft position signal circuit at the
PCM connector with a test light to B+.
5. If the test light is ªON,º locate and repair the short to
ground in the camshaft position input signal circuit.
Was either circuit shorted to ground?
ÐVerify repairGo to Step 10
101. Ignition ªOFF.º
2. Leave the PCM disconnected.
3. Ignition ªON.º
4. Probe the camshaft position signal circuit with a test
light to ground.
5. If the test light is ªON,º locate and repair the short to
voltage in the camshaft position input signal circuit.
Was the test light ªONº?
ÐVerify repairGo to Step 11
111. Ignition ªOFF,º disconnect the PCM (leave the CMP
sensor disconnected).
2. Ignition ªON,º check the following circuit:
The CMP sensor signal circuit for an open.
3. If a problem is found, repair it as necessary.
Was a problem found?
ÐVerify repairÐ
121. Ignition ªON.º
2. Remove the CMP sensor from the engine front
cover (leave the sensor wiring connected).
3. Place a magnet on the CMP sensor. If you use a
magnet that is too small to cover the face of the
sensor, test on every part of the sensor face
because only a small area will respond to this test.
Does the DVM display a voltage near the specified
value?
0 VGo to Step 14Go to Step 13
13Replace the camshaft position sensor.
Is the action complete?
ÐVerify repairÐ

Page 1322 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±205 ENGINE DRIVEABILITY AND EMISSIONS
DTC P0342 ± CMP Sensor Circuit Low
StepNo Ye s Value(s) Action
141. Reinstall the CMP sensor to the engine front cover.
2. Observe the DVM connecte

Page 1323 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±206
ENGINE DRIVEABILITY AND EMISSIONS

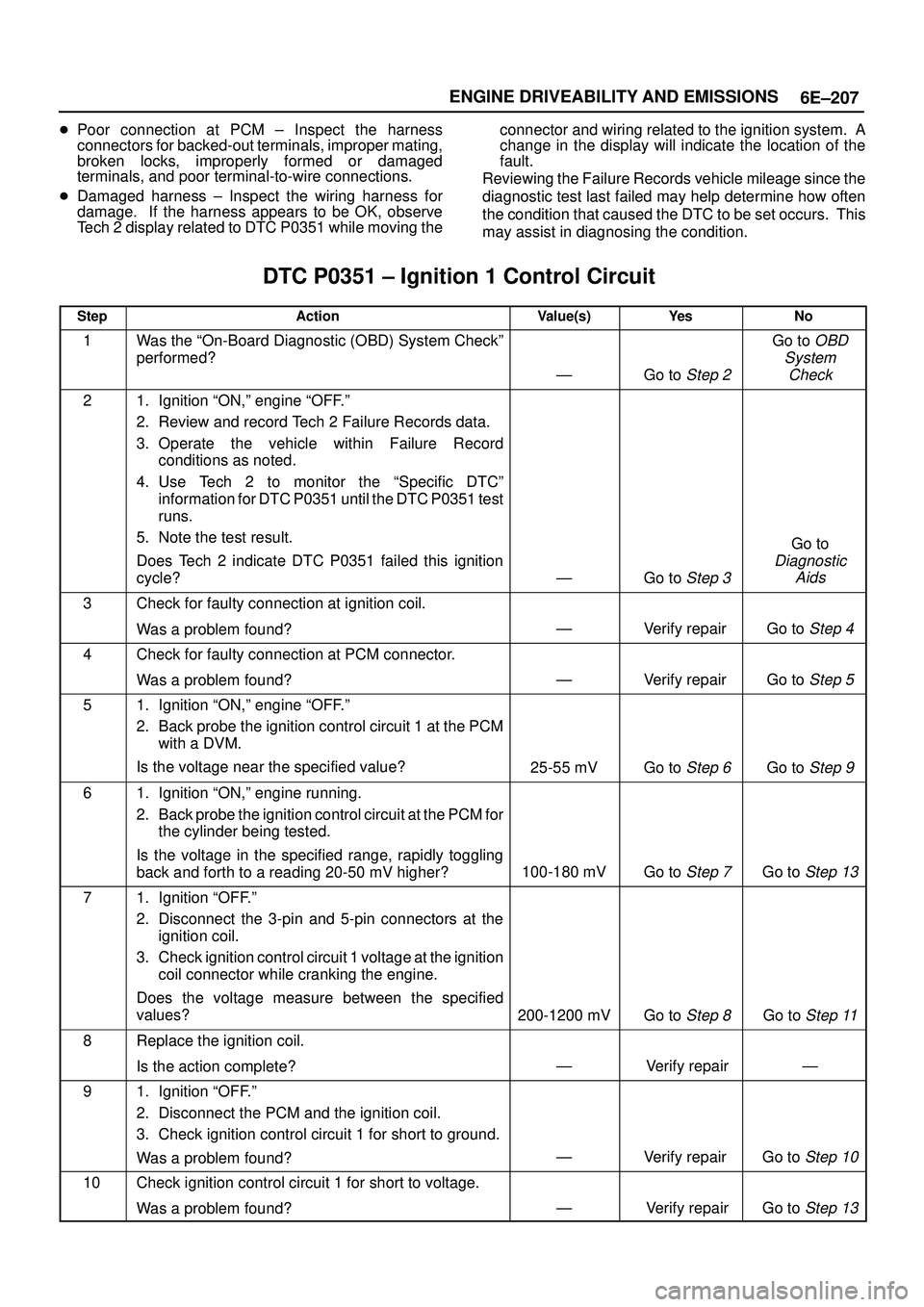

Diagnostic Trouble Code (DTC) P0351 Ignition 1 Control Circuit
D06RW072
Circuit Description
The powertrain control modules (PCM) control circuit 1
provides a

Page 1324 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±207 ENGINE DRIVEABILITY AND EMISSIONS
Poor connection at PCM ± Inspect the harness
connectors for backed-out terminals, improper mating,
broken locks, improperly formed or damaged
terminals, and

6E±207 ENGINE DRIVEABILITY AND EMISSIONS
Poor connection at PCM ± Inspect the harness
connectors for backed-out terminals, improper mating,
broken locks, improperly formed or damaged
terminals, and poor terminal-to-wire connections.
Damaged harness ± Inspect the wiring harness for
damage. If the harness appears to be OK, observe
Tech 2 display related to DTC P0351 while moving theconnector and wiring related to the ignition system. A
change in the display will indicate the location of the
fault.
Reviewing the Failure Records vehicle mileage since the
diagnostic test last failed may help determine how often
the condition that caused the DTC to be set occurs. This
may assist in diagnosing the condition.
DTC P0351 ± Ignition 1 Control Circuit
StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªON,º engine ªOFF.º
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Record
conditions as noted.
4. Use Tech 2 to monitor the ªSpecific DTCº
information for DTC P0351 until the DTC P0351 test
runs.
5. Note the test result.
Does Tech 2 indicate DTC P0351 failed this ignition
cycle?
ÐGo to Step 3
Go to
Diagnostic
Aids
3Check for faulty connection at ignition coil.
Was a problem found?
ÐVerify repair Go to Step 4
4Check for faulty connection at PCM connector.
Was a problem found?
ÐVerify repair Go to Step 5
51. Ignition ªON,º engine ªOFF.º
2. Back probe the ignition control circuit 1 at the PCM
with a DVM.
Is the voltage near the specified value?
25-55 mVGo to Step 6Go to Step 9
61. Ignition ªON,º engine running.
2. Back probe the ignition control circuit at the PCM for
the cylinder being tested.
Is the voltage in the specified range, rapidly toggling
back and forth to a reading 20-50 mV higher?
100-180 mVGo to Step 7Go to Step 13
71. Ignition ªOFF.º
2. Disconnect the 3-pin and 5-pin connectors at the
ignition coil.
3. Check ignition control circuit 1 voltage at the ignition
coil connector while cranking the engine.
Does the voltage measure between the specified
values?
200-1200 mVGo to Step 8Go to Step 11
8Replace the ignition coil.
Is the action complete?
ÐVerify repairÐ
91. Ignition ªOFF.º
2. Disconnect the PCM and the ignition coil.
3. Check ignition control circuit 1 for short to ground.
Was a problem found?
ÐVerify repair Go to Step 10
10Check ignition control circuit 1 for short to voltage.
Was a problem found?
ÐVerify repairGo to Step 13

Page 1325 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±208
ENGINE DRIVEABILITY AND EMISSIONS
DTC P0351 ± Ignition 1 Control Circuit
StepNo Ye s Value(s) Action
11Check for an open ignition control circuit 1.
Was the ignition control circuit

Page 1326 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±209 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0352 Ignition 2 Control Circuit
D06RW072
Circuit Description
The powertrain control modules (PCM) control circuit 2
provides a

Page 1327 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6E±210
ENGINE DRIVEABILITY AND EMISSIONS
Poor connection at PCM ± Inspect the harness
connectors for backed-out terminals, improper mating,
broken locks, improperly formed or damaged
terminals, and

6E±210
ENGINE DRIVEABILITY AND EMISSIONS
Poor connection at PCM ± Inspect the harness
connectors for backed-out terminals, improper mating,
broken locks, improperly formed or damaged
terminals, and poor terminal-to-wire connections.
Damaged harness ± Inspect the wiring harness for
damage. If the harness appears to be OK, observe the
Tech 2 display related to DTC P0352 while moving theconnector and wiring related to the ignition system. A
change in the display will indicate the location of the
fault.
Reviewing the Failure Records vehicle mileage since the
diagnostic test last failed may help determine how often
the condition that caused the DTC to be set occurs. This
may assist in diagnosing the condition.
DTC P0352 ± Ignition 2 Control Circuit
StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªON,º engine ªOFF.º
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Record
conditions as noted.
4. Use a Tech 2 to monitor the ªSpecific DTCº
information for DTC P0352 until the DTC P0352 test
runs.
5. Note the test result.
Does the Tech 2 indicate DTC P0352 failed this ignition
cycle?
ÐGo to Step 3
Go to
Diagnostic
Aids
3Check for faulty connection at ignition coil.
Was a problem found?
ÐVerify repairGo to Step 4
4Check for faulty connection at PCM connector.
Was a problem found?
ÐVerify repairGo to Step 5
51. Ignition ªON,º engine ªOFF.º
2. Back probe the ignition control circuit 2 at the PCM
with a DVM .
Is the voltage near the specified value?
25-55 mVGo to Step 6Go to Step 9
61. Ignition ªON,º engine running.
2. Back probe the ignition control circuit at the PCM for
the cylinder being tested.
Is the voltage in the specified range, rapidly toggling
back and forth to a reading 20-50 mV higher?
100-180 mVGo to Step 7Go to Step 13
71. Ignition ªOFF.º
2. Disconnect the 3-pin and 5-pin connectors at the
ignition coil.
3. Check ignition control circuit 2 voltage at the ignition
coil connector while cranking the engine connector.
Does the voltage measure between the specified
values?
200-1200 mVGo to Step 8Go to Step 11
8Replace the ignition coil.
Is the action complete?
ÐVerify repairÐ
91. Ignition ªOFF.º
2. Disconnect the PCM and the ignition coil.
3. Check ignition control circuit 2 for short to ground.
Was a problem found?
ÐVerify repairGo to Step 10
10Check ignition control circuit 2 for short to voltage.
Was a problem found?
ÐVerify repairGo to Step 13

Page 1328 of 3573

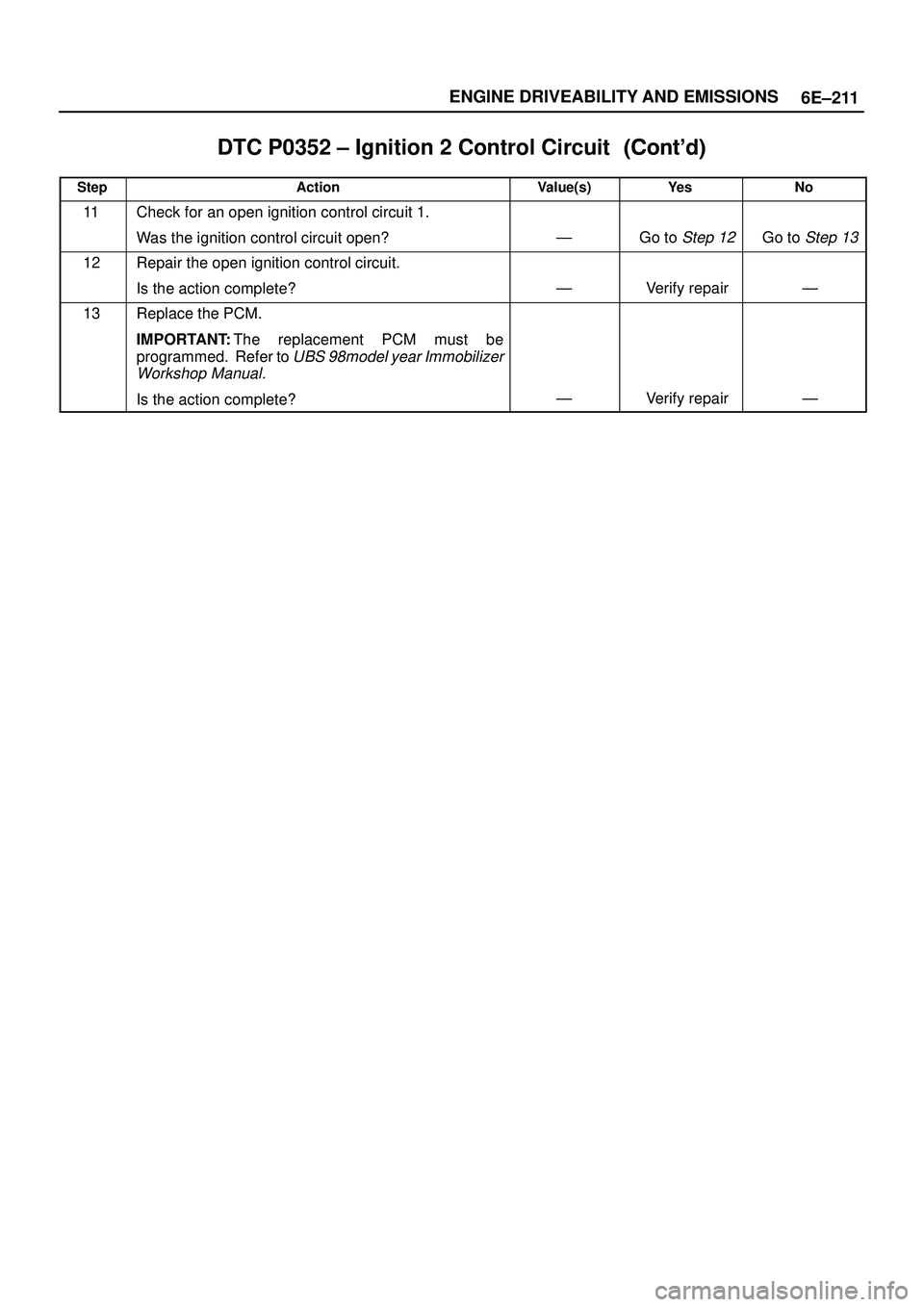

ISUZU TROOPER 1998 Service Repair Manual 6E±211 ENGINE DRIVEABILITY AND EMISSIONS
DTC P0352 ± Ignition 2 Control Circuit
StepNo Ye s Value(s) Action
11Check for an open ignition control circuit 1.
Was the ignition control circuit
