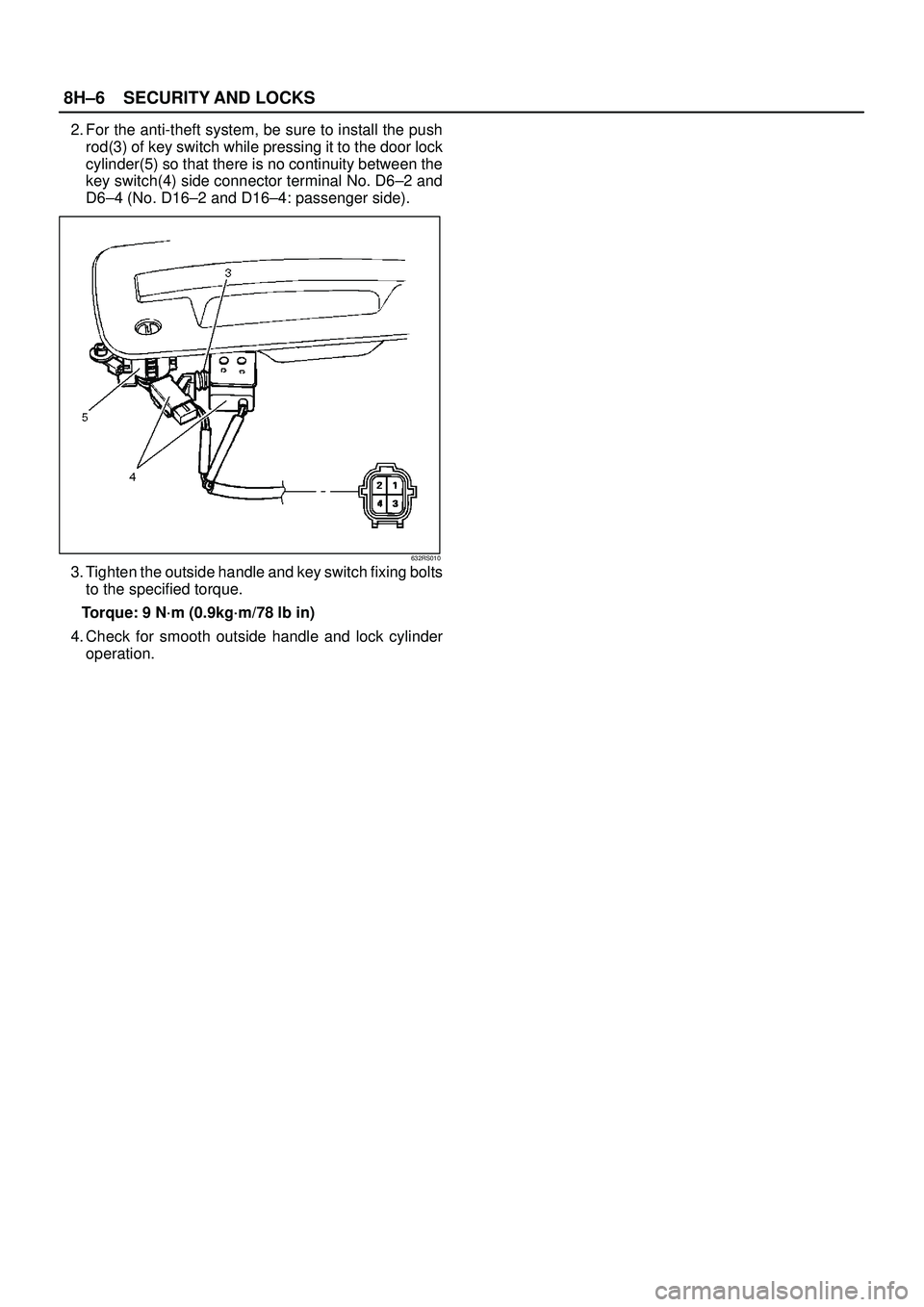

ISUZU TROOPER 1998 Service Repair Manual 8H±6SECURITY AND LOCKS 2. For the anti-theft system, be sure to install the push rod(3) of key switch while pressing it to the door lock cylinder(5) so that there is no continuity between the key swi

Page 3346 of 3573

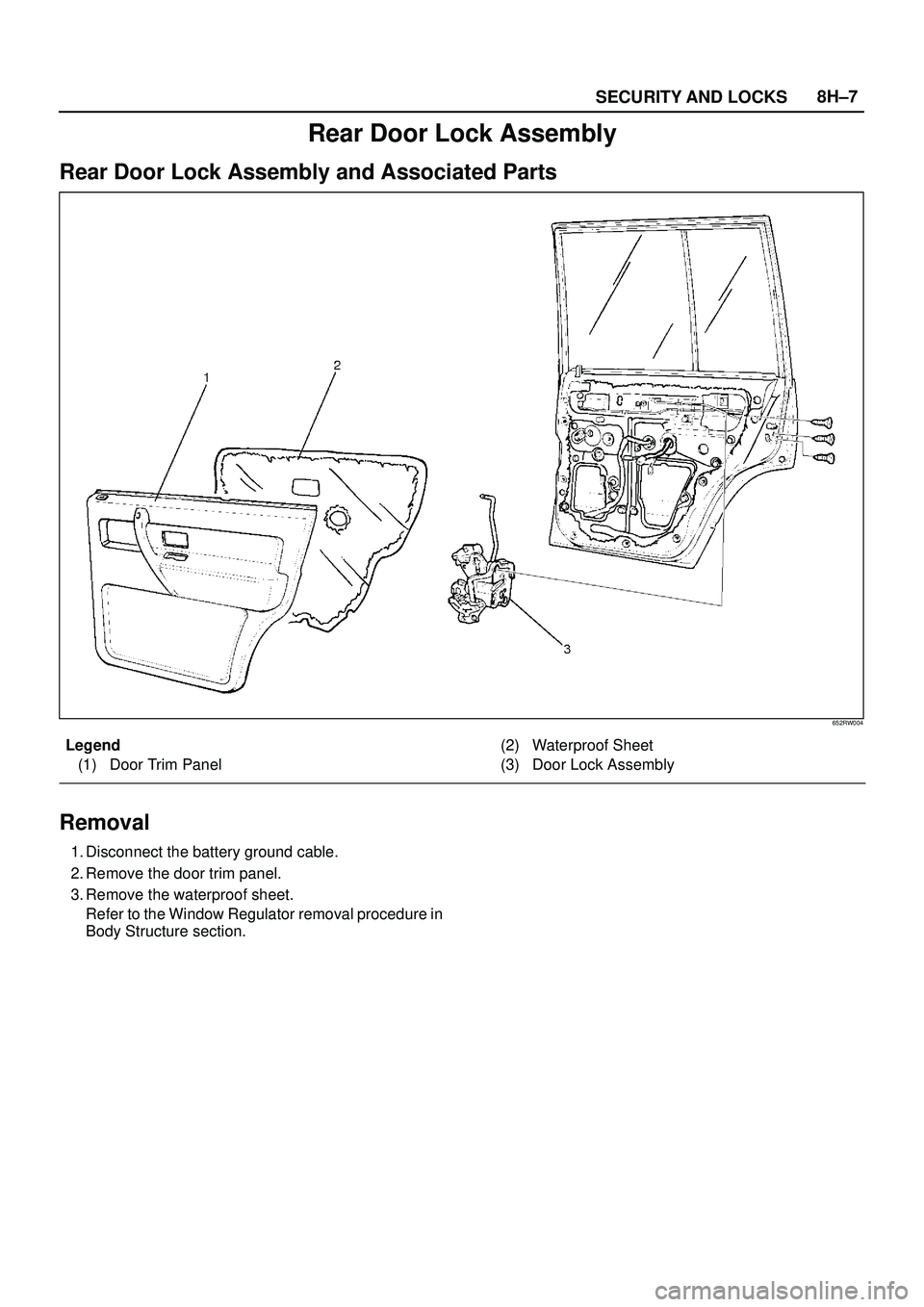

ISUZU TROOPER 1998 Service Repair Manual SECURITY AND LOCKS8H±7 Rear Door Lock Assembly Rear Door Lock Assembly and Associated Parts 652RW004 Legend (1) Door Trim Panel(2) Waterproof Sheet (3) Door Lock Assembly Removal 1. Disconnect the ba

Page 3347 of 3573

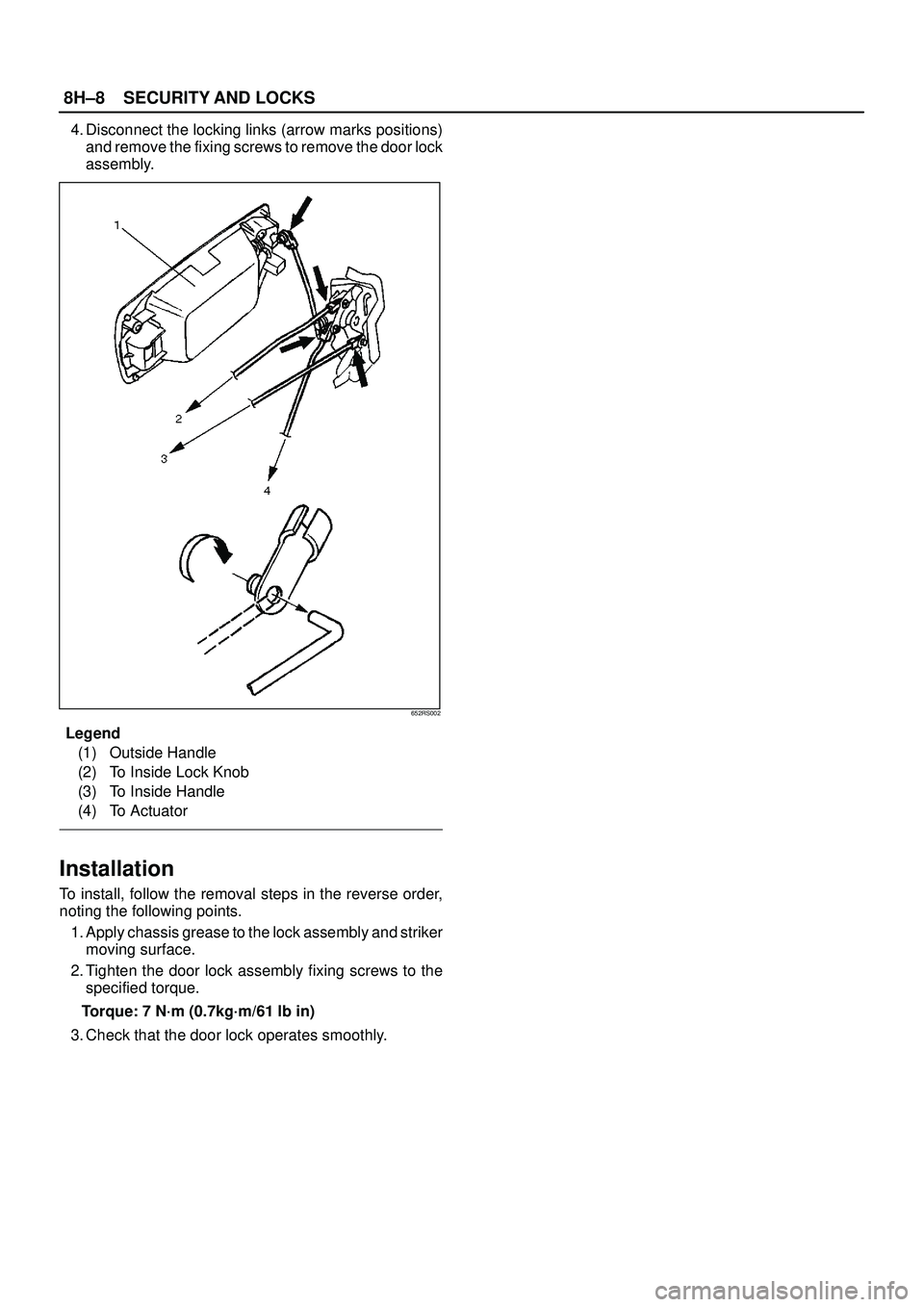

ISUZU TROOPER 1998 Service Repair Manual 8H±8SECURITY AND LOCKS 4. Disconnect the locking links (arrow marks positions) and remove the fixing screws to remove the door lock assembly. 652RS002 Legend (1) Outside Handle (2) To Inside Lock Kno

Page 3348 of 3573

ISUZU TROOPER 1998 Service Repair Manual SECURITY AND LOCKS8H±9 Rear Outside Handle Rear Outside Handle and Associated Parts 652RW003 Legend (1) Door Trim Panel(2) Waterproof Sheet (3) Outside Handle Removal 1. Disconnect the battery ground

Page 3349 of 3573

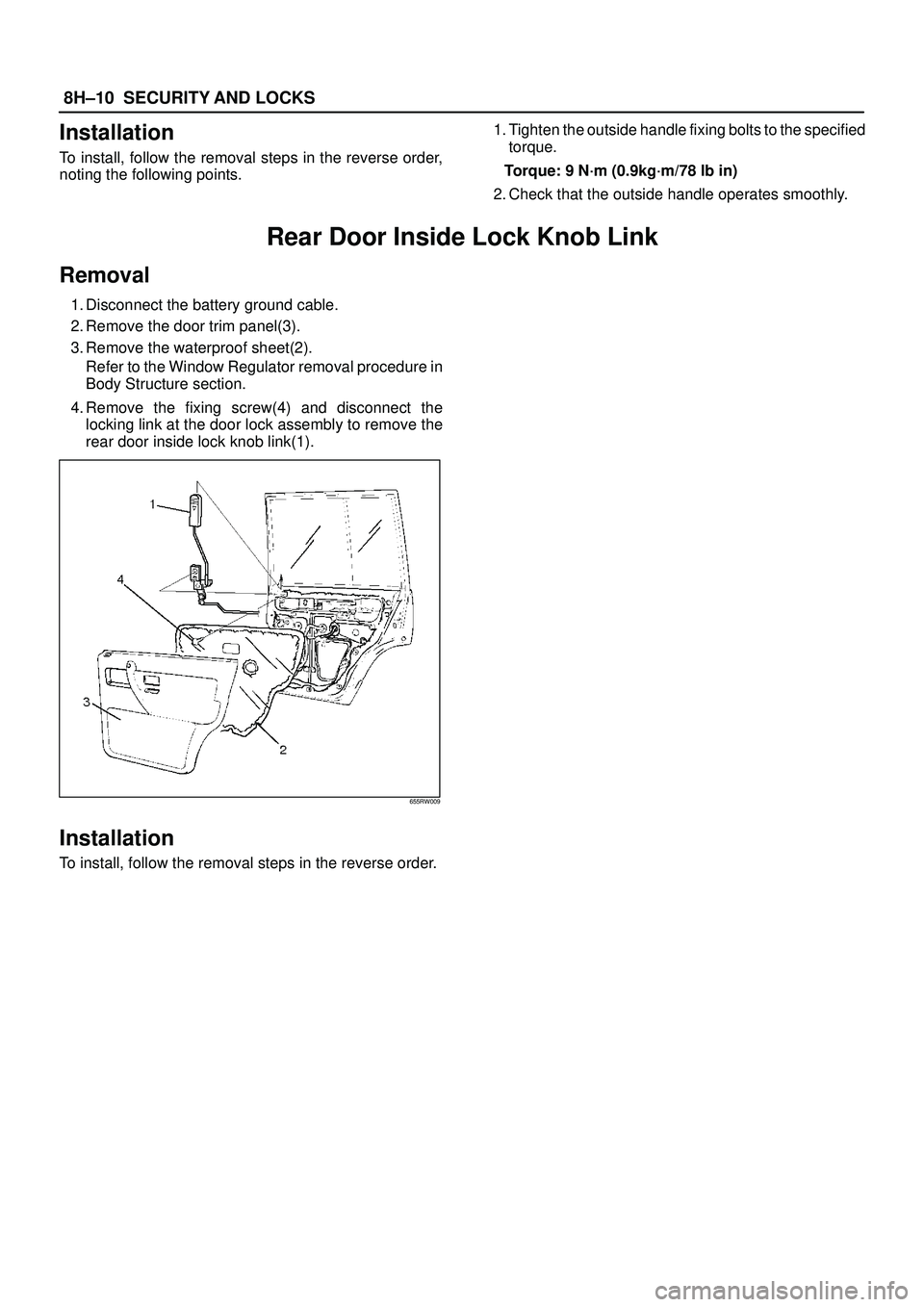

ISUZU TROOPER 1998 Service Repair Manual 8H±10SECURITY AND LOCKS Installation To install, follow the removal steps in the reverse order, noting the following points.1. Tighten the outside handle fixing bolts to the specified torque. Torque:

Page 3350 of 3573

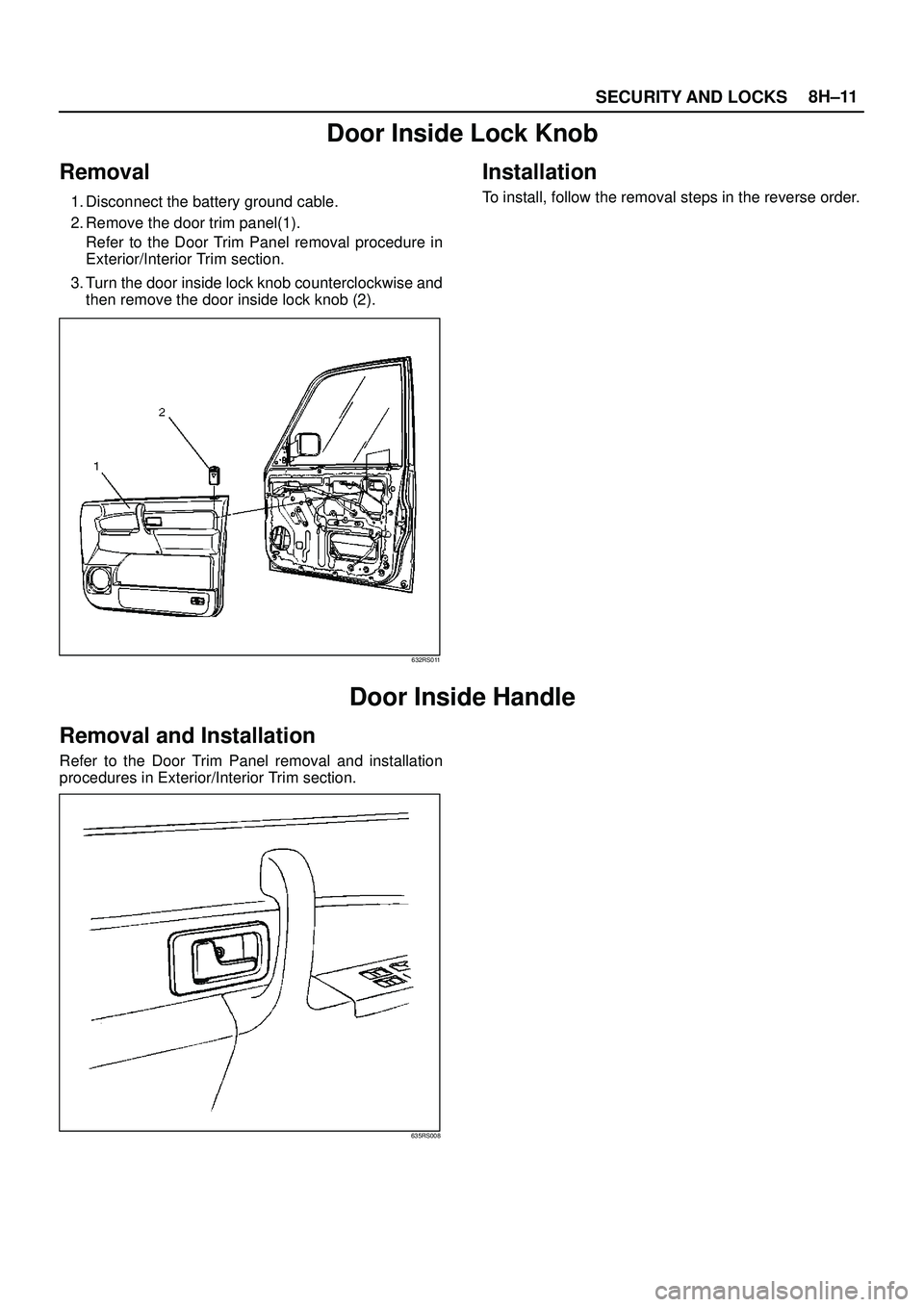

ISUZU TROOPER 1998 Service Repair Manual SECURITY AND LOCKS8H±11 Door Inside Lock Knob Removal 1. Disconnect the battery ground cable. 2. Remove the door trim panel(1). Refer to the Door Trim Panel removal procedure in Exterior/Interior Tri

Page 3351 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8H±12SECURITY AND LOCKS Tailgate Lock Assembly (LH) Tailgate Lock Assembly (LH) and Associated Parts 684RW008 Legend (1) Tailgate Trim Panel(LH)(2) Waterproof Sheet (3) Tailgate Lock Assembly Removal

Page 3352 of 3573

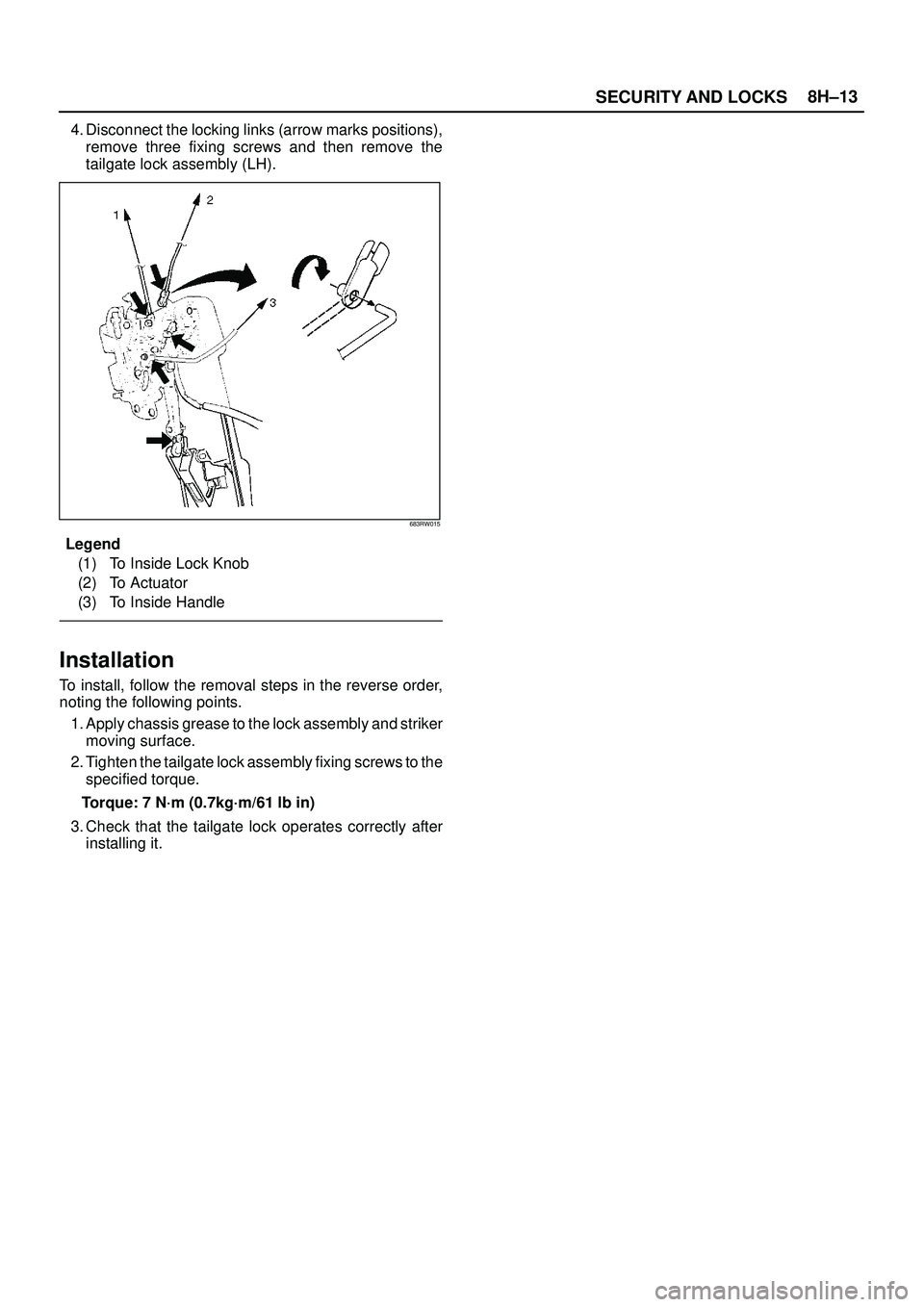

ISUZU TROOPER 1998 Service Repair Manual SECURITY AND LOCKS8H±13 4. Disconnect the locking links (arrow marks positions), remove three fixing screws and then remove the tailgate lock assembly (LH). 683RW015 Legend (1) To Inside Lock Knob (2
