Page 3545 of 3573

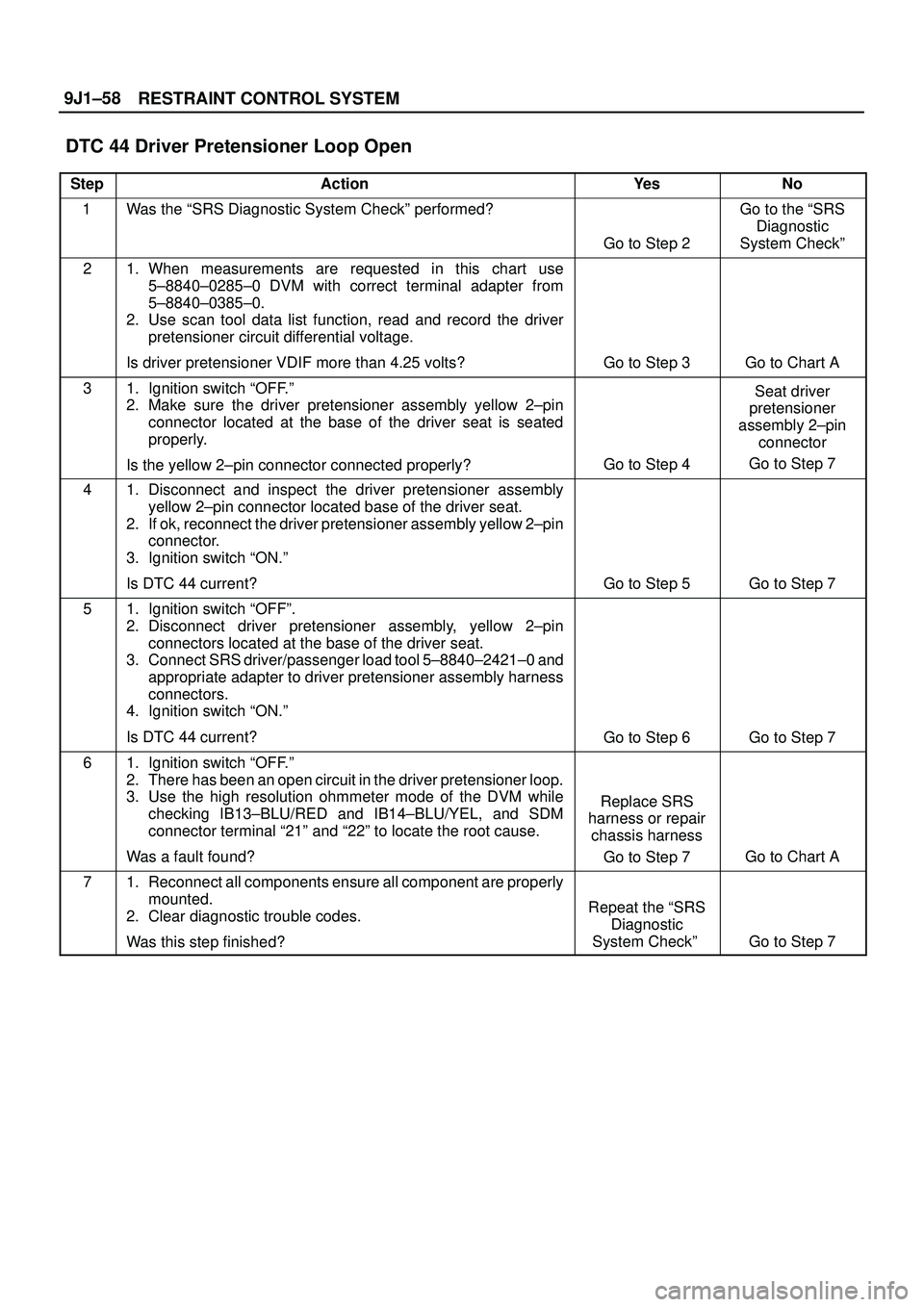

ISUZU TROOPER 1998 Service Repair Manual RESTRAINT CONTROL SYSTEM 9J1±58
DTC 44 Driver Pretensioner Loop Open
StepActionYe sNo
1Was the ªSRS Diagnostic System Checkº performed?
Go to Step 2
Go to the ªSRS
Diagnostic
System Checkº
21. W

Page 3546 of 3573

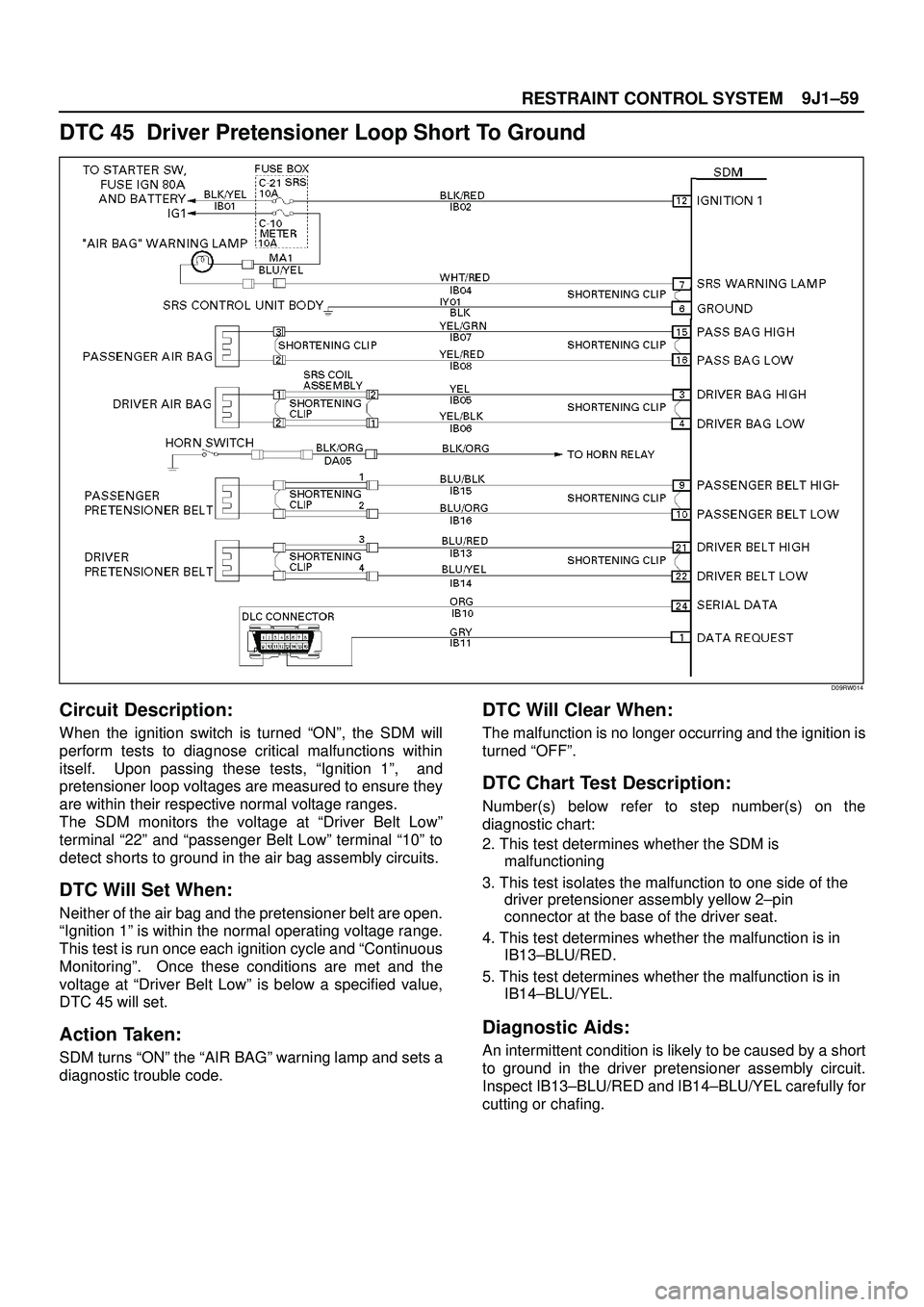

ISUZU TROOPER 1998 Service Repair Manual 9J1±59
RESTRAINT CONTROL SYSTEM
DTC 45 Driver Pretensioner Loop Short To Ground
D09RW014
Circuit Description:
When the ignition switch is turned ªONº, the SDM will
perform tests to diagnose critic

Page 3547 of 3573

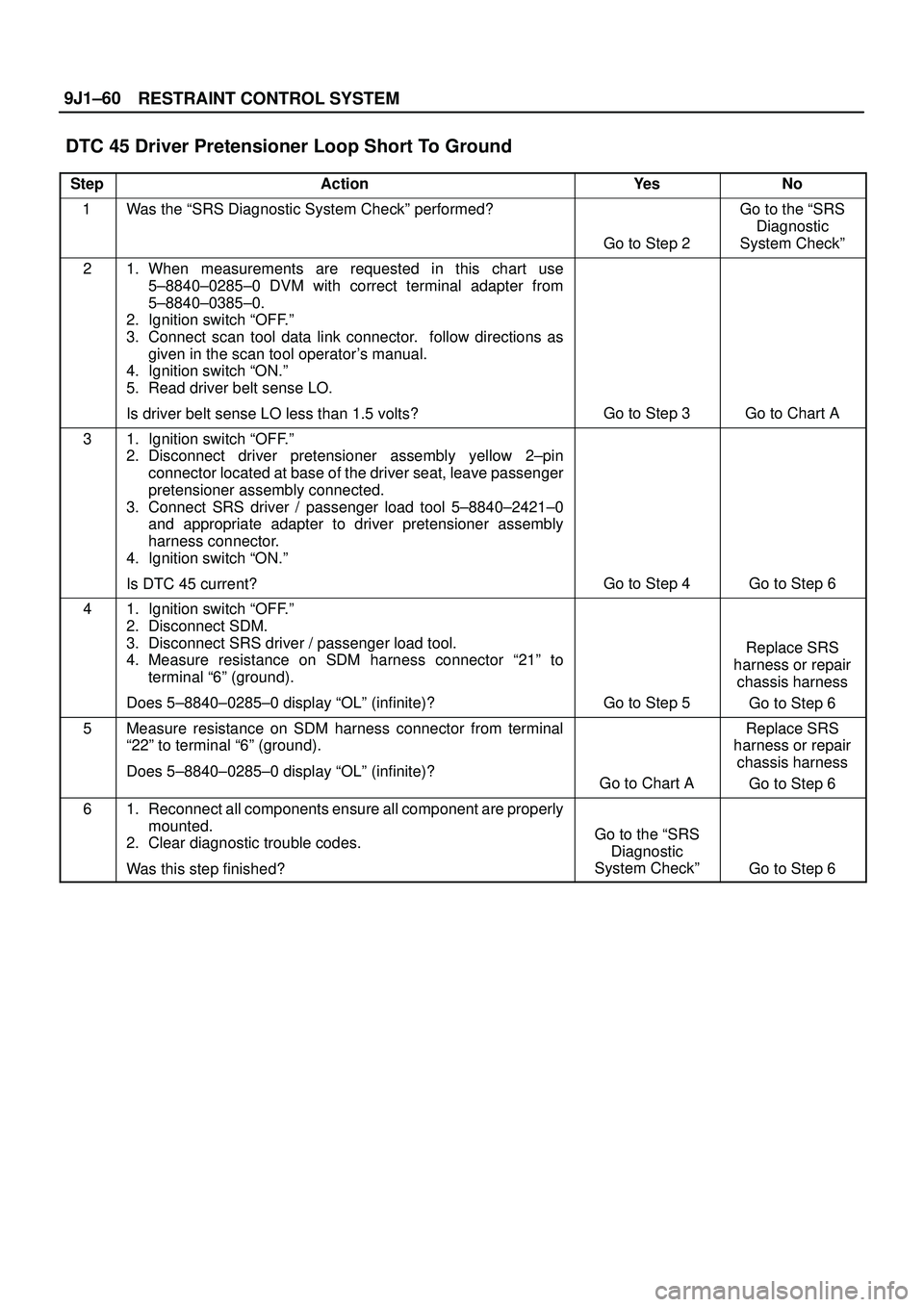

ISUZU TROOPER 1998 Service Repair Manual RESTRAINT CONTROL SYSTEM 9J1±60
DTC 45 Driver Pretensioner Loop Short To Ground
StepActionYe sNo
1Was the ªSRS Diagnostic System Checkº performed?
Go to Step 2
Go to the ªSRS
Diagnostic
System Ch

Page 3548 of 3573

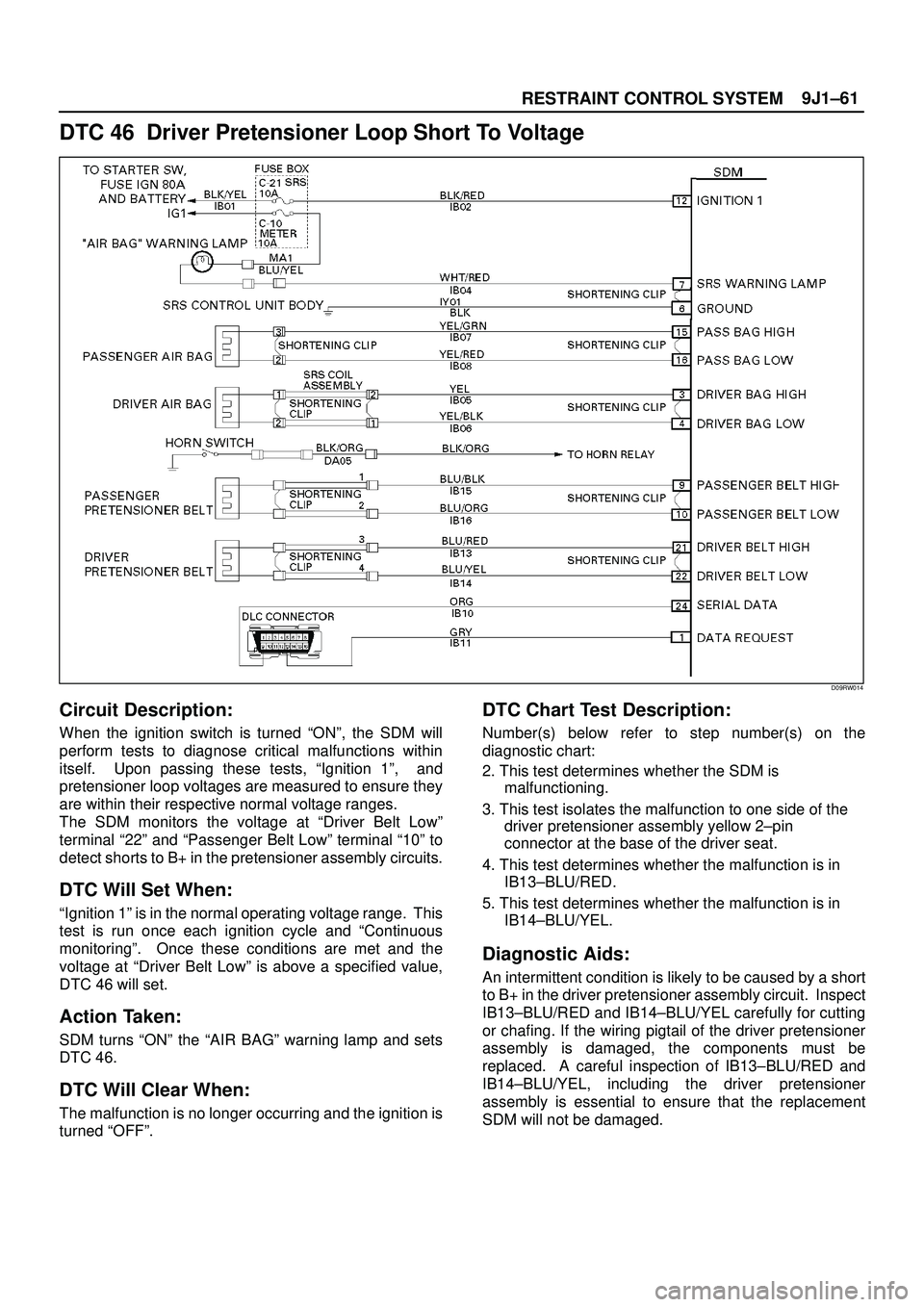

ISUZU TROOPER 1998 Service Repair Manual 9J1±61
RESTRAINT CONTROL SYSTEM
DTC 46 Driver Pretensioner Loop Short To Voltage
D09RW014
Circuit Description:
When the ignition switch is turned ªONº, the SDM will
perform tests to diagnose criti

Page 3549 of 3573

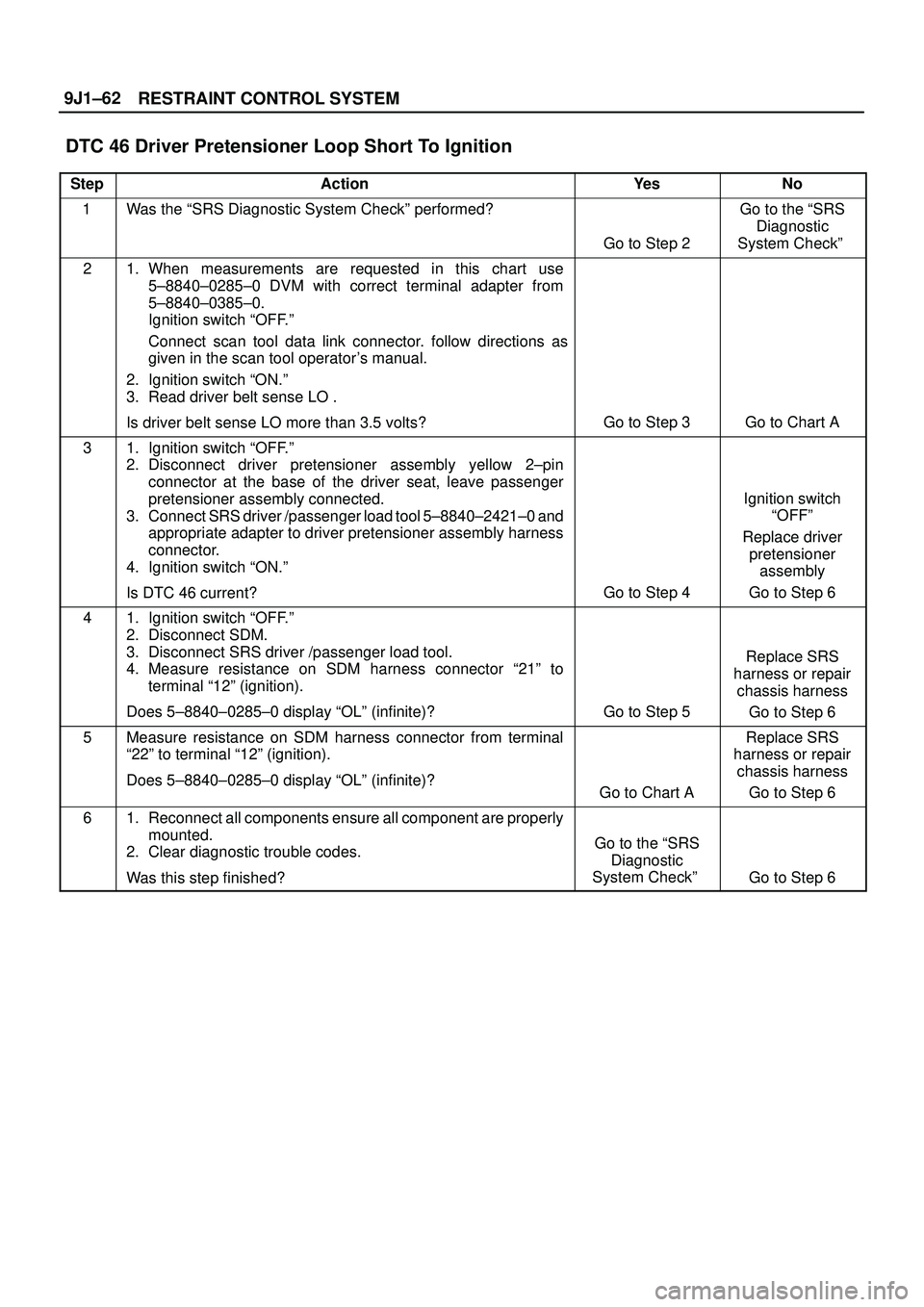

ISUZU TROOPER 1998 Service Repair Manual RESTRAINT CONTROL SYSTEM 9J1±62
DTC 46 Driver Pretensioner Loop Short To Ignition
StepActionYe sNo
1Was the ªSRS Diagnostic System Checkº performed?
Go to Step 2
Go to the ªSRS
Diagnostic
System

Page 3550 of 3573

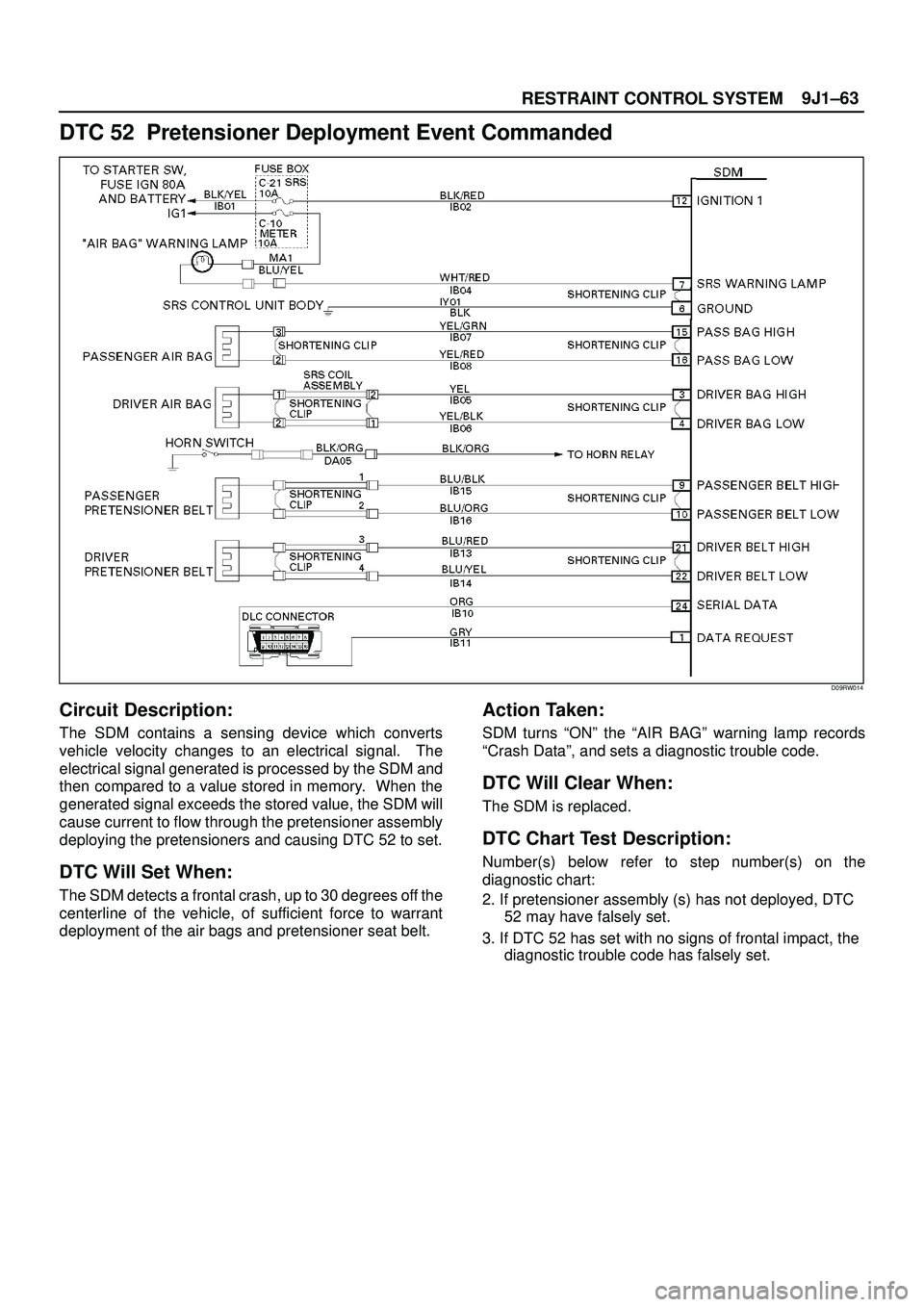

ISUZU TROOPER 1998 Service Repair Manual 9J1±63
RESTRAINT CONTROL SYSTEM
DTC 52 Pretensioner Deployment Event Commanded
D09RW014
Circuit Description:
The SDM contains a sensing device which converts
vehicle velocity changes to an electrica

Page 3551 of 3573

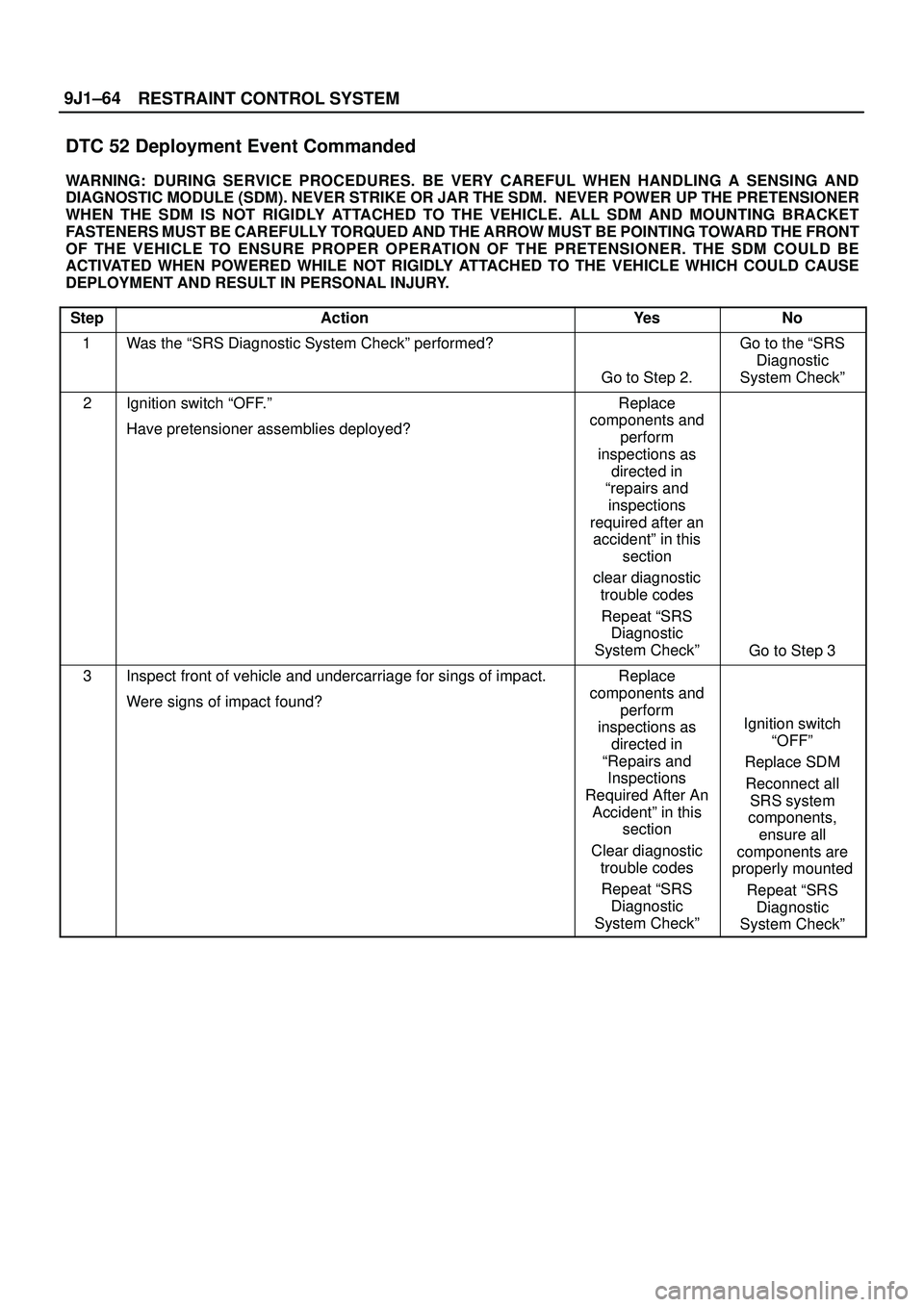

ISUZU TROOPER 1998 Service Repair Manual RESTRAINT CONTROL SYSTEM 9J1±64
DTC 52 Deployment Event Commanded
WARNING:DURING SERVICE PROCEDURES. BE VERY CAREFUL WHEN HANDLING A SENSING AND
DIAGNOSTIC MODULE (SDM). NEVER STRIKE OR JAR THE SDM.

Page 3552 of 3573

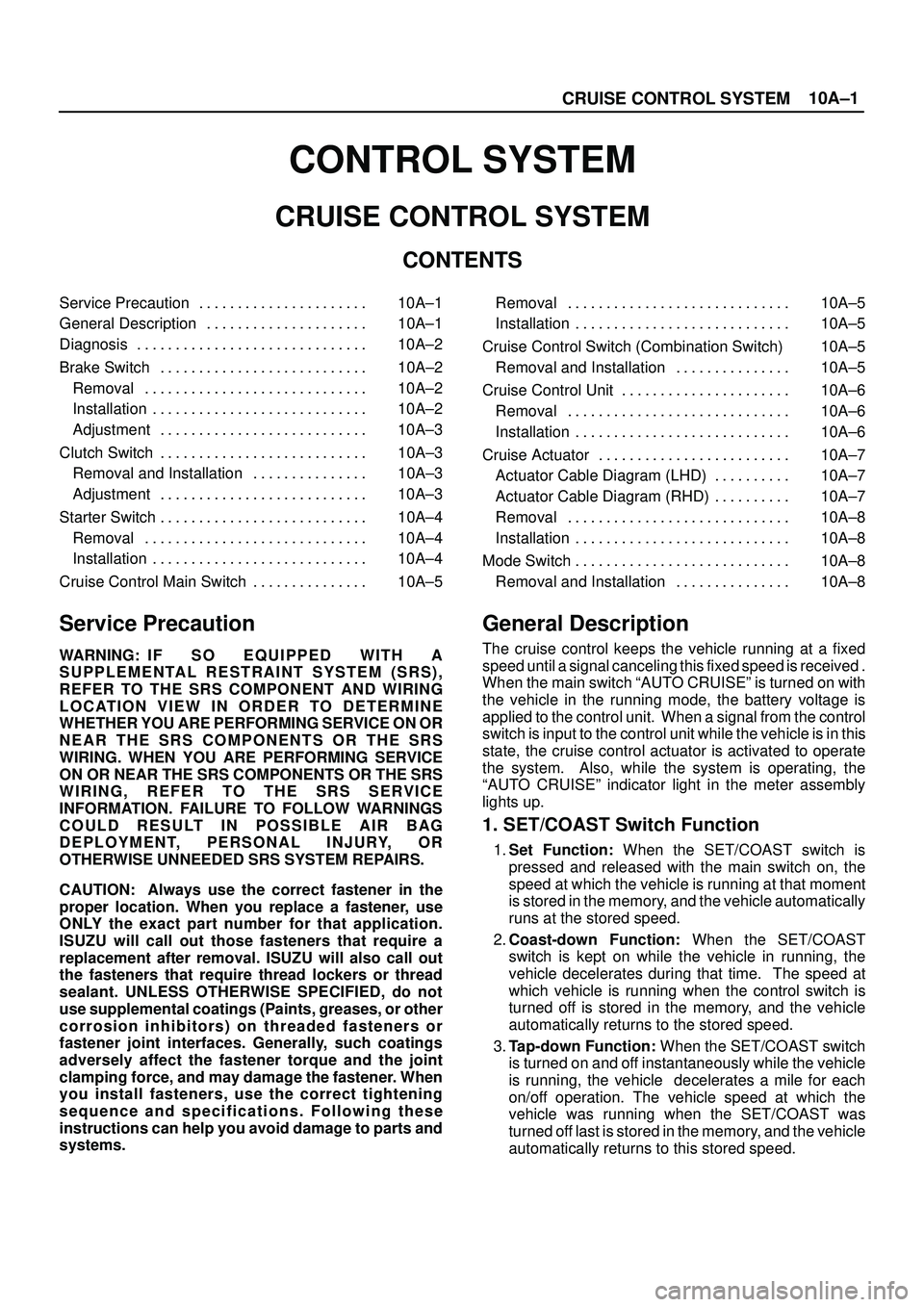

ISUZU TROOPER 1998 Service Repair Manual 10A±1
CRUISE CONTROL SYSTEM
CONTROL SYSTEM
CRUISE CONTROL SYSTEM
CONTENTS
Service Precaution 10A±1. . . . . . . . . . . . . . . . . . . . . .
General Description 10A±1. . . . . . . . . . . . . . .

10A±1
CRUISE CONTROL SYSTEM
CONTROL SYSTEM
CRUISE CONTROL SYSTEM
CONTENTS
Service Precaution 10A±1. . . . . . . . . . . . . . . . . . . . . .
General Description 10A±1. . . . . . . . . . . . . . . . . . . . .
Diagnosis 10A±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake Switch 10A±2. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 10A±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 10A±2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjustment 10A±3. . . . . . . . . . . . . . . . . . . . . . . . . . .
Clutch Switch 10A±3. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation 10A±3. . . . . . . . . . . . . . .
Adjustment 10A±3. . . . . . . . . . . . . . . . . . . . . . . . . . .
Starter Switch 10A±4. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 10A±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 10A±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise Control Main Switch 10A±5. . . . . . . . . . . . . . . Removal 10A±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 10A±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise Control Switch (Combination Switch) 10A±5
Removal and Installation 10A±5. . . . . . . . . . . . . . .
Cruise Control Unit 10A±6. . . . . . . . . . . . . . . . . . . . . .
Removal 10A±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 10A±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise Actuator 10A±7. . . . . . . . . . . . . . . . . . . . . . . . .
Actuator Cable Diagram (LHD) 10A±7. . . . . . . . . .
Actuator Cable Diagram (RHD) 10A±7. . . . . . . . . .
Removal 10A±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 10A±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mode Switch 10A±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation 10A±8. . . . . . . . . . . . . . .
Service Precaution
WARNING: I F S O E Q U IPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
General Description
The cruise control keeps the vehicle running at a fixed
speed until a signal canceling this fixed speed is received .
When the main switch ªAUTO CRUISEº is turned on with
the vehicle in the running mode, the battery voltage is
applied to the control unit. When a signal from the control
switch is input to the control unit while the vehicle is in this
state, the cruise control actuator is activated to operate
the system. Also, while the system is operating, the
ªAUTO CRUISEº indicator light in the meter assembly
lights up.
1. SET/COAST Switch Function
1.Set Function: When the SET/COAST switch is
pressed and released with the main switch on, the
speed at which the vehicle is running at that moment
is stored in the memory, and the vehicle automatically
runs at the stored speed.
2.Coast-down Function: When the SET/COAST
switch is kept on while the vehicle in running, the
vehicle decelerates during that time. The speed at
which vehicle is running when the control switch is
turned off is stored in the memory, and the vehicle
automatically returns to the stored speed.
3.Tap-down Function: When the SET/COAST switch
is turned on and off instantaneously while the vehicle
is running, the vehicle decelerates a mile for each
on/off operation. The vehicle speed at which the
vehicle was running when the SET/COAST was
turned off last is stored in the memory, and the vehicle
automatically returns to this stored speed.
