Page 2921 of 3573

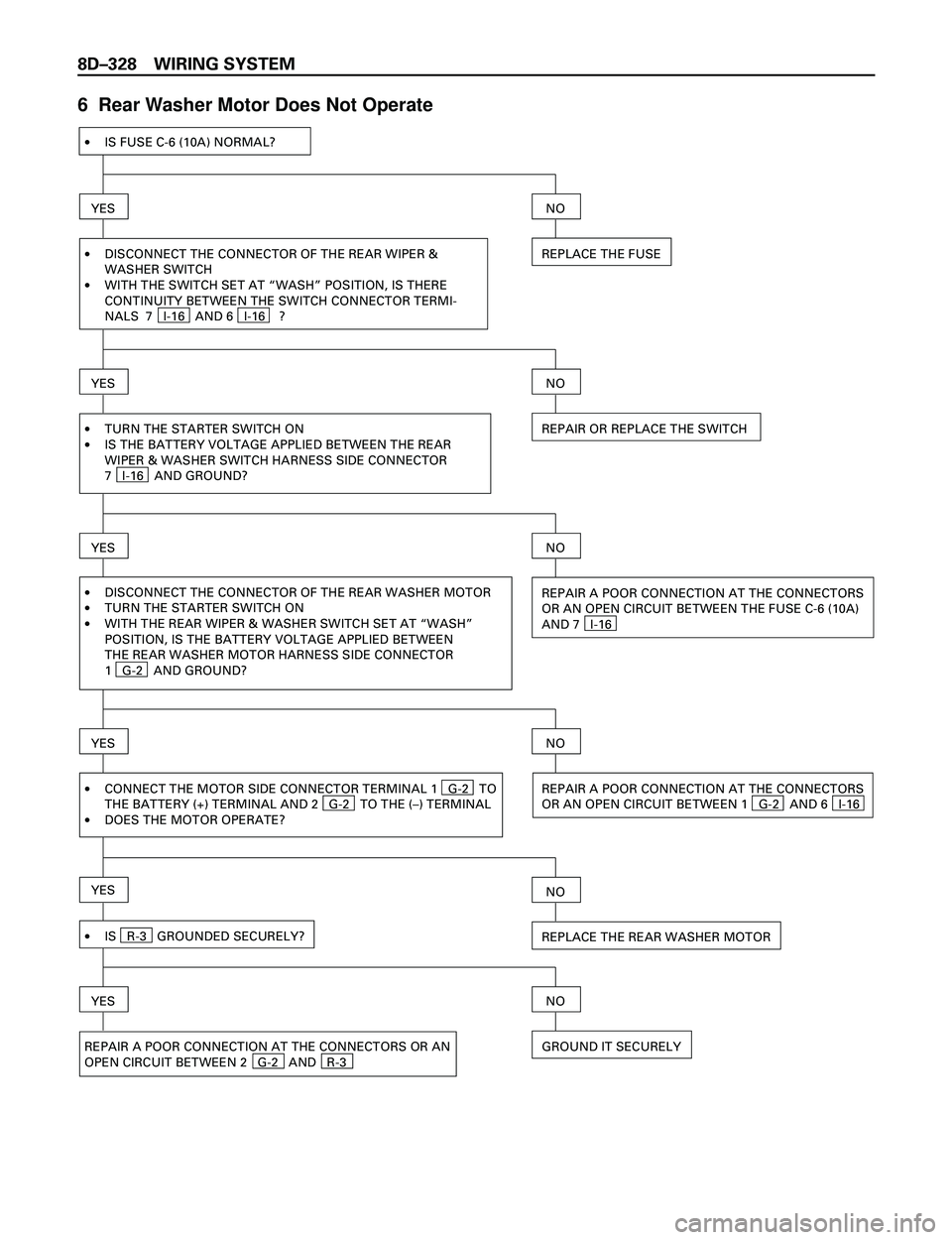

ISUZU TROOPER 1998 Service Repair Manual 8DÐ328 WIRING SYSTEM 6 Rear Washer Motor Does Not Operate ·IS FUSE C-6 (10A) NORMAL? YES · ·DISCONNECT THE CONNECTOR OF THE REAR WIPER & WASHER SWITCH WITH THE SWITCH SET AT “WASH” POSITION,

Page 2922 of 3573

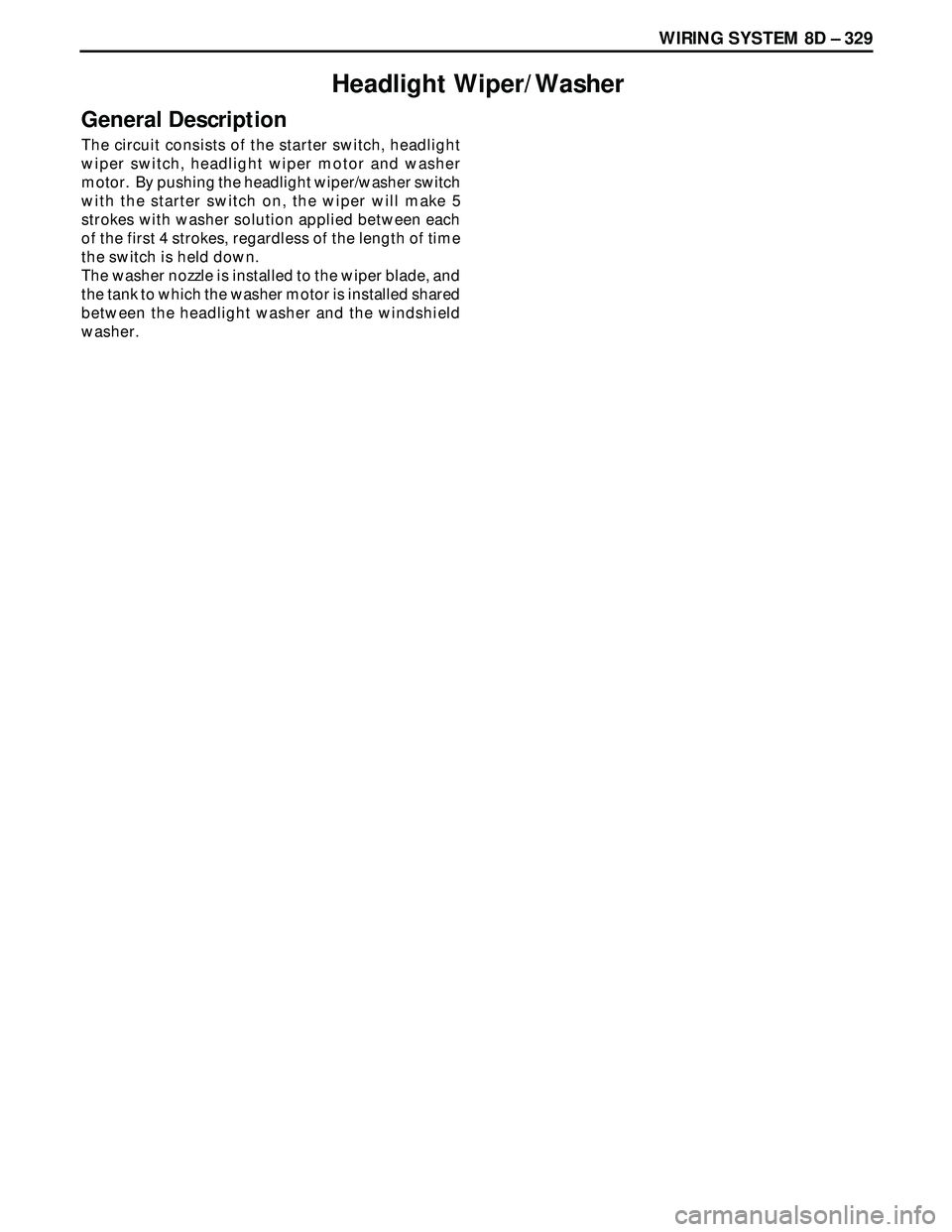

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 329 Headlight Wiper/Washer General Description The circuit consists of the starter switch, headlight wiper switch, headlight wiper motor and washer motor. By pushing the headligh

Page 2923 of 3573

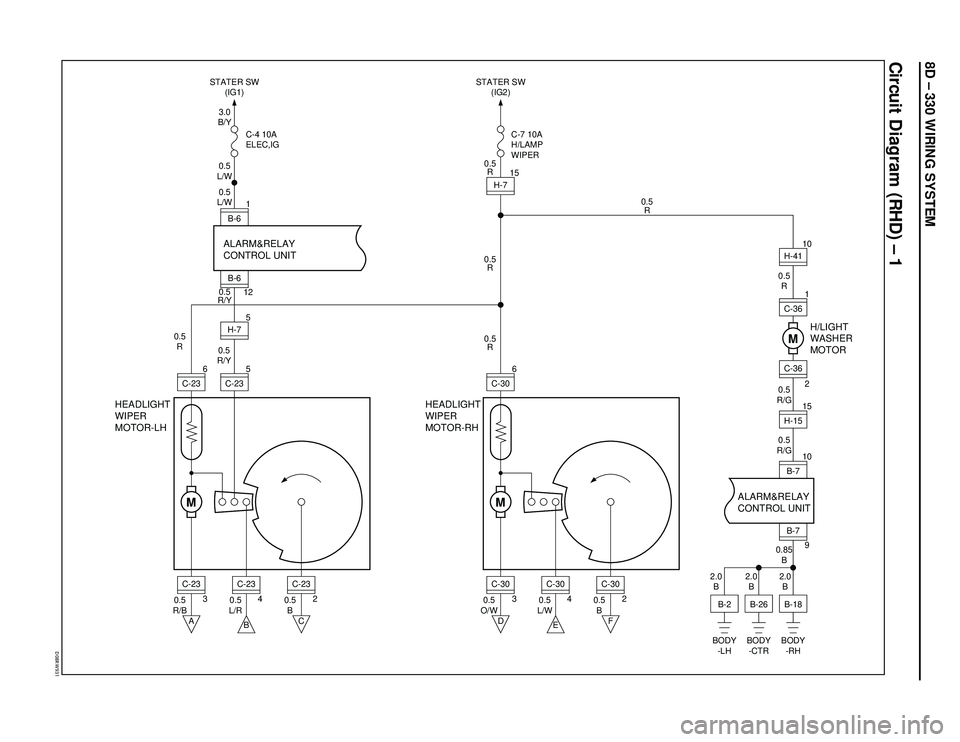

ISUZU TROOPER 1998 Service Repair Manual 8D – 330 WIRING SYSTEM Circuit Diagram (RHD) – 1 �%���3�8��� MC-236 3425 5 12 C-23 0.5 R/B0.5 R 0.5 R/Y0.5 R/Y 0.5 R 0.5 R0.5 R 0.5 R 0.5 L/W0.5 L/W3.0 B/Y C-4 10A ELEC,IGC-7 10A H/LAMP WIPER

Page 2924 of 3573

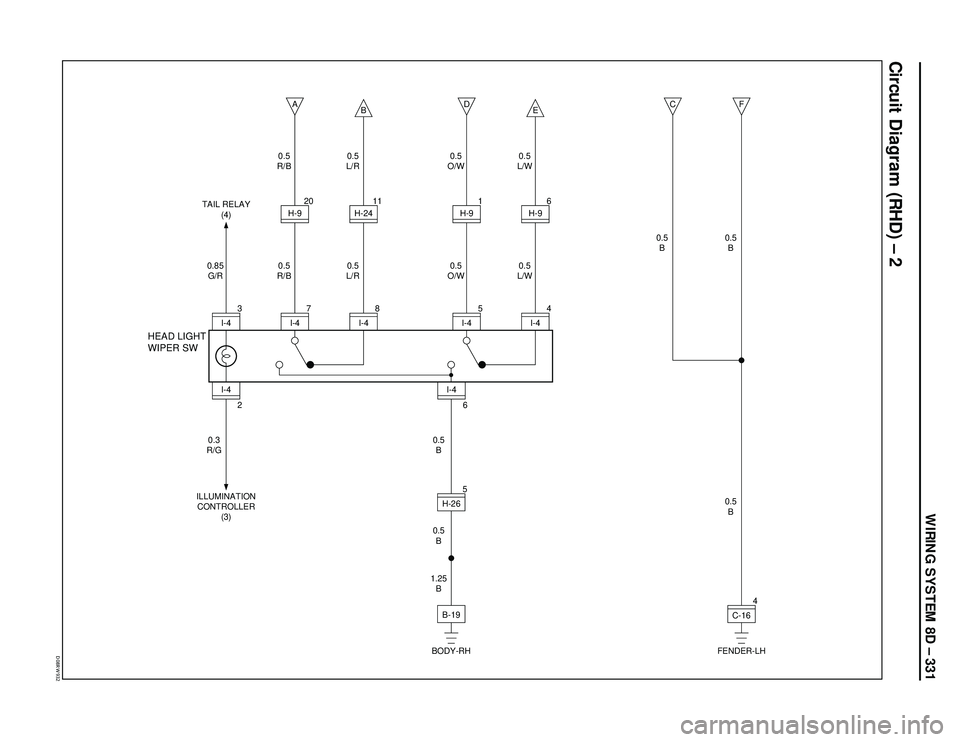

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 331 Circuit Diagram (RHD) – 2 �%���3�8��� 1.25 B 0.5 B0.5 B 0.5 B 0.3 R/G ILLUMINATION CONTROLLER (3) HEAD LIGHTWIPER SW TAIL RELAY (4)0.5 R/B 0.5 R/B BODY-RH B-19 FENDER-L

Page 2925 of 3573

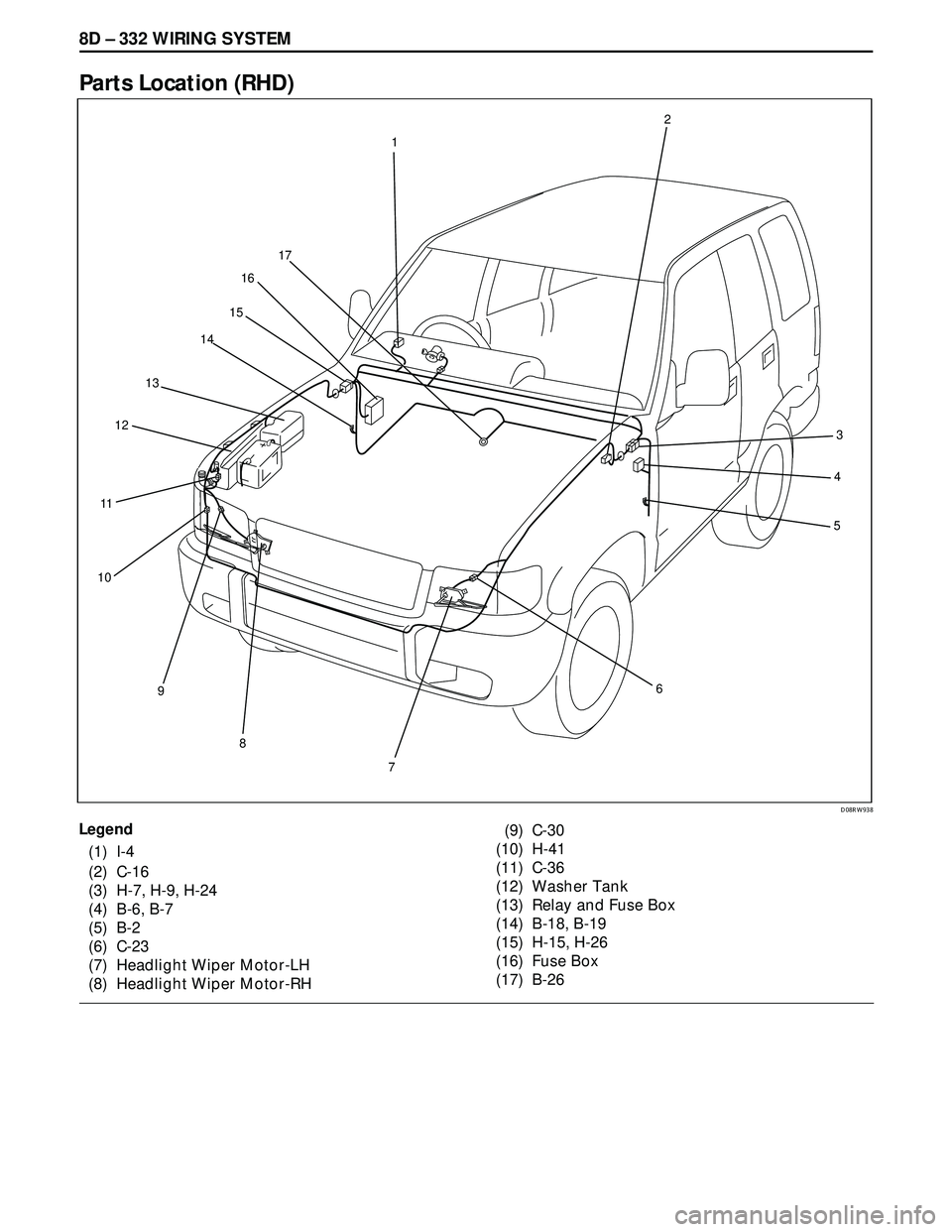

ISUZU TROOPER 1998 Service Repair Manual 8D – 332 WIRING SYSTEM Parts Location (RHD) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 �%���3�8��� Legend (1) I-4 (2) C-16 (3) H-7, H-9, H-24 (4) B-6, B-7 (5) B-2 (6) C-23 (7) Headlight Wiper Mo

Page 2926 of 3573

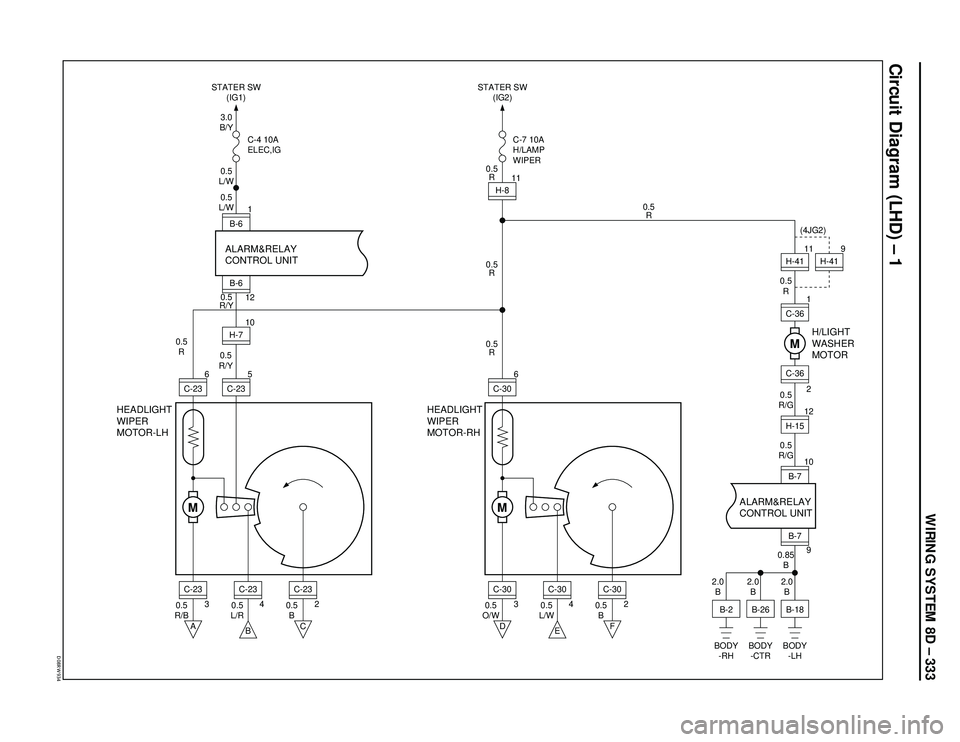

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 333 Circuit Diagram (LHD) – 1 �%���3�8��� MC-236 3425 10 12 C-23 0.5 R/B0.5 R 0.5 R/Y0.5 R/Y 0.5 R 0.5 R0.5 R 0.5 R 0.5 L/W0.5 L/W3.0 B/Y C-4 10A ELEC,IGC-7 10A H/LAMP WIPE

Page 2927 of 3573

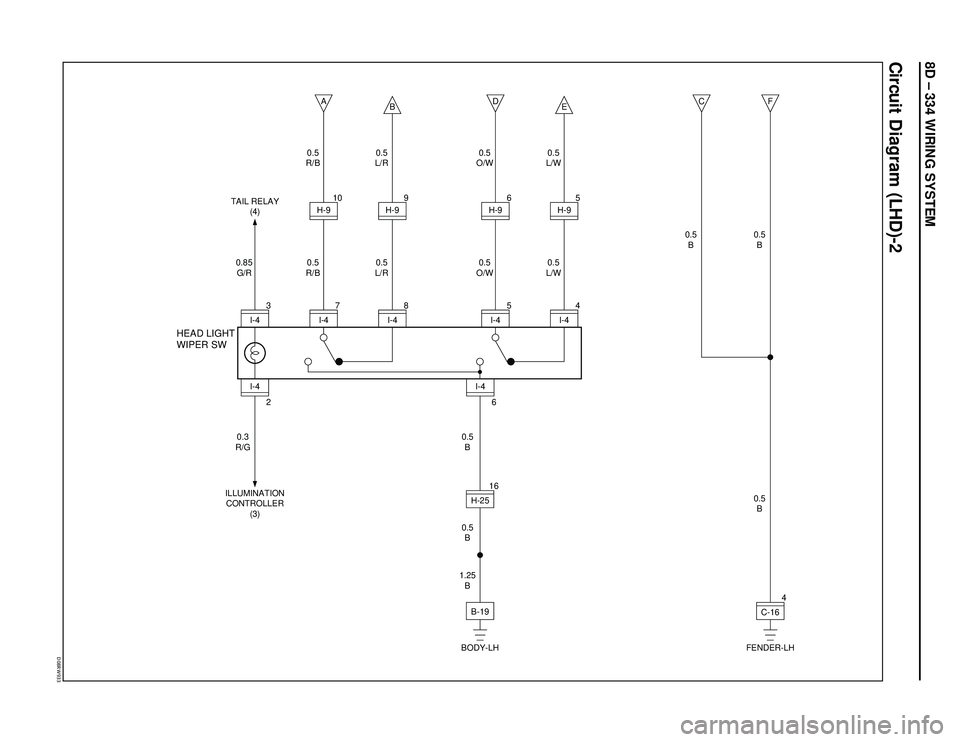

ISUZU TROOPER 1998 Service Repair Manual 8D – 334 WIRING SYSTEM Circuit Diagram (LHD)-2 �%���3�8��� 1.25 B 0.5 B0.5 B 0.5 B 0.3 R/G ILLUMINATION CONTROLLER (3) HEAD LIGHTWIPER SW TAIL RELAY (4)0.5 R/B 0.5 R/B BODY-LH B-19 FENDER-LH 6

Page 2928 of 3573

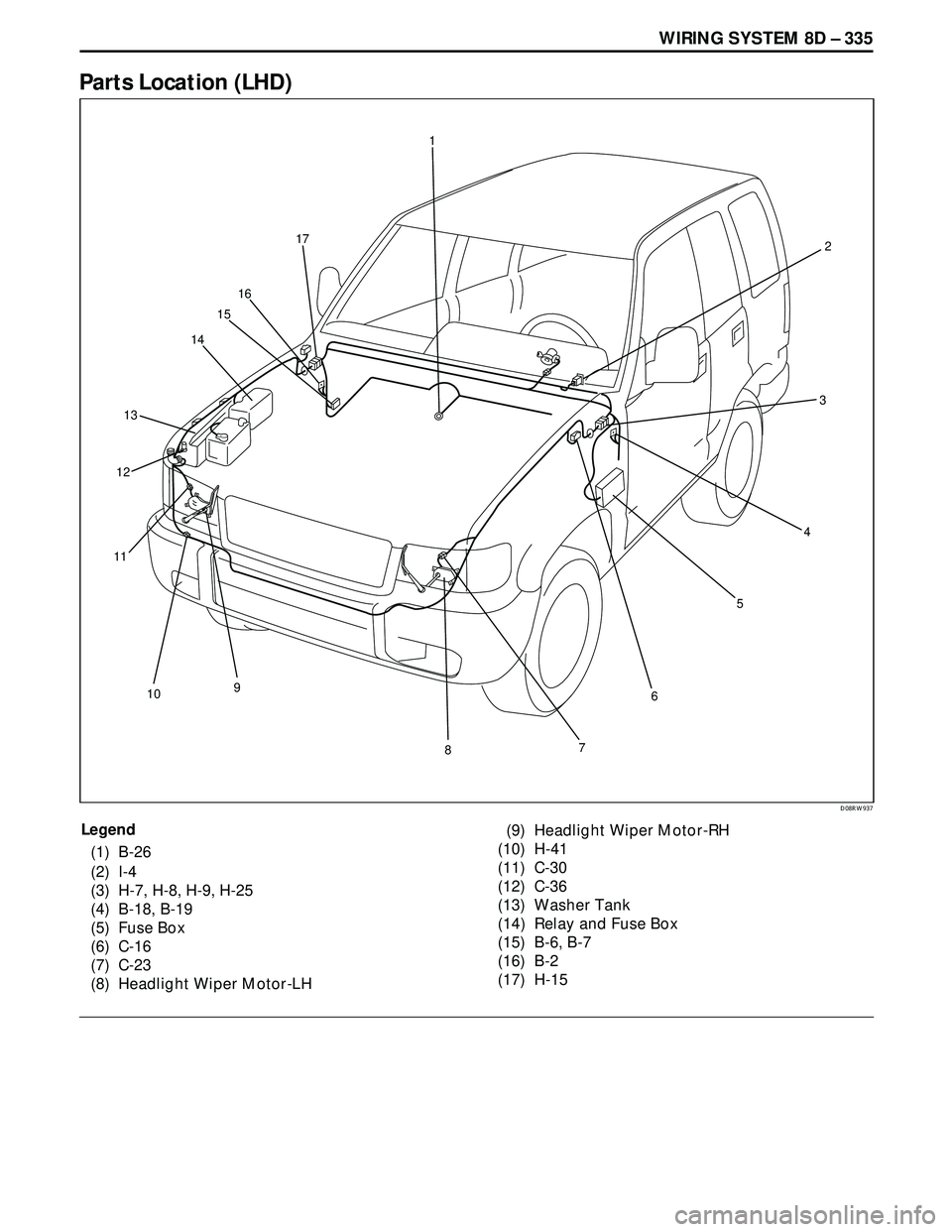

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 335 Parts Location (LHD) Legend (1) B-26 (2) I-4 (3) H-7, H-8, H-9, H-25 (4) B-18, B-19 (5) Fuse Box (6) C-16 (7) C-23 (8) Headlight Wiper Motor-LH(9) Headlight Wiper Motor-RH (10
