Page 1113 of 3573

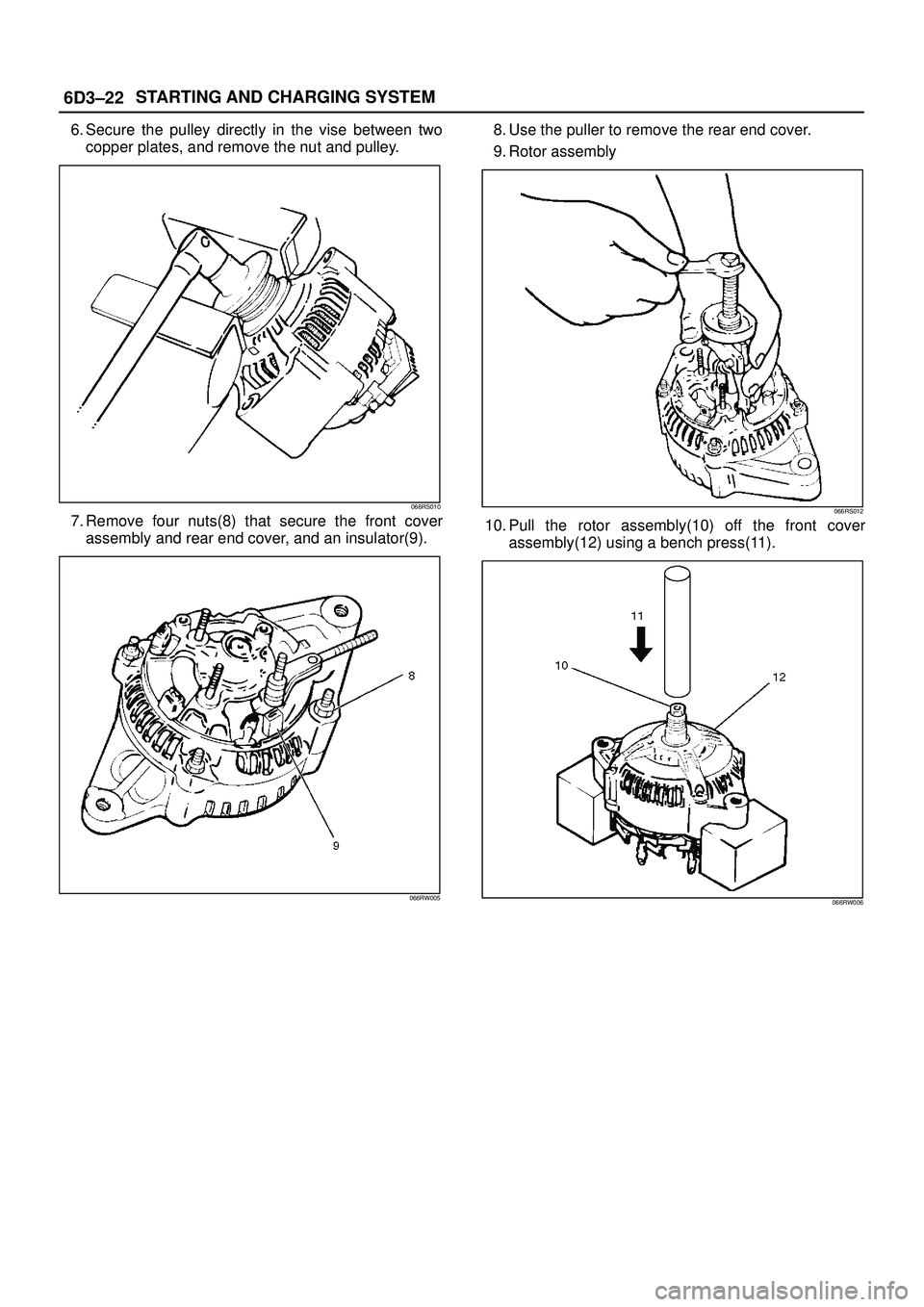

6D3±22STARTING AND CHARGING SYSTEM
6. Secure the pulley directly in the vise between two
copper plates, and remove the nut and pulley.
066RS010
7. Remove four nuts(8) that secure the front cover
assembly and rear end cover, and an insulator(9).
066RW005
8. Use the puller to remove the rear end cover.
9. Rotor assembly
066RS012
10. Pull the rotor assembly(10) off the front cover
assembly(12) using a bench press(11).
066RW006
Page 1114 of 3573

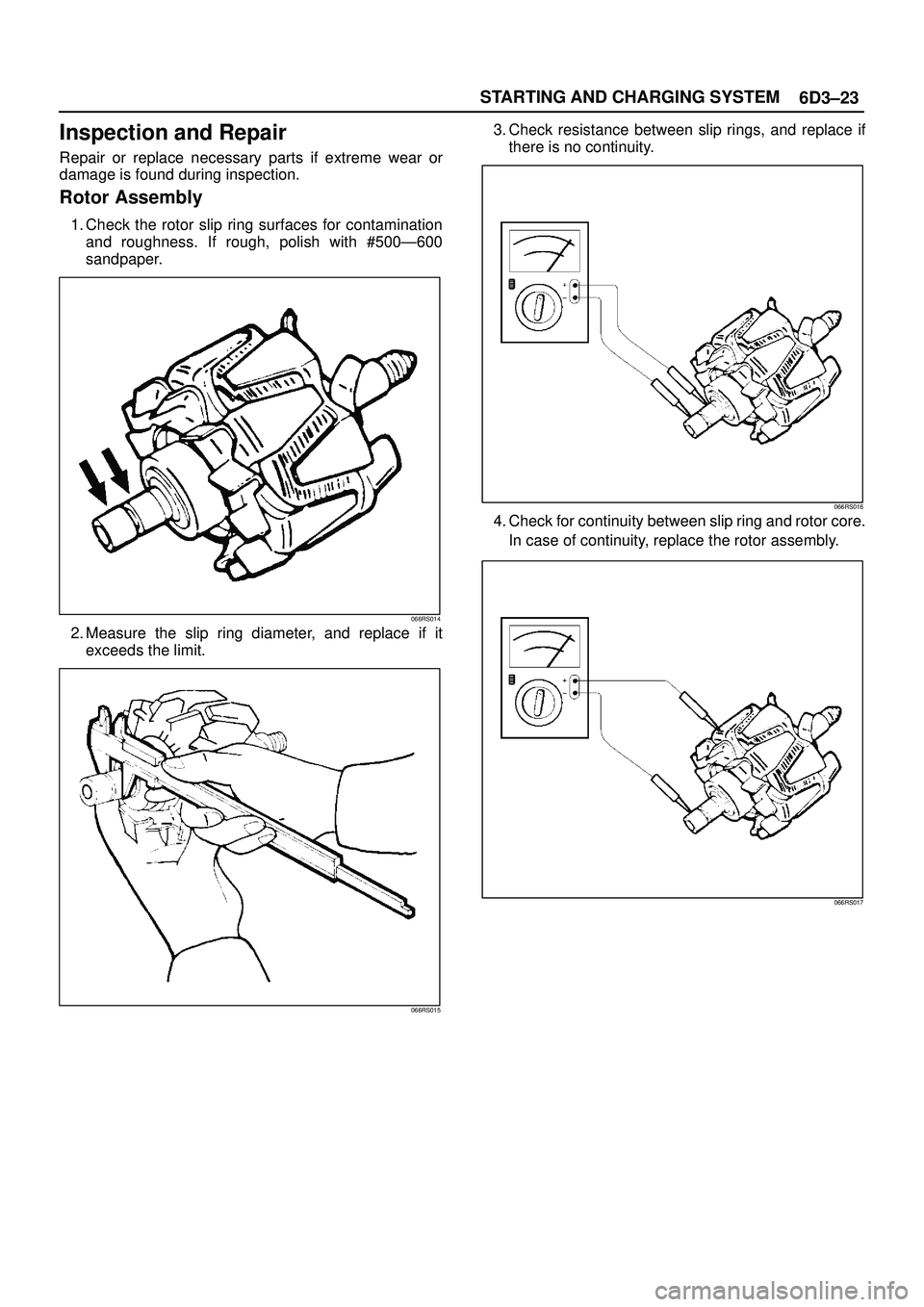

6D3±23 STARTING AND CHARGING SYSTEM
Inspection and Repair
Repair or replace necessary parts if extreme wear or
damage is found during inspection.
Rotor Assembly
1. Check the rotor slip ring surfaces for contamination
and roughness. If rough, polish with #500Ð600
sandpaper.
066RS014
2. Measure the slip ring diameter, and replace if it
exceeds the limit.
066RS015
3. Check resistance between slip rings, and replace if
there is no continuity.
066RS016
4. Check for continuity between slip ring and rotor core.
In case of continuity, replace the rotor assembly.
066RS017
Page 1115 of 3573

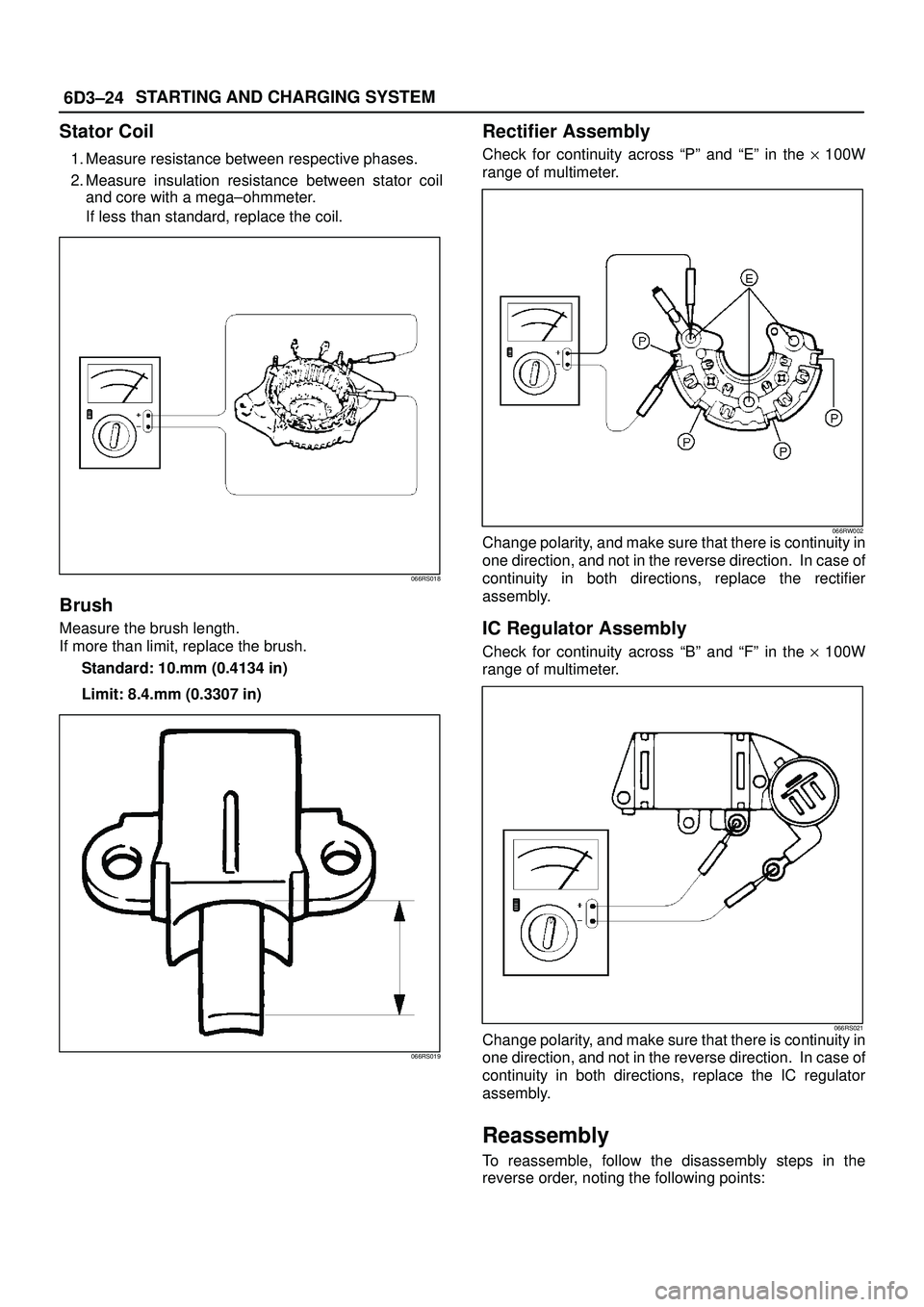

6D3±24STARTING AND CHARGING SYSTEM
Stator Coil
1. Measure resistance between respective phases.
2. Measure insulation resistance between stator coil
and core with a mega±ohmmeter.
If less than standard, replace the coil.
066RS018
Brush
Measure the brush length.
If more than limit, replace the brush.
Standard: 10.mm (0.4134 in)
Limit: 8.4.mm (0.3307 in)
066RS019
Rectifier Assembly
Check for continuity across ªPº and ªEº in the y 100W
range of multimeter.
066RW002Change polarity, and make sure that there is continuity in
one direction, and not in the reverse direction. In case of
continuity in both directions, replace the rectifier
assembly.
IC Regulator Assembly
Check for continuity across ªBº and ªFº in the y 100W
range of multimeter.
066RS021Change polarity, and make sure that there is continuity in
one direction, and not in the reverse direction. In case of
continuity in both directions, replace the IC regulator
assembly.
Reassembly
To reassemble, follow the disassembly steps in the
reverse order, noting the following points:
Page 1116 of 3573

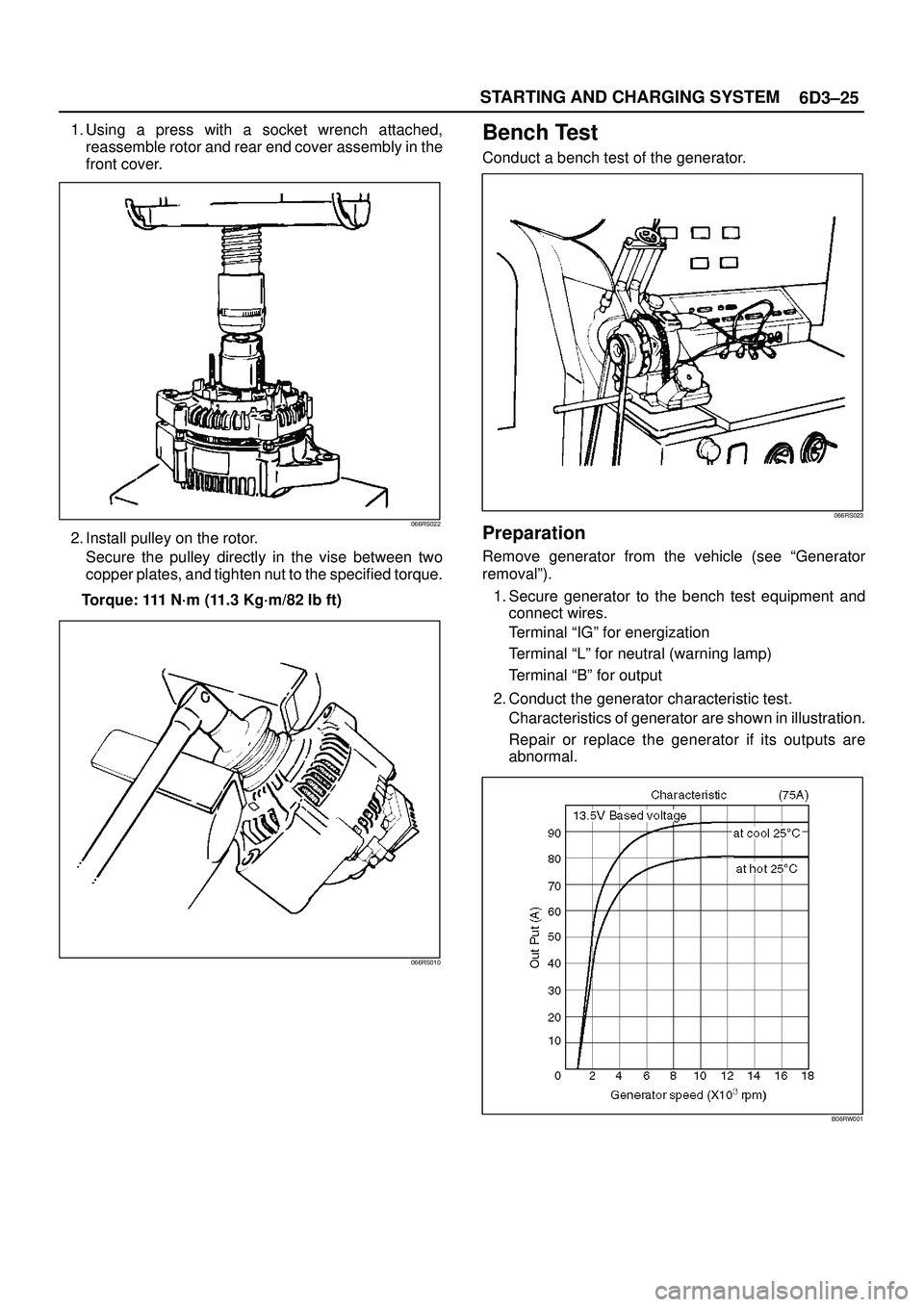

6D3±25 STARTING AND CHARGING SYSTEM
1. Using a press with a socket wrench attached,
reassemble rotor and rear end cover assembly in the
front cover.
066RS022
2. Install pulley on the rotor.
Secure the pulley directly in the vise between two
copper plates, and tighten nut to the specified torque.
Torque: 111 N´m (11.3 Kg´m/82 lb ft)
066RS010
Bench Test
Conduct a bench test of the generator.
066RS023
Preparation
Remove generator from the vehicle (see ªGenerator
removalº).
1. Secure generator to the bench test equipment and
connect wires.
Terminal ªIGº for energization
Terminal ªLº for neutral (warning lamp)
Terminal ªBº for output
2. Conduct the generator characteristic test.
Characteristics of generator are shown in illustration.
Repair or replace the generator if its outputs are
abnormal.
B06RW001
Page 1117 of 3573

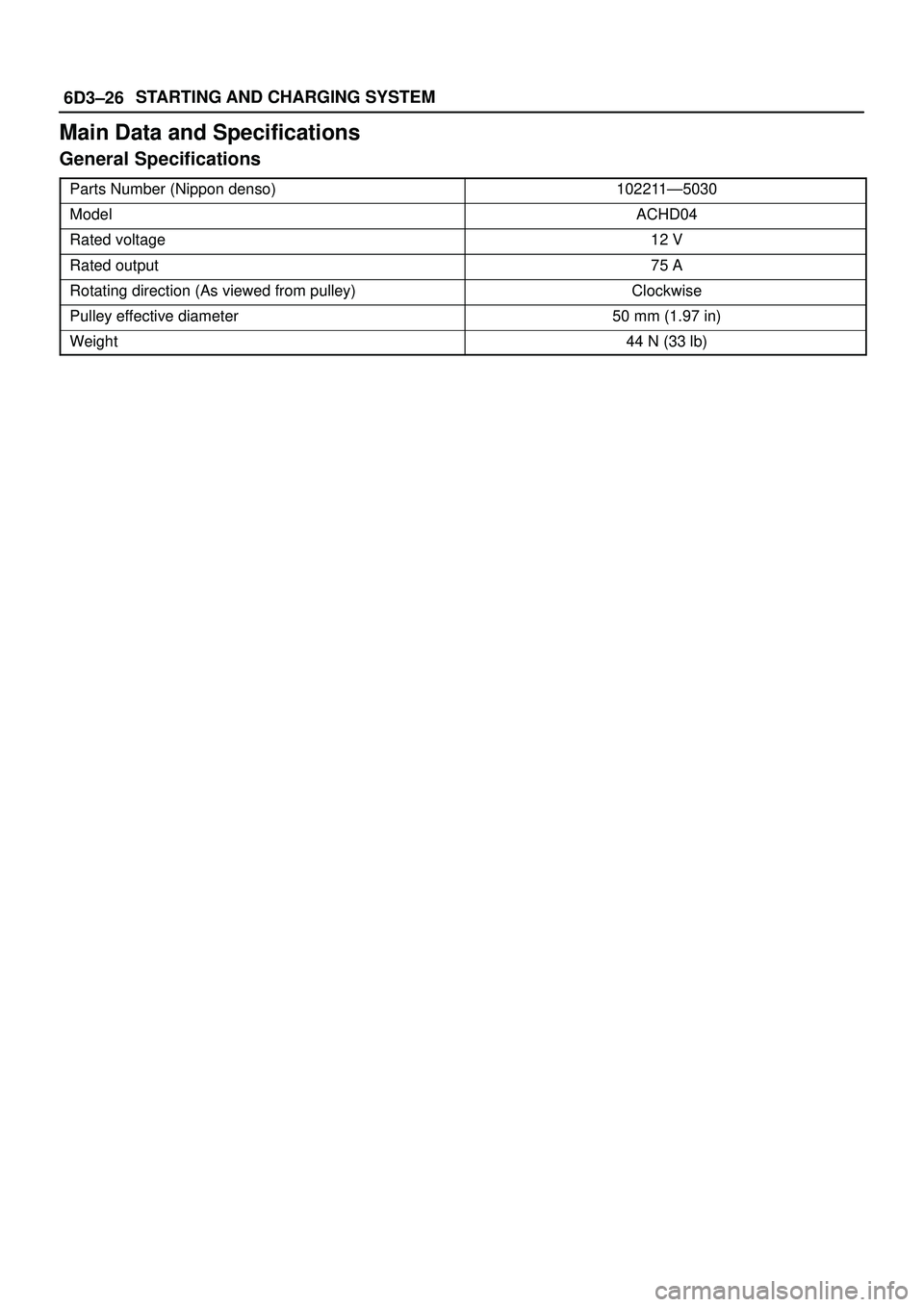

6D3±26STARTING AND CHARGING SYSTEM
Main Data and Specifications
General Specifications
Parts Number (Nippon denso)102211Ð5030
ModelACHD04
Rated voltage12 V
Rated output75 A
Rotating direction (As viewed from pulley)Clockwise
Pulley effective diameter50 mm (1.97 in)
Weight44 N (33 lb)
Page 1118 of 3573

6E±1 ENGINE DRIVEABILITY AND EMISSIONS
ENGINE
ENGINE DRIVEABILITY AND EMISSIONS
CONTENTS
Specifications 6E±5. . . . . . . . . . . . . . . . . . . . . . . . .
Tightening Specifications 6E±5. . . . . . . . . . . . . . .
Vehicle Type Specifications 6E±5. . . . . . . . . . . . .
Diagrams and Schematics 6E±6. . . . . . . . . . . . . . . .
PCM Wiring Diagram (1 of 11) 6E±6. . . . . . . . . . .
PCM Wiring Diagram (2 of 11) For EC,
THAILAND, SOUTH EAST ASIA, LATIN
AMERICA, GULF, SAUDI, CHINA. 6E±7. . . . . .
PCM Wiring Diagram (3 of 11) For SOUTH
AFRICA and EXP. 6E±8. . . . . . . . . . . . . . . . . . . . .
PCM Wiring Diagram (4 of 11) 6E±9. . . . . . . . . . .
PCM Wiring Diagram (5 of 11) 6E±10. . . . . . . . . . .
PCM Wiring Diagram (6 of 11) For
AUSTRALIA, THAILAND, SOUTH EAST
ASIA, LATIN AMERICA, GULF, SAUDI,
LATIN AMERICA. 6E±11. . . . . . . . . . . . . . . . . . . . .
PCM Wiring Diagram (7 of 11) For EC. 6E±12. . .
PCM Wiring Diagram (8 of 11) For EXPORT
and SOUTH AFRICA. 6E±13. . . . . . . . . . . . . . . . .
PCM Wiring Diagram (9 of 11) Except EXP
and SOUTH AFRICA 6E±14. . . . . . . . . . . . . . . . . .
PCM Wiring Diagram (10 of 11) For
EXPORT and SOUTH AFRICA 6E±15. . . . . . . . .
PCM Wiring Diagram (11 of 11) 6E±16. . . . . . . . . .
PCM Pinouts 6E±17. . . . . . . . . . . . . . . . . . . . . . . . . . .
PCM Pinout Table, 32-Way Red
Connector ± Row ªAº 6E±17. . . . . . . . . . . . . . . . . .
PCM Pinout Table, 32-Way Red
Connector ± Row ªBº 6E±19. . . . . . . . . . . . . . . . . .
PCM Pinout Table, 32-Way White
Connector ± Row ªCº (For EC) 6E±20. . . . . . . . . .
PCM Pinout Table, 32-Way White
Connector ± Row ªCº (For except EC) 6E±21. . .
PCM Pinout Table, 32-Way White
Connector ± Row ªDº
(For except EXPORT and SOUTH
AFRICA) 6E±22. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCM Pinout Table, 32-Way White
Connector ± Row ªDº
(For EXPORT and SOUTH AFRICA) 6E±23. . . . .
PCM Pinout Table, 32-Way Blue
Connector ± Row ªEº
(For except EXPORT and SOUTH
AFRICA) 6E±24. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCM Pinout Table, 32-Way Blue
Connector ± Row ªEº
(For EXPORT and SOUTH AFRICA) 6E±26. . . . .
PCM Pinout Table, 32-Way Blue
Connector ± Row ªFº 6E±27. . . . . . . . . . . . . . . . . .
Component Locators 6E±28. . . . . . . . . . . . . . . . . . . .
Engine Component Locator (This illustration
is based on RHD model.) 6E±28. . . . . . . . . . . . . . Engine Component Locator Table 6E±29. . . . . . . .
Engine Component Locator Table 6E±31. . . . . . . .
Undercarriage Component Locator 6E±32. . . . . .
Undercarriage Component Locator Table
(Automatic Transmission) 6E±32. . . . . . . . . . . . . .
Undercarriage Component Locator Table
(Manual Transmission) 6E±33. . . . . . . . . . . . . . . .
Fuse and Relay Panel (Underhood
Electrical Center) 6E±33. . . . . . . . . . . . . . . . . . . . .
Sensors and Miscellaneous Component
Locators 6E±34. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnosis 6E±37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Strategy-Based Diagnostics 6E±37. . . . . . . . . . . . .
Strategy-Based Diagnostics 6E±37. . . . . . . . . . . . .
DTC Stored 6E±37. . . . . . . . . . . . . . . . . . . . . . . . . . .
No DTC 6E±37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
No Matching Symptom 6E±37. . . . . . . . . . . . . . . . .
Intermittents 6E±37. . . . . . . . . . . . . . . . . . . . . . . . . .
No Trouble Found 6E±37. . . . . . . . . . . . . . . . . . . . .
Verifying Vehicle Repair 6E±37. . . . . . . . . . . . . . . .
General Service Information 6E±38. . . . . . . . . . . . . .
OBD Serviceablity Issues 6E±38. . . . . . . . . . . . . . .
Maintenance Schedule 6E±38. . . . . . . . . . . . . . . . .
Visual / Physical Engine Compartment
Inspection 6E±38. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Basic Knowledge of Tools Required 6E±38. . . . . .
Serial Data Communications 6E±38. . . . . . . . . . . . . .
Class II Serial Data Communications 6E±38. . . . .
On-Board Diagnostic (OBD) 6E±39. . . . . . . . . . . . . .
On-Board Diagnostic Tests 6E±39. . . . . . . . . . . . .
Comprehensive Component Monitor
Diagnostic Operation 6E±39. . . . . . . . . . . . . . . . . .
Common OBD Terms 6E±40. . . . . . . . . . . . . . . . . .
The Diagnostic Executive 6E±40. . . . . . . . . . . . . . .
DTC Types 6E±41. . . . . . . . . . . . . . . . . . . . . . . . . . .
Verifying Vehicle Repair 6E±42. . . . . . . . . . . . . . . .
Reading Diagnostic Trouble Codes Using
A Tech 2 6E±42. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tech 2 Tech 2 6E±43. . . . . . . . . . . . . . . . . . . . . . . . .
Tech 2 Features 6E±43. . . . . . . . . . . . . . . . . . . . . . .
Getting Started 6E±44. . . . . . . . . . . . . . . . . . . . . . . .
Operating Procedure (For Example) 6E±44. . . . .
DTC Modes 6E±45. . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC Information Mode 6E±46. . . . . . . . . . . . . . . . .
Injector Balance Test 6E±46. . . . . . . . . . . . . . . . . . .
EGR Control Test 6E±47. . . . . . . . . . . . . . . . . . . . . .
Idle Air Control System Test 6E±48. . . . . . . . . . . . .

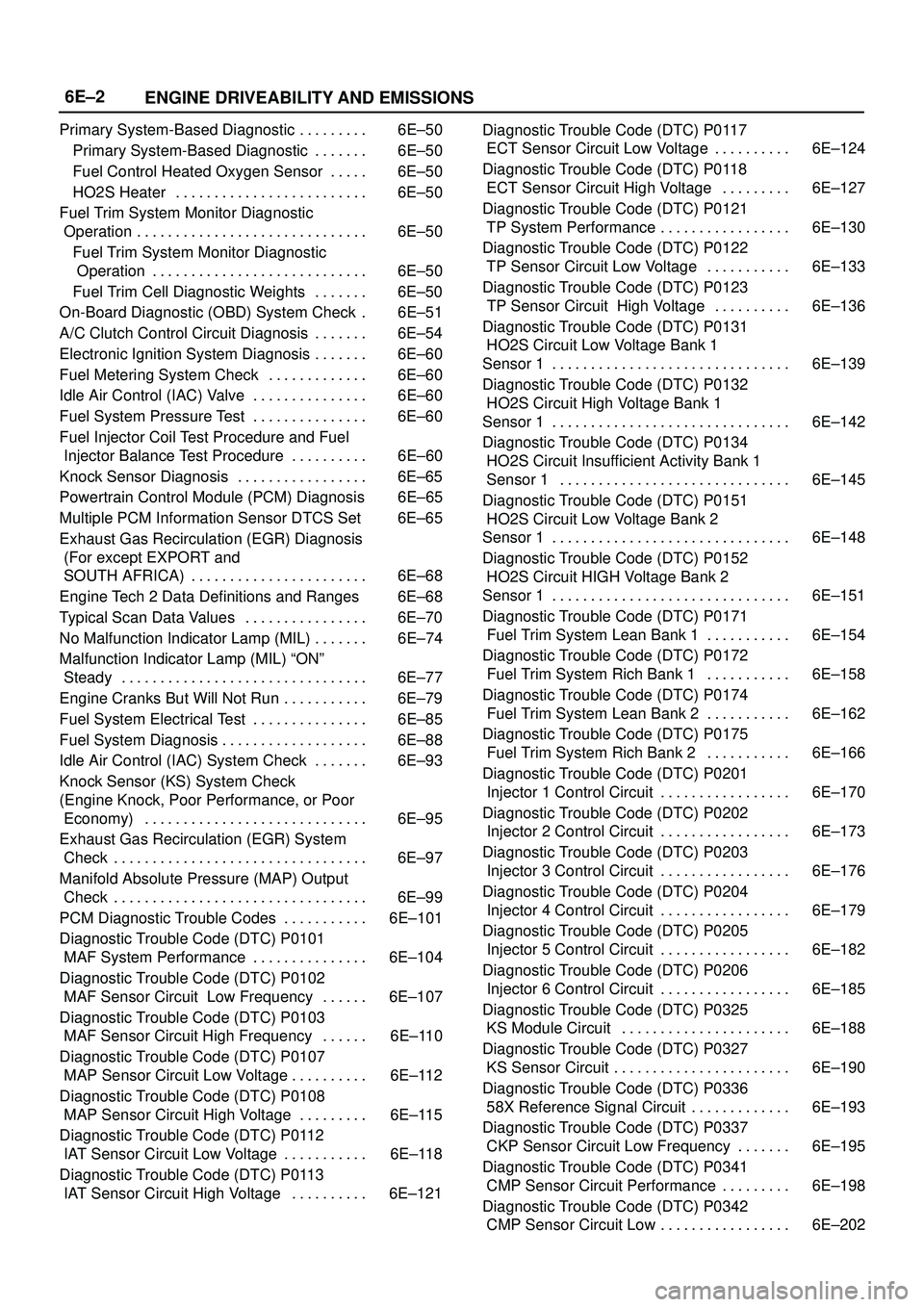

Page 1119 of 3573

6E±2
ENGINE DRIVEABILITY AND EMISSIONS
Primary System-Based Diagnostic 6E±50. . . . . . . . .
Primary System-Based Diagnostic 6E±50. . . . . . .
Fuel Control Heated Oxygen Sensor 6E±50. . . . .
HO2S Heater 6E±50. . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Trim System Monitor Diagnostic
Operation 6E±50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Trim System Monitor Diagnostic
Operation 6E±50. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Trim Cell Diagnostic Weights 6E±50. . . . . . .
On-Board Diagnostic (OBD) System Check 6E±51.
A/C Clutch Control Circuit Diagnosis 6E±54. . . . . . .
Electronic Ignition System Diagnosis 6E±60. . . . . . .
Fuel Metering System Check 6E±60. . . . . . . . . . . . .
Idle Air Control (IAC) Valve 6E±60. . . . . . . . . . . . . . .
Fuel System Pressure Test 6E±60. . . . . . . . . . . . . . .
Fuel Injector Coil Test Procedure and Fuel
Injector Balance Test Procedure 6E±60. . . . . . . . . .
Knock Sensor Diagnosis 6E±65. . . . . . . . . . . . . . . . .
Powertrain Control Module (PCM) Diagnosis 6E±65
Multiple PCM Information Sensor DTCS Set 6E±65
Exhaust Gas Recirculation (EGR) Diagnosis
(For except EXPORT and
SOUTH AFRICA) 6E±68. . . . . . . . . . . . . . . . . . . . . . .
Engine Tech 2 Data Definitions and Ranges 6E±68
Typical Scan Data Values 6E±70. . . . . . . . . . . . . . . .
No Malfunction Indicator Lamp (MIL) 6E±74. . . . . . .
Malfunction Indicator Lamp (MIL) ªONº
Steady 6E±77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Cranks But Will Not Run 6E±79. . . . . . . . . . .
Fuel System Electrical Test 6E±85. . . . . . . . . . . . . . .
Fuel System Diagnosis 6E±88. . . . . . . . . . . . . . . . . . .
Idle Air Control (IAC) System Check 6E±93. . . . . . .
Knock Sensor (KS) System Check
(Engine Knock, Poor Performance, or Poor
Economy) 6E±95. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exhaust Gas Recirculation (EGR) System
Check 6E±97. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manifold Absolute Pressure (MAP) Output
Check 6E±99. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCM Diagnostic Trouble Codes 6E±101. . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0101
MAF System Performance 6E±104. . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0102
MAF Sensor Circuit Low Frequency 6E±107. . . . . .
Diagnostic Trouble Code (DTC) P0103
MAF Sensor Circuit High Frequency 6E±110. . . . . .
Diagnostic Trouble Code (DTC) P0107
MAP Sensor Circuit Low Voltage 6E±112. . . . . . . . . .
Diagnostic Trouble Code (DTC) P0108
MAP Sensor Circuit High Voltage 6E±115. . . . . . . . .
Diagnostic Trouble Code (DTC) P0112
IAT Sensor Circuit Low Voltage 6E±118. . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0113
IAT Sensor Circuit High Voltage 6E±121. . . . . . . . . . Diagnostic Trouble Code (DTC) P0117
ECT Sensor Circuit Low Voltage 6E±124. . . . . . . . . .
Diagnostic Trouble Code (DTC) P0118
ECT Sensor Circuit High Voltage 6E±127. . . . . . . . .
Diagnostic Trouble Code (DTC) P0121
TP System Performance 6E±130. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0122
TP Sensor Circuit Low Voltage 6E±133. . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0123
TP Sensor Circuit High Voltage 6E±136. . . . . . . . . .
Diagnostic Trouble Code (DTC) P0131
HO2S Circuit Low Voltage Bank 1
Sensor 1 6E±139. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0132
HO2S Circuit High Voltage Bank 1
Sensor 1 6E±142. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0134
HO2S Circuit Insufficient Activity Bank 1
Sensor 1 6E±145. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0151
HO2S Circuit Low Voltage Bank 2
Sensor 1 6E±148. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0152
HO2S Circuit HIGH Voltage Bank 2
Sensor 1 6E±151. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0171
Fuel Trim System Lean Bank 1 6E±154. . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0172
Fuel Trim System Rich Bank 1 6E±158. . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0174
Fuel Trim System Lean Bank 2 6E±162. . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0175
Fuel Trim System Rich Bank 2 6E±166. . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0201
Injector 1 Control Circuit 6E±170. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0202
Injector 2 Control Circuit 6E±173. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0203
Injector 3 Control Circuit 6E±176. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0204
Injector 4 Control Circuit 6E±179. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0205
Injector 5 Control Circuit 6E±182. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0206
Injector 6 Control Circuit 6E±185. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0325
KS Module Circuit 6E±188. . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0327
KS Sensor Circuit 6E±190. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0336
58X Reference Signal Circuit 6E±193. . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0337
CKP Sensor Circuit Low Frequency 6E±195. . . . . . .
Diagnostic Trouble Code (DTC) P0341
CMP Sensor Circuit Performance 6E±198. . . . . . . . .
Diagnostic Trouble Code (DTC) P0342
CMP Sensor Circuit Low 6E±202. . . . . . . . . . . . . . . . .
Page 1120 of 3573

6E±3 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0351
Ignition 1 Control Circuit 6E±206. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0352
Ignition 2 Control Circuit 6E±209. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0353
Ignition 3 Control Circuit 6E±212. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0354
Ignition 4 Control Circuit 6E±215. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0355
Ignition 5 Control Circuit 6E±218. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0356
Ignition 6 Control Circuit 6E±221. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0402
EGR Pintle Crank Error 6E±224. . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0404
EGR Open Stuck 6E±226. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0405
EGR Low Voltage 6E±228. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0406
EGR High Voltage 6E±231. . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0502
VSS Circuit Low Input 6E±234. . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0562
System Voltage Low 6E±237. . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0563
System Voltage High 6E±239. . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0601
PCM Memory 6E±240. . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1154
HO2S Circuit Transition Time Ratio Bank 2
Sensor 1 6E±241. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1171
Fuel System Lean During Acceleration 6E±245. . . .
Diagnostic Trouble Code (DTC) P1380
ABS Rough Road ABS System Fault 6E±248. . . . . .
Diagnostic Trouble Code (DTC) P1404
EGR Closed Stuck 6E±249. . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1508
IAC System Low RPM 6E±251. . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1509
IAC System High RPM 6E±254. . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1618
Serial Peripheral Interface (SPI) PCM
Interprocessor Communication Error 6E±257. . . . . .
Diagnostic Trouble Code (DTC) P1625
PCM Unexpected Reset 6E±258. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1640
Driver-1-Input High Voltage 6E±259. . . . . . . . . . . . . .
Symptom Diagnosis 6E±262. . . . . . . . . . . . . . . . . . . . .
Default Matrix Table 6E±288. . . . . . . . . . . . . . . . . . . . .
Camshaft Position (CMP) Sensor 6E±291. . . . . . . . . .
Crankshaft Position (CKP) Sensor 6E±292. . . . . . . . .
Engine Coolant Temperature (ECT) Sensor 6E±292.
Heated Oxygen Sensor (HO2S) 6E±293. . . . . . . . . . .
Intake Air Temperature (IAT) Sensor 6E±295. . . . . . .
Knock Sensor (KS) 6E±296. . . . . . . . . . . . . . . . . . . . . . Mass Air Flow (MAF) Sensor 6E±297. . . . . . . . . . . . .
Manifold Absolute Pressure (MAP) Sensor 6E±297.
Malfunction Indicator Lamp (MIL) 6E±298. . . . . . . . . .
Powertrain Control Module (PCM) 6E±298. . . . . . . . .
EEPROM 6E±300. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Steering Pressure (PSP) Switch 6E±300. . . .
Throttle Position (TP) Sensor 6E±301. . . . . . . . . . . . .
Vehicle Speed Sensor (VSS) 6E±302. . . . . . . . . . . . .
Air Cleaner/Air Filter 6E±303. . . . . . . . . . . . . . . . . . . . .
Idle Air Control (IAC) Valve 6E±304. . . . . . . . . . . . . . .
Common Chamber 6E±305. . . . . . . . . . . . . . . . . . . . . .
Accelerator Cable Assembly 6E±305. . . . . . . . . . . . . .
Accelerator Pedal Replacement 6E±308. . . . . . . . . . .
Fuel Filter Cap 6E±310. . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Filter 6E±310. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Gauge Unit 6E±313. . . . . . . . . . . . . . . . . . . . . . . .
Fuel Injectors 6E±314. . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Pressure Regulator 6E±315. . . . . . . . . . . . . . . . .
Fuel Metering System 6E±317. . . . . . . . . . . . . . . . . . . .
Fuel Pump Assembly 6E±318. . . . . . . . . . . . . . . . . . . .
Fuel Pump Relay 6E±319. . . . . . . . . . . . . . . . . . . . . . . .
Fuel Rail Assembly 6E±319. . . . . . . . . . . . . . . . . . . . . .
Fuel Tank 6E±321. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Throttle Body (TB) 6E±323. . . . . . . . . . . . . . . . . . . . . . .
Electronic Ignition System 6E±324. . . . . . . . . . . . . . . .
Catalytic Converter 6E±325. . . . . . . . . . . . . . . . . . . . . .
Air Conditioning Relay 6E±325. . . . . . . . . . . . . . . . . . .
EVAP Canister Hoses 6E±326. . . . . . . . . . . . . . . . . . . .
EVAP Canister 6E±326. . . . . . . . . . . . . . . . . . . . . . . . . .
EVAP Canister Purge Solenoid 6E±327. . . . . . . . . . . .
Fuel Tank Vent Valve 6E±328. . . . . . . . . . . . . . . . . . . .
Linear Exhaust Gas Recirculation
(EGR) Valve 6E±328. . . . . . . . . . . . . . . . . . . . . . . . . . .
Positive Crankcase Ventilation (PCV) Valve 6E±329.
Wiring and Connectors 6E±330. . . . . . . . . . . . . . . . . . .
PCM Connectors and Terminals 6E±330. . . . . . . . . . .
Wire Harness Repair: Twisted Shielded
Cable 6E±330. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Twisted Leads 6E±331. . . . . . . . . . . . . . . . . . . . . . . . . .
Weather-Pack Connector 6E±332. . . . . . . . . . . . . . . . .
Com-Pack III 6E±333. . . . . . . . . . . . . . . . . . . . . . . . . . .
Metri-Pack 6E±333. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Description 6E±335. . . . . . . . . . . . . . . . . . . . .
General Description (PCM and Sensors) 6E±335. . .
58X Reference PCM Input 6E±335. . . . . . . . . . . . . .
A/C Request Signal 6E±335. . . . . . . . . . . . . . . . . . . .
Crankshaft Position (CKP) Sensor 6E±335. . . . . . .
Camshaft Position (CMP) Sensor and
Signal 6E±335. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Coolant Temperature (ECT) Sensor 6E±335
Electrically Erasable Programmable Read
Only Memory (EEPROM) 6E±336. . . . . . . . . . . . . .
Fuel Control Heated Oxygen Sensors 6E±336. . . .
Intake Air Temperature (IAT) Sensor 6E±336. . . . .
