Page 1753 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A – 20 ENGINE MECHANICAL High Pressure Oil Pipe N·m (kg·m/lb·ft) 80(8.1/57.9) 80(8.1/57.9) 80(8.1/57.9) 80(8.1/57.9) 052R200002

Page 1754 of 3573

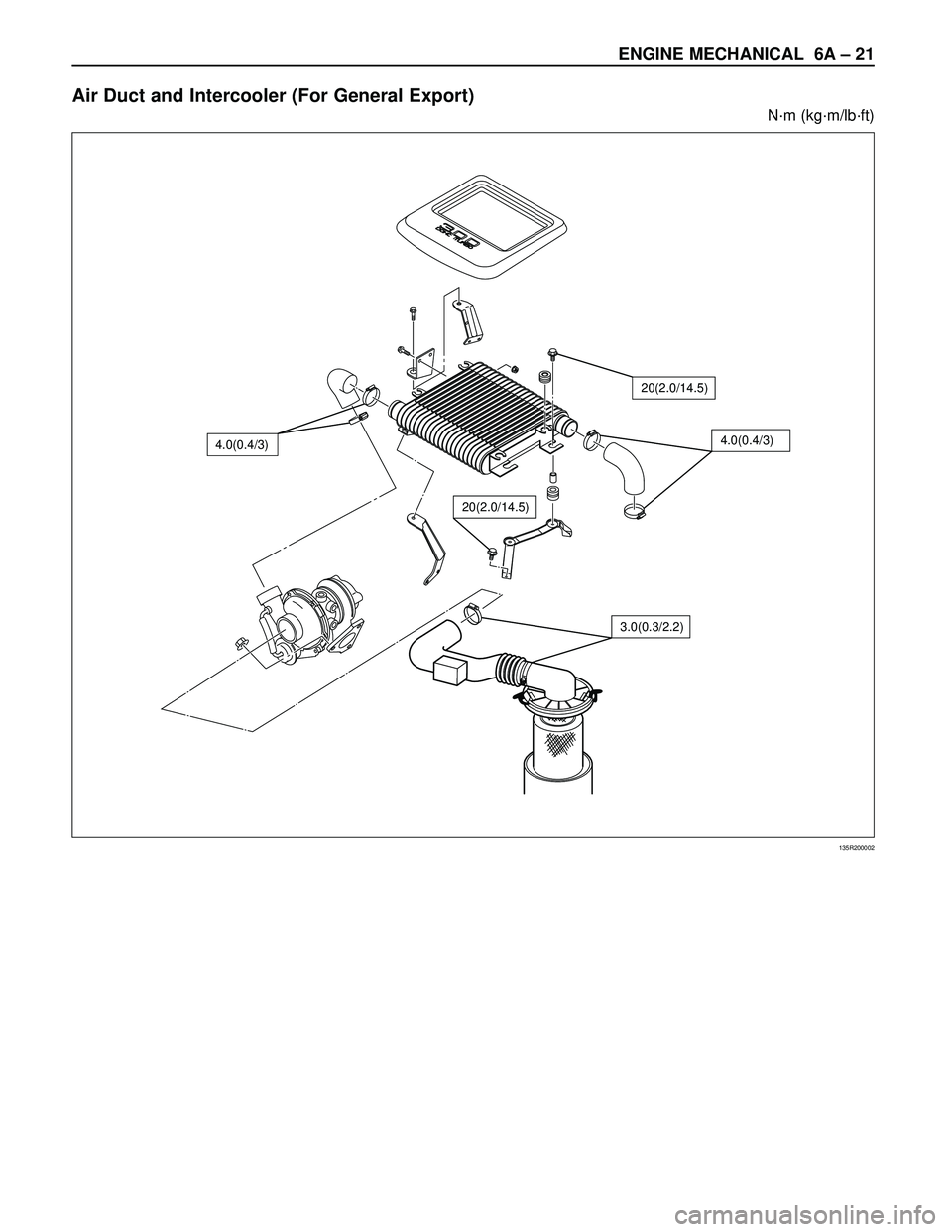

ISUZU TROOPER 1998 Service Repair Manual ENGINE MECHANICAL 6A – 21 Air Duct and Intercooler (For General Export) N·m (kg·m/lb·ft) 3.0(0.3/2.2) 4.0(0.4/3) 20(2.0/14.5) 4.0(0.4/3) 20(2.0/14.5) 135R200002

Page 1755 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A – 22 ENGINE MECHANICAL Air Duct and Intercooler (For Europe) N·m (kg·m/lb·ft) 4.0(0.4/3) 4.0(0.4/3) 3.0(0.3/2.2) 20(2.0/14.5) 135R200001

Page 1756 of 3573

ISUZU TROOPER 1998 Service Repair Manual ENGINE MECHANICAL 6A – 23 Engine Mount Bracket N·m (kg·m/lb·ft) 50(5.1/37) 50(5.1/37)127(13/94) 127(13/94) 40(4/29) 40(4/29) 40(4/29) 022RW019

Page 1757 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A – 24 ENGINE MECHANICAL Exhaust System N·m (kg·m/lb·ft) 150RW073 ª ’� ��� �� C « �� ! « jø� C « Ô� 1l ò8� ���� ^À jø� 43(4.4/32) 43(4.4/32) 16(1.6/12) 43(4.4/

Page 1758 of 3573

ISUZU TROOPER 1998 Service Repair Manual 901RT034 Illustration Tool No. Tool Name ENGINE MECHANICAL 6A – 25 SPECIAL TOOLS 5-8840-0203-0 Filter Wrench 5-8840-2441-0 Valve Spring Compressor 5-8840-2033-0 Stem Seal Installer 5-8840-9018-0 Pis

Page 1759 of 3573

ISUZU TROOPER 1998 Service Repair Manual 6A – 26 ENGINE MECHANICAL Illustration Tool No. Tool Name SPECIAL TOOLS 5-8840-2590-0 Valve Clearance Adjusting Tool 5-8840-2592-0 Camshaft Stopper 5-8840-2591-0 Camshaft Gear Tool 5-8840-2675-0 5-8

Page 1760 of 3573

ISUZU TROOPER 1998 Service Repair Manual ENGINE MECHANICAL 6A – 27 Illustration Tool No. Tool Name SPECIAL TOOLS 5-8840-0266-0 Angle Gauge 5-8840-2360-0 Rear Oil Seal Remover 5-8840-2359-0 Rear Oil Seal Installer 5-8840-2061-0 Front Oil Se
