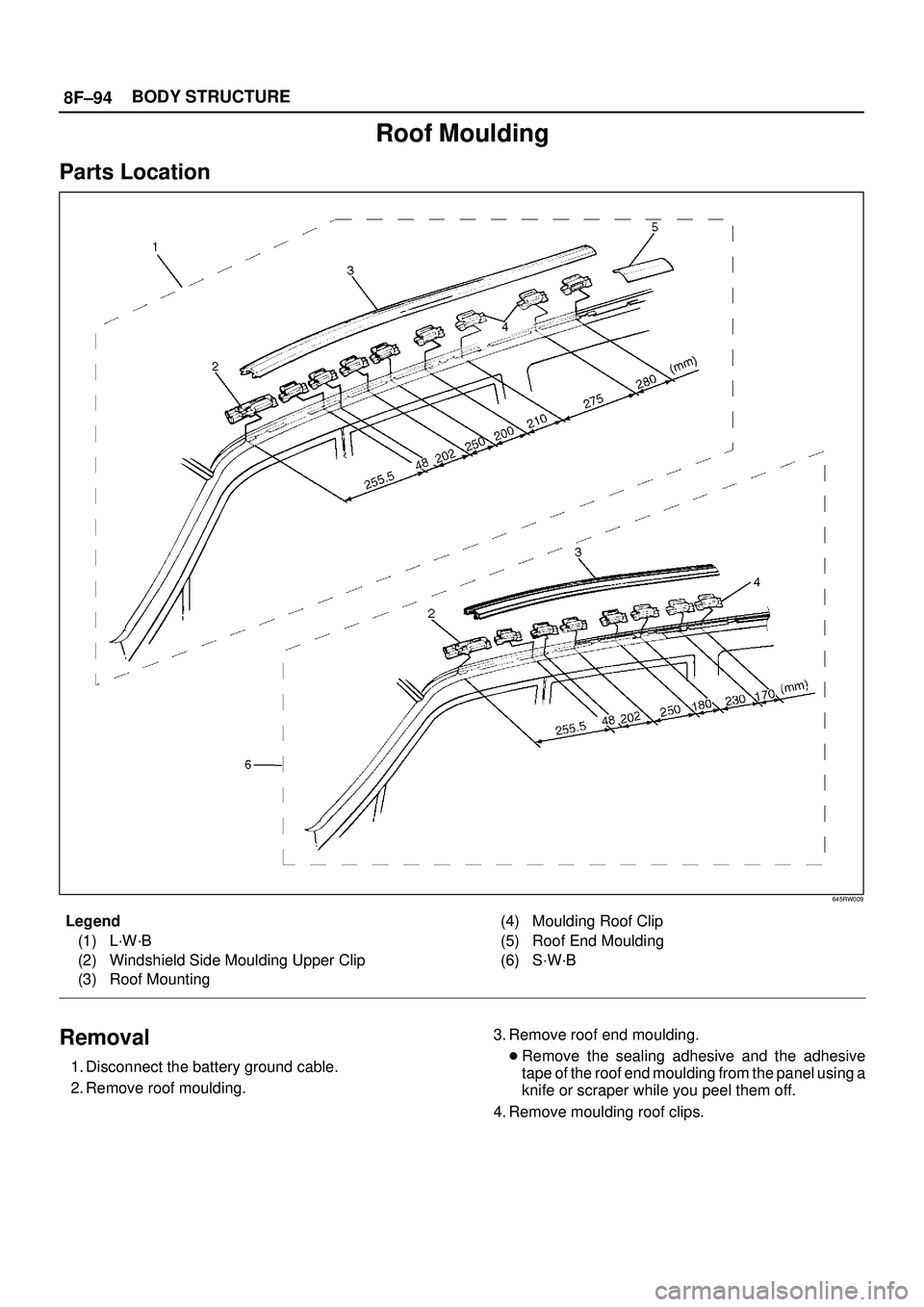

ISUZU TROOPER 1998 Service Repair Manual 8F±94BODY STRUCTURE Roof Moulding Parts Location 645RW009 Legend (1) L´W´B (2) Windshield Side Moulding Upper Clip (3) Roof Mounting(4) Moulding Roof Clip (5) Roof End Moulding (6) S´W´B Removal

Page 3290 of 3573

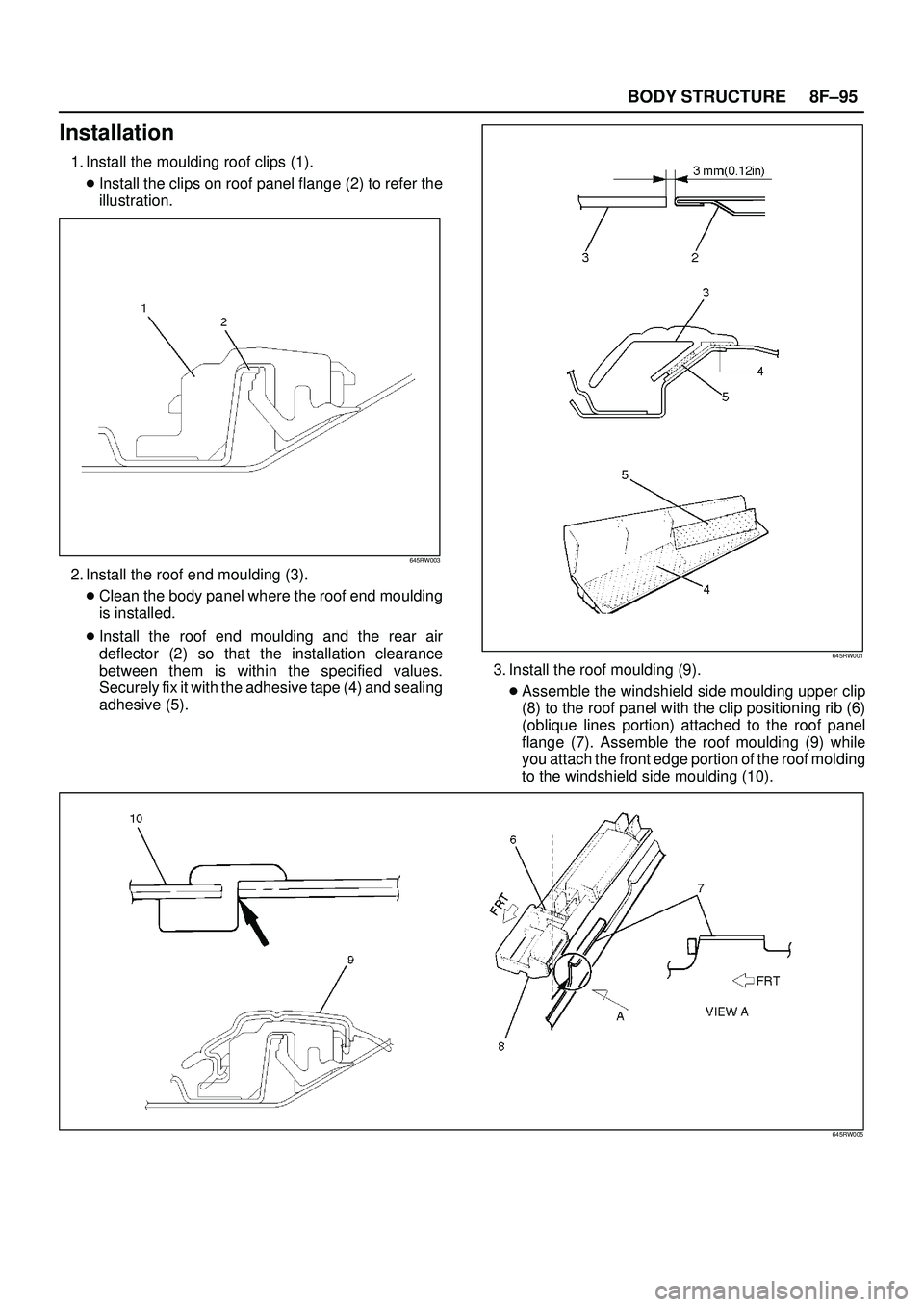

ISUZU TROOPER 1998 Service Repair Manual 8F±95 BODY STRUCTURE Installation 1. Install the moulding roof clips (1). Install the clips on roof panel flange (2) to refer the illustration. 645RW003 2. Install the roof end moulding (3). Clean

Page 3291 of 3573

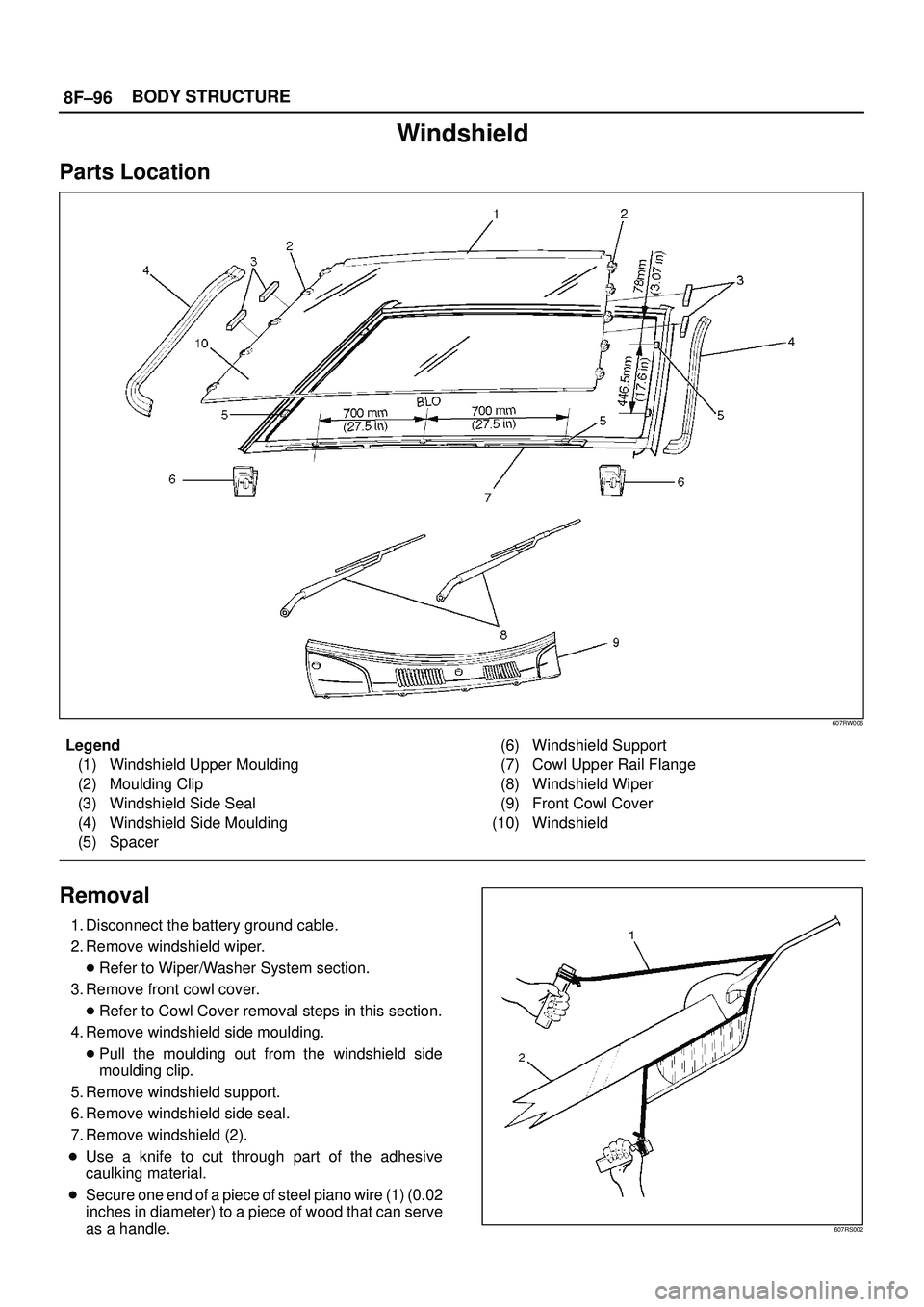

ISUZU TROOPER 1998 Service Repair Manual 8F±96BODY STRUCTURE Windshield Parts Location 607RW006 Legend (1) Windshield Upper Moulding (2) Moulding Clip (3) Windshield Side Seal (4) Windshield Side Moulding (5) Spacer(6) Windshield Support (7

Page 3292 of 3573

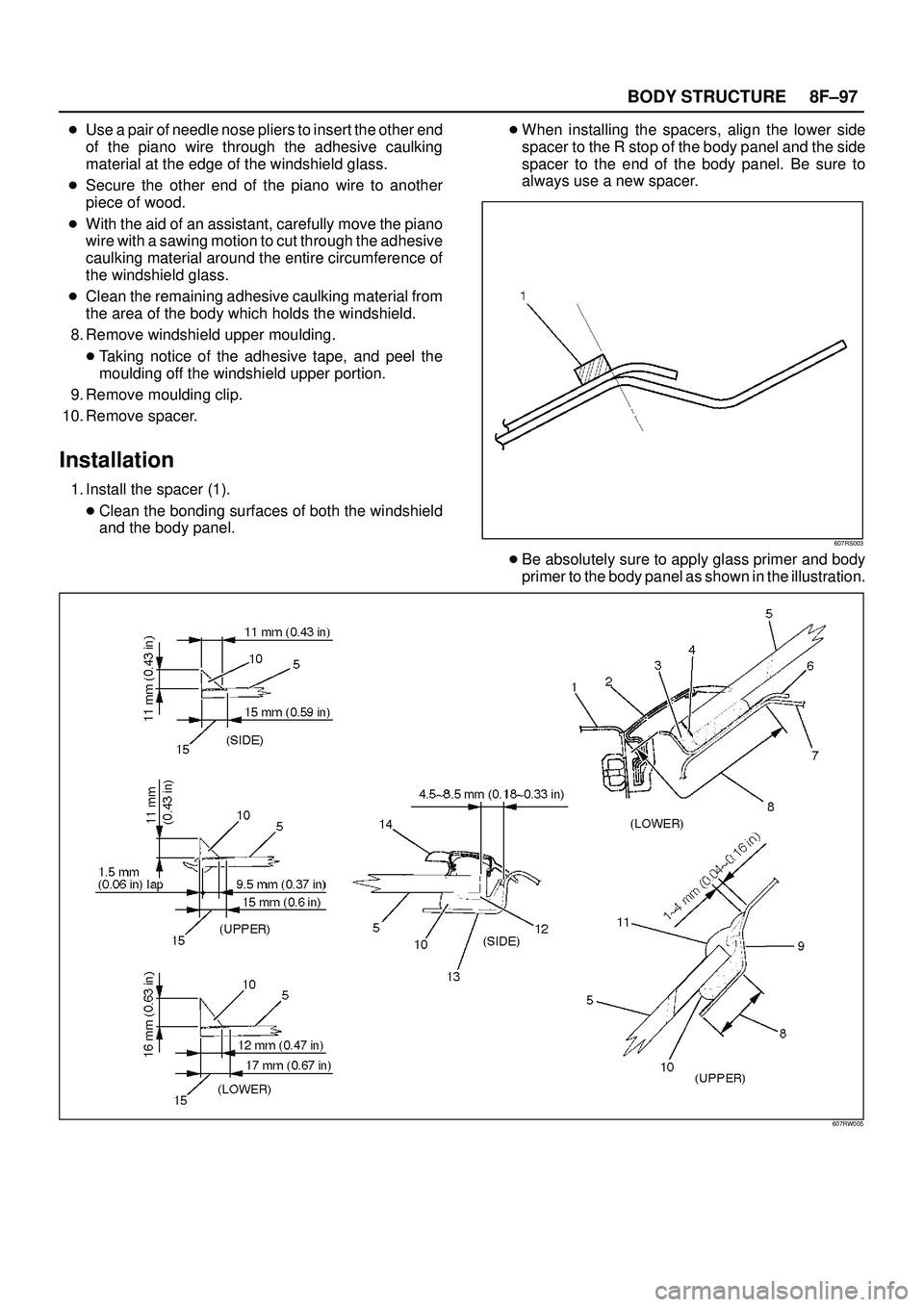

ISUZU TROOPER 1998 Service Repair Manual 8F±97 BODY STRUCTURE Use a pair of needle nose pliers to insert the other end of the piano wire through the adhesive caulking material at the edge of the windshield glass. Secure the other end of t

Page 3293 of 3573

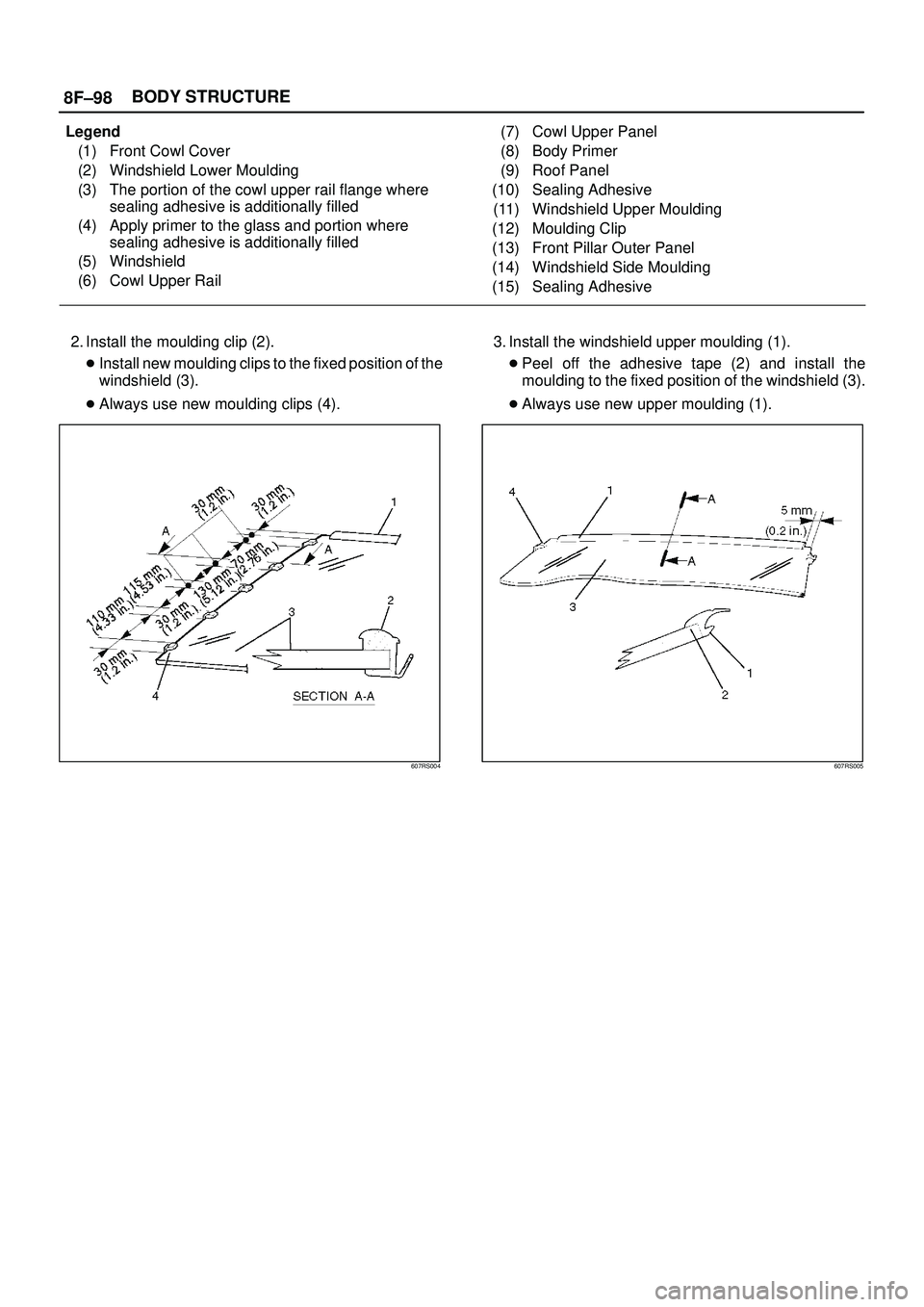

ISUZU TROOPER 1998 Service Repair Manual 8F±98BODY STRUCTURE Legend (1) Front Cowl Cover (2) Windshield Lower Moulding (3) The portion of the cowl upper rail flange where sealing adhesive is additionally filled (4) Apply primer to the glass

Page 3294 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8F±99 BODY STRUCTURE 4. Install the windshield. 607RW005 Legend (1) Front Cowl Cover (2) Windshield Lower Moulding (3) The portion of the cowl upper rail flange where sealing adhesive is additionally

Page 3295 of 3573

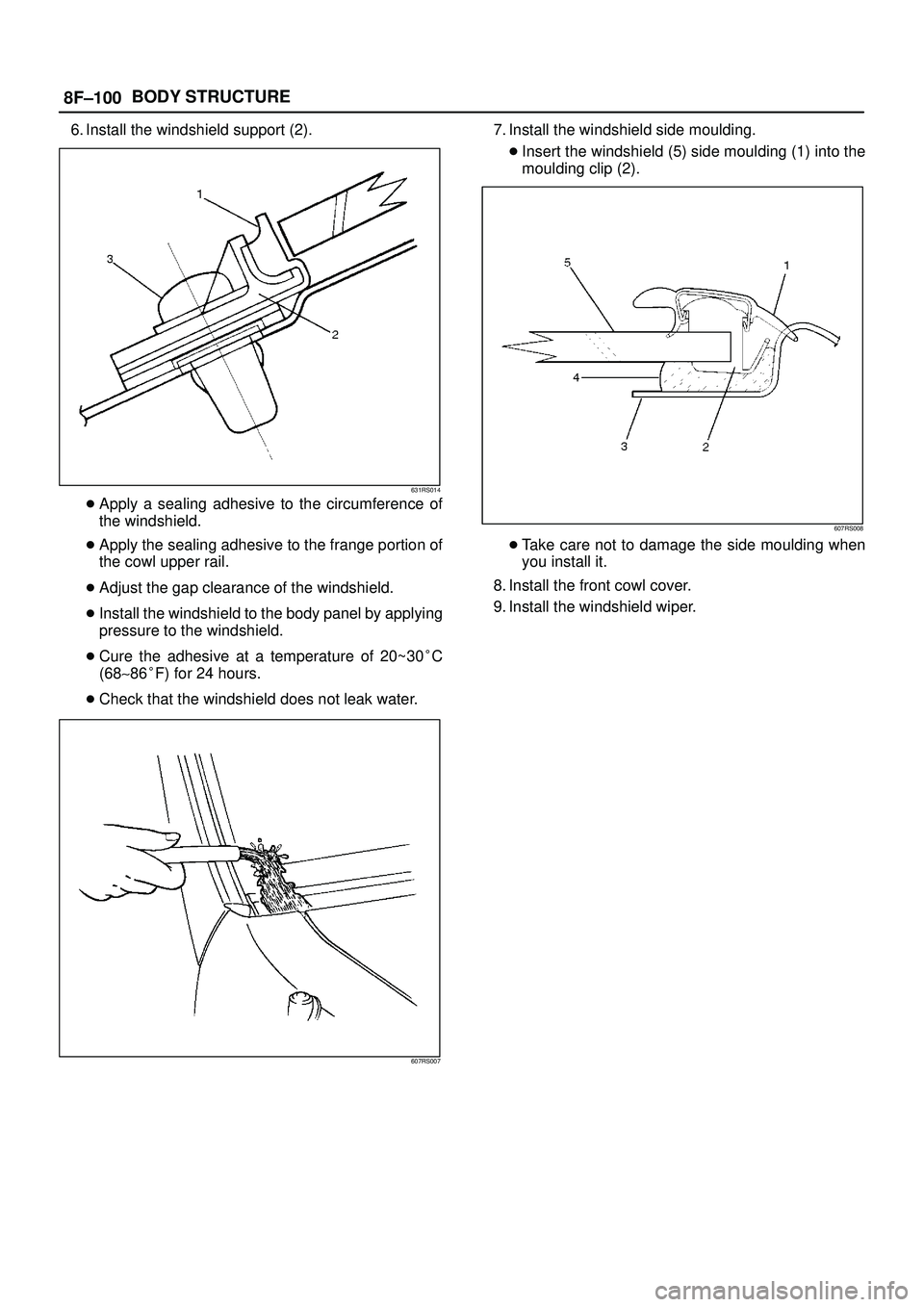

ISUZU TROOPER 1998 Service Repair Manual 8F±100BODY STRUCTURE 6. Install the windshield support (2). 631RS014 Apply a sealing adhesive to the circumference of the windshield. Apply the sealing adhesive to the frange portion of the cowl up

Page 3296 of 3573

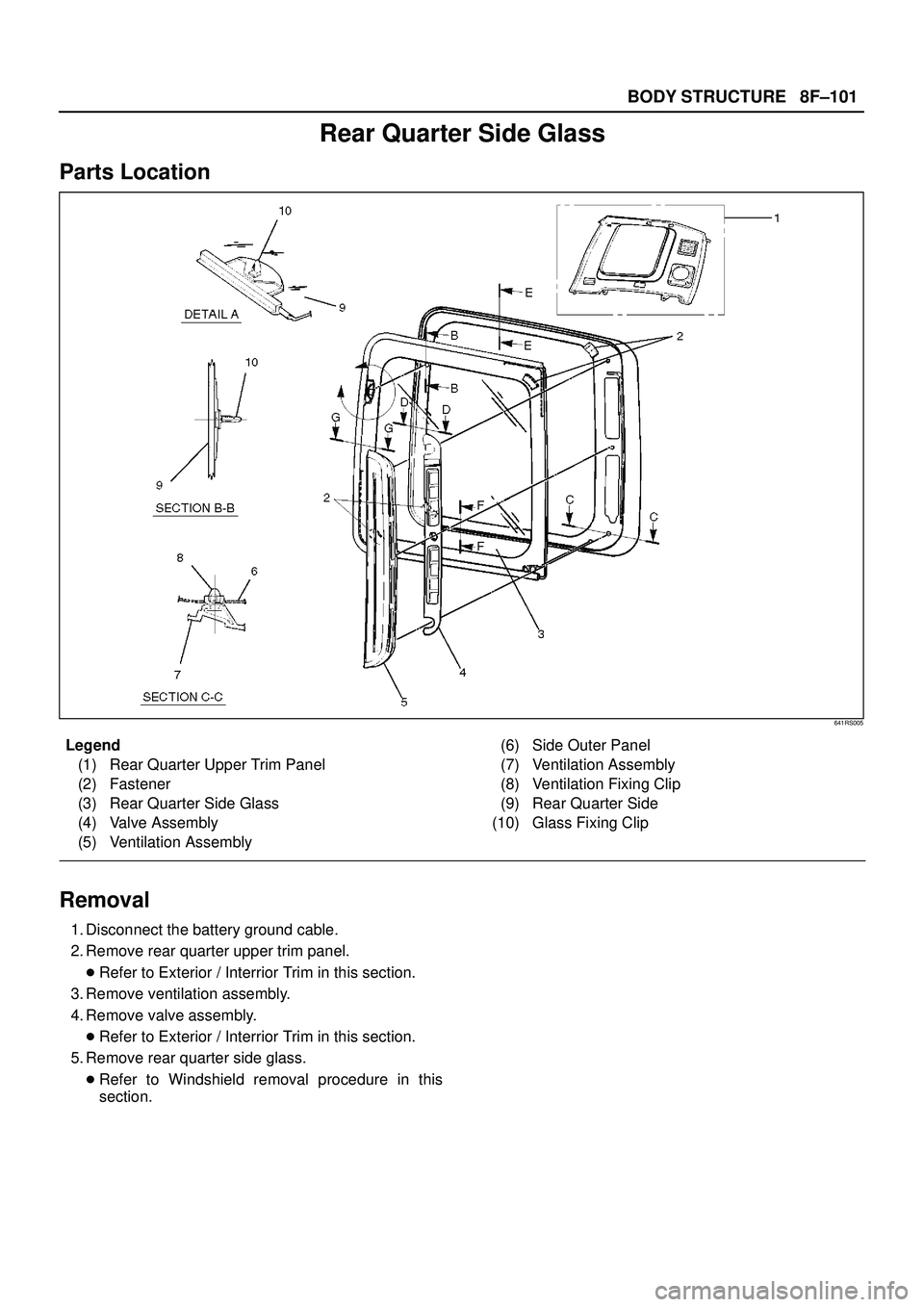

ISUZU TROOPER 1998 Service Repair Manual 8F±101 BODY STRUCTURE Rear Quarter Side Glass Parts Location 641RS005 Legend (1) Rear Quarter Upper Trim Panel (2) Fastener (3) Rear Quarter Side Glass (4) Valve Assembly (5) Ventilation Assembly(6)
