Page 3081 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8D – 488 WIRING SYSTEM Parts Location (LHD) Legend (1) S-5 (2) S-4 (3) S-3 (4) S-2 (5) B-18 (6) H-23(7) Fuse Box (B-37) (8) B-1 (9) Relay and Fuse Box (10) H-21 (11) H-45 (12) L-1 D08RW388 2 1 3 4 5

Page 3082 of 3573

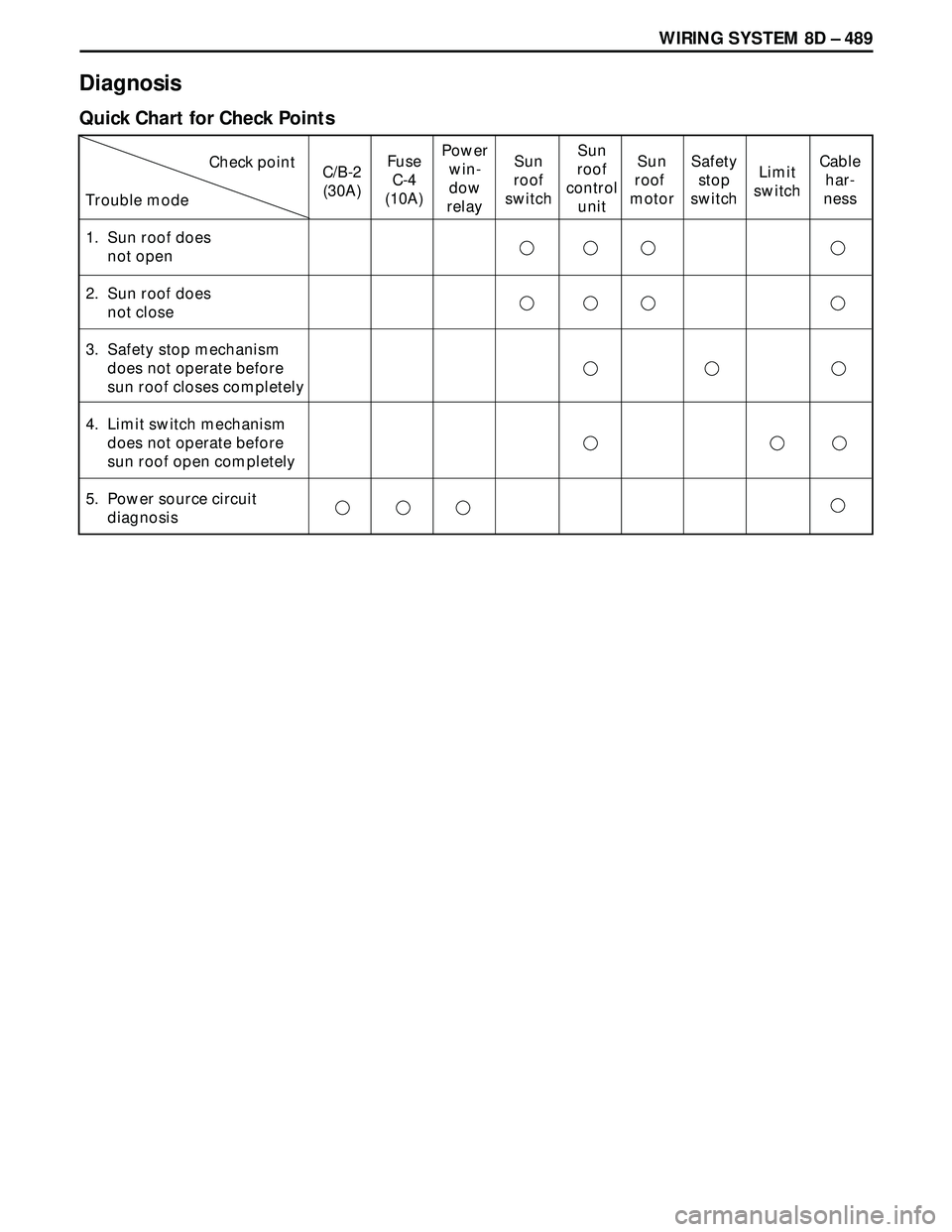

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 489 Diagnosis Quick Chart for Check Points 1. Sun roof does not open 2. Sun roof does not close 3. Safety stop mechanism does not operate before sun ro

Page 3083 of 3573

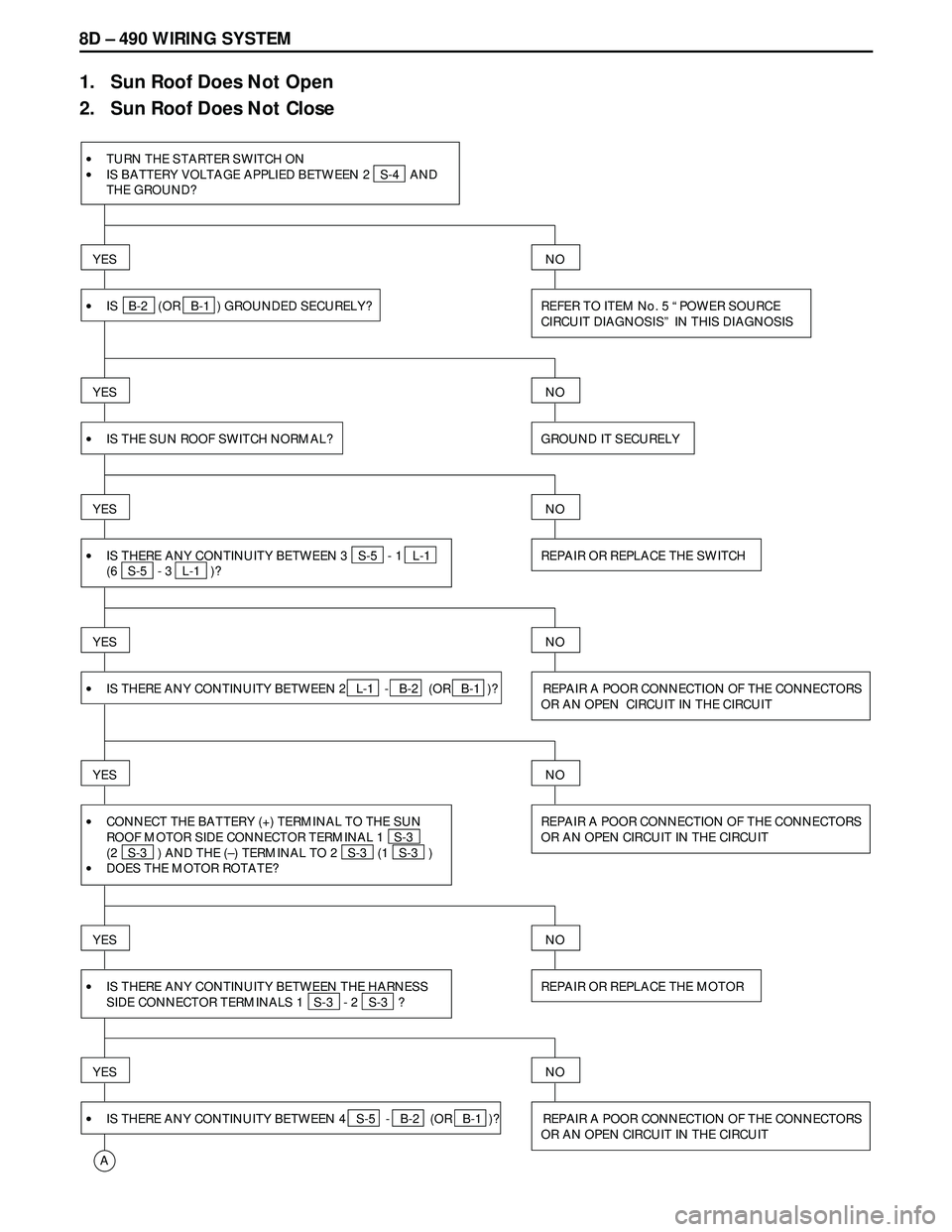

ISUZU TROOPER 1998 Service Repair Manual 8D – 490 WIRING SYSTEM 1. Sun Roof Does Not Open 2. Sun Roof Does Not Close • •TURN THE STARTER SWITCH ON IS BATTERY VOLTAGE APPLIED BETWEEN 2 S-4 AND THE GROUND? YES •IS B-2 (OR

Page 3084 of 3573

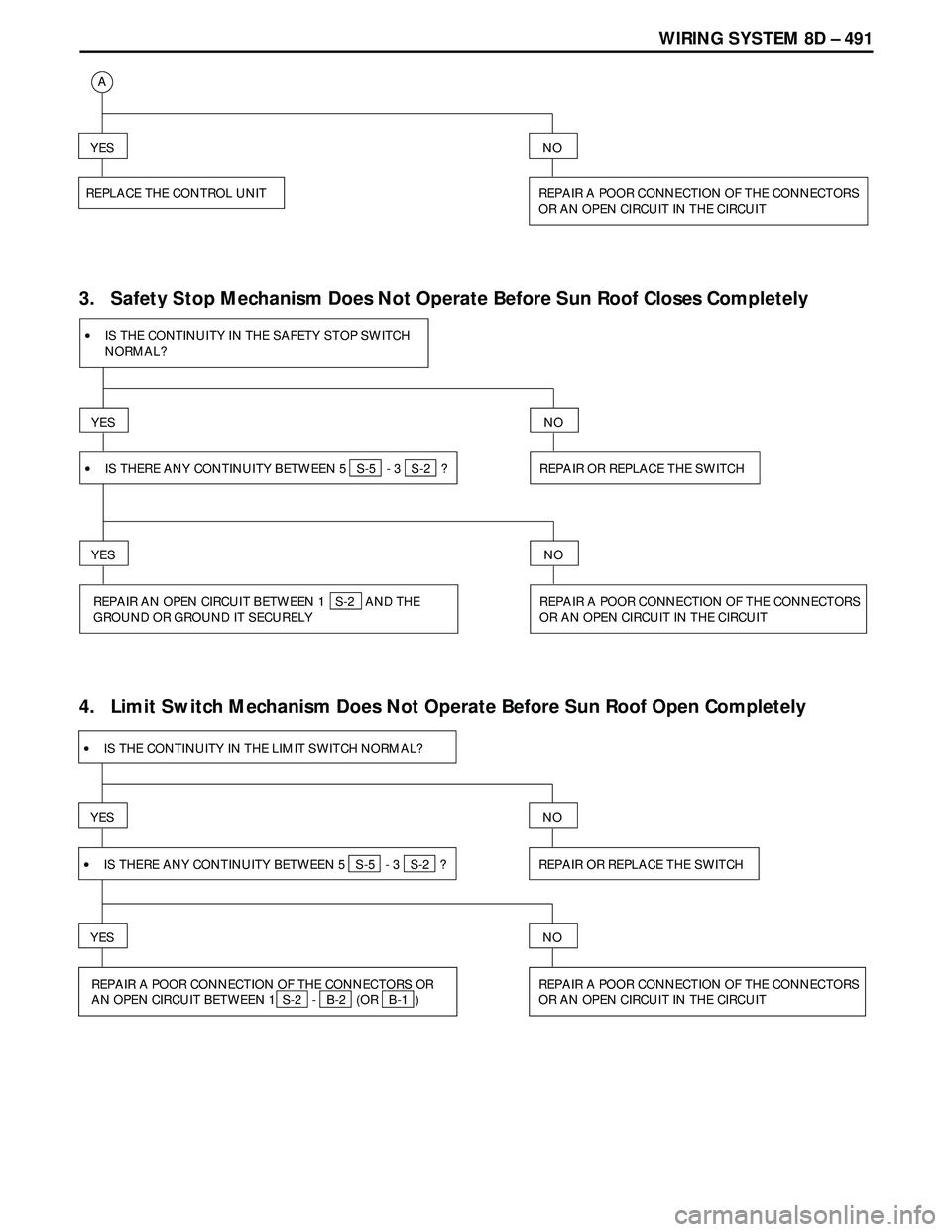

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 491 YES REPLACE THE CONTROL UNIT REPAIR A POOR CONNECTION OF THE CONNECTORS OR AN OPEN CIRCUIT IN THE CIRCUIT NO A 3. Safety Stop Mechanism Does Not Operate Before Sun Roof Clos

Page 3085 of 3573

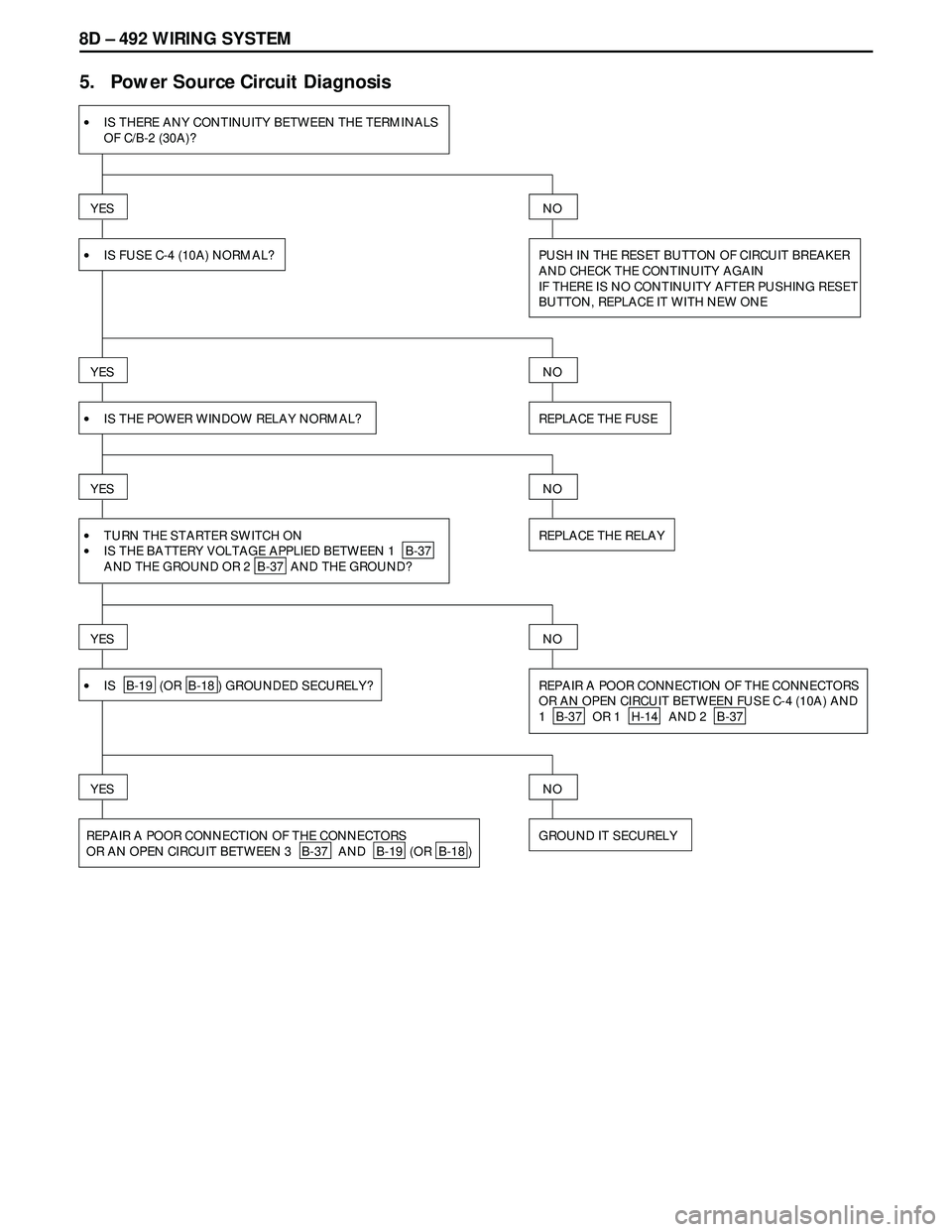

ISUZU TROOPER 1998 Service Repair Manual 8D – 492 WIRING SYSTEM 5. Power Source Circuit Diagnosis •IS THERE ANY CONTINUITY BETWEEN THE TERMINALS OF C/B-2 (30A)? YES •IS FUSE C-4 (10A) NORMAL? PUSH IN THE RESET BUTTON OF CIRCUIT BREAK

Page 3086 of 3573

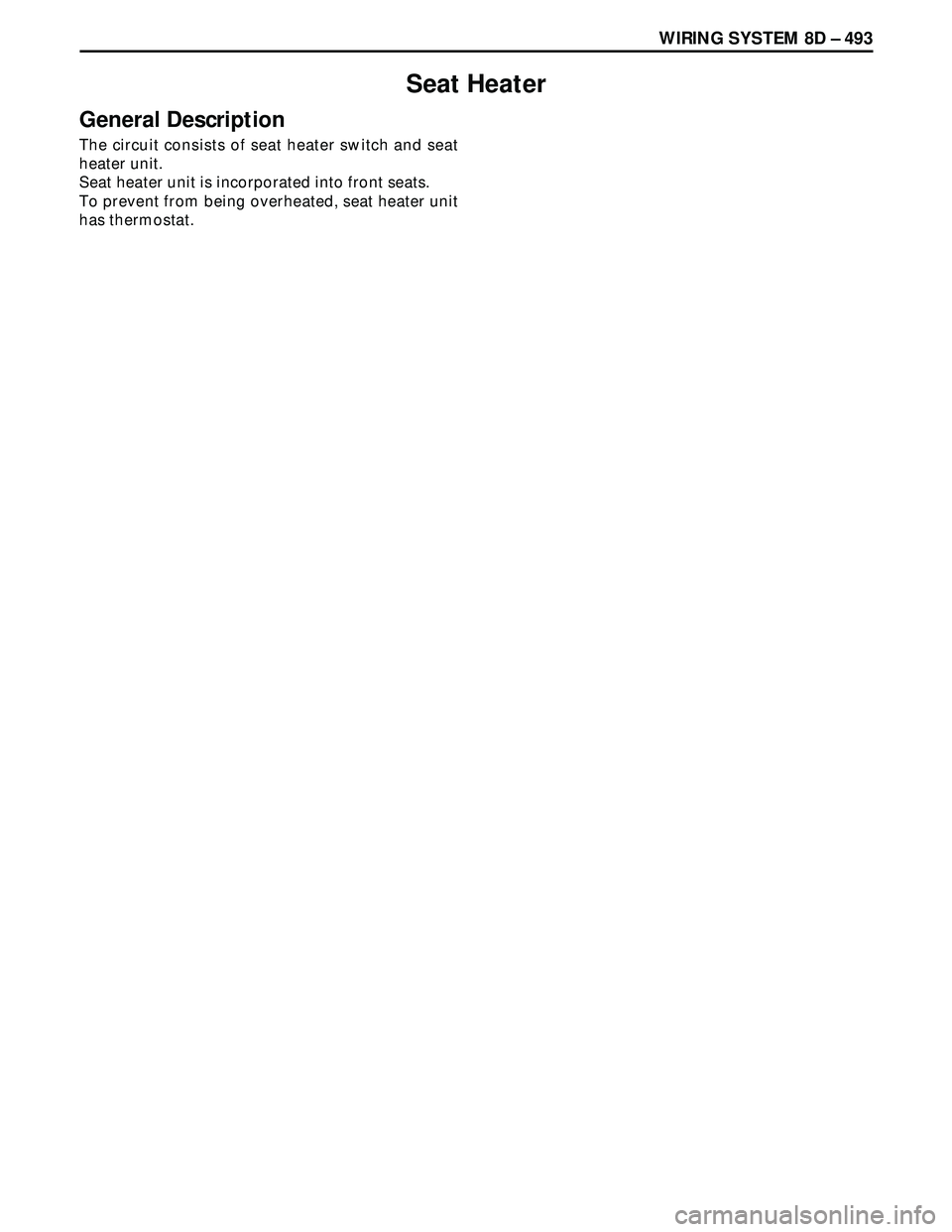

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 493 Seat Heater General Description The circuit consists of seat heater switch and seat heater unit. Seat heater unit is incorporated into front seats. To prevent from being overh

Page 3087 of 3573

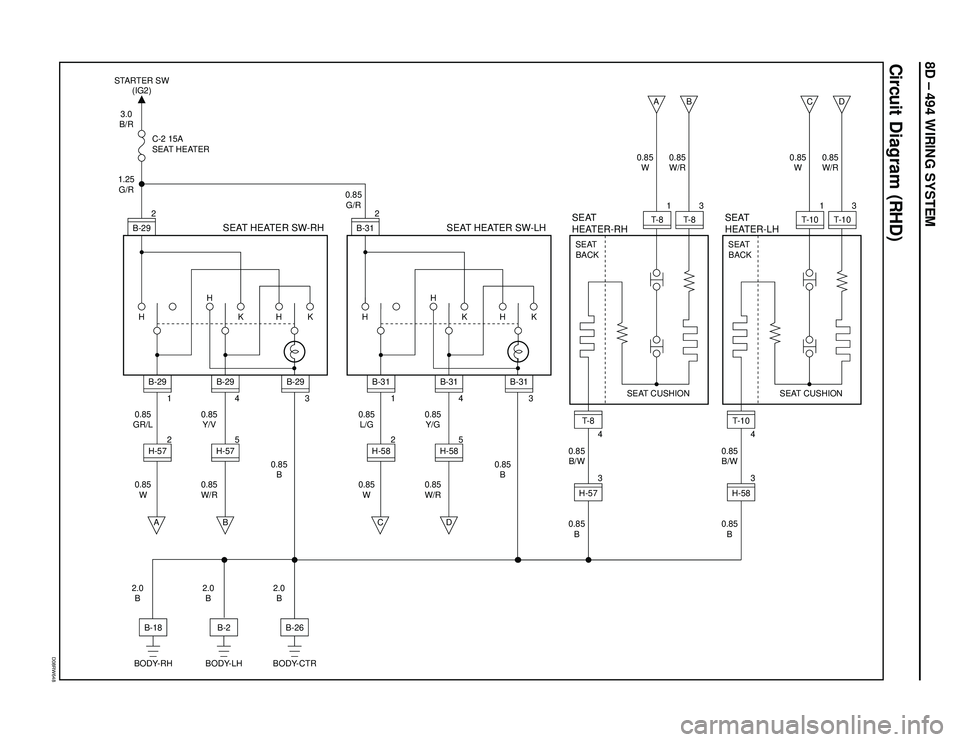

ISUZU TROOPER 1998 Service Repair Manual 8D – 494 WIRING SYSTEM Circuit Diagram (RHD) D08RW648 H HH K K B-29 STARTER SW (IG2) 1.25 G/R 0.85 GR/L 0.85 W0.85 Y/V 0.85 W/R0.85 B 2.0 B0.85 G/R 3.0 B/R C-2 15A SEAT HEATER SEAT HEATER SW-RH 2 3

Page 3088 of 3573

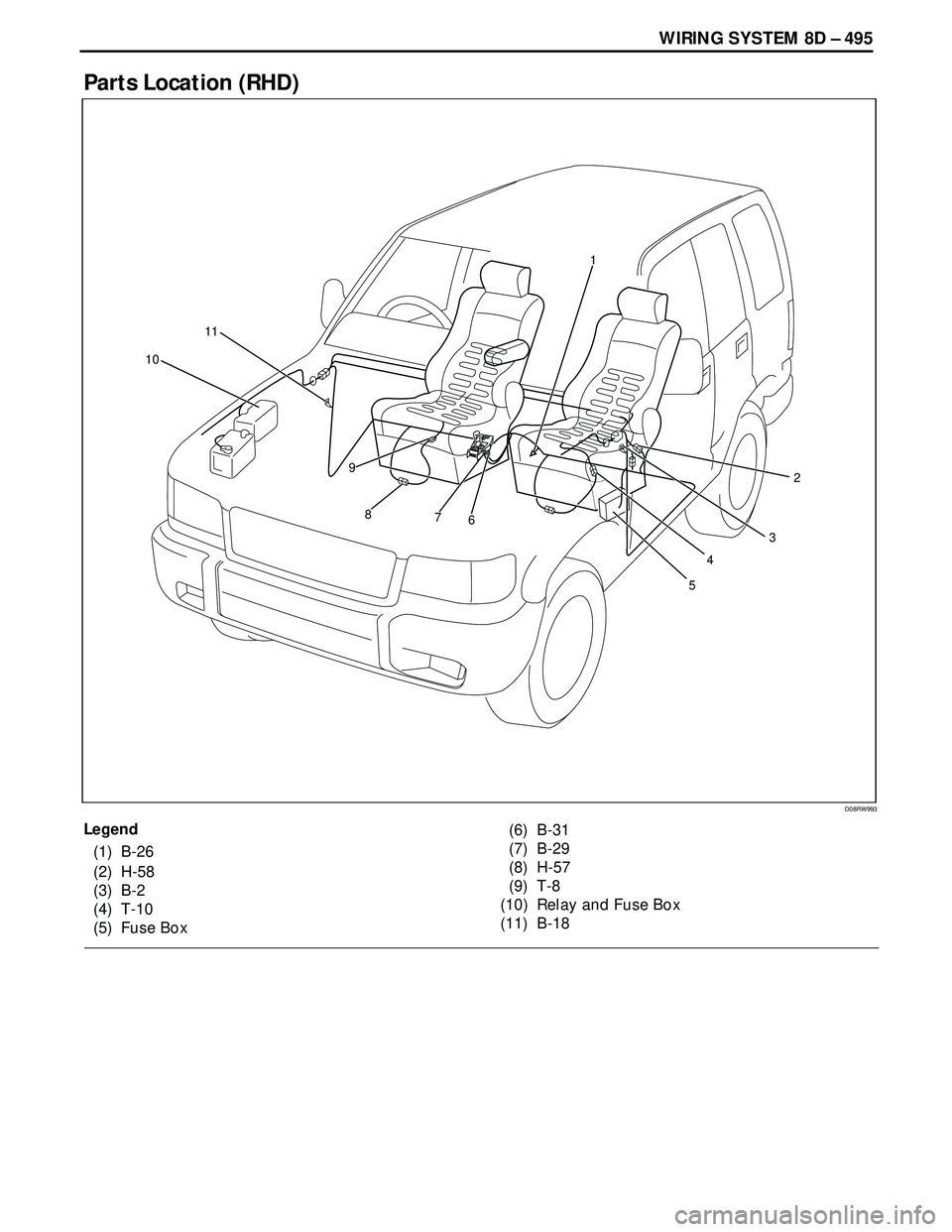

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8D – 495 Parts Location (RHD) (6) B-31 (7) B-29 (8) H-57 (9) T-8 (10) Relay and Fuse Box (11) B-18 D08RW993 Legend (1) B-26 (2) H-58 (3) B-2 (4) T-10 (5) Fuse Box 4 1 5 6 7 8 9 10 3 11
