Page 425 of 3573
3D – 10 REAR SUSPENSION; COIL SPRING
CENTER LINK
3
34
1
2
Removal Steps
1. Speed sensor cable
(If equipped with ABS)
2. Speed sensor cable bracket
(If equipped with ABS)
3. Bolt and nut
4. Center link
Installation Steps
4. Center link
3. Bolt and nut
2. Speed sensor cable bracket
(If equipped with ABS)
1. Speed sensor cable
(If equipped with ABS)
REMOVAL
1. Speed Sensor Cable (If equipped with ABS)
Remove the speed sensor cable from the center link.
2. Speed Sensor Cable Bracket (If equipped with ABS)
Remove the speed sensor cable bracket from the
frame.
3. Bolt and Nut
4. Center Link
460RW026
Page 426 of 3573
REAR SUSPENSION; COIL SPRING 3D – 11
INSPECTION AND REPAIR
Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition are
found through inspection.
1. Center Link
2. Rubber Bushing
Remove the rubber bushing.
Remover: 5-8840-2298-0 (J-39214)
Install the rubber bushing.
Installer: 5-8840-2298-0 (J-39214)
NOTE:
When mounting rubber bushings, be sure not to use
grease on bushings or any other nearby part.
INSTALLATION
4. Center Link
Make sure that the center link is in its correct position.
NOTE:
When mounting center link, be sure not to use grease
on bushings or any other nearby part.
3. Bolt and Nut
NOTE:
Tighten the bolts and nuts lightly, and retighten to
the specified torque after the vehicle is at curb height.
Center Link Nut Torque N·m (kg·m/lb·ft)
137 (14.0 / 101)
2. Speed Sensor Cable Bracket
1. Speed Sensor Cable
Page 427 of 3573

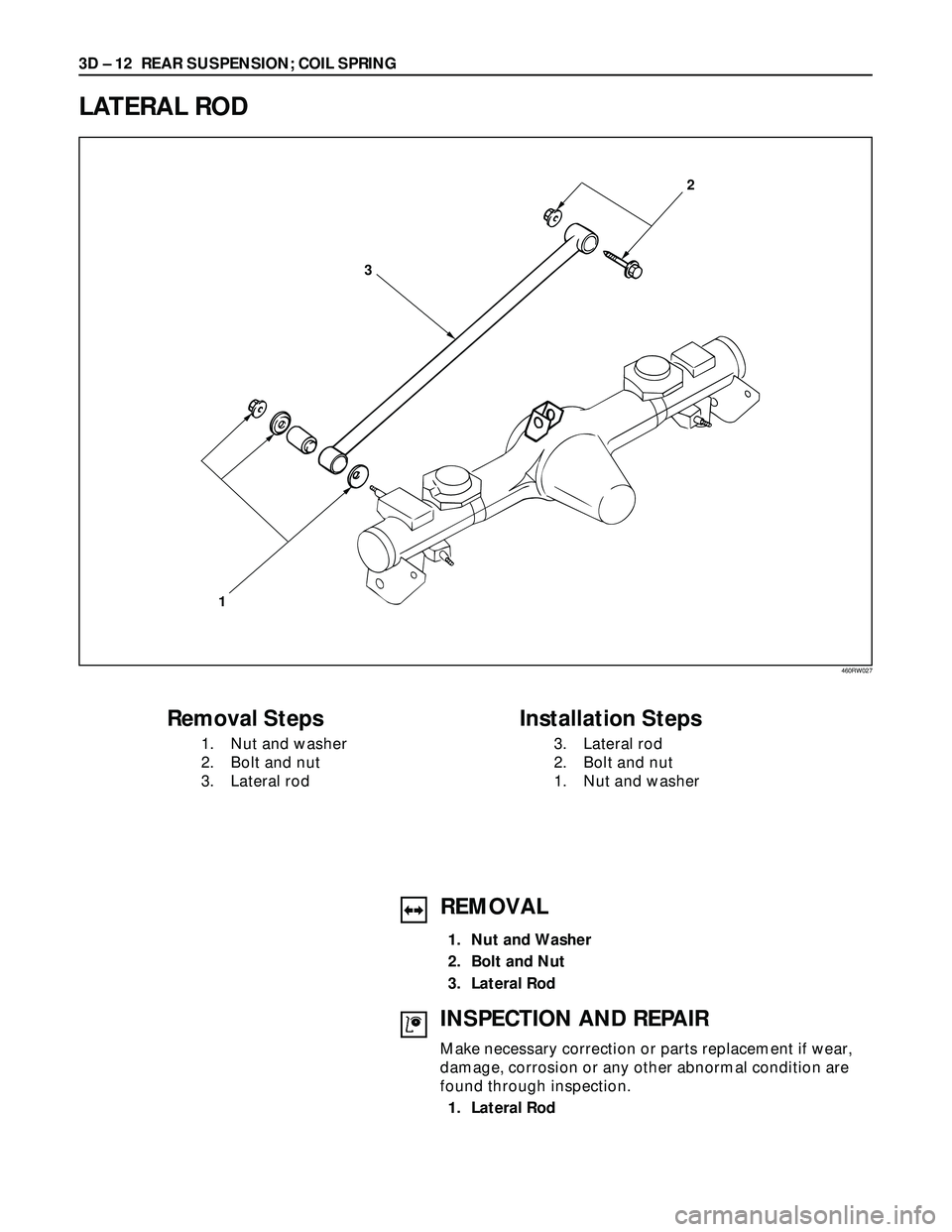

3D – 12 REAR SUSPENSION; COIL SPRING
LATERAL ROD
132
Removal Steps
1. Nut and washer
2. Bolt and nut
3. Lateral rod
Installation Steps
3. Lateral rod
2. Bolt and nut
1. Nut and washer
REMOVAL
1. Nut and Washer
2. Bolt and Nut
3. Lateral Rod
INSPECTION AND REPAIR
Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition are
found through inspection.
1. Lateral Rod
460RW027
Page 428 of 3573

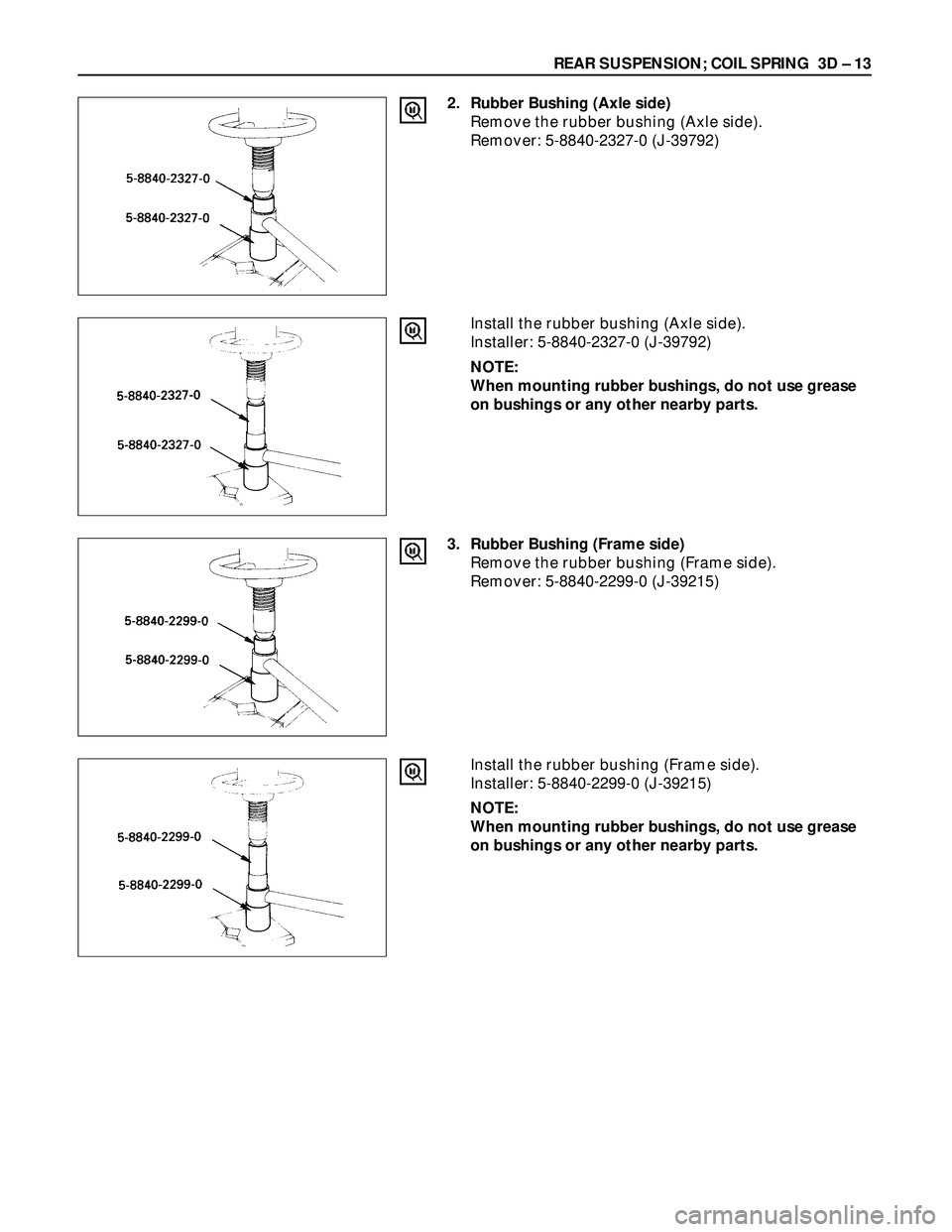

REAR SUSPENSION; COIL SPRING 3D – 13
2. Rubber Bushing (Axle side)
Remove the rubber bushing (Axle side).
Remover: 5-8840-2327-0 (J-39792)
Install the rubber bushing (Axle side).
Installer: 5-8840-2327-0 (J-39792)
NOTE:
When mounting rubber bushings, do not use grease
on bushings or any other nearby parts.
3. Rubber Bushing (Frame side)
Remove the rubber bushing (Frame side).
Remover: 5-8840-2299-0 (J-39215)
Install the rubber bushing (Frame side).
Installer: 5-8840-2299-0 (J-39215)
NOTE:
When mounting rubber bushings, do not use grease
on bushings or any other nearby parts.
Page 429 of 3573

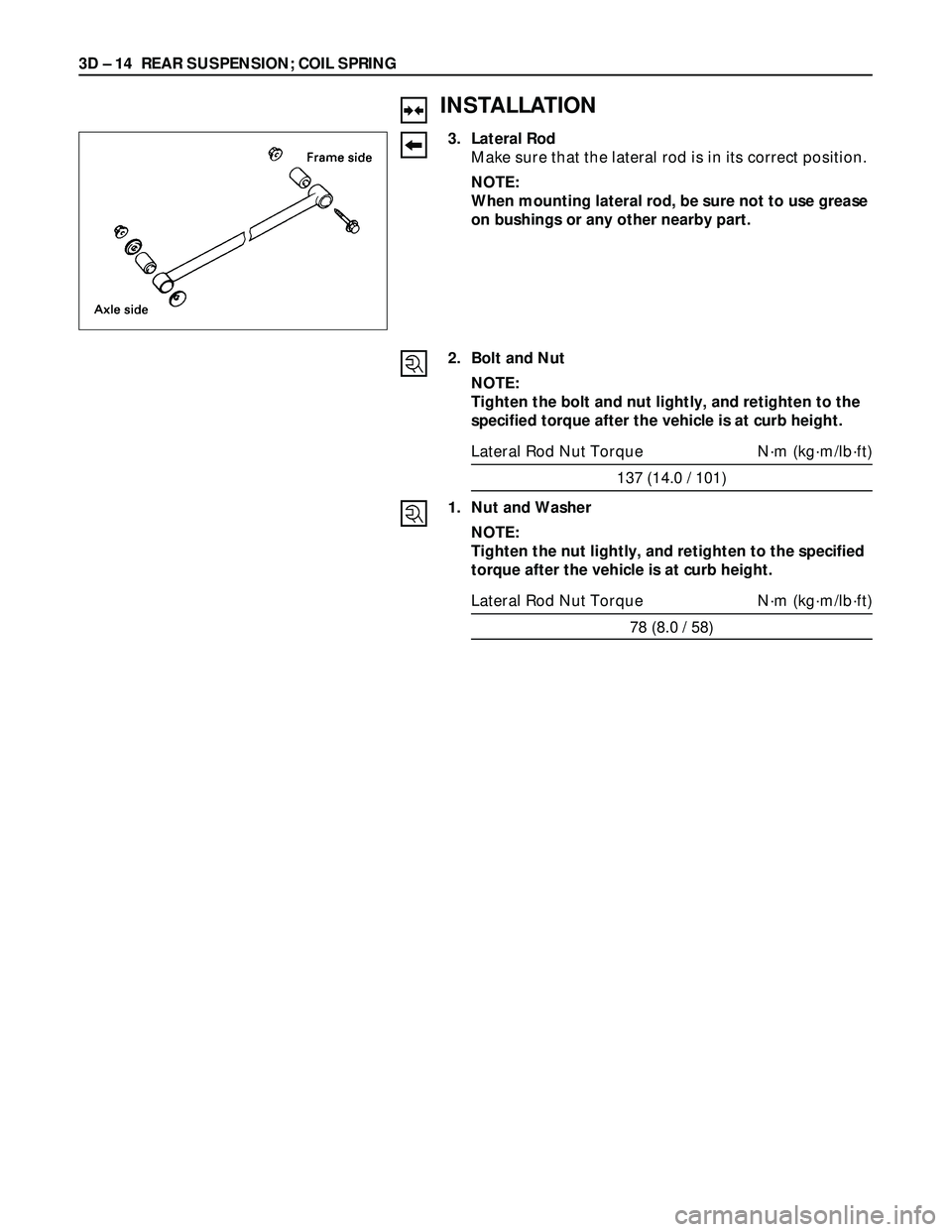

3D – 14 REAR SUSPENSION; COIL SPRING
INSTALLATION
3. Lateral Rod
Make sure that the lateral rod is in its correct position.
NOTE:
When mounting lateral rod, be sure not to use grease
on bushings or any other nearby part.
2. Bolt and Nut
NOTE:
Tighten the bolt and nut lightly, and retighten to the
specified torque after the vehicle is at curb height.
Lateral Rod Nut Torque N·m (kg·m/lb·ft)
137 (14.0 / 101)
1. Nut and Washer
NOTE:
Tighten the nut lightly, and retighten to the specified
torque after the vehicle is at curb height.
Lateral Rod Nut Torque N·m (kg·m/lb·ft)
78 (8.0 / 58)
Page 430 of 3573

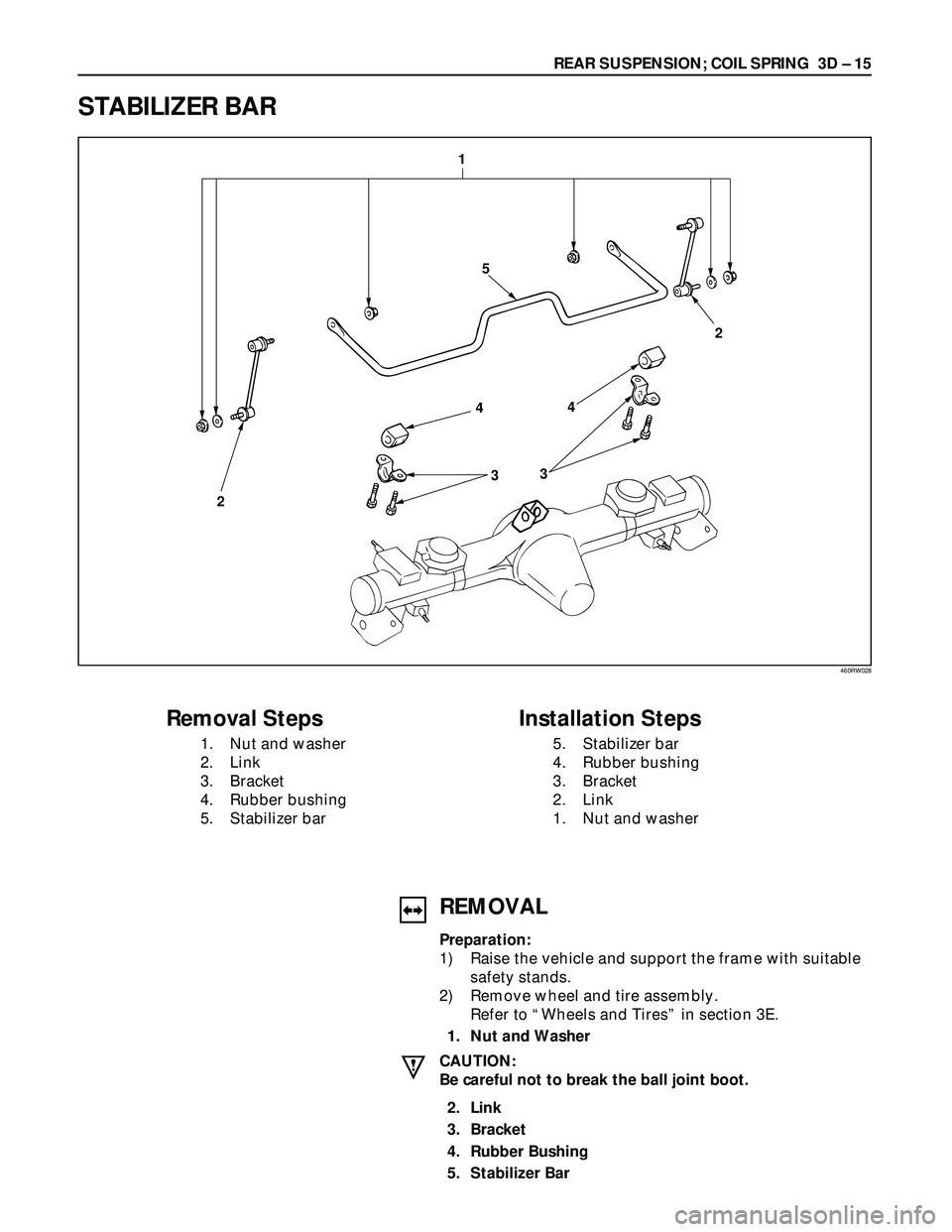

REAR SUSPENSION; COIL SPRING 3D – 15
STABILIZER BAR
1
5
2
44
33
2
Removal Steps
1. Nut and washer
2. Link
3. Bracket
4. Rubber bushing
5. Stabilizer bar
Installation Steps
5. Stabilizer bar
4. Rubber bushing
3. Bracket
2. Link
1. Nut and washer
REMOVAL
Preparation:
1) Raise the vehicle and support the frame with suitable
safety stands.
2) Remove wheel and tire assembly.
Refer to “Wheels and Tires” in section 3E.
1. Nut and Washer
CAUTION:
Be careful not to break the ball joint boot.
2. Link
3. Bracket
4. Rubber Bushing
5. Stabilizer Bar
460RW028
Page 431 of 3573

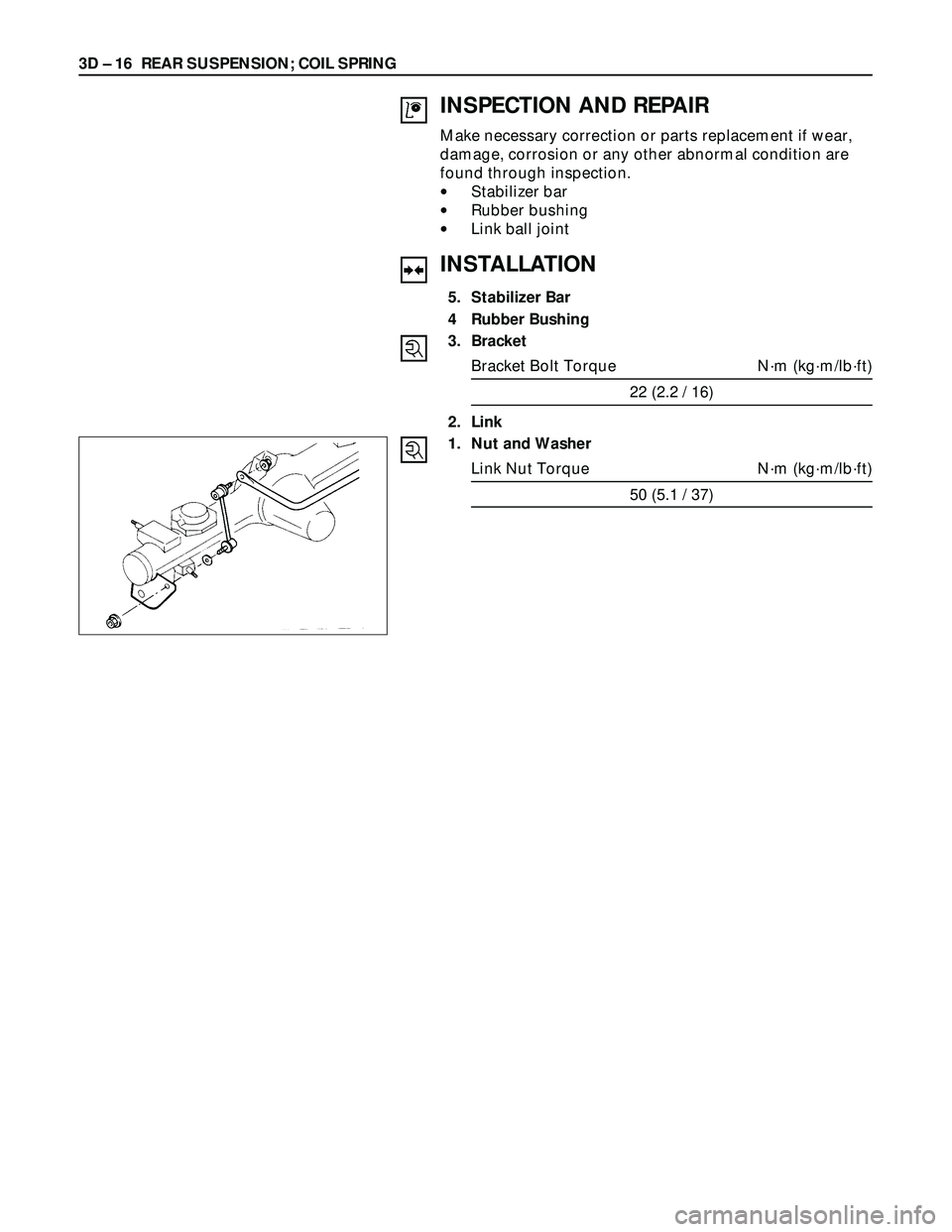

3D – 16 REAR SUSPENSION; COIL SPRING
INSPECTION AND REPAIR
Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition are
found through inspection.
•Stabilizer bar
•Rubber bushing
•Link ball joint
INSTALLATION
5. Stabilizer Bar
4 Rubber Bushing
3. Bracket
Bracket Bolt Torque N·m (kg·m/lb·ft)
22 (2.2 / 16)
2. Link
1. Nut and Washer
Link Nut Torque N·m (kg·m/lb·ft)
50 (5.1 / 37)
Page 432 of 3573

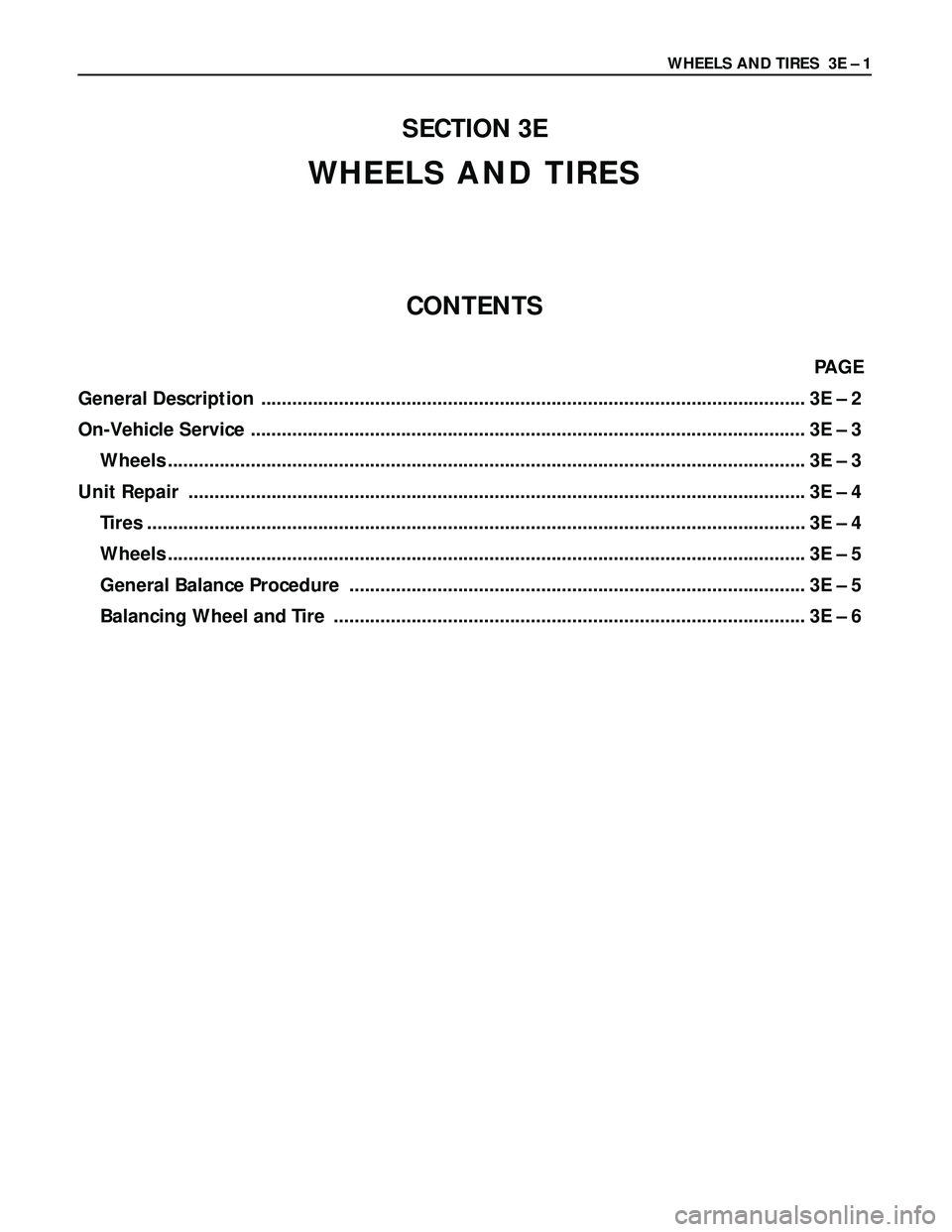

WHEELS AND TIRES 3E – 1
SECTION 3E
WHEELS AND TIRES
CONTENTS
PAGE
General Description ......................................................................................................... 3E – 2
On-Vehicle Service ........................................................................................................... 3E – 3
Wheels ........................................................................................................................... 3E – 3
Unit Repair ....................................................................................................................... 3E – 4
Tires ............................................................................................................................... 3E – 4
Wheels ........................................................................................................................... 3E – 5
General Balance Procedure ........................................................................................ 3E – 5
Balancing Wheel and Tire ........................................................................................... 3E – 6
