Page 2209 of 3573

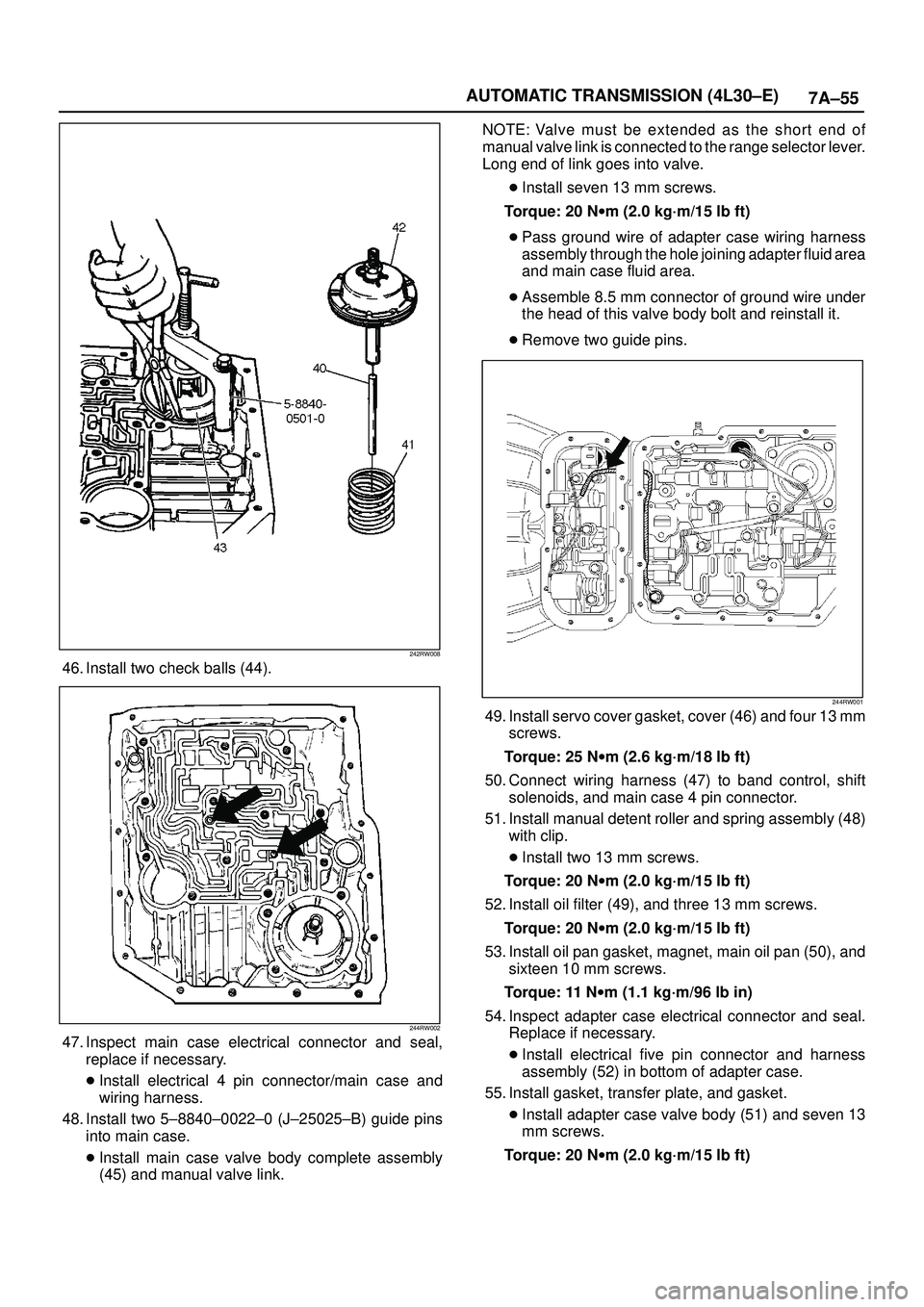

ISUZU TROOPER 1998 Service Repair Manual 7A±55 AUTOMATIC TRANSMISSION (4L30±E) 242RW008 46. Install two check balls (44). 244RW002 47. Inspect main case electrical connector and seal, replace if necessary. Install electrical 4 pin connect

Page 2210 of 3573

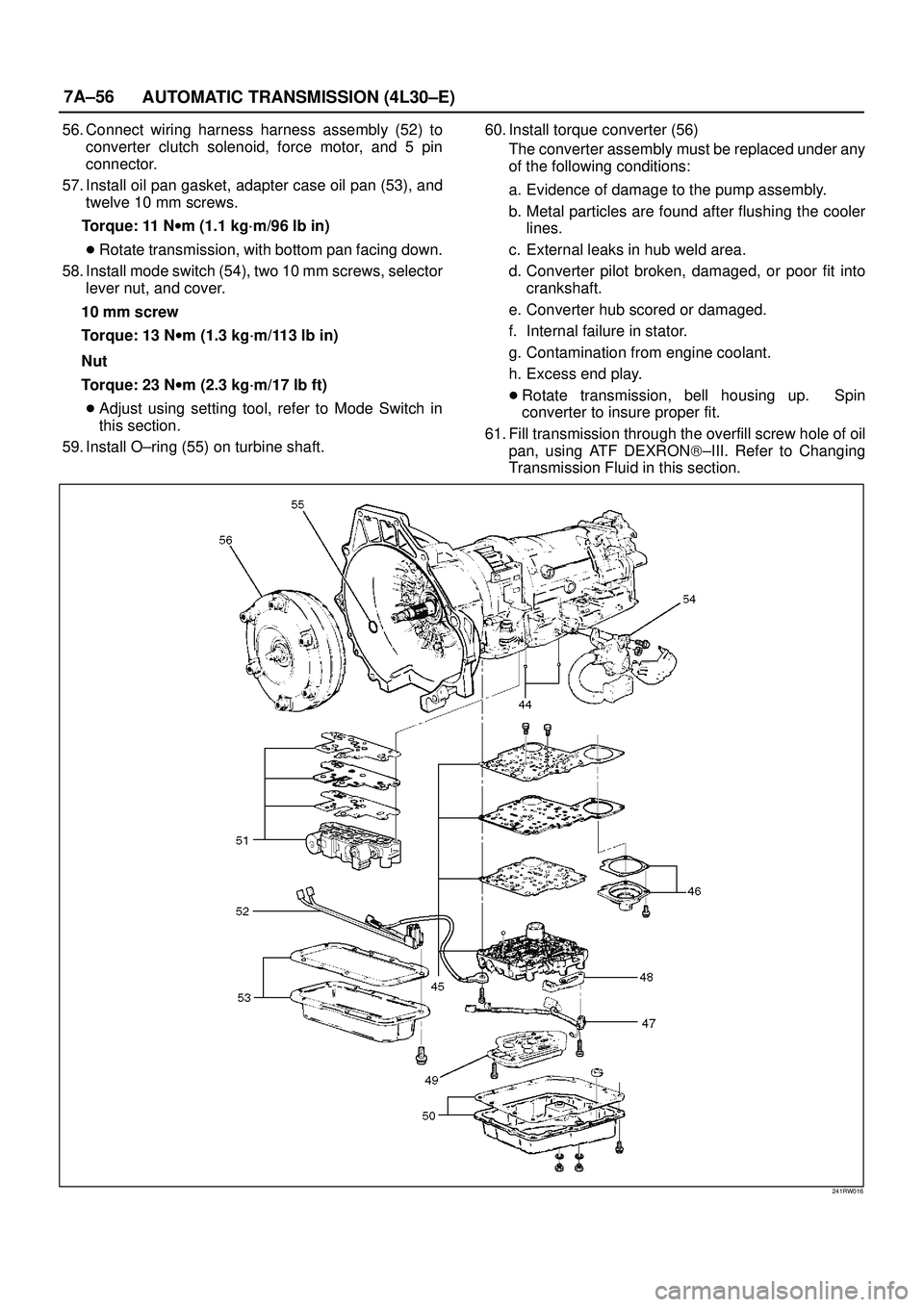

ISUZU TROOPER 1998 Service Repair Manual 7A±56 AUTOMATIC TRANSMISSION (4L30±E) 56. Connect wiring harness harness assembly (52) to converter clutch solenoid, force motor, and 5 pin connector. 57. Install oil pan gasket, adapter case oil pa

Page 2211 of 3573

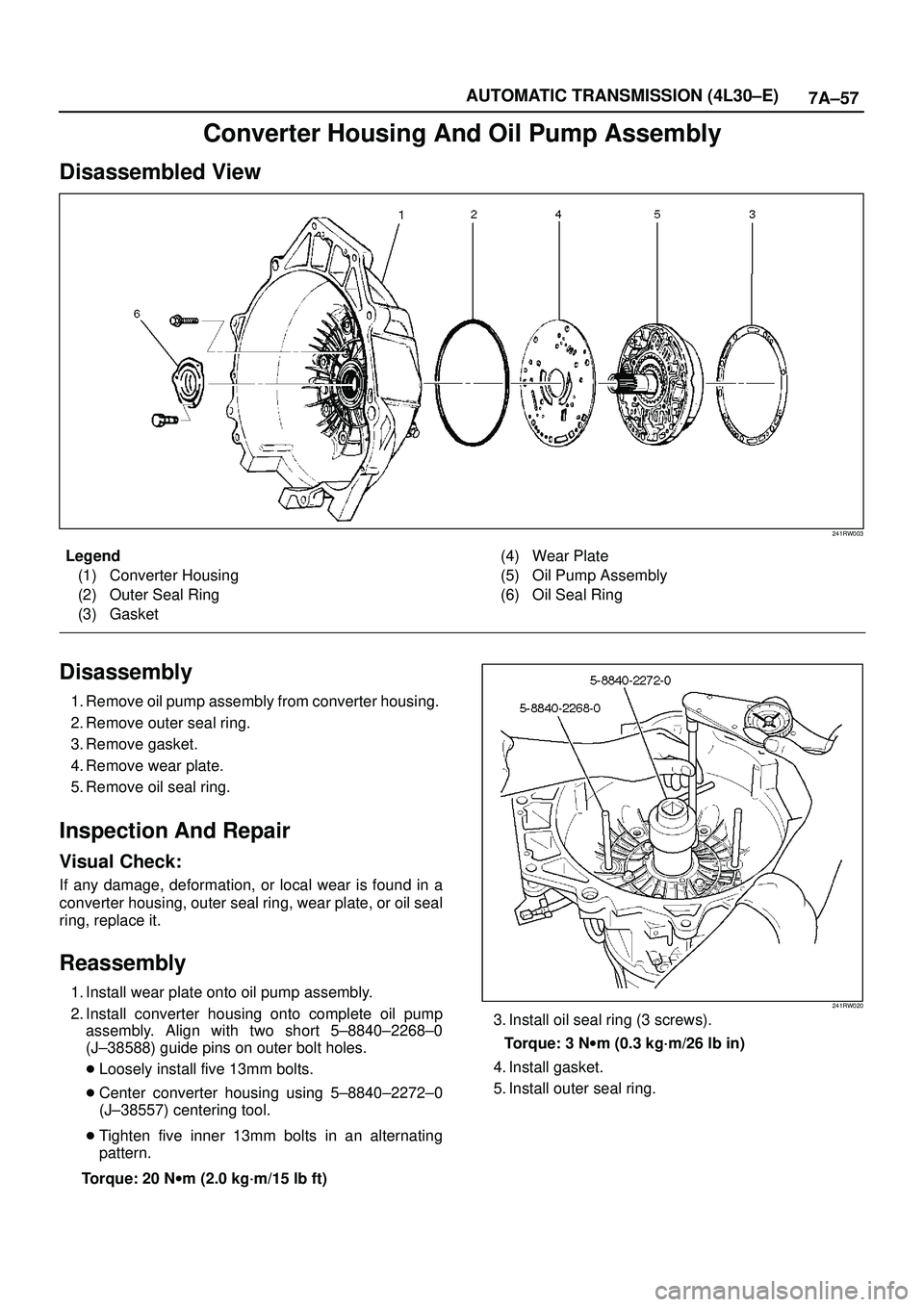

ISUZU TROOPER 1998 Service Repair Manual 7A±57 AUTOMATIC TRANSMISSION (4L30±E) Converter Housing And Oil Pump Assembly Disassembled View 241RW003 Legend (1) Converter Housing (2) Outer Seal Ring (3) Gasket(4) Wear Plate (5) Oil Pump Assemb

Page 2212 of 3573

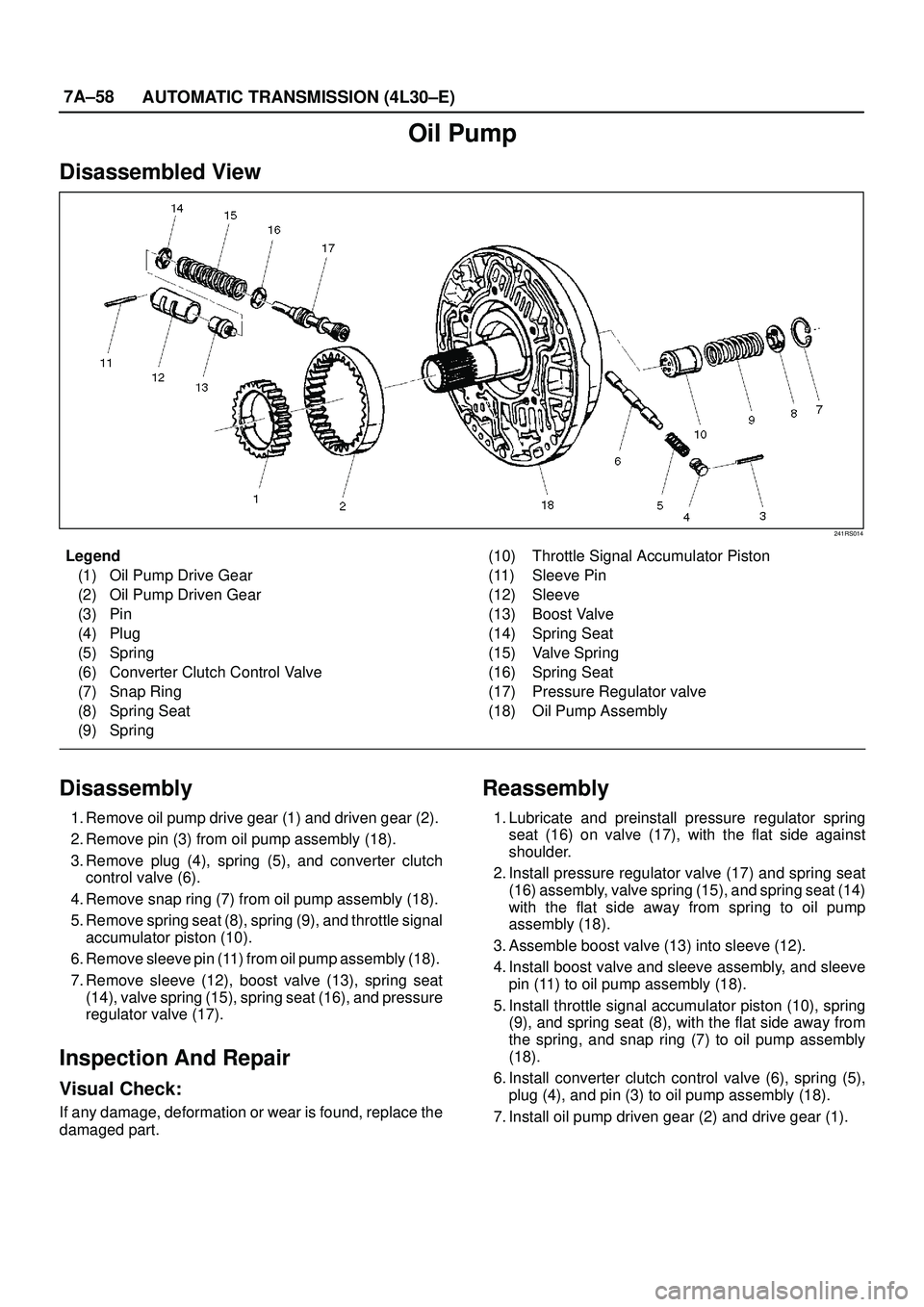

ISUZU TROOPER 1998 Service Repair Manual 7A±58 AUTOMATIC TRANSMISSION (4L30±E) Oil Pump Disassembled View 241RS014 Legend (1) Oil Pump Drive Gear (2) Oil Pump Driven Gear (3) Pin (4) Plug (5) Spring (6) Converter Clutch Control Valve (7) S

Page 2213 of 3573

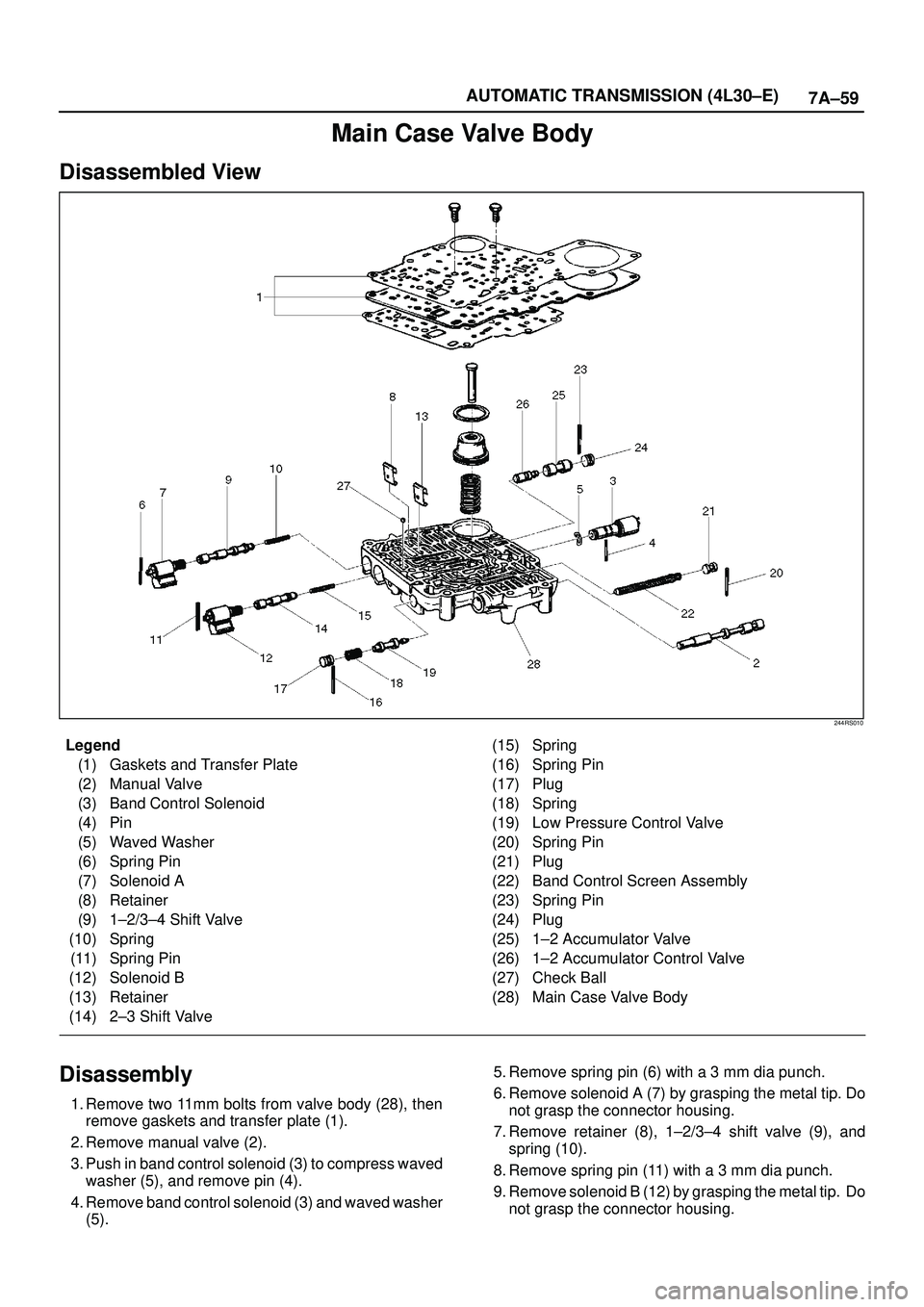

ISUZU TROOPER 1998 Service Repair Manual 7A±59 AUTOMATIC TRANSMISSION (4L30±E) Main Case Valve Body Disassembled View 244RS010 Legend (1) Gaskets and Transfer Plate (2) Manual Valve (3) Band Control Solenoid (4) Pin (5) Waved Washer (6) Sp

Page 2214 of 3573

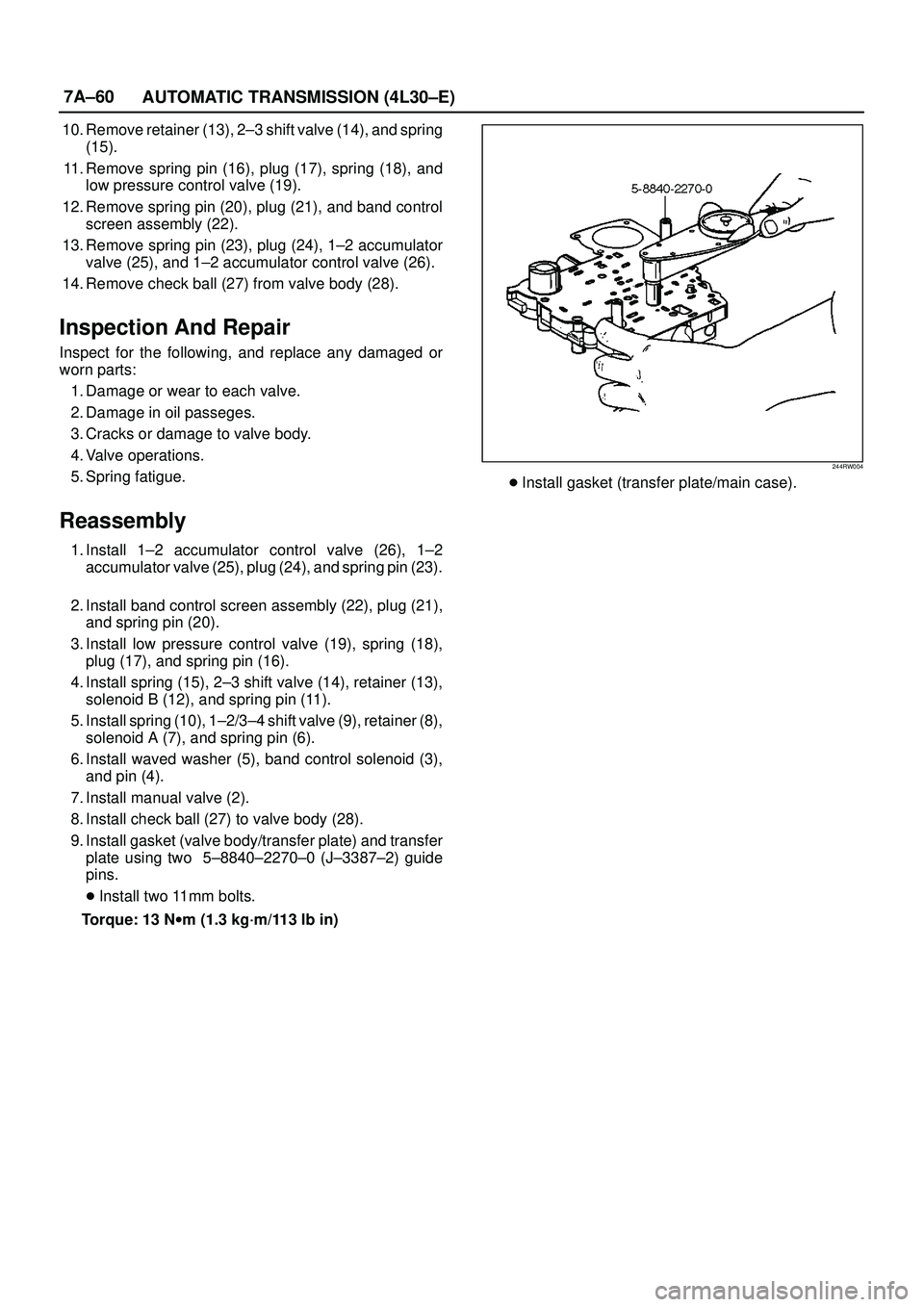

ISUZU TROOPER 1998 Service Repair Manual 7A±60 AUTOMATIC TRANSMISSION (4L30±E) 10. Remove retainer (13), 2±3 shift valve (14), and spring (15). 11. Remove spring pin (16), plug (17), spring (18), and low pressure control valve (19). 12.

Page 2215 of 3573

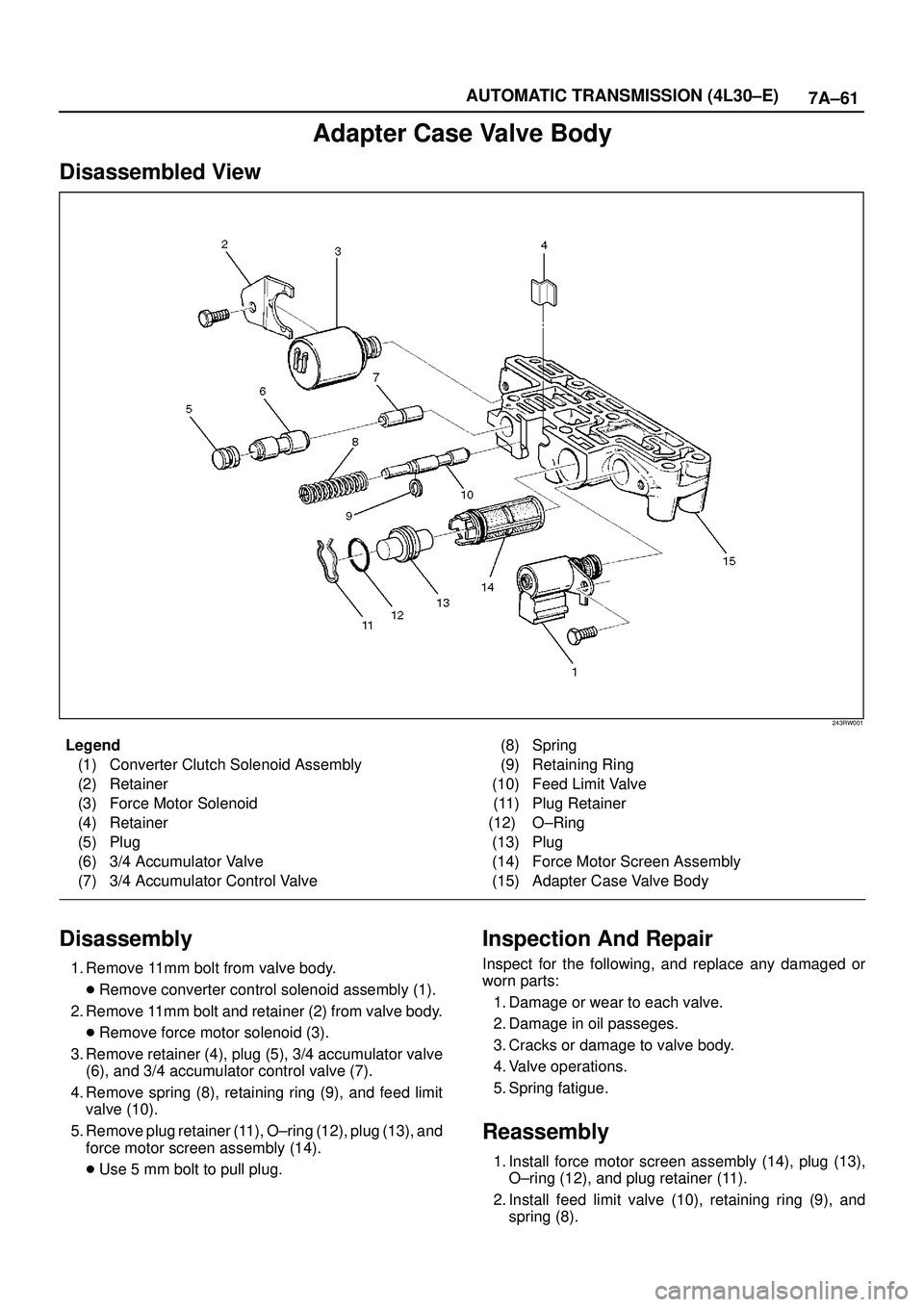

ISUZU TROOPER 1998 Service Repair Manual 7A±61 AUTOMATIC TRANSMISSION (4L30±E) Adapter Case Valve Body Disassembled View 243RW001 Legend (1) Converter Clutch Solenoid Assembly (2) Retainer (3) Force Motor Solenoid (4) Retainer (5) Plug (6)

Page 2216 of 3573

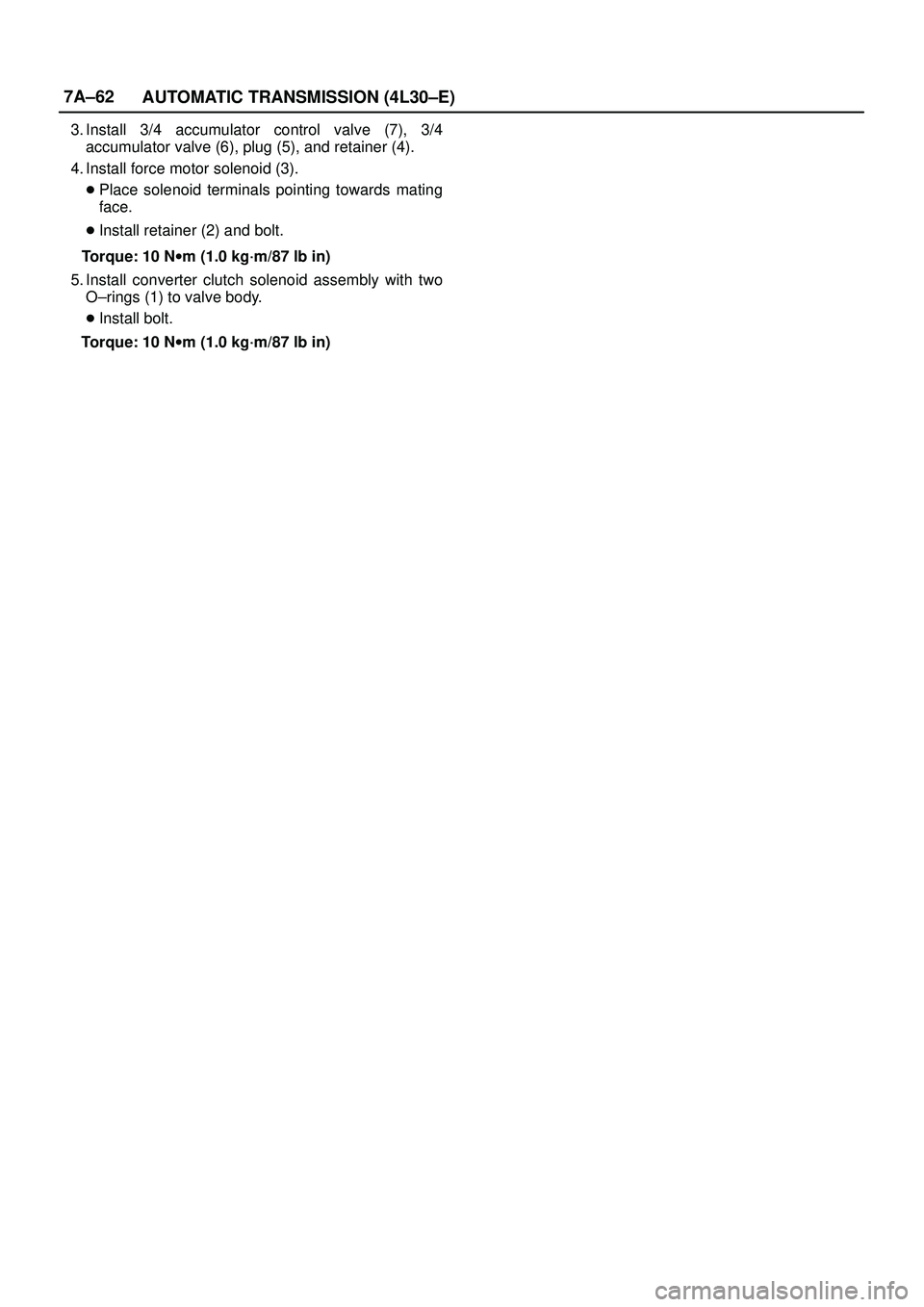

ISUZU TROOPER 1998 Service Repair Manual 7A±62 AUTOMATIC TRANSMISSION (4L30±E) 3. Install 3/4 accumulator control valve (7), 3/4 accumulator valve (6), plug (5), and retainer (4). 4. Install force motor solenoid (3). Place solenoid termin
