Page 3361 of 3573

ISUZU TROOPER 1998 Service Repair Manual 8H±22SECURITY AND LOCKS
Anti-theft System
General Description
The circuit consists of the starter switch, anti-theft &
keyless entry control unit, anti-theft horn, front door and
tailgate key switch

8H±22SECURITY AND LOCKS
Anti-theft System
General Description
The circuit consists of the starter switch, anti-theft &
keyless entry control unit, anti-theft horn, front door and
tailgate key switch (detect and tamper switch), door lock
(& power window) switch, door lock actuator for each
door, engine hood switch, clutch start switch (M/T),
ANTI-THEFT indicator light and mode switch (A/T).
The system operates as follows: After locking the starter
switch and removing the starter key (this sets the alarm),
if the door is unlocked in any way other than with the
proper key, the headlights start flashing, the horn sounds,
and the starter circuit is disabled. (However, the engine
hood and all the doors must be locked and closed.)
Once the system has been placed in the warning or alarm
condition, it can be released only when the starter switch
is shifted from ªOFFº to ªACCº by the starter key, or when
the lock of the front door or the tailgate is released (to
activate the detect switch) by the starter key.
Anti-theft & Keyless Entry Control
Unit Removal
1. Disconnect the battery ground cable.
2. Remove the front console assembly.
Refer to the Instrument Panel Assembly in Body
Structure section.
3. Remove the lower cluster assembly.
Refer to the Instrument Panel Assembly in Body
Structure section.
4. Disconnect the connector(2).
5. Remove four screws to remove the anti-theft &
keyless entry control unit with bracket(1).
825RW029
6. Remove two nuts from the anti-theft & keyless entry
control unit with bracket(3) to remove the anti-theft &
keyless entry controller(4).
825RW028
Anti-theft & Keyless Entry Control
Unit Installation
To install, follow the removal steps in the reverse order.
Anti-theft Indicator Removal
1. Disconnect the battery ground cable.
2. Remove the front console assembly(1).
Refer to the Instrument Panel Assembly in Body
Structure section.
3. Remove the lower cluster assembly(2).
Refer to the Instrument Panel Assembly in Body
Structure section.
4. Remove the instrument panel driver lower cover
assembly(3).
Refer to the Instrument Panel Assembly in Body
Structure section.
821RW024

Page 3362 of 3573

ISUZU TROOPER 1998 Service Repair Manual SECURITY AND LOCKS8H±23
5. Remove the instrument panel cluster assembly(4).
Refer to the Instrument Panel Assembly in Body
Structure section.
6. Remove two screws and then remove the anti-theft
indic

Page 3363 of 3573

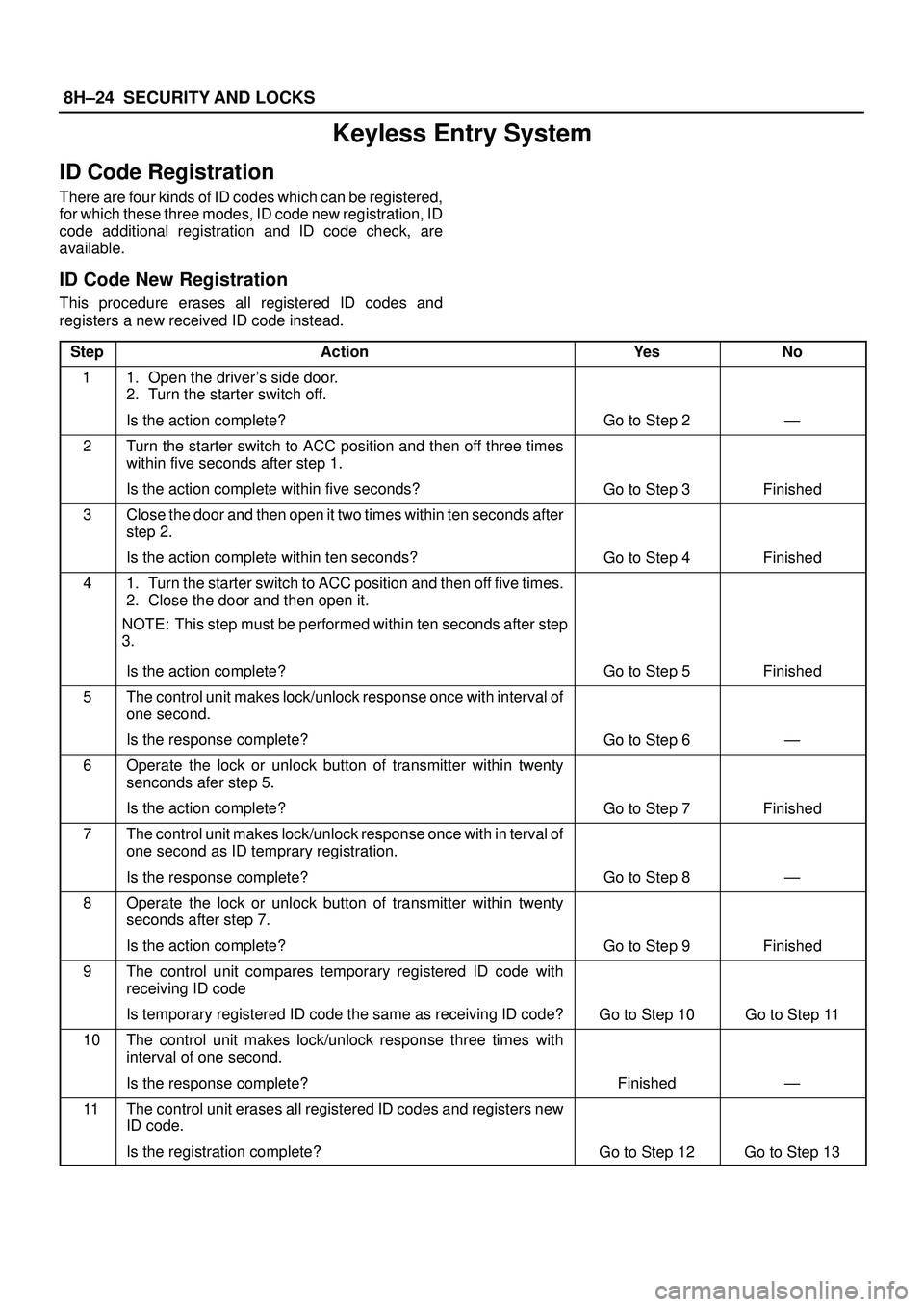

ISUZU TROOPER 1998 Service Repair Manual 8H±24SECURITY AND LOCKS
Keyless Entry System
ID Code Registration
There are four kinds of ID codes which can be registered,
for which these three modes, ID code new registration, ID
code additional r

Page 3364 of 3573

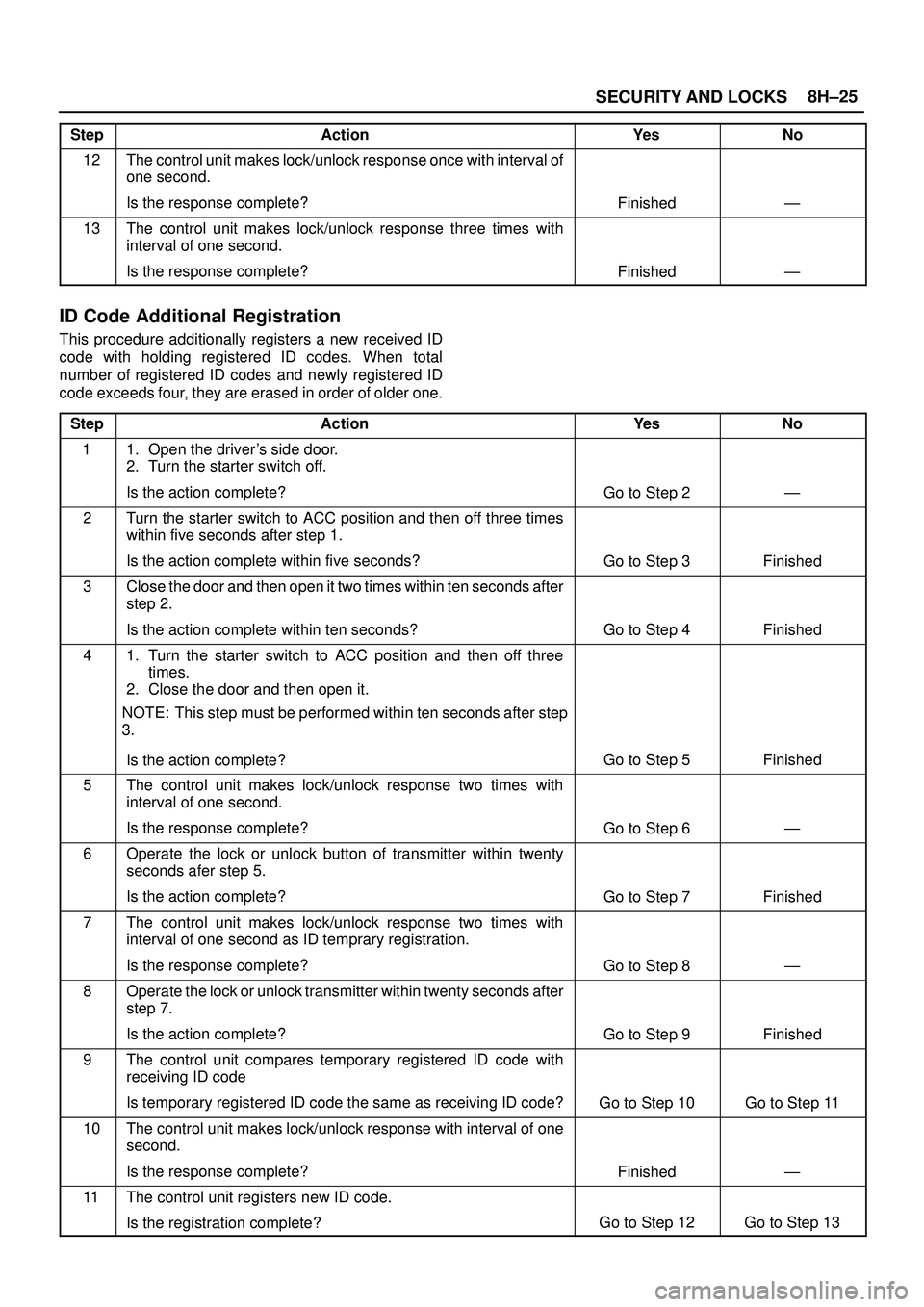

ISUZU TROOPER 1998 Service Repair Manual SECURITY AND LOCKS8H±25
StepNo Ye s Action
12The control unit makes lock/unlock response once with interval of
one second.
Is the response complete?
FinishedÐ
13The control unit makes lock/unlock re

SECURITY AND LOCKS8H±25
StepNo Ye s Action
12The control unit makes lock/unlock response once with interval of
one second.
Is the response complete?
FinishedÐ
13The control unit makes lock/unlock response three times with
interval of one second.
Is the response complete?
FinishedÐ
ID Code Additional Registration
This procedure additionally registers a new received ID
code with holding registered ID codes. When total
number of registered ID codes and newly registered ID
code exceeds four, they are erased in order of older one.
Step
ActionYe sNo
11. Open the driver's side door.
2. Turn the starter switch off.
Is the action complete?
Go to Step 2Ð
2Turn the starter switch to ACC position and then off three times
within five seconds after step 1.
Is the action complete within five seconds?
Go to Step 3Finished
3Close the door and then open it two times within ten seconds after
step 2.
Is the action complete within ten seconds?
Go to Step 4Finished
41. Turn the starter switch to ACC position and then off three
times.
2. Close the door and then open it.
NOTE: This step must be performed within ten seconds after step
3.
Is the action complete?
Go to Step 5Finished
5The control unit makes lock/unlock response two times with
interval of one second.
Is the response complete?
Go to Step 6Ð
6Operate the lock or unlock button of transmitter within twenty
seconds afer step 5.
Is the action complete?
Go to Step 7Finished
7The control unit makes lock/unlock response two times with
interval of one second as ID temprary registration.
Is the response complete?
Go to Step 8Ð
8Operate the lock or unlock transmitter within twenty seconds after
step 7.
Is the action complete?
Go to Step 9Finished
9The control unit compares temporary registered ID code with
receiving ID code
Is temporary registered ID code the same as receiving ID code?
Go to Step 10Go to Step 11
10The control unit makes lock/unlock response with interval of one
second.
Is the response complete?
FinishedÐ
11The control unit registers new ID code.
Is the registration complete?
Go to Step 12Go to Step 13

Page 3365 of 3573

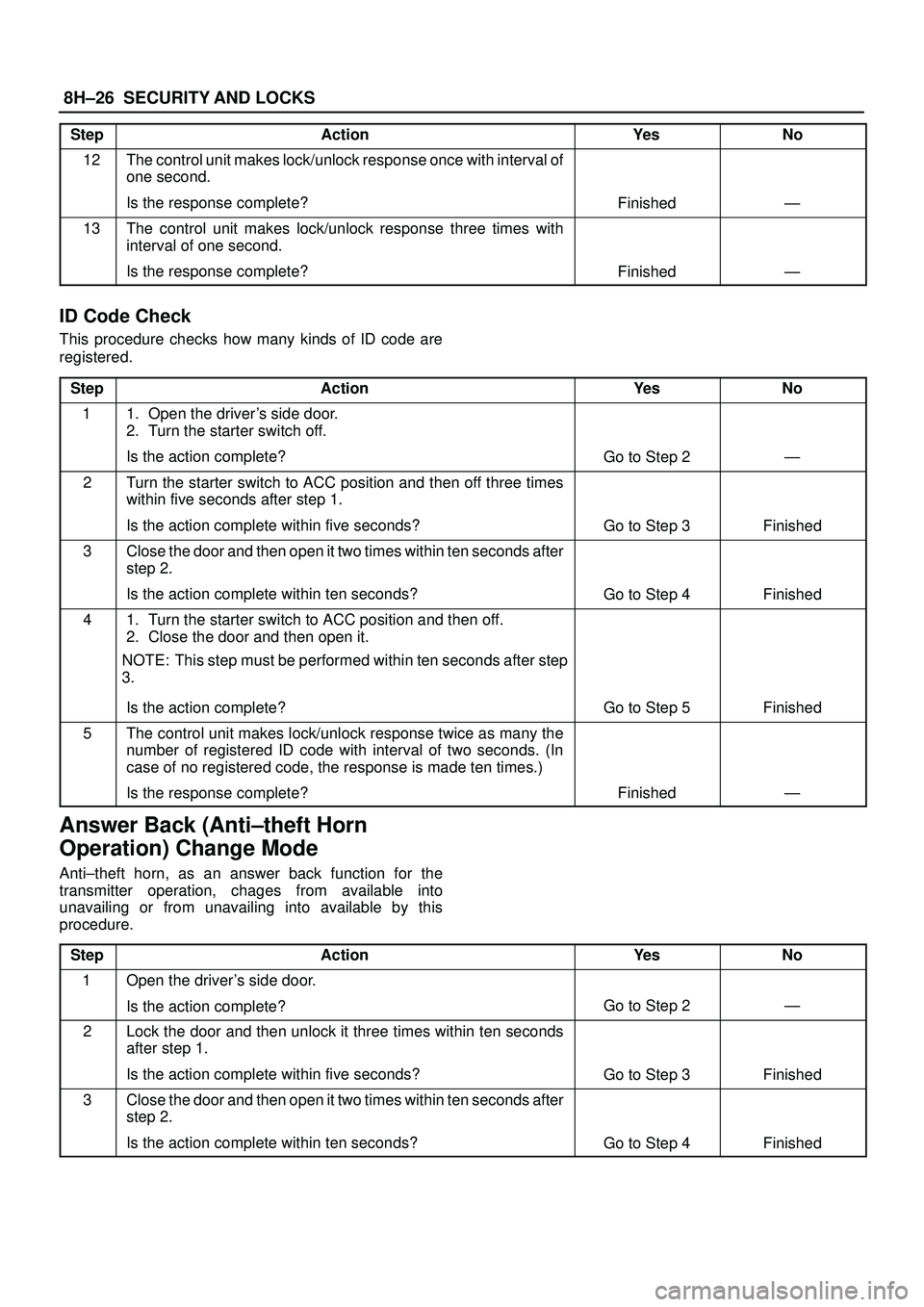

ISUZU TROOPER 1998 Service Repair Manual 8H±26SECURITY AND LOCKS
StepNo Ye s Action
12The control unit makes lock/unlock response once with interval of
one second.
Is the response complete?
FinishedÐ
13The control unit makes lock/unlock re

Page 3366 of 3573

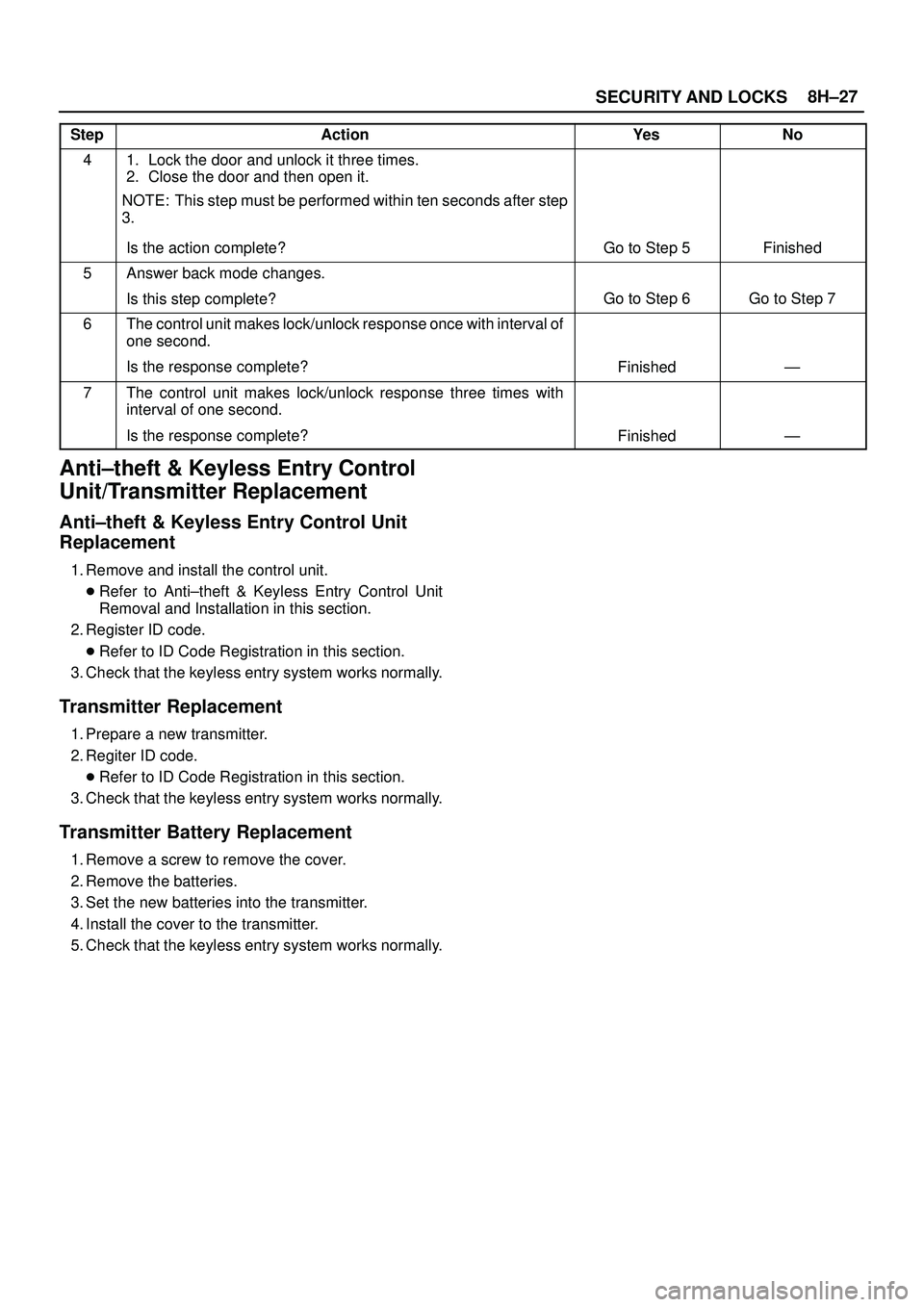

ISUZU TROOPER 1998 Service Repair Manual SECURITY AND LOCKS8H±27
StepNo Ye s Action
41. Lock the door and unlock it three times.
2. Close the door and then open it.
NOTE: This step must be performed within ten seconds after step
3.
Is the a

Page 3367 of 3573

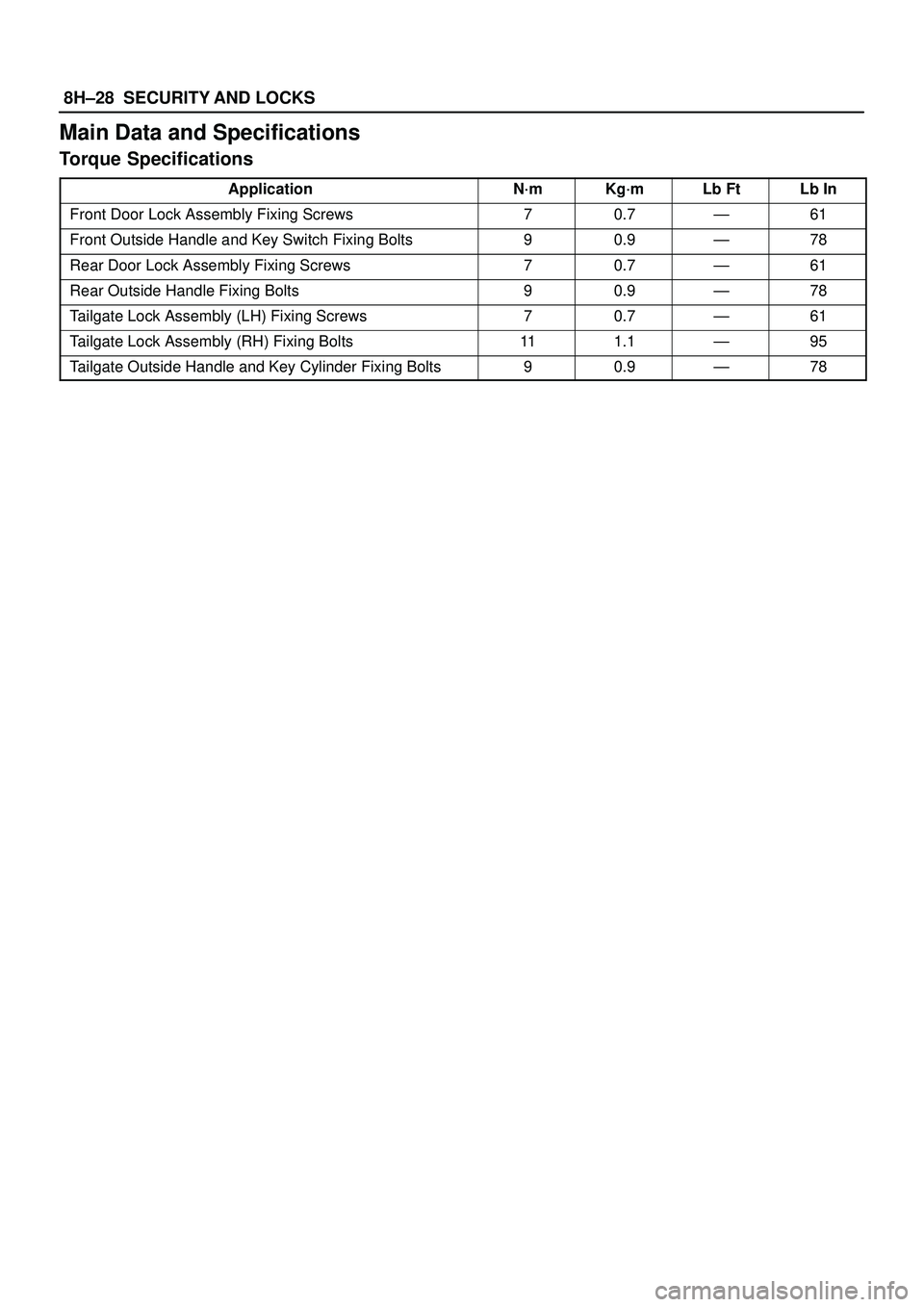

ISUZU TROOPER 1998 Service Repair Manual 8H±28SECURITY AND LOCKS
Main Data and Specifications
Torque Specifications
ApplicationN´mKg´mLb FtLb In
Front Door Lock Assembly Fixing Screws70.7Ð61
Front Outside Handle and Key Switch Fixing Bol

Page 3368 of 3573

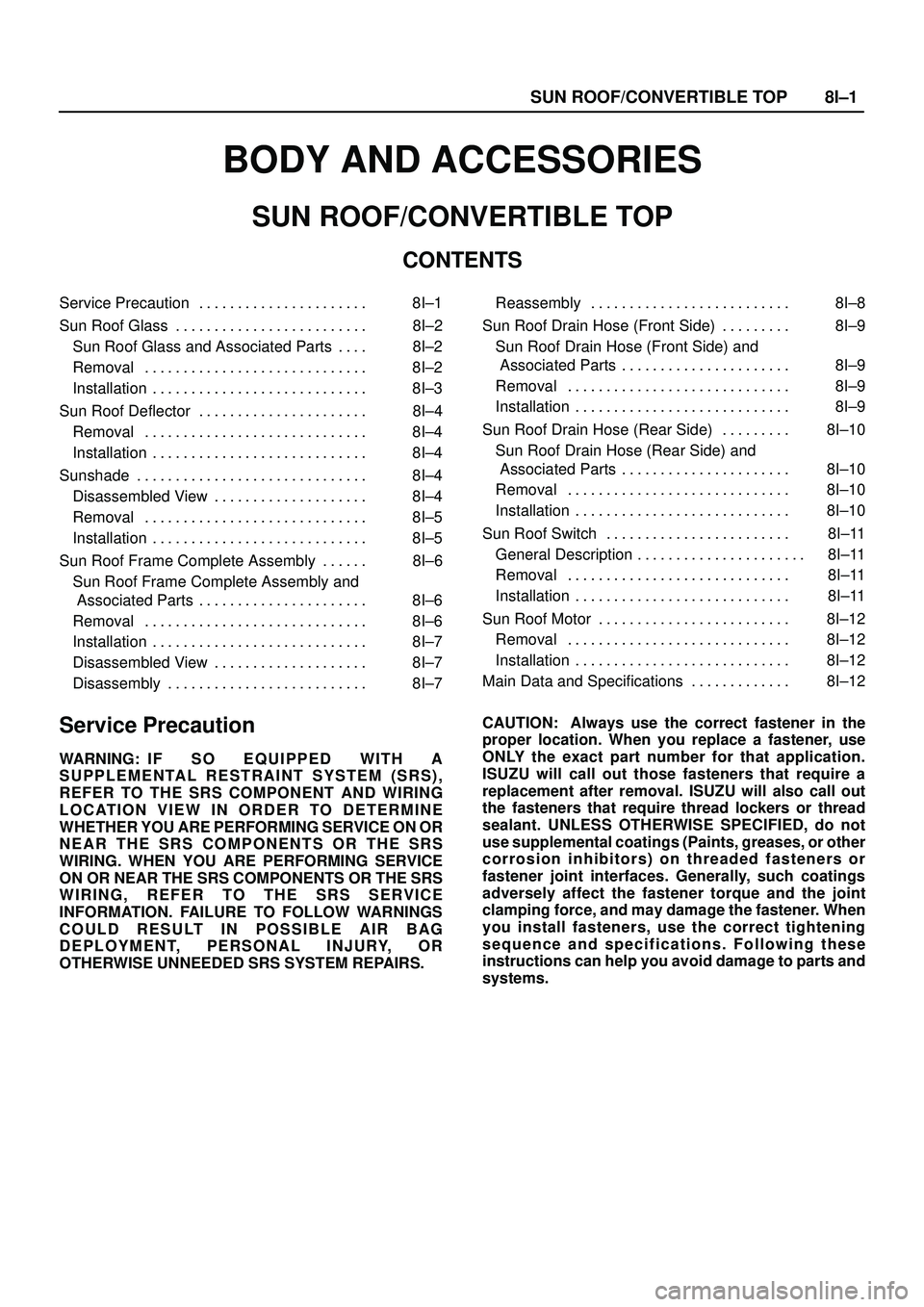

ISUZU TROOPER 1998 Service Repair Manual SUN ROOF/CONVERTIBLE TOP8I±1
BODY AND ACCESSORIES
SUN ROOF/CONVERTIBLE TOP
CONTENTS
Service Precaution 8I±1. . . . . . . . . . . . . . . . . . . . . .
Sun Roof Glass 8I±2. . . . . . . . . . . . .

SUN ROOF/CONVERTIBLE TOP8I±1
BODY AND ACCESSORIES
SUN ROOF/CONVERTIBLE TOP
CONTENTS
Service Precaution 8I±1. . . . . . . . . . . . . . . . . . . . . .
Sun Roof Glass 8I±2. . . . . . . . . . . . . . . . . . . . . . . . .
Sun Roof Glass and Associated Parts 8I±2. . . .
Removal 8I±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun Roof Deflector 8I±4. . . . . . . . . . . . . . . . . . . . . .
Removal 8I±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sunshade 8I±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembled View 8I±4. . . . . . . . . . . . . . . . . . . .
Removal 8I±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun Roof Frame Complete Assembly 8I±6. . . . . .
Sun Roof Frame Complete Assembly and
Associated Parts 8I±6. . . . . . . . . . . . . . . . . . . . . .
Removal 8I±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembled View 8I±7. . . . . . . . . . . . . . . . . . . .
Disassembly 8I±7. . . . . . . . . . . . . . . . . . . . . . . . . . Reassembly 8I±8. . . . . . . . . . . . . . . . . . . . . . . . . .
Sun Roof Drain Hose (Front Side) 8I±9. . . . . . . . .
Sun Roof Drain Hose (Front Side) and
Associated Parts 8I±9. . . . . . . . . . . . . . . . . . . . . .
Removal 8I±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun Roof Drain Hose (Rear Side) 8I±10. . . . . . . . .
Sun Roof Drain Hose (Rear Side) and
Associated Parts 8I±10. . . . . . . . . . . . . . . . . . . . . .
Removal 8I±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun Roof Switch 8I±11. . . . . . . . . . . . . . . . . . . . . . . .
General Description 8I±11. . . . . . . . . . . . . . . . . . . . . .
Removal 8I±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun Roof Motor 8I±12. . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8I±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8I±12. . . . . . . . . . . . .
Service Precaution
WARNING: I F S O E Q U IPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
