GENERAL INFORMATION 0AÐ3

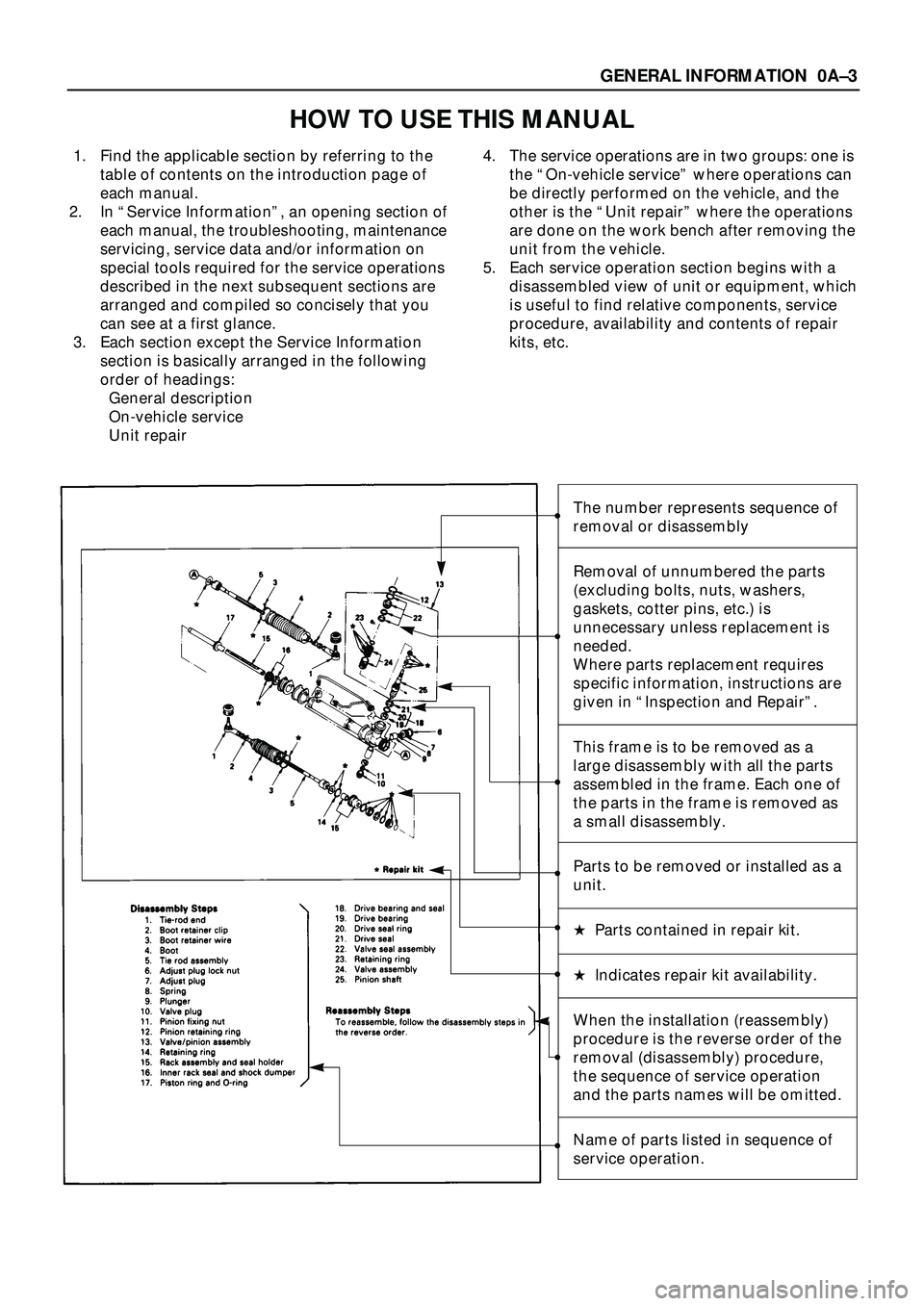

HOW TO USE THIS MANUAL
1. Find the applicable section by referring to the
table of contents on the introduction page of
each manual.
2. In ÒService InformationÓ, an opening section of
each manual, the troubleshooting, maintenance
servicing, service data and/or information on
special tools required for the service operations
described in the next subsequent sections are
arranged and compiled so concisely that you
can see at a first glance.
3. Each section except the Service Information
section is basically arranged in the following
order of headings:
General description
On-vehicle service
Unit repair4. The service operations are in two groups: one is
the ÒOn-vehicle serviceÓ where operations can
be directly performed on the vehicle, and the
other is the ÒUnit repairÓ where the operations
are done on the work bench after removing the
unit from the vehicle.
5. Each service operation section begins with a
disassembled view of unit or equipment, which
is useful to find relative components, service
procedure, availability and contents of repair
kits, etc.
The number represents sequence of
removal or disassembly
Removal of unnumbered the parts
(excluding bolts, nuts, washers,
gaskets, cotter pins, etc.) is
unnecessary unless replacement is
needed.
Where parts replacement requires
specific information, instructions are
given in ÒInspection and RepairÓ.
This frame is to be removed as a
large disassembly with all the parts
assembled in the frame. Each one of
the parts in the frame is removed as
a small disassembly.
Parts to be removed or installed as a
unit.
H Parts contained in repair kit.
H Indicates repair kit availability.
When the installation (reassembly)
procedure is the reverse order of the
removal (disassembly) procedure,
the sequence of service operation
and the parts names will be omitted.
Name of parts listed in sequence of
service operation.
Page 18 of 3573

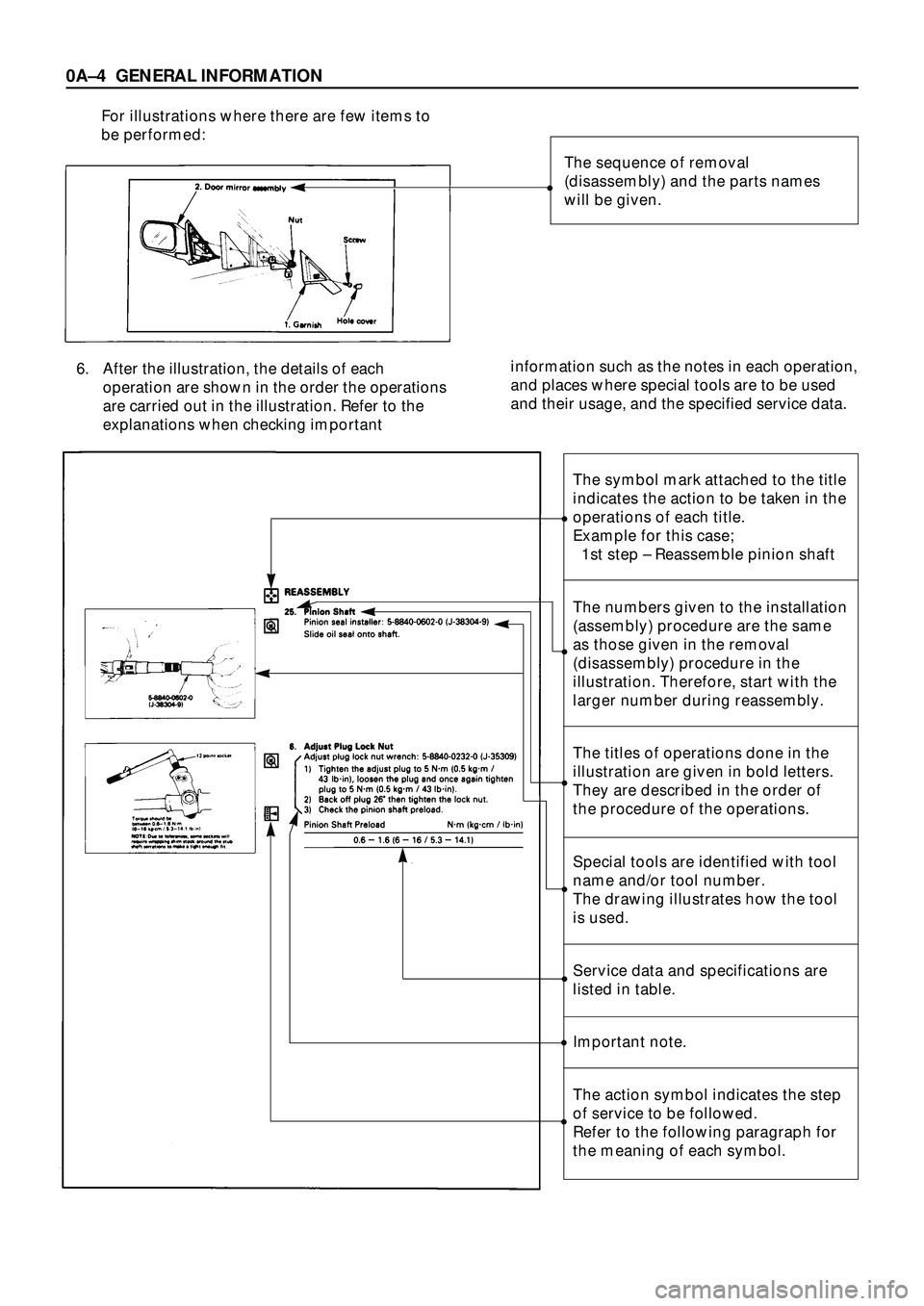

For illustrations where there are few items to
be performed:
The sequence of removal
(disassembly) and the parts names
will be given.
The symbol mark attached to the title
indicates the action to be taken in the
operations of each title.
Example for this case;
1st step Ð Reassemble pinion shaft
The numbers given to the installation
(assembly) procedure are the same
as those given in the removal
(disassembly) procedure in the
illustration. Therefore, start with the
larger number during reassembly.
The titles of operations done in the
illustration are given in bold letters.
They are described in the order of
the procedure of the operations.
Special tools are identified with tool
name and/or tool number.
The drawing illustrates how the tool
is used.
Service data and specifications are
listed in table.
Important note.
The action symbol indicates the step
of service to be followed.
Refer to the following paragraph for
the meaning of each symbol.
information such as the notes in each operation,
and places where special tools are to be used
and their usage, and the specified service data.
0AÐ4 GENERAL INFORMATION
6. After the illustration, the details of each
operation are shown in the order the operations
are carried out in the illustration. Refer to the
explanations when checking important
Page 19 of 3573
GENERAL INFORMATION 0AÐ5
7. In this manual, the following action symbols
are used to indicate the type of service
operations to be performed.
. . . Remove or disconnect . . . Adjust
. . . Install or connect . . . Clean
. . . Disassemble . . . Pay close attention - Important
. . . Reassemble . . . Tighten to specified torque
. . . Align the marks . . . Use special tool(s)
. . . Correct direction . . . Lubricate with oil
. . . Inspect . . . Lubricate with grease
. . . Take measurement . . . Use liquid gasket
8. The service standard is indicated in terms of
ÒStandardÓ and ÒLimitÓ.
The ÒStandardÓ means the assembly standard
and standard range within which the parts areconsidered serviceable.
ÒLimitÓ indicates the limit value (Correction or
replacement is necessary when measurement
is beyond this limit.)
Page 20 of 3573

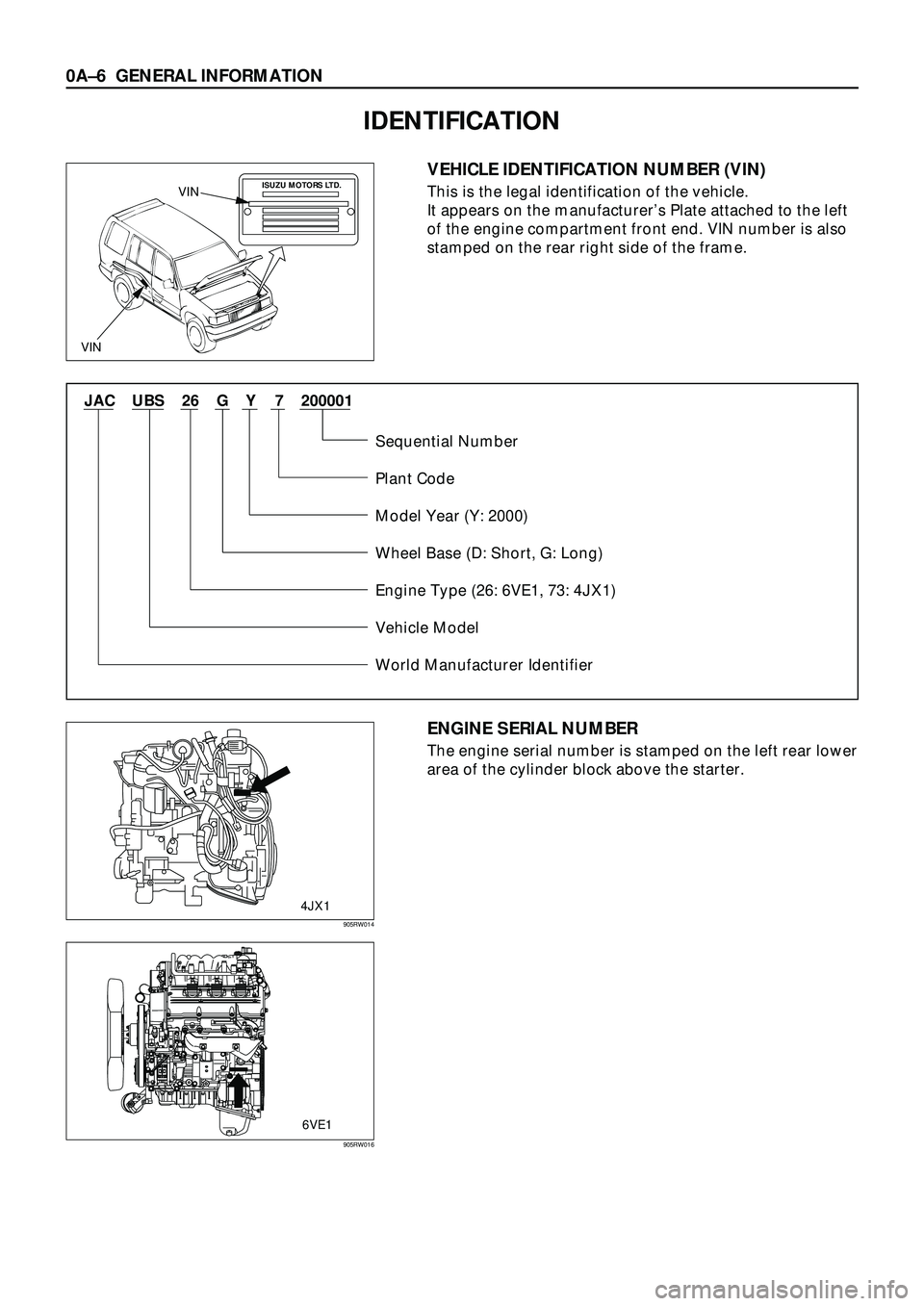

VEHICLE IDENTIFICATION NUMBER (VIN)
This is the legal identification of the vehicle.
It appears on the manufacturerÕs Plate attached to the left
of the engine compartment front end. VIN number is also
stamped on the rear right side of the frame.VIN
VINISUZU MOTORS LTD.
JAC UBS 26 G Y 7 200001
Sequential Number
Plant Code
Model Year (Y: 2000)
Wheel Base (D: Short, G: Long)
Engine Type (26: 6VE1, 73: 4JX1)
Vehicle Model
World Manufacturer Identifier
ENGINE SERIAL NUMBER
The engine serial number is stamped on the left rear lower
area of the cylinder block above the starter.
4JX1
6VE1
0AÐ6 GENERAL INFORMATION
IDENTIFICATION
905RW014
905RW016
Page 21 of 3573
GENERAL INFORMATION 0AÐ7
TRANSMISSION SERIAL NUMBER
Manual: Stamped on the left side of the transmission
intermediate plate.
Automatic: Stamped on the identification plate, located on
the left side of the transmission above the
mode switch.
96
0000 000018PART No.
SERIAL No. SALHYDRAMATIC
STRASBOURGMADE IN FRANCEG 20272
FP
SERVICE PARTS IDENTIFICATION PLATE
The Vehicle Information Plate (Service Parts ID plate) is
provided on all vehicle models.
It is located on the center dash wall inside the engine
compartment. The plate lists the VIN (Vehicle Identification
Number), paint information and all production options and
special equipment on the vehicle when it was shipped
from the factory.
Service parts ID plateISUZU MOTORS L T D. JAPAN
V.I.N.
M.D.
ENGINE
GRADETRANS.
TIRE
BODY TYPE
B. COLOR/TRIM
OPTION
905RW015
905RW018
905RW007
Page 22 of 3573
0AÐ8 GENERAL INFORMATION
LIFTING INSTRUCTIONS
CAUTION:
·If a lifting device other than the original jack
is used, it is most important that the device
be applied only to the correct lifting points.
Raising the vehicle from any other point
may result in serious damage.
·When jacking or lifting a vehicle at the
frame side rail or other prescribed lift
points, be certain that lift pads do not
contact the catalytic converter, brake
pipes or cables, or fuel lines. Such contact
may result in damage or unsatisfactory
vehicle performance.
LIFTING POINTS AND SUPPORTABLE POINT LOCATIONS
Long wheel Base Model
Short Wheel Base Model
Lifting point
Supportable point
Page 23 of 3573
GENERAL INFORMATION 0AÐ9
LIFTING POINT; FRONT
When using floor jack, lift on the center of the skid plate.
SUPPORTABLE POINT; FRONT
Position the chassis stands at the bottom of the frame
sidemember, backward of front wheel.
LIFTING POINT; REAR
Position the floor jack at the center of the rear axle case
when lifting the vehicle.
SUPPORTABLE POINT; REAR
Position the chassis stands at the bottom of the frame
sidemember, just behind of the trailing link bracket.
SUPPORTABLE POINT; REAR
Position the chassis stands at the bottom of the rear axle
case.
Page 24 of 3573

TORQUE SPECIFICATIONS
STANDARD BOLTS
The torque values given in the following table should be applied where a particular torque is not specified.
0AÐ10 GENERAL INFORMATION
Nám (kgám / lbáft)
Nám kgácm / lbáin
Strength
Class4.8 8.8 9.8
Refined Non-Refined
Bolt
Identifi-
cation
Bolt
Diameter x
Pitch (mm)
M 6x1.0 6 (60 / 52 7 (75 / 65 Ð
M 8x1.25 13 (130 / 113 17 (175 / 152 24 (240 / 208
M10x1.25 27 (2.8 / 20) 37 (3.8 / 27) 50 (5.1 / 37)
M12x1.25 61 (6.3 / 45) 76 (7.8 / 56) 95 (9.7 / 70)
M14x1.5 96 (9.8 / 71) 116 (11.9 / 86) 142 (14.5 / 105)
M16x1.5 130 (13.3 / 96) 170 (17.3 / 125) 200 (20.4 / 148)
M18x1.5 188 (19.2 / 139) 244 (24.9 / 180) 287 (29.3 / 212)
M20x1.5 258 (26.3 / 190) 337 (34.4 / 249) 396 (40.4 / 292)
M22x1.5 332 (33.9 / 245) 453 (46.3 / 335) 530 (54.1 / 391)
M24x2.0 449 (45.8 / 331) 570 (58.2 / 421) 692 (70.6 / 511)
*M10x1.5 26 (2.7 / 20) 36 (3.7 / 27) 48 (4.9 / 35)
*M12x1.5 57 (5.8 / 42) 71 (7.2 / 52) 89 (9.1 / 66)
*M14x2.0 89 (9.1 / 66) 110 (11.2 / 81) 133 (13.6 / 98)
*M16x2.0 124 (12.7 / 92) 162 (16.5 / 119) 191 (19.5 / 141)
The asterisk * indicates that the bolts are used for female-threaded parts that are made of soft materials
such as casting, etc.
FLARE NUTS
Nám (kgám / lbáft)
Pipe diameter mm (in) Torque Pipe diameter mm (in) Torque
4.76 (0.187) 16 (1.6 / 12) 10.00 (0.394) 54 (5.5 / 40)
6.35 (0.250) 26 (2.7 / 20) 12.00 (0.472) 88 (9.0 / 65)
8.00 (0.315) 44 (4.5 / 33) 15.00 (0.591) 106 (10.8 / 78)
