Page 577 of 3573

ISUZU TROOPER 1998 Service Repair Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2±6 High-Low Planetary Gear Set Establishes an auxiliary transmission mechanism. When the transfer shift lever is set to the 2H or TOD position, the reduction gear

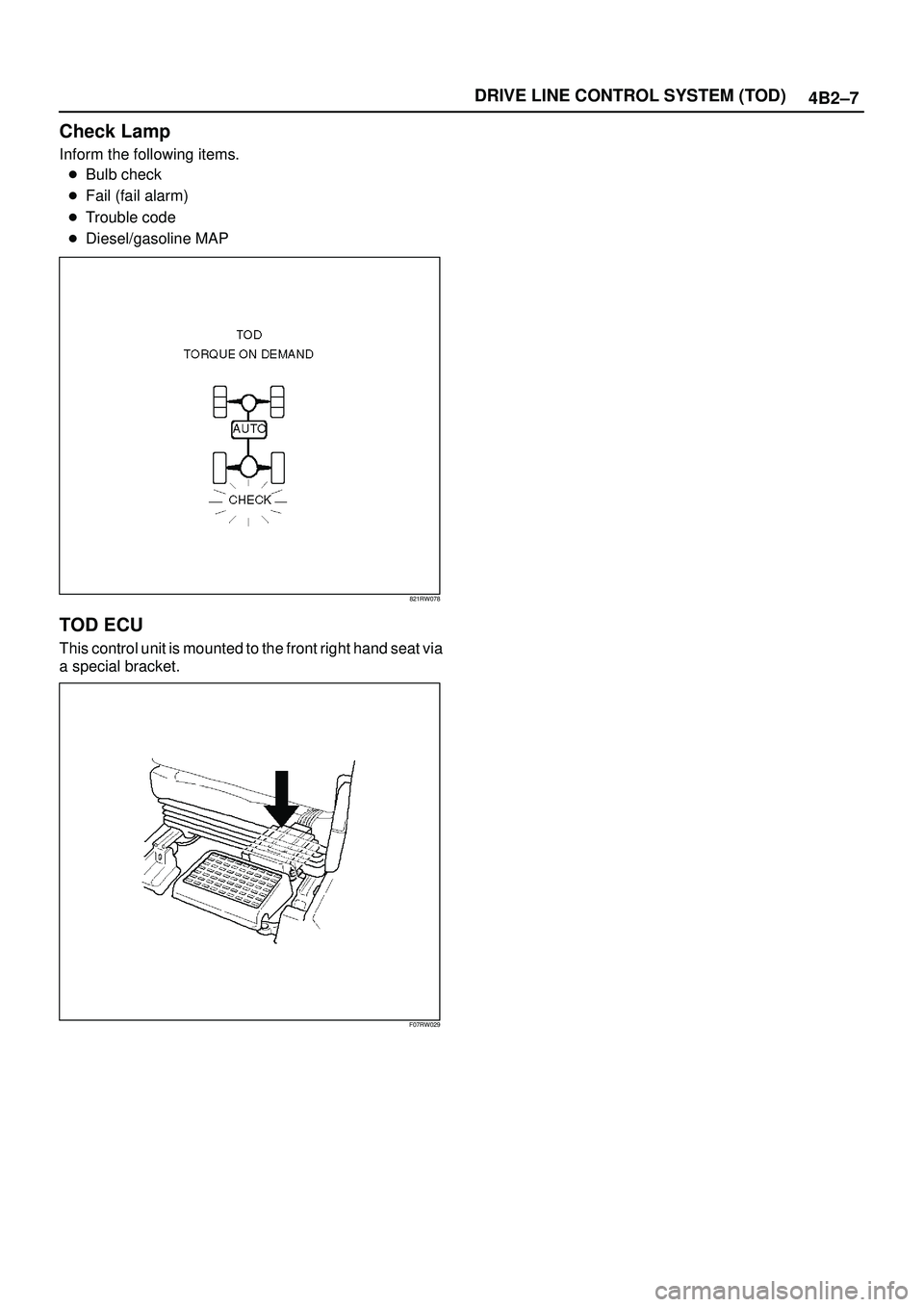

Page 578 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4B2±7 DRIVE LINE CONTROL SYSTEM (TOD) Check Lamp Inform the following items. Bulb check Fail (fail alarm) Trouble code Diesel/gasoline MAP 821RW078 TOD ECU This control unit is mounted to the fro

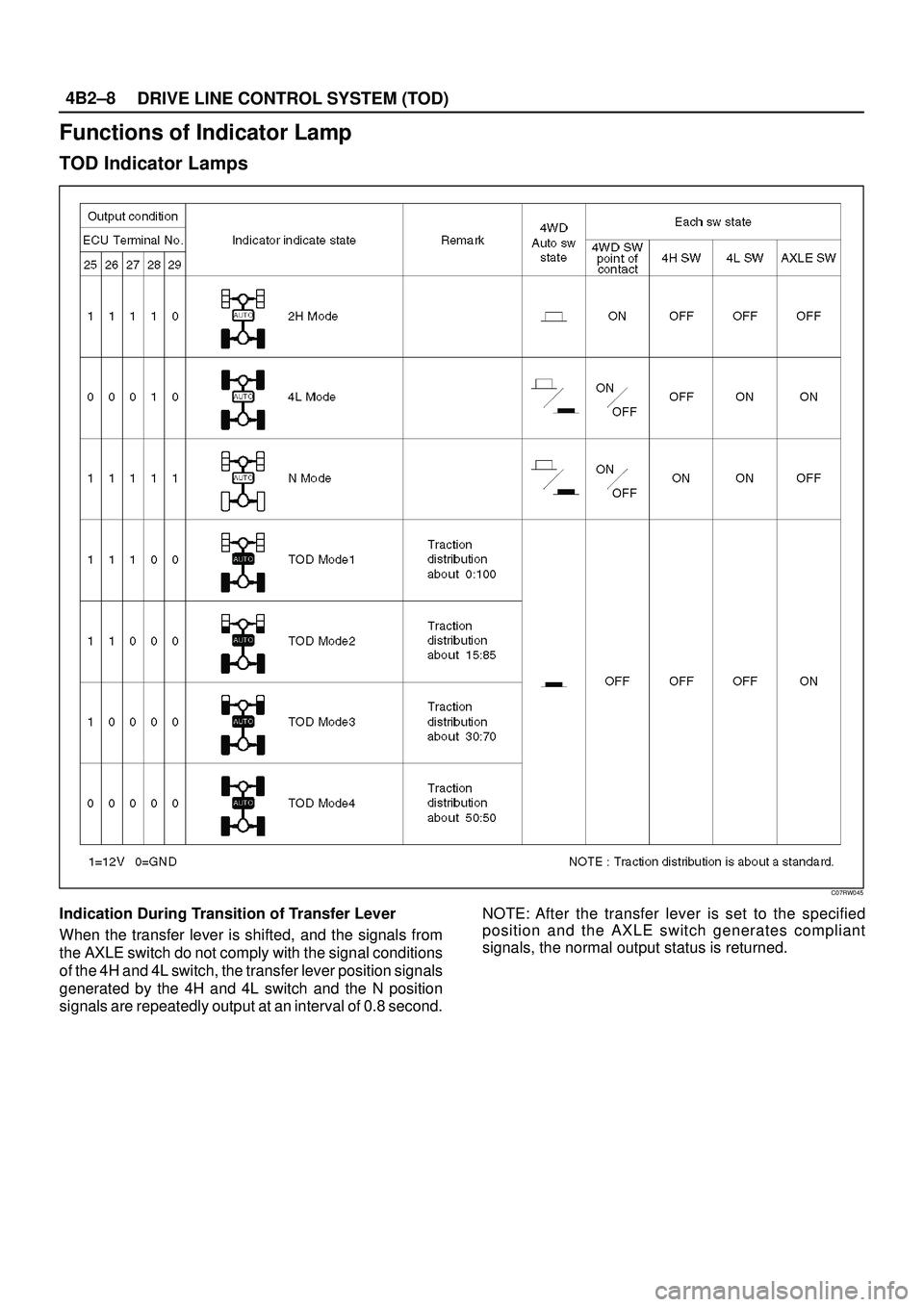

Page 579 of 3573

ISUZU TROOPER 1998 Service Repair Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2±8 Functions of Indicator Lamp TOD Indicator Lamps C07RW045 Indication During Transition of Transfer Lever When the transfer lever is shifted, and the signals from

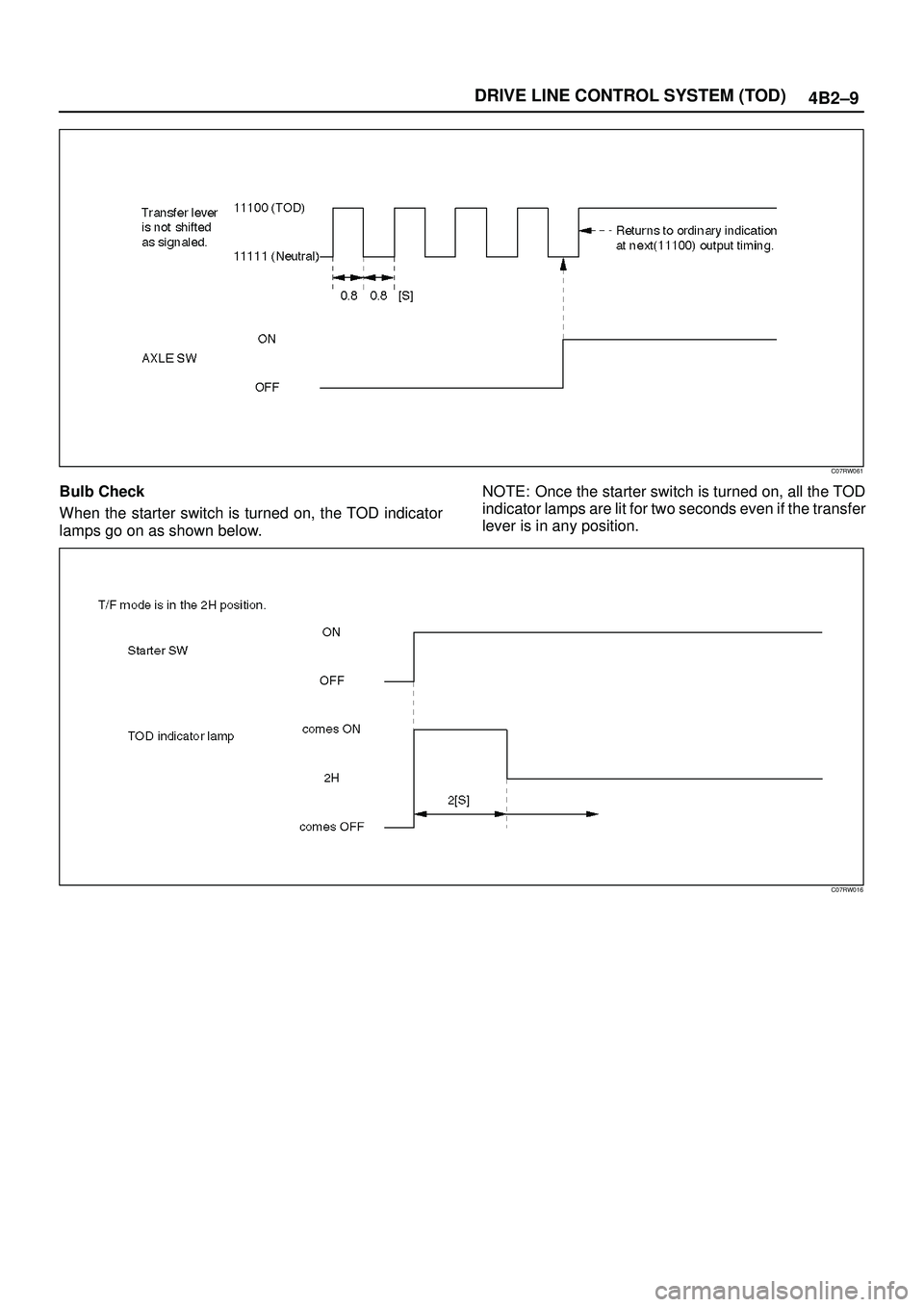

Page 580 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4B2±9 DRIVE LINE CONTROL SYSTEM (TOD) C07RW061 Bulb Check When the starter switch is turned on, the TOD indicator lamps go on as shown below.NOTE: Once the starter switch is turned on, all the TOD in

Page 581 of 3573

ISUZU TROOPER 1998 Service Repair Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2±10 Simplified checking method of ABS IN and BRAKE ON signals: In the event that any of the signal inputs listed below are observed while the self-diagnostic code i

Page 582 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4B2±11 DRIVE LINE CONTROL SYSTEM (TOD) The CHECK lamp also has the following functions. D-G MAP recognition and display (The control unit displays what type of vehicle, diesel or gasoline vehicle, it

Page 583 of 3573

ISUZU TROOPER 1998 Service Repair Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2±12 Diagnosis General Information Diagnosis The troubles on TOD are classified into the group that can be identified by the lighting status of the TOD indicator lam

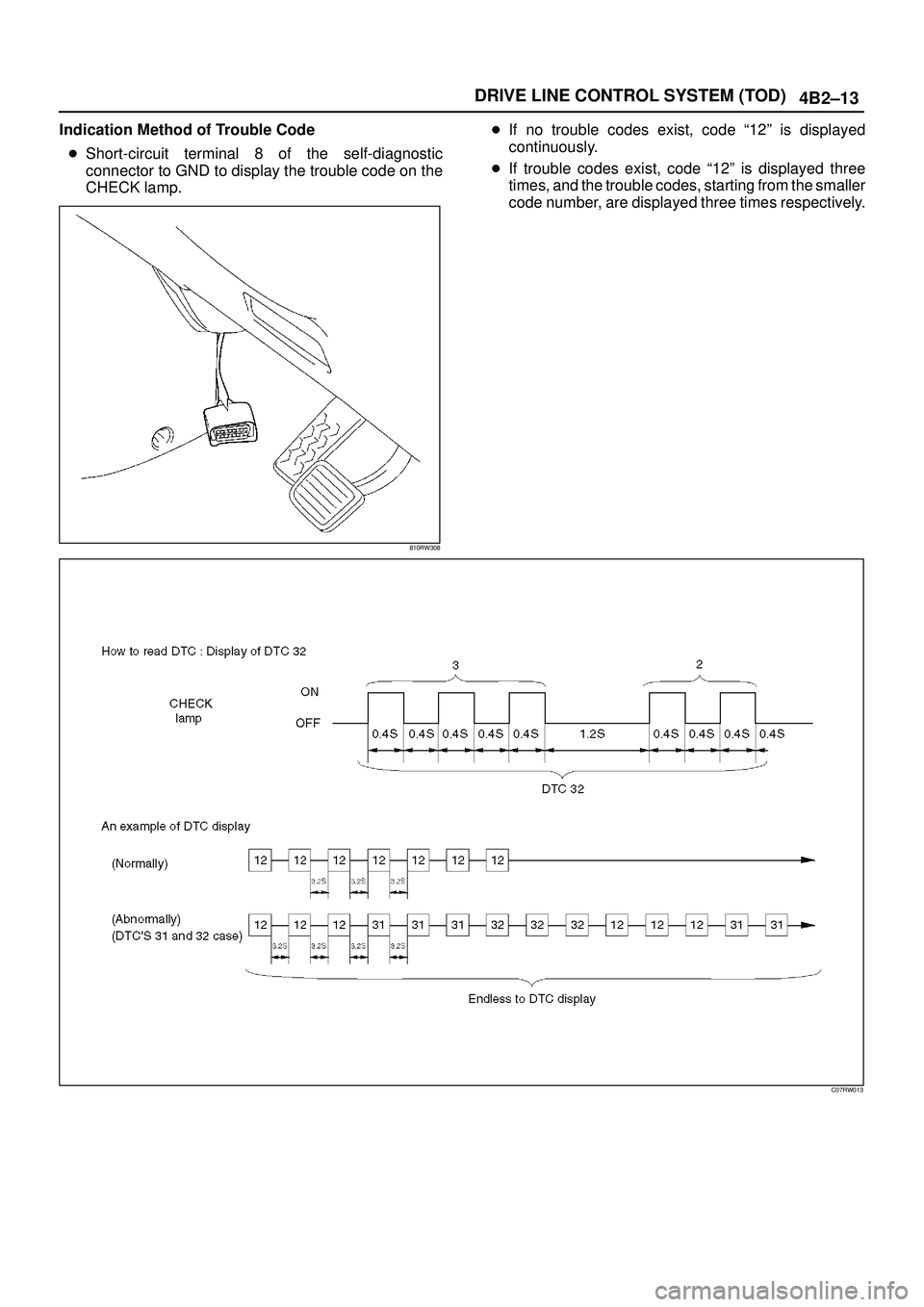

Page 584 of 3573

ISUZU TROOPER 1998 Service Repair Manual 4B2±13 DRIVE LINE CONTROL SYSTEM (TOD) Indication Method of Trouble Code Short-circuit terminal 8 of the self-diagnostic connector to GND to display the trouble code on the CHECK lamp. 810RW308 If
