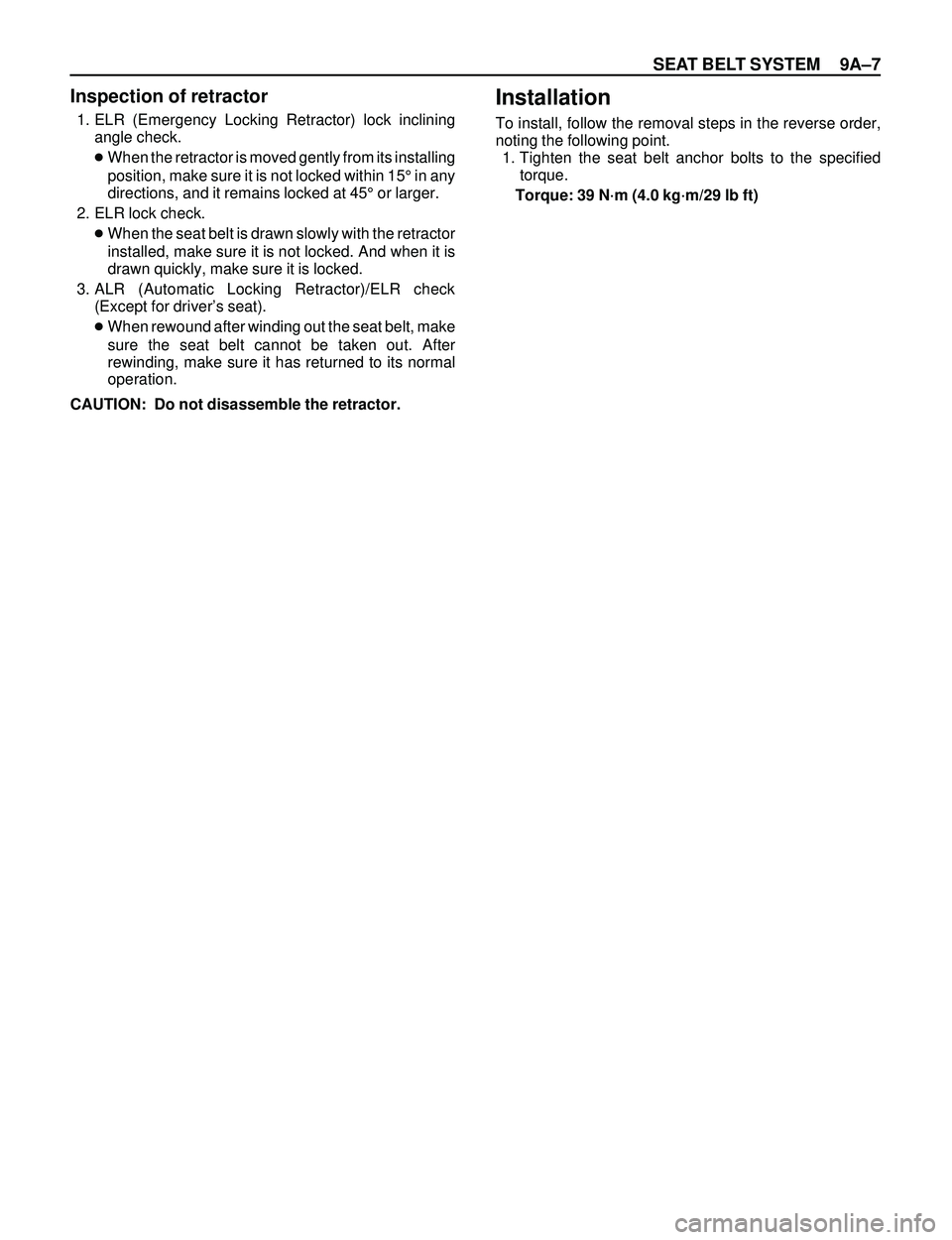

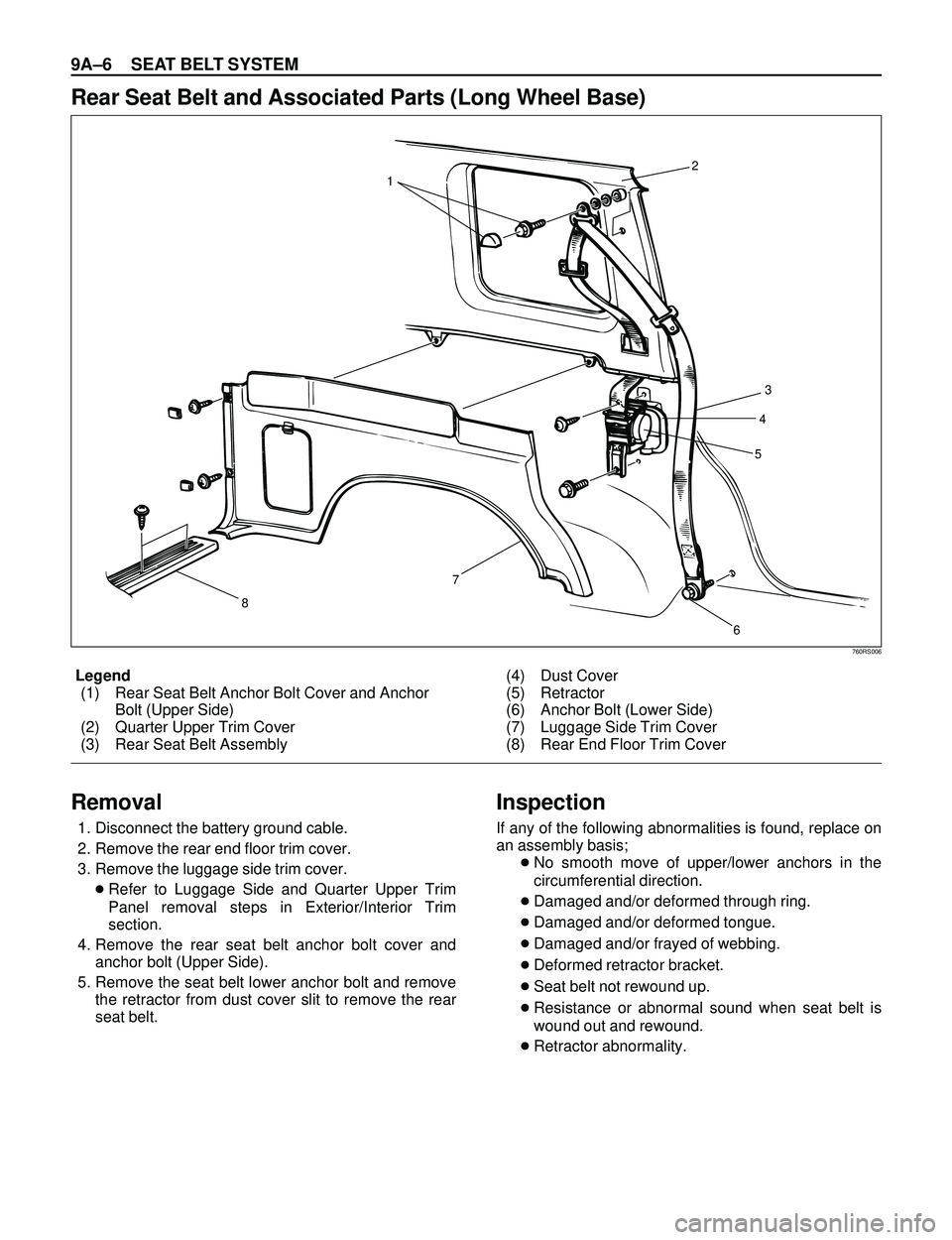

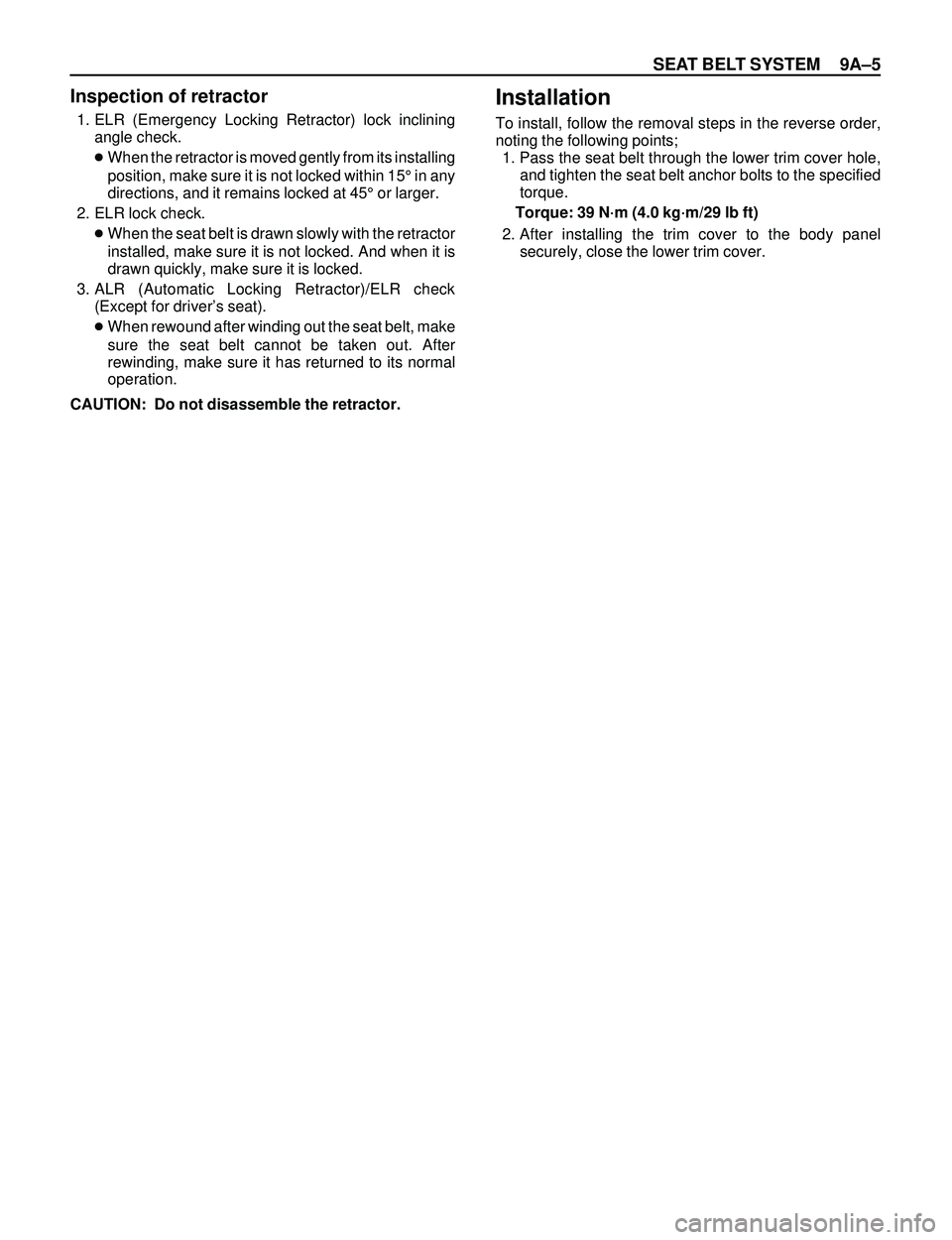

ISUZU TROOPER 1998 Service Repair Manual SEAT BELT SYSTEM 9AÐ5 Inspection of retractor 1. ELR (Emergency Locking Retractor) lock inclining angle check. cWhen the retractor is moved gently from its installing position, make sure it is not lo

Page 3426 of 3573

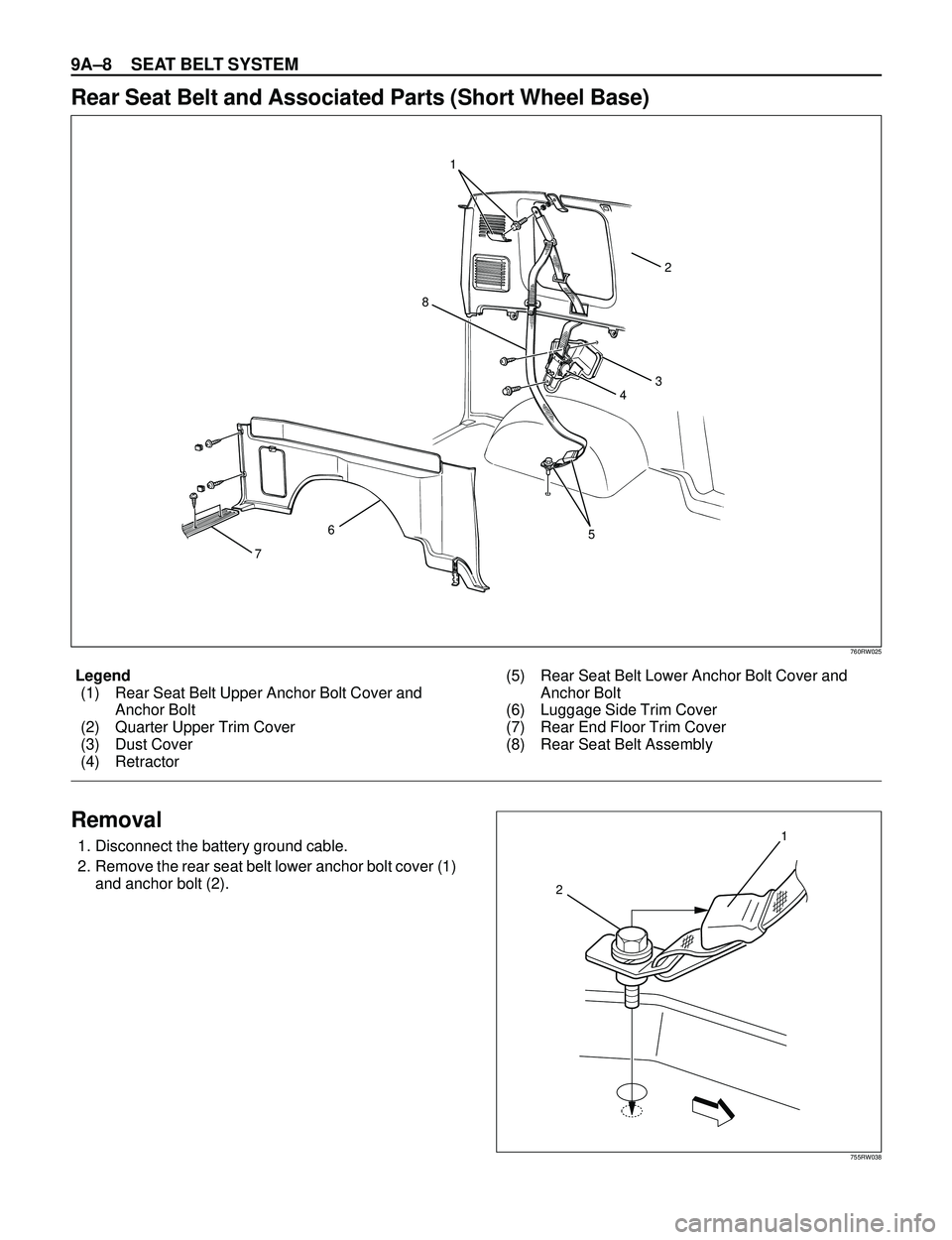

ISUZU TROOPER 1998 Service Repair Manual 9AÐ6 SEAT BELT SYSTEM 760RS006 Legend (1) Rear Seat Belt Anchor Bolt Cover and Anchor Bolt (Upper Side) (2) Quarter Upper Trim Cover (3) Rear Seat Belt Assembly(4) Dust Cover (5) Retractor (6) Anchor

Page 3427 of 3573

ISUZU TROOPER 1998 Service Repair Manual SEAT BELT SYSTEM 9AÐ7 Inspection of retractor 1. ELR (Emergency Locking Retractor) lock inclining angle check. cWhen the retractor is moved gently from its installing position, make sure it is not lo

Page 3428 of 3573

ISUZU TROOPER 1998 Service Repair Manual 9AÐ8 SEAT BELT SYSTEM 760RW025 Legend (1) Rear Seat Belt Upper Anchor Bolt Cover and Anchor Bolt (2) Quarter Upper Trim Cover (3) Dust Cover (4) Retractor(5) Rear Seat Belt Lower Anchor Bolt Cover an

Page 3429 of 3573

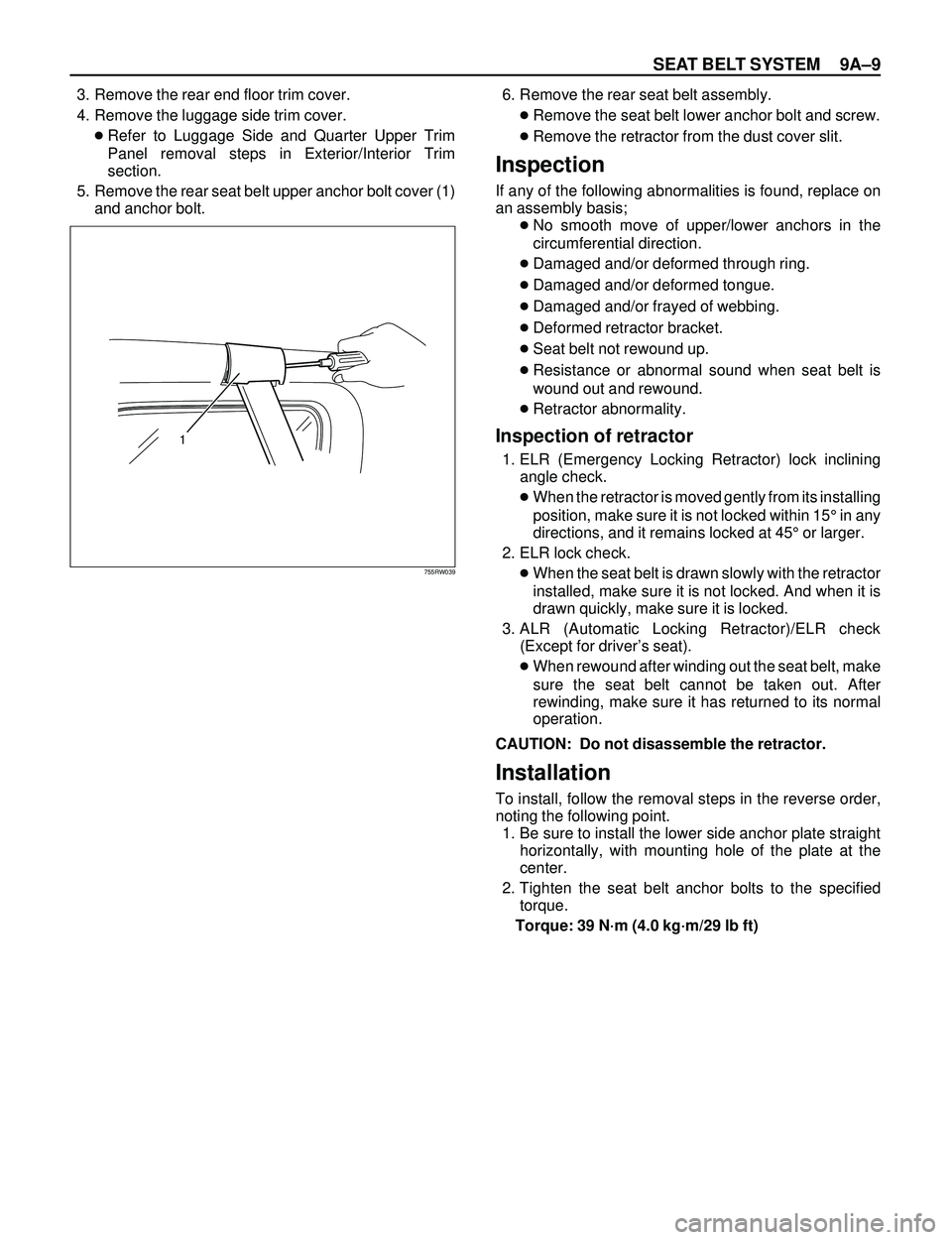

ISUZU TROOPER 1998 Service Repair Manual SEAT BELT SYSTEM 9AÐ9 3. Remove the rear end floor trim cover. 4. Remove the luggage side trim cover. cRefer to Luggage Side and Quarter Upper Trim Panel removal steps in Exterior/Interior Trim secti

Page 3430 of 3573

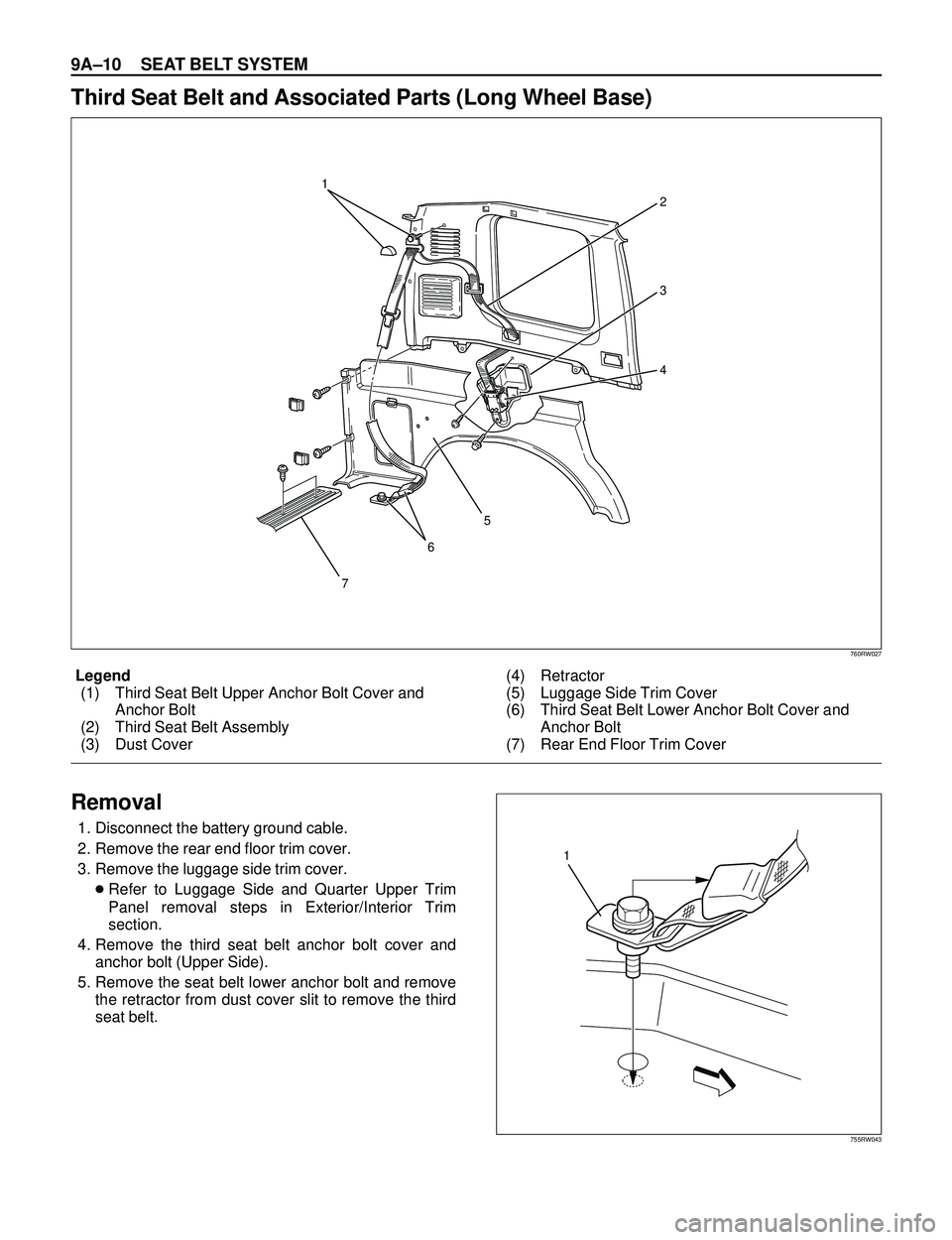

ISUZU TROOPER 1998 Service Repair Manual 9AÐ10 SEAT BELT SYSTEM Third Seat Belt and Associated Parts (Long Wheel Base) 65 1 2 3 4 7 760RW027 Legend (1) Third Seat Belt Upper Anchor Bolt Cover and Anchor Bolt (2) Third Seat Belt Assembly (3)

Page 3431 of 3573

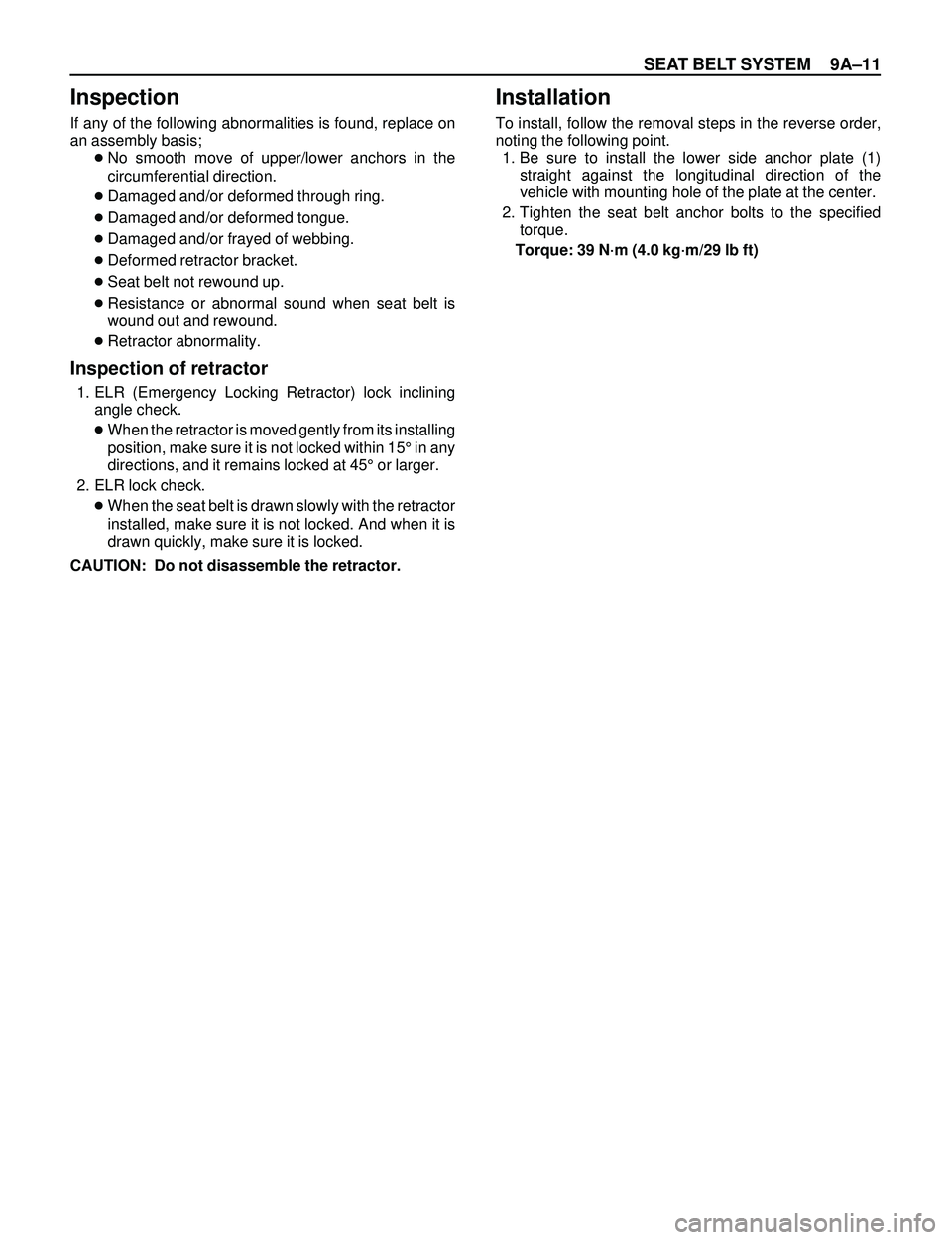

ISUZU TROOPER 1998 Service Repair Manual SEAT BELT SYSTEM 9AÐ11 Inspection If any of the following abnormalities is found, replace on an assembly basis; cNo smooth move of upper/lower anchors in the circumferential direction. cDamaged and/o

Page 3432 of 3573

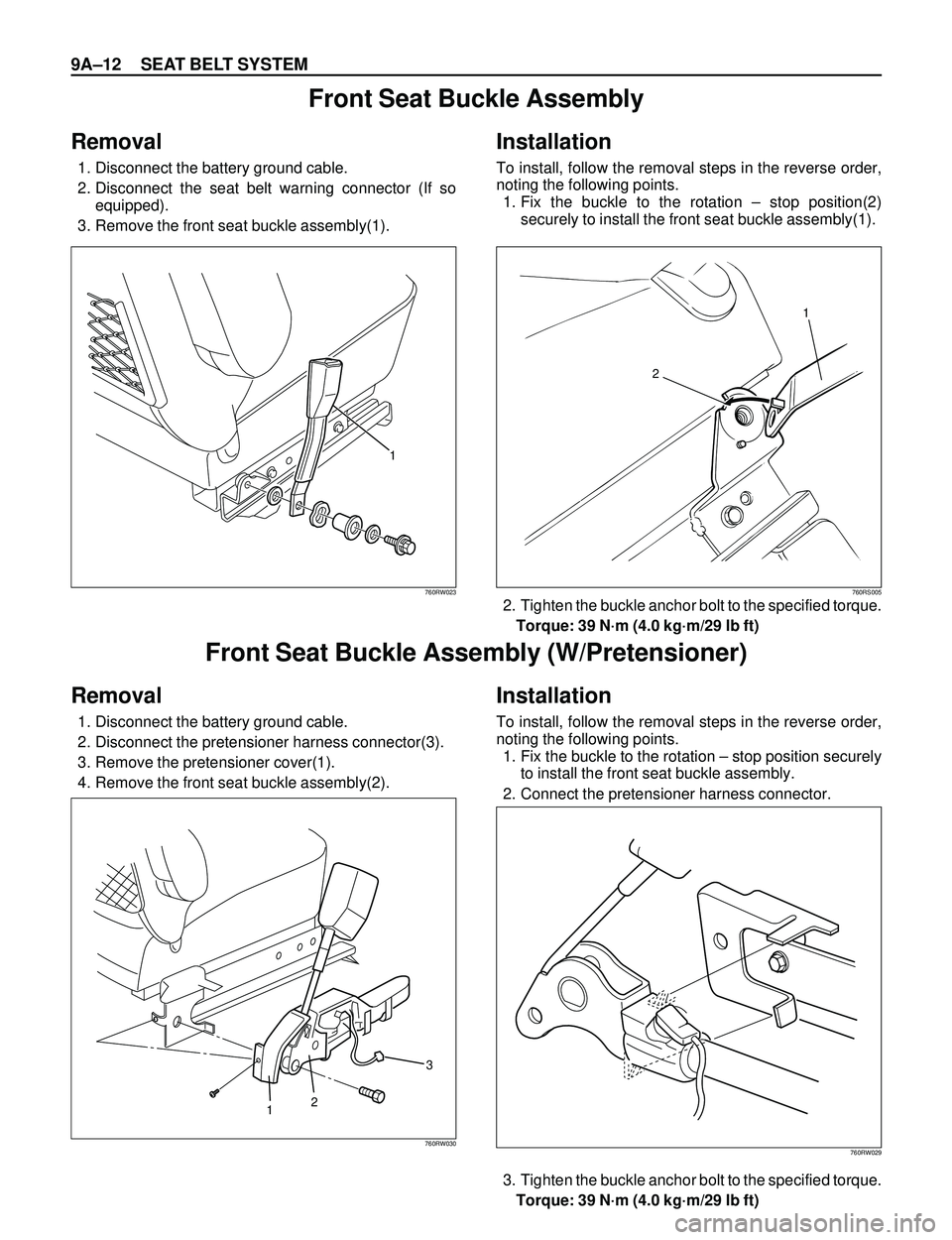

ISUZU TROOPER 1998 Service Repair Manual 9AÐ12 SEAT BELT SYSTEM Front Seat Buckle Assembly Removal 1. Disconnect the battery ground cable. 2. Disconnect the seat belt warning connector (If so equipped). 3. Remove the front seat buckle assem
