Page 817 of 3573

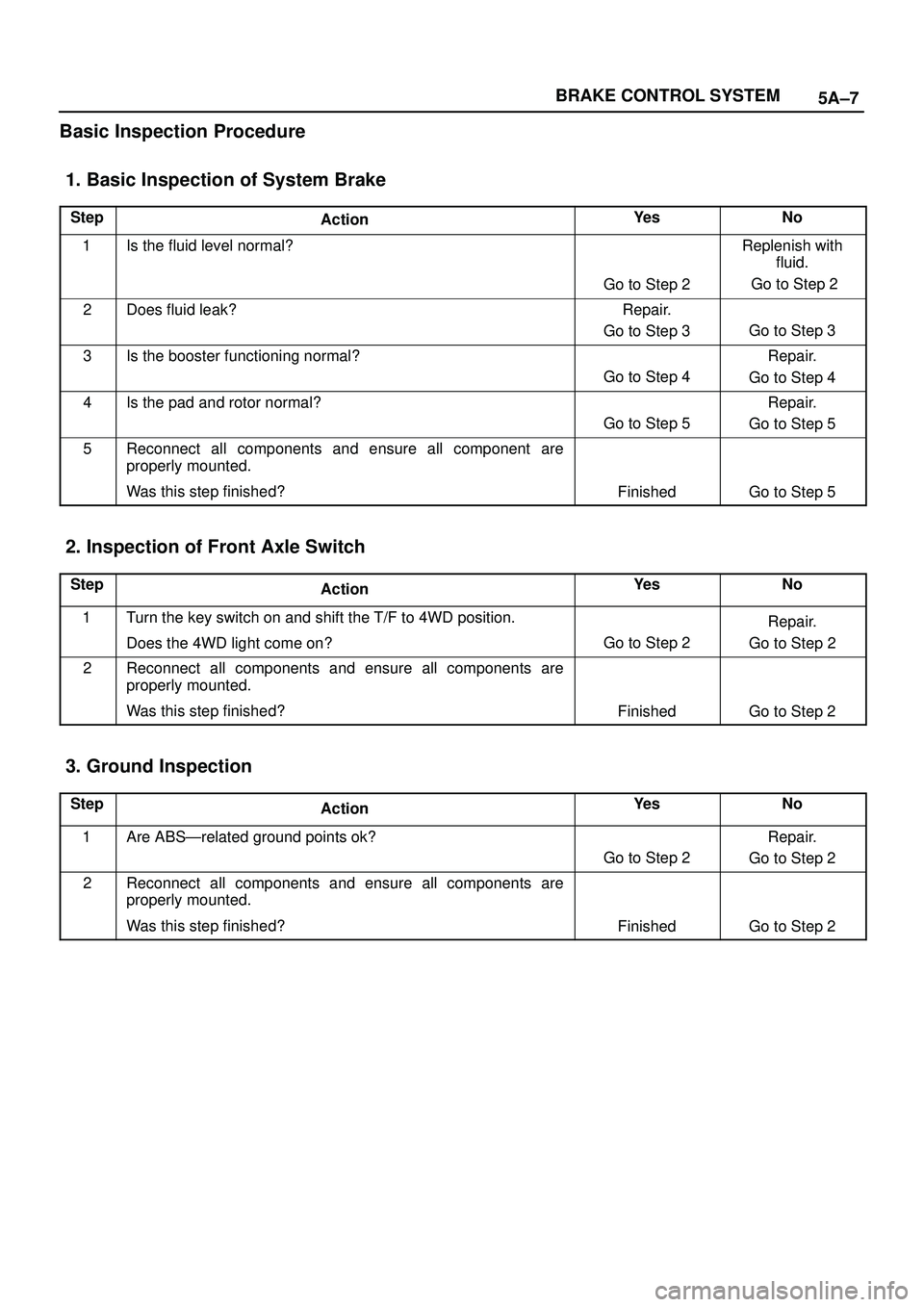

ISUZU TROOPER 1998 Service Repair Manual 5A±7 BRAKE CONTROL SYSTEM Basic Inspection Procedure 1. Basic Inspection of System Brake StepActionYe sNo 1Is the fluid level normal? Go to Step 2 Replenish with fluid. Go to Step 2 2Does fluid lea

Page 818 of 3573

ISUZU TROOPER 1998 Service Repair Manual 5A±8 BRAKE CONTROL SYSTEM Tech 2 Scan Tool From 98 MY, Isuzu dealer service departments are recommended to use Tech 2. Please refer to Tech 2 scan tool user guide. 901RW257 Legend (1) PCMCIA Card (2)

Page 819 of 3573

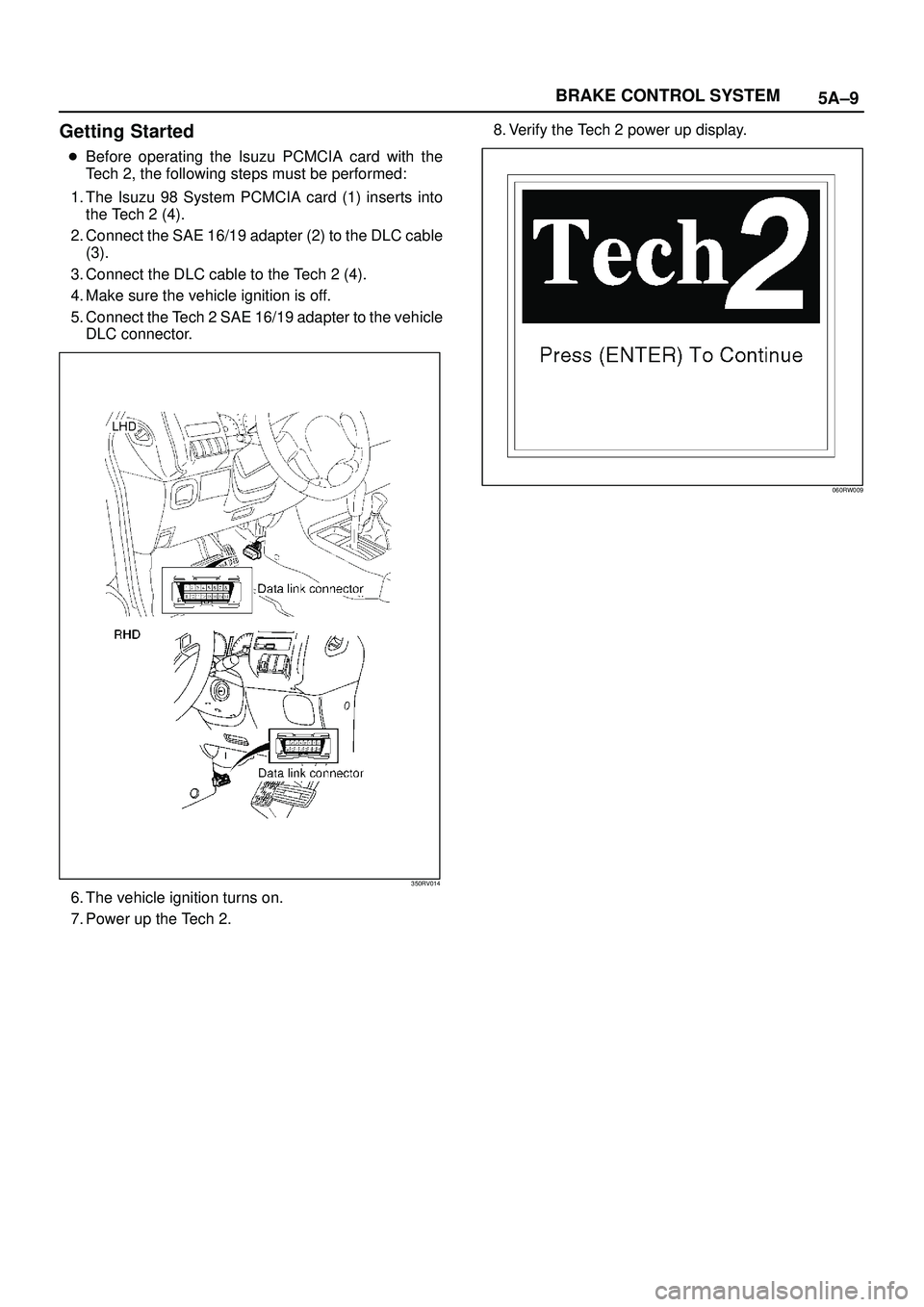

ISUZU TROOPER 1998 Service Repair Manual 5A±9 BRAKE CONTROL SYSTEM Getting Started Before operating the Isuzu PCMCIA card with the Tech 2, the following steps must be performed: 1. The Isuzu 98 System PCMCIA card (1) inserts into the Tech

Page 820 of 3573

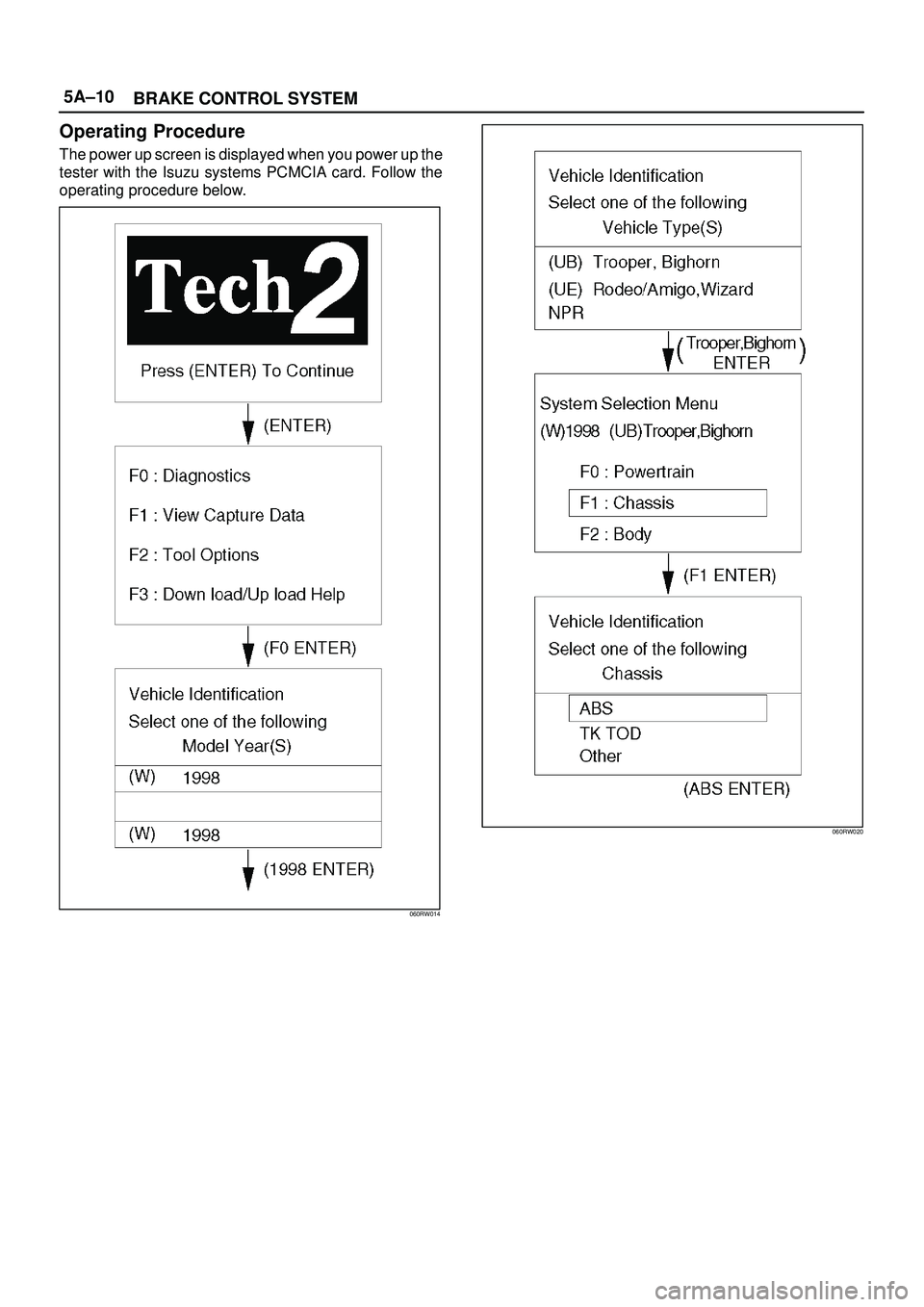

ISUZU TROOPER 1998 Service Repair Manual 5A±10 BRAKE CONTROL SYSTEM Operating Procedure The power up screen is displayed when you power up the tester with the Isuzu systems PCMCIA card. Follow the operating procedure below. 060RW014 060RW02

Page 821 of 3573

ISUZU TROOPER 1998 Service Repair Manual 5A±11 BRAKE CONTROL SYSTEM Data List DisplayContentOK/NG Criteria for Data Battery VoltageVoltageBetween 10-16.9V Brake Light SwitchOpen/CloseOpen(0V) when pedal is released Closed(12V) when pedal

Page 822 of 3573

ISUZU TROOPER 1998 Service Repair Manual 5A±12 BRAKE CONTROL SYSTEM EHCU Connector Pin-out Checks Disconnect Electronic Brake Control Module. Perform checks with high impedance digital multimeter (5-8840-0366-0) or equivalent. No. Circuit

Page 823 of 3573

ISUZU TROOPER 1998 Service Repair Manual 5A±13 BRAKE CONTROL SYSTEM Circuit Diagram (LHD model / 6VD1 and 4JG2) D08RW793

Page 824 of 3573

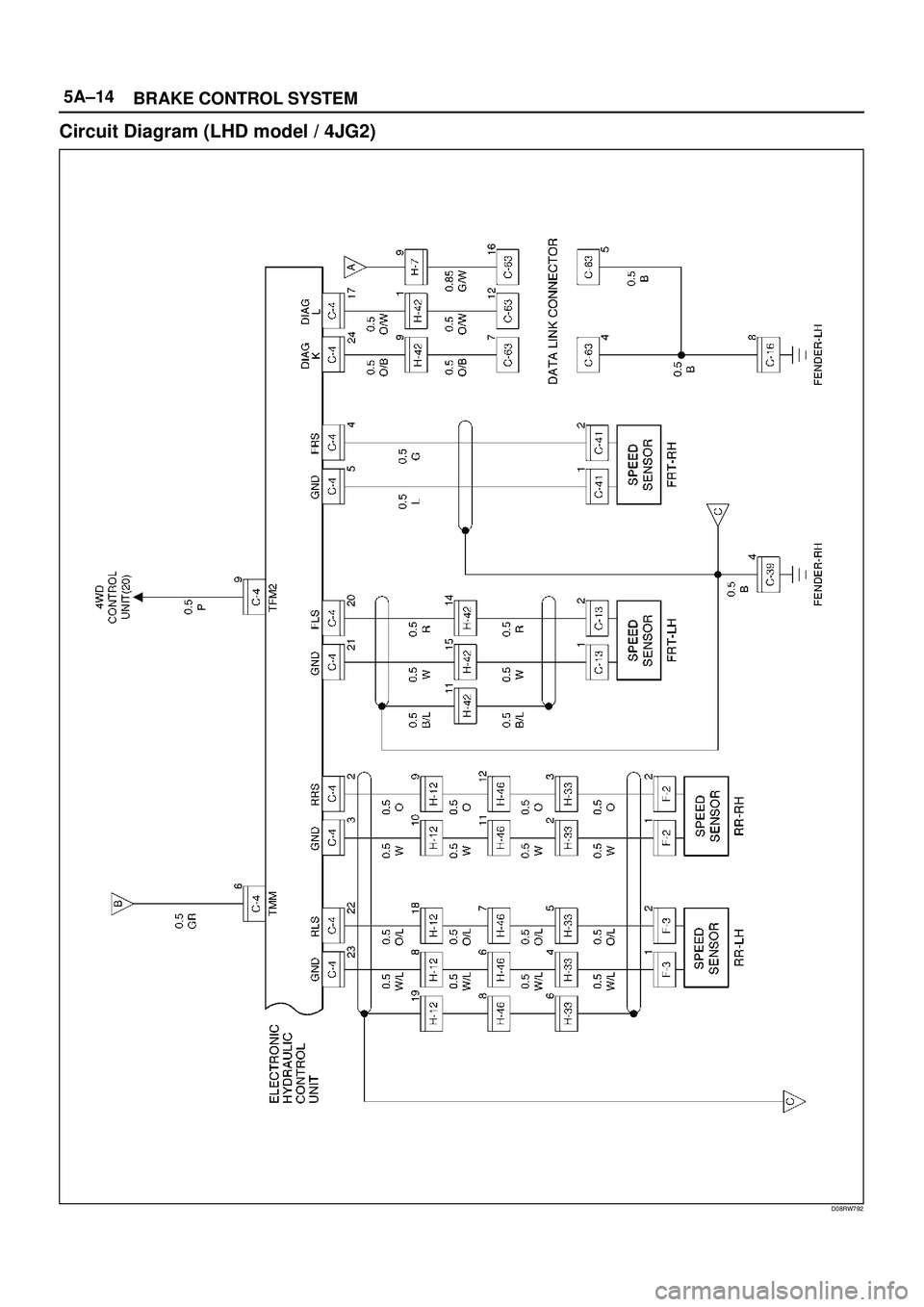

ISUZU TROOPER 1998 Service Repair Manual 5A±14 BRAKE CONTROL SYSTEM Circuit Diagram (LHD model / 4JG2) D08RW792
