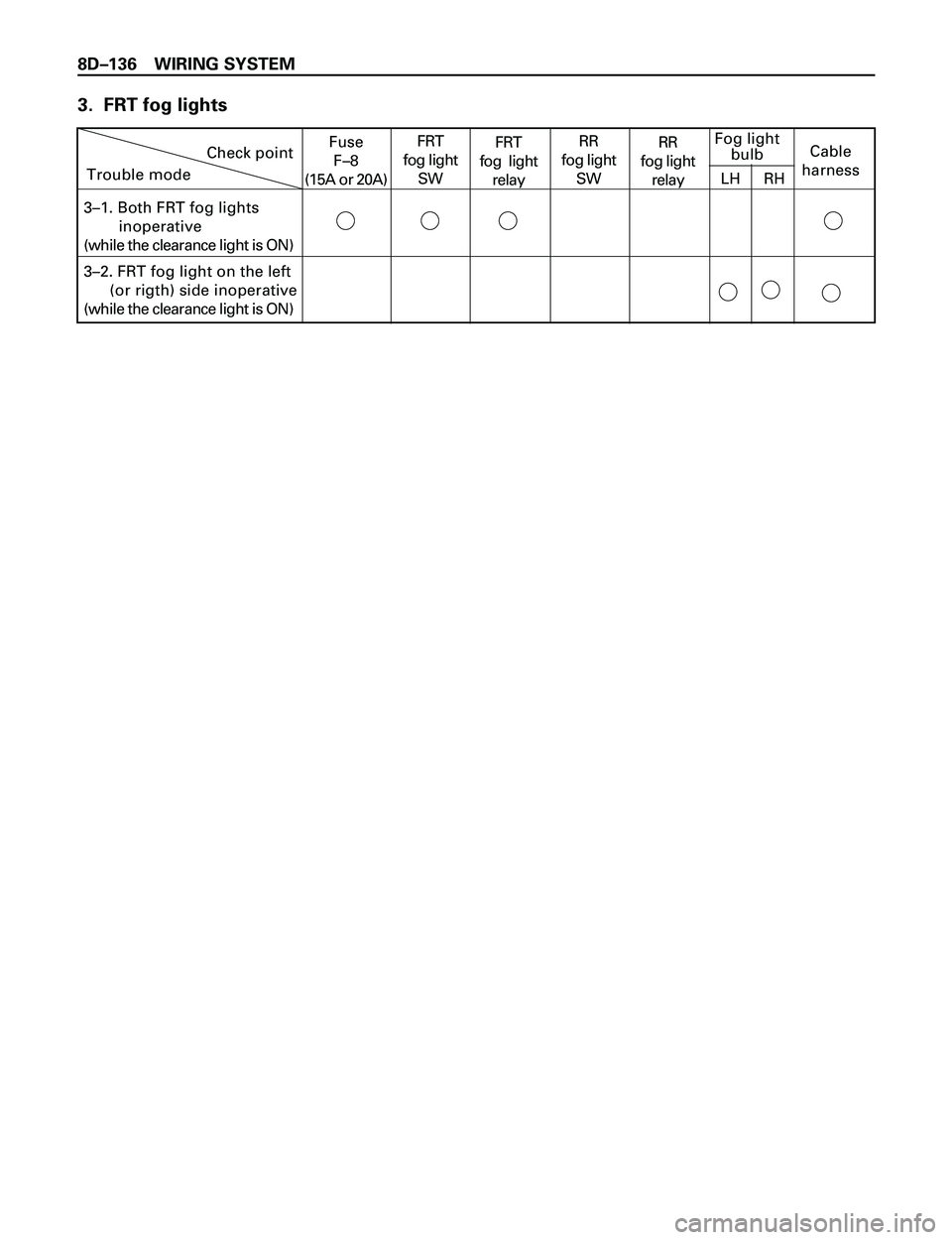

ISUZU TROOPER 1998 Service Repair Manual 8DÐ136 WIRING SYSTEM Check point Trouble modeFuse F–8 (15A or 20A)Cable harness Fog light bulb 3–1. Both FRT fog lights inoperative (while the clearance light is ON) 3–2. FRT fog light

Page 2730 of 3573

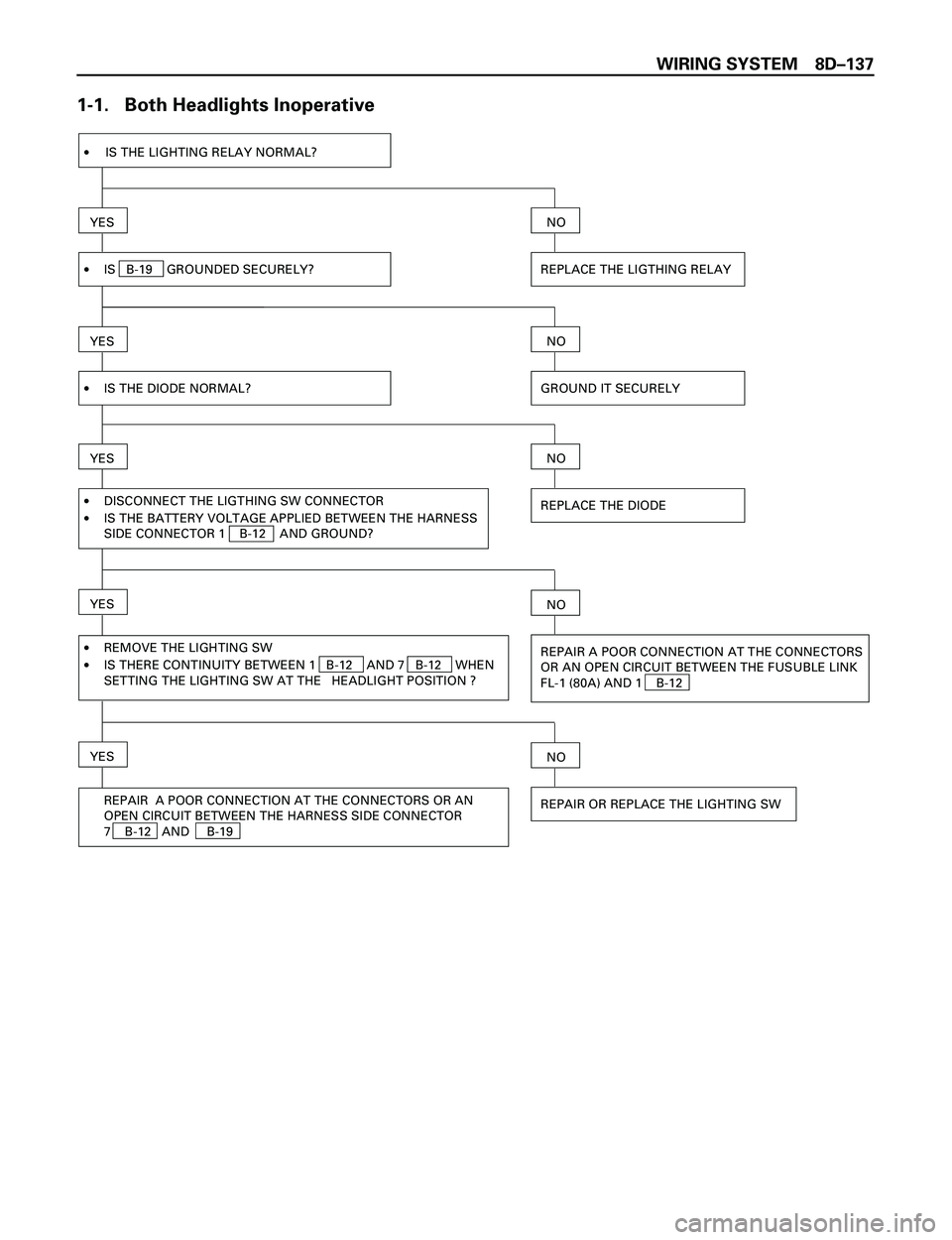

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ137 1-1. Both Headlights Inoperative ·IS THE LIGHTING RELAY NORMAL? YES ·IS B-19 GROUNDED SECURELY? YES REPLACE THE LIGTHING RELAY NO ·DISCONNECT THE LIGTHING SW CONNECTOR

Page 2731 of 3573

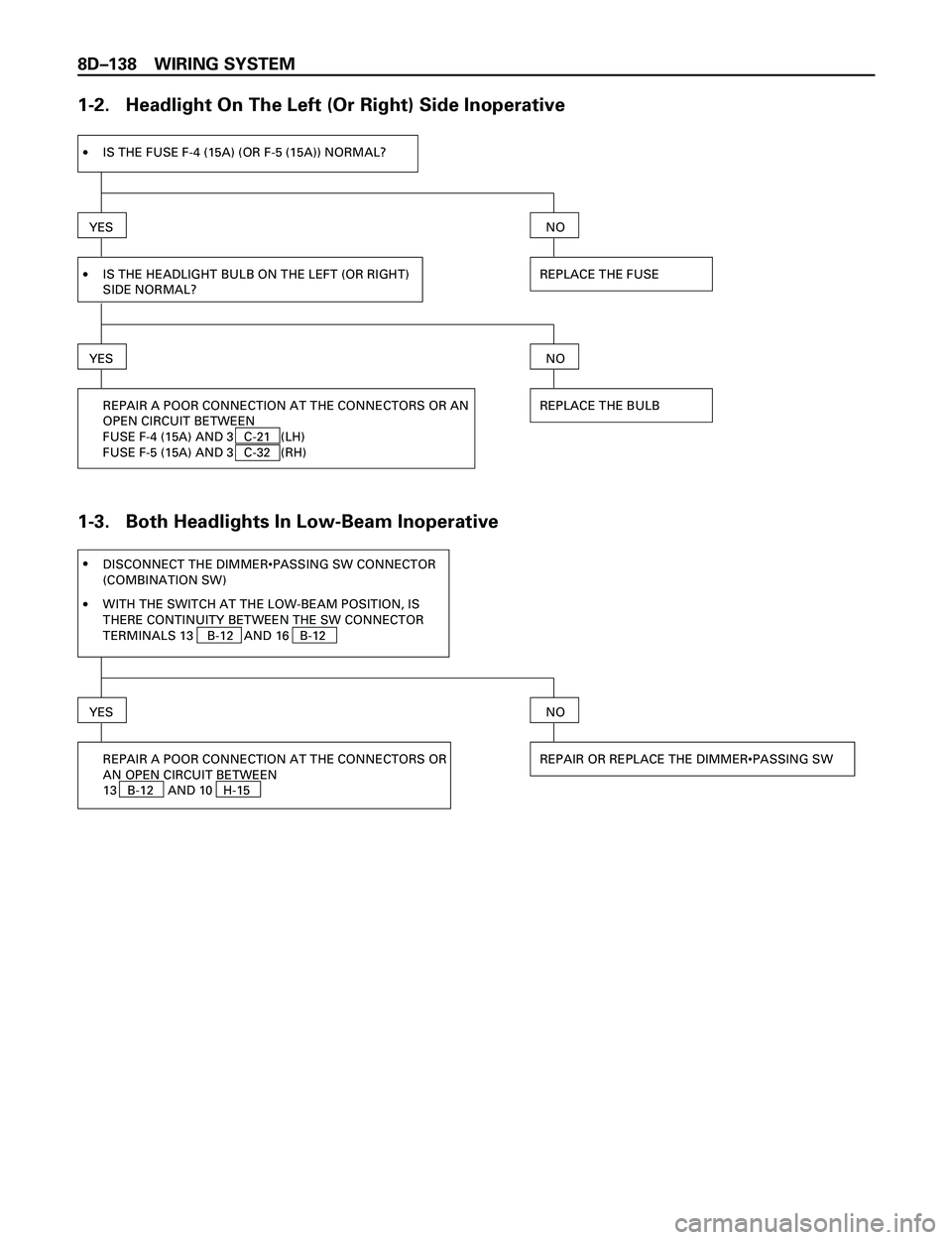

ISUZU TROOPER 1998 Service Repair Manual 8DÐ138 WIRING SYSTEM 1-2. Headlight On The Left (Or Right) Side Inoperative 1-3. Both Headlights In Low-Beam Inoperative YES ·IS THE HEADLIGHT BULB ON THE LEFT (OR RIGHT) SIDE NORMAL? YES REPLAC

Page 2732 of 3573

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ139 1Ð4. Headlight Low-Beam On The Left (Or Right) Side Inoperative ·IS THE HEADLIGHT BULB ON THE LEFT (OR RIGHT) SIDE NORMAL? YES ·IS THE FUSE F–4 (15A) (OR F–5 (15A)) NORM

Page 2733 of 3573

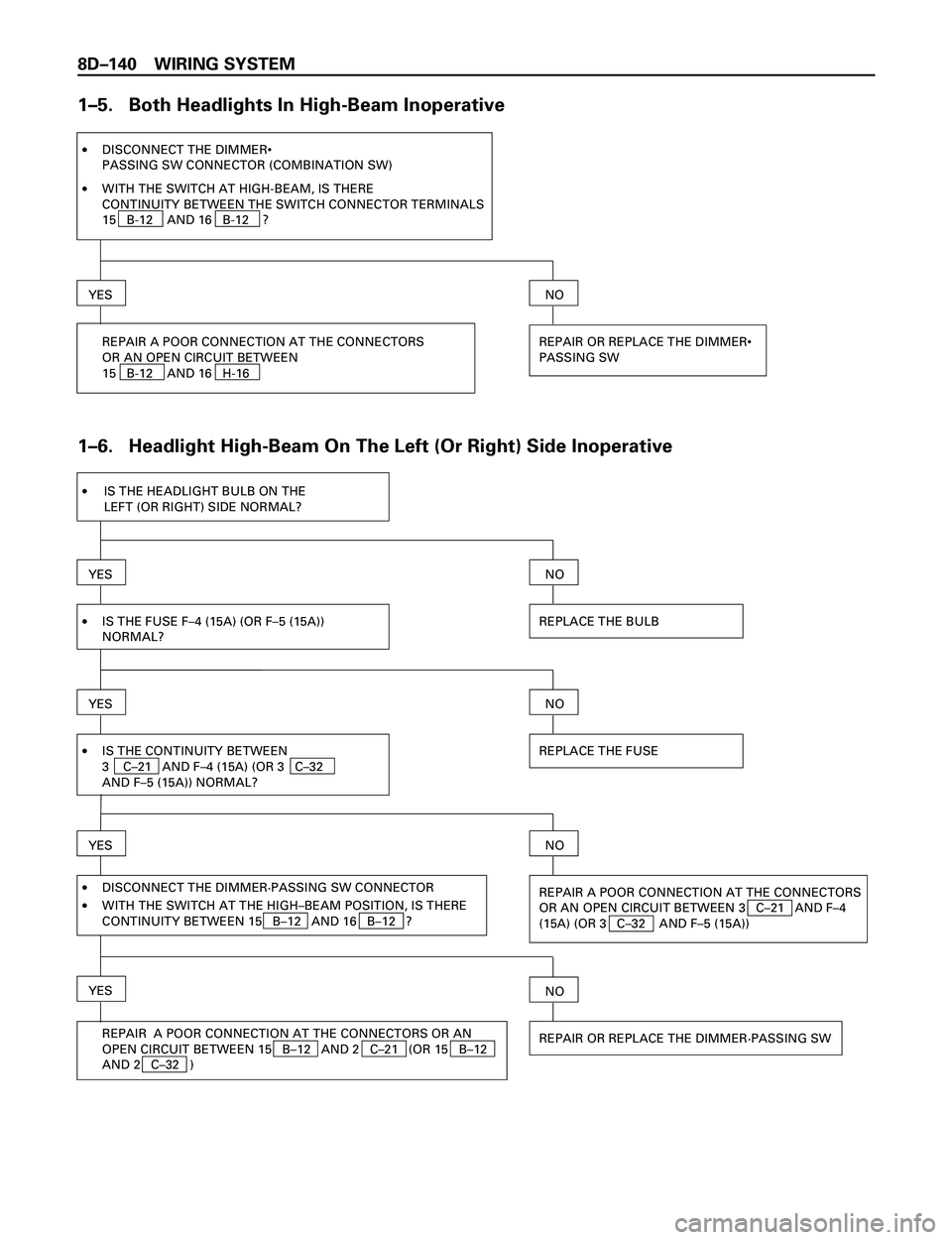

ISUZU TROOPER 1998 Service Repair Manual 8DÐ140 WIRING SYSTEM 1Ð5. Both Headlights In High-Beam Inoperative ·DISCONNECT THE DIMMER• PASSING SW CONNECTOR (COMBINATION SW) YES REPAIR A POOR CONNECTION AT THE CONNECTORS OR AN OPEN CIRCUI

Page 2734 of 3573

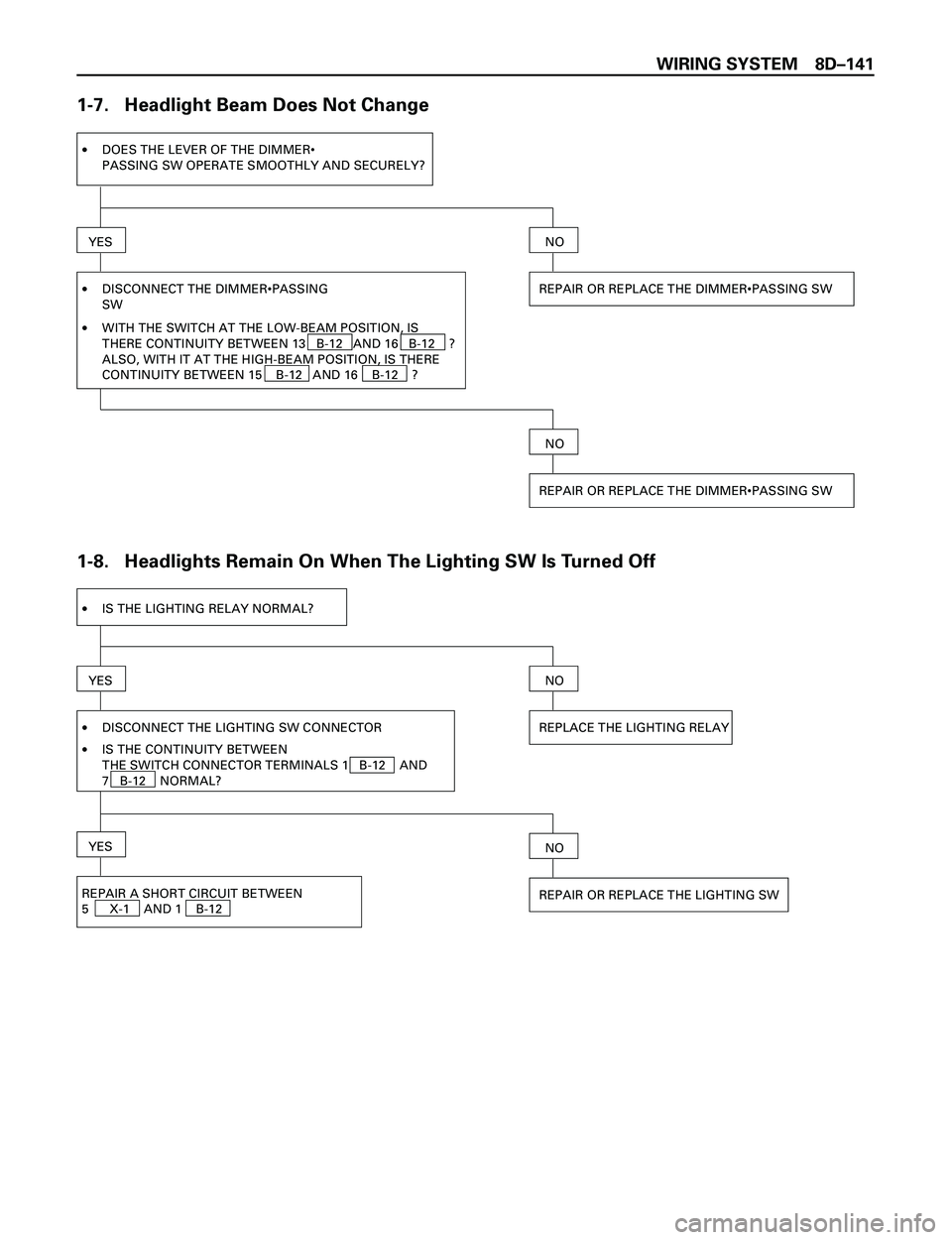

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ141 1-7. Headlight Beam Does Not Change 1-8. Headlights Remain On When The Lighting SW Is Turned Off YES ·DISCONNECT THE DIMMER•PASSING SWREPAIR OR REPLACE THE DIMMER•PASSIN

Page 2735 of 3573

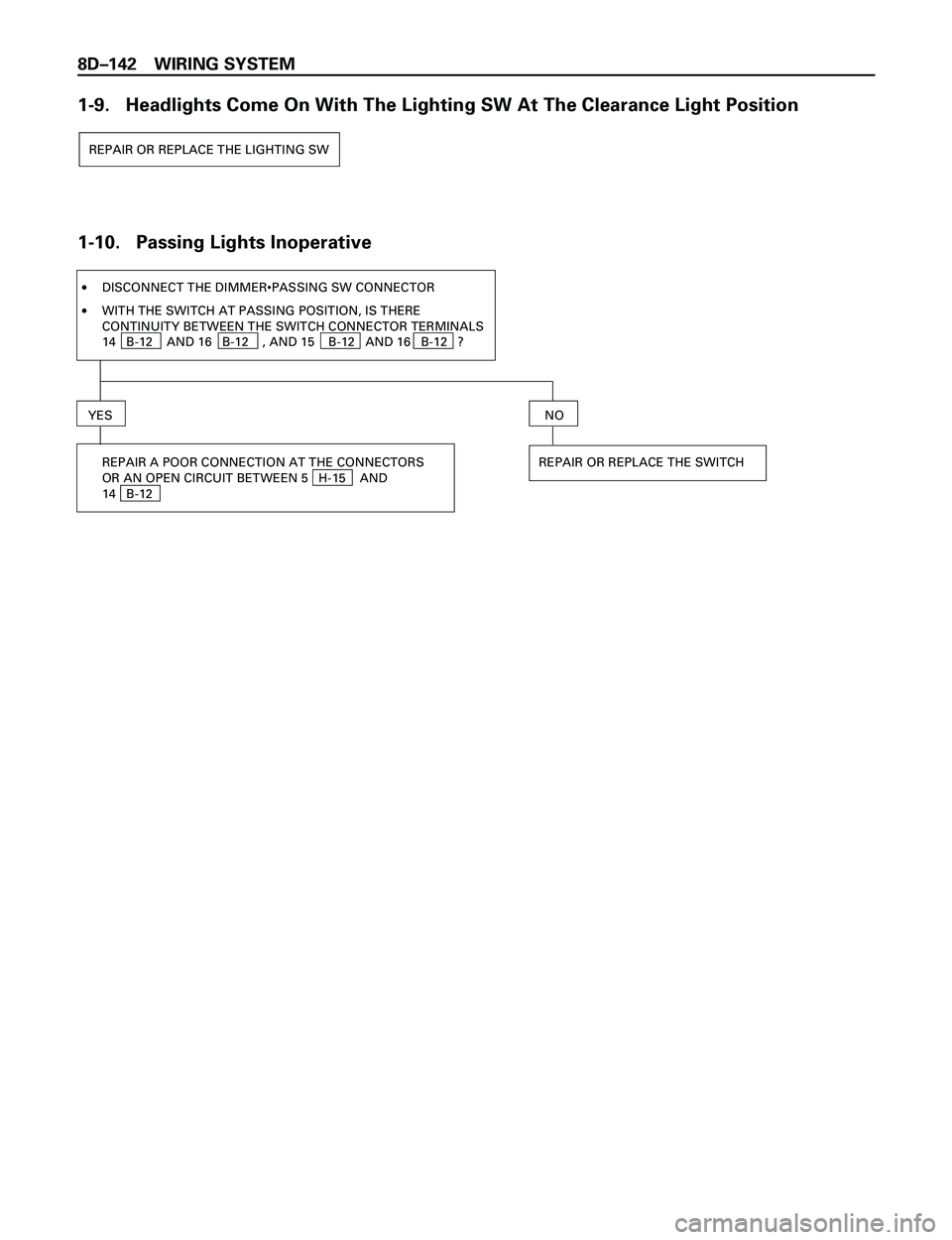

ISUZU TROOPER 1998 Service Repair Manual 8DÐ142 WIRING SYSTEM REPAIR OR REPLACE THE LIGHTING SW 1-10. Passing Lights Inoperative ·DISCONNECT THE DIMMER•PASSING SW CONNECTOR YES REPAIR A POOR CONNECTION AT THE CONNECTORS OR AN OPEN CIRC

Page 2736 of 3573

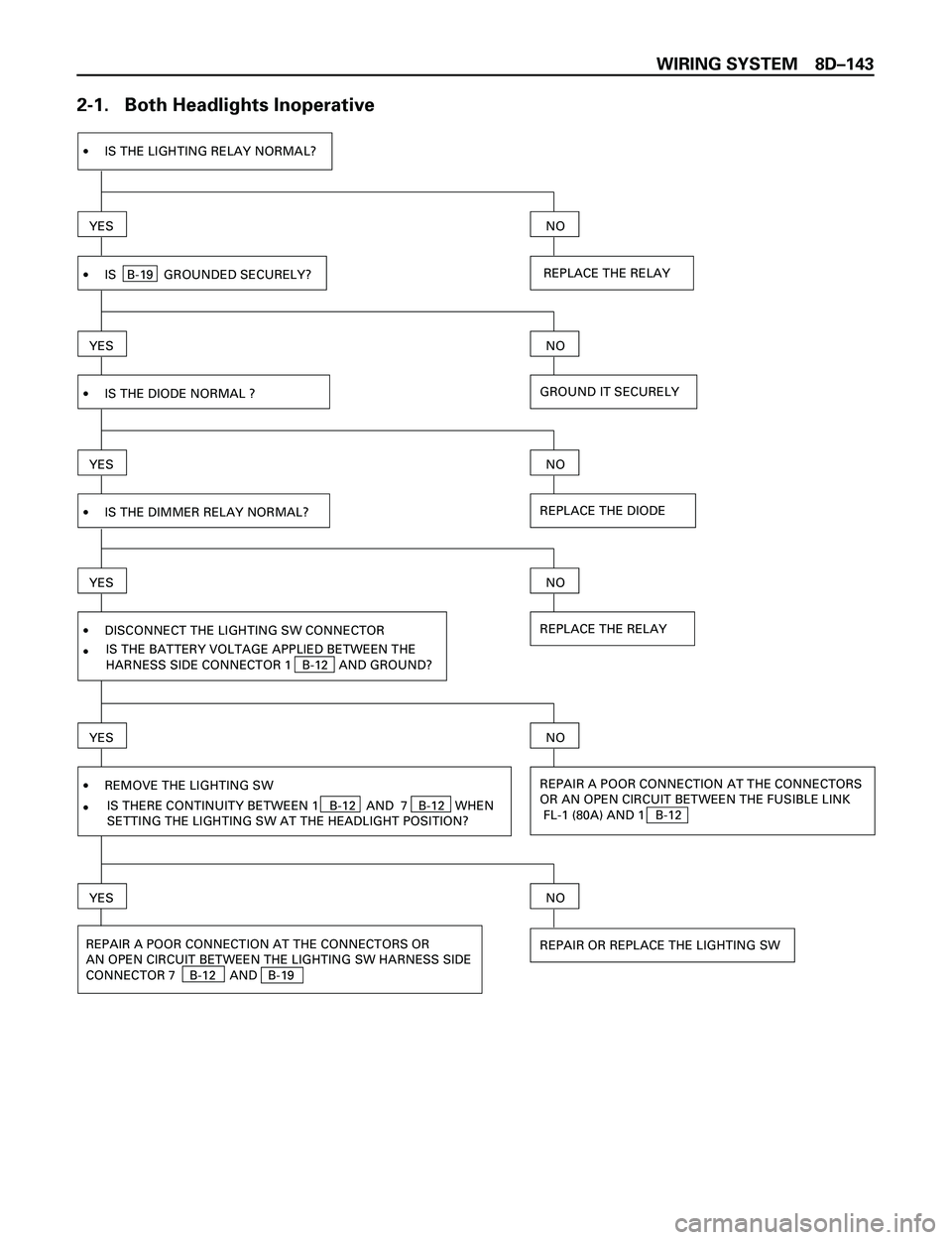

ISUZU TROOPER 1998 Service Repair Manual WIRING SYSTEM 8DÐ143 2-1. Both Headlights Inoperative ·IS THE LIGHTING RELAY NORMAL? YES REPLACE THE RELAY NO ·IS B-19 GROUNDED SECURELY? YESNO GROUND IT SECURELY·IS THE DIODE NORMAL ? YESN
