Page 4233 of 4462

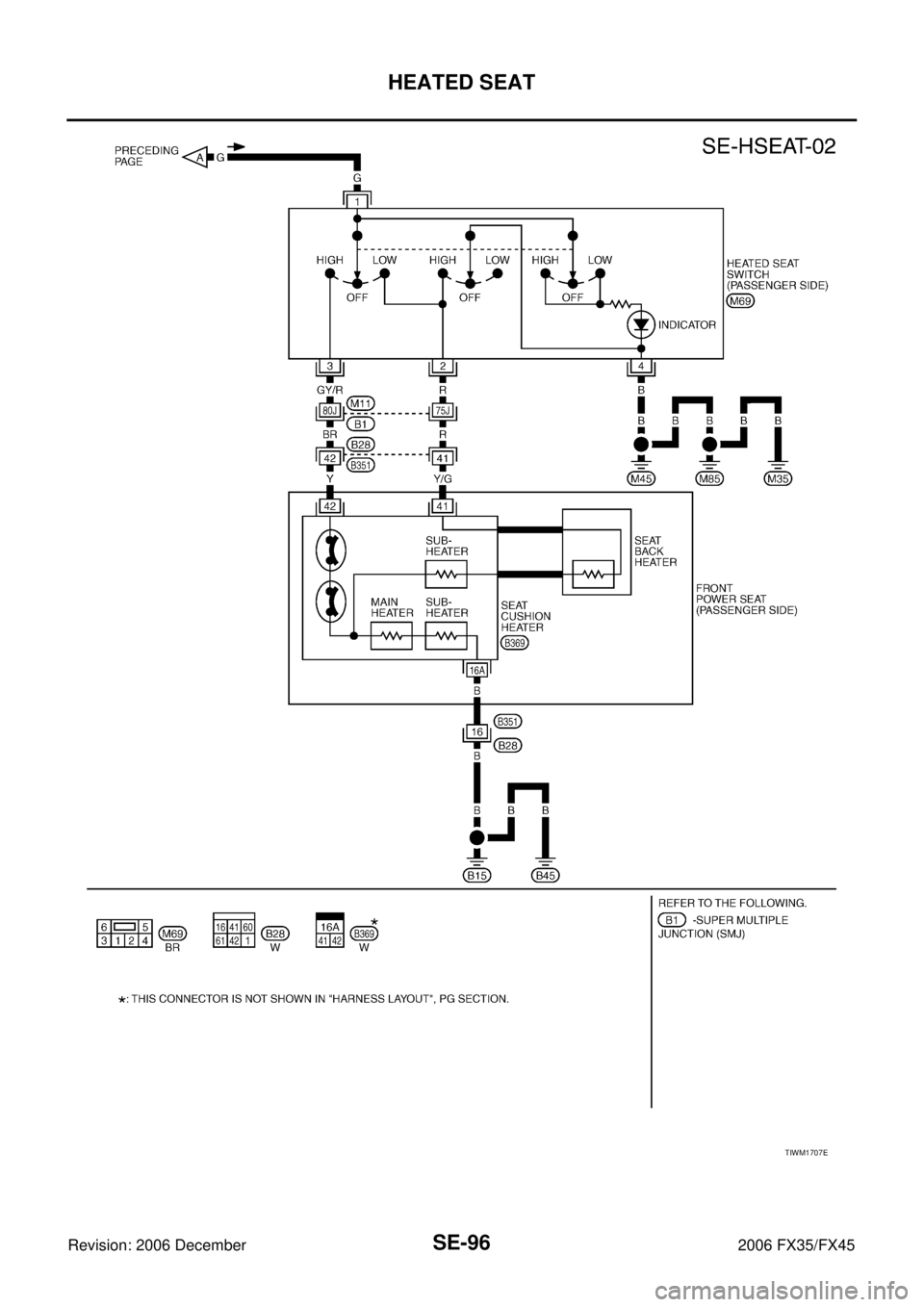

INFINITI FX35 2006 Service Manual HEATED SEAT SE-95 C D E F G H J K L M A B SE Revision: 2006 December 2006 FX35/FX45 Wiring Diagram — HSEAT —NIS001W6 TIWM1706E

Page 4234 of 4462

INFINITI FX35 2006 Service Manual SE-96 HEATED SEAT Revision: 2006 December 2006 FX35/FX45 TIWM1707E

Page 4235 of 4462

INFINITI FX35 2006 Service Manual FRONT SEAT SE-97 C D E F G H J K L M A B SE Revision: 2006 December 2006 FX35/FX45 FRONT SEATPFP:87000 Removal and InstallationNIS001W7 CAUTION: Do not disassembly the component parts of

Page 4236 of 4462

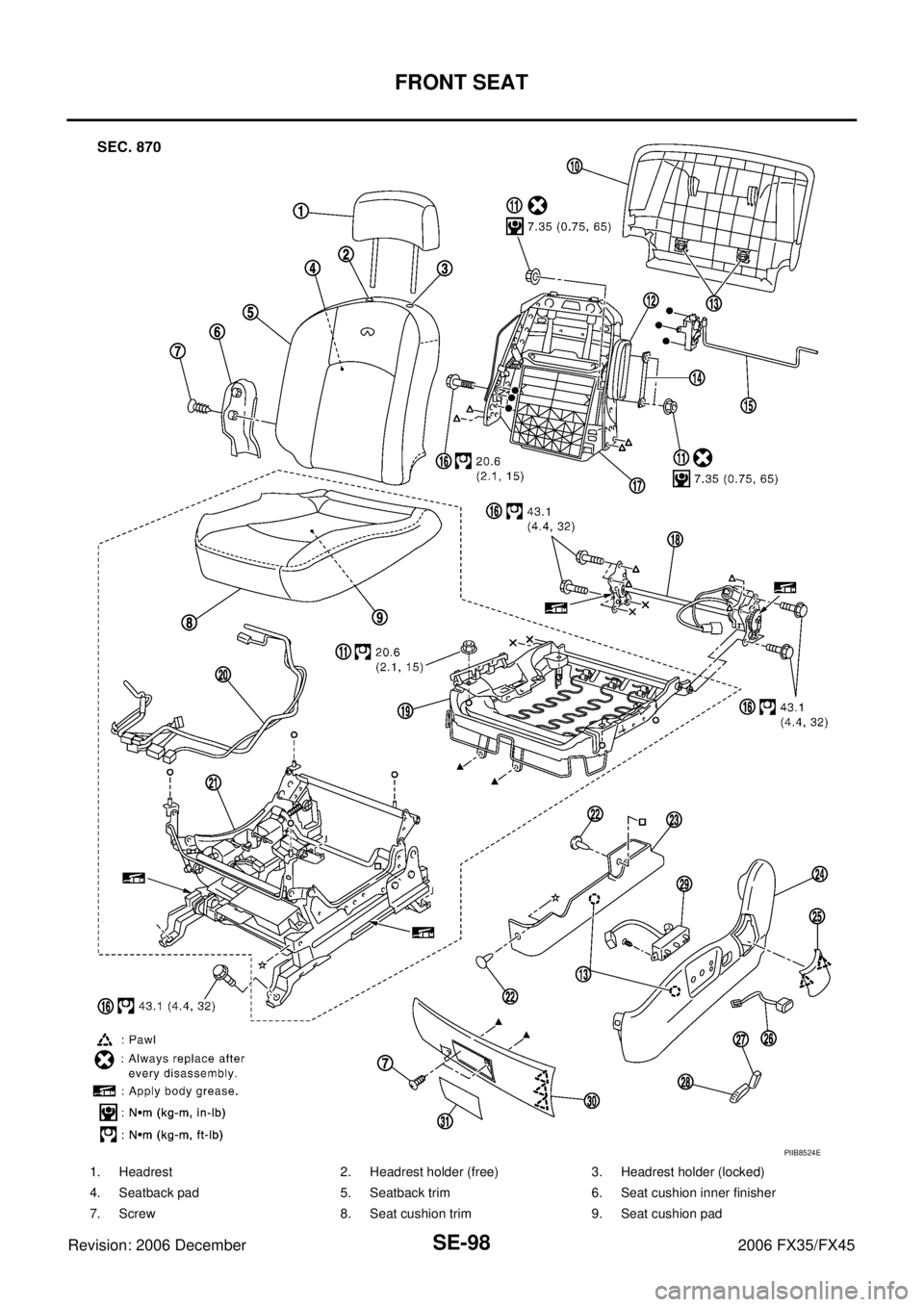

INFINITI FX35 2006 Service Manual SE-98 FRONT SEAT Revision: 2006 December 2006 FX35/FX45 1. Headrest 2. Headrest holder (free) 3. Headrest holder (locked) 4. Seatback pad 5. Seatback trim 6. Seat cushion inner finisher 7. Screw 8. S

Page 4237 of 4462

INFINITI FX35 2006 Service Manual FRONT SEAT SE-99 C D E F G H J K L M A B SE Revision: 2006 December 2006 FX35/FX45 10. Seatback garnish 11. Nut 12. Side air bag module 13. Clip (C101) 14. Inner cloth stay 15. Lumber sup

Page 4238 of 4462

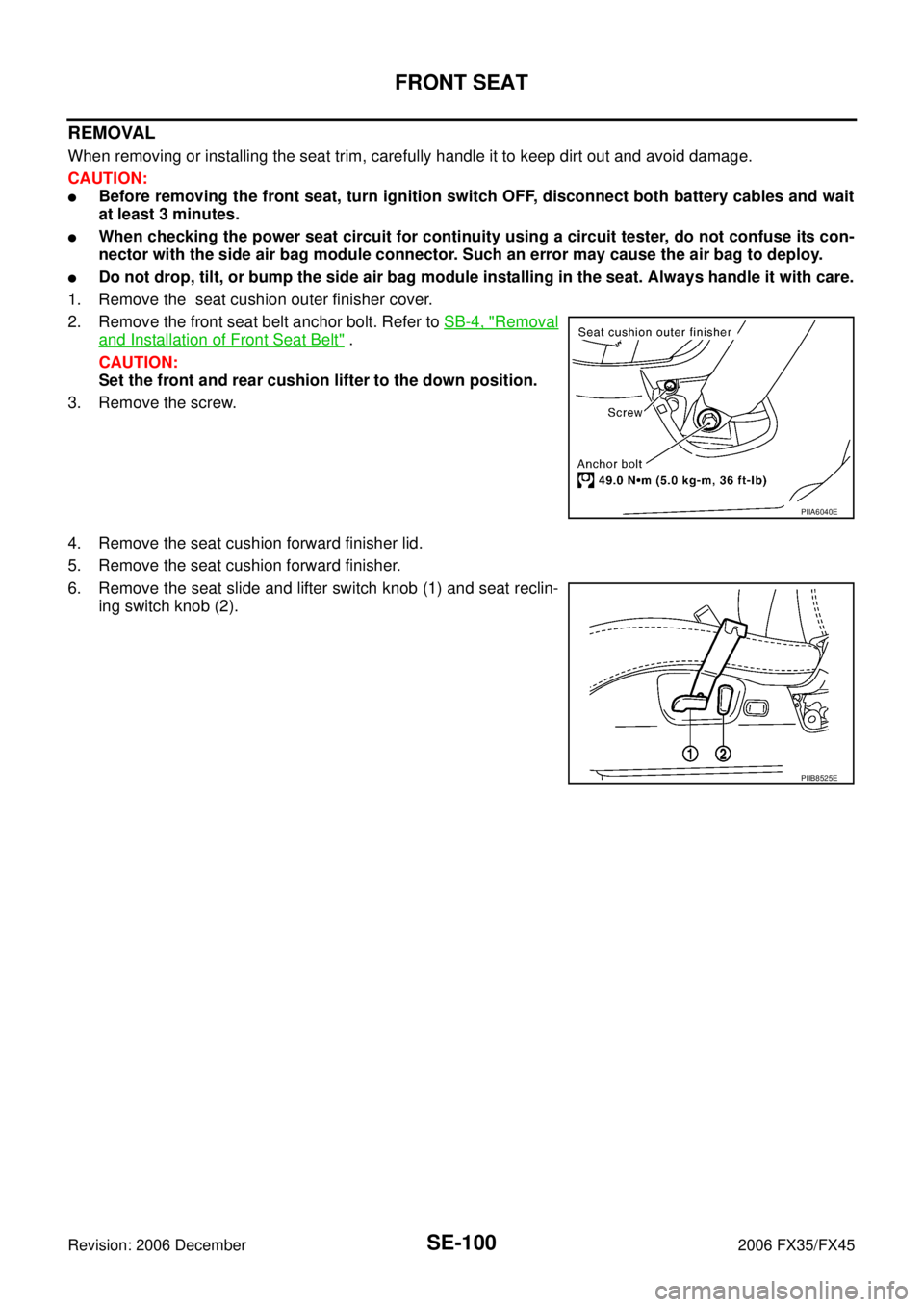

INFINITI FX35 2006 Service Manual SE-100 FRONT SEAT Revision: 2006 December 2006 FX35/FX45 REMOVAL When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage. CAUTION: Before removing the front

Page 4239 of 4462

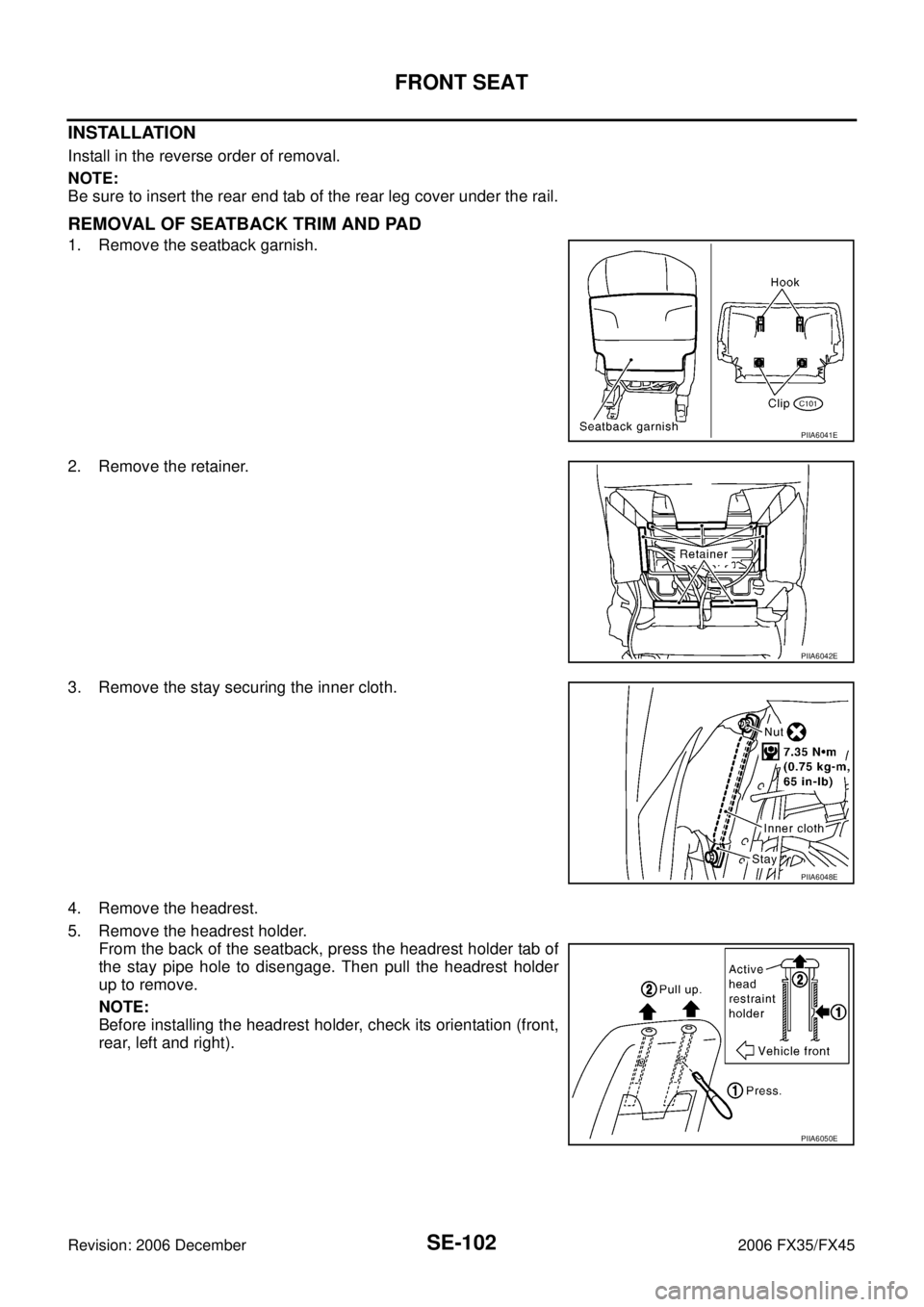

INFINITI FX35 2006 Service Manual FRONT SEAT SE-101 C D E F G H J K L M A B SE Revision: 2006 December 2006 FX35/FX45 7. Remove the seat cushion outer finisher. 8. Remove the seat control switch assembly. 9. Remove the l

Page 4240 of 4462

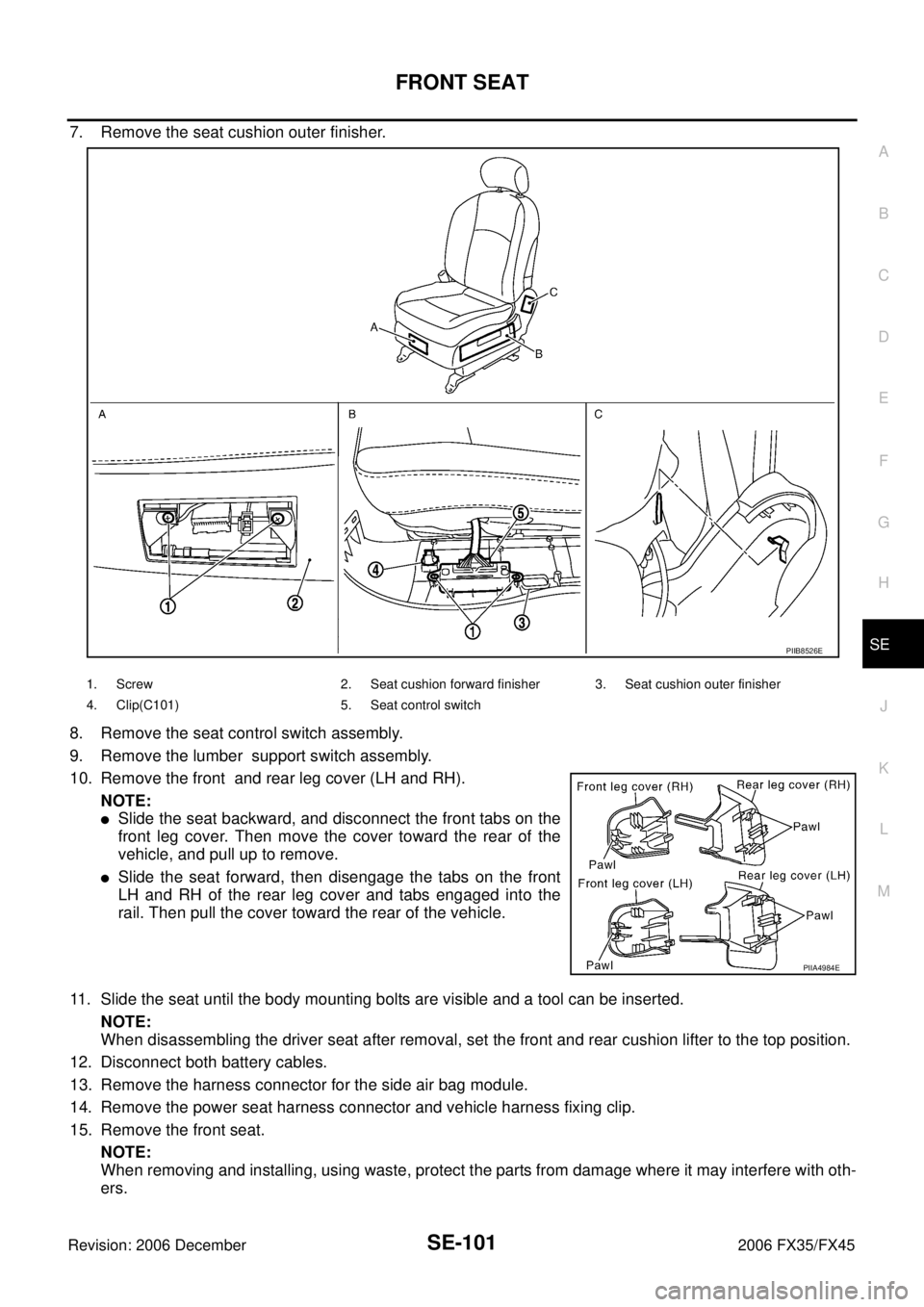

INFINITI FX35 2006 Service Manual SE-102 FRONT SEAT Revision: 2006 December 2006 FX35/FX45 INSTALLATION Install in the reverse order of removal. NOTE: Be sure to insert the rear end tab of the rear leg cover under the rail. REMOVAL
