INFINITI FX35 2006 Service Manual SMJ (SUPER MULTIPLE JUNCTION) PG-77
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2006 December 2006 FX35/FX45
SMJ (SUPER MULTIPLE JUNCTION)PFP:B4341

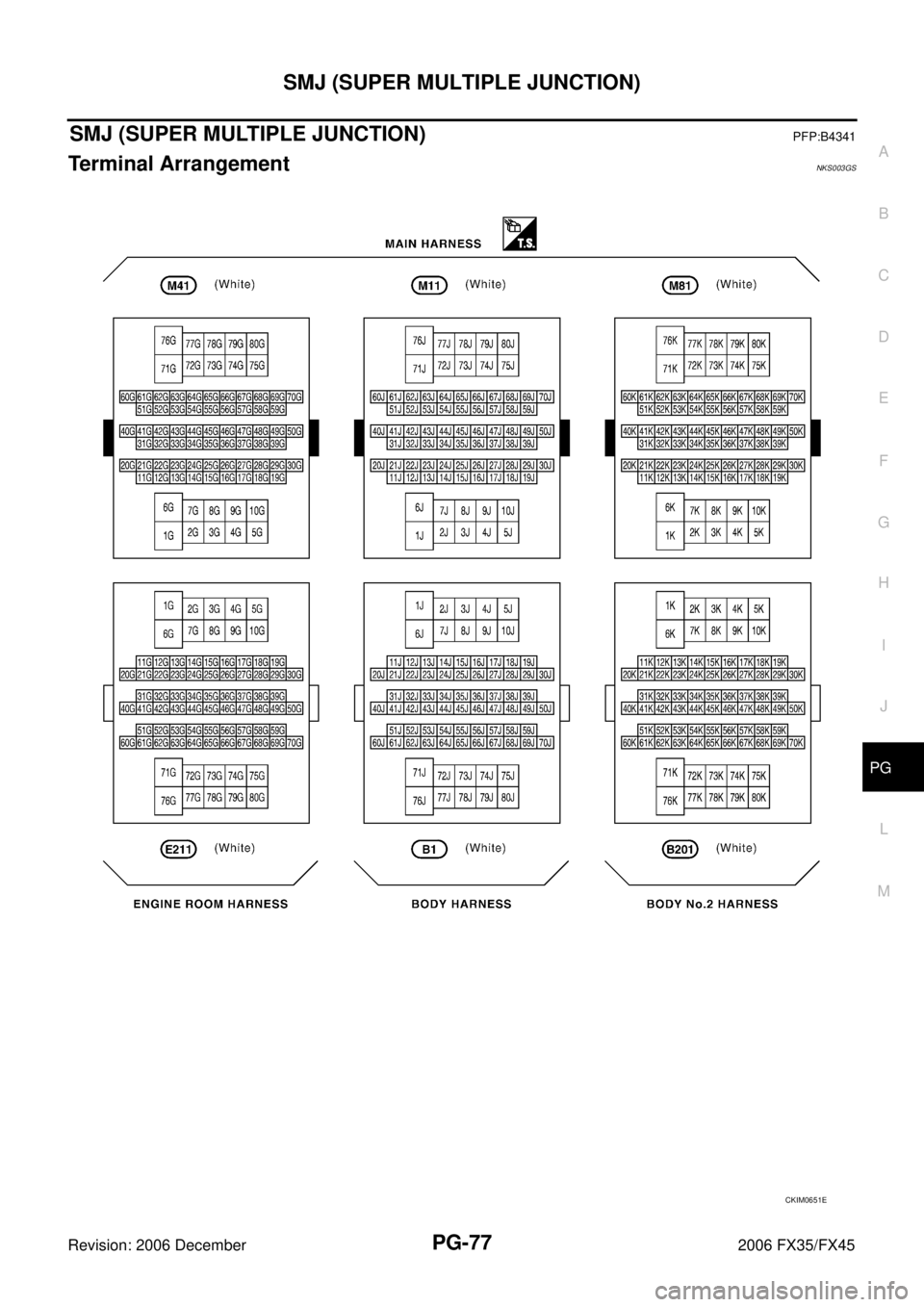

Terminal ArrangementNKS003GS
CKIM0651E

Page 3930 of 4462

INFINITI FX35 2006 Service Manual PG-78
SMJ (SUPER MULTIPLE JUNCTION)
Revision: 2006 December 2006 FX35/FX45

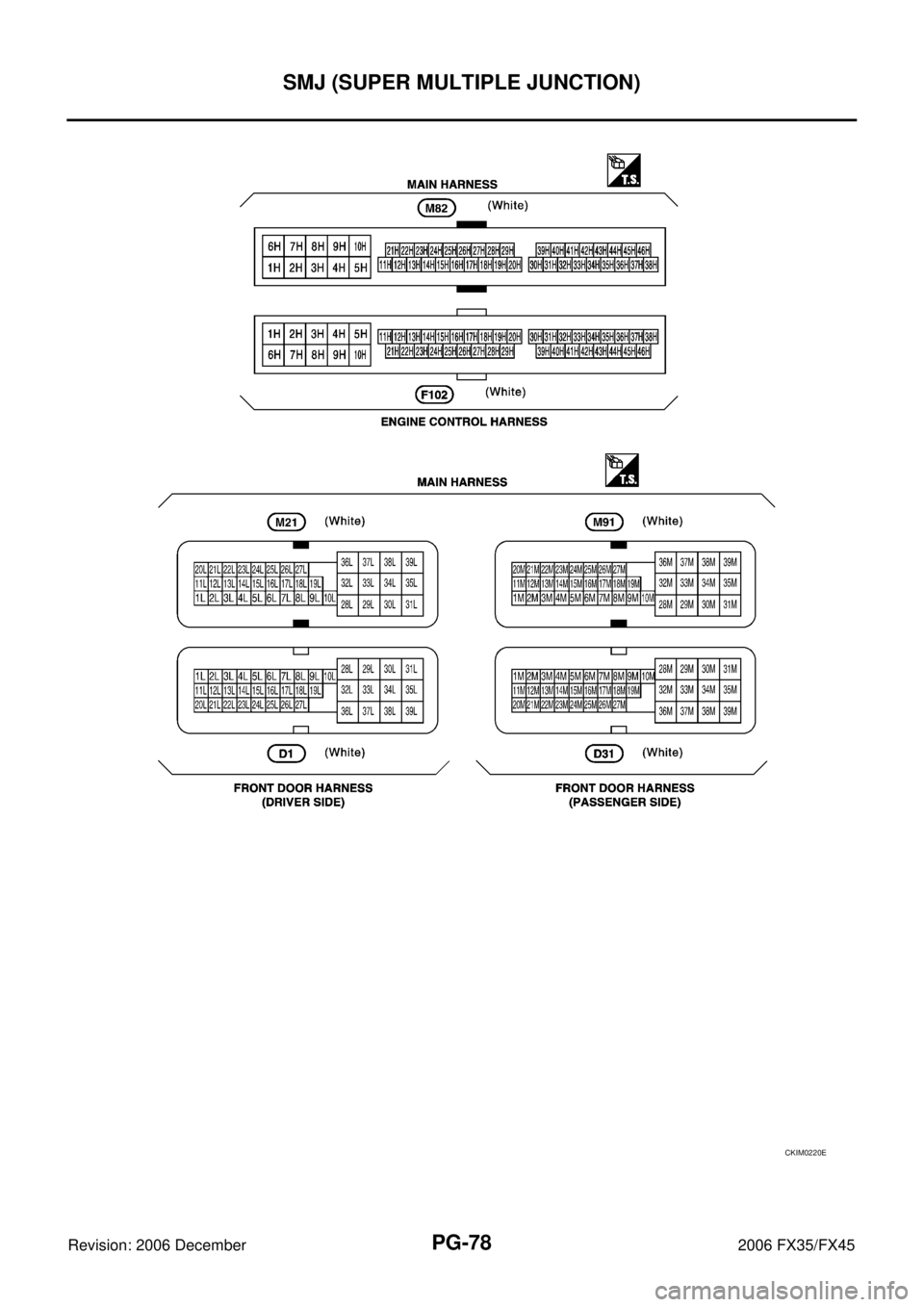

CKIM0220E

Page 3931 of 4462

INFINITI FX35 2006 Service Manual STANDARDIZED RELAY PG-79
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2006 December 2006 FX35/FX45
STANDARDIZED RELAY PFP:00011
Description NKS003GT

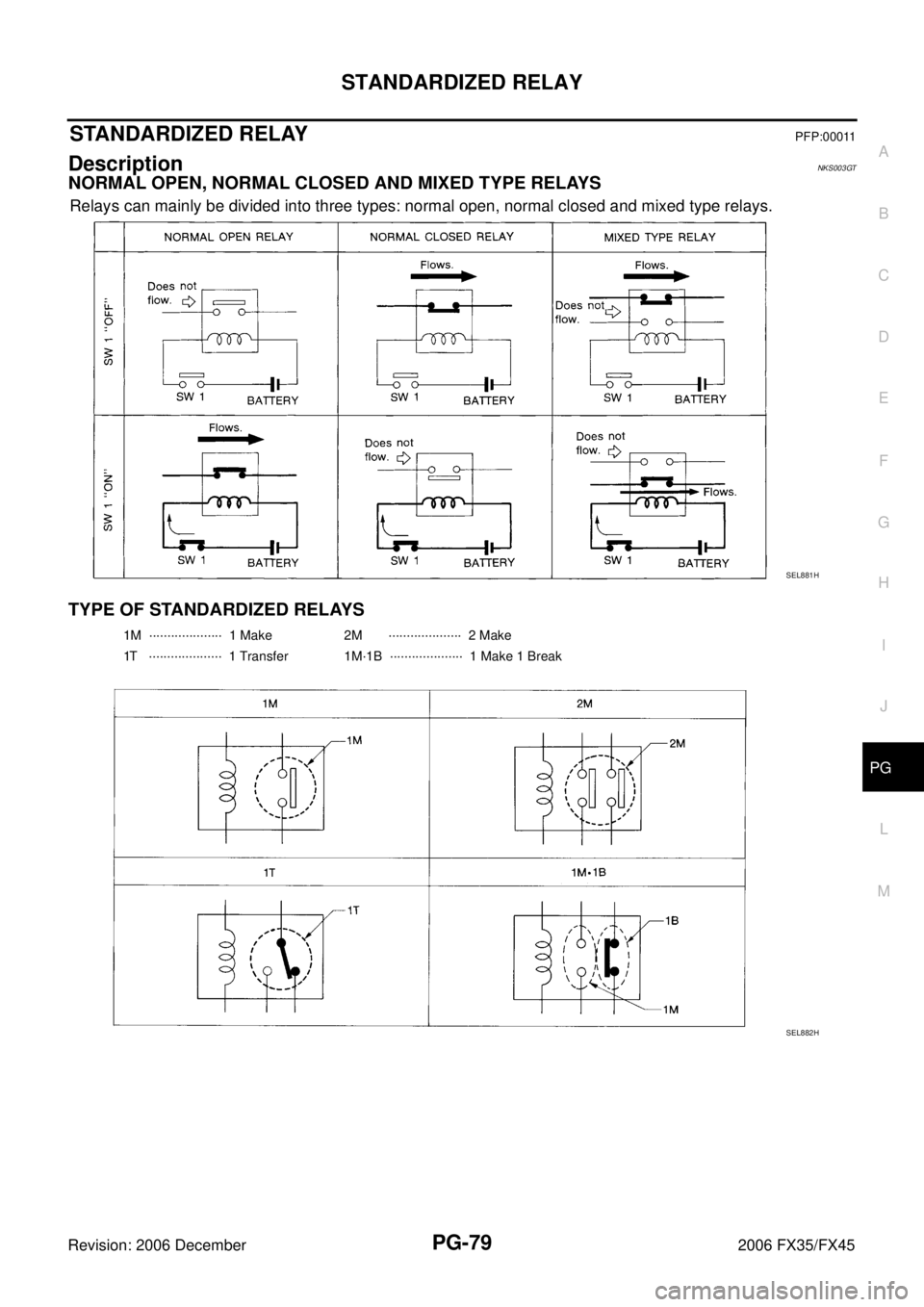

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAY

Page 3932 of 4462

INFINITI FX35 2006 Service Manual PG-80
STANDARDIZED RELAY
Revision: 2006 December 2006 FX35/FX45

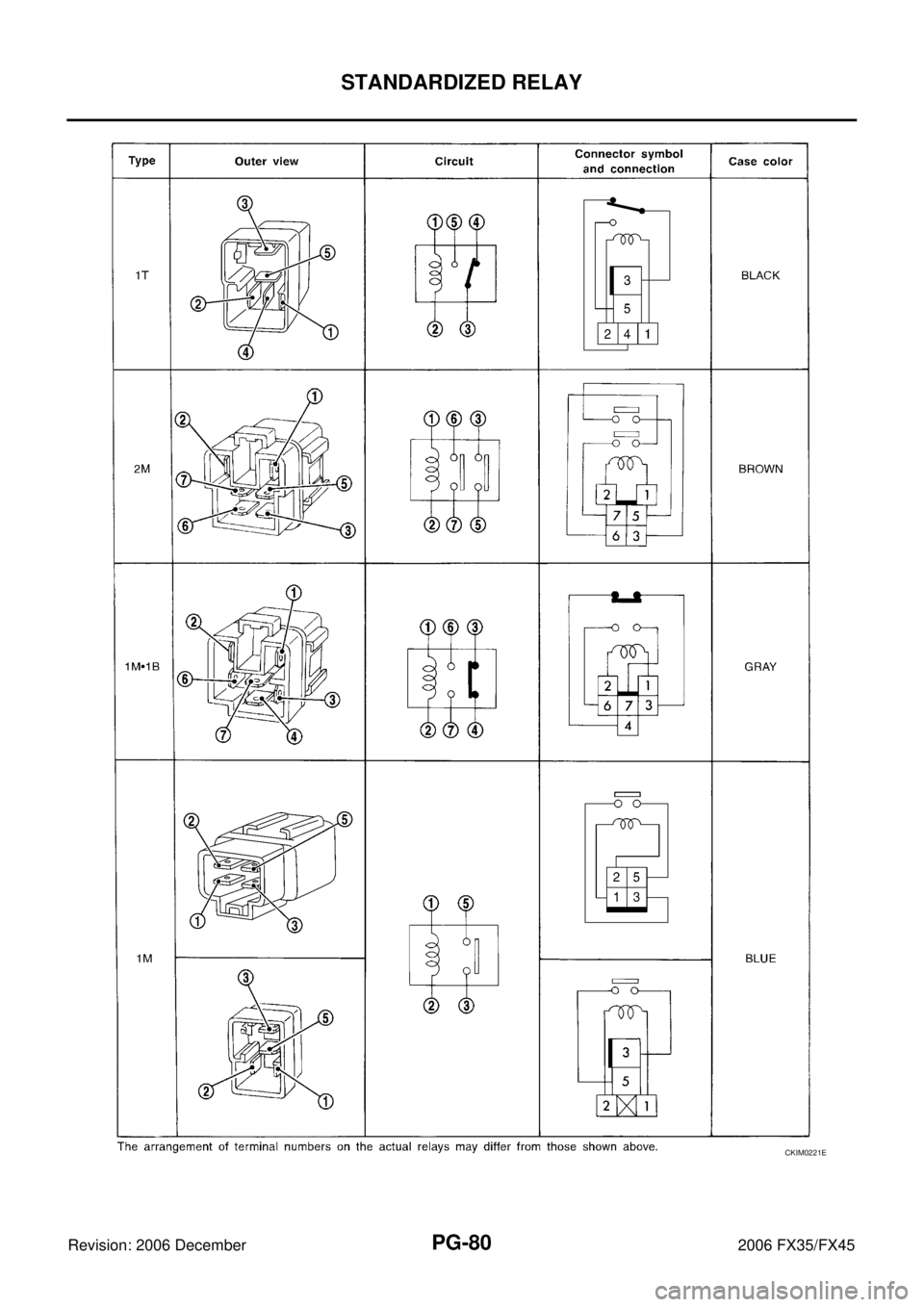

CKIM0221E

Page 3933 of 4462

INFINITI FX35 2006 Service Manual FUSE BLOCK - JUNCTION BOX (J/B) PG-81
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2006 December 2006 FX35/FX45
FUSE BLOCK - JUNCTION BOX (J/B)PFP:24350
Terminal ArrangementNKS003GU
CKIM0652E

Page 3934 of 4462

INFINITI FX35 2006 Service Manual PG-82

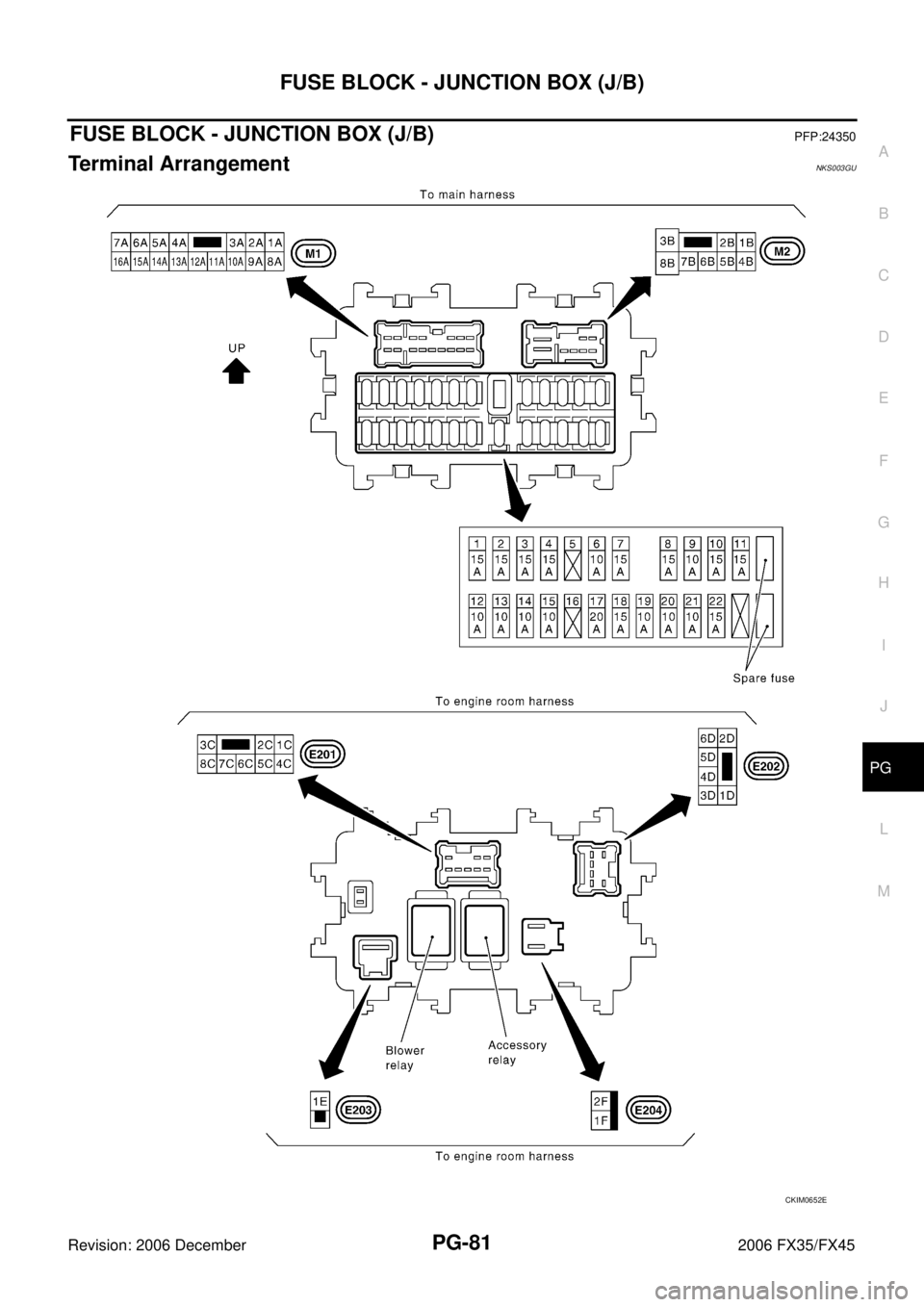

FUSE, FUSIBLE LINK AND RELAY BOX
Revision: 2006 December 2006 FX35/FX45
FUSE, FUSIBLE LINK AND RELAY BOXPFP:24382
Terminal ArrangementNKS003GV

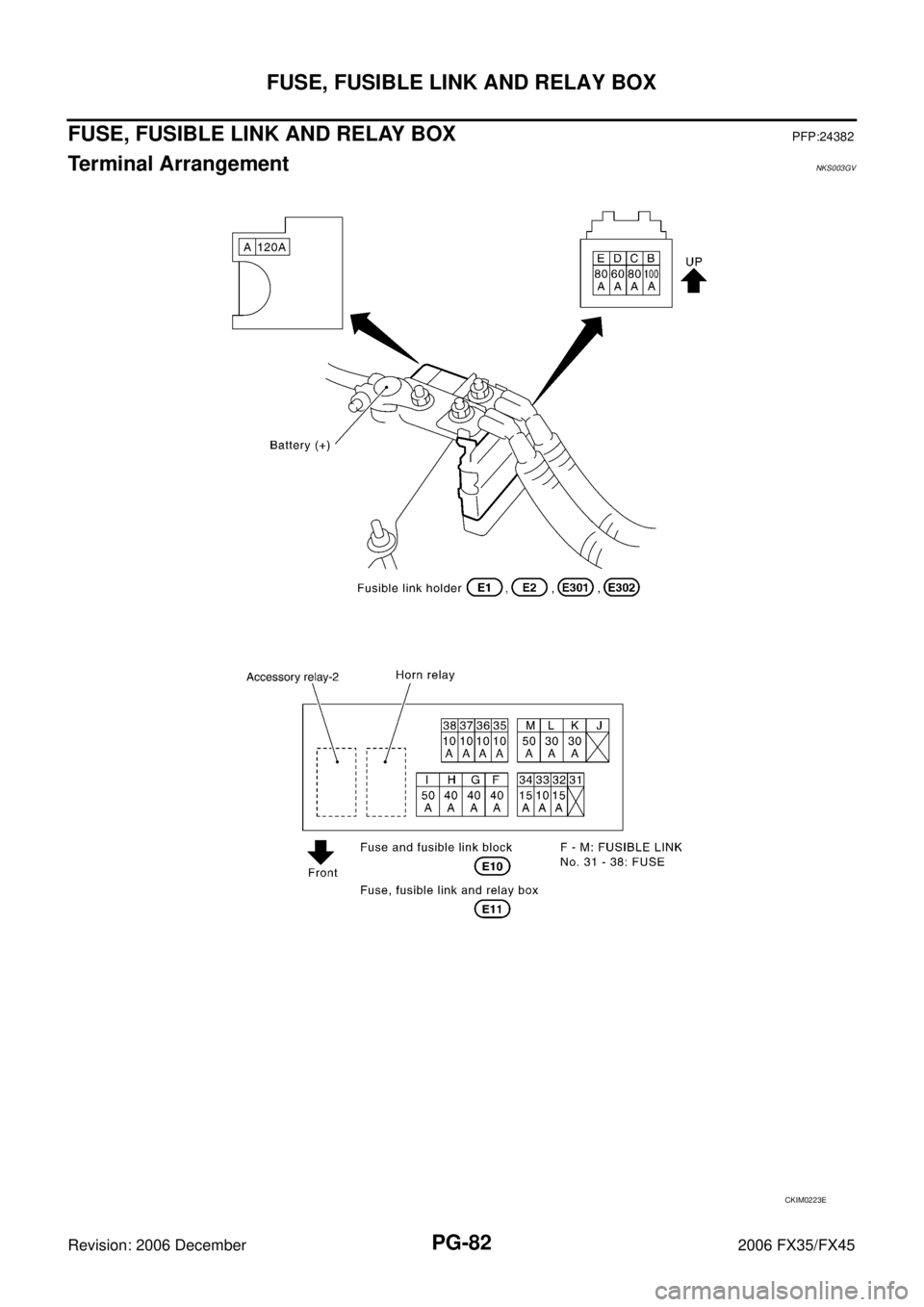

CKIM0223E

Page 3935 of 4462

INFINITI FX35 2006 Service Manual PR-1
PROPELLER SHAFT
D DRIVELINE/AXLE
CONTENTS
C E F
G H
I
J
K L
M
SECTION PR
A
B
PR
Revision: 2006 December 2006 FX35/FX45
PROPELLER SHAFT
PREPARATION .....................................

PR-1
PROPELLER SHAFT
D DRIVELINE/AXLE
CONTENTS
C E F
G H
I
J
K L
M
SECTION PR
A
B
PR
Revision: 2006 December 2006 FX35/FX45
PROPELLER SHAFT
PREPARATION ...................................................... ..... 2
Special Service Tools .......................................... ..... 2
Commercial Service Tools ................................... ..... 2
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 3
NVH Troubleshooting Chart ................................ ..... 3
FRONT PROPELLER SHAFT ............................... ..... 4
On-Vehicle Inspection ......................................... ..... 4
APPEARANCE AND NOISE INSPECTION ..... ..... 4
PROPELLER SHAFT VIBRATION ................... ..... 4
Components ........................................................ ..... 4
Removal and Installation ..................................... ..... 5
REMOVAL ........................................................ ..... 5
INSPECTION ................................................... ..... 5
INSTALLATION ................................................ ..... 6
REAR PROPELLER SHAFT ................................. ..... 7
On-Vehicle Inspection ......................................... ..... 7 APPEARANCE AND NOISE INSPECTION .....
..... 7
PROPELLER SHAFT VIBRATION ................... ..... 7
Components ........................................................ ..... 8
Removal and Installation ..................................... ..... 9
REMOVAL ........................................................ ..... 9
INSPECTION ................................................... ... 10
INSTALLATION ................................................ ... 11
Disassembly and Assembly of Center Bearing ... ... 12
DISASSEMBLY ................................................ ... 12
ASSEMBLY ...................................................... ... 13
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 14
General Specifications ......................................... ... 14
2WD MODELS ................................................. ... 14
AWD MODELS ................................................. ... 14
Journal Axal Play ................................................. ... 14
Propeller Shaft Runout ........................................ ... 14

Page 3936 of 4462

INFINITI FX35 2006 Service Manual PR-2
PREPARATION
Revision: 2006 December 2006 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNDS000AQ
The actual shapes of Kent-Moore tools may differ from those of special service tools illustra
