UNIFIED METER AND A/C AMP DI-31
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
CONSULT-II Function (METER A/C AMP)NKS00304
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II BASIC OPERATION
Refer to GI-38, "CONSULT-II Start Procedure" .
SELF-DIAG RESULTS
Operation Procedure
1. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
2. Self-diagnosis results are displayed.
Display Item List
NOTE:
“TIME” means the following.
0: Means detected malfunction at present. (From malfunction detection to turning ignition switch OFF)
1 - 63: Means detected malfunction in the past. (Displays the number of ignition switch OFF → ON after
detecting malfunction. “SELF-DIAG RESULTS” is erased when exceeding “63”.)
System Diagnosis mode Description Reference
page
METER A/C AMP SELF-DIAG RESULTS
Unified meter and A/C amp. checks the conditions and dis-
plays memorized error. DI-31
CAN DIAG SUPPORT MNTR The results of transmit/receive diagnosis of CAN communi-
cation can be read. LAN-16
DATA MONITOR
Displays unified meter and A/C amp. input data in real
time. DI-32
SKIA4956E
Display item [Code] Malfunction is detected when...
Reference
page
CAN COMM CIRC [U1000] Malfunction is detected in CAN communication.
CAUTION:
Even when there is no malfunction on CAN communication system, malfunction
may be misinterpreted when battery has low voltage (when maintaining 7 - 8 V
for about 2 seconds) or 10A fuse [No. 19, located in the fuse block (J/B)] is dis-
connected. DI-34
METER COMM CIRC [B2202]
Malfunction is detected in communication of between combination meter and unified
meter and A/C amp. DI-34
VEHICLE SPEED CIRC [B2205] When an erroneous speed signal is input for 1 second.
CAUTION:
Even when there is no malfunction on speed signal system, malfunction may be
misinterpreted when battery has low voltage (when maintaining 7 - 8 V for about
2 seconds). DI-37
Page 1282 of 4462

DI-32
UNIFIED METER AND A/C AMP
Revision: 2006 December 2006 FX35/FX45
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch either “MAIN SIGNALS” or “SELECTION FROM MENU” on the “DATA MONITOR” screen.
3. When “SELECTION FROM MENU” is selected, touch individual items to be monitored. When “MAIN SIG- NALS” is selected, main items will be monitored.
4. Touch “START”.
5. Touch “RECORD” while monitoring, then the status of the moni- tored item can be recorded. To stop recording, touch “STOP”.
Display Item List
X: Applicable
MAIN SIGNALS Monitors main signals.
SELECTION FROM MENU Selects and monitors individual signal.
SKIA4957E
Display item [Unit] MAIN
SIGNALS SELECTION
FROM MENU Contents
SPEED METER [km/h] or [mph] X X Displays the value of vehicle speed signal, which is input from
ABS actuator and electric unit (control unit).
SPEED OUTPUT [km/h] or [mph] X X Displays the value of vehicle speed signal, which is transmitted
to each unit with CAN communication.
TACHO METER [rpm] X X Displays the value of engine speed signal, which is input from
ECM.
W TEMP METER [ °C] or [ °F] X X Displays the value of engine coolant temperature signal, which
is input from ECM.
FUEL METER [lit.] X X Displays the value, which processes a resistance signal from
fuel gauge.
DISTANCE [km] or [mile] X X Displays the value, which is calculated by vehicle speed signal
from ABS actuator and electric unit (control unit), fuel gauge and
fuel consumption from ECM.
FUEL W/L [ON/OFF] X X Indicates [ON/OFF] condition of low-fuel warning lamp.
MIL [ON/OFF] X Indicates [ON/OFF] condition of malfunction indicator lamp.
AIR PRES W/L [ON/OFF] X Indicates [ON/OFF] condition of low tire pressure warning lamp.
SEAT BELT W/L [ON/OFF] X Indicates [ON/OFF] condition of seat belt warning lamp.
BUZZER [ON/OFF] X X Indicates [ON/OFF] condition of buzzer.
DOOR W/L [ON/OFF] X Indicates [ON/OFF] condition of door warning lamp.
HI-BEAM IND [ON/OFF] X Indicates [ON/OFF] condition of high beam indicator.
TURN IND [ON/OFF] X Indicates [ON/OFF] condition of turn indicator.
OIL W/L [ON/OFF] X Indicates [ON/OFF] condition of oil pressure warning lamp.
VDC/TCS IND [ON/OFF] X Indicates [ON/OFF] condition of VDC OFF indicator lamp.
ABS W/L [ON/OFF] X Indicates [ON/OFF] condition of ABS warning lamp.
SLIP IND [ON/OFF] X Indicates [ON/OFF] condition of SLIP indicator lamp.
BRAKE W/L [ON/OFF]* X Indicates [ON/OFF] condition of brake warning lamp.
KEY G W/L [ON/OFF] X Indicates [ON/OFF] condition of key warning lamp (green).
KEY R W/L [ON/OFF] X Indicates [ON/OFF] condition of key warning lamp (red).
Page 1283 of 4462

UNIFIED METER AND A/C AMP DI-33
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
NOTE:
Monitored item that does not match the vehicle is deleted from the display automatically.
*: Monitor keeps indicating “OFF” when brake warning lamp is on by the parking brake operation or low brake fluid level.
Power Supply and Ground Circuit InspectionNKS003HN
1. CHECK FUSE
Check for blown unified meter and A/C amp. fuses.
OK or NG
OK >> GO TO 2.
NG >> Be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-3, "
POWER
SUPPLY ROUTING CIRCUIT" .
KEY KNOB W/L [ON/OFF] X Indicates [ON/OFF] condition of key knob warning lamp.
M RANGE SW [ON/OFF] X X Indicates [ON/OFF] condition of manual mode range switch.
NM RANGE SW [ON/OFF] X X Indicates [ON/OFF] condition of except for manual mode range
switch.
AT SFT UP SW [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift-up switch.
AT SFT DWN SW [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift-down switch.
BRAKE SW [ON/OFF] X Indicates [ON/OFF] condition of brake switch (stop lamp switch).
AT-M IND [ON/OFF] X X Indicates [ON/OFF] condition of A/T manual mode indicator.
AT-M GEAR [5-1] X X Indicates [5-1] condition of A/T manual mode gear position.
P RANGE IND [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift P range indicator.
R RANGE IND [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift R range indicator.
N RANGE IND [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift N range indicator.
D RANGE IND [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift D range indicator.
AT CHECK W/L X Indicates [ON/OFF] condition of AT CHECK warning lamp.
CRUISE IND [ON/OFF] X Indicates [ON/OFF] condition of CRUISE indicator lamp.
SET IND [ON/OFF] X Indicates [ON/OFF] condition of SET indicator lamp.
CRUISE W/L [ON/OFF] X Indicates [ON/OFF] condition of ICC warning lamp.
4WD LOCK SW [ON/OFF] X This item is not used for this model. “OFF” is always displayed.
4WD LOCK IND [ON/OFF] X This item is not used for this model. “OFF” is always displayed.
4WD W/L [ON/OFF] X Indicates [ON/OFF] condition of AWD warning lamp. Display item [Unit]
MAIN
SIGNALS SELECTION
FROM MENU Contents
Power source Fuse No.
Battery power supply 19 ACC power supply 10, 11
Ignition power supply 12
Page 1284 of 4462

DI-34
UNIFIED METER AND A/C AMP
Revision: 2006 December 2006 FX35/FX45
2. CHECK POWER SUPPLY CIRCUIT
Check voltage between unified meter and A/C amp. harness con-
nector terminals and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness between unified meter and A/C amp. and fuse.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect unified meter and A/C amp. connector.
3. Check continuity between unified meter and A/C amp. harness connector M56 terminals 29, 30 and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
DTC [U1000] CAN Communication CircuitNKS00305
Symptom: Display “CAN COMM CIRC [U1000]” at the result of self-diagnosis for unified meter and A/C amp.
1. CHECK CAN COMMUNICATION
1. Select “SELF-DIAG RESULTS” mode for “METER A/C AMP” with CONSULT-II.
2. Print out CONSULT-II screen.
>> Go to “LAN system”. Refer to LAN-3, "
Precautions When Using CONSULT-II" .
DTC [B2202] Meter Communication CircuitNKS00306
Symptom: Display “METER COMM CIRC [B2202]” at the result of self-diagnosis for unified meter and A/C
amp.
1. CHECK CONNECTOR
Check combination meter, unified meter and A/C amp. and terminals (combination meter side, unified meter
and A/C amp. side, and harness side) for looseness or bent terminals.
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
Terminals Ignition switch position
(+) (–) OFF ACC ON
Connector Terminal
M56 21
Ground Battery
voltage Battery
voltage Battery
voltage
22 0 V 0 V Battery
voltage
M57 46 0 V Battery
voltage Battery
voltage
PKIB3570E
29 – Ground : Continuity should exist.
30 – Ground
SKIA5202E
Page 1285 of 4462

UNIFIED METER AND A/C AMP DI-35
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
2. CHECK METER/GAUGES VISUALLY
Check the pointer on the meter/gauge fluctuate at the engine start.
Is the fluctuation acceptable?
YES >> GO TO 3.
NO >> GO TO 6.
3. CHECK CONTINUITY COMMUNICATION CIRCUIT (TX: COMBINATION METER)
1. Turn ignition switch OFF.
2. Disconnect combination meter connector and unified meter and A/C amp. connector.
3. Check continuity between combination meter harness connector M20 terminal 13 and unified meter and A/C amp. harness con-
nector M55 terminal 19.
4. Check continuity between combination meter harness connector M20 terminal 13 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK VOLTAGE OF UNIFIED METER AND A/C AMP.
1. Connect unified meter and A/C amp. connector.
2. Turn ignition switch ON.
3. Check voltage between combination meter harness connector M20 terminal 13 and ground.
OK or NG
OK >> GO TO 5.
NG >> Replace unified meter and A/C amp. Refer to DI-37,
"Removal and Installation of Unified Meter and A/C
Amp."
13 – 19 : Continuity should exist.
13 – Ground : Continuity should not exist.
SKIA4837E
13 – Ground : Approx. 5 V
SKIA4886E
Page 1286 of 4462

DI-36
UNIFIED METER AND A/C AMP
Revision: 2006 December 2006 FX35/FX45
5. CHECK VOLTAGE SIGNAL OF COMBINATION METER
1. Turn ignition switch OFF.
2. Connect combination meter connector.
3. Turn ignition switch ON.
4. Check voltage signal between combination meter harness con- nector M20 terminal 13 and ground.
OK or NG
OK >> Replace unified meter and A/C amp. Refer to DI-37,
"Removal and Installation of Unified Meter and A/C Amp." .
NG >> Replace combination meter.
6. CHECK CONTINUITY COMMUNICATION CIRCUIT (RX: COMBINATION METER)
1. Turn ignition switch OFF.
2. Disconnect combination meter connector and unified meter and A/C amp. connector.
3. Check continuity between combination meter harness connector M20 terminal 14 and unified meter and A/C amp. harness con-
nector M55 terminal 9.
4. Check continuity between combination meter harness connector M20 terminal 14 and ground.
OK or NG
OK >> GO TO 7.
NG >> Repair harness or connector.
7. CHECK VOLTAGE OF COMBINATION METER
1. Connect combination meter connector.
2. Turn ignition switch ON.
3. Check voltage between unified meter and A/C amp. harness connector M55 terminal 9 and ground.
OK or NG
OK >> GO TO 8.
NG >> Replace combination meter. 13 – Ground:
SKIA9258E
SKIA3361E
14 – 9 : Continuity should exist.
14 – Ground : Continuity should not exist.
SKIA4836E
9 – Ground : Approx. 5 V
PKIB3587E
Page 1287 of 4462

UNIFIED METER AND A/C AMP DI-37
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
8. CHECK VOLTAGE SIGNAL OF UNIFIED METER AND A/C AMP.
1. Turn ignition switch OFF.
2. Connect unified meter and A/C amp. connector.
3. Turn ignition switch ON.
4. Check voltage signal between combination meter harness con- nector M20 terminal 14 and ground.
OK or NG
OK >> Replace combination meter.
NG >> Replace unified meter and A/C amp. Refer to DI-37, "
Removal and Installation of Unified Meter
and A/C Amp." .
DTC [B2205] Vehicle Speed CircuitNKS00307
Symptom: Display “VEHICLE SPEED CIRC [B2205]” at the result of self-diagnosis for unified meter and A/C
amp.
Perform self-diagnosis of ABS actuator and electric unit (control unit), and repair or replace malfunctioning
parts. Refer to BRC-24, "
CONSULT-II Functions (VDC)" .
Removal and Installation of Unified Meter and A/C Amp. NKS00308
REMOVAL
1. Remove the audio unit (1). Refer to AV- 4 3 , "Removal and Instal-
lation of Audio Unit" .
2. Remove the screws (A).
3. Remove the screws (B) and remove the unified meter and A/C amp. (2).
INSTALLATION
Installation is the reverse order of removal.
NOTE:
Use appropriate screws for each, as screws for audio unit and display unit are different from that for unified
meter and A/C amp. 14 – Ground:
SKIA9260E
SKIA3362E
SKIB8483E
Page 1288 of 4462
DI-38
WARNING LAMPS
Revision: 2006 December 2006 FX35/FX45
WARNING LAMPSPFP:24814
System DescriptionNKS003HX

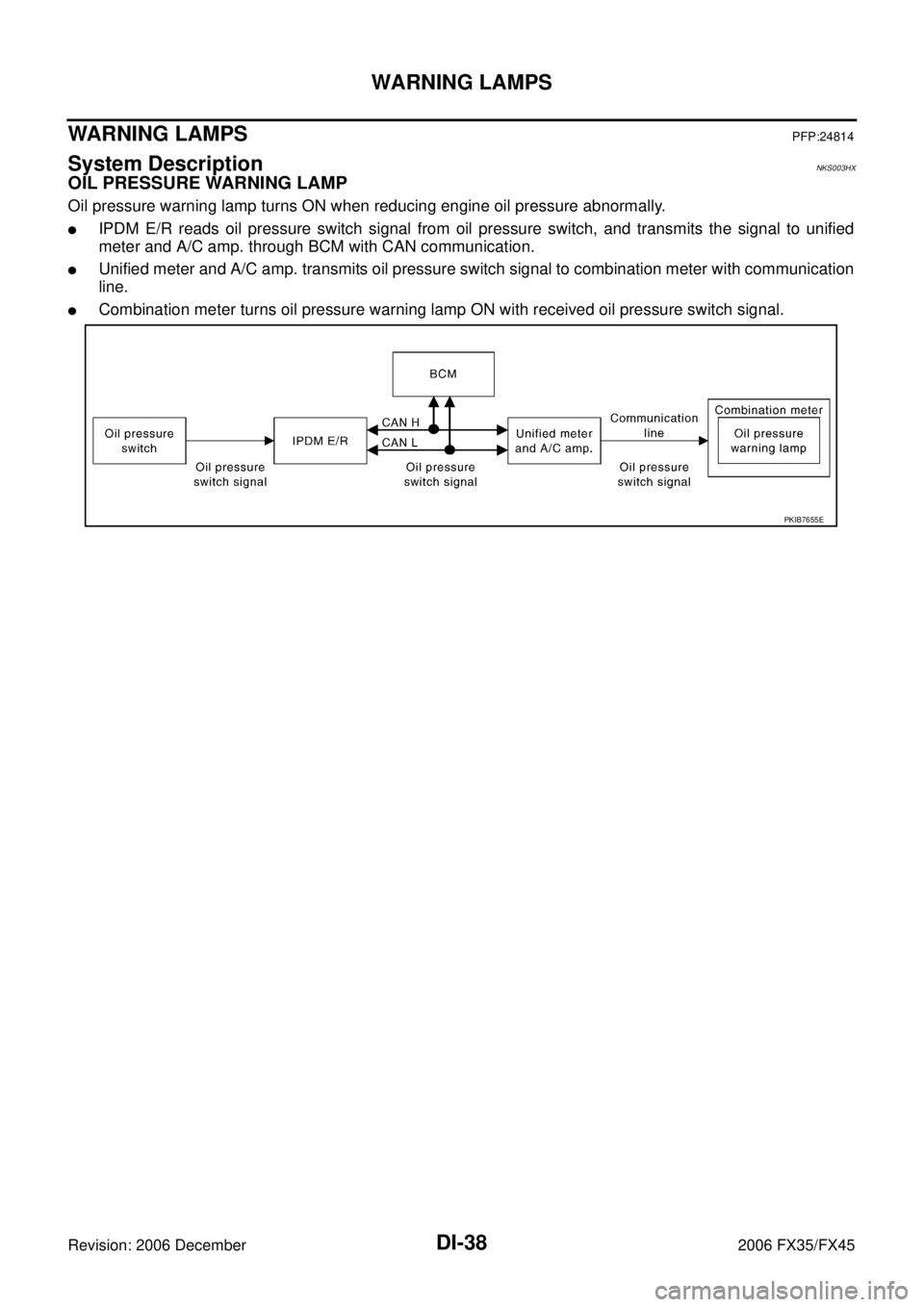

OIL PRESSURE WARNING LAMP
Oil pressure warning lamp turns ON when reducing engine oil pressure abnormally.
IPDM E/R reads oil pressure switch signal from oil pressure switch, and transmits the signal to unified
meter and A/C amp. through BCM with CAN communication.
Unified meter and A/C amp. transmits oil pressure switch signal to combination meter with communication
line.
Combination meter turns oil pressure warning lamp ON with received oil pressure switch signal.
PKIB7655E
