Page 1313 of 4462

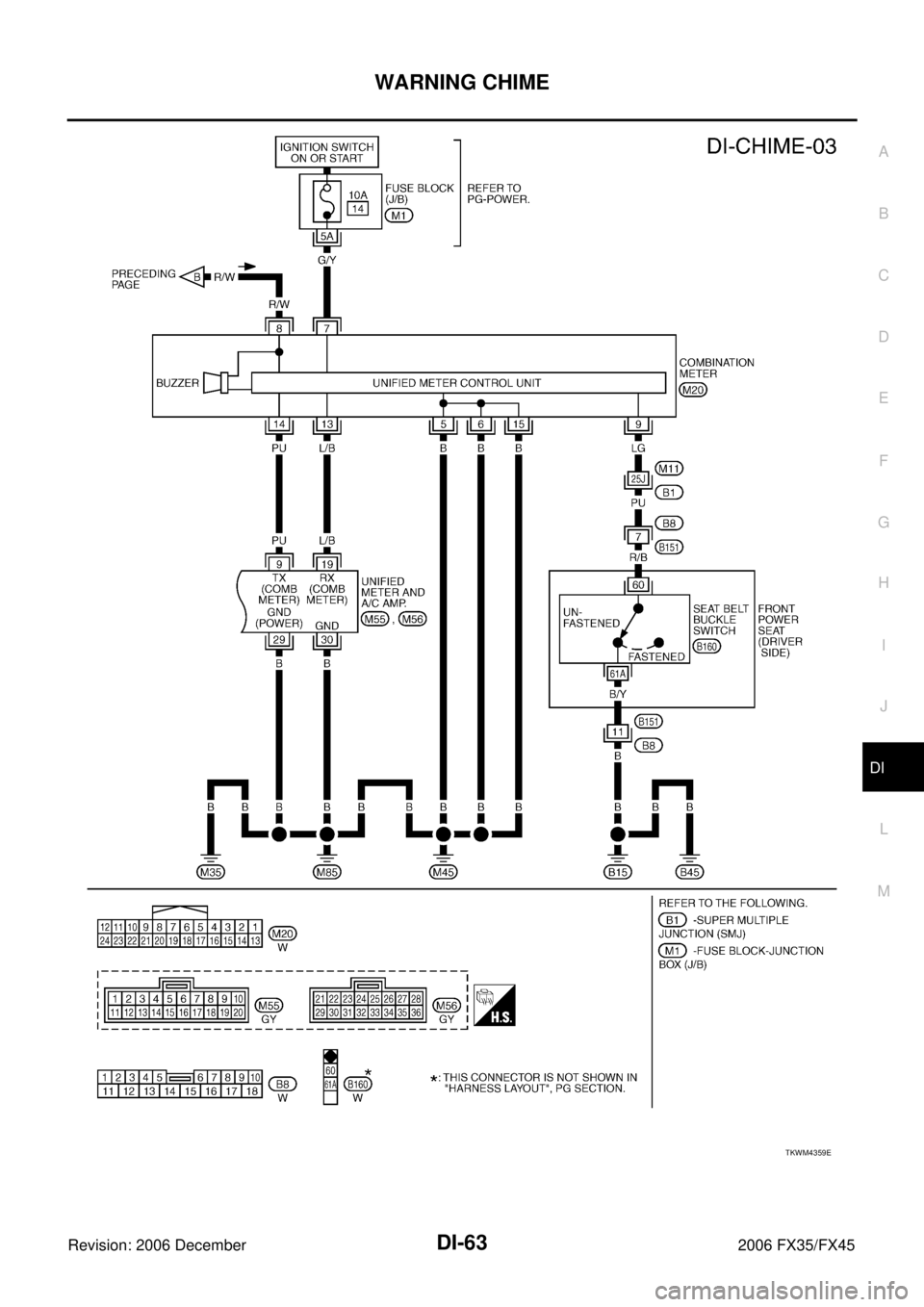

WARNING CHIME DI-63
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
TKWM4359E
Page 1314 of 4462

DI-64
WARNING CHIME
Revision: 2006 December 2006 FX35/FX45
Terminals and Reference Value for BCMNKS0030P
CAUTION:
Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal and wiper switch OFF not to be fluctuated by overloaded.
Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-II. Refer to LT- 11 9 , "
DATA MONITOR" .
Te r -
mina
l No. Wire
color Item Measuring condition
Reference value
Ignition
switch Operation or condition
2G/Y Combination
switch input 5 ON Lighting,
turn,
wiper
switch
(Wiper
intermit-
tent dial
position
4) OFF Approx. 0 V
Any of the conditions below
Lighting switch 1ST
Lighting switch HIGH beam
(Operates only HIGH beam
switch)
Turn signal switch to right
Approx. 1.0 V
Lighting switch 2ND Approx. 2.0 V
3L/B Combination
switch input 4 ON Lighting,
turn,
wiper
switch
(Wiper
intermit-
tent dial
position
4) OFF Approx. 0 V
Front fog lamp switch (Operates only
front fog lamp switch)
Approx. 0.8 V
Any of the conditions below
Lighting switch 2ND
Lighting switch PASSING
(Operates only PASSING switch)
Turn signal switch to left
Approx. 1.0 V
4PU/W Combination
switch input 3 ON Lighting,
turn,
wiper
switch
(Wiper
intermit-
tent dial
position
4) OFF Approx. 0 V
Any of the conditions below
Lighting switch AUTO
Front wiper switch MIST
Front wiper switch INT
Front wiper switch LO Approx. 1.0 V
PKIB4959J
PKIB4953J
PKIB4955J
PKIB4959J
PKIB4959J
Page 1315 of 4462

WARNING CHIME DI-65
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
5Y/R Combination
switch input 2 ON Lighting,
turn,
wiper
switch OFF Approx. 0 V
Any of the conditions below
Front washer switch
(Wiper intermittent dial position 4)
Rear washer switch
(Wiper intermittent dial position 4)
Wiper intermittent dial position 1
Wiper intermittent dial position 5
Wiper intermittent dial position 6 Approx. 1.0 V
Rear wiper switch ON
(Wiper intermittent dial position 4)
Approx. 0.8 V
6S/B Combination
switch input 1 ON Lighting,
turn,
wiper
switch OFF Approx. 0 V
Any of the conditions below
Front wiper switch HI
(Wiper intermittent dial position 4)
Rear wiper switch INT
(Wiper intermittent dial position 4)
Wiper intermittent dial position 3
Approx. 1.0 V
Any of the conditions below
Wiper intermittent dial position 1
Wiper intermittent dial position 2 Approx. 1.7 V
Any of the conditions below
Wiper intermittent dial position 6
Wiper intermittent dial position 7 Approx. 0.8 V
Te r -
mina
l No. Wire
color Item Measuring condition
Reference value
Ignition
switch Operation or condition
PKIB4959J
PKIB4955J
PKIB4959J
PKIB4952J
PKIB4955J
Page 1316 of 4462

DI-66
WARNING CHIME
Revision: 2006 December 2006 FX35/FX45
32 GY/R Combination
switch output 5 ON Lighting,
turn,
wiper
switch OFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below
Front fog lamp switch (Operates
only front fog lamp switch)
Rear wiper switch ON
(Wiper intermittent dial position 4)
Wiper intermittent dial position 1
Wiper intermittent dial position 2
Wiper intermittent dial position 6
Wiper intermittent dial position 7 Approx. 1.0 V
33 G Combination
switch output 4 ON Lighting,
turn,
wiper
switch OFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below
Lighting switch AUTO (Wiper dial
position 4)
Lighting switch 1ST (The same
result with lighting switch 2ND)
(Wiper intermittent dial position 4)
Rear wiper switch INT
(Wiper intermittent dial position 4)
Wiper intermittent dial position 1
Wiper intermittent dial position 5
Wiper intermittent dial position 6 Approx. 1.2 V
Te r -
mina
l No. Wire
color Item Measuring condition
Reference value
Ignition
switch Operation or condition
PKIB4960J
PKIB4956J
PKIB4960J
PKIB4958J
Page 1317 of 4462

WARNING CHIME DI-67
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
34 W/B Combination
switch output 3 ON Lighting,
turn,
wiper
switch OFF
Approx. 7.2 V
Any of the conditions below
Lighting switch 2ND
Lighting switch HI beam
(Operates only HI beam switch)
Rear washer switch
(Wiper intermittent dial position 4)
Wiper intermittent dial position 1
Wiper intermittent dial position 2
Wiper intermittent dial position 3 Approx. 1.2 V
35 W/G Combination
switch output 2 ON Lighting,
turn,
wiper
switch
(Wiper
intermit-
tent dial
position
4) OFF
Approx. 7.2 V
Any of the conditions below
Lighting switch 2ND
Lighting switch PASSING
(Operates only PASSING switch)
Front wiper switch INT
Front wiper switch HI
Approx. 1.2 V
36 W/R Combination
switch output 1 ON Lighting,
turn,
wiper
switch
(Wiper
intermit-
tent dial
position
4) OFF
Approx. 7.2 V
Any of the conditions below
Turn signal switch to right
Turn signal switch to left
Front wiper switch MIST
Front wiper switch LO
Front washer switch Approx. 1.2 V
Te r -
mina
l No. Wire
color Item Measuring condition
Reference value
Ignition
switch Operation or condition
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
Page 1318 of 4462

DI-68
WARNING CHIME
Revision: 2006 December 2006 FX35/FX45
Terminals and Reference Value for Unified Meter and A/C Amp. NKS0030Q
37 B/W Key switch sig-
nal OFF Key is removed Approx. 0 V
Key is inserted Battery voltage
38 W/L Ignition power
supply ON — Battery voltage
39 L CAN-H OFF — —
40 P CAN-L OFF — —
42 L/R Battery power
supply OFF — Battery voltage
49 B Ground ON — Approx. 0 V
52
55 G Battery power
supply OFF — Battery voltage
62 W Front door
switch (Driver
side) OFF When driver side door is opened (Door switch
ON) Approx. 0 V
When driver side door is closed (Door switch
OFF) Approx. 12 V
Te r -
mina
l No. Wire
color Item Measuring condition
Reference value
Ignition
switch Operation or condition
Te r m i n a l
No. Wire
color Item Measuring condition
Reference value
Ignition
switch Operation or condition
1 L CAN-H OFF — —
9PU TX communication line (To
combination meter) ON —
11 P C A N - L O F F — —
19 L/B RX communication line
(From combination meter) ON —
21 R/W Battery power supply OFF — Battery voltage
22 W Ignition power supply ON — Battery voltage
29 B Ground (Power)
ON — Approx. 0 V
30 Ground
SKIA3362E
SKIA3361E
Page 1319 of 4462

WARNING CHIME DI-69
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
Terminals and Reference Value for Combination MeterNKS0030R
CONSULT-II Function (METER A/C AMP)NKS003HZ
Refer to DI-31, "CONSULT-II Function (METER A/C AMP)" in “UNIFIED METER AND A/C AMP”.
CONSULT-II Function (BCM)NKS003I0
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
DIAGNOSIS ITEMS DESCRIPTION
CONSULT-II BASIC OPERATION
Refer to GI-38, "CONSULT-II Start Procedure" .
DATA MONITOR
Operation Procedure
1. Touch “BUZZER” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch “ALL SIGNALS” or “SELECTION FROM MENU” on “DATA MONITOR” screen.
4. If “SELECTION FROM MENU” is selected, touch the desired monitor item. If “ALL SIGNALS” is selected, all items required to control are monitored.
Terminal
No. Wire
color Item Measuring condition
Reference value
Ignition
switch Operation or condition
5 B Ground ON — Approx. 0 V
6
7 G/Y Ignition power supply ON — Battery voltage
8 R/W Battery power supply OFF — Battery voltage
9LG Seat belt buckle switch
(Driver side) ON Unfastened (ON) Approx. 0 V
Fastened (OFF) Approx. 12 V
13 L/B TX communication line (To
unified meter and A/C amp.) ON —
14 PU RX communication line
(From unified meter and A/C
amp.) ON —
15 B Ground ON — Approx. 0 V
SKIA3361E
SKIA3362E
System Test item Diagnosis mode Description Reference
page
BCM BUZZER DATA MONITOR Displays BCM input data in real time.
DI-69
ACTIVE TEST Operation of electrical loads can be checked by sending driving
signal to them. DI-70
BCM SELF-DIAG RESULTS BCM checks the conditions and displays memorized error.
DI-70
ALL SIGNALS Monitors all items.
SELECTION FROM MENU Selects and monitors items.
Page 1320 of 4462

DI-70
WARNING CHIME
Revision: 2006 December 2006 FX35/FX45
5. Touch “START”.
6. During monitoring, touching “RECORD” can start recording the monitored item status.
Display Item List
ACTIVE TEST
Operation Procedure
1. Touch “BUZZER” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch the item to be tested, and check the operation.
4. During the operation check, touching “OFF” deactivates the operation.
Display Item List
SELF-DIAG RESULTS
Operation Procedure
1. Touch “BCM” on “SELECT TEST ITEM” screen.
2. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
3. Self-diagnosis results are displayed.
Display Item List
NOTE:
If “CAN communication [U1000]” is indicated, after printing the monitor item, go to “LAN system”. Refer to
LAN-3, "
Precautions When Using CONSULT-II" .
Trouble DiagnosisNKS003I1
HOW TO PERFORM TROUBLE DIAGNOSIS
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to DI-56, "
System Description" .
3. Perform the preliminary inspection. Refer to DI-71, "
PRELIMINARY INSPECTION" .
4. Referring to trouble diagnosis chart, make sure the cause of the malfunction and repair or replace applica- ble parts. Refer to DI-71, "
Symptom Chart" .
5. Does the warning chime operate normally? If so, GO TO 6. If not, GO TO 3.
6. INSPECTION END
Monitored item Description
IGN ON SW Indicates [ON/OFF] condition of ignition switch.
KEY ON SW Indicates [ON/OFF] condition of key switch.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch (driver side).
LIGHT SW 1ST Indicates [ON/OFF] condition of lighting switch.
BUCKLE SW Indicates [ON/OFF] condition of seat belt switch (driver side).
Test item Malfunction is detected when···
LIGHT WARN ALM This test is able to check light warning chime operation.
IGN KEY WARN ALM This test is able to check ignition key warning chime operation.
SEAT BELT WARN TEST This test is able to check seat belt warning chime operation.
Monitored Item CONSULT-ll display Description
CAN communication CAN communication [U1000] Malfunction is detected in CAN communication.
