Page 3585 of 4462

INFINITI FX35 2006 Service Manual HEADLAMP - XENON TYPE - LT-23 C D E F G H I J L M A B LT Revision: 2006 December 2006 FX35/FX45 3. CHECK IPDM E/R 1. Select “IPDM E/R” on CONSULT-II, and select “DATA MONI- TOR”

Page 3586 of 4462

INFINITI FX35 2006 Service Manual LT-24 HEADLAMP - XENON TYPE - Revision: 2006 December 2006 FX35/FX45 5. CHECK HEADLAMP CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect IPDM E/R connector. 3. Check continuity between IPDM E/R ha

Page 3587 of 4462

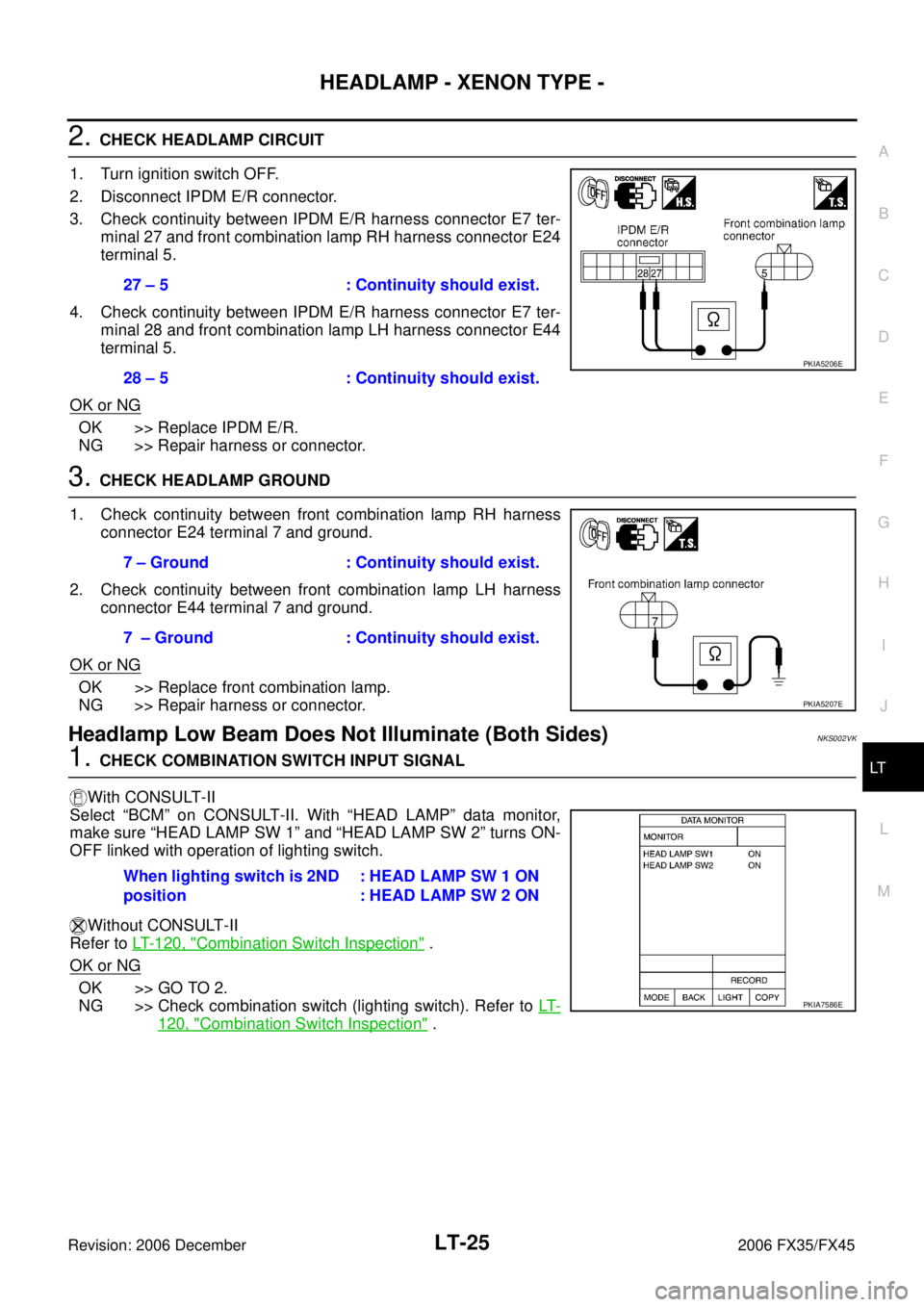

INFINITI FX35 2006 Service Manual HEADLAMP - XENON TYPE - LT-25 C D E F G H I J L M A B LT Revision: 2006 December 2006 FX35/FX45 2. CHECK HEADLAMP CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect IPDM E/R connector.

Page 3588 of 4462

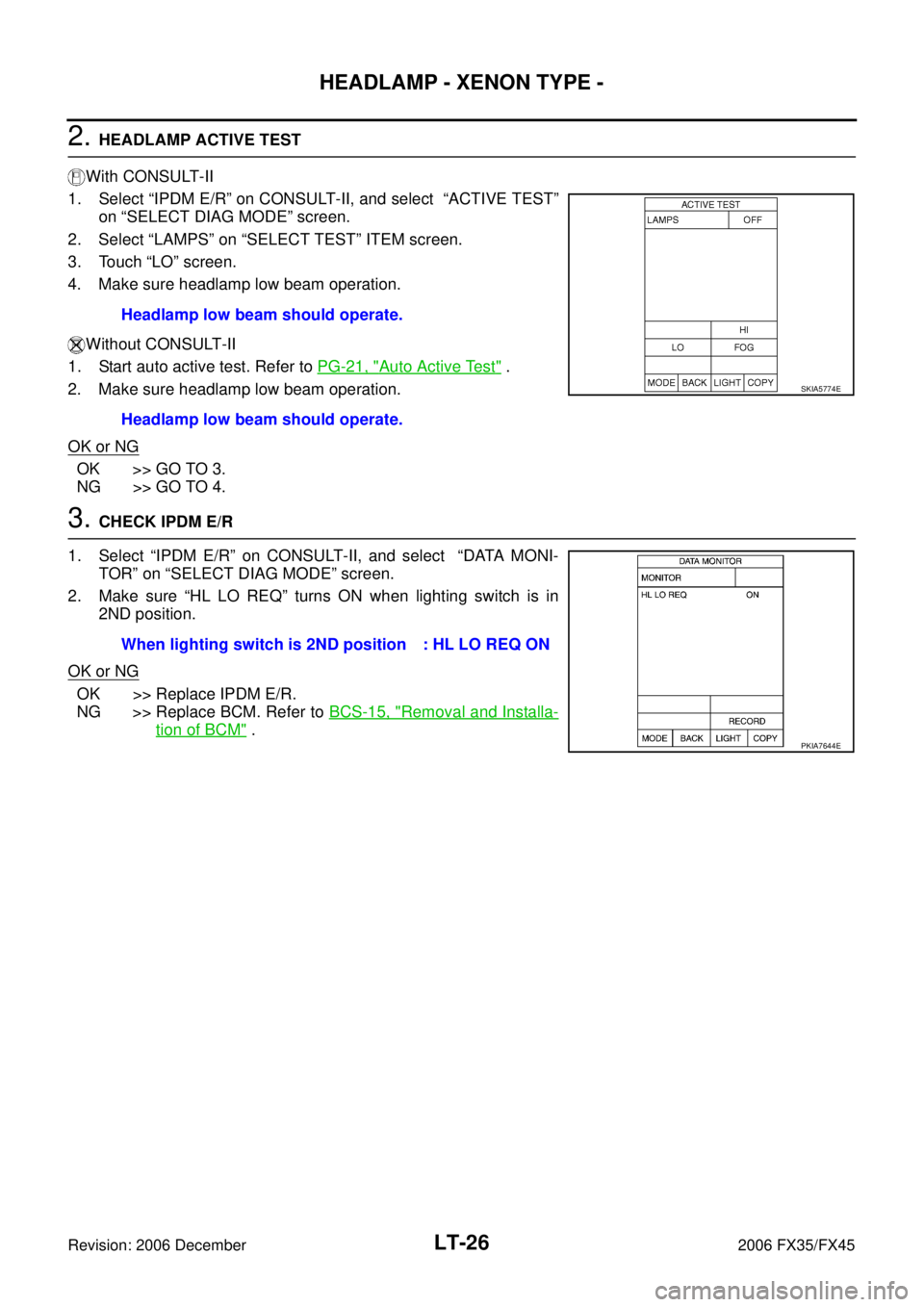

INFINITI FX35 2006 Service Manual LT-26 HEADLAMP - XENON TYPE - Revision: 2006 December 2006 FX35/FX45 2. HEADLAMP ACTIVE TEST With CONSULT-II 1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG

Page 3589 of 4462

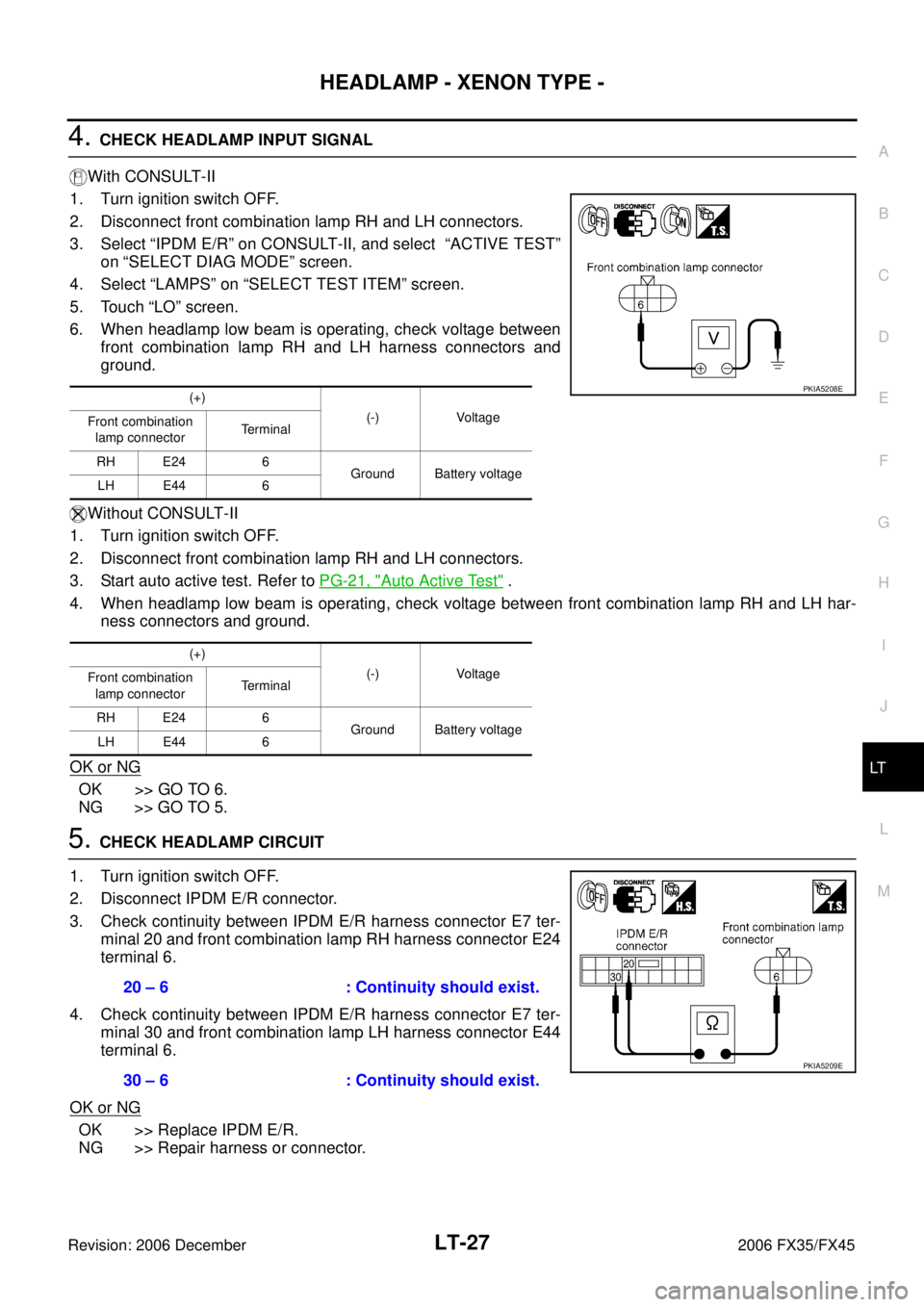

INFINITI FX35 2006 Service Manual HEADLAMP - XENON TYPE - LT-27 C D E F G H I J L M A B LT Revision: 2006 December 2006 FX35/FX45 4. CHECK HEADLAMP INPUT SIGNAL With CONSULT-II 1. Turn ignition switch OFF. 2. Disconnect

Page 3590 of 4462

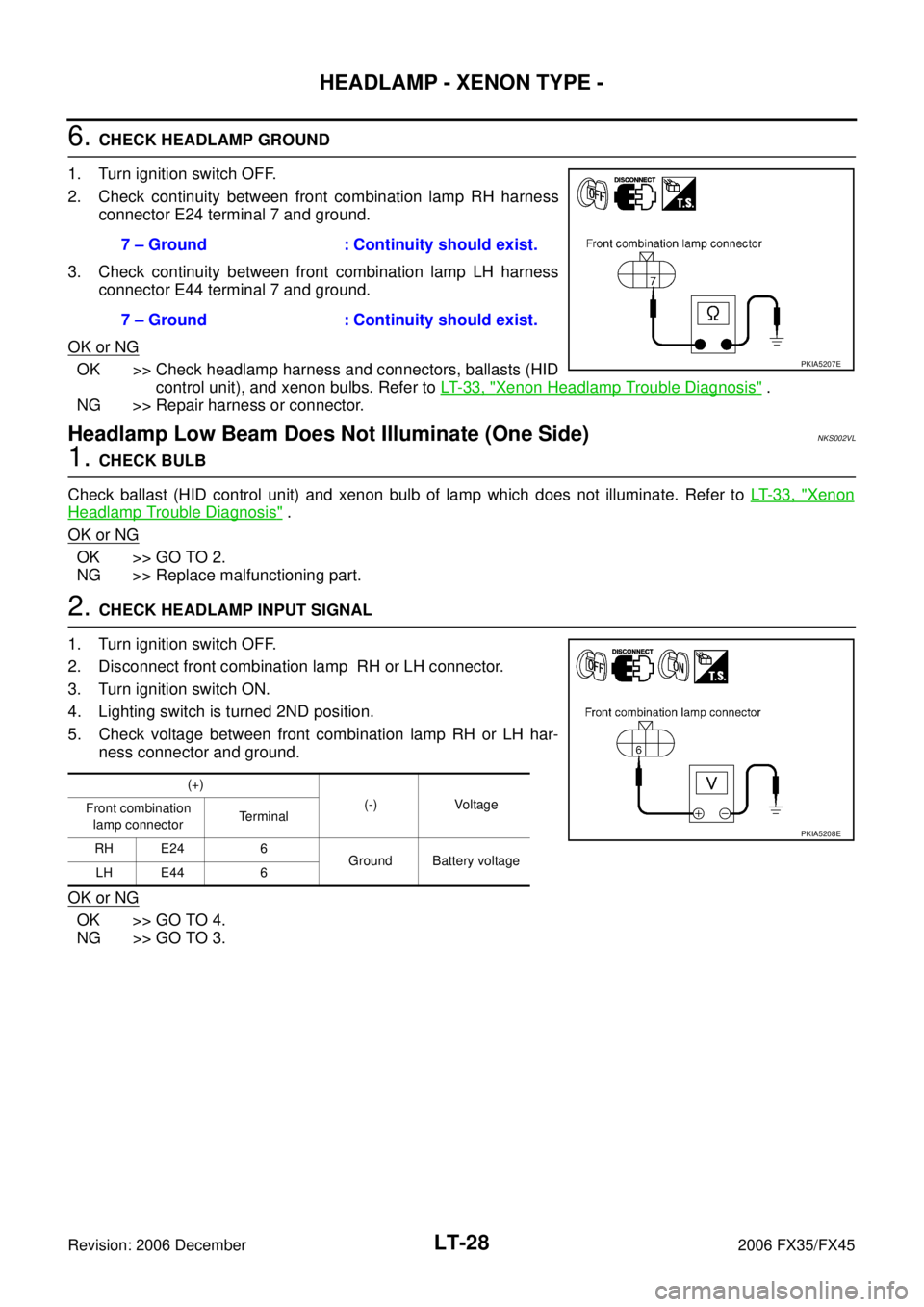

INFINITI FX35 2006 Service Manual LT-28 HEADLAMP - XENON TYPE - Revision: 2006 December 2006 FX35/FX45 6. CHECK HEADLAMP GROUND 1. Turn ignition switch OFF. 2. Check continuity between front combination lamp RH harness connector E

Page 3591 of 4462

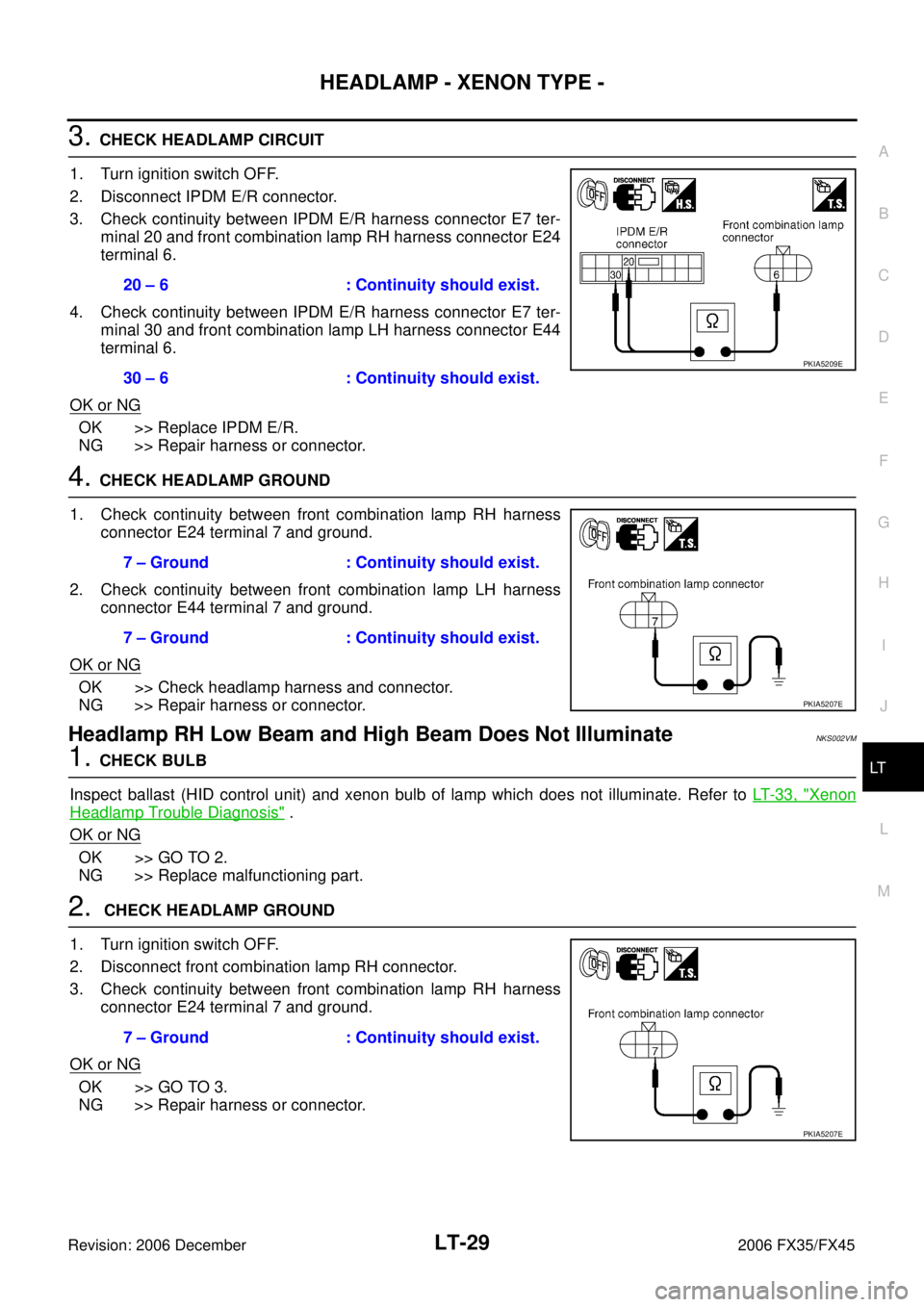

INFINITI FX35 2006 Service Manual HEADLAMP - XENON TYPE - LT-29 C D E F G H I J L M A B LT Revision: 2006 December 2006 FX35/FX45 3. CHECK HEADLAMP CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect IPDM E/R connector.

Page 3592 of 4462

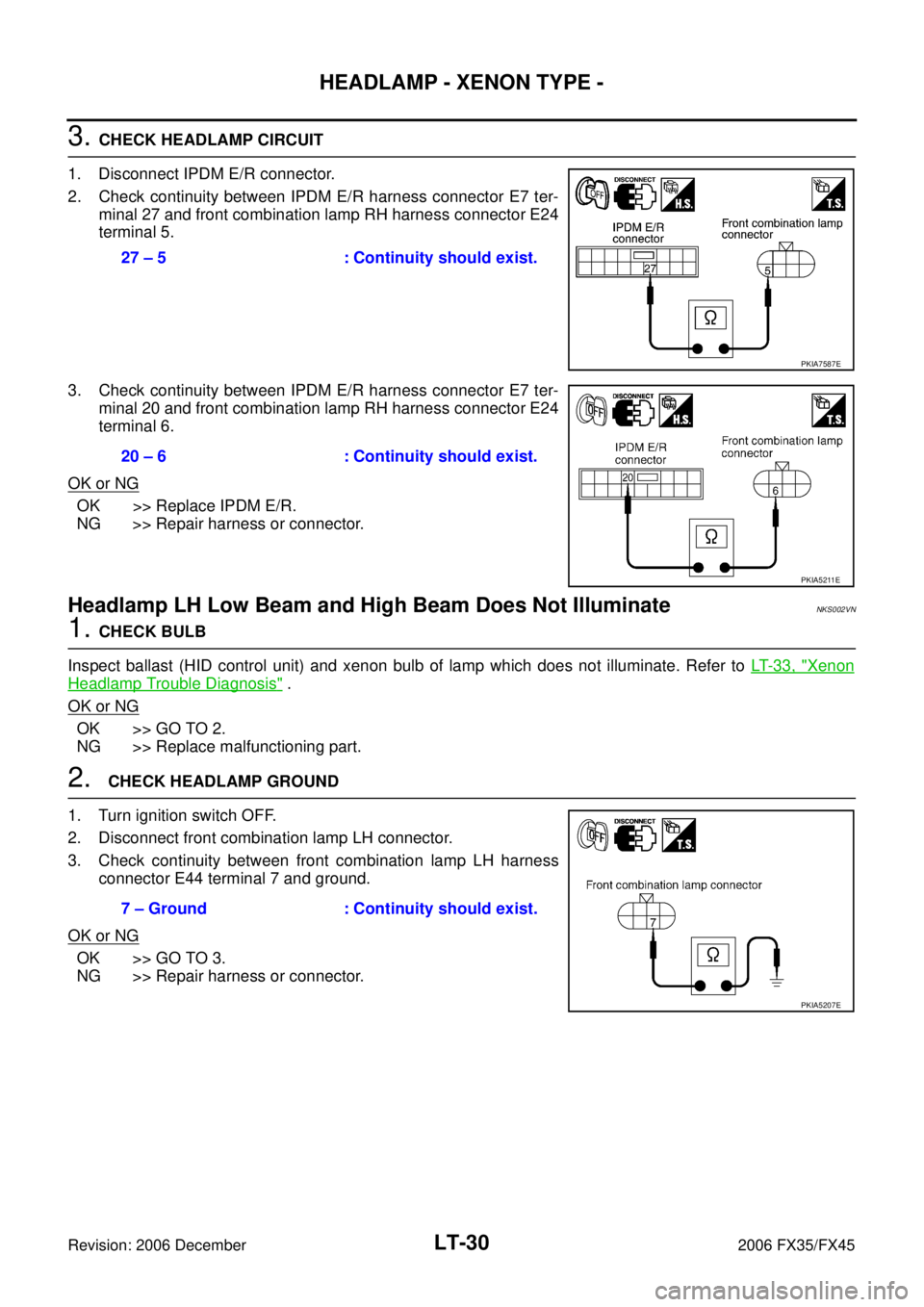

INFINITI FX35 2006 Service Manual LT-30 HEADLAMP - XENON TYPE - Revision: 2006 December 2006 FX35/FX45 3. CHECK HEADLAMP CIRCUIT 1. Disconnect IPDM E/R connector. 2. Check continuity between IPDM E/R harness connector E7 ter- mina
