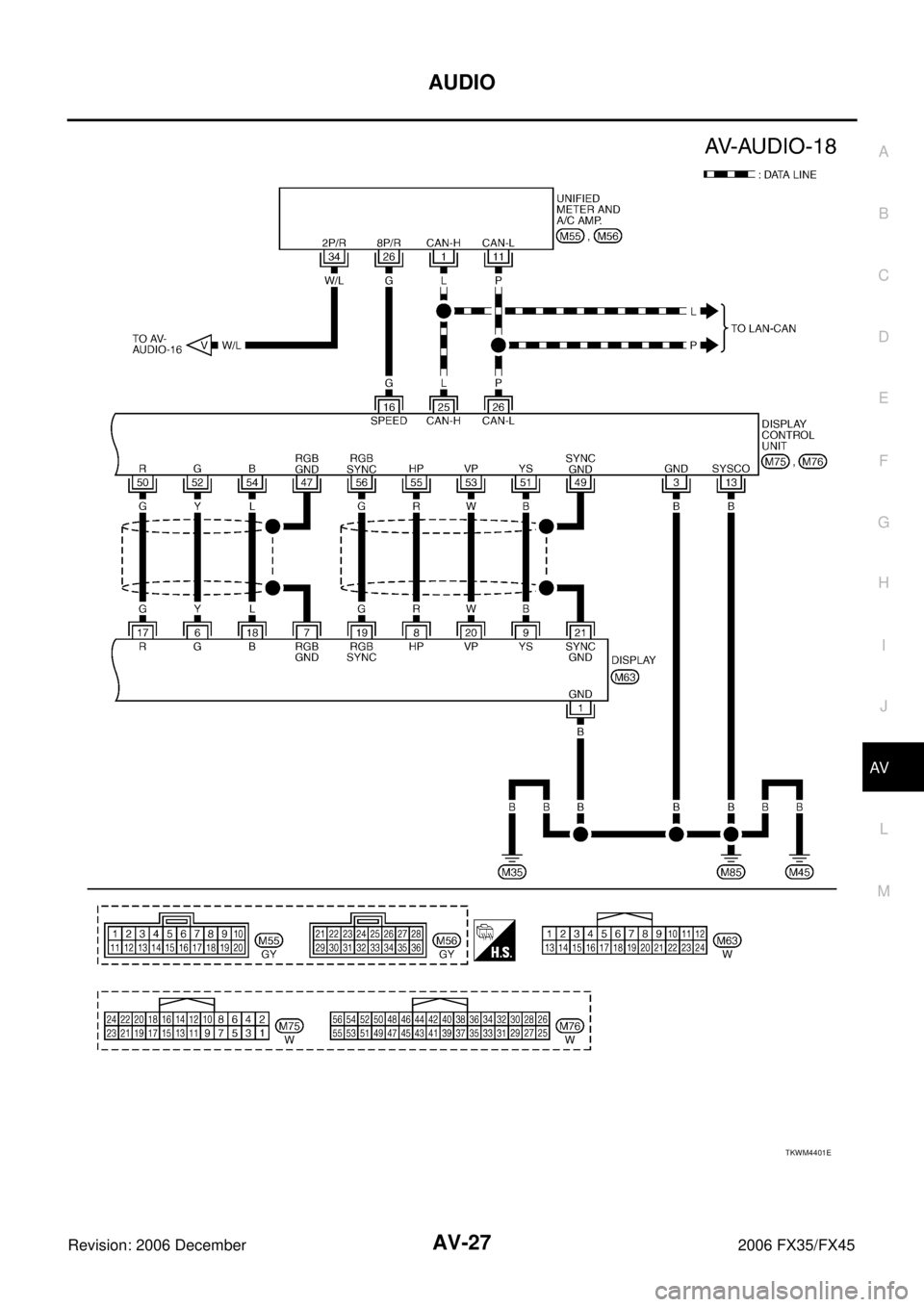

INFINITI FX35 2006 Service Manual AUDIO AV-27 C D E F G H I J L M A B AV Revision: 2006 December 2006 FX35/FX45 TKWM4401E

Page 634 of 4462

INFINITI FX35 2006 Service Manual AV-28 AUDIO Revision: 2006 December 2006 FX35/FX45 TKWM4402E

Page 635 of 4462

INFINITI FX35 2006 Service Manual AUDIO AV-29 C D E F G H I J L M A B AV Revision: 2006 December 2006 FX35/FX45 Terminals and Reference Value for Audio UnitNKS003L8 Terminal (Wire color) Item Signal input/ output Co

Page 636 of 4462

INFINITI FX35 2006 Service Manual AV-30 AUDIO Revision: 2006 December 2006 FX35/FX45 22 (W/L) Ground Vehicle speed signal (2 pulse) Input ON When vehicle speed is approx. 40 km/h (25 MPH) 23 (LG) Ground Communication signal (D

Page 637 of 4462

INFINITI FX35 2006 Service Manual AUDIO AV-31 C D E F G H I J L M A B AV Revision: 2006 December 2006 FX35/FX45 *: With satellite radio Terminals and Reference Value for BOSE Speaker Amp.NKS003L9 Terminal (Wire color) It

Page 638 of 4462

INFINITI FX35 2006 Service Manual AV-32 AUDIO Revision: 2006 December 2006 FX35/FX45 20 (G) 4 (G/W) Audio signal tweeter Output ACC Receive audio signal 22 (P) Ground Amp ON signal (woofer) Output ACC Receive audio signal Approx.

Page 639 of 4462

INFINITI FX35 2006 Service Manual AUDIO AV-33 C D E F G H I J L M A B AV Revision: 2006 December 2006 FX35/FX45 Terminals and Reference Value for A/C and AV SwitchNKS003LA *1: With telephone system *2: Without telephone

Page 640 of 4462

INFINITI FX35 2006 Service Manual AV-34 AUDIO Revision: 2006 December 2006 FX35/FX45 Terminals and Reference Value for WooferNKS003AS Terminals and Reference Value for Satellite Radio TunerNKS003LB Te r m i n a l (Wire color) Item
