Page 3769 of 4462

INFINITI FX35 2006 Service Manual PRECAUTIONS LU-3
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 December 2006 FX35/FX45
[VQ35DE]PRECAUTIONSPFP:00001
Precautions for Liquid GasketNBS003IV
LIQUID GASKET APPLICATION PRO

Page 3770 of 4462

INFINITI FX35 2006 Service Manual LU-4
[VQ35DE]
PREPARATION
Revision: 2006 December 2006 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNBS003IW
The actual shapes of Kent-Moore tools may differ from those of special service tools

Page 3771 of 4462

INFINITI FX35 2006 Service Manual LUBRICATION SYSTEM LU-5
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 December 2006 FX35/FX45
LUBRICATION SYSTEMPFP:15010
Lubrication CircuitNBS003IY

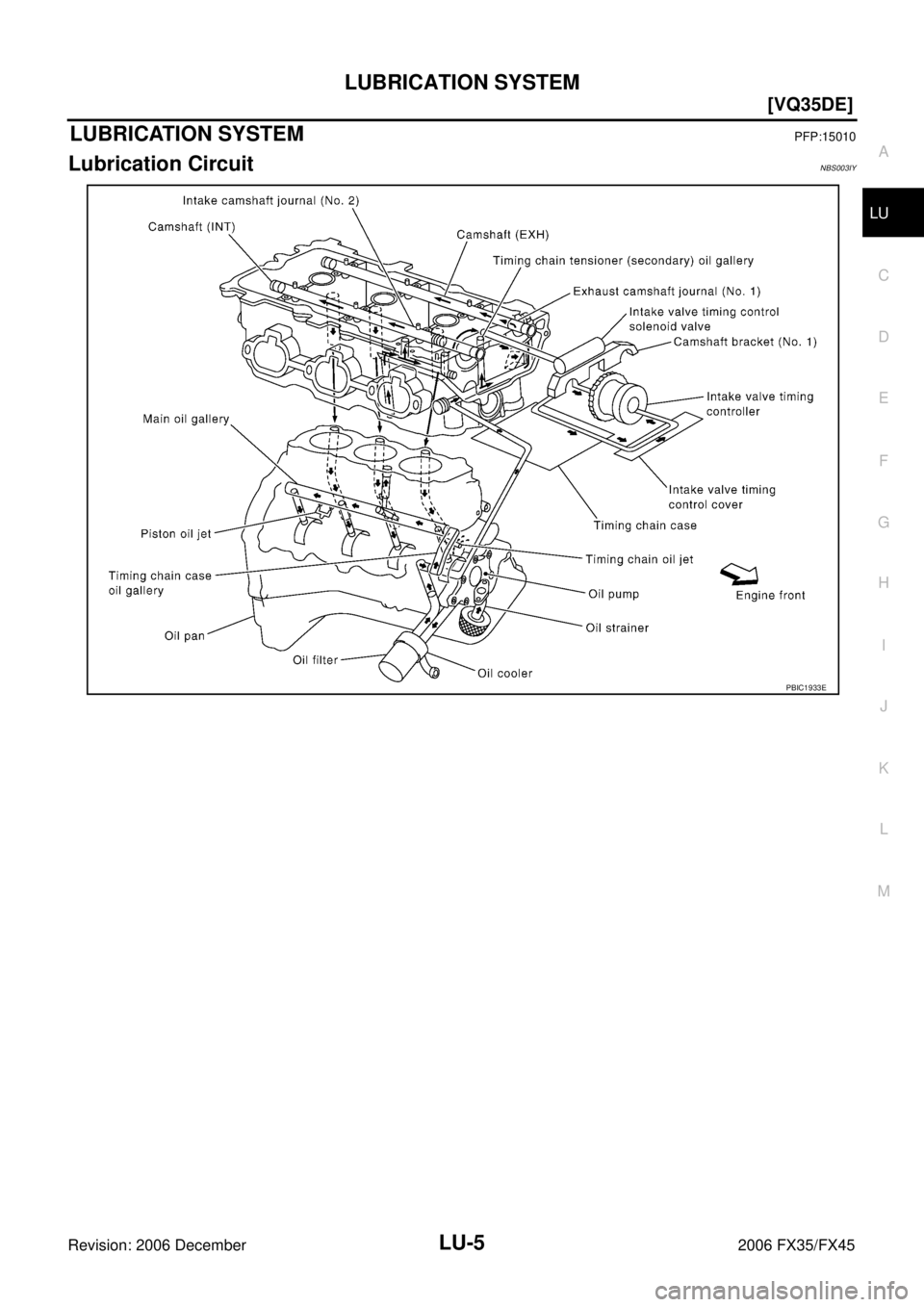

PBIC1933E

Page 3772 of 4462

INFINITI FX35 2006 Service Manual LU-6
[VQ35DE]
LUBRICATION SYSTEM
Revision: 2006 December 2006 FX35/FX45
System ChartNBS003IZ

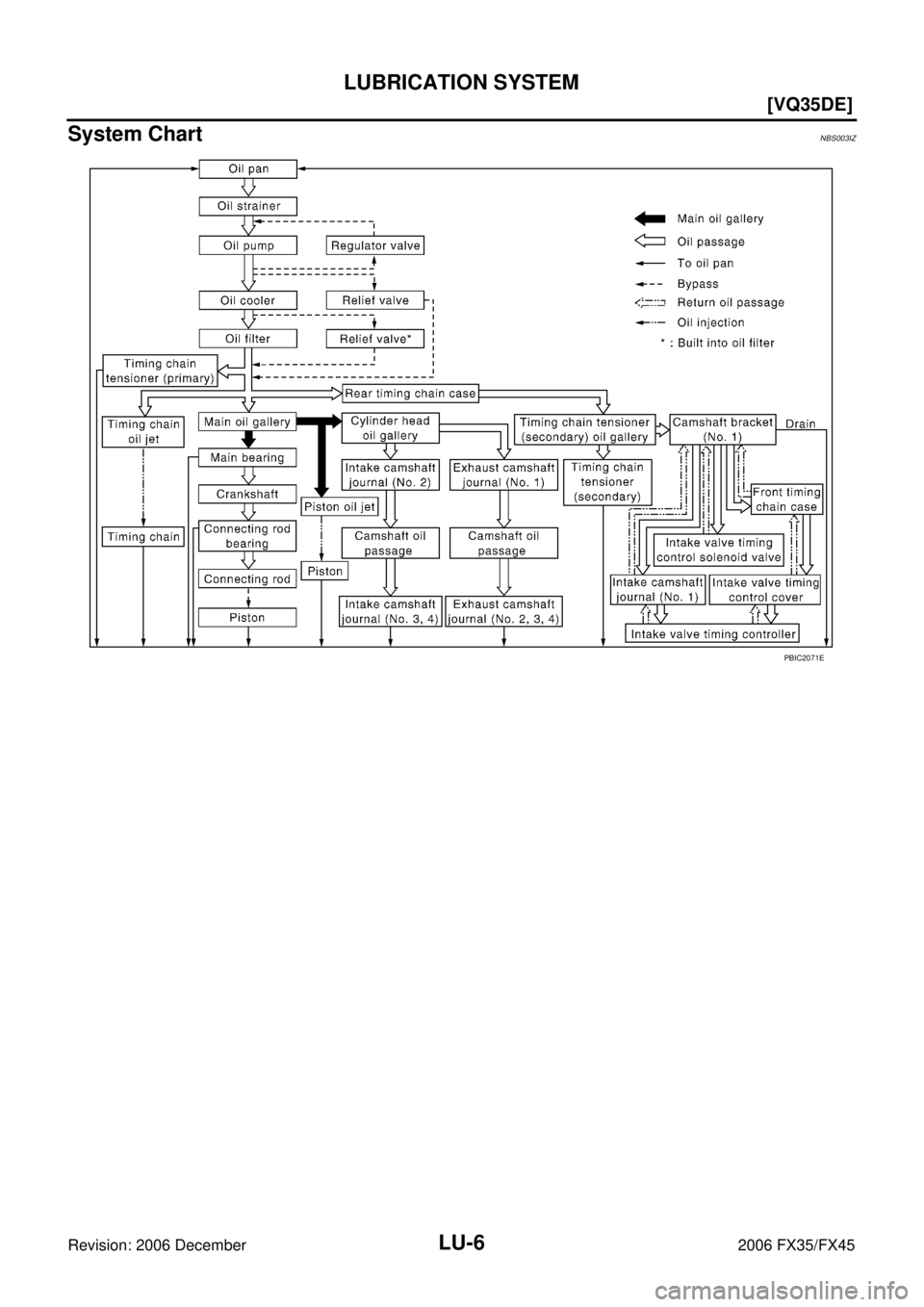

PBIC2071E

Page 3773 of 4462

INFINITI FX35 2006 Service Manual ENGINE OIL LU-7
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 December 2006 FX35/FX45
ENGINE OILPFP:KLA92
InspectionNBS003J0
ENGINE OIL LEVEL
NOTE:
Before starting engine, put vehicl

Page 3774 of 4462

INFINITI FX35 2006 Service Manual LU-8
[VQ35DE]
ENGINE OIL
Revision: 2006 December 2006 FX35/FX45
Crankshaft oil seals (front and rear)
Camshaft position sensor (PHASE)

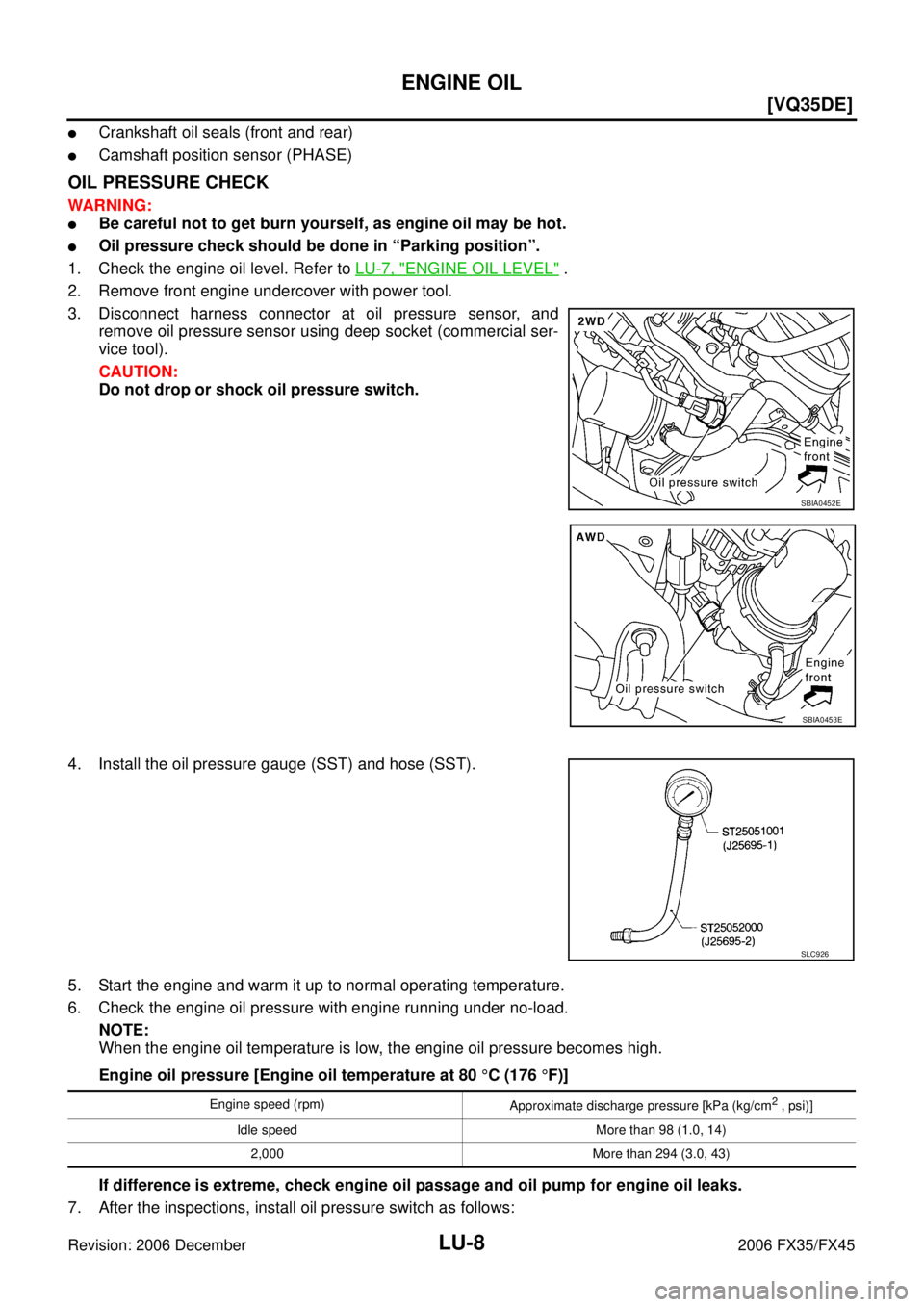

OIL PRESSURE CHECK
WARNING:
Be careful not to get burn yoursel

Page 3775 of 4462

INFINITI FX35 2006 Service Manual ENGINE OIL LU-9
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 December 2006 FX35/FX45
a. Remove old liquid gasket adhering to oil pressure switch and the mating surface.
b. Apply liq

ENGINE OIL LU-9
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 December 2006 FX35/FX45
a. Remove old liquid gasket adhering to oil pressure switch and the mating surface.
b. Apply liquid gasket and tighten oil pressure switch to the specification. Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
c. After warming up engine, make sure there is no leakage of engine oil with running engine.
Changing Engine OilNBS003J1
WARNING:
Be careful not to get burn yourself, as engine oil may be hot.
Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct
skin contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand
cleaner as soon as possible.
1. Remove front engine undercover with power tool.
2. Warm up the engine, and check for engine oil leakage from engine components. Refer to LU-7, "
ENGINE
OIL LEAKAGE" .
3. Stop the engine and wait for 10 minutes.
4. Loosen oil filler cap and then remove drain plug.
5. Drain engine oil.
6. Install drain plug with new washer. Refer to EM-30, "
OIL PAN AND OIL STRAINER" .
CAUTION:
Be sure to clean drain plug and install with new washer.
7. Refill with new engine oil. Engine oil specification and viscosity:
Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .
Engine oil capacity (Approximate):
Unit: (US qt, lmp qt)
CAUTION:
When filling engine oil, do not pull out oil level gauge.
The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.
Always use oil level gauge to determine the proper amount of engine oil in engine.
8. Warm up the engine and check area around drain plug and oil filter for engine oil leakage.
9. Stop the engine and wait for 10 minutes.
10. Check the engine oil level. Refer to LU-7, "
ENGINE OIL LEVEL" .
Oil pressure switch:
: 14.8 N·m (1.5 kg-m, 11 ft-lb)
Oil pan drain plug: : 34.3 N·m (3.5 kg-m, 25 ft-lb)
Drain and refill With oil filter change 4.7 (5, 4-1/8)
Without oil filter change 4.4 (4-5/8, 3-7/8)
Dry engine (Overhaul) 5.4 (5-3/4, 4-3/4)

Page 3776 of 4462

INFINITI FX35 2006 Service Manual LU-10
[VQ35DE]
OIL FILTER
Revision: 2006 December 2006 FX35/FX45
OIL FILTERPFP:15208
Removal and InstallationNBS003J2
REMOVAL
1. Remove front engine undercover with power tool.

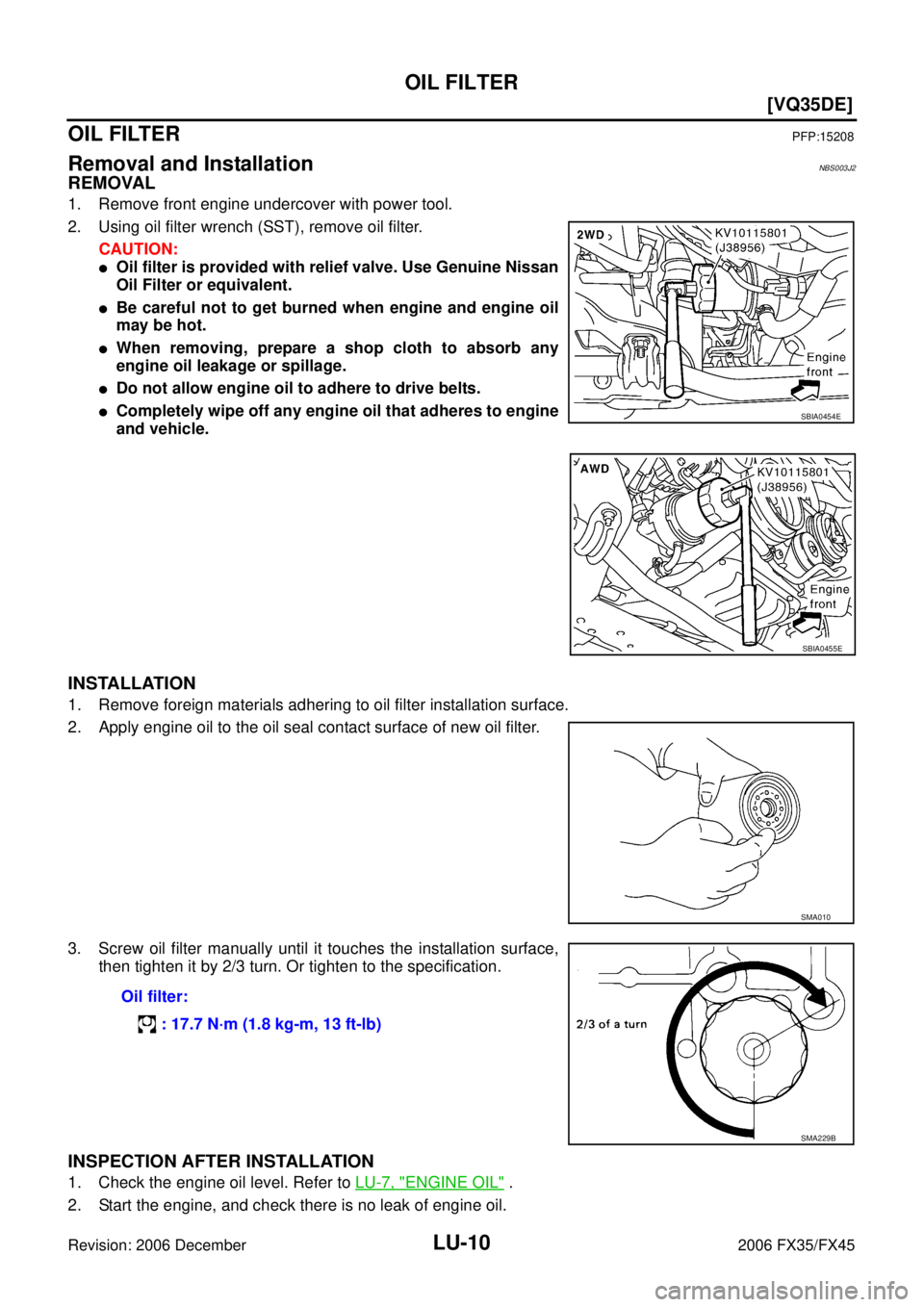

2. Using oil filter wr
