INFINITI FX35 2006 Service Manual COMPASS DI-111
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
Zone Variation Setting ProcedureNKS003HT
NOTE:
The zone setting is factory preset (“default” setting)

COMPASS DI-111
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
Zone Variation Setting ProcedureNKS003HT
NOTE:
The zone setting is factory preset (“default” setting) to zone 8.
1. Press and hold the inside mirror switch for 6 – 9 seconds.
2. The current zone setting appears on the compass display.
3. Find the current geographical location number in the Zone Varia- tion Chart.
4. Select the new zone number. (Press the inside mirror switch until the new zone number appears on the compass display.)
5. After select the new zone number, the compass display will automatically shows a direction within a few seconds.
6. Preform the following Calibration Procedure for more accurate indications.
Calibration ProcedureNKS003HU
NOTE:
The compass calibrates itself under normal driving conditions. However, occasional circumstances may cause
the compass to operate inaccurately. Example: Driving from rural (wide open) areas to crowded city areas, or
if an aftermarket (i.e., non original equipment) antenna with a magnetic base is attached to the vehicle. Cali-
brate the mirror compass if the display shows only one direction or a limited number of directions.
NOTE:
If “magnetic hats” are used in the dealership for vehicle identification, remove the hat from the vehicle
before performing the following steps. Do NOT put the hat back on the vehicle after the procedure is com-
pleted.
Drive the vehicle to an open level area; away from large metallic objects, structures, and overhead power
lines.
Turn off “non-essential” electrical accessories (rear window defrost, heater/air conditioning, wipers) and
close the doors.
1. Verify the correct compass zone setting for the geographical location. Refer to D I - 111 , "
Zone Variation
Setting Procedure" .
2. Press and hold the inside mirror switch for more than 9 seconds.
3. “C” is displayed on the compass display, when calibration starts.
4. Drive slowly [less than 8 km/h (5 mph)] in a circle until the “C / CAL” is replaced with primary headings (N, NE, E, SE, S, SW, W, or NW).
NOTE:
This will require driving at least 2 complete 360 degree circles; 3 complete circles may be required.
5. The compass calibration procedure is now complete. The compass should operate normally.
NOTE:
If at any time the compass continually displays the incorrect direction or the reading is erratic or locked,
repeat the calibration procedure.
SEL168Y

Page 1362 of 4462

INFINITI FX35 2006 Service Manual DI-112
COMPASS
Revision: 2006 December 2006 FX35/FX45

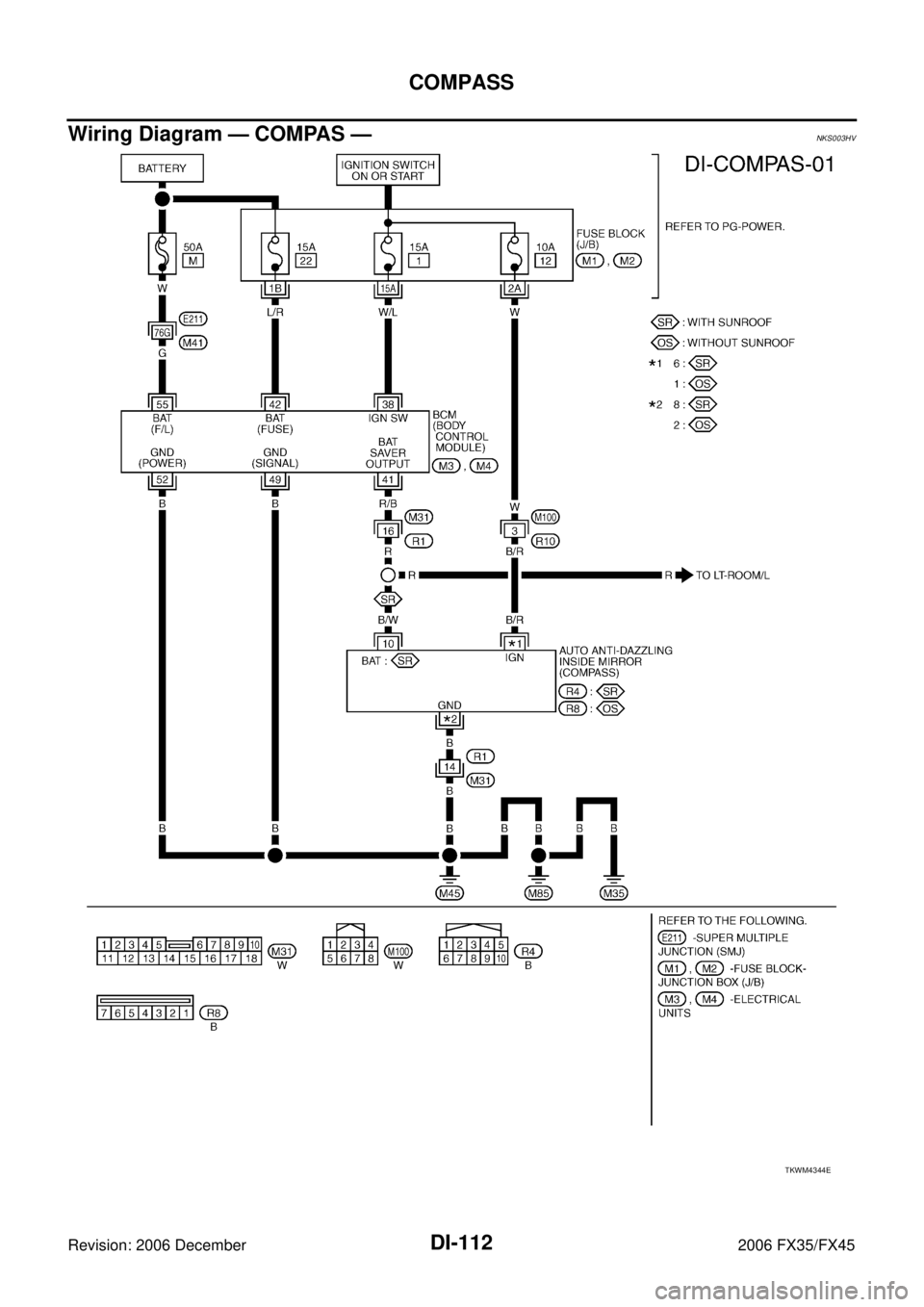

Wiring Diagram — COMPAS —NKS003HV
TKWM4344E

Page 1363 of 4462

INFINITI FX35 2006 Service Manual COMPASS DI-113
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
Removal and Installation of CompassNKS003HW
Refer to GW-66, "Removal and Installation" .

Page 1364 of 4462

INFINITI FX35 2006 Service Manual DI-114
CLOCK
Revision: 2006 December 2006 FX35/FX45
CLOCKPFP:25820

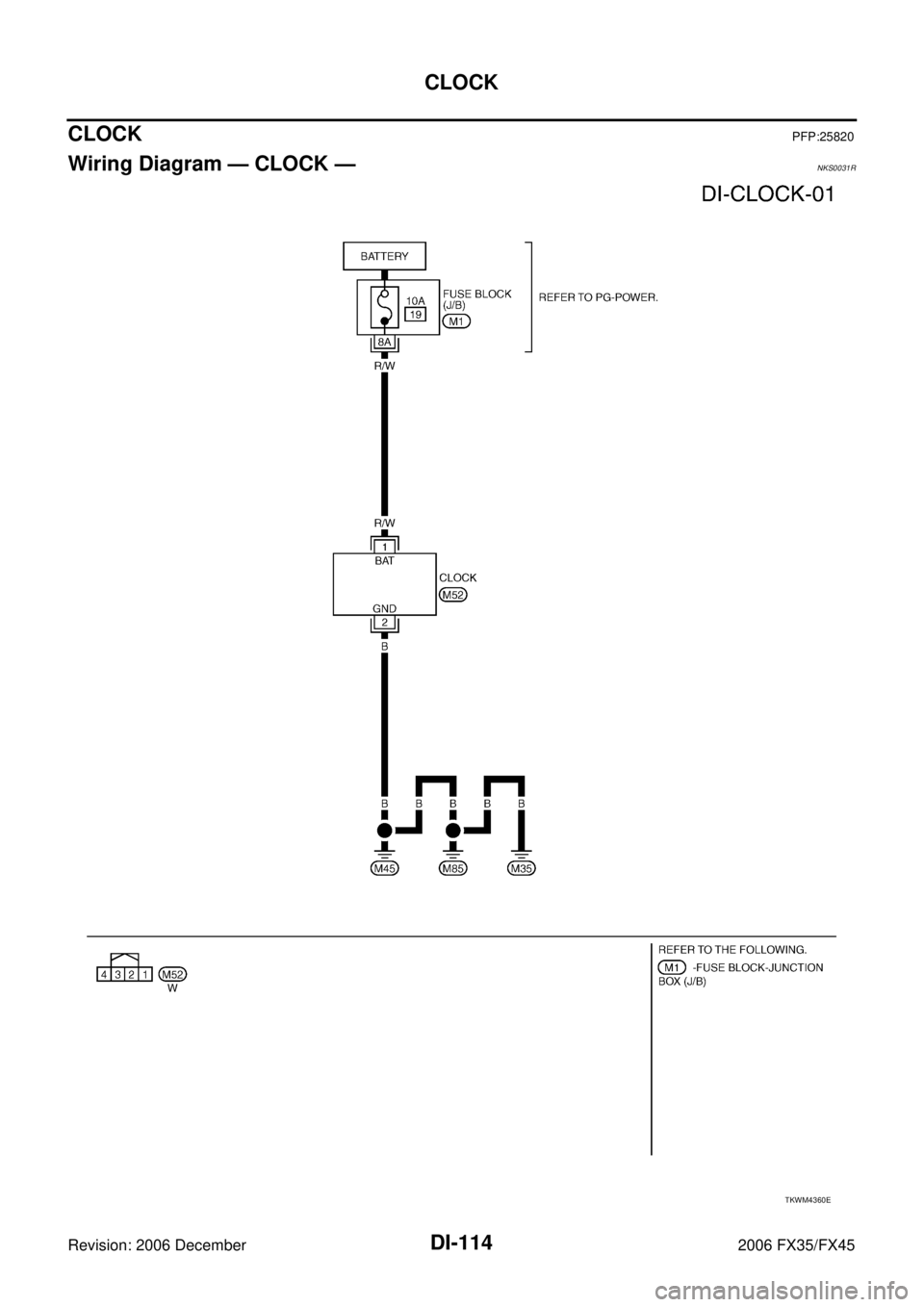

Wiring Diagram — CLOCK —NKS0031R
TKWM4360E

Page 1365 of 4462

INFINITI FX35 2006 Service Manual CLOCK DI-115
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45

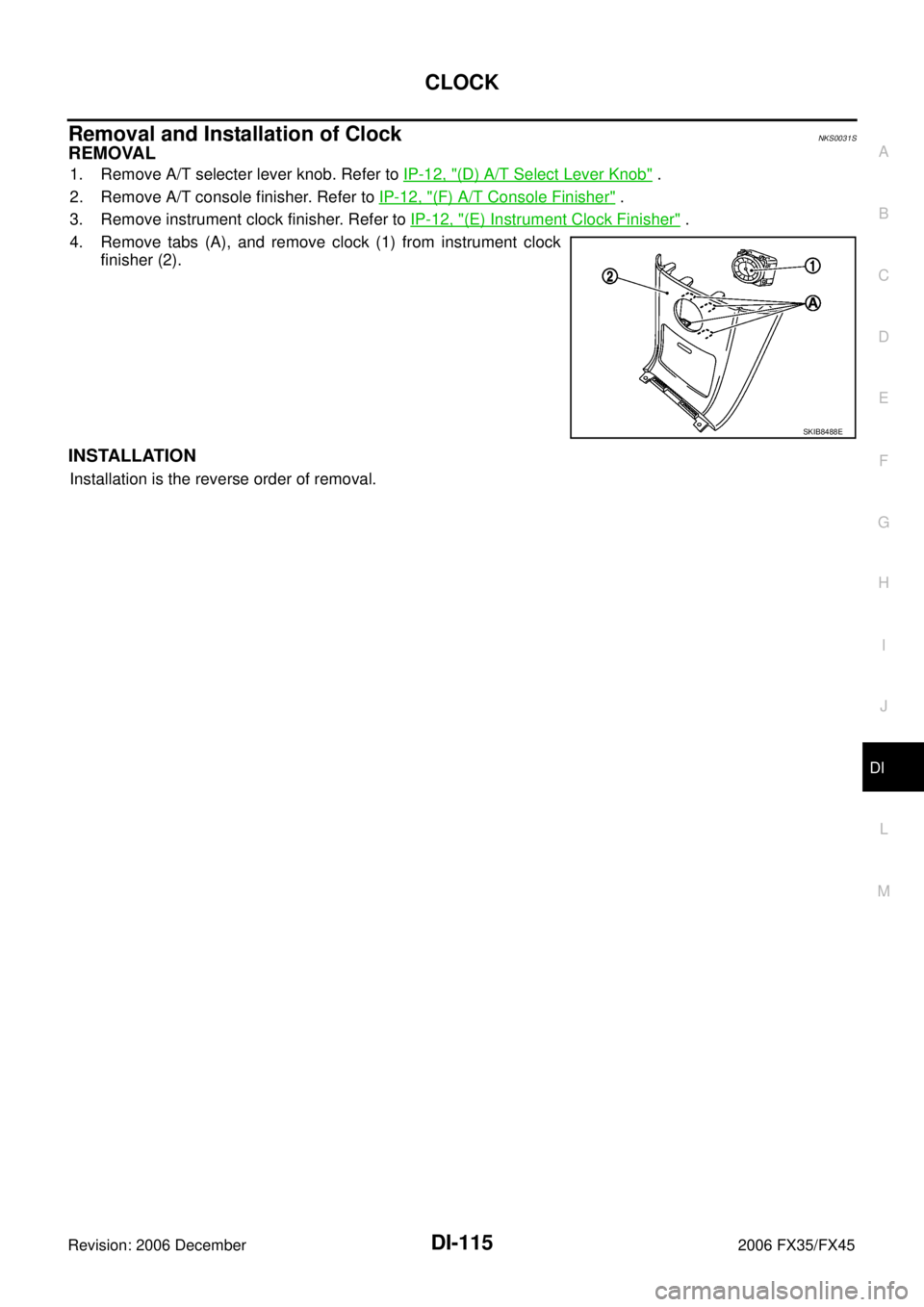

Removal and Installation of ClockNKS0031S
REMOVAL
1. Remove A/T selecter lever knob. Refer to IP-12, "(D) A

Page 1366 of 4462

INFINITI FX35 2006 Service Manual DI-116
REAR VIEW MONITOR
Revision: 2006 December 2006 FX35/FX45
REAR VIEW MONITORPFP:28260
System DescriptionNKS0031T
The rear view monitor is equipped to check the rearward of the vehicle with displ

DI-116
REAR VIEW MONITOR
Revision: 2006 December 2006 FX35/FX45
REAR VIEW MONITORPFP:28260
System DescriptionNKS0031T
The rear view monitor is equipped to check the rearward of the vehicle with display when A/T selector
lever is in reverse position.
The lines of vehicle sides and the distance from the rear end of the vehicle are provided on display as a
guide. It allows the driver to know the distance between the vehicle and a rearward object, and the width
of the vehicle much easier.
POWER SUPPLY AND GROUND
Power is supplied at all time
through 10A fuse [No. 19, located in fuse block (J/B)]
to rear view camera control unit terminal 1.
When ignition switch is in ACC or ON position, power is supplied
through 10A fuse [No. 6, located in fuse block (J/B)]
to rear view camera control unit terminal 2.
When ignition switch is in ON or START position, power is supplied
through 10A fuse (No. 83, located in IPDM E/R)
to back-up lamp relay terminals 1 and 3.
Ground is supplied
to rear view camera control unit terminal 3
through grounds M35, M45 and M85.
AV COMMUNICATION LINE
Rear view camera control unit is connected to the following units with AV communication line. Each unit trans-
mits/receives data with AV communication line.
NAVI control unit
Display
Display control unit
A/C and AV switch
REAR VIEW CAMERA OPERATION
When A/T selector lever is reverse position, power is supplied
through back-up lamp relay terminal 2
to TCM terminal 7.
Then back-up lamp relay is energized,
from back-up lamp relay terminal 5
to rear view camera control unit terminal 4.
Then, rear view camera control unit is sent camera ON signal
through rear view camera control unit terminal 8
to rear view camera terminal 1.
An image taken by rear view camera is sent
through rear view camera terminals 3 and 4
to rear view camera control unit terminals 10 and 9.
Then an image is sent
through rear view camera control unit terminals 12 and 14
to the display terminals 15 and 16.
An image of rear view will be projected on the display.

Page 1367 of 4462

INFINITI FX35 2006 Service Manual REAR VIEW MONITOR DI-117
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45

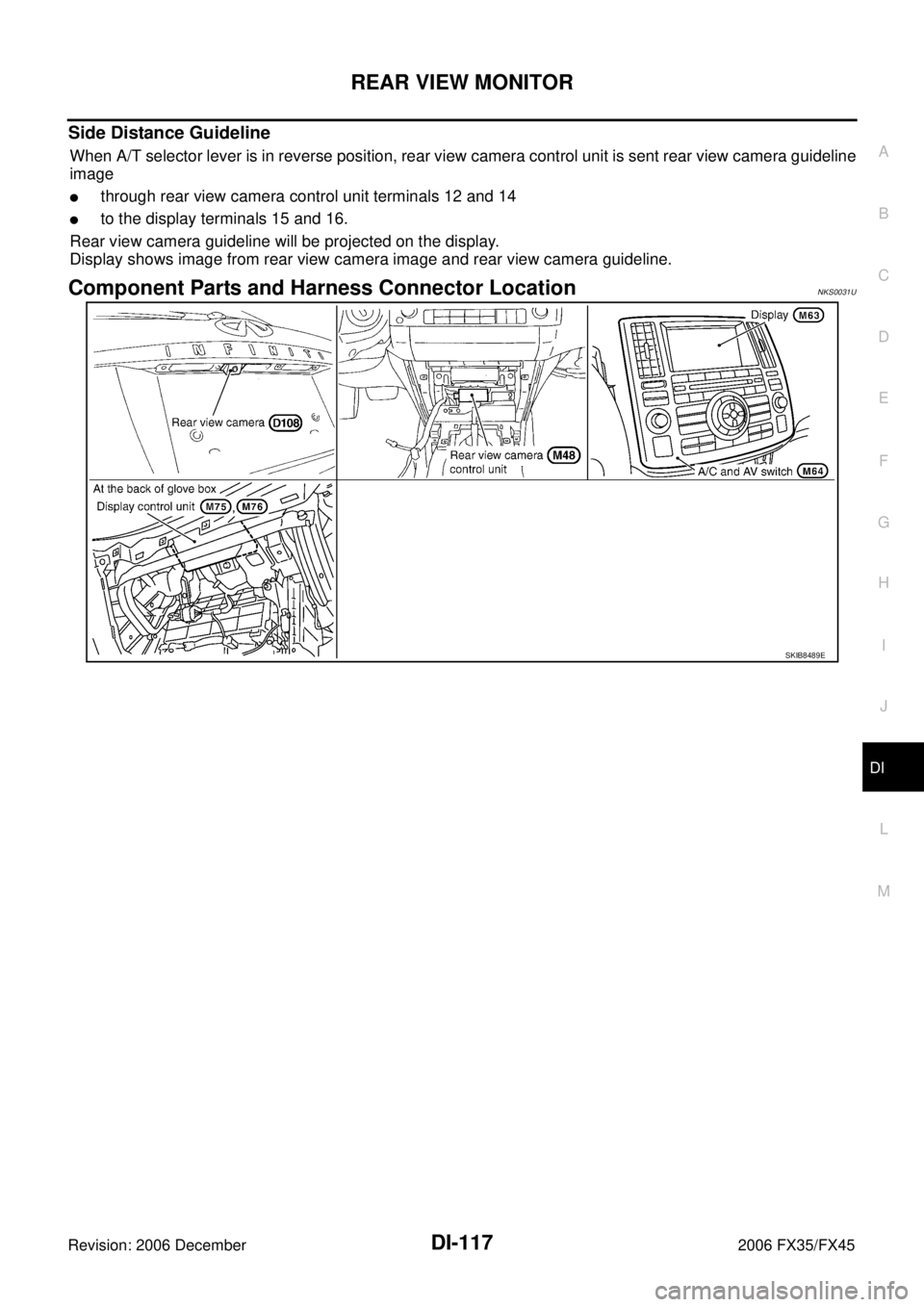

Side Distance Guideline
When A/T selector lever is in reverse position, rear view camera control

Page 1368 of 4462

INFINITI FX35 2006 Service Manual DI-118
REAR VIEW MONITOR
Revision: 2006 December 2006 FX35/FX45

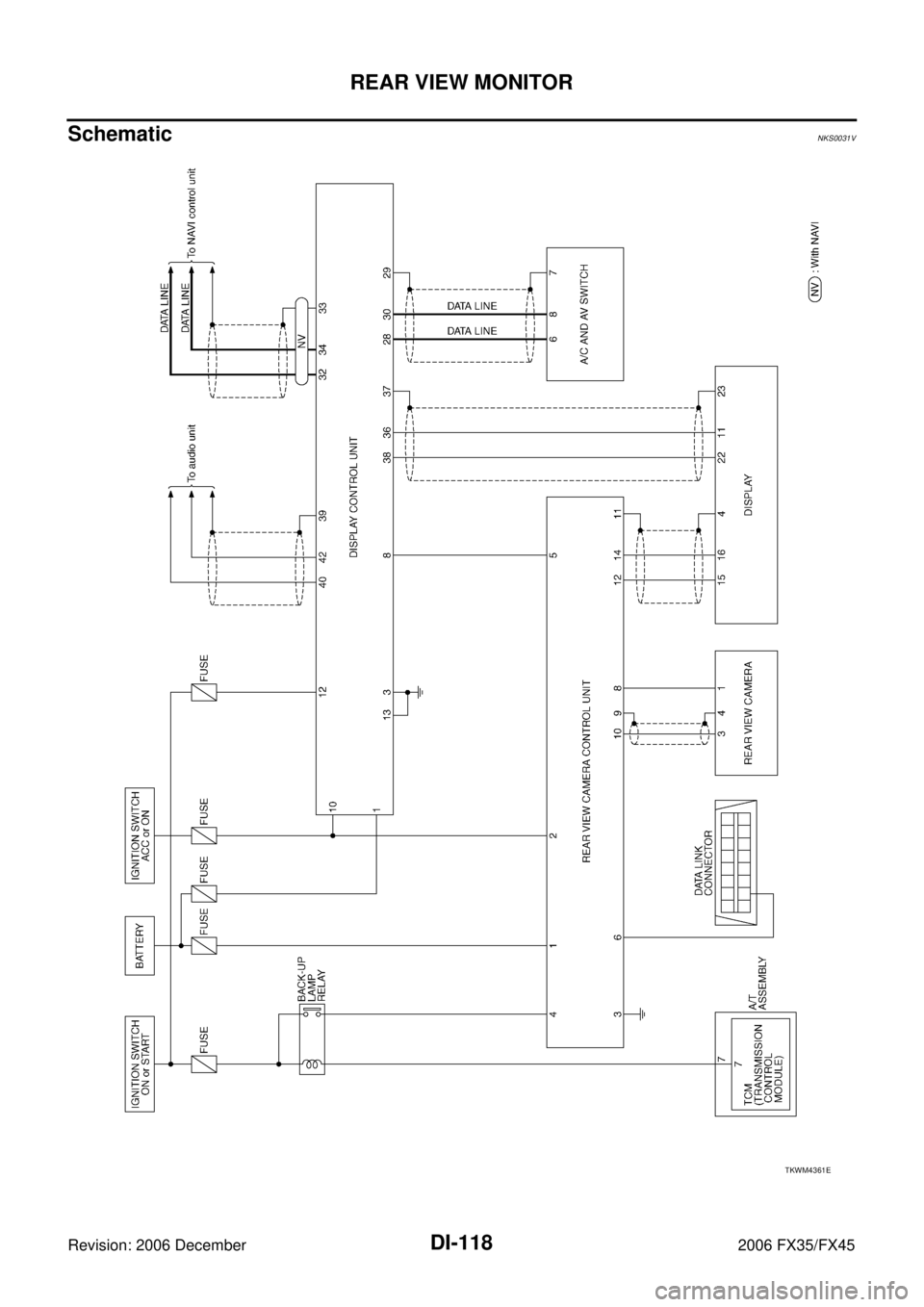

SchematicNKS0031V
TKWM4361E
