INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 2) LAN-73 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DI

Page 3434 of 4462

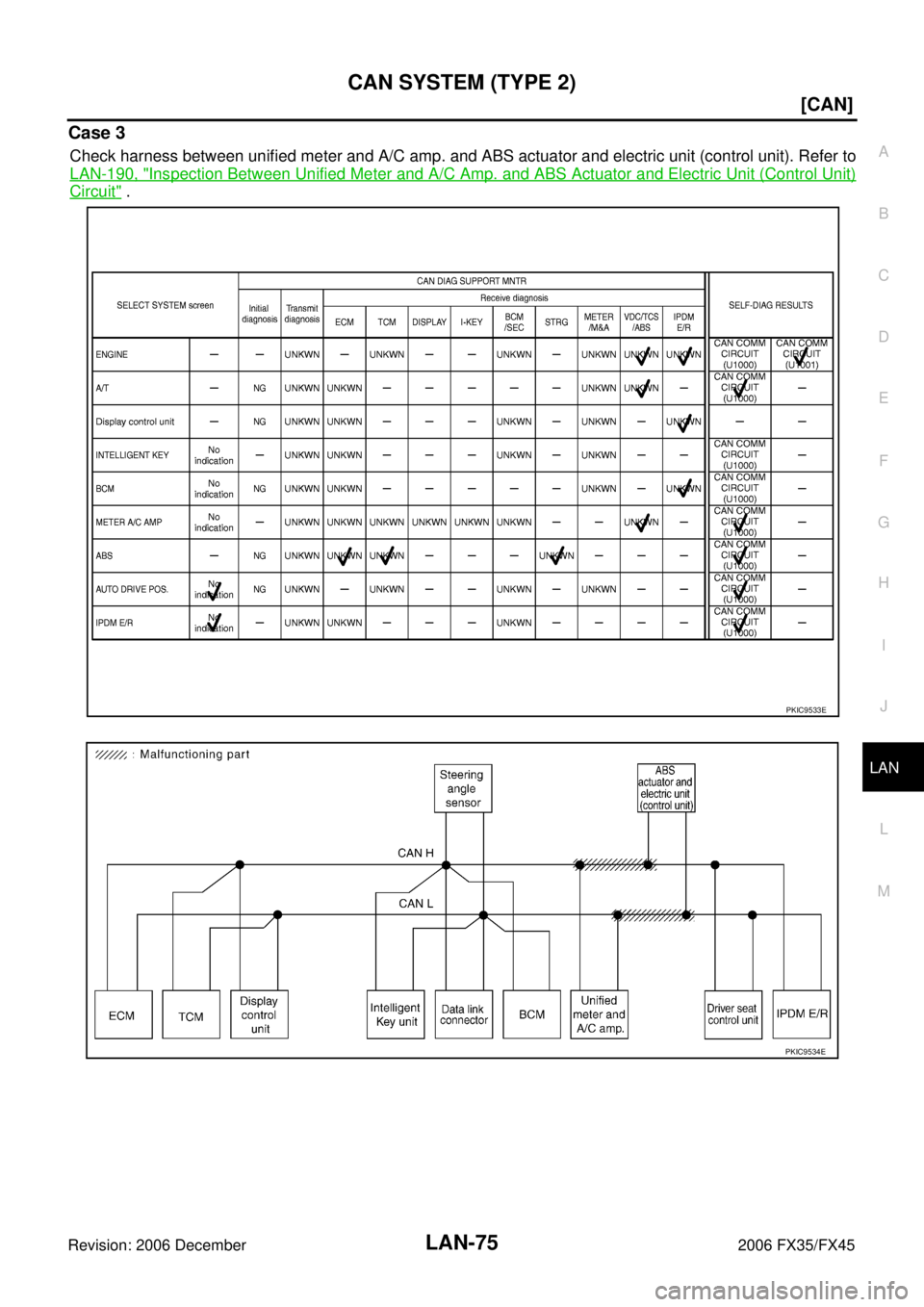

INFINITI FX35 2006 Service Manual LAN-74 [CAN] CAN SYSTEM (TYPE 2) Revision: 2006 December 2006 FX35/FX45 Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to LAN-190, "Inspection Between Data Link

Page 3435 of 4462

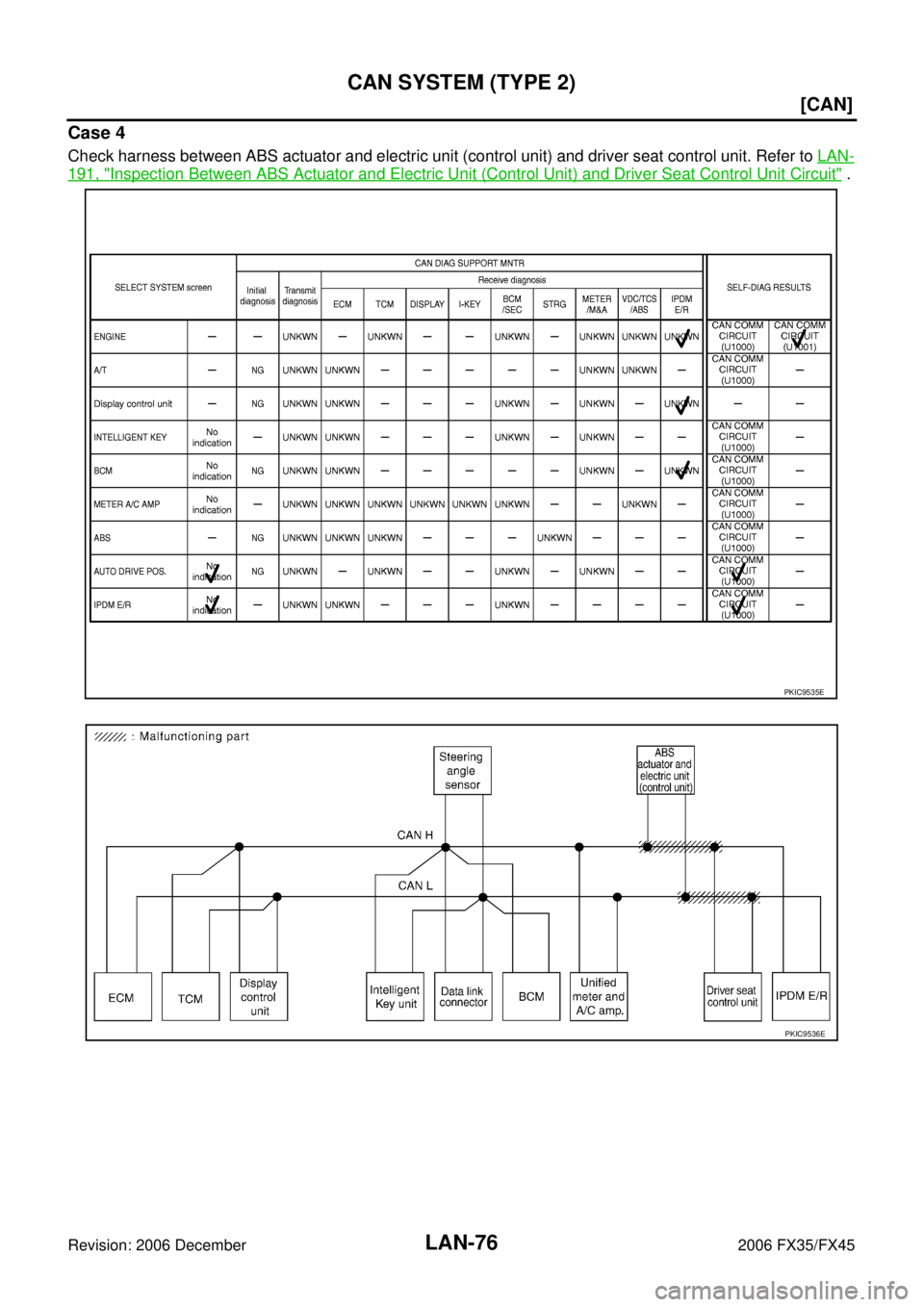

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 2) LAN-75 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric un

Page 3436 of 4462

INFINITI FX35 2006 Service Manual LAN-76 [CAN] CAN SYSTEM (TYPE 2) Revision: 2006 December 2006 FX35/FX45 Case 4 Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN- 191, "In

Page 3437 of 4462

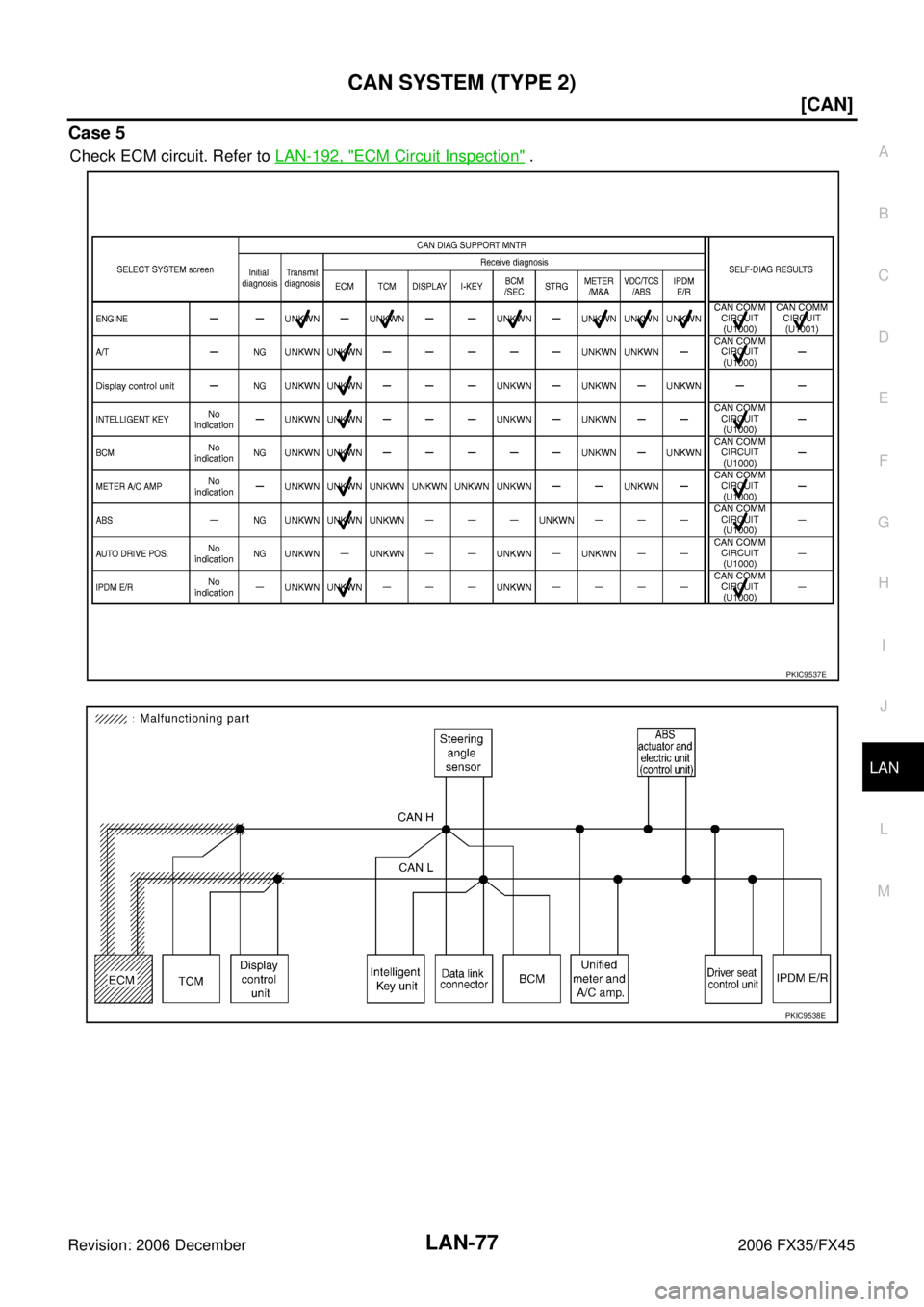

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 2) LAN-77 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 5 Check ECM circuit. Refer to LAN-192, "ECM Circuit Inspection" . PKIC9537E PKIC9

Page 3438 of 4462

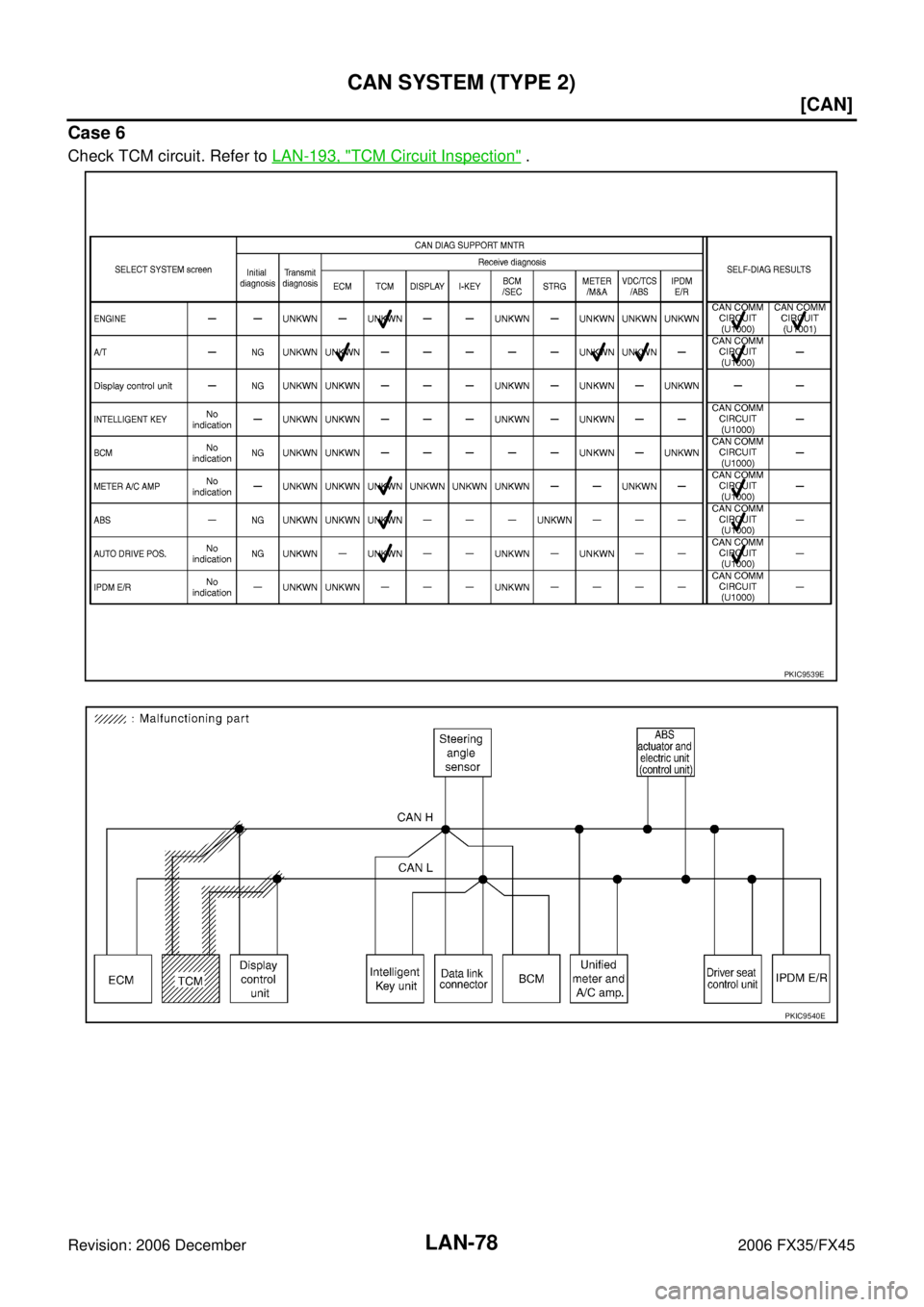

INFINITI FX35 2006 Service Manual LAN-78 [CAN] CAN SYSTEM (TYPE 2) Revision: 2006 December 2006 FX35/FX45 Case 6 Check TCM circuit. Refer to LAN-193, "TCM Circuit Inspection" . PKIC9539E PKIC9540E

Page 3439 of 4462

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 2) LAN-79 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 7 Check display control unit circuit. Refer to LAN-193, "Display Control Unit Cir

Page 3440 of 4462

INFINITI FX35 2006 Service Manual LAN-80 [CAN] CAN SYSTEM (TYPE 2) Revision: 2006 December 2006 FX35/FX45 Case 8 Check Intelligent Key unit circuit. Refer to LAN-195, "Intelligent Key Unit Circuit Inspection" . PKIC9543E PKIC9544E
