DTC P0605 ECMPFP:23710
Component DescriptionNBS003T6
The ECM consists of a microcomputer and INFINITI FX35 2006 Service Manual DTC P0605 ECM EC-481
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P0605 ECMPFP:23710
Component DescriptionNBS003T6
The ECM consists of a microcomputer and](/manual-img/42/57019/w960_57019-1864.png)
DTC P0605 ECM EC-481
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P0605 ECMPFP:23710
Component DescriptionNBS003T6
The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.
On Board Diagnosis LogicNBS003T7
This self-diagnosis has one or two trip detection logic.
FAIL-SAFE MODE
ECM enters fail-safe mode when the malfunction A is detected.
DTC Confirmation ProcedureNBS003T8
Perform “PROCEDURE FOR MALFUNCTION A” first. If the 1st trip DTC cannot be confirmed, perform
PROCEDURE FOR MALFUNCTION B. If there is no malfunction on PROCEDURE FOR MALFUNCTION
B, perform PROCEDURE FOR MALFUNCTION C.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. If 1st trip DTC is detected, go to EC-482, "
Diagnostic Procedure"
.
With GST
Follow the procedure “With CONSULT-II” above.
PBIB1164E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0605
0605 Engine control module A) ECM calculation function is malfunctioning.
ECM
B) ECM EEP-ROM system is malfunctioning.
C) ECM self shut-off function is malfunctioning.
Detected items Engine operation condition in fail-safe mode
Malfunction A
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5
degrees) by the return spring.
ECM deactivates ICC operation.
ECM deactivates ASCD operation.
SEF058Y
Page 1866 of 4462
![INFINITI FX35 2006 Service Manual EC-482
[VQ35DE]
DTC P0605 ECM
Revision: 2006 December 2006 FX35/FX45
PROCEDURE FOR MALFUNCTION B With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” m INFINITI FX35 2006 Service Manual EC-482
[VQ35DE]
DTC P0605 ECM
Revision: 2006 December 2006 FX35/FX45
PROCEDURE FOR MALFUNCTION B With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” m](/manual-img/42/57019/w960_57019-1865.png)

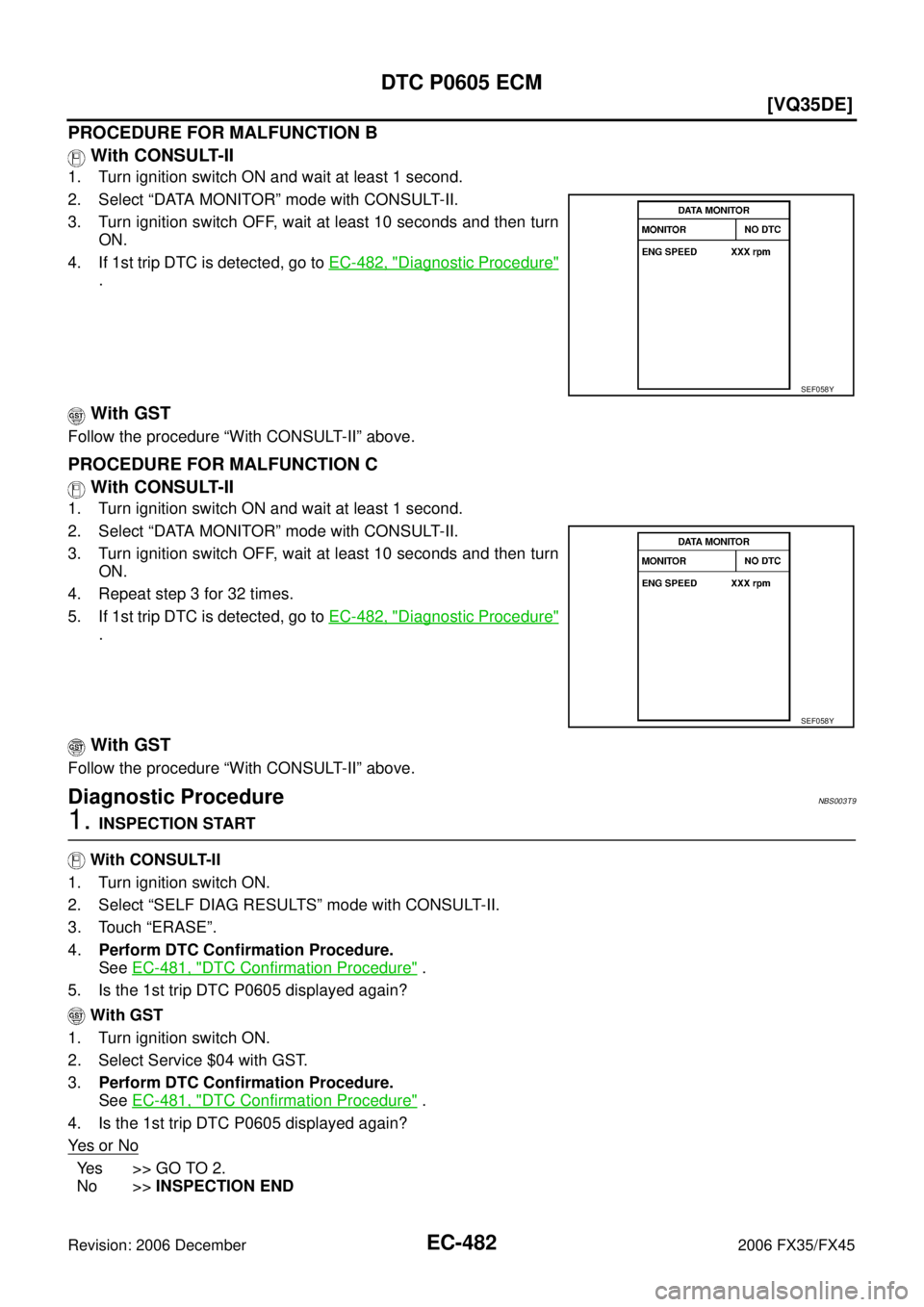

EC-482
[VQ35DE]
DTC P0605 ECM
Revision: 2006 December 2006 FX35/FX45
PROCEDURE FOR MALFUNCTION B With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
4. If 1st trip DTC is detected, go to EC-482, "
Diagnostic Procedure"
.
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR MALFUNCTION C
With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
4. Repeat step 3 for 32 times.
5. If 1st trip DTC is detected, go to EC-482, "
Diagnostic Procedure"
.
With GST
Follow the procedure “With CONSULT-II” above.
Diagnostic ProcedureNBS003T9
1. INSPECTION START
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4. Perform DTC Confirmation Procedure.
See EC-481, "
DTC Confirmation Procedure" .
5. Is the 1st trip DTC P0605 displayed again?
With GST
1. Turn ignition switch ON.
2. Select Service $04 with GST.
3. Perform DTC Confirmation Procedure.
See EC-481, "
DTC Confirmation Procedure" .
4. Is the 1st trip DTC P0605 displayed again?
Ye s o r N o
Yes >> GO TO 2.
No >> INSPECTION END
SEF058Y
SEF058Y
Page 1867 of 4462
DTC P0605 ECM EC-483
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
2. REPLACE ECM
1. Replace ECM.
2. Perform initialization of IVIS(NATS) system and registration of all IVIS(NATS) ignition key IDs. Refer to BL-207, "
ECM Re-Communicating Function" .
3. Perform EC-83, "
VIN Registration" .
4. Perform EC-84, "
Accelerator Pedal Released Position Learning" .
5. Perform EC-84, "
Throttle Valve Closed Position Learning" .
6. Perform EC-84, "
Idle Air Volume Learning" .
>> INSPECTION END
Page 1868 of 4462
![INFINITI FX35 2006 Service Manual EC-484
[VQ35DE]
DTC P0643 SENSOR POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
DTC P0643 SENSOR POWER SUPPLYPFP:18919
On Board Diagnosis LogicNBS003UZ
This self-diagnosis has the one trip detect INFINITI FX35 2006 Service Manual EC-484
[VQ35DE]
DTC P0643 SENSOR POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
DTC P0643 SENSOR POWER SUPPLYPFP:18919
On Board Diagnosis LogicNBS003UZ
This self-diagnosis has the one trip detect](/manual-img/42/57019/w960_57019-1867.png)
EC-484
[VQ35DE]
DTC P0643 SENSOR POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
DTC P0643 SENSOR POWER SUPPLYPFP:18919
On Board Diagnosis LogicNBS003UZ
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureNBS003V0
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-487, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis
name DTC detecting condition Possible cause
P0643
0643 Sensor power supply
circuit short ECM detects a voltage of power source for
sensor is excessively low or high.
Harness or connectors
(APP sensor 1 circuit is shorted.)
(PSP sensor circuit is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)
(EVAP control system pressure sensor circuit
is shorted.)
Accelerator pedal position sensor
(APP sensor 1)
EVAP control system pressure sensor
Power steering pressure sensor
Refrigerant pressure sensor
Engine operation condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
SEF058Y
Page 1869 of 4462
DTC P0643 SENSOR POWER SUPPLY EC-485
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Wiring DiagramNBS003V1
TBWM1400E
Page 1870 of 4462
![INFINITI FX35 2006 Service Manual EC-486
[VQ35DE]
DTC P0643 SENSOR POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use EC INFINITI FX35 2006 Service Manual EC-486
[VQ35DE]
DTC P0643 SENSOR POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use EC](/manual-img/42/57019/w960_57019-1869.png)
EC-486
[VQ35DE]
DTC P0643 SENSOR POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
48 LG Sensor power supply
(EVAP control system pres-
sure sensor) [Ignition switch: ON]
Approximately 5V
49 PU Sensor power supply
(Refrigerant pressure sen-
sor) [Ignition switch: ON]
Approximately 5V
68 BR Sensor power supply
(Power steering pressure
sensor) [Ignition switch: ON]
Approximately 5V
82 B/W Sensor ground
(APP sensor 1, ASCD steer-
ing switch, ICC steering
switch) [Engine is running]
Warm-up condition
Idle speed
Approximately 0V
83 G/OR Sensor ground
(APP sensor 2) [Engine is running]
Warm-up condition
Idle speed
Approximately 0V
90 L/B Sensor power supply
(APP sensor 1) [Ignition switch: ON]
Approximately 5V
91 G Sensor power supply
(APP sensor 2) [Ignition switch: ON]
Approximately 5V
98 Y/R Accelerator pedal position
sensor 2 [Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully released
0.15 - 0.60V
[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully depressed 1.95 - 2.40V
106 OR Accelerator pedal position
sensor 1 [Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully released
0.5 - 1.0V
[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully depressed 3.9 - 4.7V
Page 1871 of 4462
![INFINITI FX35 2006 Service Manual DTC P0643 SENSOR POWER SUPPLY EC-487
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Diagnostic ProcedureNBS003V2
1. CHECK GROUND CONNECTIONS
1. Turn ignition s INFINITI FX35 2006 Service Manual DTC P0643 SENSOR POWER SUPPLY EC-487
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Diagnostic ProcedureNBS003V2
1. CHECK GROUND CONNECTIONS
1. Turn ignition s](/manual-img/42/57019/w960_57019-1870.png)
DTC P0643 SENSOR POWER SUPPLY EC-487
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Diagnostic ProcedureNBS003V2
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-154, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 6 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 6 and ECM terminal 90. Refer to Wiring Diagram.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
PBIB2625E
PBIB1580E
Voltage: Approximately 5V
PBIB0914E
Continuity should exist.
Page 1872 of 4462
![INFINITI FX35 2006 Service Manual EC-488
[VQ35DE]
DTC P0643 SENSOR POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open between ECM and INFINITI FX35 2006 Service Manual EC-488
[VQ35DE]
DTC P0643 SENSOR POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open between ECM and](/manual-img/42/57019/w960_57019-1871.png)
EC-488
[VQ35DE]
DTC P0643 SENSOR POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open between ECM and APP sensor
>> Repair open circuit.
5. CHECK SENSOR POWER SUPPLY CIRCUITS
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 6.
NG >> Repair short to ground or short to power in harness or connectors.
6. CHECK COMPONENTS
Check the following.
Refrigerant pressure sensor (Refer to AT C - 8 9 , "COMPONENT INSPECTION" .)
Power steering pressure sensor (Refer to EC-476, "Component Inspection" .)
EVAP control system pressure sensor (Refer to EC-427, "Component Inspection" .)
OK or NG
OK >> GO TO 9.
NG >> Replace malfunctioning component.
7. CHECK ACCELERATOR PEDAL POSITION SENSOR
Refer to EC-581, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-84, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-84, "
Throttle Valve Closed Position Learning" .
4. Perform EC-84, "
Idle Air Volume Learning" .
>> INSPECTION END
9. CHECK INTERMITTENT INCIDENT
Refer to EC-148, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
ECM terminal Sensor terminal Reference Wiring Diagram
90 APP sensor terminal 6 EC-577
49 Refrigerant pressure sensor terminal 1EC-663
68 PSP sensor terminal 1EC-473
48 EVAP control system pressure sensor terminal 3EC-430
