INFINITI FX35 2006 Service Manual HARNESS PG-61 C D E F G H I J L M A B PG Revision: 2006 December 2006 FX35/FX45 ROOM LAMP HARNESS TKIM0637E

Page 3914 of 4462

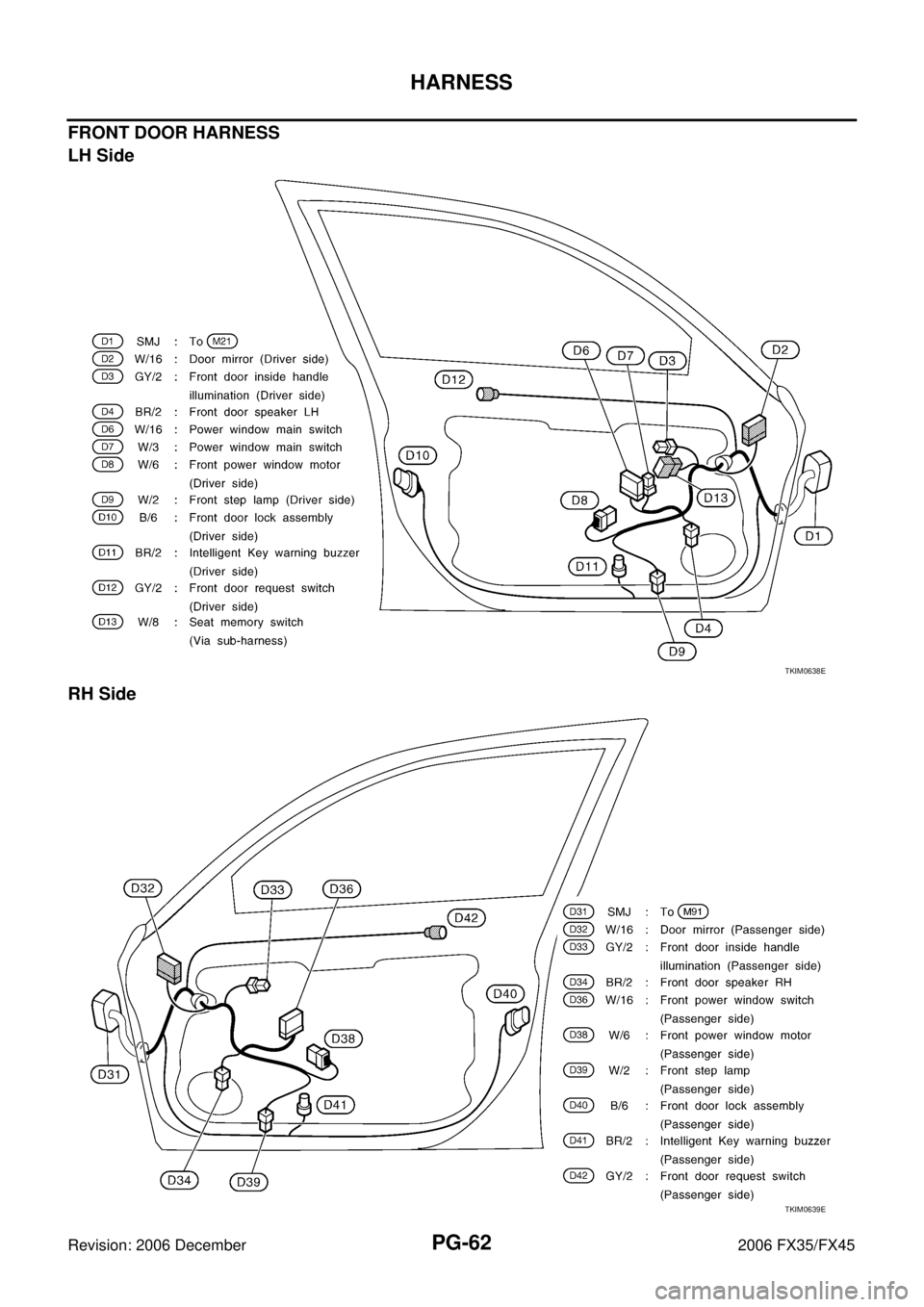

INFINITI FX35 2006 Service Manual PG-62 HARNESS Revision: 2006 December 2006 FX35/FX45 FRONT DOOR HARNESS LH Side RH Side TKIM0638E TKIM0639E

Page 3915 of 4462

INFINITI FX35 2006 Service Manual HARNESS PG-63 C D E F G H I J L M A B PG Revision: 2006 December 2006 FX35/FX45 REAR DOOR HARNESS LH Side RH Side TKIM0640E TKIM0641E

Page 3916 of 4462

INFINITI FX35 2006 Service Manual PG-64 HARNESS Revision: 2006 December 2006 FX35/FX45 BACK DOOR HARNESS TKIH0016E

Page 3917 of 4462

INFINITI FX35 2006 Service Manual HARNESS PG-65 C D E F G H I J L M A B PG Revision: 2006 December 2006 FX35/FX45 Wiring Diagram Codes (Cell Codes) NKS003GO Use the chart below to find out what each wiring diagram code sta

Page 3918 of 4462

INFINITI FX35 2006 Service Manual PG-66 HARNESS Revision: 2006 December 2006 FX35/FX45 FTTS EC Fuel Tank Temperature Sensor FUELB1 EC Fuel Injection System Function (Bank 1) FUELB2 EC Fuel Injection System Function (Bank 2) H/AIM LT

Page 3919 of 4462

INFINITI FX35 2006 Service Manual HARNESS PG-67 C D E F G H I J L M A B PG Revision: 2006 December 2006 FX35/FX45 P/SCKT WW Power Socket PGC/V EC EVAP Canister Purge Volume Control Solenoid Valve PHASE EC Camshaft Positio

Page 3920 of 4462

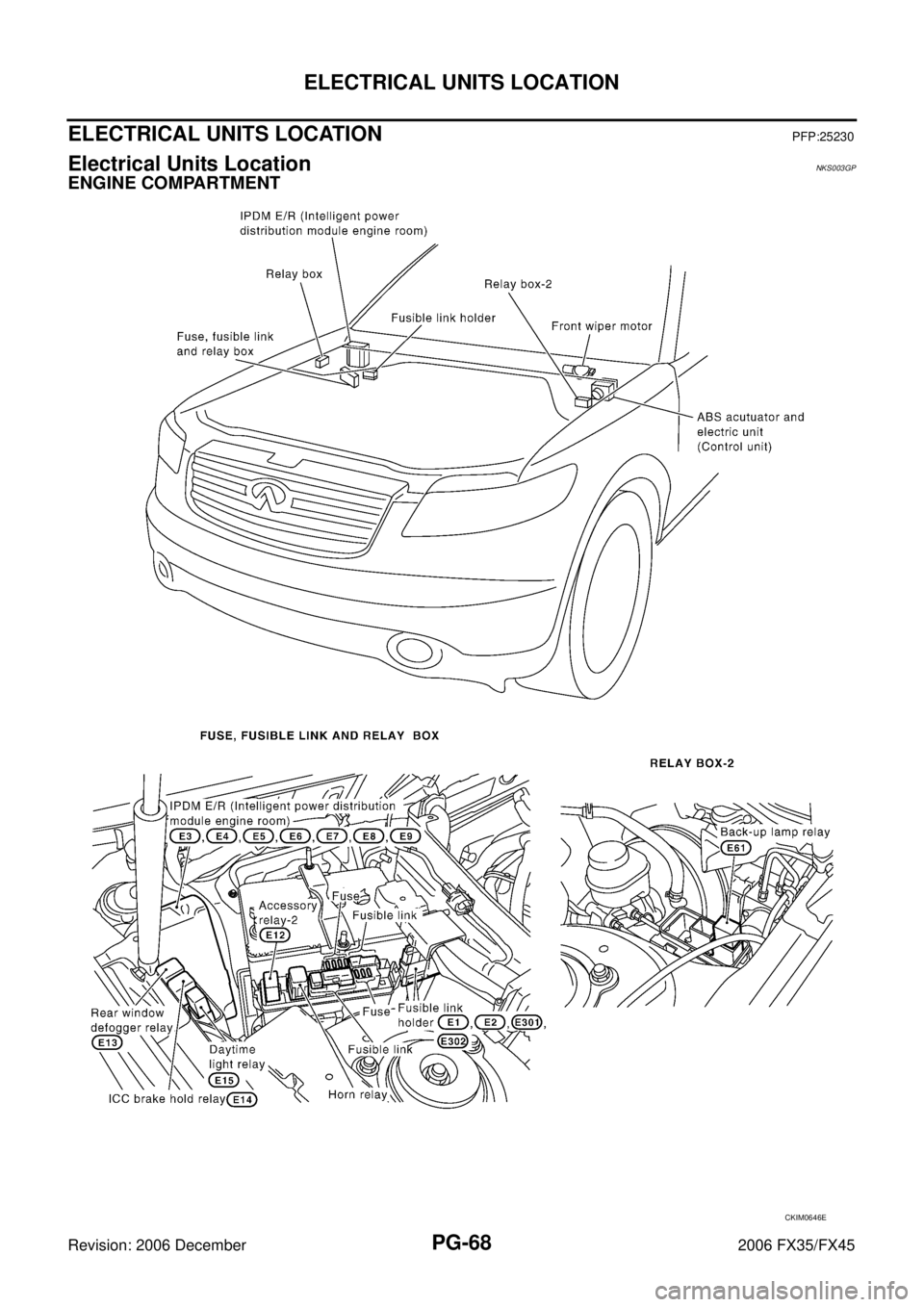

INFINITI FX35 2006 Service Manual PG-68 ELECTRICAL UNITS LOCATION Revision: 2006 December 2006 FX35/FX45 ELECTRICAL UNITS LOCATIONPFP:25230 Electrical Units Location NKS003GP ENGINE COMPARTMENT CKIM0646E
