Page 3961 of 4462

INFINITI FX35 2006 Service Manual STEERING COLUMN PS-13 C D E F H I J K L M A B PS Revision: 2006 December 2006 FX35/FX45 8. Remove fixing bolts of knee protector, then remove knee protec- tor from vehicle. 9. Disconnect

Page 3962 of 4462

INFINITI FX35 2006 Service Manual PS-14 STEERING COLUMN Revision: 2006 December 2006 FX35/FX45 INSPECTION AFTER REMOVAL Check if there is something wrong with jacket tube of steering column assembly and collar etc. And then if they

Page 3963 of 4462

INFINITI FX35 2006 Service Manual STEERING COLUMN PS-15 C D E F H I J K L M A B PS Revision: 2006 December 2006 FX35/FX45 Disassembly and AssemblyNGS000C1 COMPONENTS SGIA0592E

Page 3964 of 4462

INFINITI FX35 2006 Service Manual PS-16 STEERING COLUMN Revision: 2006 December 2006 FX35/FX45 DISASSEMBLY Disassemble the parts from jacket tube. The parts to be disassembled are shown in the figure. ASSEMBLY Refer to PS-15, "COMPON

Page 3965 of 4462

INFINITI FX35 2006 Service Manual POWER STEERING GEAR AND LINKAGE PS-17 C D E F H I J K L M A B PS Revision: 2006 December 2006 FX35/FX45 POWER STEERING GEAR AND LINKAGEPFP:49001 Removal and InstallationNGS000C3 CAUTION:

Page 3966 of 4462

INFINITI FX35 2006 Service Manual PS-18 POWER STEERING GEAR AND LINKAGE Revision: 2006 December 2006 FX35/FX45 7. Remove oil pipings (high pressure side and low pressure side) from steering gear assembly, then drain fluid from pipings

Page 3967 of 4462

INFINITI FX35 2006 Service Manual POWER STEERING GEAR AND LINKAGE PS-19 C D E F H I J K L M A B PS Revision: 2006 December 2006 FX35/FX45 When steering wheel is set in the straight ahead direction, con- firm slit of lowe

Page 3968 of 4462

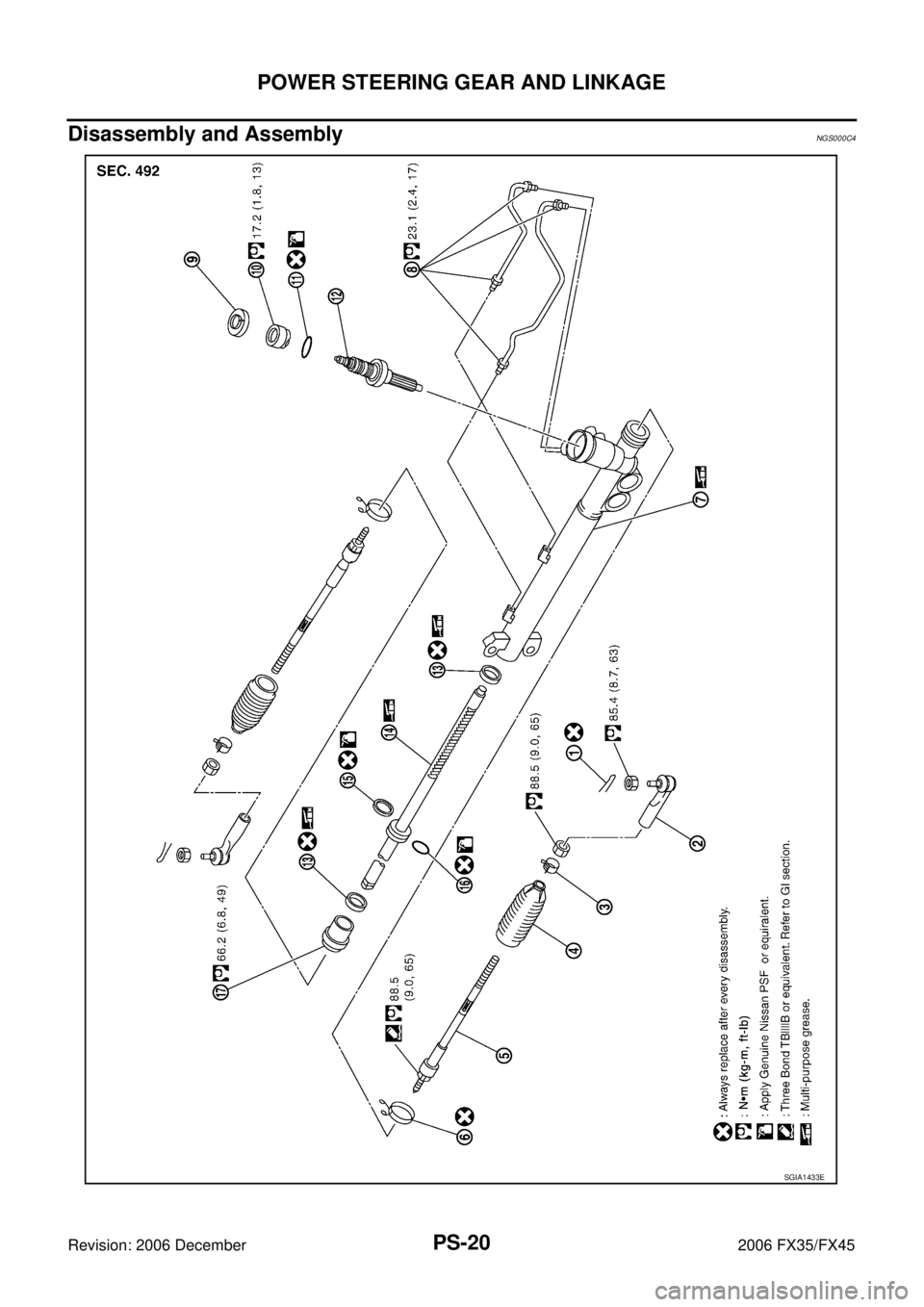

INFINITI FX35 2006 Service Manual PS-20 POWER STEERING GEAR AND LINKAGE Revision: 2006 December 2006 FX35/FX45 Disassembly and AssemblyNGS000C4 SGIA1433E
