DTC P0327, P0328, P0332, P0333 KS EC-1025
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P0327, P0328, P0332, P0333 KSPFP:22060
Component DescriptionNBS00470
The knock sensor is attached to the cylinder block. It senses engine
knocking using a piezoelectric element. A knocking vibration from
the cylinder block is sensed as vibrational pressure. This pressure is
converted into a voltage signal and sent to the ECM.
On Board Diagnosis LogicNBS00471
The MIL will not light up for these diagnoses.
DTC Confirmation ProcedureNBS00472
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-II.
2. Start engine and run it for at least 5 seconds at idle speed.
3. If 1st trip DTC is detected, go to EC-1027, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB0021E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0327
0327
(bank 1) Knock sensor circuit low
input An excessively low voltage from the sensor
is sent to ECM.
Harness or connectors
(The sensor circuit is open or shorted.)
Knock sensor
P0332
0332
(bank 2)
P0328
0328
(bank 1) Knock sensor circuit high
input An excessively high voltage from the sensor
is sent to ECM.
P0333
0333
(bank 2)
SEF058Y
Page 2410 of 4462
EC-1026
[VK45DE]
DTC P0327, P0328, P0332, P0333 KS
Revision: 2006 December 2006 FX35/FX45

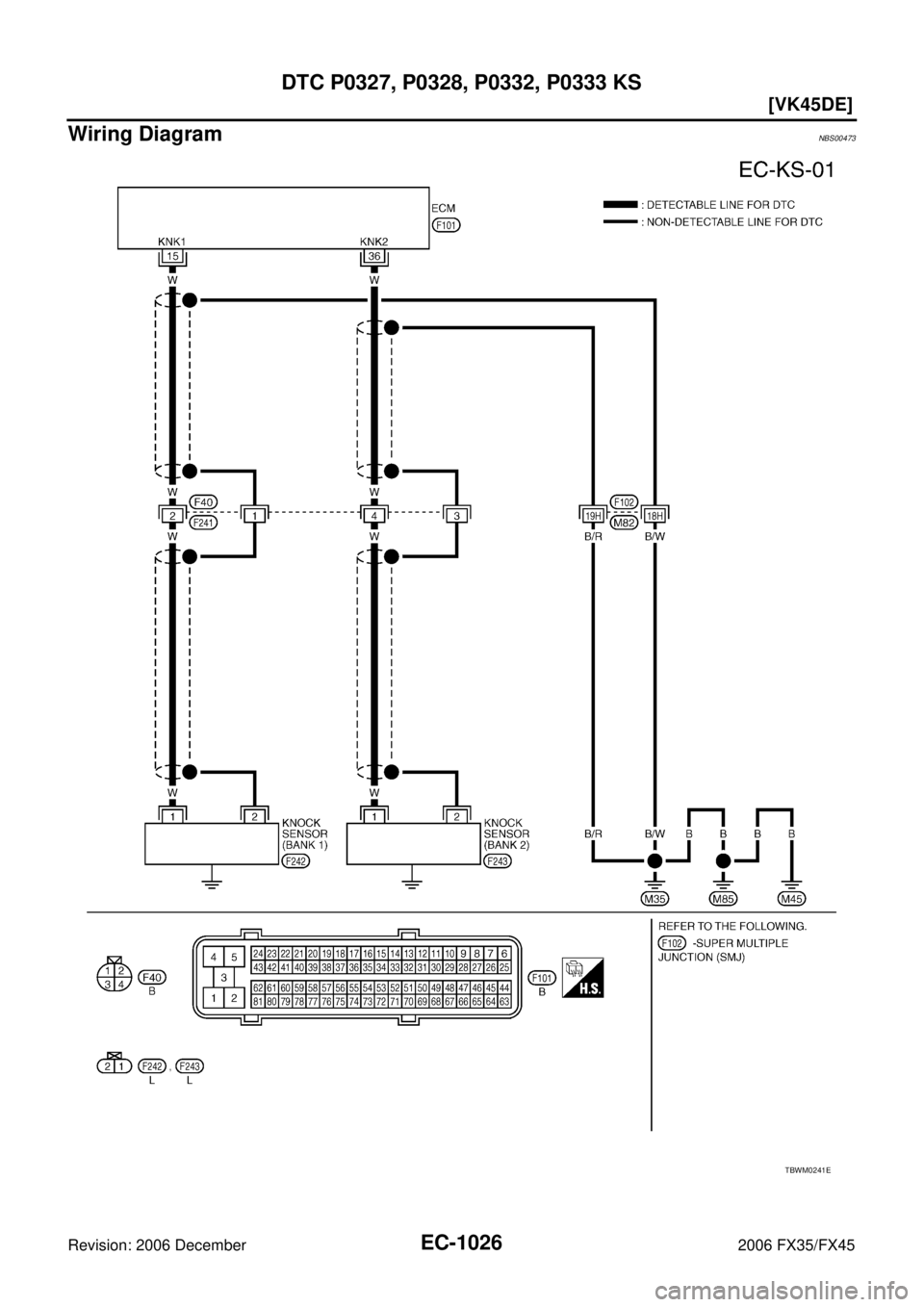

Wiring DiagramNBS00473
TBWM0241E
Page 2411 of 4462
![INFINITI FX35 2006 Service Manual DTC P0327, P0328, P0332, P0333 KS EC-1027
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each t INFINITI FX35 2006 Service Manual DTC P0327, P0328, P0332, P0333 KS EC-1027
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each t](/manual-img/42/57019/w960_57019-2410.png)
DTC P0327, P0328, P0332, P0333 KS EC-1027
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS00474
1. CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check resistance between ECM terminals 15, 36 and ground. Refer to Wiring Diagram. NOTE:
It is necessary to use an ohmmeter which can measure more than 10 M Ω.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect knock sensor harness connector.
2. Check harness continuity between the following; ECM terminal 15 and knock sensor (bank1) terminal 1,
ECM terminal 36 and knock sensor (bank 2) terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F40, F241
Harness for open or short between ECM and knock sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK KNOCK SENSOR
Refer to EC-1029, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace knock sensor.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
15
36 W
W Knock sensor (bank 1)
Knock sensor (bank 2) [Engine is running]
Idle speed
Approximately 2.5V
Resistance: Approximately 532 - 588 k
Ω [at 20 °C (68 °F)]
Continuity should exist.
PBIB0021E
Page 2412 of 4462
EC-1028
[VK45DE]
DTC P0327, P0328, P0332, P0333 KS
Revision: 2006 December 2006 FX35/FX45

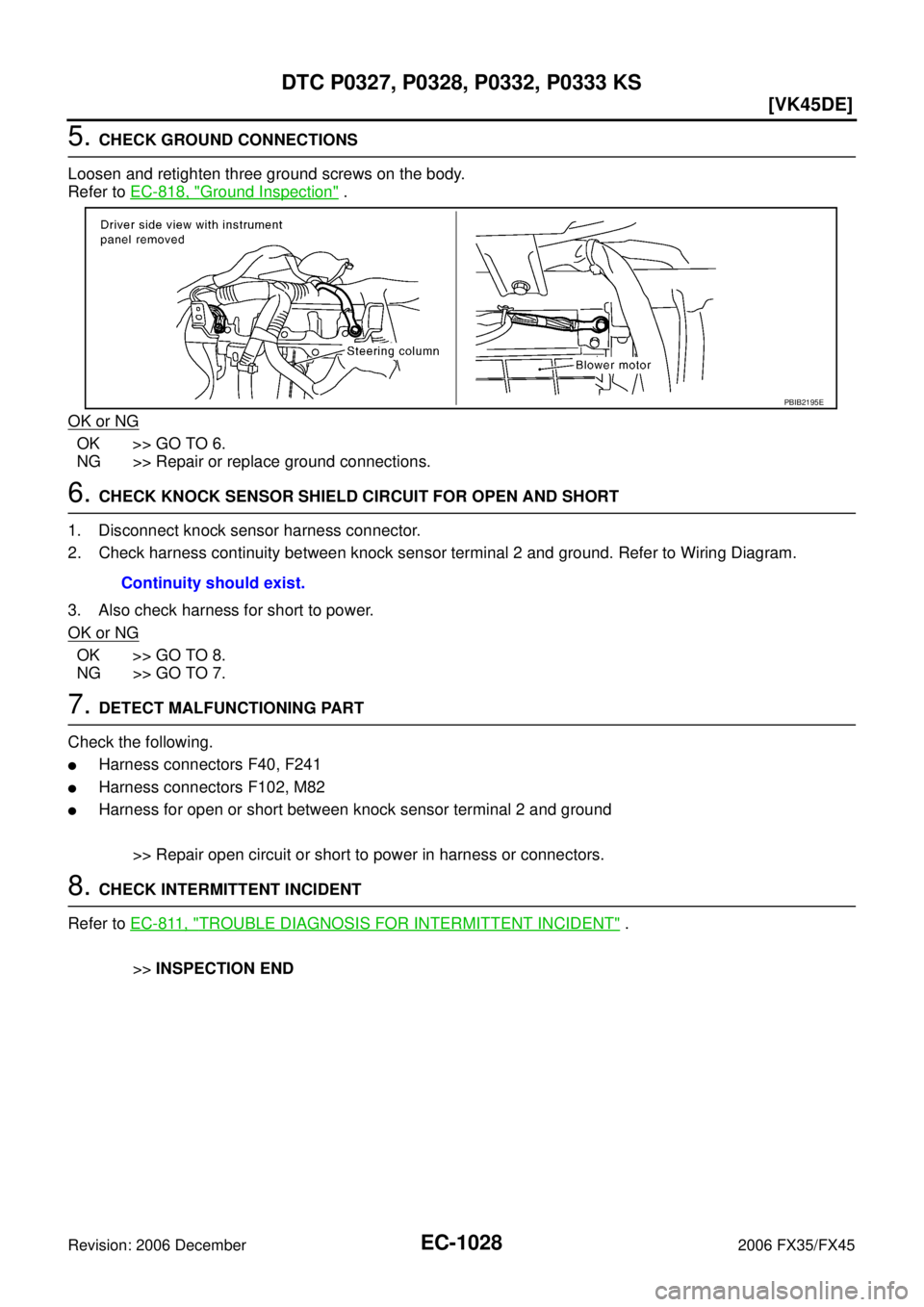

5. CHECK GROUND CONNECTIONS
Loosen and retighten three ground screws on the body.
Refer to EC-818, "
Ground Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace ground connections.
6. CHECK KNOCK SENSOR SHIELD CIRCUIT FOR OPEN AND SHORT
1. Disconnect knock sensor harness connector.
2. Check harness continuity between knock sensor terminal 2 and ground. Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F40, F241
Harness connectors F102, M82
Harness for open or short between knock sensor terminal 2 and ground
>> Repair open circuit or short to power in harness or connectors.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-811, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
PBIB2195E
Continuity should exist.
Page 2413 of 4462
DTC P0327, P0328, P0332, P0333 KS EC-1029
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Component InspectionNBS00475
KNOCK SENSOR
Check resistance between knock sensor terminal 1 and ground.
NOTE:
It is necessary to use an ohmmeter which can measure more
than 10 M Ω.
CAUTION:
Do not use any knock sensors that have been dropped or phys-
ically damaged. Use only new ones.
Removal and InstallationNBS00476
KNOCK SENSOR
Refer to EM-248, "CYLINDER BLOCK" .
Resistance: Approximately 532 - 588 k
Ω [at 20 °C (68 °F)]
SEF111Y
Page 2414 of 4462
![INFINITI FX35 2006 Service Manual EC-1030
[VK45DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2006 December 2006 FX35/FX45
DTC P0335 CKP SENSOR (POS)PFP:23731
Component DescriptionNBS00477
The crankshaft position sensor (POS) is located on INFINITI FX35 2006 Service Manual EC-1030
[VK45DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2006 December 2006 FX35/FX45
DTC P0335 CKP SENSOR (POS)PFP:23731
Component DescriptionNBS00477
The crankshaft position sensor (POS) is located on](/manual-img/42/57019/w960_57019-2413.png)
EC-1030
[VK45DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2006 December 2006 FX35/FX45
DTC P0335 CKP SENSOR (POS)PFP:23731
Component DescriptionNBS00477
The crankshaft position sensor (POS) is located on the A/T assem-
bly facing the gear teeth (cogs) of the signal plate. It detects the fluc-
tuation of the engine revolution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.
ECM receives the signals as shown in the figure.
CONSULT-II Reference Value in Data Monitor ModeNBS00478
Specification data are reference values.
On Board Diagnosis LogicNBS00479
PBIB0562E
PBIB2448E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare CONSULT-II value with the tachometer indication. Almost the same speed as
the tachometer indication.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0335
0335 Crankshaft position
sensor (POS) circuit
The crankshaft position sensor (POS) signal
is not detected by the ECM during the first
few seconds of engine cranking.
The proper pulse signal from the crankshaft
position sensor (POS) is not sent to ECM
while the engine is running.
The crankshaft position sensor (POS) signal
is not in the normal pattern during engine
running.
Harness or connectors
(The sensor circuit is open or shorted)
Crankshaft position sensor (POS)
Signal plate
Page 2415 of 4462
DTC P0335 CKP SENSOR (POS) EC-1031
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC Confirmation ProcedureNBS0047A
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Crank engine for at least 2 seconds and run it for at least 5 sec- onds at idle speed.
3. If 1st trip DTC is detected, go to EC-1033, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 2416 of 4462
EC-1032
[VK45DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2006 December 2006 FX35/FX45
Wiring DiagramNBS0047B
TBWM1336E
