DTC P0335 CKP SENSOR (POS) EC-361
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P0335 CKP SENSOR (POS)PFP:23731
Component DescriptionNBS003Q8
The crankshaft position (CKP) sensor (POS) is located on the oil pan
facing the gear teeth (cogs) of the signal plate. It detects the fluctua-
tion of the engine revolution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.

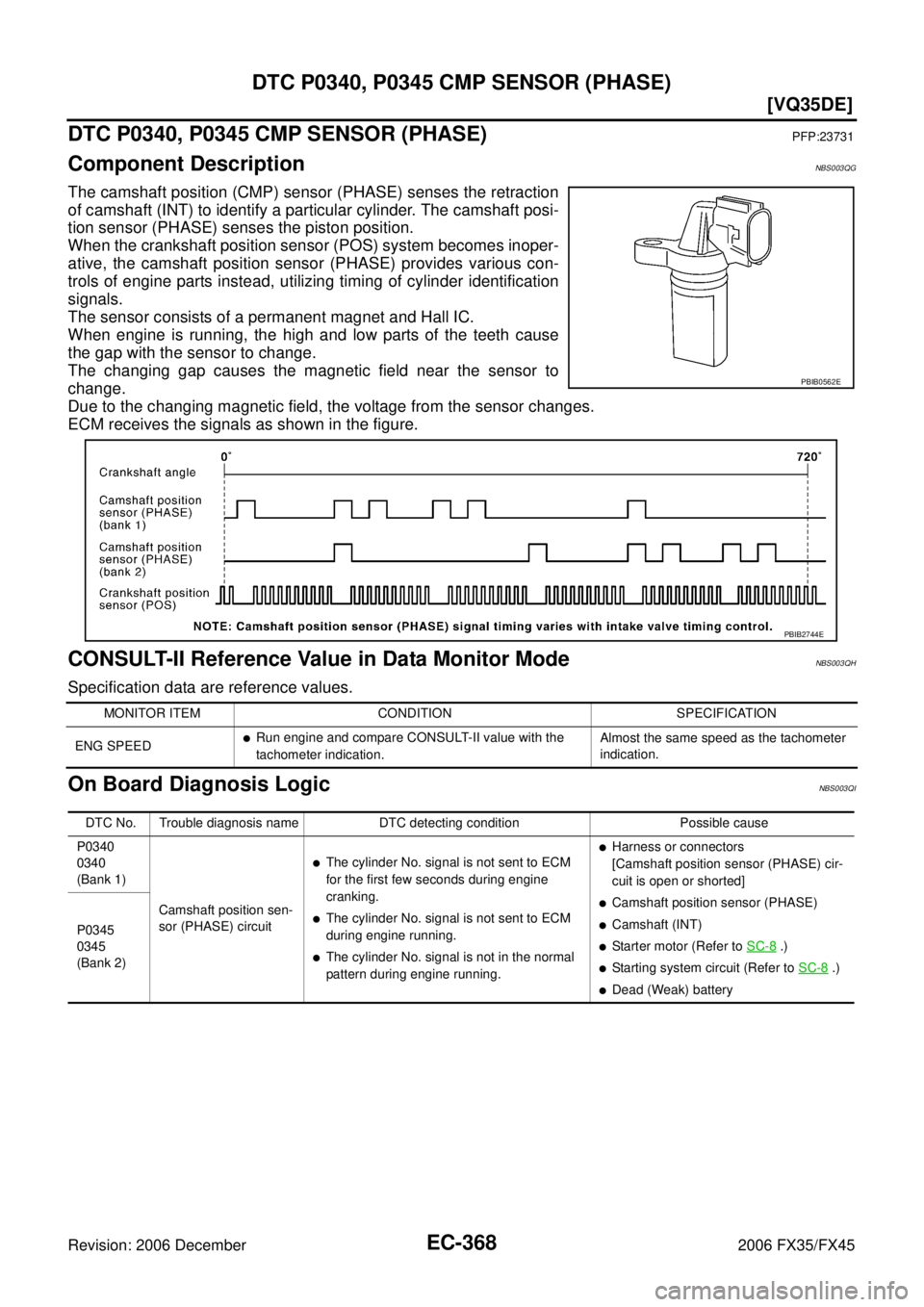

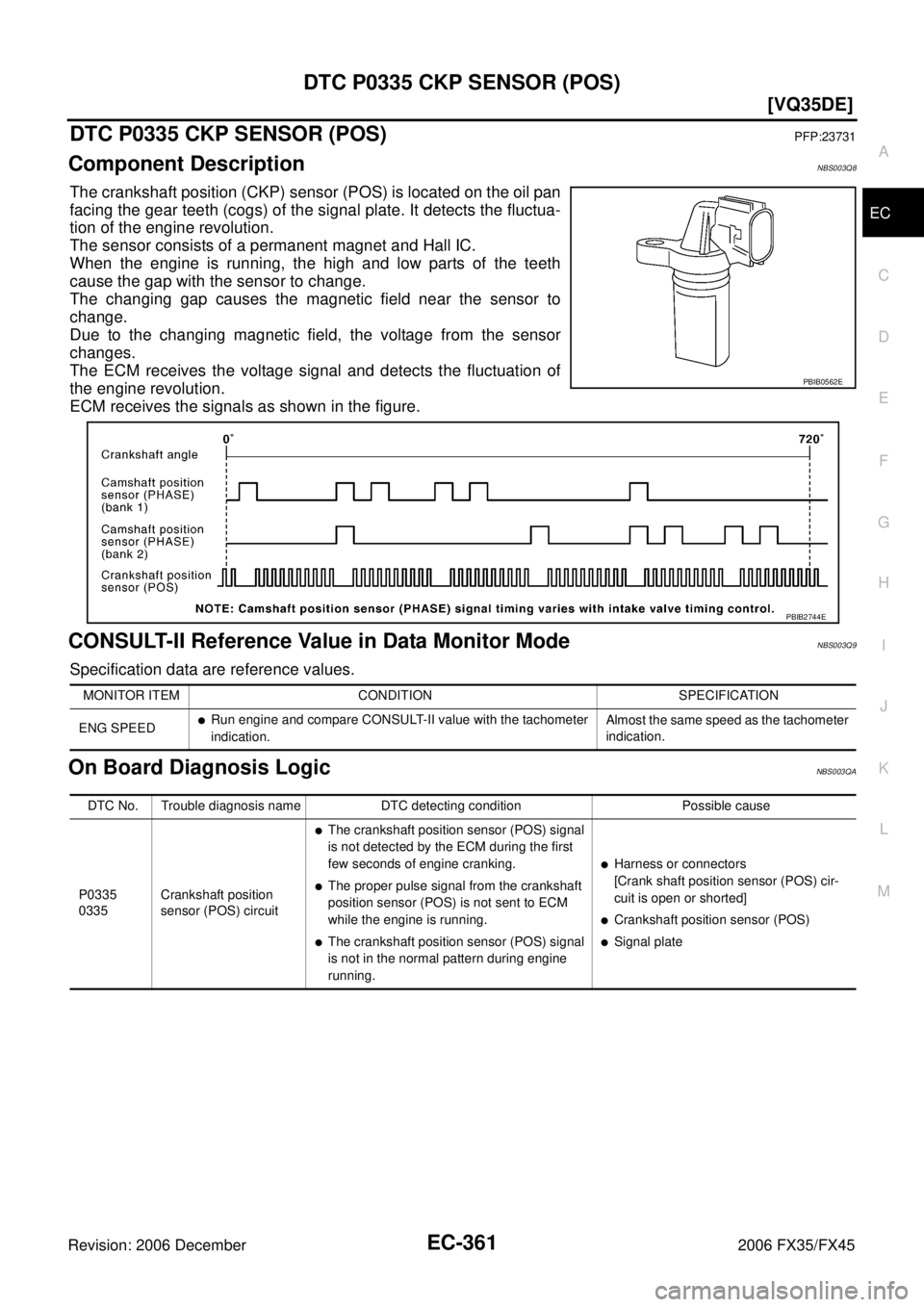

ECM receives the signals as shown in the figure.
CONSULT-II Reference Value in Data Monitor ModeNBS003Q9
Specification data are reference values.
On Board Diagnosis LogicNBS003QA
PBIB0562E
PBIB2744E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare CONSULT-II value with the tachometer
indication. Almost the same speed as the tachometer
indication.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0335
0335 Crankshaft position
sensor (POS) circuit
The crankshaft position sensor (POS) signal
is not detected by the ECM during the first
few seconds of engine cranking.
The proper pulse signal from the crankshaft
position sensor (POS) is not sent to ECM
while the engine is running.
The crankshaft position sensor (POS) signal
is not in the normal pattern during engine
running.
Harness or connectors
[Crank shaft position sensor (POS) cir-
cuit is open or shorted]
Crankshaft position sensor (POS)
Signal plate
Page 1746 of 4462
EC-362
[VQ35DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2006 December 2006 FX35/FX45
DTC Confirmation ProcedureNBS003QB
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Crank engine for at least 2 seconds and run it for at least 5 sec- onds at idle speed.
3. If 1st trip DTC is detected, go to EC-364, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 1747 of 4462
DTC P0335 CKP SENSOR (POS) EC-363
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

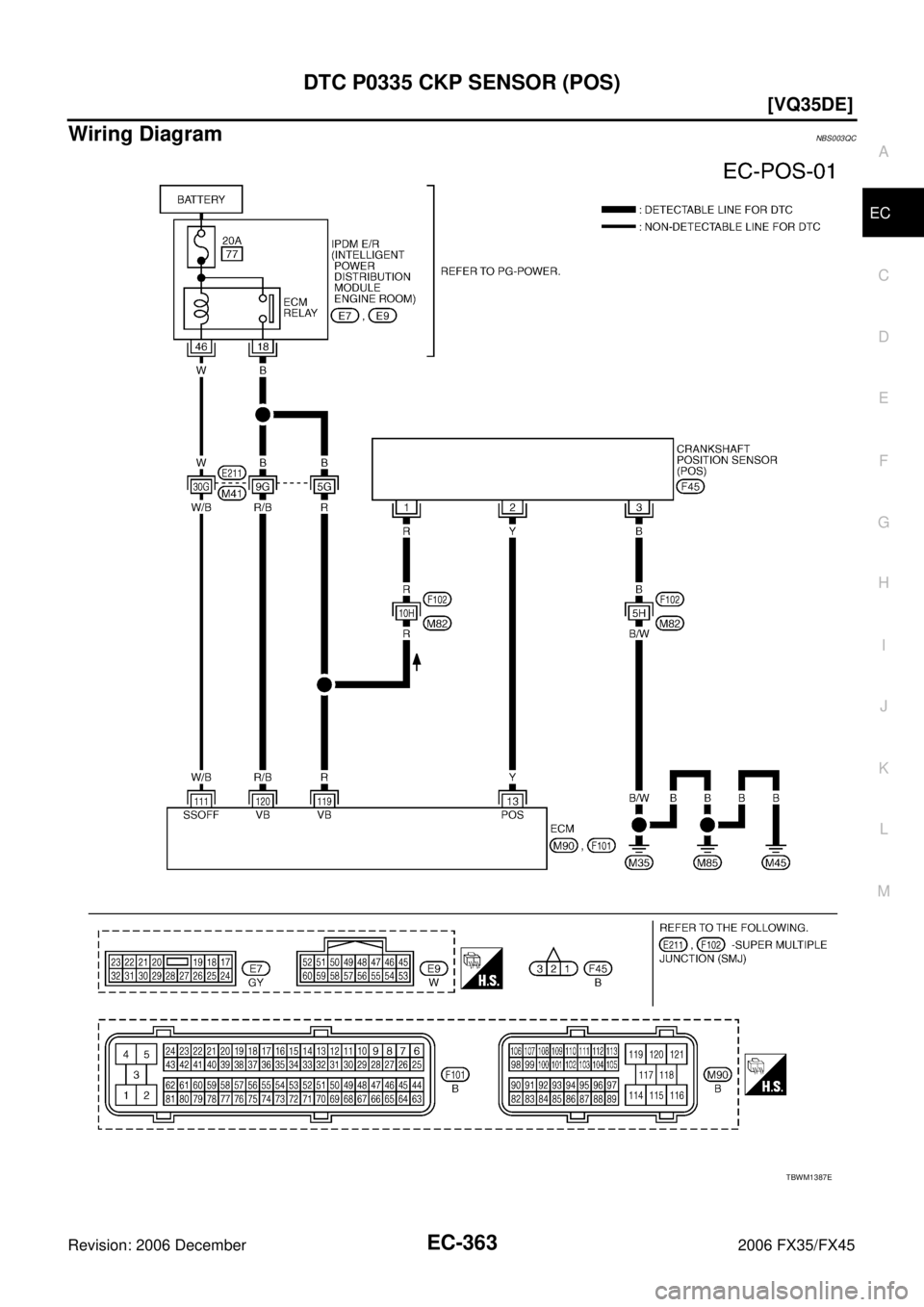

Wiring DiagramNBS003QC
TBWM1387E
Page 1748 of 4462
![INFINITI FX35 2006 Service Manual EC-364
[VQ35DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured b INFINITI FX35 2006 Service Manual EC-364
[VQ35DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured b](/manual-img/42/57019/w960_57019-1747.png)
EC-364
[VQ35DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureNBS003QD
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-154, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
13 Y Crankshaft position sensor
(POS) [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle Approximately 1.6V
[Engine is running]
Engine speed: 2,000 rpm Approximately 1.4V
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]
For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]
More than a few seconds after turning igni-
tion switch OFF BATTERY VOLTAGE
(11 - 14V)
11 9
120 R
R/B Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
PBIB1041E
PBIB1042E
PBIB2625E
Page 1749 of 4462
![INFINITI FX35 2006 Service Manual DTC P0335 CKP SENSOR (POS) EC-365
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
2. CHECK CRANKSHAFT POSITION SENSOR (POS) POWER SUPPLY CIRCUIT
1. Disconnect c INFINITI FX35 2006 Service Manual DTC P0335 CKP SENSOR (POS) EC-365
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
2. CHECK CRANKSHAFT POSITION SENSOR (POS) POWER SUPPLY CIRCUIT
1. Disconnect c](/manual-img/42/57019/w960_57019-1748.png)
DTC P0335 CKP SENSOR (POS) EC-365
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

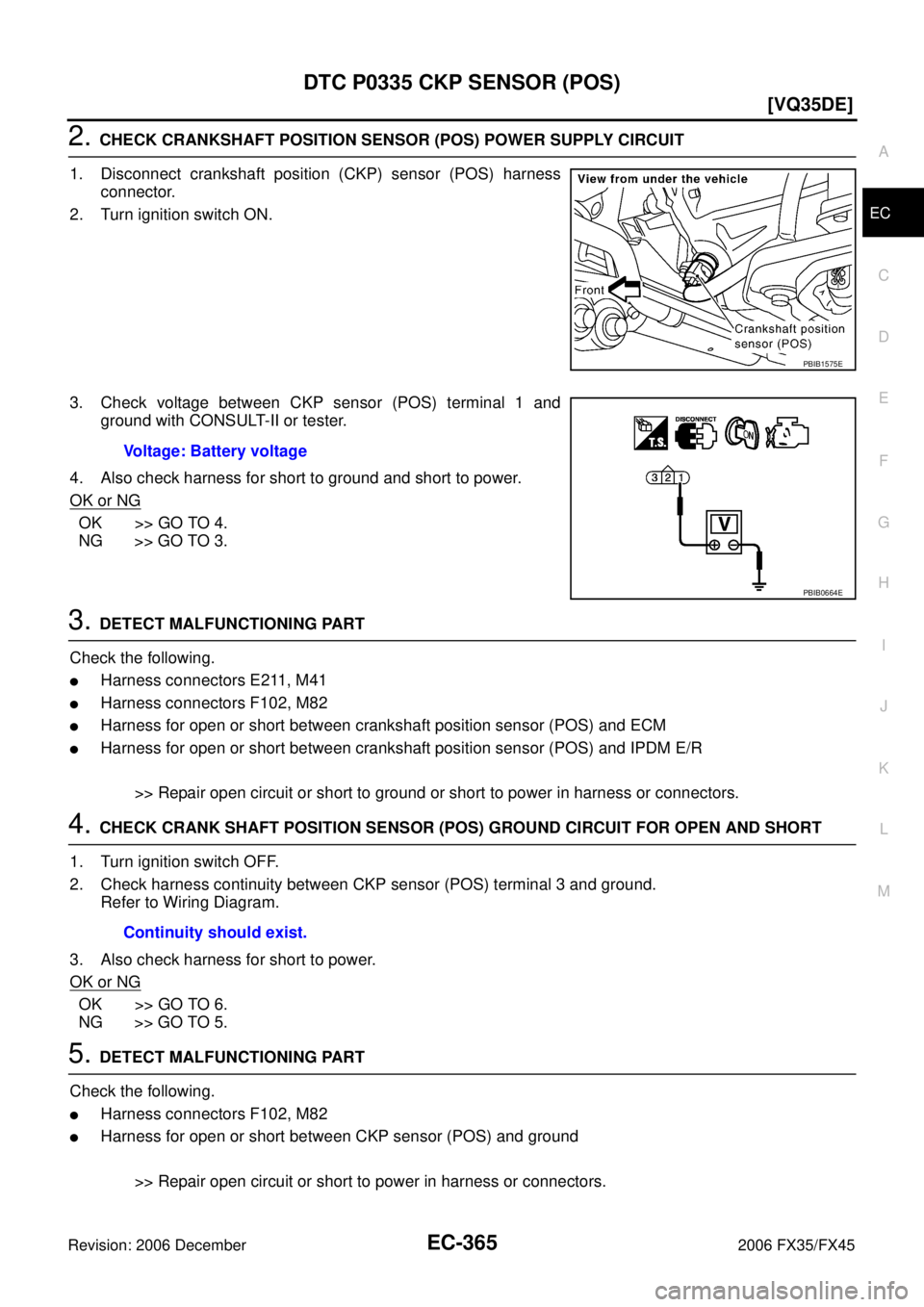

2. CHECK CRANKSHAFT POSITION SENSOR (POS) POWER SUPPLY CIRCUIT
1. Disconnect crankshaft position (CKP) sensor (POS) harness connector.
2. Turn ignition switch ON.
3. Check voltage between CKP sensor (POS) terminal 1 and ground with CONSULT-II or tester.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness connectors F102, M82
Harness for open or short between crankshaft position sensor (POS) and ECM
Harness for open or short between crankshaft position sensor (POS) and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK CRANK SHAFT POSITION SENSOR (POS) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between CKP sensor (POS) terminal 3 and ground. Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M82
Harness for open or short between CKP sensor (POS) and ground
>> Repair open circuit or short to power in harness or connectors.
PBIB1575E
Voltage: Battery voltage
PBIB0664E
Continuity should exist.
Page 1750 of 4462
EC-366
[VQ35DE]
DTC P0335 CKP SENSOR (POS)
Revision: 2006 December 2006 FX35/FX45
6. CHECK CRANK SHAFT POSITION SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND
SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 13 and CKP sensor (POS) terminal 2. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-367, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace crankshaft position sensor (POS).
8. CHECK GEAR TOOTH
Visually check for chipping signal plate gear tooth.
OK or NG
OK >> GO TO 9.
NG >> Replace the signal plate.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-148, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Continuity should exist.
Page 1751 of 4462
DTC P0335 CKP SENSOR (POS) EC-367
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Component InspectionNBS003QE
CRANKSHAFT POSITION SENSOR (POS)
1. Loosen the fixing bolt of the sensor.
2. Disconnect crankshaft position sensor (POS) harness connector.
3. Remove the sensor.
4. Visually check the sensor for chipping.

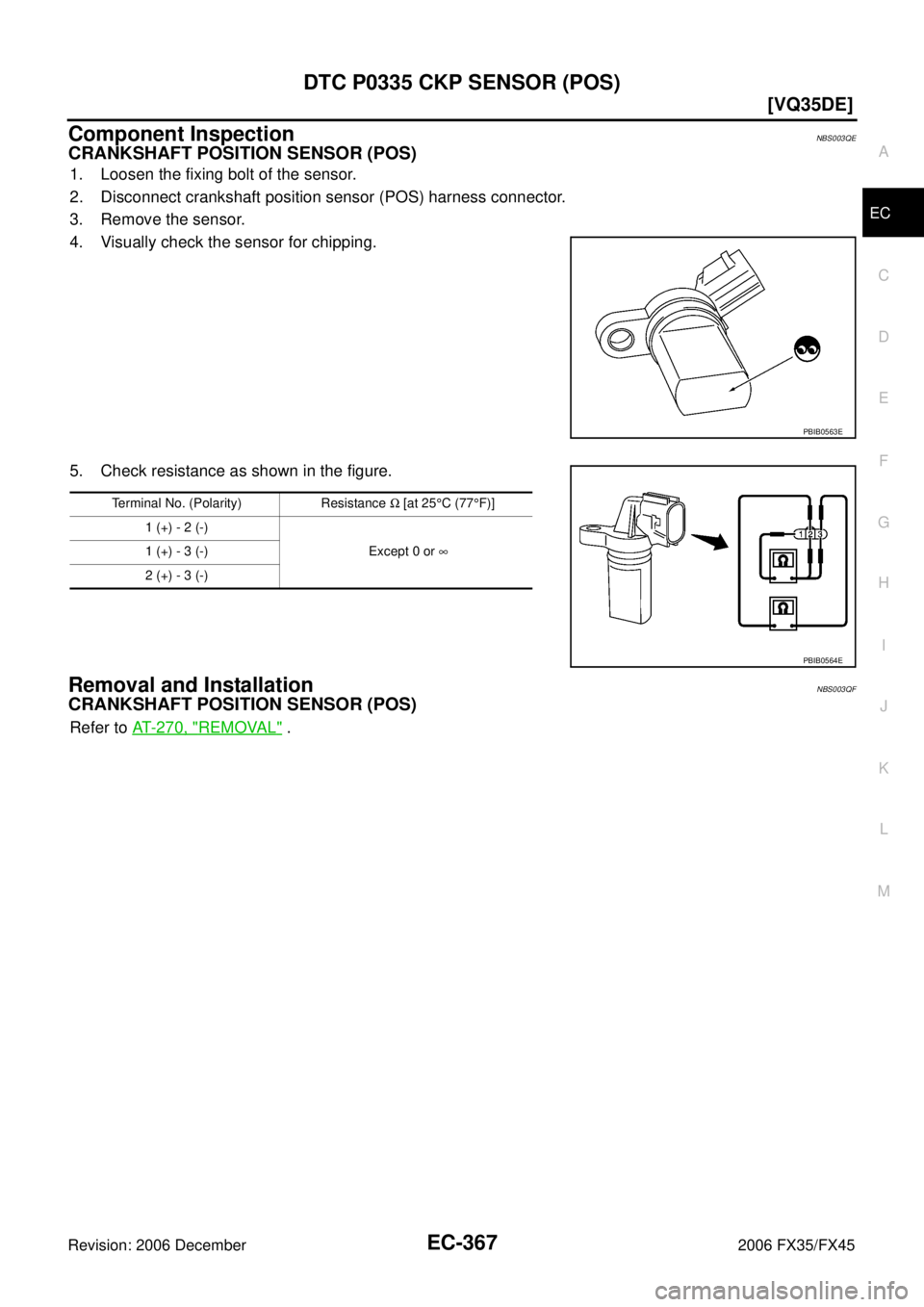

5. Check resistance as shown in the figure.
Removal and InstallationNBS003QF
CRANKSHAFT POSITION SENSOR (POS)
Refer to AT- 2 7 0 , "REMOVAL" .
PBIB0563E
Terminal No. (Polarity) Resistance Ω [at 25 °C (77 °F)]
1 (+) - 2 (-) Except 0 or ∞
1 (+) - 3 (-)
2 (+) - 3 (-)
PBIB0564E
Page 1752 of 4462
![INFINITI FX35 2006 Service Manual EC-368
[VQ35DE]
DTC P0340, P0345 CMP SENSOR (PHASE)
Revision: 2006 December 2006 FX35/FX45
DTC P0340, P0345 CMP SENSOR (PHASE)PFP:23731
Component DescriptionNBS003QG
The camshaft position (CMP) sensor INFINITI FX35 2006 Service Manual EC-368
[VQ35DE]
DTC P0340, P0345 CMP SENSOR (PHASE)
Revision: 2006 December 2006 FX35/FX45
DTC P0340, P0345 CMP SENSOR (PHASE)PFP:23731
Component DescriptionNBS003QG
The camshaft position (CMP) sensor](/manual-img/42/57019/w960_57019-1751.png)
EC-368
[VQ35DE]
DTC P0340, P0345 CMP SENSOR (PHASE)
Revision: 2006 December 2006 FX35/FX45
DTC P0340, P0345 CMP SENSOR (PHASE)PFP:23731
Component DescriptionNBS003QG
The camshaft position (CMP) sensor (PHASE) senses the retraction
of camshaft (INT) to identify a particular cylinder. The camshaft posi-
tion sensor (PHASE) senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor (PHASE) provides various con-
trols of engine parts instead, utilizing timing of cylinder identification
signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.
ECM receives the signals as shown in the figure.
CONSULT-II Reference Value in Data Monitor ModeNBS003QH
Specification data are reference values.
On Board Diagnosis LogicNBS003QI
PBIB0562E
PBIB2744E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare CONSULT-II value with the
tachometer indication. Almost the same speed as the tachometer
indication.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340
0340
(Bank 1)
Camshaft position sen-
sor (PHASE) circuit
The cylinder No. signal is not sent to ECM
for the first few seconds during engine
cranking.
The cylinder No. signal is not sent to ECM
during engine running.
The cylinder No. signal is not in the normal
pattern during engine running.
Harness or connectors
[Camshaft position sensor (PHASE) cir-
cuit is open or shorted]
Camshaft position sensor (PHASE)
Camshaft (INT)
Starter motor (Refer to SC-8 .)
Starting system circuit (Refer to SC-8 .)
Dead (Weak) battery
P0345
0345
(Bank 2)
