WORK SUPPORT MODE
Operation Procedure
1. Touch necessary test item.
2. The “Work support” sc

TROUBLE DIAGNOSES WT-23
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45
WORK SUPPORT MODE
Operation Procedure
1. Touch necessary test item.
2. The “Work support” screen will be displayed, so perform the fol- lowing test.
Test Item
ID Read
ID Regist
ID Read
The registered ID number is displayed.
ID Regist
Refer to WT-18, "ID Registration Procedure" .
SELF-DIAGNOSTIC RESULTS MODE
SEIA0583E
SEIA0584E
Diagnostic item Diagnostic item is detected when ···
FLAT - TIRE - FL
FLAT - TIRE - FR
FLAT - TIRE - RR
FLAT - TIRE - RL Front-left tire pressure drops to 178 kPa (1.78 kg/cm
2 , 26 psi) or less.
Front-right tire pressure drops to 178 kPa (1.78 kg/cm2 , 26 psi) or less.
Rear-right tire pressure drops to 178 kPa (1.78 kg/cm2 , 26 psi) or less.
Rear-left tire pressure drops to 178 kPa (1.78 kg/cm2 , 26 psi) or less.
[NO-DATA] - FL
[NO-DATA] - FR
[NO-DATA] - RR
[NO-DATA] - RL Data from front-left transmitter can not be received.
Data from front-right transmitter can not be received.
Data from rear-right transmitter can not be received.
Data from rear-left transmitter can not be received.
[CHECKSUM- ERR] - FL
[CHECKSUM- ERR] - FR
[CHECKSUM- ERR] - RR
[CHECKSUM- ERR] - RL Checksum data from front-left transmitter is malfunctioning.
Checksum data from front-right transmitter is malfunctioning.
Checksum data from rear-right transmitter is malfunctioning.
Checksum data from rear-left transmitter is malfunctioning.
[PRESS DATA- ERR] - FL
[PRESS DATA- ERR] - FR
[PRESS DATA- ERR] - RR
[PRESS DATA- ERR] - RL Air pressure data from front-left transmitter is malfunctioning.
Air pressure data from front-right transmitter is malfunctioning.
Air pressure data from rear-right transmitter is malfunctioning.
Air pressure data from rear-left transmitter is malfunctioning.
[CODE- ERR] - FL
[CODE- ERR] - FR
[CODE- ERR] - RR
[CODE- ERR] - RL Function code data from front-left transmitter is malfunctioning.
Function code data from front-right transmitter is malfunctioning.
Function code data from rear-right transmitter is malfunctioning.
Function code data from rear-left transmitter is malfunctioning.

Page 4386 of 4462

INFINITI FX35 2006 Service Manual WT-24
TROUBLE DIAGNOSES
Revision: 2006 December 2006 FX35/FX45

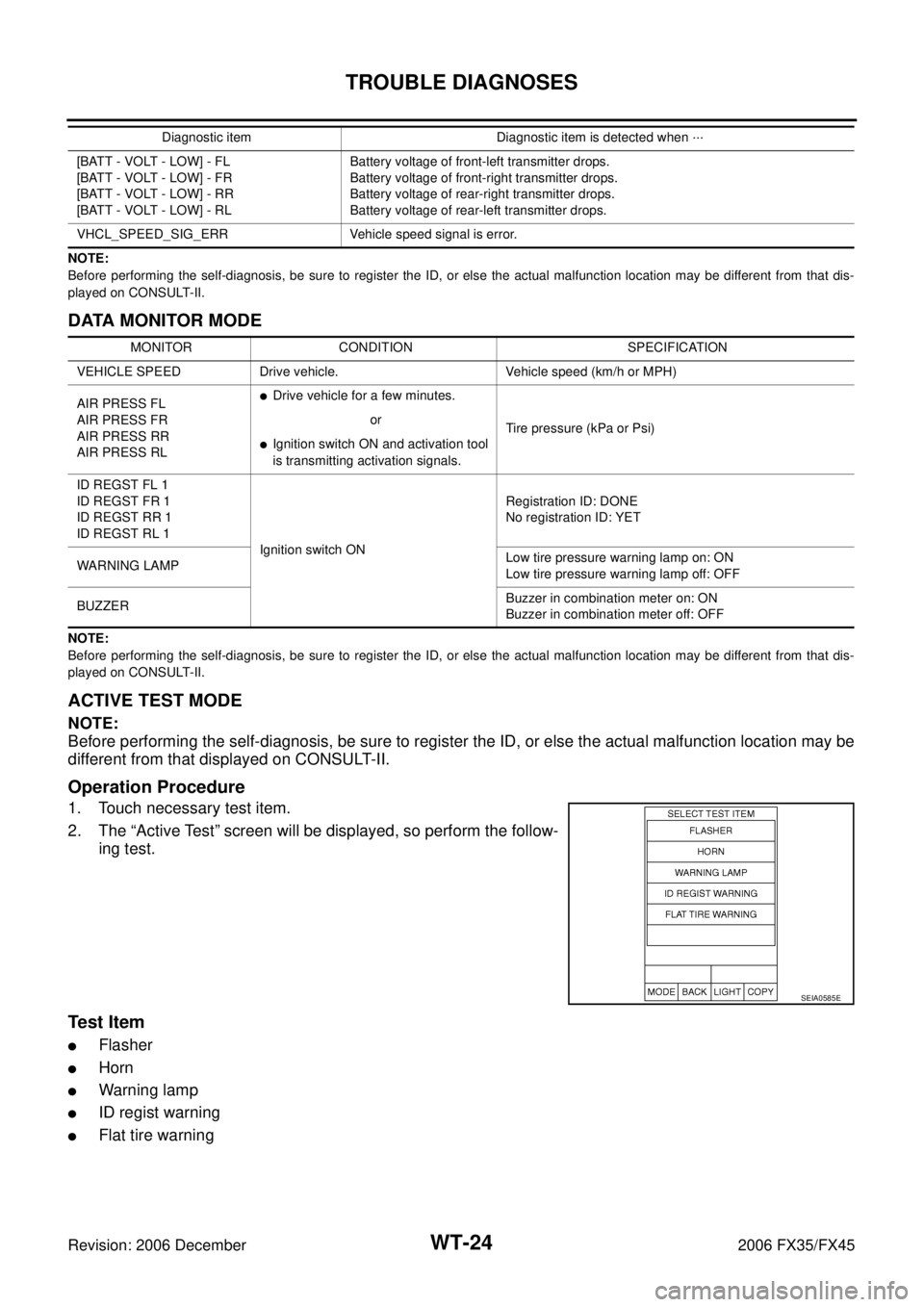

NOTE:
Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction location may be different from

Page 4387 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSES WT-25
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45
Flasher
Touch “LH” and “RH” on the display, and then check to make sure
that each turn si

Page 4388 of 4462

INFINITI FX35 2006 Service Manual WT-26
TROUBLE DIAGNOSES
Revision: 2006 December 2006 FX35/FX45
Flat Tire Warning
Touch “LH” and “RH” on the display, and then check to make sure
that the buzzer sounds or the warning lamp tur

Page 4389 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSES WT-27
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45

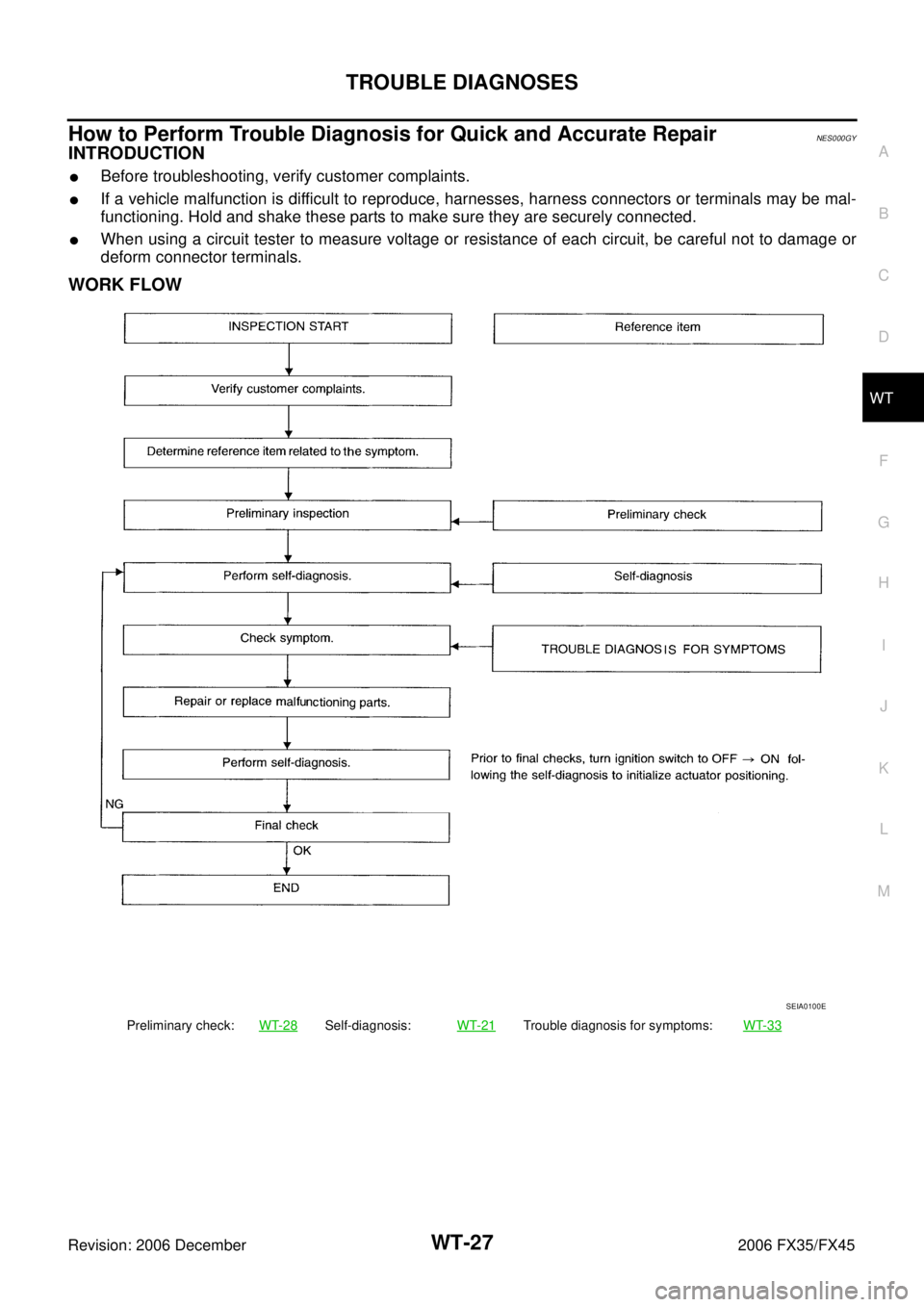

How to Perform Trouble Diagnosis for Quick and Accurate RepairNES000GY
INTRODUCTION
Before troubl

Page 4390 of 4462

INFINITI FX35 2006 Service Manual WT-28
TROUBLE DIAGNOSES
Revision: 2006 December 2006 FX35/FX45
Preliminary CheckNES000GZ
BASIC INSPECTION
1. CHECK ALL TIRE PRESSURES
Check all tire pressures. Refer to WT-39, "Tire" .
OK or NG
OK

Page 4391 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSES WT-29
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45
Malfunction Code/Symptom ChartNES000H0
Code/Symptom Malfunction part Reference
page
15
16
17

TROUBLE DIAGNOSES WT-29
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 December 2006 FX35/FX45
Malfunction Code/Symptom ChartNES000H0
Code/Symptom Malfunction part Reference
page
15
16
17
18 Front-left tire pressure drops to 178 kPa (1.78 kg/cm
2 , 26 psi) or less.
Front-right tire pressure drops to 178 kPa (1.78 kg/cm2 , 26 psi) or less.
Rear-right tire pressure drops to 178 kPa (1.78 kg/cm2 , 26 psi) or less.
Rear-left tire pressure drops to 178 kPa (1.78 kg/cm2 , 26 psi) or less. —
21
22
23
24 Transmitter no data (front - left)
Transmitter no data (front - right)
Transmitter no data (rear - right)
Transmitter no data (rear - left) WT-30
31
32
33
34 Transmitter checksum error (front - left)
Transmitter checksum error (front - right)
Transmitter checksum error (rear - right)
Transmitter checksum error (rear - left) WT-30
35
36
37
38 Transmitter pressure data error (front - left)
Transmitter pressure data error (front - right)
Transmitter pressure data error (rear - right)
Transmitter pressure data error (rear - left) WT-31
41
42
43
44 Transmitter function code error (front - left)
Transmitter function code error (front - right)
Transmitter function code error (rear - right)
Transmitter function code error (rear - left) WT-30
45
46
47
48 Transmitter battery voltage low (front - left)
Transmitter battery voltage low (front - right)
Transmitter battery voltage low (rear - right)
Transmitter battery voltage low (rear - left) WT-30
52 Vehicle speed signal
WT-32
Warning lamp does not come on when
ignition switch is turned on. Fuse or combination meter
BCM connector or circuit
BCM WT-33
Warning lamp stays on when ignition
switch is turned on. Combination meter
BCM connector or circuit
BCM WT-33
Warning lamp blinks when ignition switch
is turned on. BCM connector or circuit
BCM
Transmitter's mode off
ID registration not yet WT-35
Turn signal lamp blinks when ignition
switch is turned on. BCM connector or circuit
BCM WT-36
ID registration can not be operated. Transmitter
Remote keyless entry receiver connector or circuit
Remote keyless entry receiver
BCM connector or circuit
BCM WT-36

Page 4392 of 4462

INFINITI FX35 2006 Service Manual WT-30
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 December 2006 FX35/FX45
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSPFP:00000
Inspection 1: Transmitter or Control Unit (BCM)NES000H1
MA

WT-30
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 December 2006 FX35/FX45
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSPFP:00000
Inspection 1: Transmitter or Control Unit (BCM)NES000H1
MALFUNCTION CODE NO. 21, 22, 23 OR 24
1. CHECK CONTROL UNIT
Drive for several minutes. Check all tire pressures with CONSULT-II “DATA MONITOR ITEM”.
Are all tire pressures displayed 0 kPa?
YES >> GO TO 2.
NO >> GO TO 3.
2. CHECK REMOTE KEYLESS ENTRY RECEIVER CONNECTOR
1. Disconnect remote keyless entry receiver harness connector M98.
2. Check terminals for damage or loose connection.
3. Reconnect harness connector.
OK or NG
OK >> Replace BCM refer to BCS-15, "Removal and Installation of BCM" , then GO TO 3.
NG >> Repair or replace remote keyless entry receiver harness connector.
3. ID REGISTRATION
Perform ID registration of all transmitters.
Is there any tire that ID can not be registered to?
YES >> Replace transmitter of the tire, then GO TO 5.
NO >> GO TO 4.
4. VEHICLE DRIVING
Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping.
Check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 15 minutes after vehicle speed
becomes 17 km/h (11 MPH).
Does
“DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?
YES >> INSPECTION END
NO >> GO TO 5.
5. ID REGISTRATION AND VEHICLE DRIVING
1. Perform ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10 minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR ITEM” within 5 minutes.
Does
“DATA MONITOR ITEM” display tire pressure as normal without any warning lamp?
YES >> INSPECTION END
NO >> GO TO the inspection applicable to DTC.
Inspection 2: Transmitter - 1NES000H2
MALFUNCTION CODE NO. 31, 32, 33, 34, 41, 42, 43, 44, 45, 46, 47 OR 48
1. ID REGISTRATION (CORRECTION OF TRANSMITTER LOCATION)
1. Perform ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10 minutes.
>> GO TO 2.
