Page 4425 of 4462

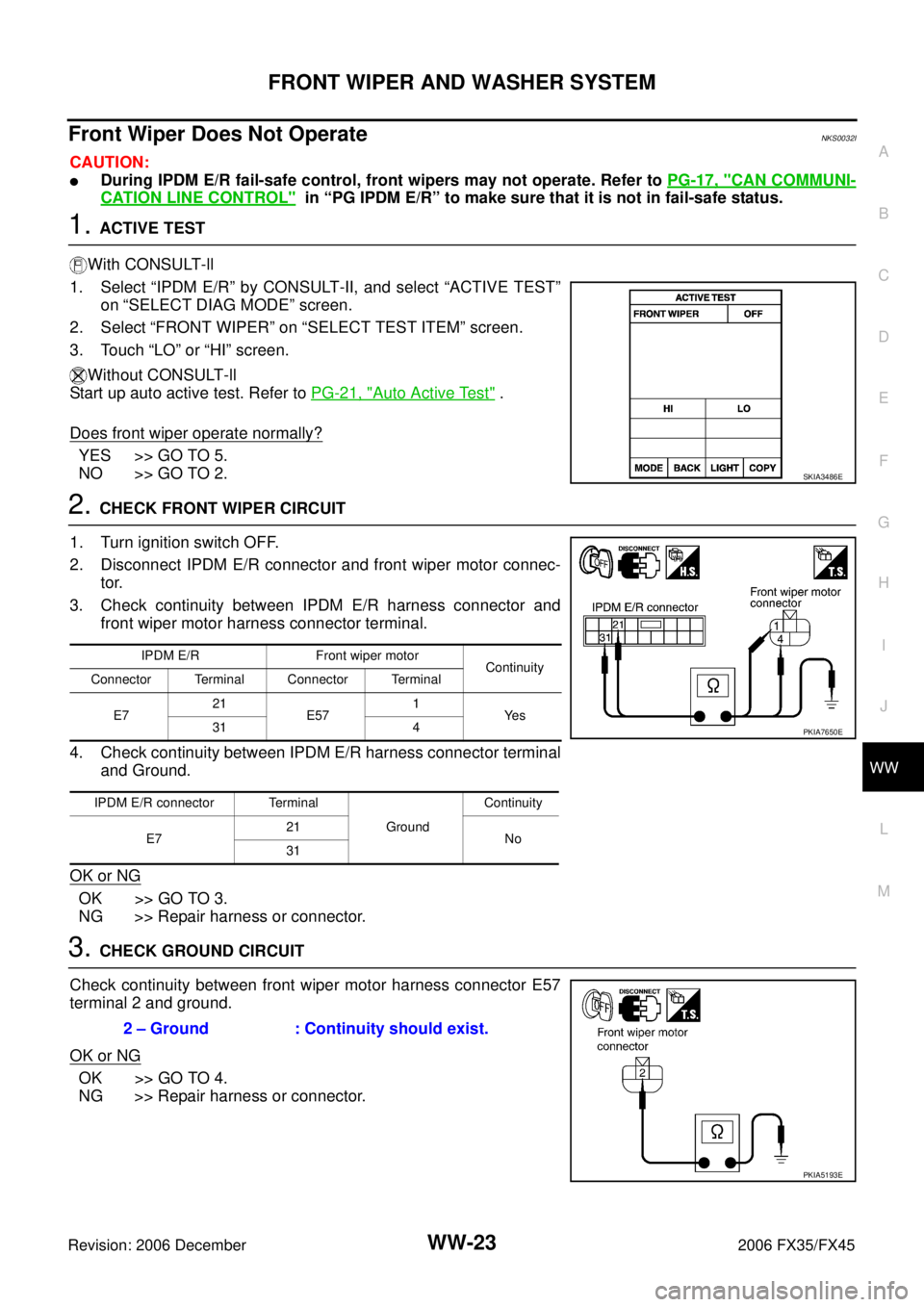

INFINITI FX35 2006 Service Manual FRONT WIPER AND WASHER SYSTEM WW-23 C D E F G H I J L M A B WW Revision: 2006 December 2006 FX35/FX45 Front Wiper Does Not OperateNKS0032I CAUTION: During IPDM E/R fail-safe control, fron

Page 4426 of 4462

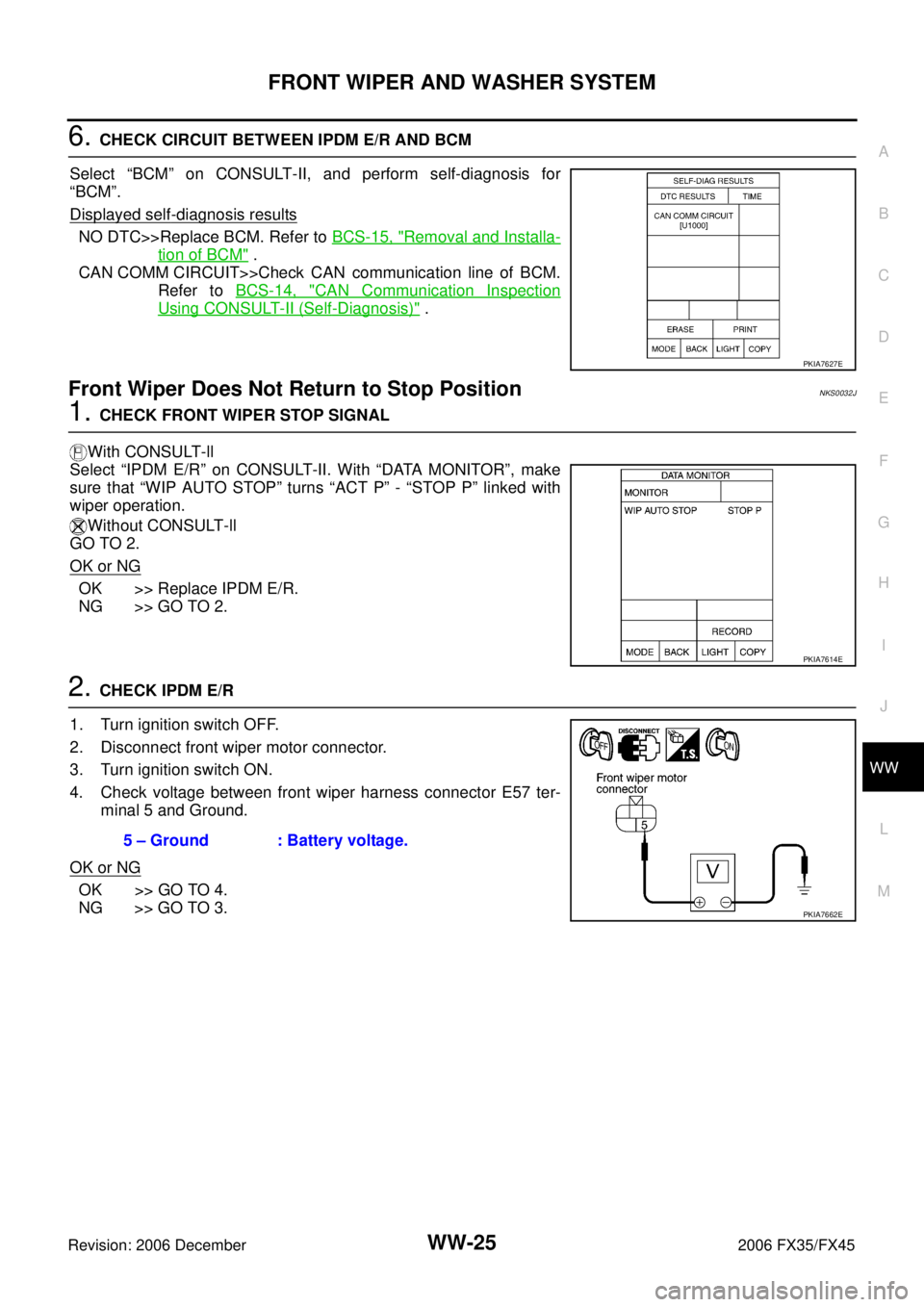

INFINITI FX35 2006 Service Manual WW-24 FRONT WIPER AND WASHER SYSTEM Revision: 2006 December 2006 FX35/FX45 4. CHECK IPDM E/R With CONSULT-ll 1. Connect IPDM E/R connector and front wiper motor connector. 2. Select “IPDM E/R” b

Page 4427 of 4462

INFINITI FX35 2006 Service Manual FRONT WIPER AND WASHER SYSTEM WW-25 C D E F G H I J L M A B WW Revision: 2006 December 2006 FX35/FX45 6. CHECK CIRCUIT BETWEEN IPDM E/R AND BCM Select “BCM” on CONSULT-II, and perfor

Page 4428 of 4462

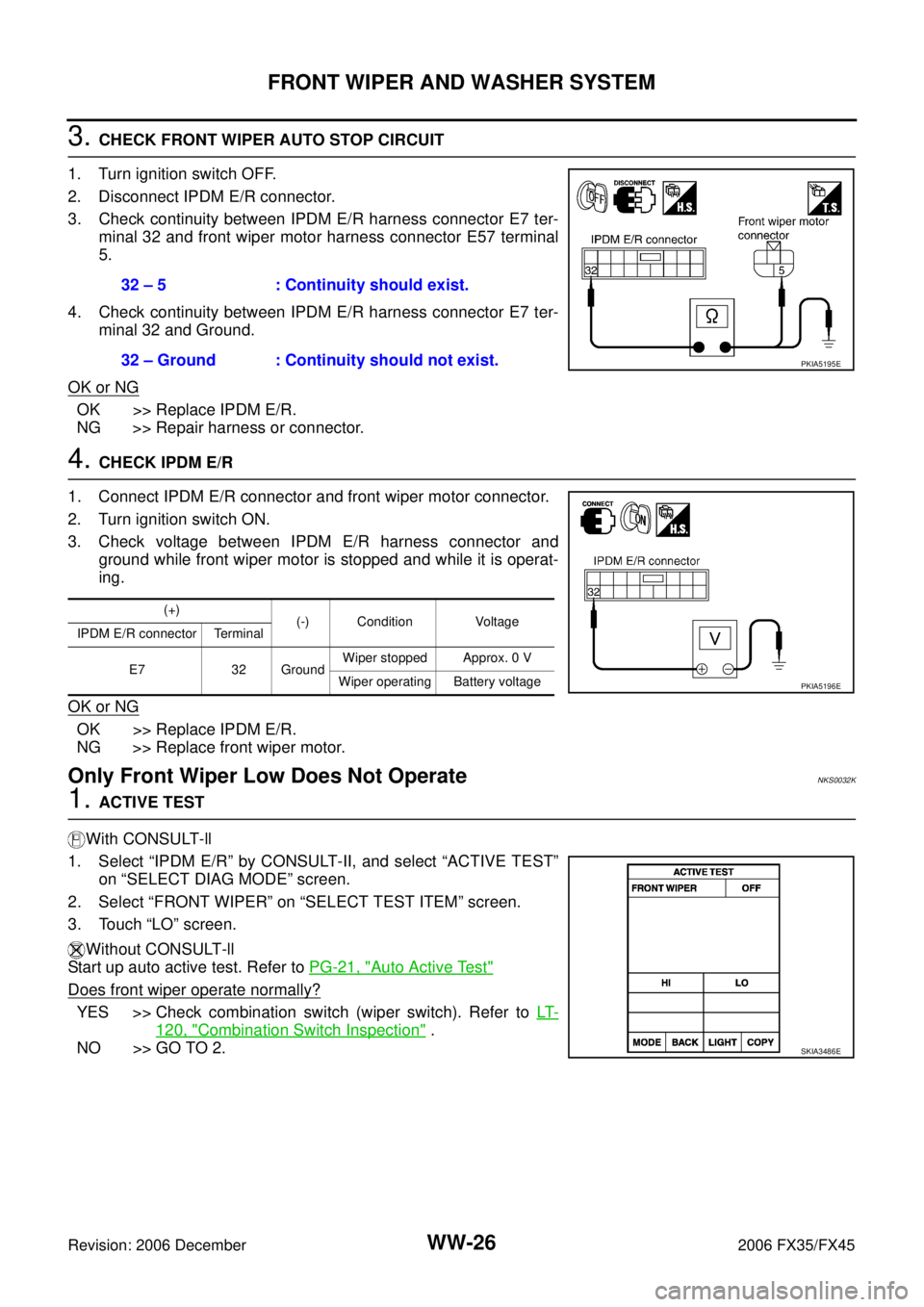

INFINITI FX35 2006 Service Manual WW-26 FRONT WIPER AND WASHER SYSTEM Revision: 2006 December 2006 FX35/FX45 3. CHECK FRONT WIPER AUTO STOP CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect IPDM E/R connector. 3. Check continuity b

Page 4429 of 4462

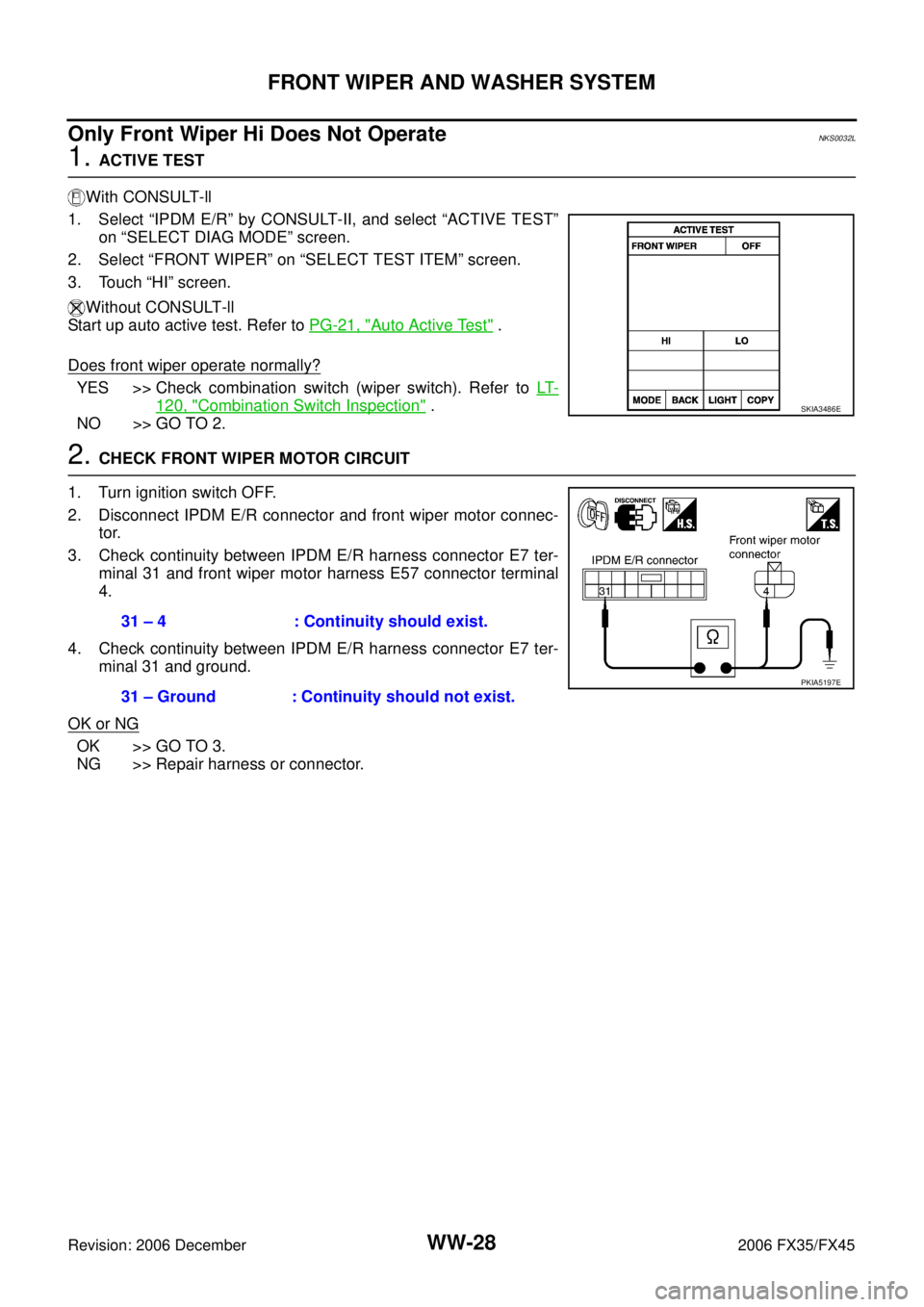

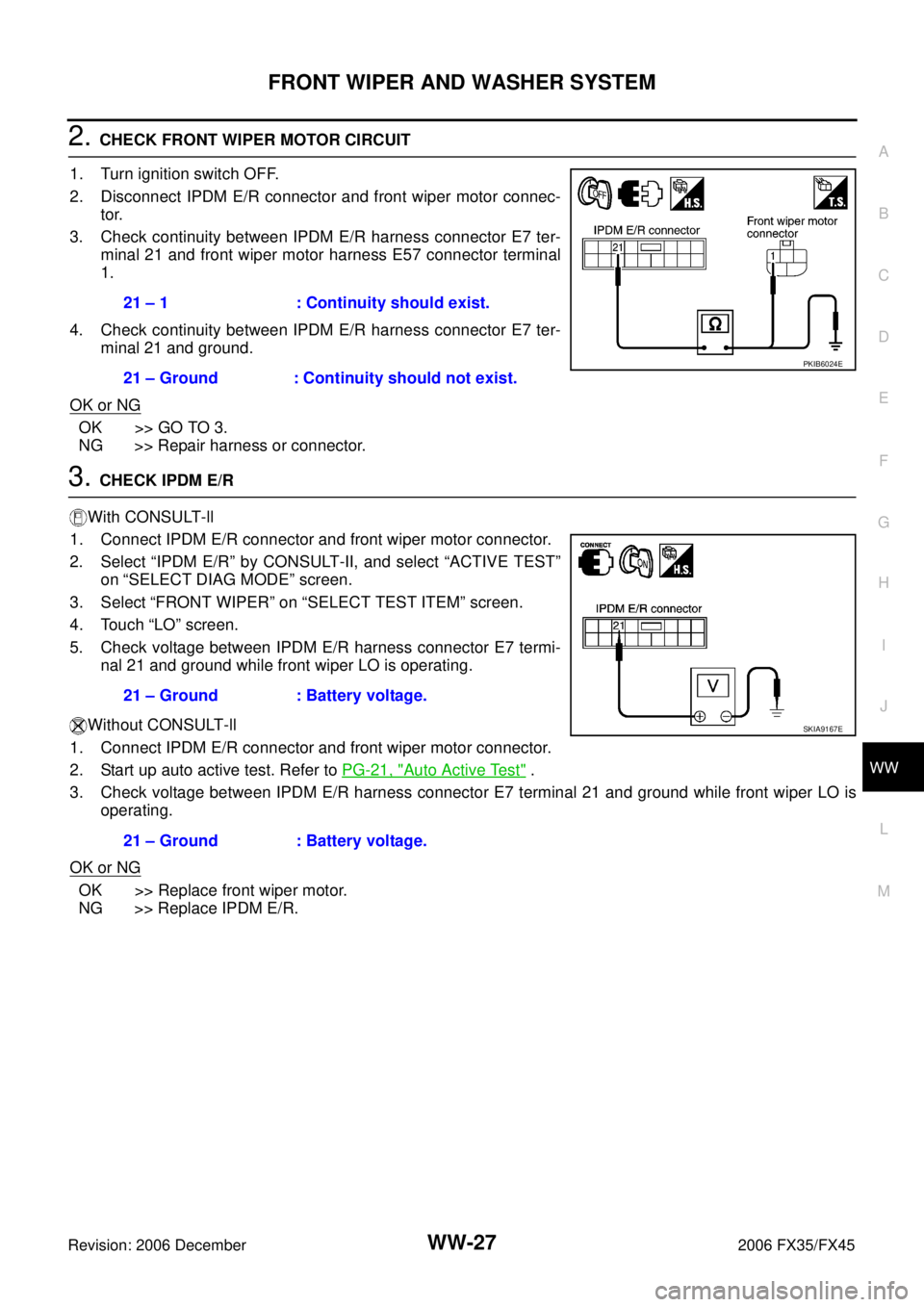

INFINITI FX35 2006 Service Manual FRONT WIPER AND WASHER SYSTEM WW-27 C D E F G H I J L M A B WW Revision: 2006 December 2006 FX35/FX45 2. CHECK FRONT WIPER MOTOR CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect IPDM E

Page 4430 of 4462

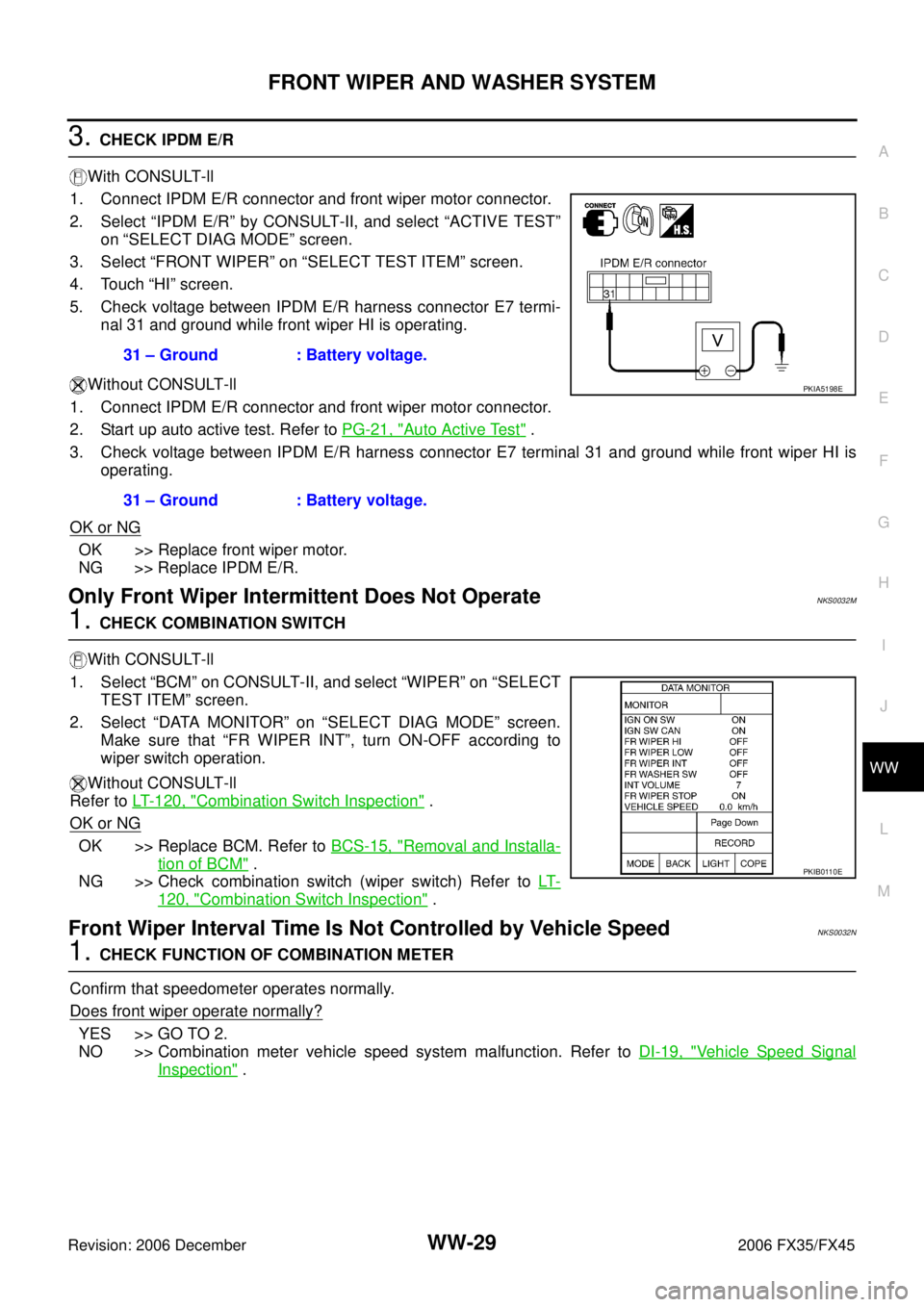

INFINITI FX35 2006 Service Manual WW-28 FRONT WIPER AND WASHER SYSTEM Revision: 2006 December 2006 FX35/FX45 Only Front Wiper Hi Does Not OperateNKS0032L 1. ACTIVE TEST With CONSULT-ll 1. Select “IPDM E/R” by CONSULT-II, and sel

Page 4431 of 4462

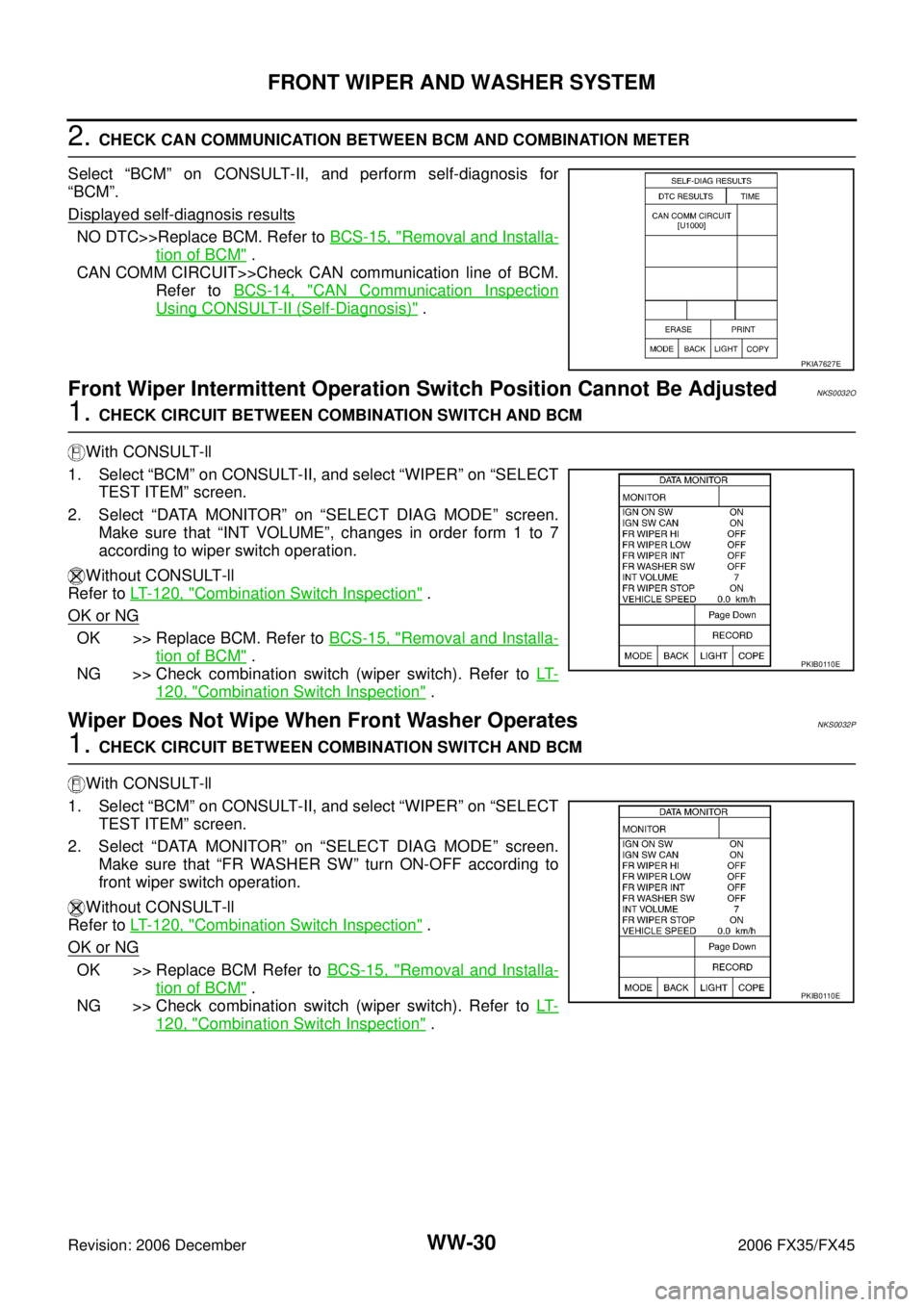

INFINITI FX35 2006 Service Manual FRONT WIPER AND WASHER SYSTEM WW-29 C D E F G H I J L M A B WW Revision: 2006 December 2006 FX35/FX45 3. CHECK IPDM E/R With CONSULT-ll 1. Connect IPDM E/R connector and front wiper moto

Page 4432 of 4462

INFINITI FX35 2006 Service Manual WW-30 FRONT WIPER AND WASHER SYSTEM Revision: 2006 December 2006 FX35/FX45 2. CHECK CAN COMMUNICATION BETWEEN BCM AND COMBINATION METER Select “BCM” on CONSULT-II, and perform self-diagnosis for
