INFINITI FX35 2006 Service Manual FRONT TIMING CHAIN CASE EM-55 [VQ35DE] C D E F G H I J K L M A EM Revision: 2006 December 2006 FX35/FX45 16. Remove collared O-ring from front timing chain case (left and right side). 17

Page 2850 of 4462

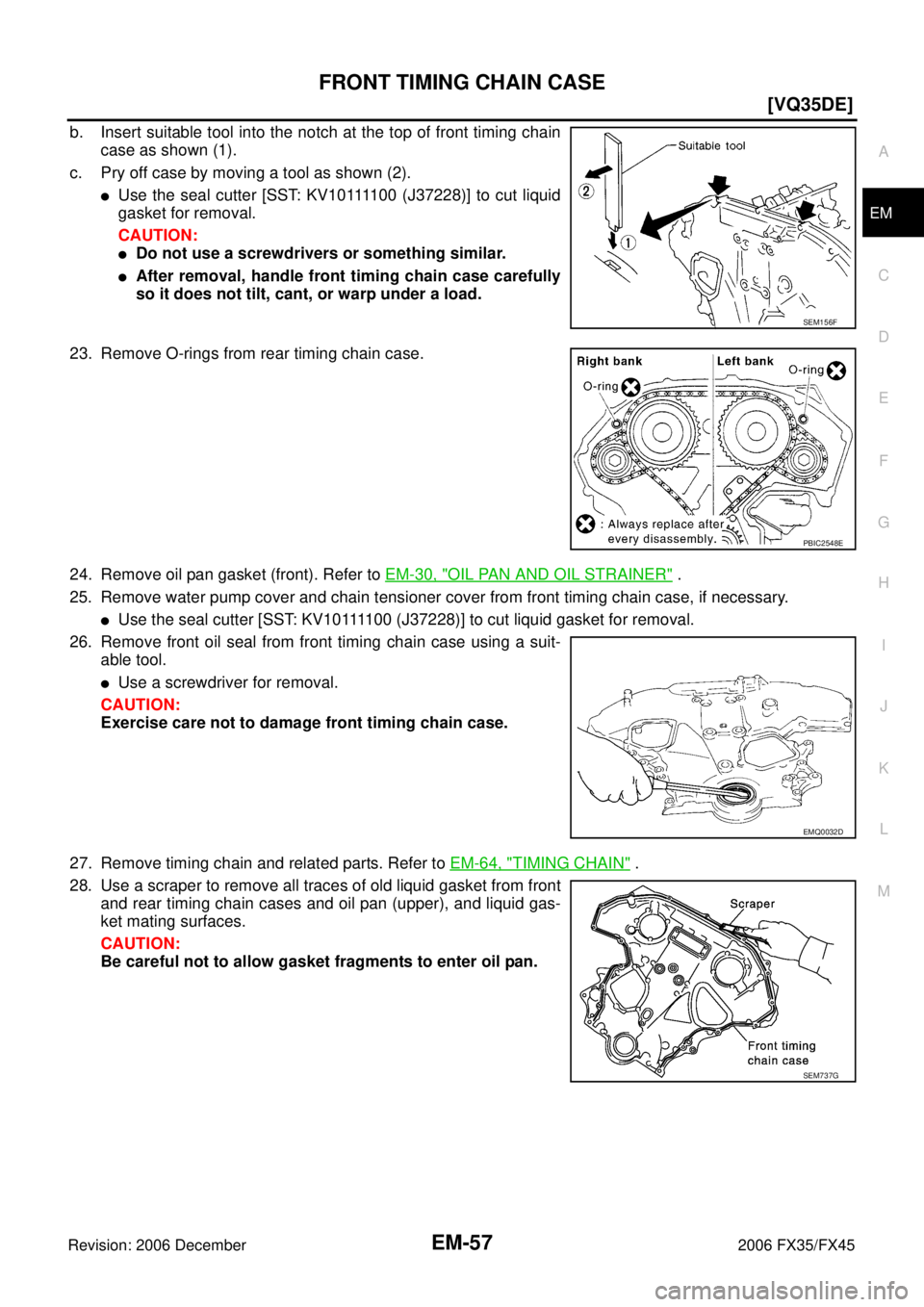

INFINITI FX35 2006 Service Manual EM-56 [VQ35DE] FRONT TIMING CHAIN CASE Revision: 2006 December 2006 FX35/FX45 b. Loosen crankshaft pulley bolt and locate bolt seating surface as 10 mm (0.39 in) from its original position. CAUTION:

Page 2851 of 4462

INFINITI FX35 2006 Service Manual FRONT TIMING CHAIN CASE EM-57 [VQ35DE] C D E F G H I J K L M A EM Revision: 2006 December 2006 FX35/FX45 b. Insert suitable tool into the notch at the top of front timing chain case as sh

Page 2852 of 4462

INFINITI FX35 2006 Service Manual EM-58 [VQ35DE] FRONT TIMING CHAIN CASE Revision: 2006 December 2006 FX35/FX45 Remove old liquid gasket from bolt hole and thread. 29. Use a scraper to remove all traces of liquid gasket from water

Page 2853 of 4462

INFINITI FX35 2006 Service Manual FRONT TIMING CHAIN CASE EM-59 [VQ35DE] C D E F G H I J K L M A EM Revision: 2006 December 2006 FX35/FX45 Using a suitable drift [outer diameter: 60 mm (2.36 in)], press- fit oil seal unt

Page 2854 of 4462

INFINITI FX35 2006 Service Manual EM-60 [VQ35DE] FRONT TIMING CHAIN CASE Revision: 2006 December 2006 FX35/FX45 b. Install new oil pan gasket (front). Apply liquid gasket to oil pan gasket (front) as shown in the figure. Use Genuine

Page 2855 of 4462

INFINITI FX35 2006 Service Manual FRONT TIMING CHAIN CASE EM-61 [VQ35DE] C D E F G H I J K L M A EM Revision: 2006 December 2006 FX35/FX45 ii. Since front timing chain case is offset for difference of bolt holes, tighten

Page 2856 of 4462

INFINITI FX35 2006 Service Manual EM-62 [VQ35DE] FRONT TIMING CHAIN CASE Revision: 2006 December 2006 FX35/FX45 c. Install new collared O-rings in front timing chain case oil hole (left and right sides). d. Being careful not to move
