Page 3409 of 4462

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 1) LAN-49 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 CAN SYSTEM (TYPE 1)PFP:23710 Component Parts and Harness Connector LocationNKS0034E Refe

Page 3410 of 4462

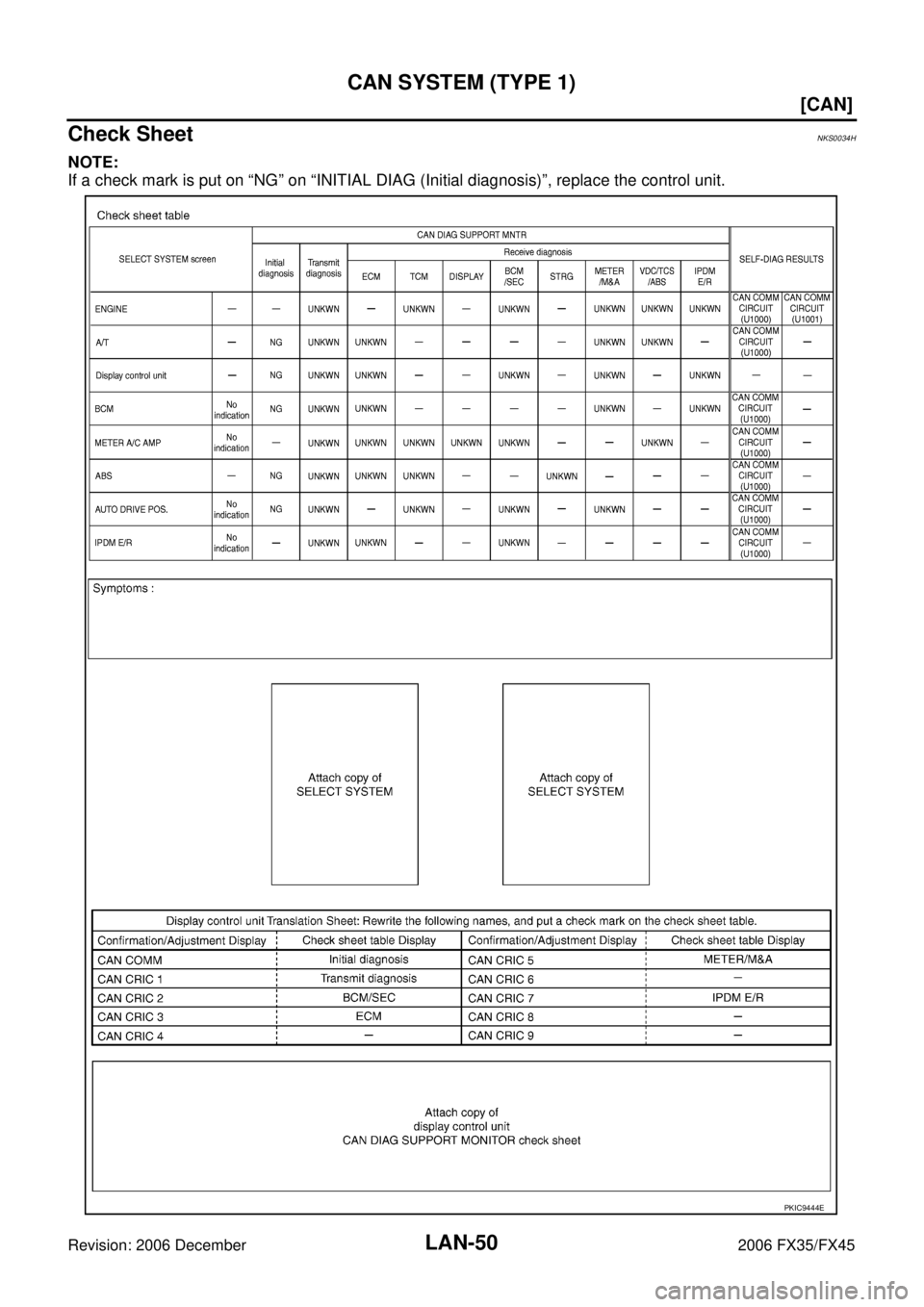

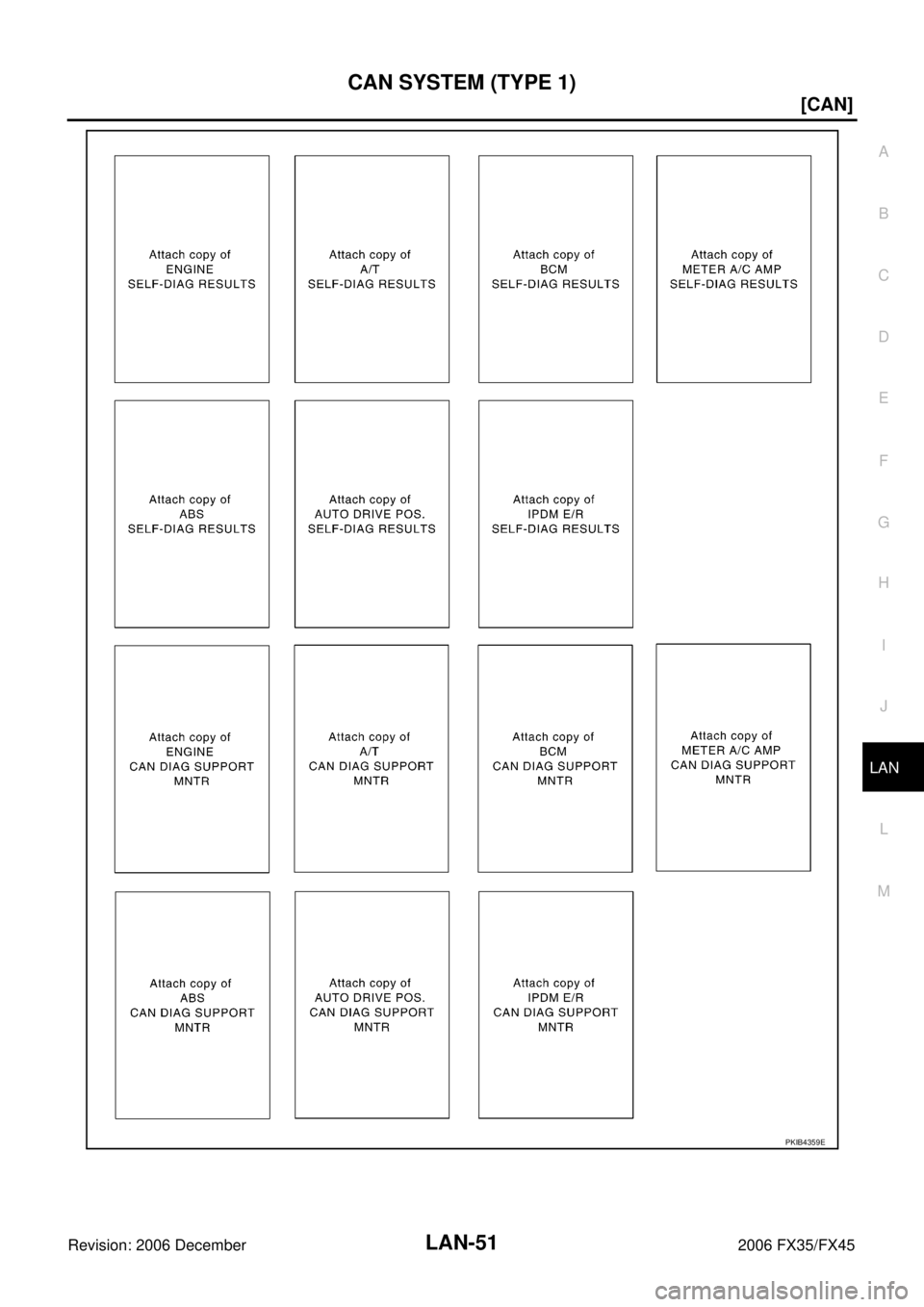

INFINITI FX35 2006 Service Manual LAN-50 [CAN] CAN SYSTEM (TYPE 1) Revision: 2006 December 2006 FX35/FX45 Check SheetNKS0034H NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control uni

Page 3411 of 4462

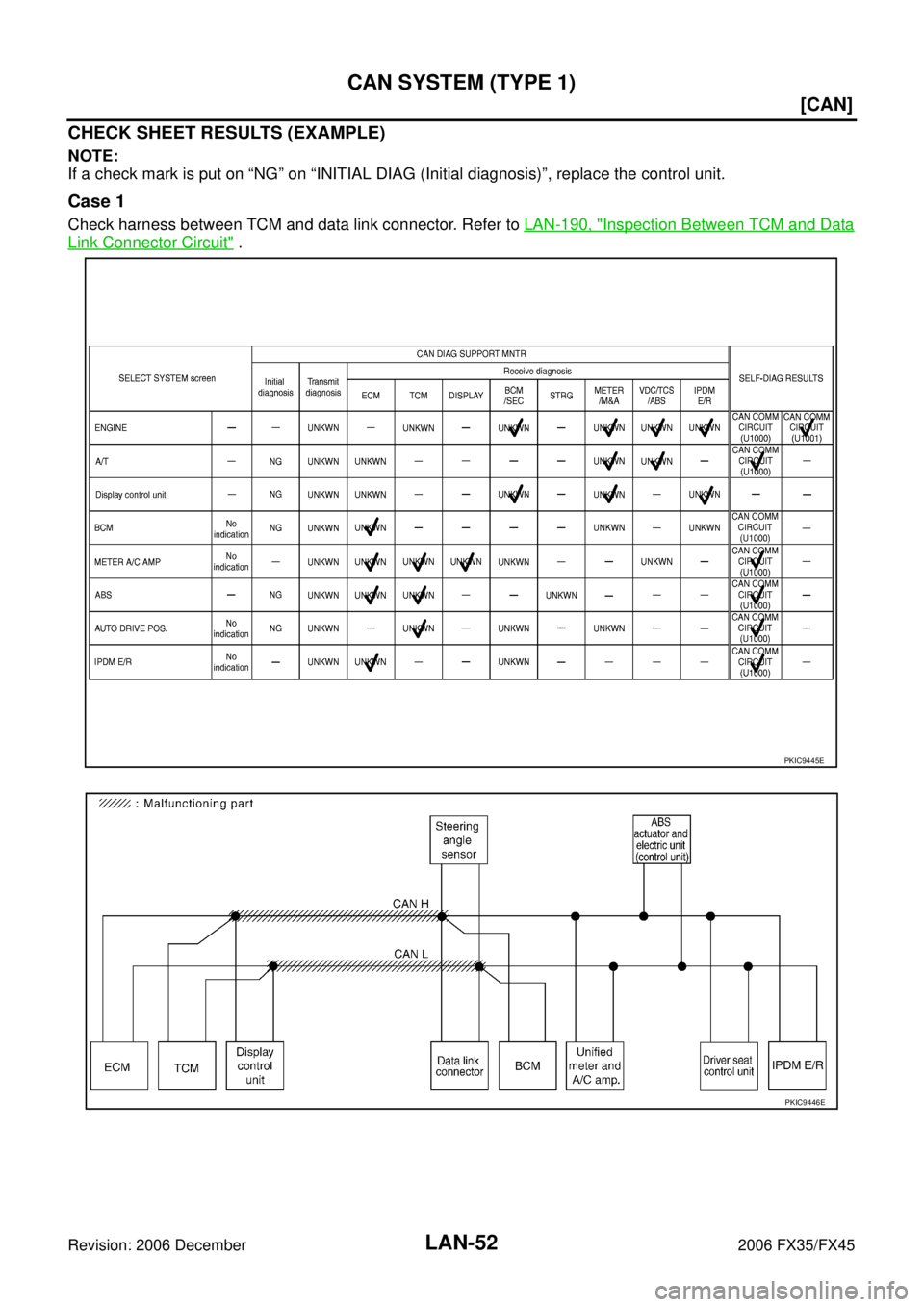

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 1) LAN-51 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 PKIB4359E

Page 3412 of 4462

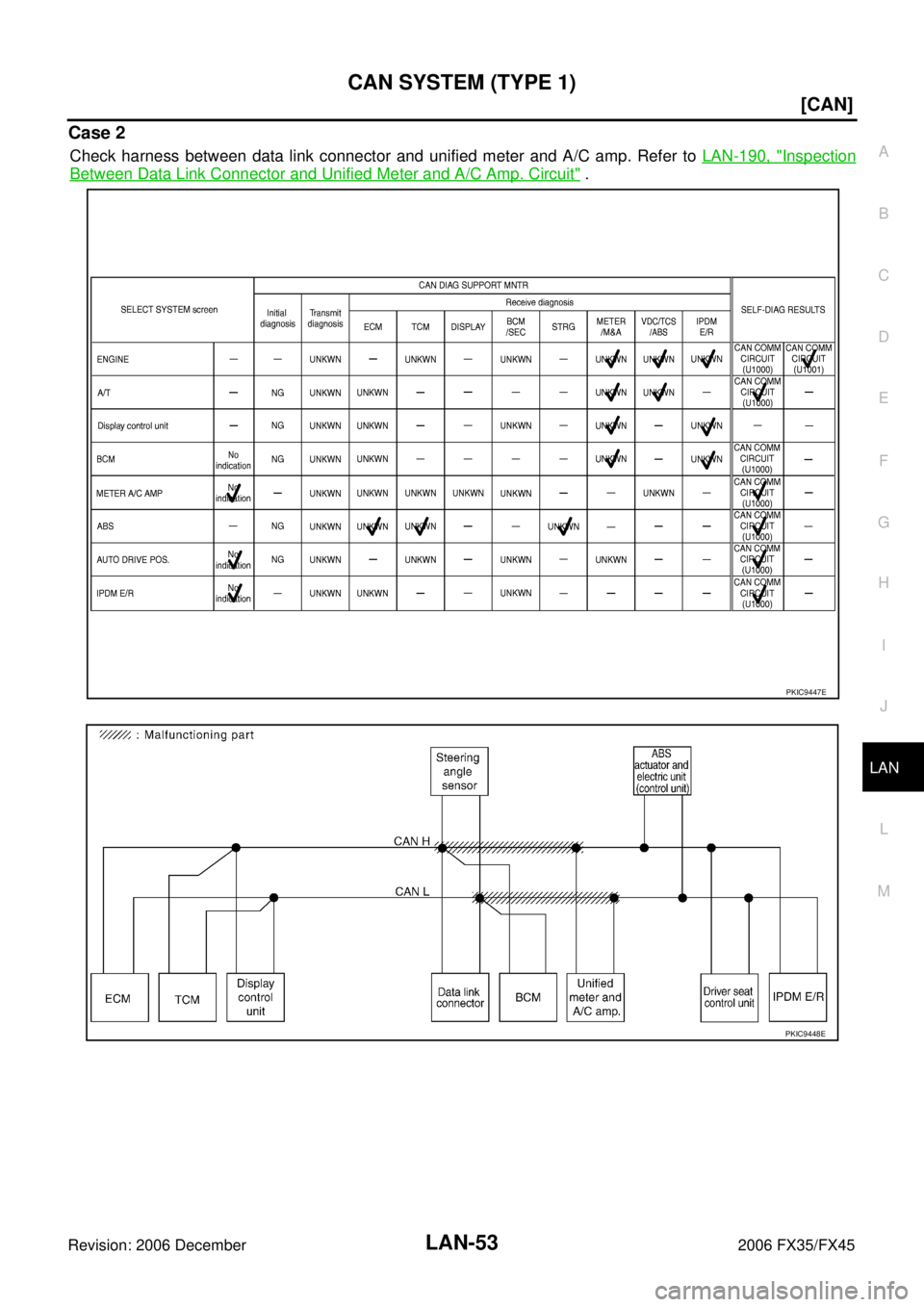

INFINITI FX35 2006 Service Manual LAN-52 [CAN] CAN SYSTEM (TYPE 1) Revision: 2006 December 2006 FX35/FX45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the c

Page 3413 of 4462

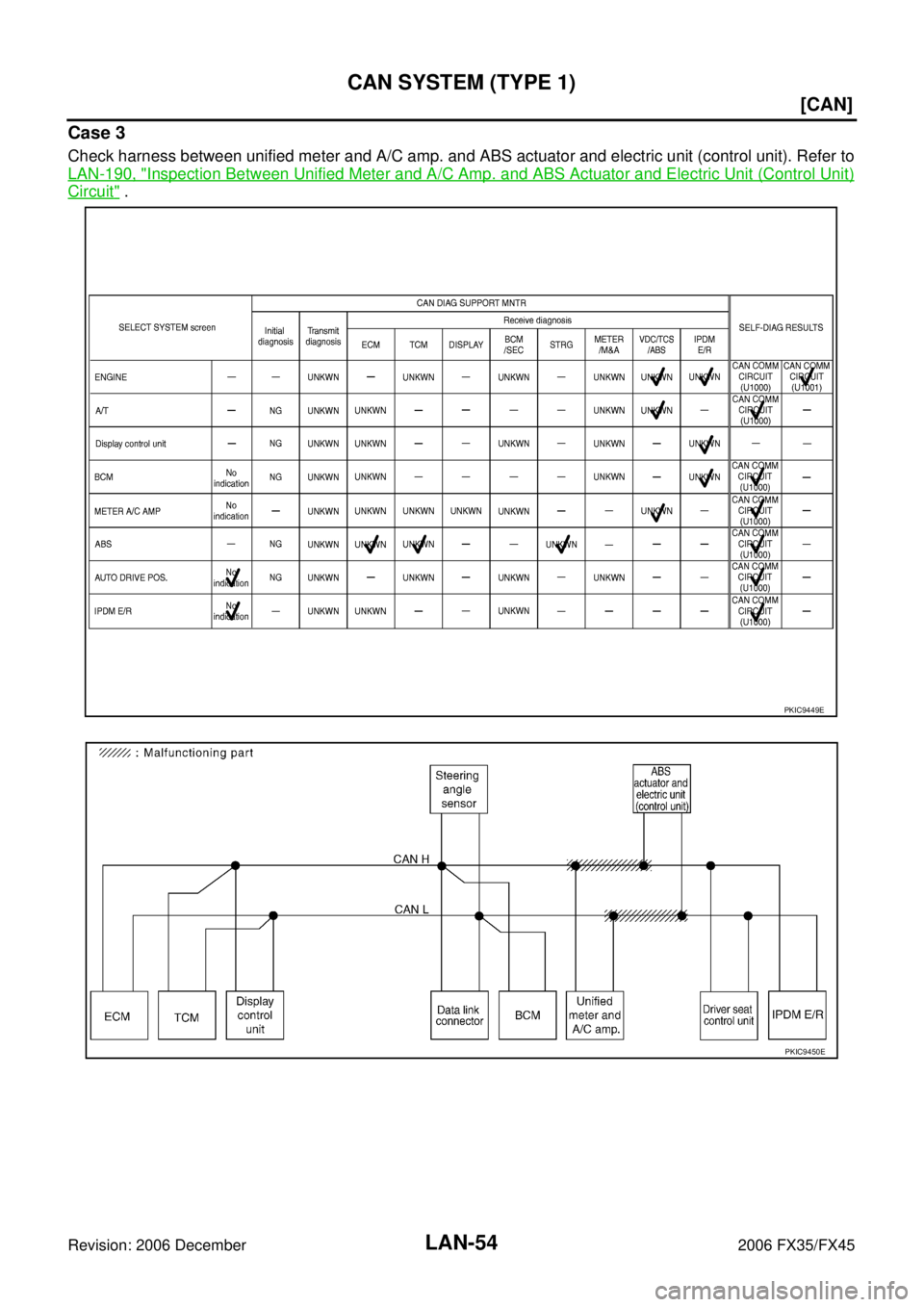

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 1) LAN-53 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to

Page 3414 of 4462

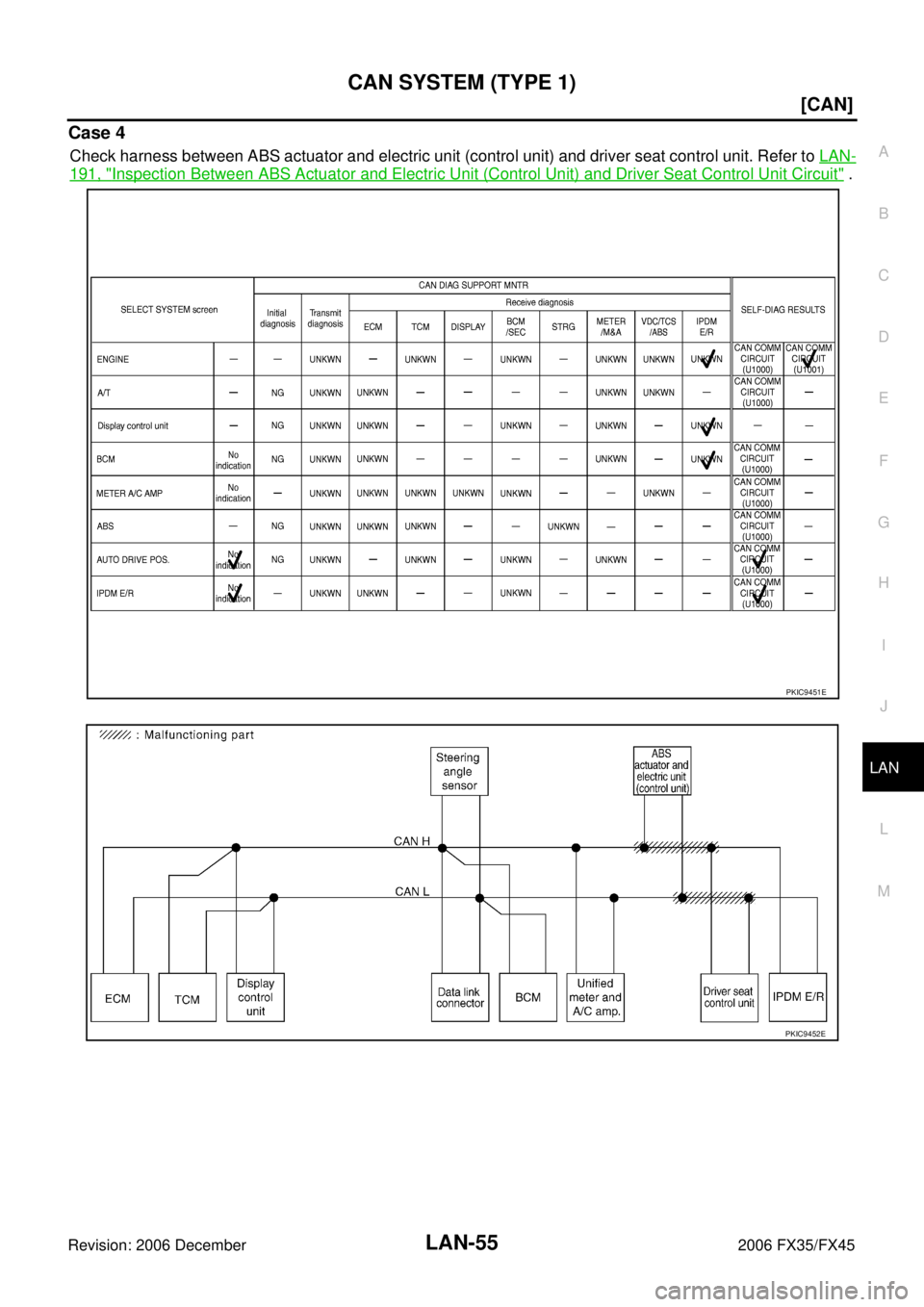

INFINITI FX35 2006 Service Manual LAN-54 [CAN] CAN SYSTEM (TYPE 1) Revision: 2006 December 2006 FX35/FX45 Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to LAN-190, "

Page 3415 of 4462

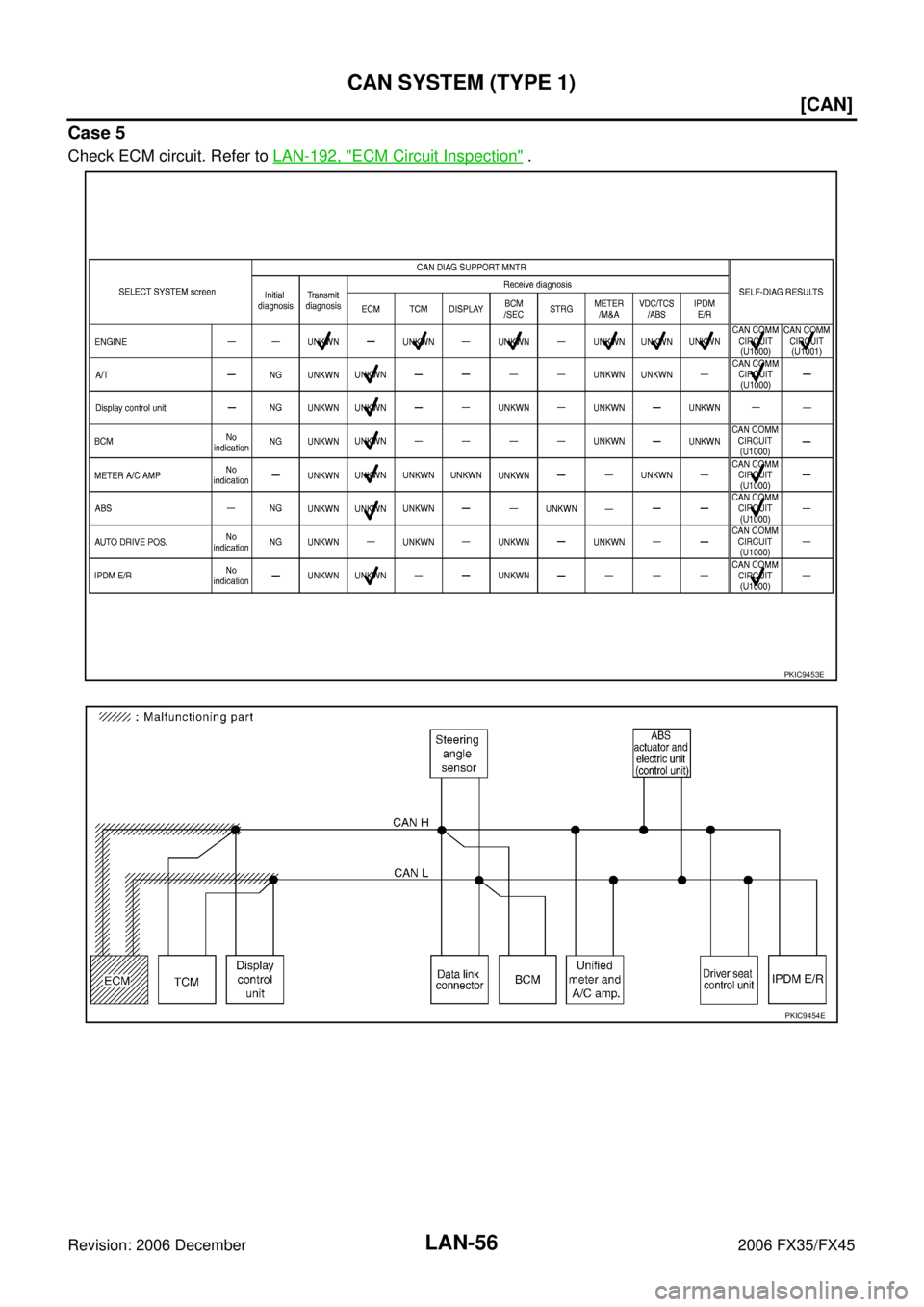

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 1) LAN-55 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 4 Check harness between ABS actuator and electric unit (control unit) and driver se

Page 3416 of 4462

INFINITI FX35 2006 Service Manual LAN-56 [CAN] CAN SYSTEM (TYPE 1) Revision: 2006 December 2006 FX35/FX45 Case 5 Check ECM circuit. Refer to LAN-192, "ECM Circuit Inspection" . PKIC9453E PKIC9454E
