DTC P0122, P0123 TP SENSOR EC-217
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

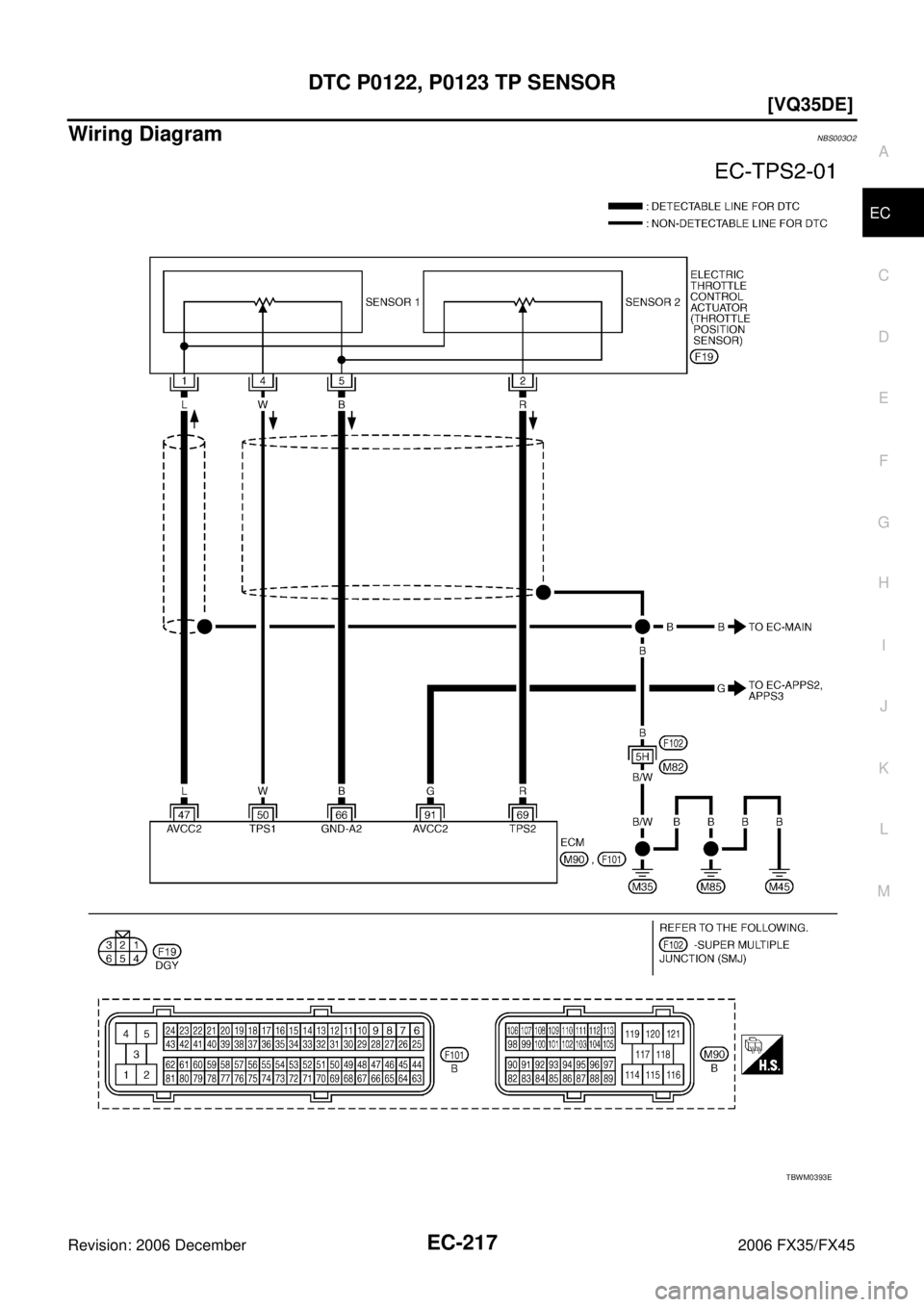

Wiring DiagramNBS003O2
TBWM0393E
Page 1602 of 4462
![INFINITI FX35 2006 Service Manual EC-218
[VQ35DE]
DTC P0122, P0123 TP SENSOR
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM g INFINITI FX35 2006 Service Manual EC-218
[VQ35DE]
DTC P0122, P0123 TP SENSOR
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM g](/manual-img/42/57019/w960_57019-1601.png)
EC-218
[VQ35DE]
DTC P0122, P0123 TP SENSOR
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS003O3
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-154, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
47 L Sensor power supply
(Throttle position sensor) [Ignition switch: ON]
Approximately 5V
50 W Throttle position sensor 1 [Ignition switch: ON]
Engine stopped
Selector lever: D
Accelerator pedal: Fully released
More than 0.36V
[Ignition switch: ON]
Engine stopped
Selector lever: D
Accelerator pedal: Fully depressed Less than 4.75V
66 B Sensor ground
(Throttle position sensor) [Engine is running]
Warm-up condition
Idle speed
Approximately 0V
69 R Throttle position sensor 2 [Ignition switch: ON]
Engine stopped
Selector lever: D
Accelerator pedal: Fully released
Less than 4.75V
[Ignition switch: ON]
Engine stopped
Selector lever: D
Accelerator pedal: Fully depressed More than 0.36V
91 G Sensor power supply
(APP sensor 2) [Ignition switch: ON]
Approximately 5V
PBIB2625E
Page 1603 of 4462
![INFINITI FX35 2006 Service Manual DTC P0122, P0123 TP SENSOR EC-219
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
2. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect elect INFINITI FX35 2006 Service Manual DTC P0122, P0123 TP SENSOR EC-219
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
2. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect elect](/manual-img/42/57019/w960_57019-1602.png)
DTC P0122, P0123 TP SENSOR EC-219
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
2. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.
3. Check voltage between electric throttle control actuator terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 1 and ECM terminal 47. Refer to Wiring Diagram.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit.
4. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-III
Check the following.
Harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 5.
NG >> Repair short to ground or short to power in harness or connectors.
5. CHECK APP SENSOR
Refer to EC-588, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 6.
PBIB1557E
Voltage: Approximately 5V
PBIB0082E
Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
47 Electric throttle control actuator terminal 1 EC-217
91 APP sensor terminal 4EC-584
Page 1604 of 4462
![INFINITI FX35 2006 Service Manual EC-220
[VQ35DE]
DTC P0122, P0123 TP SENSOR
Revision: 2006 December 2006 FX35/FX45
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-84, "
Accelerator Pedal INFINITI FX35 2006 Service Manual EC-220
[VQ35DE]
DTC P0122, P0123 TP SENSOR
Revision: 2006 December 2006 FX35/FX45
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-84, "
Accelerator Pedal](/manual-img/42/57019/w960_57019-1603.png)
EC-220
[VQ35DE]
DTC P0122, P0123 TP SENSOR
Revision: 2006 December 2006 FX35/FX45
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-84, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-84, "
Throttle Valve Closed Position Learning" .
4. Perform EC-84, "
Idle Air Volume Learning" .
>> INSPECTION END
7. CHECK THROTTLE POSITION SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 5 and ECM terminal 66. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK THROTTLE POSITION SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 69 and electric throttle control actuator terminal 2. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK THROTTLE POSITION SENSOR
Refer to EC-221, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-84, "
Throttle Valve Closed Position Learning" .
3. Perform EC-84, "
Idle Air Volume Learning" .
>> INSPECTION END
11 . CHECK INTERMITTENT INCIDENT
Refer to EC-148, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Continuity should exist.
Continuity should exist.
Page 1605 of 4462
![INFINITI FX35 2006 Service Manual DTC P0122, P0123 TP SENSOR EC-221
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Component InspectionNBS003O4
THROTTLE POSITION SENSOR
1. Reconnect all harness INFINITI FX35 2006 Service Manual DTC P0122, P0123 TP SENSOR EC-221
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Component InspectionNBS003O4
THROTTLE POSITION SENSOR
1. Reconnect all harness](/manual-img/42/57019/w960_57019-1604.png)
DTC P0122, P0123 TP SENSOR EC-221
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Component InspectionNBS003O4
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-84, "
Throttle Valve Closed Position Learning" .
3. Turn ignition switch ON.
4. Set selector lever to D position.
5. Check voltage between ECM terminals 50 (TP sensor 1signal), 69 (TP sensor 2signal) and body ground under the following
conditions.
6. If NG, replace electric throttle control actuator and go to the next step.
7. Perform EC-84, "
Throttle Valve Closed Position Learning" .
8. Perform EC-84, "
Idle Air Volume Learning" .
Removal and InstallationNBS003O5
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-19, "INTAKE MANIFOLD COLLECTOR" .
Terminal Accelerator pedal Voltage
50
(Throttle position sensor 1) Fully released More than 0.36V
Fully depressed Less than 4.75V
69
(Throttle position sensor 2) Fully released Less than 4.75V
Fully depressed More than 0.36V
PBIB1608E
Page 1606 of 4462
![INFINITI FX35 2006 Service Manual EC-222
[VQ35DE]
DTC P0125 ECT SENSOR
Revision: 2006 December 2006 FX35/FX45
DTC P0125 ECT SENSORPFP:22630
Component DescriptionNBS003O6
NOTE:
If DTC P0125 is displayed with P0117 or P0118, first perf INFINITI FX35 2006 Service Manual EC-222
[VQ35DE]
DTC P0125 ECT SENSOR
Revision: 2006 December 2006 FX35/FX45
DTC P0125 ECT SENSORPFP:22630
Component DescriptionNBS003O6
NOTE:
If DTC P0125 is displayed with P0117 or P0118, first perf](/manual-img/42/57019/w960_57019-1605.png)
EC-222
[VQ35DE]
DTC P0125 ECT SENSOR
Revision: 2006 December 2006 FX35/FX45
DTC P0125 ECT SENSORPFP:22630
Component DescriptionNBS003O6
NOTE:
If DTC P0125 is displayed with P0117 or P0118, first perform the trouble diagnosis for DTC P0117 or
P0118. Refer to EC-210, "
DTC P0117, P0118 ECT SENSOR" .
The engine coolant temperature (ECT) sensor is used to detect the
engine coolant temperature. The sensor modifies a voltage signal
from the ECM. The modified signal returns to the ECM as the engine
coolant temperature input. The sensor uses a thermistor which is
sensitive to the change in temperature. The electrical resistance of
the thermistor decreases as temperature increases.
*: This data is reference values and is measured between ECM terminal 73 (Engine
coolant temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM termi-
nals, such as the ground.
On Board Diagnosis LogicNBS003O7
SEF594K
Engine coolant
temperature °C ( °F) Voltage* V Resistance k
Ω
20 (68) 3.5 2.1 - 2.9
50 (122) 2.2 0.68 - 1.00
90 (194) 0.9 0.236 - 0.260
SEF012P
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0125
0125 Insufficient engine cool-
ant temperature for
closed loop fuel control
Voltage sent to ECM from the sensor is not
practical, even when some time has passed
after starting the engine.
Engine coolant temperature is insufficient for
closed loop fuel control.
Harness or connectors
(High resistance in the circuit)
Engine coolant temperature sensor
Thermostat
Page 1607 of 4462
![INFINITI FX35 2006 Service Manual DTC P0125 ECT SENSOR EC-223
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC Confirmation ProcedureNBS003O8
CAUTION:
Be careful not to overheat engine.
NOTE INFINITI FX35 2006 Service Manual DTC P0125 ECT SENSOR EC-223
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC Confirmation ProcedureNBS003O8
CAUTION:
Be careful not to overheat engine.
NOTE](/manual-img/42/57019/w960_57019-1606.png)
DTC P0125 ECT SENSOR EC-223
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC Confirmation ProcedureNBS003O8
CAUTION:
Be careful not to overheat engine.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Check that “COOLAN TEMP/S” is above 10 °C (50 °F).
If it is above 10 °C (50 °F), the test result will be OK.
If it is below 10 °C (50 °F), go to following step.
4. Start engine and run it for 65 minutes at idle speed. If “COOLAN TEMP/S” increases to more than 10 °C (50 °F)
within 65 minutes, stop engine because the test result will
be OK.
5. If 1st trip DTC is detected, go to EC-223, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureNBS003O9
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-154, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-224, "
Component Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Replace engine coolant temperature sensor.
SEF174Y
PBIB2625E
Page 1608 of 4462
EC-224
[VQ35DE]
DTC P0125 ECT SENSOR
Revision: 2006 December 2006 FX35/FX45
3. CHECK THERMOSTAT OPERATION
When the engine is cold [lower than 70 °C (158 °F)] condition, grasp lower radiator hose and confirm the engine
coolant does not flow.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace thermostat. Refer to CO-27, "
WATER INLET AND THERMOSTAT ASSEMBLY"
.
4. CHECK INTERMITTENT INCIDENT
Refer to EC-148, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
Refer to EC-212, "
Wiring Diagram" .
>> INSPECTION END
Component InspectionNBS003OA
ENGINE COOLANT TEMPERATURE SENSOR
Check resistance between engine coolant temperature sensor termi-
nals 1 and 2 as shown in the figure.
If NG, replace engine coolant temperature sensor.
Removal and InstallationNBS003OB
ENGINE COOLANT TEMPERATURE SENSOR
Refer to CO-27, "WATER INLET AND THERMOSTAT ASSEMBLY" .
PBIB2005E
Engine coolant temperature °C ( °F) Resistance k Ω
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
SEF012P
