Page 1977 of 4462

INFINITI FX35 2006 Service Manual DTC P2135 TP SENSOR EC-593
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

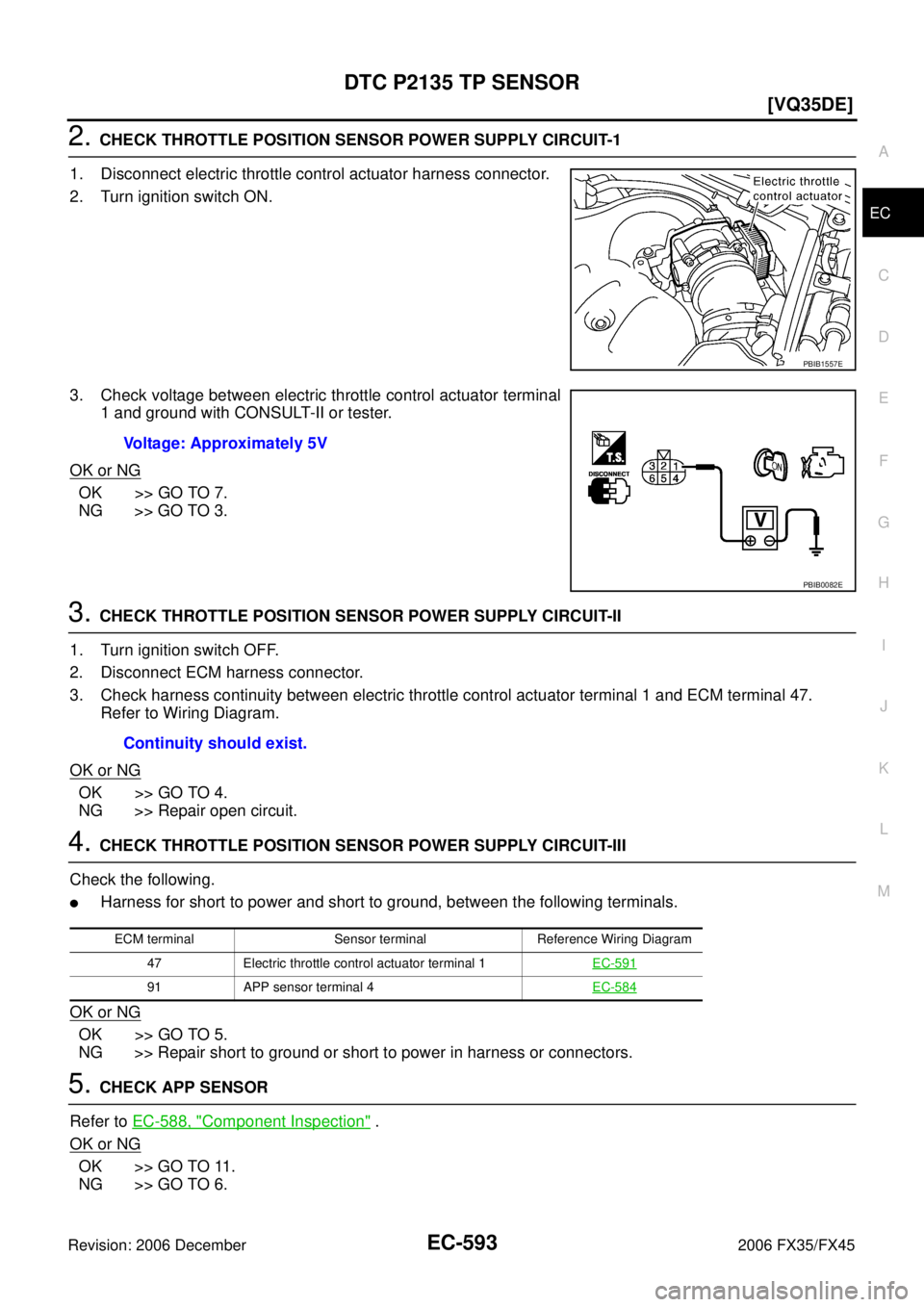

2. CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT-1
1. Disconnect electric throt

Page 1978 of 4462

INFINITI FX35 2006 Service Manual EC-594
[VQ35DE]
DTC P2135 TP SENSOR
Revision: 2006 December 2006 FX35/FX45
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-84, "
Accelerator Pedal Releas

Page 1979 of 4462

INFINITI FX35 2006 Service Manual DTC P2135 TP SENSOR EC-595
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

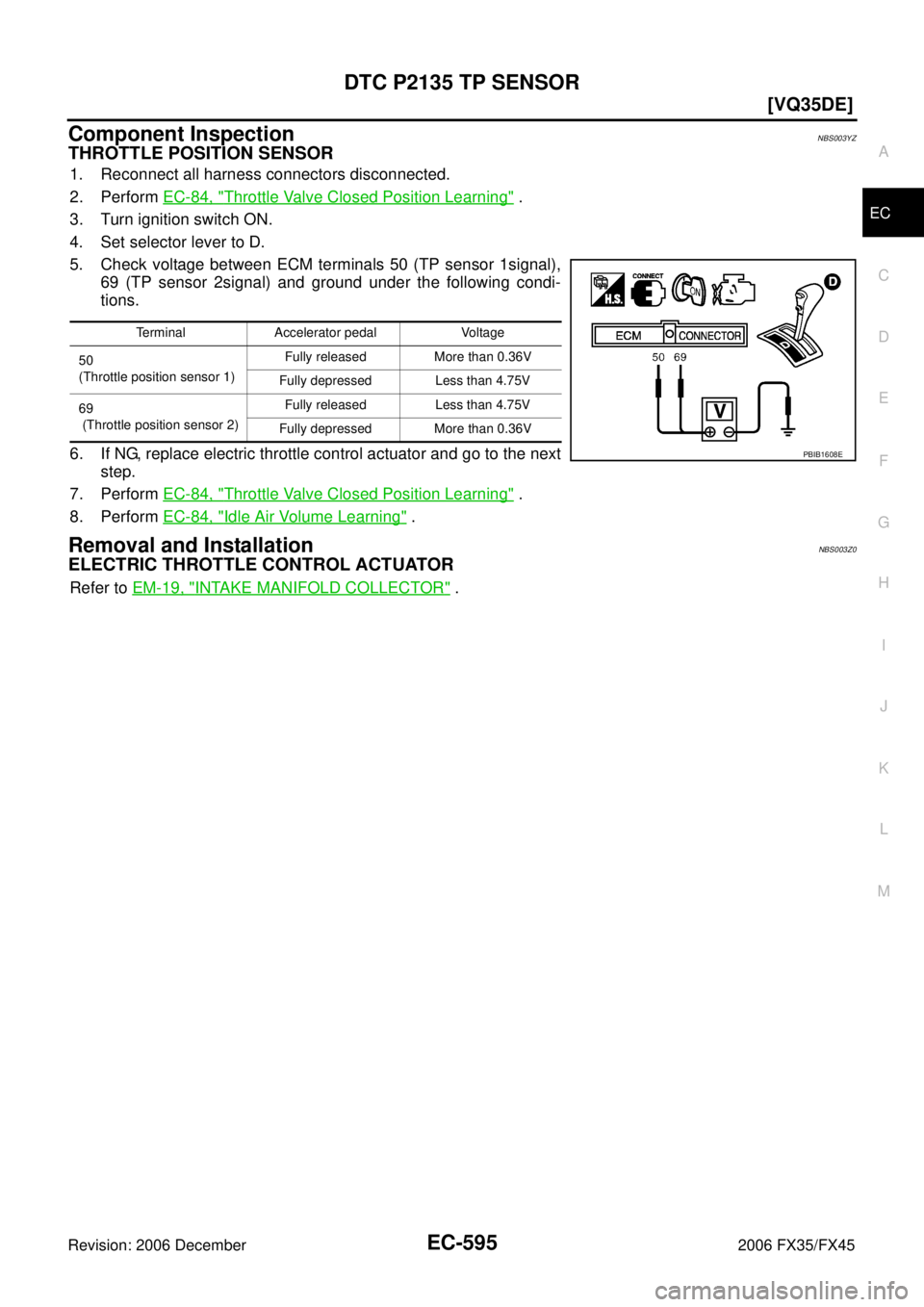

Component InspectionNBS003YZ
THROTTLE POSITION SENSOR
1. Reconnect all harness connect

Page 1980 of 4462

INFINITI FX35 2006 Service Manual EC-596
[VQ35DE]
DTC P2138 APP SENSOR
Revision: 2006 December 2006 FX35/FX45
DTC P2138 APP SENSORPFP:18002
Component DescriptionNBS003Z1
The accelerator pedal position (APP) sensor is installed on the

EC-596
[VQ35DE]
DTC P2138 APP SENSOR
Revision: 2006 December 2006 FX35/FX45
DTC P2138 APP SENSORPFP:18002
Component DescriptionNBS003Z1
The accelerator pedal position (APP) sensor is installed on the upper
end of the accelerator pedal assembly. The sensor detects the
accelerator position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-II Reference Value in Data Monitor ModeNBS003Z2
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.
On Board Diagnosis LogicNBS003Z3
This self-diagnosis has the one trip detection logic.
NOTE:
If DTC P2138 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
Refer to EC-484, "
DTC P0643 SENSOR POWER SUPPLY" .
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN 1
Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.0 - 4.8V
ACCEL SEN 2*
Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.3 - 1.2V
Accelerator pedal: Fully depressed 3.9 - 4.8V
CLSD THL POS
Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2138
2138 Accelerator pedal posi-
tion sensor circuit
range/performance Rationally incorrect voltage is sent to ECM
compared with the signals from APP sensor 1
and APP sensor 2.
Harness or connector
(APP sensor 1 and 2 circuit is open or
shorted.)
(TP sensor circuit is shorted.)
Accelerator pedal position sensor
(APP sensor 1 and 2)
Electric throttle control actuator
(TP sensor 1 and 2)
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

Page 1981 of 4462

INFINITI FX35 2006 Service Manual DTC P2138 APP SENSOR EC-597
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

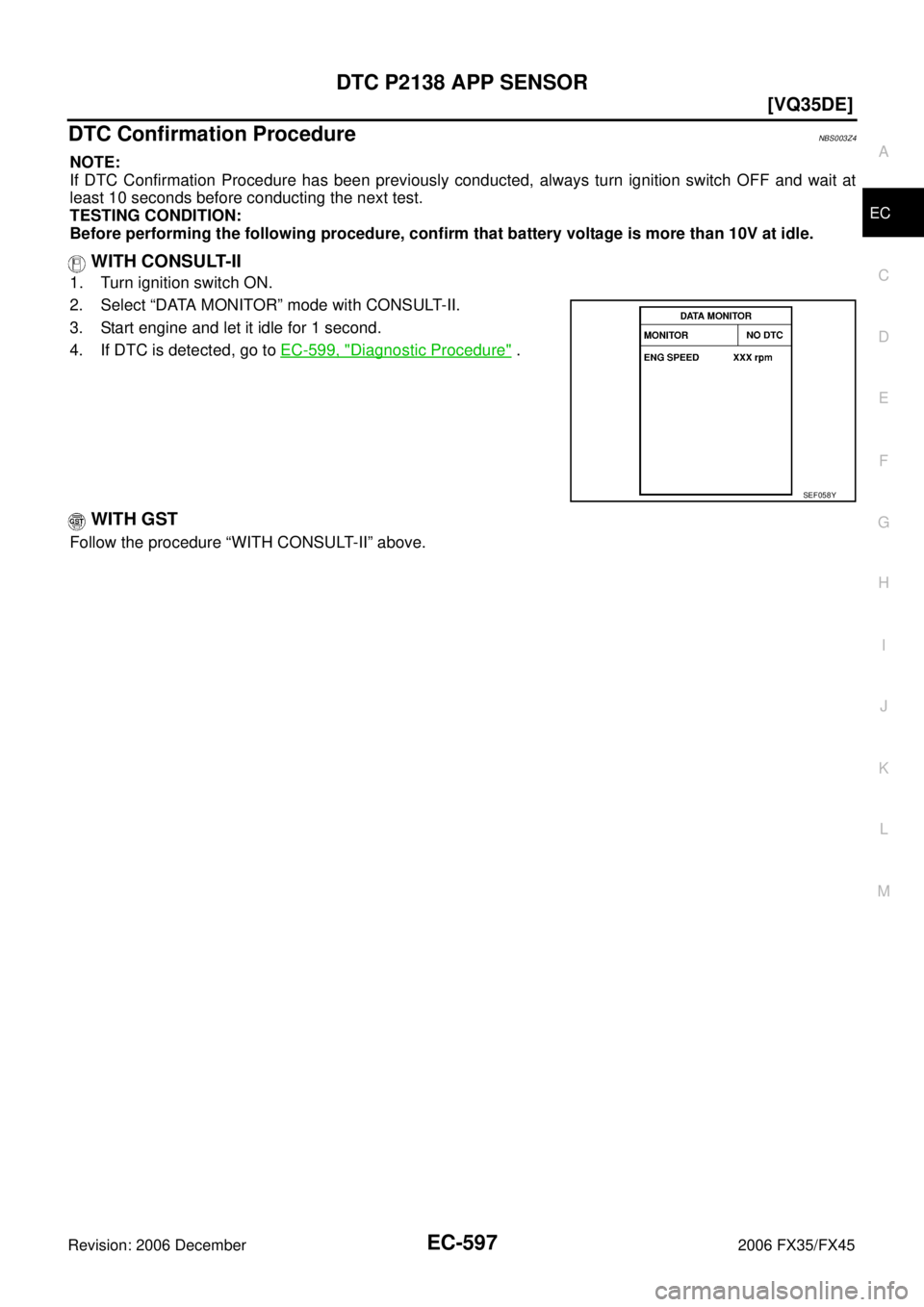

DTC Confirmation ProcedureNBS003Z4
NOTE:
If DTC Confirmation Procedure has been prev

Page 1982 of 4462

INFINITI FX35 2006 Service Manual EC-598
[VQ35DE]
DTC P2138 APP SENSOR
Revision: 2006 December 2006 FX35/FX45

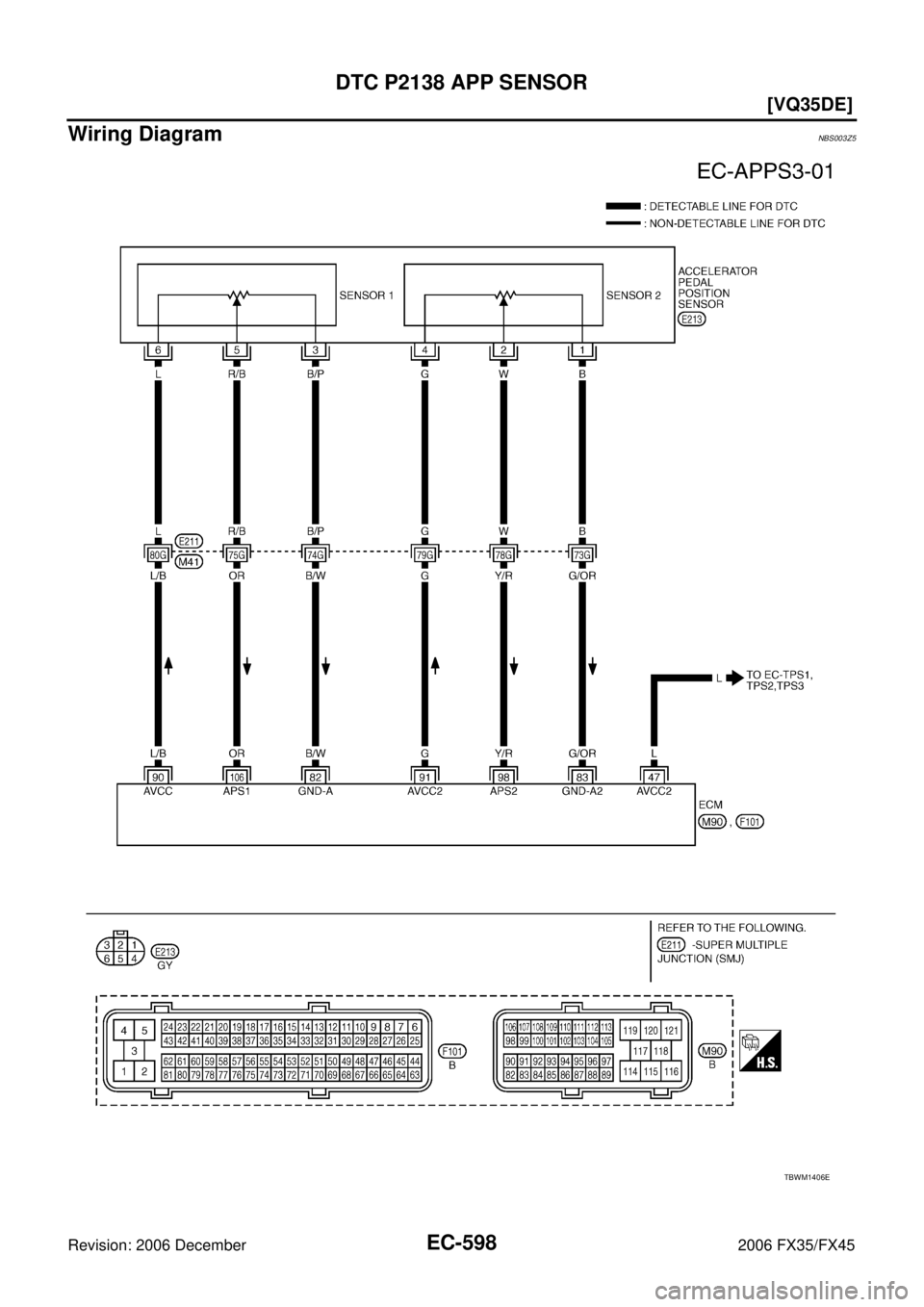

Wiring DiagramNBS003Z5
TBWM1406E

Page 1983 of 4462

INFINITI FX35 2006 Service Manual DTC P2138 APP SENSOR EC-599
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

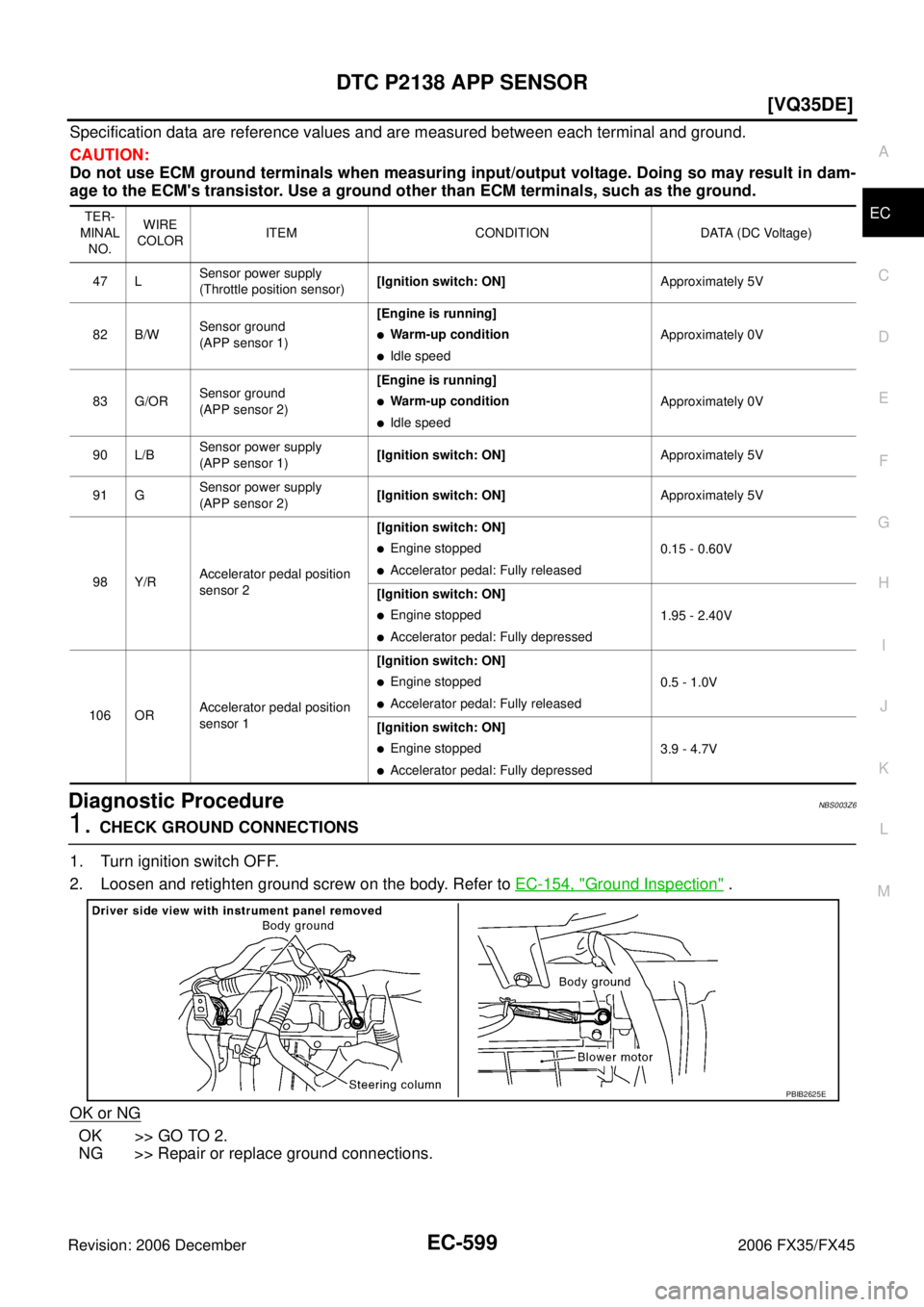

Specification data are reference values and are measured between each terminal and gr

Page 1984 of 4462

INFINITI FX35 2006 Service Manual EC-600
[VQ35DE]
DTC P2138 APP SENSOR
Revision: 2006 December 2006 FX35/FX45

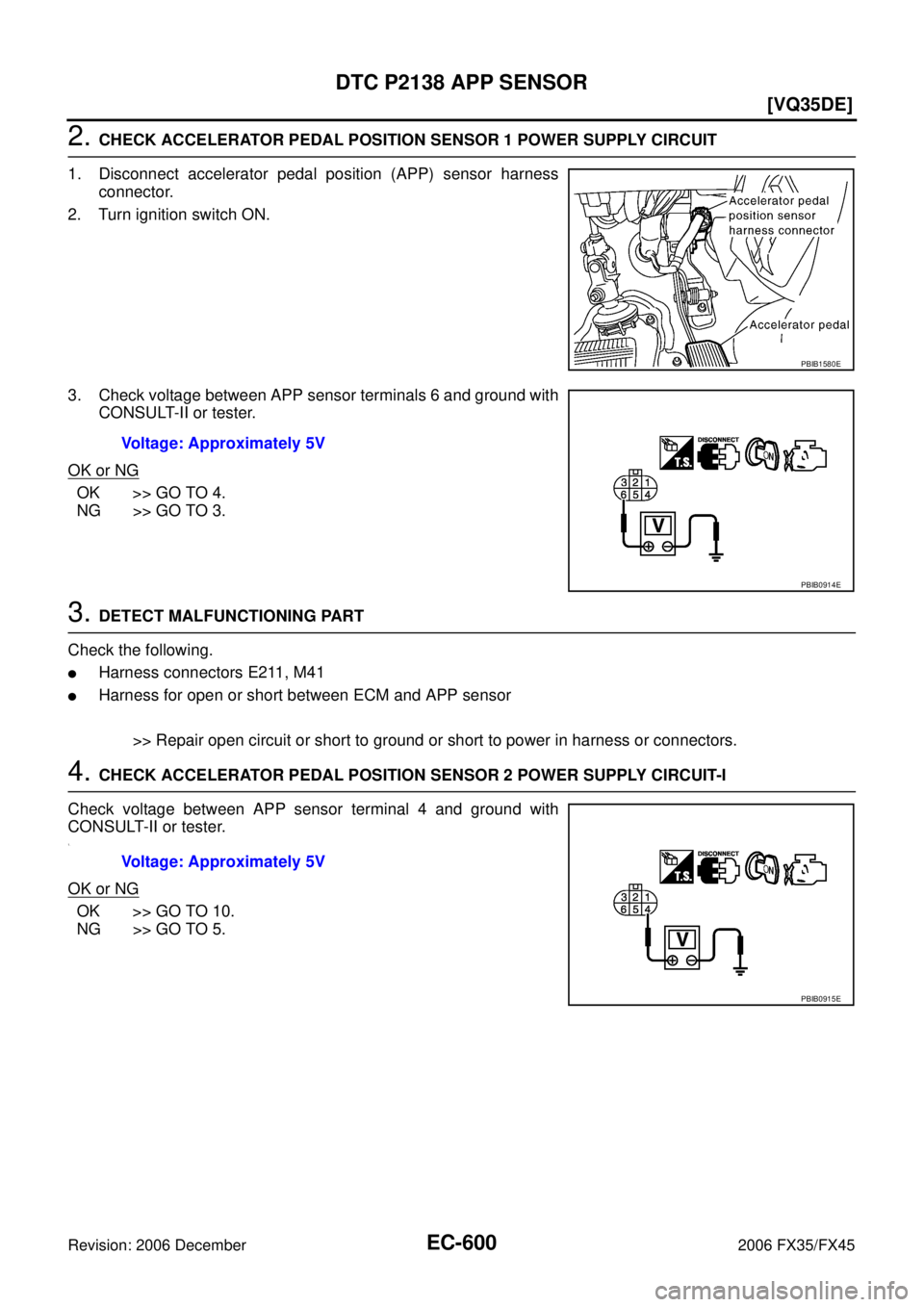

2. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor har
