Page 4185 of 4462

AUTOMATIC DRIVE POSITIONER SE-47
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45
3. CHECK FRONT LIFTING MOTOR HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect driver seat control unit connector and front lifting motor connector.
3. Check continuity between driver seat control unit connector B153 and terminals 5, 13 and front lifting motor connector B164
terminals 5, 13.
4. Check continuity between driver seat control unit connector B153 and terminals 5, 13 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between driver seat control unit and front lifting motor.
4. CHECK DRIVER SEAT CONTROL UNIT OUTPUT SIGNAL
1. Connect the driver seat control unit connector.
2. Front lifting switch operate, check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Replace front lifting motor.
NG >> Replace driver seat control unit.
Check Rear Lifting Motor CircuitNIS001V5
1. CHECK REAR LIFTING MECHANISM
Check the following.
Operation malfunction caused by lifter mechanism deformation or pinched harness or other foreign mate-
rials
Operation malfunction caused by foreign materials adhered to the lifter motor or lead screws
Operation malfunction and interference with other parts by poor installation
OK or NG
OK >>GO TO 2 (With CONSULT-II).
GO TO 3 (Without CONSULT-II).
NG >> Repair the malfunctioning part and check again. 5 (LG) – 5 (LG) : Continuity should exist.
13 (Y) – 13 (Y) : Continuity should exist.
5 (LG) – Ground : Continuity should not exist.
13 (Y) – Ground : Continuity should not exist.
PIIA6120E
Connector Te r m i n a l s
(Wire color) Front lifting switch condition Voltage (V)
(Approx.)
(+) (–)
B153 5 (LG)
Ground DOWN Battery voltage
Other than above 0
13 (Y) UP Battery voltage
Other than above 0
PIIA6119E
Page 4186 of 4462

SE-48
AUTOMATIC DRIVE POSITIONER
Revision: 2006 December 2006 FX35/FX45

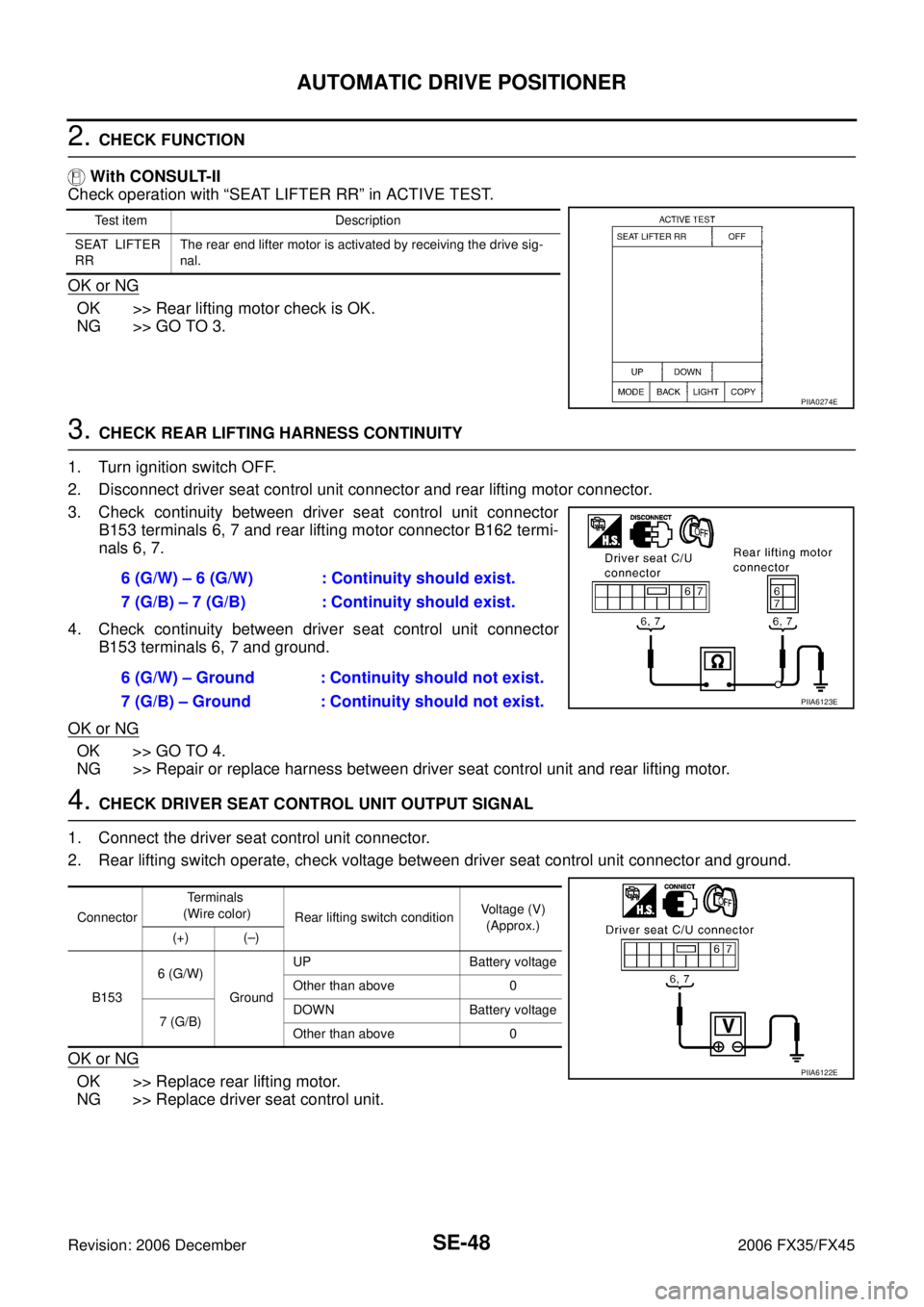

2. CHECK FUNCTION
With CONSULT-II
Check operation with “SEAT LIFTER RR” in ACTIVE TEST.
OK or NG
OK >> Rear lifting motor check is OK.
NG >> GO TO 3.
3. CHECK REAR LIFTING HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect driver seat control unit connector and rear lifting motor connector.
3. Check continuity between driver seat control unit connector B153 terminals 6, 7 and rear lifting motor connector B162 termi-
nals 6, 7.
4. Check continuity between driver seat control unit connector B153 terminals 6, 7 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between driver seat control unit and rear lifting motor.
4. CHECK DRIVER SEAT CONTROL UNIT OUTPUT SIGNAL
1. Connect the driver seat control unit connector.
2. Rear lifting switch operate, check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Replace rear lifting motor.
NG >> Replace driver seat control unit.
Test item Description
SEAT LIFTER
RR The rear end lifter motor is activated by receiving the drive sig-
nal.
PIIA0274E
6 (G/W) – 6 (G/W) : Continuity should exist.
7 (G/B) – 7 (G/B) : Continuity should exist.
6 (G/W) – Ground : Continuity should not exist.
7 (G/B) – Ground : Continuity should not exist.
PIIA6123E
Connector Terminals
(Wire color) Rear lifting switch condition Voltage (V)
(Approx.)
(+) (–)
B153 6 (G/W)
Ground UP Battery voltage
Other than above 0
7 (G/B) DOWN Battery voltage
Other than above 0
PIIA6122E
Page 4187 of 4462

AUTOMATIC DRIVE POSITIONER SE-49
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45

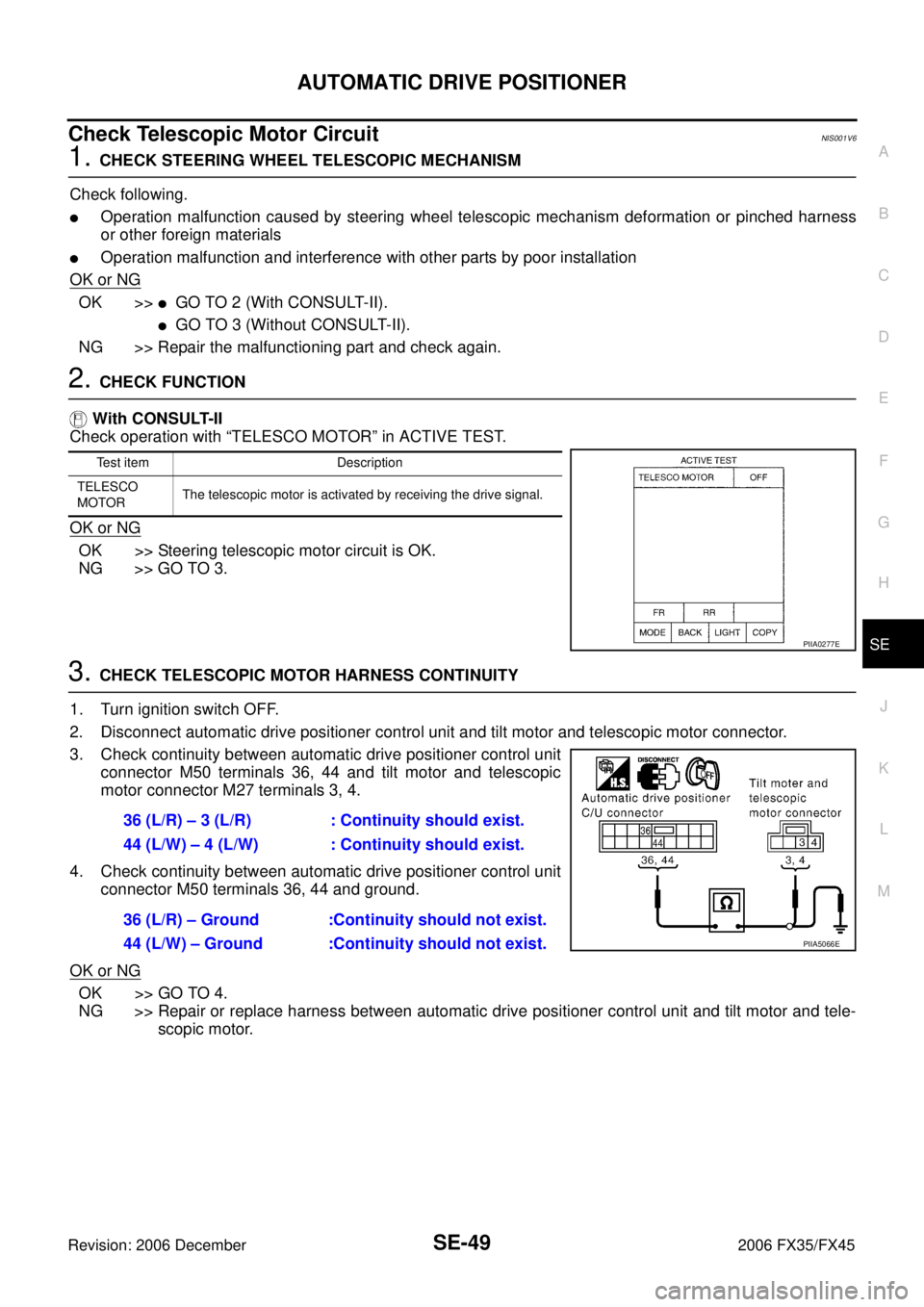

Check Telescopic Motor CircuitNIS001V6
1. CHECK STEERING WHEEL TELESCOPIC MECHANISM
Check following.
Operation malfunction caused by steering wheel telescopic mechanism deformation or pinched harness
or other foreign materials
Operation malfunction and interference with other parts by poor installation
OK or NG
OK >>GO TO 2 (With CONSULT-II).
GO TO 3 (Without CONSULT-II).
NG >> Repair the malfunctioning part and check again.
2. CHECK FUNCTION
With CONSULT-II
Check operation with “TELESCO MOTOR” in ACTIVE TEST.
OK or NG
OK >> Steering telescopic motor circuit is OK.
NG >> GO TO 3.
3. CHECK TELESCOPIC MOTOR HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and tilt motor and telescopic motor connector.
3. Check continuity between automatic drive positioner control unit connector M50 terminals 36, 44 and tilt motor and telescopic
motor connector M27 terminals 3, 4.
4. Check continuity between automatic drive positioner control unit connector M50 terminals 36, 44 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between automatic drive positioner control unit and tilt motor and tele- scopic motor.
Test item Description
TELESCO
MOTOR The telescopic motor is activated by receiving the drive signal.
PIIA0277E
36 (L/R) – 3 (L/R) : Continuity should exist.
44 (L/W) – 4 (L/W) : Continuity should exist.
36 (L/R) – Ground :Continuity should not exist.
44 (L/W) – Ground :Continuity should not exist.
PIIA5066E
Page 4188 of 4462

SE-50
AUTOMATIC DRIVE POSITIONER
Revision: 2006 December 2006 FX35/FX45
4. CHECK BCM OUTPUT SIGNAL
1. Connect the automatic drive positioner control unit connector.
2. Telescopic switch operate, check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Replace tilt and telescopic motor.
NG >> Replace automatic drive positioner control unit.
Check Tilt Motor CircuitNIS001V7
1. CHECK STEERING WHEEL TILT MECHANISM
Check following.
Operation malfunction caused by steering wheel tilt mechanism deformation or pinched harness and
other foreign materials
Operation malfunction and interference with other parts by poor installation
OK or NG
OK >>GO TO 2 (With CONSULT-II).
GO TO 3 (Without CONSULT-II).
NG >> Repair the malfunctioning part.
2. CHECK FUNCTION
With CONSULT-II
Check operation with “TILT MOTOR” in ACTIVE TEST.
OK or NG
OK >> Steering tilt motor circuit is OK.
NG >> GO TO 3.
Connector Terminals
(Wire color) Telescopic switch condition Voltage (V)
(Approx.)
(+) (–)
M50 36 (L/R)
Ground FORWARD Battery voltage
Other than above 0
44 (L/W) BACKWARD Battery voltage
Other than above 0
PIIA5068E
Test item Description
TILT MOTOR The tilt motor is activated by receiving the drive signal.
PIIA0280E
Page 4189 of 4462

AUTOMATIC DRIVE POSITIONER SE-51
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45

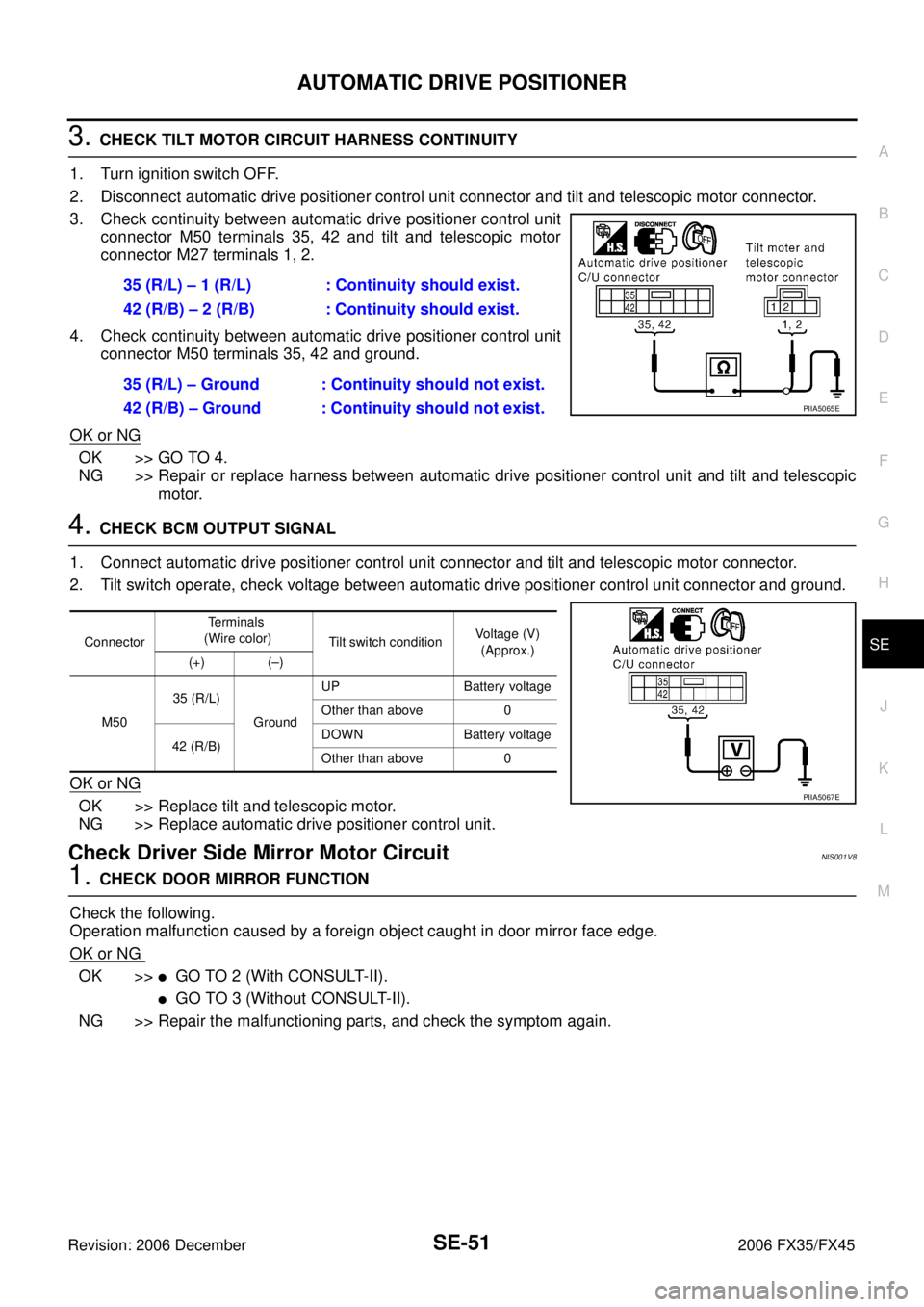

3. CHECK TILT MOTOR CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector and tilt and telescopic motor connector.
3. Check continuity between automatic drive positioner control unit connector M50 terminals 35, 42 and tilt and telescopic motor
connector M27 terminals 1, 2.
4. Check continuity between automatic drive positioner control unit connector M50 terminals 35, 42 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between automatic drive positioner control unit and tilt and telescopic
motor.
4. CHECK BCM OUTPUT SIGNAL
1. Connect automatic drive positioner control unit connector and tilt and telescopic motor connector.
2. Tilt switch operate, check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Replace tilt and telescopic motor.
NG >> Replace automatic drive positioner control unit.
Check Driver Side Mirror Motor CircuitNIS001V8
1. CHECK DOOR MIRROR FUNCTION
Check the following.
Operation malfunction caused by a foreign object caught in door mirror face edge.
OK or NG
OK >>GO TO 2 (With CONSULT-II).
GO TO 3 (Without CONSULT-II).
NG >> Repair the malfunctioning parts, and check the symptom again. 35 (R/L) – 1 (R/L) : Continuity should exist.
42 (R/B) – 2 (R/B) : Continuity should exist.
35 (R/L) – Ground : Continuity should not exist.
42 (R/B) – Ground : Continuity should not exist.
PIIA5065E
Connector Terminals
(Wire color) Tilt switch condition Voltage (V)
(Approx.)
(+) (–)
M50 35 (R/L)
Ground UP Battery voltage
Other than above 0
42 (R/B) DOWN Battery voltage
Other than above 0
PIIA5067E
Page 4190 of 4462

SE-52
AUTOMATIC DRIVE POSITIONER
Revision: 2006 December 2006 FX35/FX45

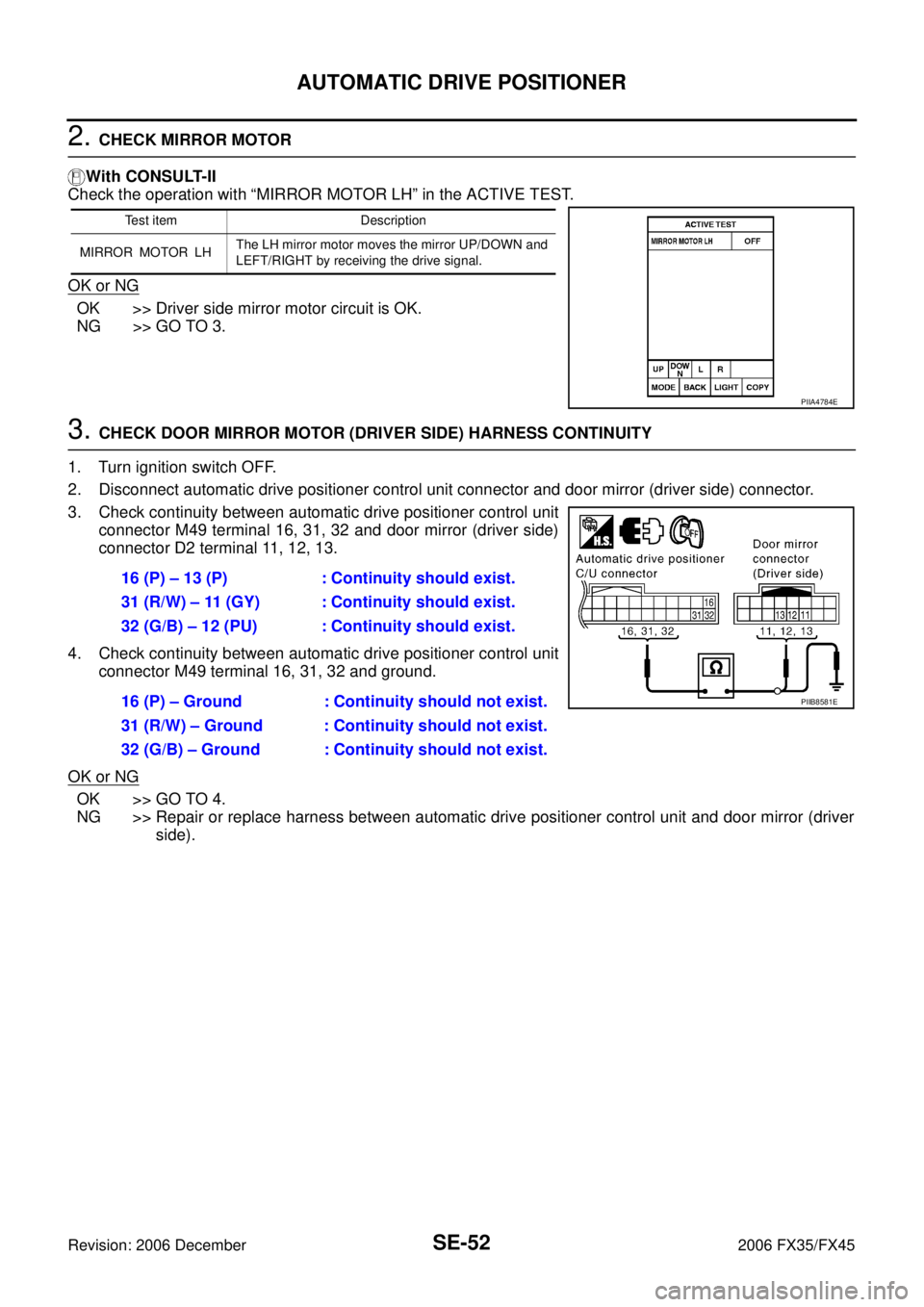

2. CHECK MIRROR MOTOR
With CONSULT-II
Check the operation with “MIRROR MOTOR LH” in the ACTIVE TEST.
OK or NG
OK >> Driver side mirror motor circuit is OK.
NG >> GO TO 3.
3. CHECK DOOR MIRROR MOTOR (DRIVER SIDE) HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector and door mirror (driver side) connector.
3. Check continuity between automatic drive positioner control unit connector M49 terminal 16, 31, 32 and door mirror (driver side)
connector D2 terminal 11, 12, 13.
4. Check continuity between automatic drive positioner control unit connector M49 terminal 16, 31, 32 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between automatic drive positioner control unit and door mirror (driver side).
Test item Description
MIRROR MOTOR LH The LH mirror motor moves the mirror UP/DOWN and
LEFT/RIGHT by receiving the drive signal.
PIIA4784E
16 (P) – 13 (P) : Continuity should exist.
31 (R/W) – 11 (GY) : Continuity should exist.
32 (G/B) – 12 (PU) : Continuity should exist.
16 (P) – Ground : Continuity should not exist.
31 (R/W) – Ground : Continuity should not exist.
32 (G/B) – Ground : Continuity should not exist.
PIIB8581E
Page 4191 of 4462

AUTOMATIC DRIVE POSITIONER SE-53
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 December 2006 FX35/FX45

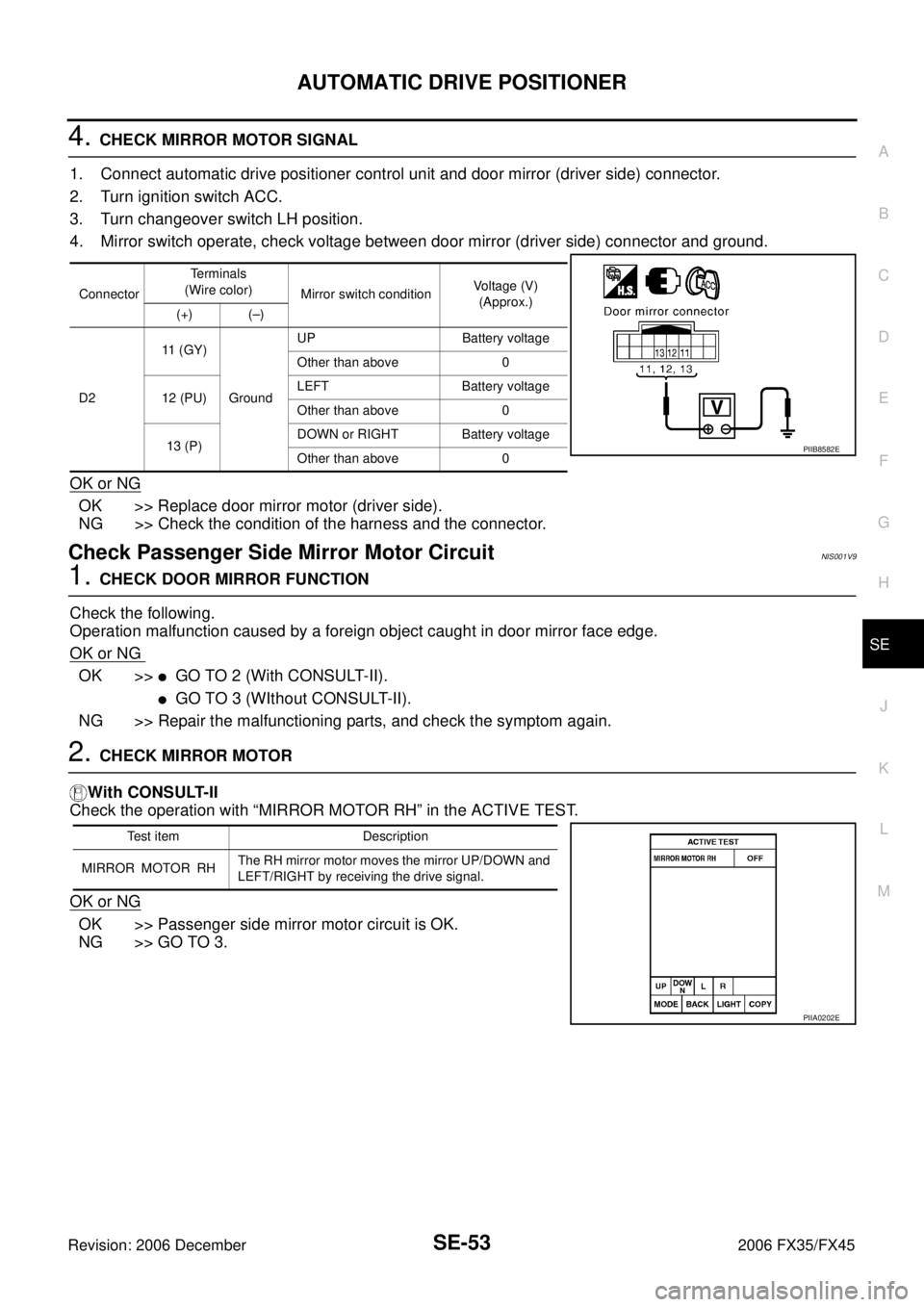

4. CHECK MIRROR MOTOR SIGNAL
1. Connect automatic drive positioner control unit and door mirror (driver side) connector.
2. Turn ignition switch ACC.
3. Turn changeover switch LH position.
4. Mirror switch operate, check voltage between door mirror (driver side) connector and ground.
OK or NG
OK >> Replace door mirror motor (driver side).
NG >> Check the condition of the harness and the connector.
Check Passenger Side Mirror Motor CircuitNIS001V9
1. CHECK DOOR MIRROR FUNCTION
Check the following.
Operation malfunction caused by a foreign object caught in door mirror face edge.
OK or NG
OK >>GO TO 2 (With CONSULT-II).
GO TO 3 (WIthout CONSULT-II).
NG >> Repair the malfunctioning parts, and check the symptom again.
2. CHECK MIRROR MOTOR
With CONSULT-II
Check the operation with “MIRROR MOTOR RH” in the ACTIVE TEST.
OK or NG
OK >> Passenger side mirror motor circuit is OK.
NG >> GO TO 3.
Connector Terminals
(Wire color) Mirror switch condition Voltage (V)
(Approx.)
(+) (–)
D2 11 ( G Y )
Ground UP Battery voltage
Other than above 0
12 (PU) LEFT Battery voltage
Other than above 0
13 (P) DOWN or RIGHT Battery voltage
Other than above 0
PIIB8582E
Test item Description
MIRROR MOTOR RH The RH mirror motor moves the mirror UP/DOWN and
LEFT/RIGHT by receiving the drive signal.
PIIA0202E
Page 4192 of 4462

SE-54
AUTOMATIC DRIVE POSITIONER
Revision: 2006 December 2006 FX35/FX45

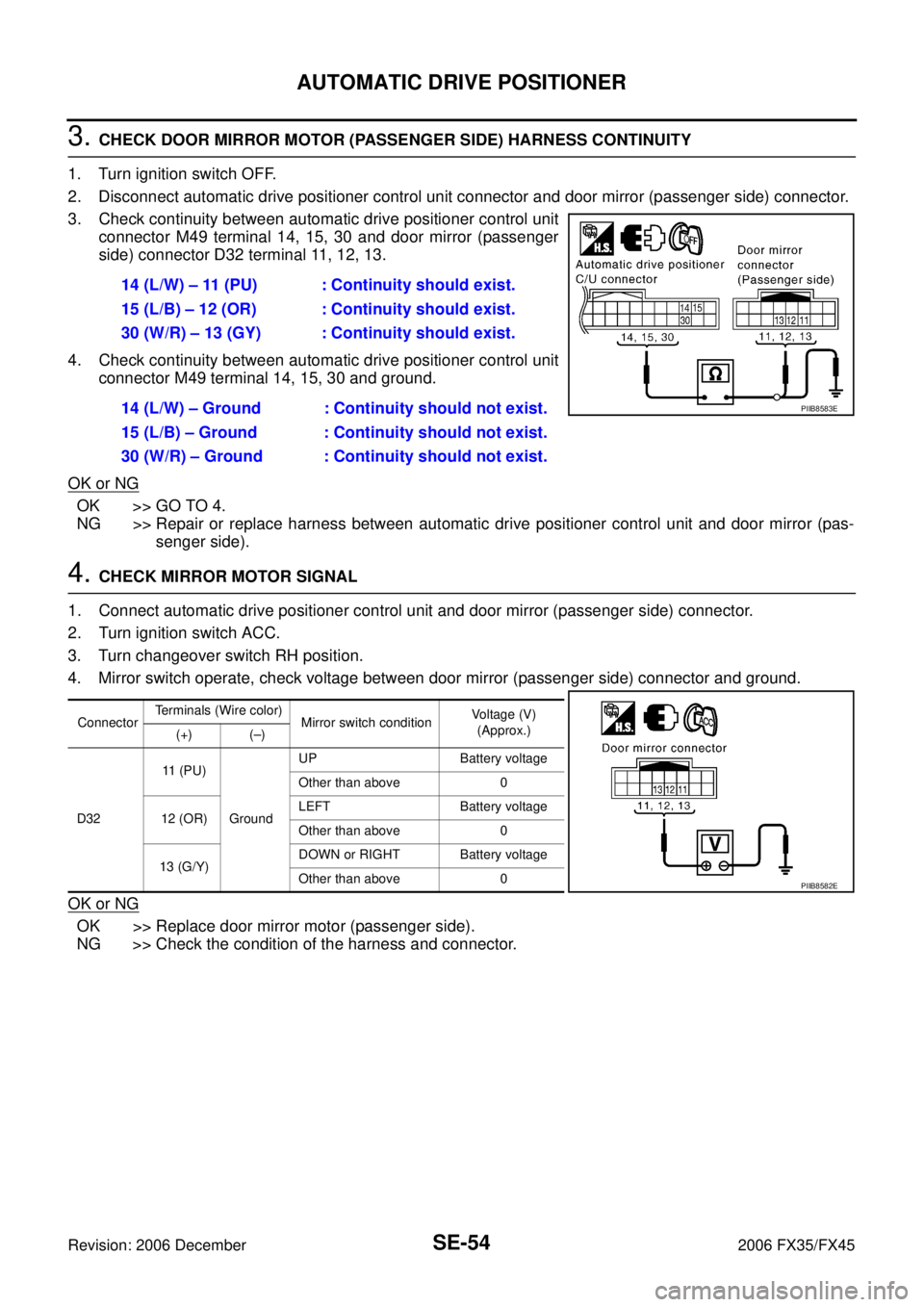

3. CHECK DOOR MIRROR MOTOR (PASSENGER SIDE) HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector and door mirror (passenger side) connector.
3. Check continuity between automatic drive positioner control unit connector M49 terminal 14, 15, 30 and door mirror (passenger
side) connector D32 terminal 11, 12, 13.
4. Check continuity between automatic drive positioner control unit connector M49 terminal 14, 15, 30 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between automatic drive positioner control unit and door mirror (pas- senger side).
4. CHECK MIRROR MOTOR SIGNAL
1. Connect automatic drive positioner control unit and door mirror (passenger side) connector.
2. Turn ignition switch ACC.
3. Turn changeover switch RH position.
4. Mirror switch operate, check voltage between door mirror (passenger side) connector and ground.
OK or NG
OK >> Replace door mirror motor (passenger side).
NG >> Check the condition of the harness and connector. 14 (L/W) – 11 (PU) : Continuity should exist.
15 (L/B) – 12 (OR) : Continuity should exist.
30 (W/R) – 13 (GY) : Continuity should exist.
14 (L/W) – Ground : Continuity should not exist.
15 (L/B) – Ground : Continuity should not exist.
30 (W/R) – Ground : Continuity should not exist.
PIIB8583E
Connector Terminals (Wire color)
Mirror switch condition Voltage (V)
(Approx.)
(+) (–)
D32 11 ( P U )
Ground UP Battery voltage
Other than above 0
12 (OR) LEFT Battery voltage
Other than above 0
13 (G/Y) DOWN or RIGHT Battery voltage
Other than above 0
PIIB8582E
